外壳 - 座椅靠背 - 驾驶位（拆卸和更换）

校正代码 13041002 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

警告
Seat base edges are sharp and can cause personal injury. Wear cut resistant gloves when removing the seat from the vehicle, and while performing procedures that involve work on or near the seat base.

拆卸

  1. 从座椅上拆下驾驶位头枕饰板。请参阅饰板 - 头枕 - 驾驶位（拆卸和更换）。

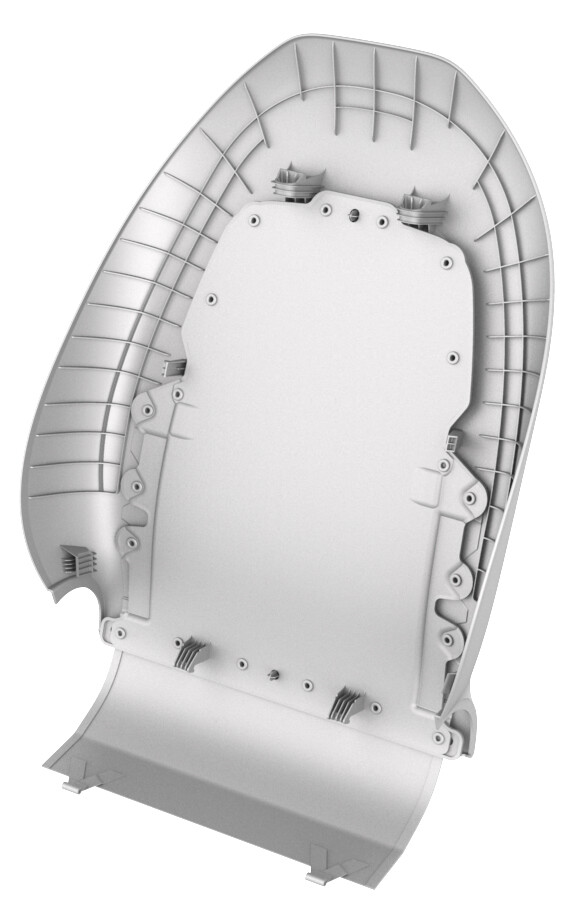

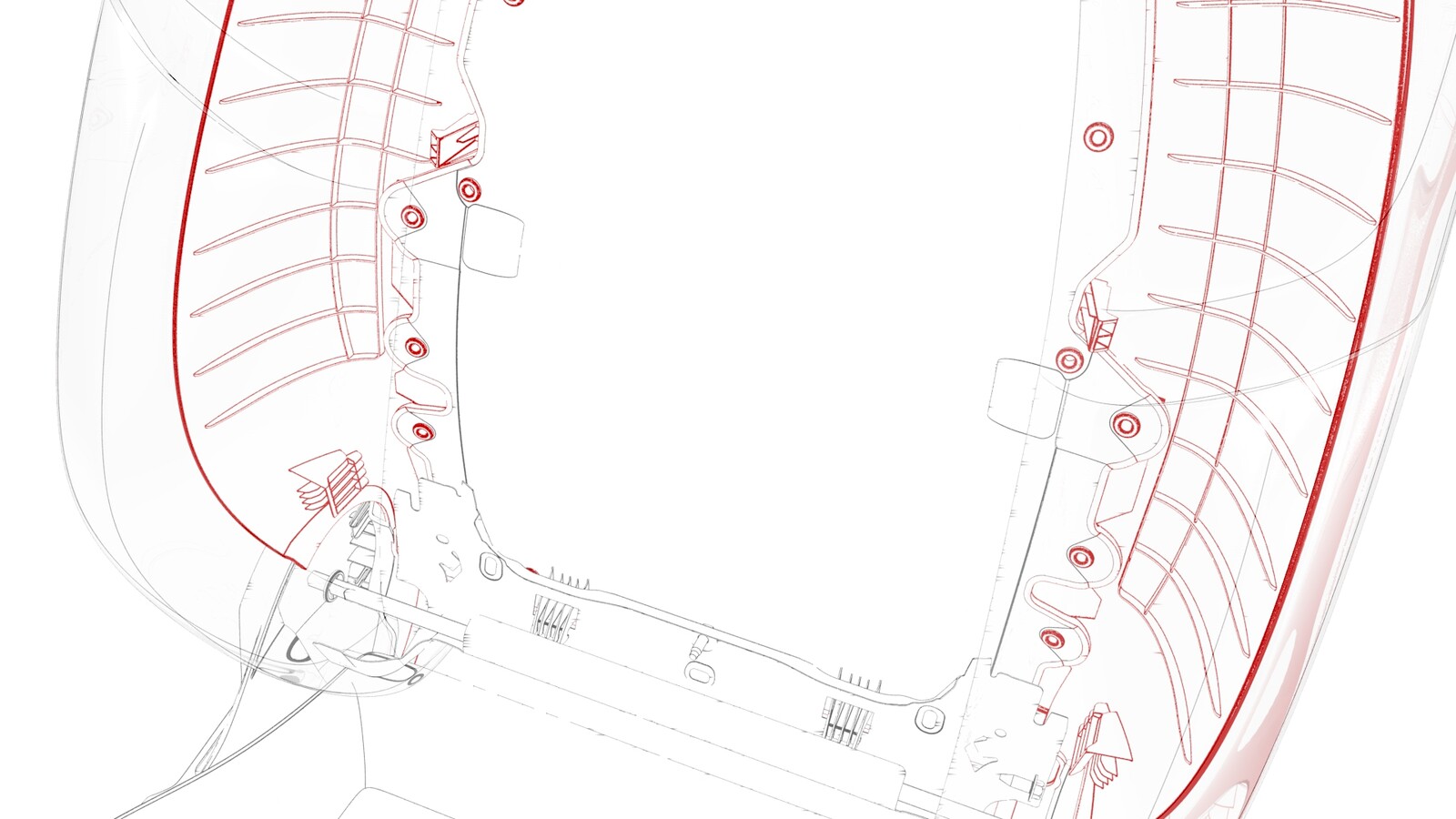

  2. 松开将座椅靠背外壳固定到驾驶位座椅的夹子，提起外壳以便与座椅靠背骨架脱钩，然后将外壳向后放置。

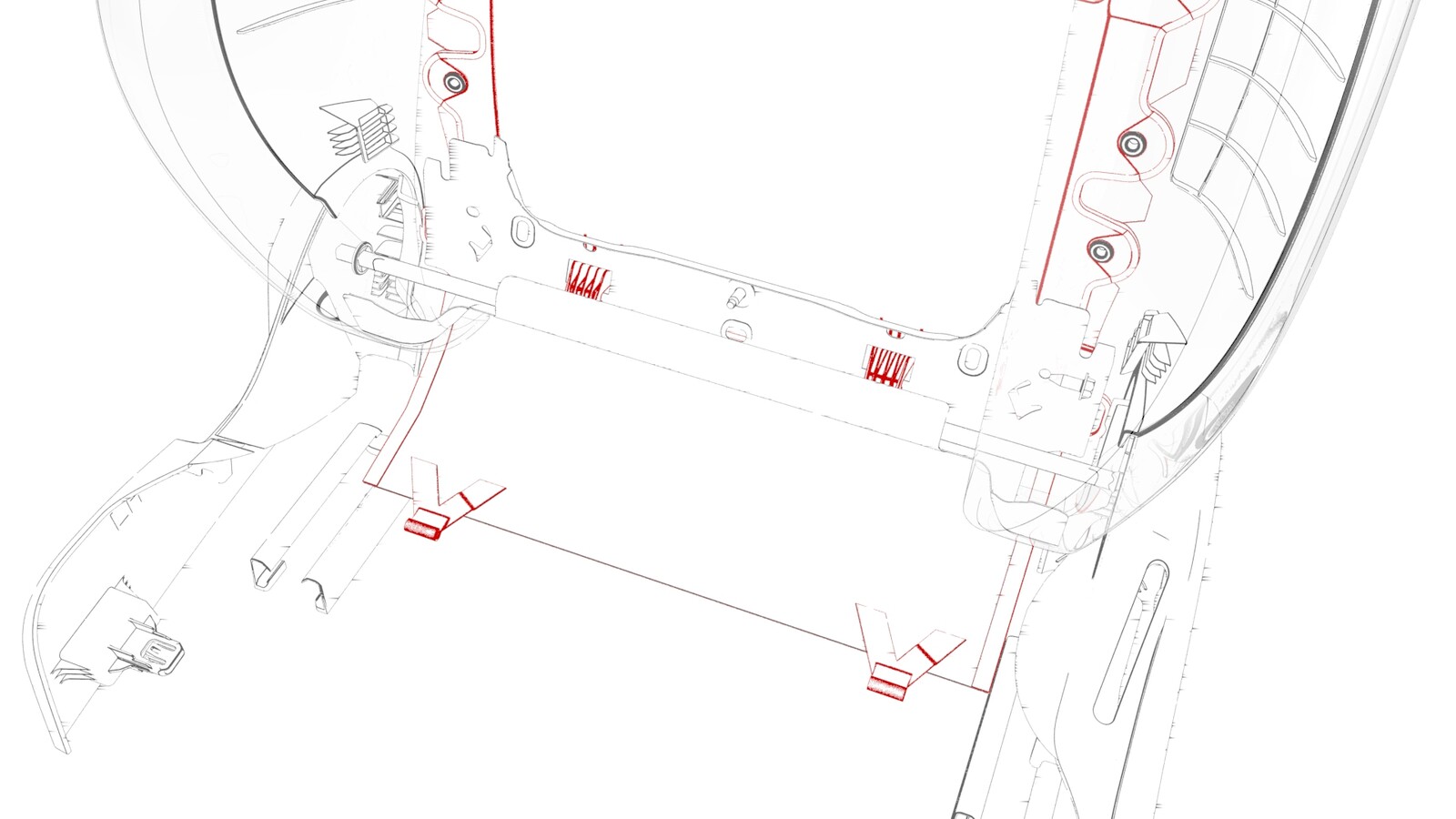

  3. 松开将外壳围板固定到座椅下方的夹子，然后从座椅上拆下外壳。

安装

安装程序与拆卸程序相反。
