电动助力转向 (EPAS) 定位检查

校正代码 31001500 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

警告
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.
注
This procedure assumes the vehicle suspension is operating as intended. If needed, a vehicle health check can be performed.

程序

  1. 打开左前车门，降下左前车窗。
  2. 将车辆置于维护模式。请参阅维护模式。
  3. 解锁车辆网关。请参阅网关（解锁）。

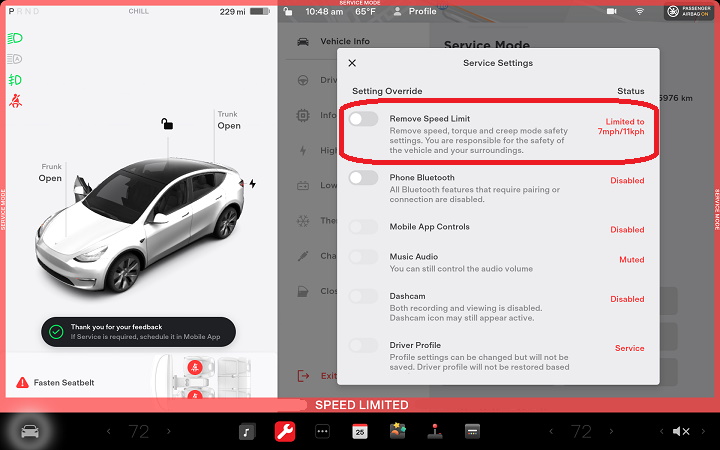

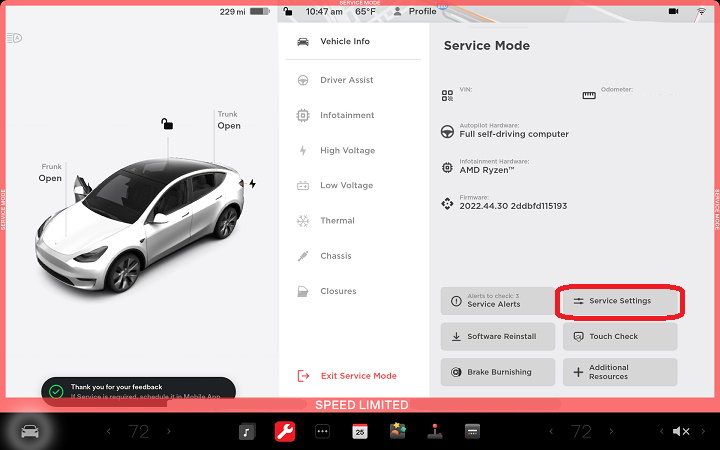

  4. 禁用触摸屏上的“限速”功能。点击Service > Service Settings > Remove Speed Limit。

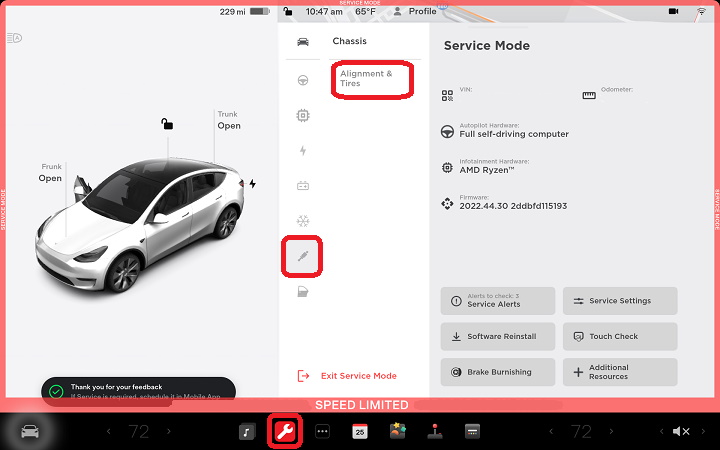

  5. 转至定位门户：点击Service > Chassis > Alignment and Tires。
    注
    确保驱动导轨已打开。
  6. 将车辆移动到 500 米大的平坦地面。
    注
    车辆需要在 500 米内增速至超过 18 英里/小时（30 公里/小时）才能完成测试。

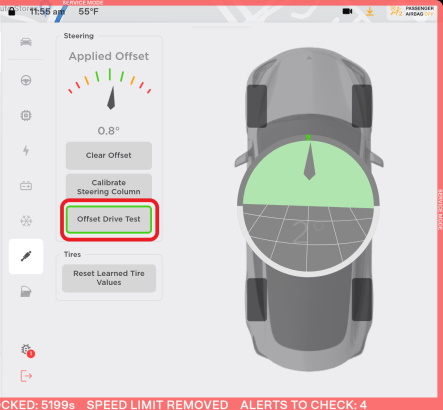

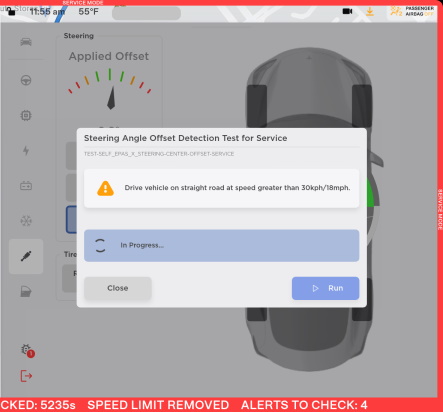

  7. 点击Service > Chassis > Alignment and Tires > Offset Drive Test > Run，然后驾驶车辆以至少 18 英里每小时（30 公里每小时）的速度直行 500 米。
    注
    将 yoke 方向盘/方向盘转动超过 200 度可能会导致测试结束。
  8. 测试完成后，停车并查看测试结果。
    注
    可能需要点击Offset Drive Test才能查看测试结果。

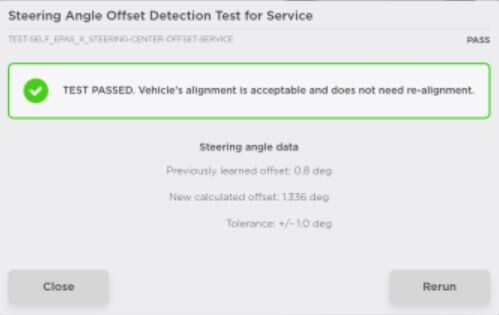

    图 1. 偏离试驾结果
    • 如果测试通过，则无需进行四轮定位。转至第9步。
    • 如果测试失败，则需进行四轮定位和检查。请参阅四轮定位检查和调整。
  9. 禁用“维护模式”。请参阅维护模式。
  10. 升起左前车窗，关闭左前车门。
