手套箱 - 有膝部气囊(带加热泵款)(拆卸和更换)

校正代码 14051022 0.42 注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。 注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至LaborTimeFeedback@tesla.com 注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
尽管此程序已经过验证,但仍是一个草案。可能没有警告和注意事项。请遵守安全要求,处理或靠近高压系统和部件时,请谨慎操作。请将校正修理内容及反馈发送至ServiceDevelopment@teslamotors.com

拆卸

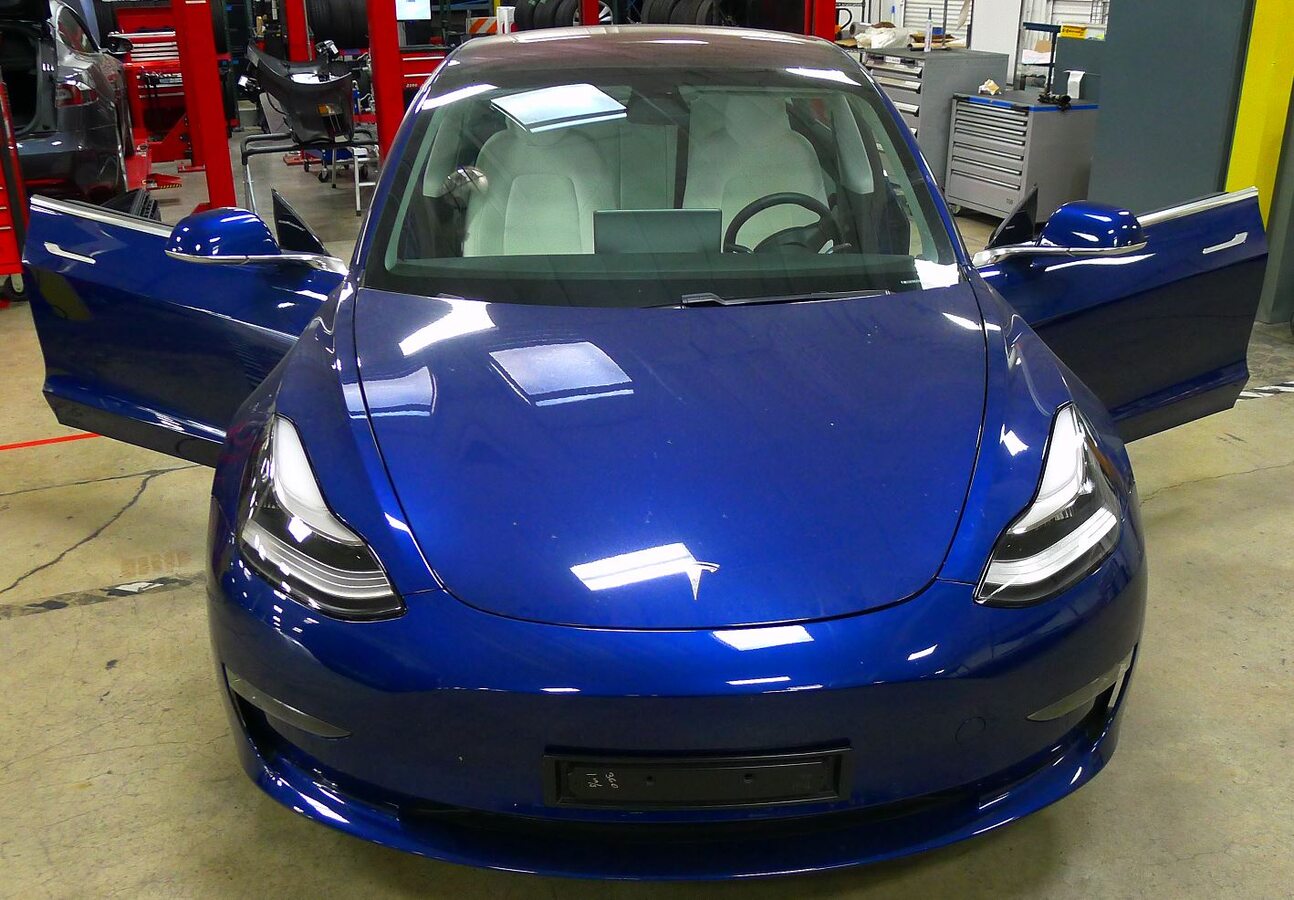

  1. Open both front doors

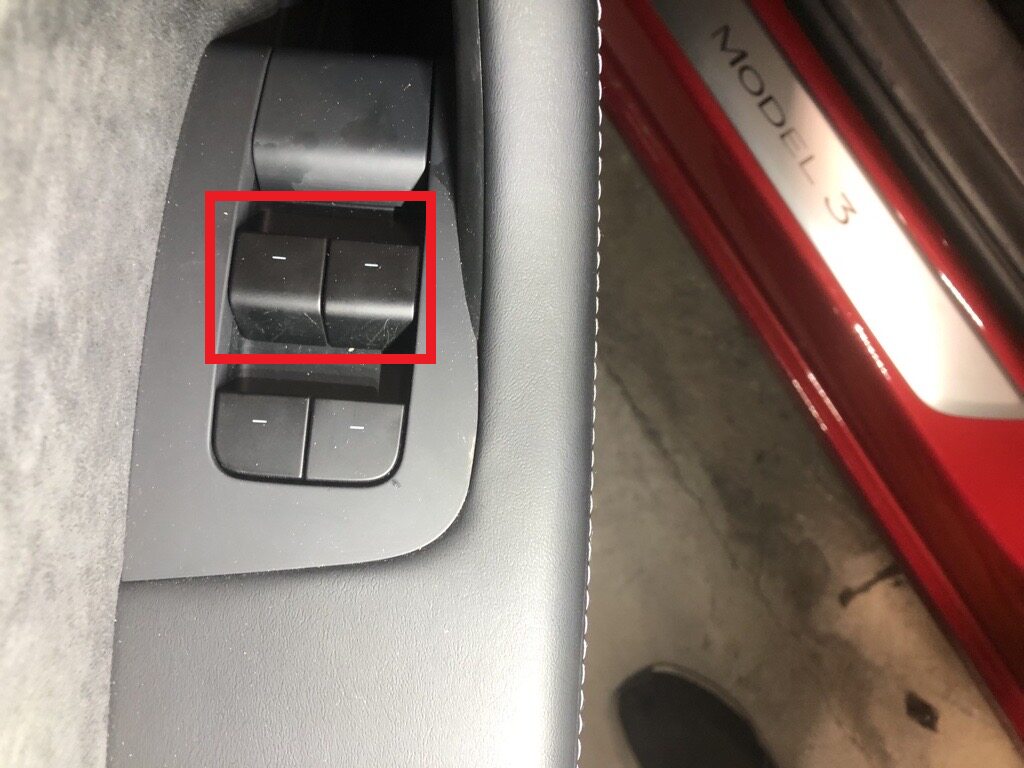

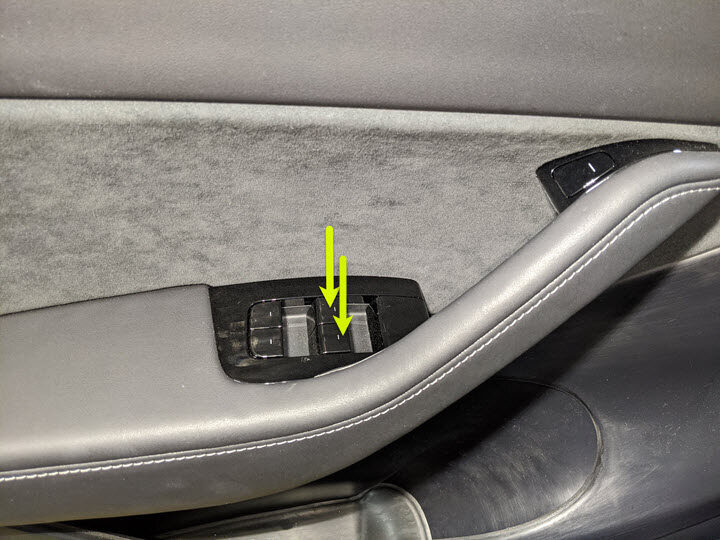

  2. Lower both front windows
  3. Move RH front seat backward
  4. Open hood
    Informational PurposesAn informational icon, calling your attention
    Press "Open" button on touchscreen to release latch, Lift lid manually
  5. Remove rear apron
    Informational PurposesAn informational icon, calling your attention
    12x clips, Only store rear apron visible face upwards
  6. Power off vehicle from center display
    Informational PurposesAn informational icon, calling your attention
    Via Controls > Safety > Power Off, Select Power Off button at warning dialogue box
  7. Disconnect 12V negative terminal
    Informational PurposesAn informational icon, calling your attention
    1x nut, 10mm, 6 Nm, Ensure vehicle is in park, climate control system is off, and vehicle is not charging before disconnecting 12V
  8. Disconnect first responder loop
    Informational PurposesAn informational icon, calling your attention
    1x connector, Release locking tab
  9. Remove LH IP end cap
    Informational PurposesAn informational icon, calling your attention
    3x clips
  10. Remove LH air wave bezel cap from main decor assembly
    Informational PurposesAn informational icon, calling your attention
    2x clips, Newer vehicles are equipped with solid bezel.
  11. Remove RH IP end cap
    Informational PurposesAn informational icon, calling your attention
    3x clips
  12. Remove RH air wave bezel cap from main decor assembly
    Informational PurposesAn informational icon, calling your attention
    2x clips, Newer vehicles are equipped with solid bezel.
  13. Remove main decor assembly
    Informational PurposesAn informational icon, calling your attention
    15x clips, Entire decor does not need to come off for glove box removal, If you lift RH side of decor then you will have access to 3x torx screws securing top of glove box, Replace securing clips as needed
  14. Release RH footwell assembly from IP
    Informational PurposesAn informational icon, calling your attention
    4x push clips
  15. Remove RH footwell assembly
    Informational PurposesAn informational icon, calling your attention
    2x connectors
  16. Remove bolts securing passenger knee air bag onto vehicle
    Informational PurposesAn informational icon, calling your attention
    4x patch bolts, T30, 8 Nm, Discard after removal, 2x screws, T20, 2 Nm, 1x push clip, Newer vehicles have 4x E10 patch bolts
  17. Remove passenger knee air bag from vehicle
    Informational PurposesAn informational icon, calling your attention
    1x connector, Release locking tab, Connector release may vary
  18. Disconnect glove box USB cable from car computer
    Informational PurposesAn informational icon, calling your attention
    1x connector, Depress latch on top of USB cable to release internal latches, then release from car computer
  19. Remove screws securing glove box assembly to IP carrier
    Informational PurposesAn informational icon, calling your attention
    6x screws, T20, 2.3 Nm
  20. Remove glove box from IP carrier
    Informational PurposesAn informational icon, calling your attention
    3x clips
  21. Disconnect glove box assembly connectors
    Informational PurposesAn informational icon, calling your attention
    3x electrical connectors

安装

  1. Connect glove box assembly connectors
    Informational PurposesAn informational icon, calling your attention
    3x connectors, New puddle lamp harness routing prevent blocking movement of pawls, Make sure harness is routed properly above passenger footwell air duct before connecting
  2. Install glove box into IP carrier
    Informational PurposesAn informational icon, calling your attention
    3x clips
  3. Install screws securing glove box assembly to IP carrier
    Informational PurposesAn informational icon, calling your attention
    6x screws, T20, 2.3 Nm
  4. Connect glove box USB cable to car computer
    Informational PurposesAn informational icon, calling your attention
    1x connector
  5. Install passenger knee air bag onto vehicle
    Informational PurposesAn informational icon, calling your attention
    1x connector, Use caution not to damage connector and harness, Support knee air bag while connecting connector
  6. Install bolts securing passenger knee air bag to vehicle
    Informational PurposesAn informational icon, calling your attention
    4x patch bolts, E10, 8 Nm, Install new patch bolts, 2x screws, T20, 2 Nm, 1x push clip, If vehicle equipped with T30 bolts update to E10
  7. Position RH footwell assembly
    Informational PurposesAn informational icon, calling your attention
    2x connectors
  8. Install RH footwell assembly onto IP
    Informational PurposesAn informational icon, calling your attention
    4x push clips
  9. Install main decor assembly
    Informational PurposesAn informational icon, calling your attention
    15x clips, 1x center clip
  10. Install RH air wave bezel cap to main decor assembly
    Informational PurposesAn informational icon, calling your attention
    2x clips, Newer vehicles are equipped with solid bezel.
  11. Install RH IP end cap
    Informational PurposesAn informational icon, calling your attention
    3x clips
  12. Install LH air wave bezel cap to main decor assembly
    Informational PurposesAn informational icon, calling your attention
    2x clips, Newer vehicles are equipped with solid bezel.
  13. Install LH IP end cap
    Informational PurposesAn informational icon, calling your attention
    3x clips
  14. Connect first responder loop
    Informational PurposesAn informational icon, calling your attention
    1x connector, Engage locking tab, Connect FRL before connecting 12V to avoid damage to car computer
  15. Connect 12V negative terminal
    Informational PurposesAn informational icon, calling your attention
    1x nut, 10mm, 6 Nm
  16. Install rear apron
    Informational PurposesAn informational icon, calling your attention
    12x clips
  17. Close hood
  18. Move RH front seat to original position
  19. Raise LF and RF windows
  20. Close both front doors
