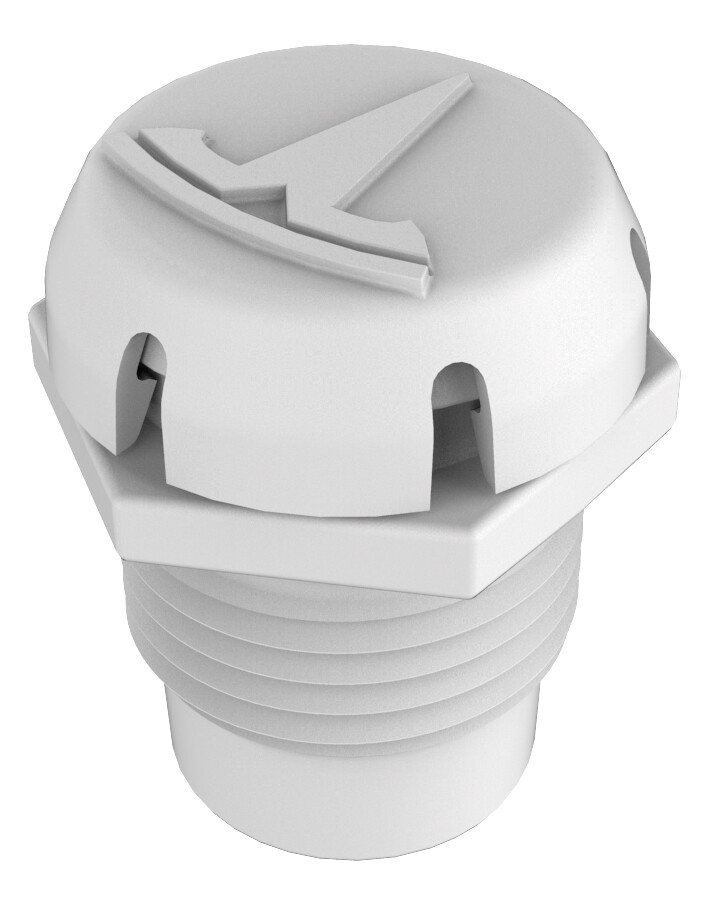

通气阀 - 后驱动电机（拆卸和更换）
校正代码
40305402 1.38
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
- 2025-03-31: 添加了“根据悬架定位表确定是否需要进行定位检查，如果需要，确定需进行哪种类型的定位检查”的步骤。
拆卸
- 拆下后副车架总成。请参阅副车架总成 - 后（拆卸和安装）。
-

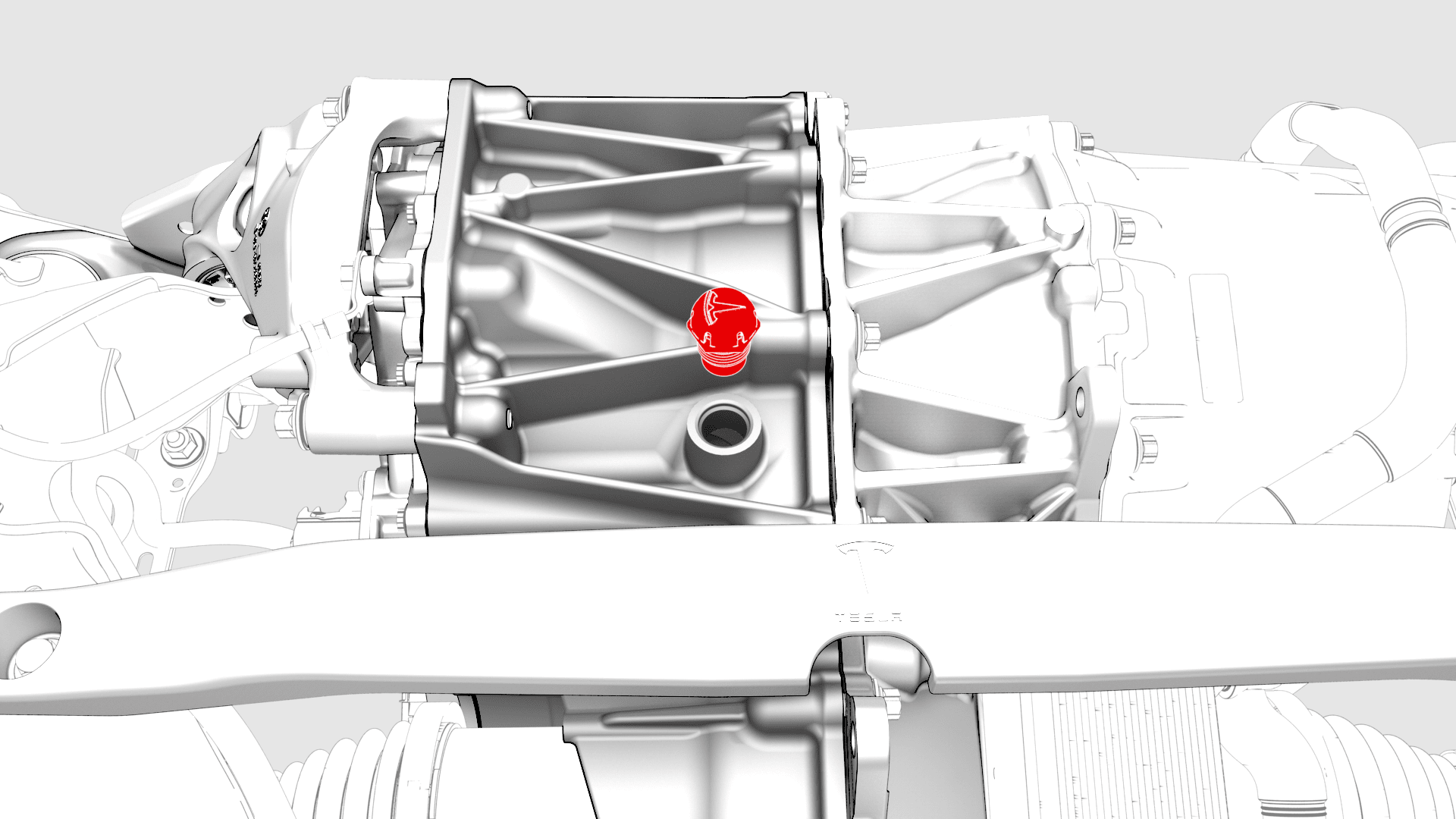

将通气阀从后驱动单元上拆下。
安装
-
将通气阀安装到后驱动单元上。
5 Nm (3.7 lbs-ft) - 安装后副车架总成。请参阅副车架总成 - 后（拆卸和安装）。
- 鉴于需要拆卸并重新安装副车架： Refer to the Alignment Requirement tables to determine whether an EPAS alignment check (EC) or four wheel alignment check (AC) is necessary. If performed, add the alignment check/adjust correction code as a separate activity to the SV. See 定位要求 - 悬架.
