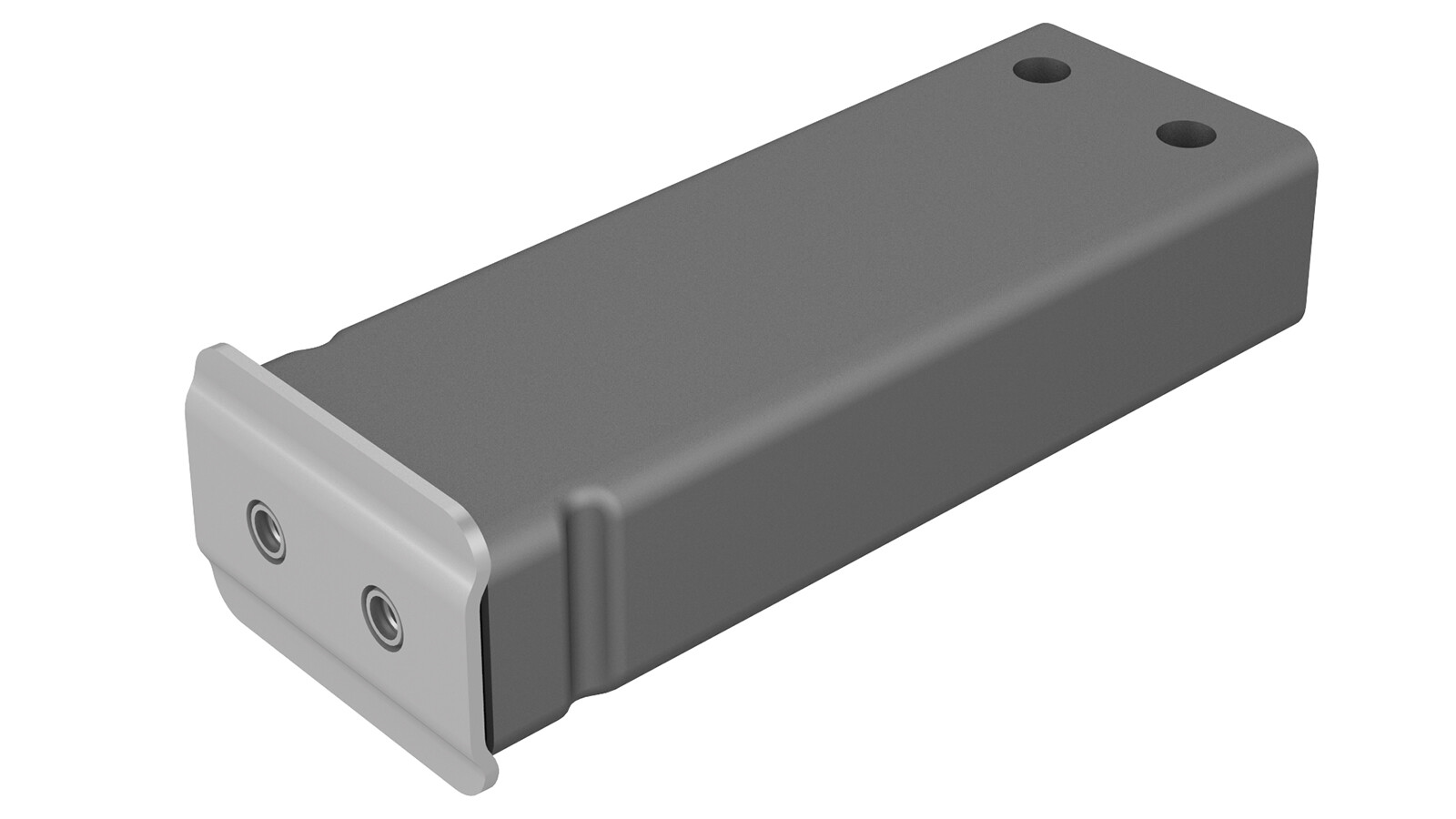

防撞罐 - 前副车架 - 左侧(拆卸和更换)
校正代码
10101602 0.72
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
设备:
- 1133185-00-A Skt, 3/8in Dr, XZN M14, Tri-Square
拆卸
- 拆下前端支架。请参阅支架 - 前端(不带加热泵款)(拆卸和更换)或支架 - 前端(带加热泵款)(拆卸和更换)。
-

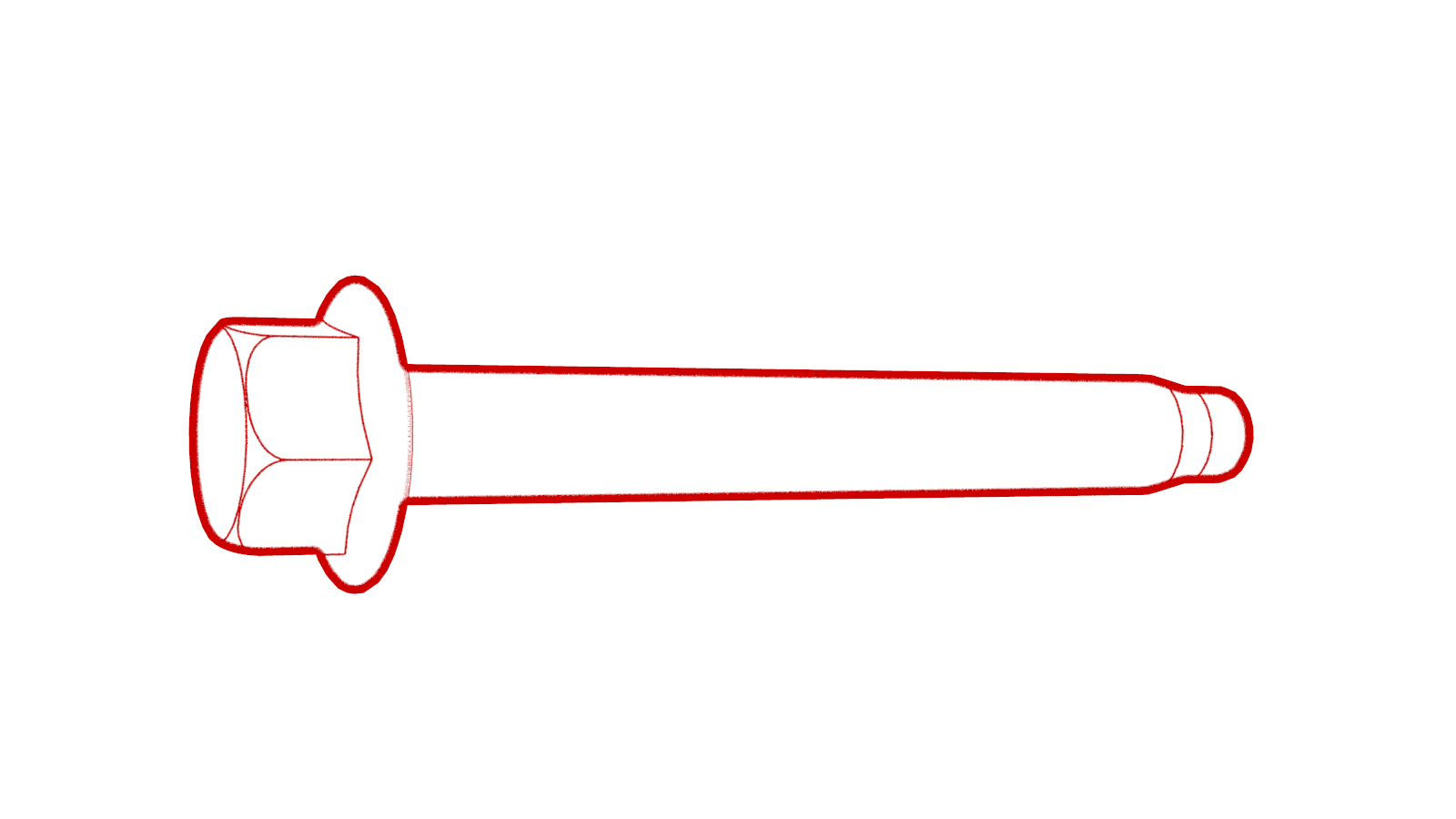

拆下将 LH 防撞罐支架固定到前副框架的螺栓,然后从副框架上拆下支架。
53 Nm (39.1 lbs-ft)
安装
安装程序与拆卸程序相反。
