灯 - 翼子板转向灯 - 前 - 左侧（拆卸和更换）

校正代码 17403002 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

  • 2026-08-26: 添加了清除 HW3 车辆上辅助驾驶系统 (DAS) 校准的步骤。
  • 2023 年 12 月 12 日：更新了例行程序。

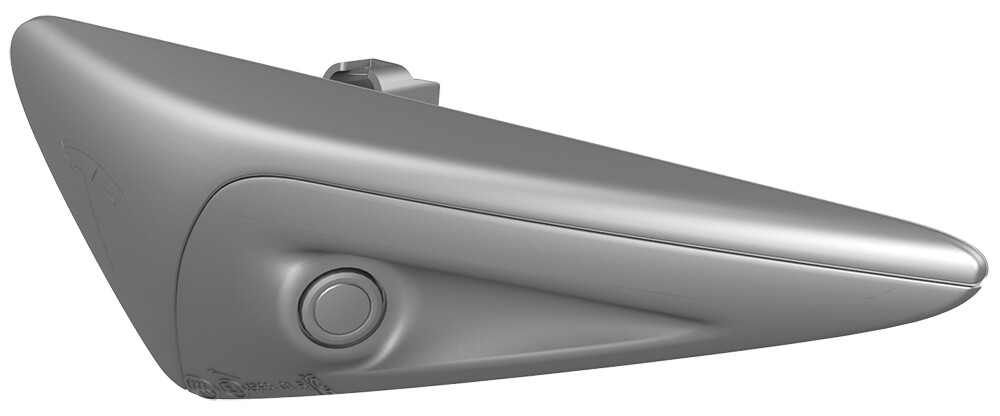

图 1. 图示为 Model 3；Model Y 与之类似
警告
The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

拆卸

警告
Whenever a camera has been moved out of its original position (for example, a camera or windshield replacement), camera calibration data must be cleared using the vehicle touchscreen: Controls > Service > Camera Calibration > Clear Calibration.
  1. 打开左侧前车门，降下左侧前车窗。
  2. 使用触摸屏启用“维护模式”。请参阅 维护模式。

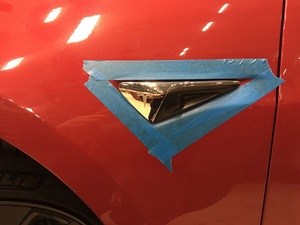

  3. 向左侧前翼子板上左侧前侧转向灯的周围粘贴保护胶带。

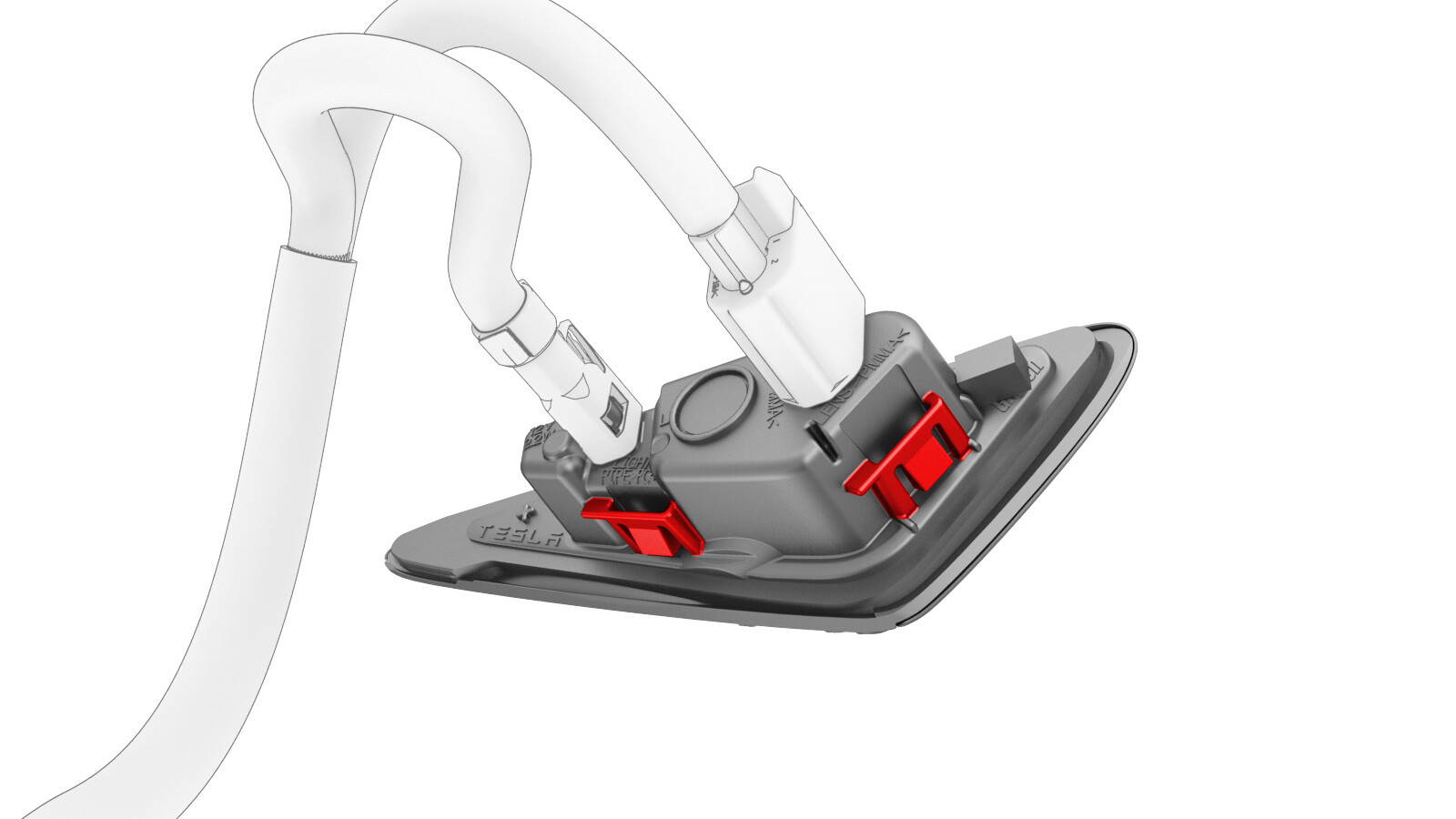

  4. 松开将左前侧转向灯固定到左前翼子板的转向灯底部卡子（2 个），然后将转向灯从翼子板上分离。
    警告
    如果重新安装同一个侧转向灯，注意不要损坏安装锁片。
    注
    小心地将侧转向灯向上撬起，然后再撬动底部，将其从翼子板上松开。卡子数量可能有所不同。

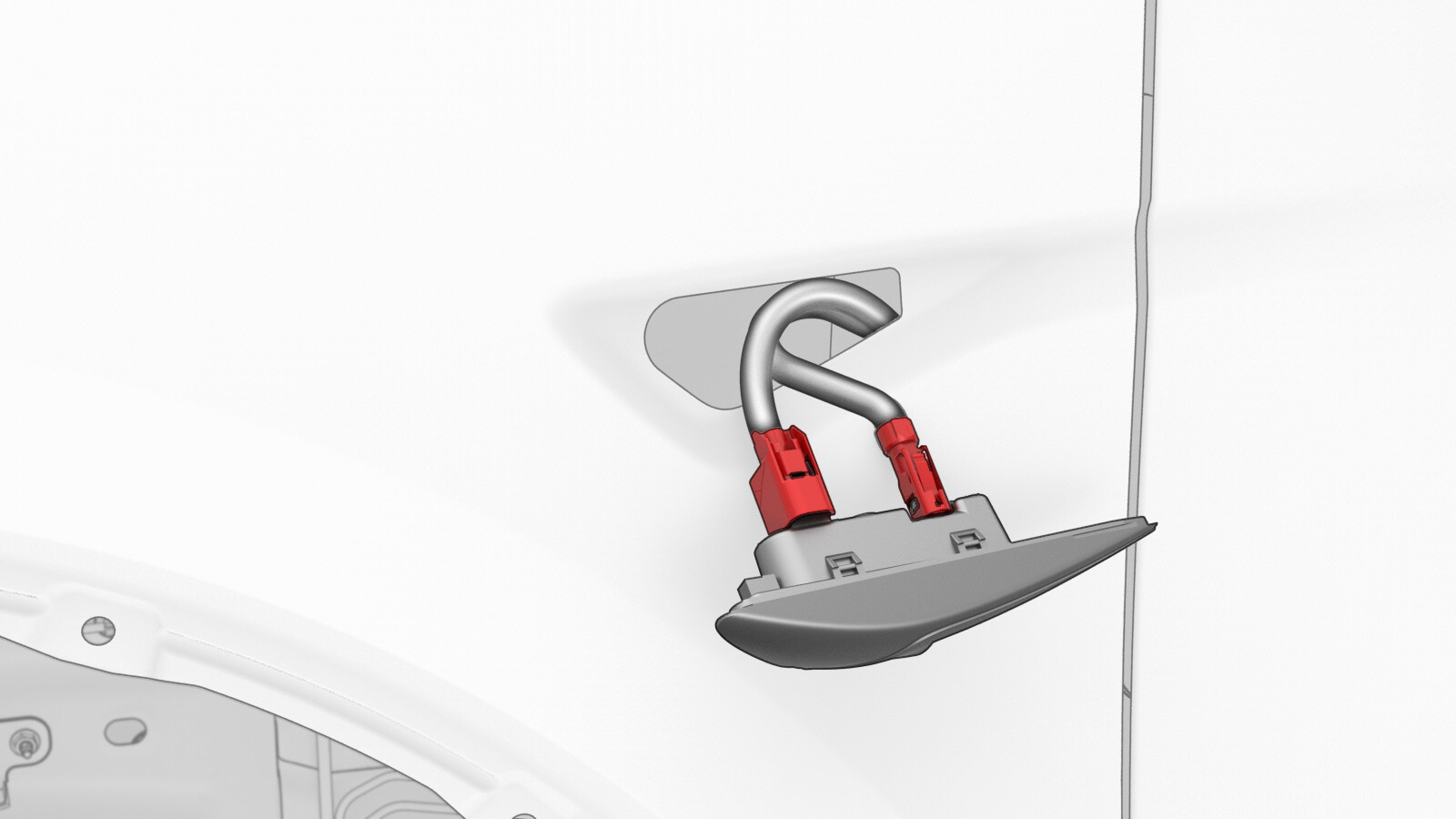

  5. 断开左侧前侧转向灯连接器 (x2) 的电气线束，然后从车上拆下该转向灯。

安装

  1. 将电气线束连接到左侧前侧转向灯连接器 (x2)。

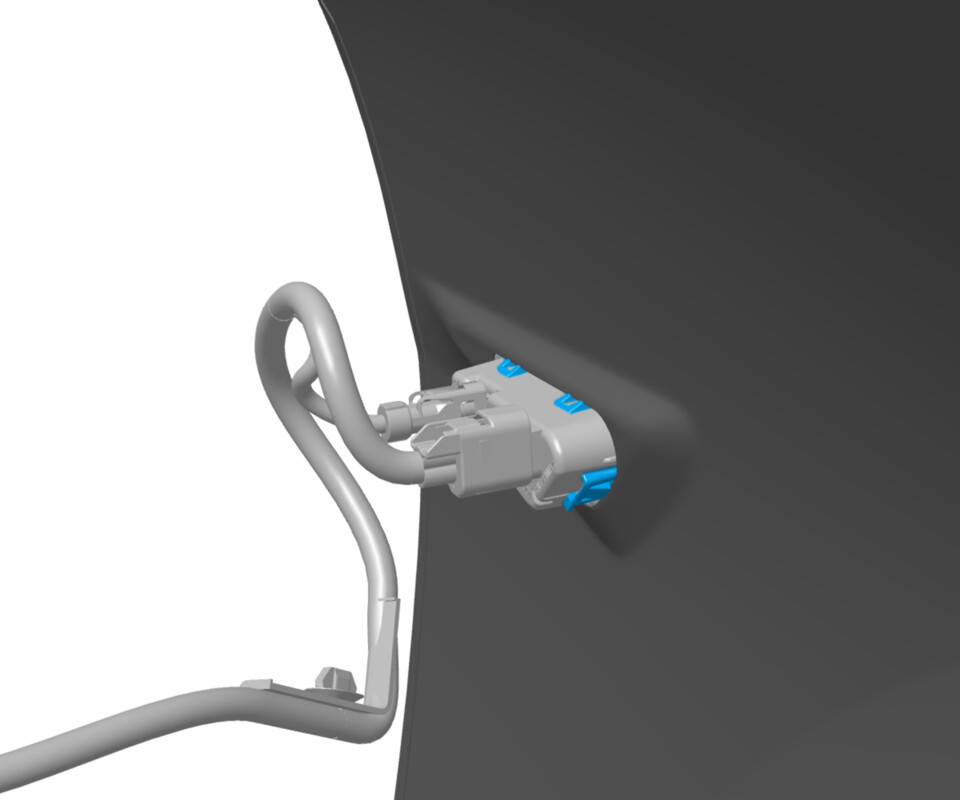

  2. 将左前侧转向灯牢固安装到左前翼子板上，然后紧固将转向灯固定到翼子板的卡子。
    警告
    如果将重新安装同一侧转向灯，请确保安装锁片和卡子未损坏。如果有任何锁片或卡子损坏，请更换转向灯。
    注
    卡子数量可能有所不同。
  3. 揭下左侧翼子板上左侧前侧转向灯周围的保护胶带。
  4. 在触摸屏上，点击Vehicle Info > Driver Assist > Cameras > Reset DAS，然后根据提示运行例行程序。
  5. HW3 车辆：运行 PROC_DAS_X_CLEAR-CALIBRATIONvia Service Mode:
    • Driver Assist ➜ Cameras ➜ Clear Camera Calibration
    • Driver Assist ➜ Driverless ➜ Clear Calibration
    via Toolbox:(link)
  6. 退出“维护模式”。请参阅维护模式。
  7. 升起左侧前车窗并关闭左侧前车门。
  8. 告知客户，现在需要手动驾驶，以使摄像头进行自校准。
    注
    Self-calibration can take up to 100 miles (160 km) of manual driving, depending upon the road type and condition. Until self-calibration is complete, the message "Autopilot Features Currently Unavailable: Manual Driving Required While Camera Is Calibrating" is displayed if an attempt is made to engage an Autopilot feature.
