泡沫 - 保险杠梁 - 前（拆卸和更换）

校正代码 10011702 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

拆卸

  1. 拆下前饰板。请参阅饰板 - 前（拆卸和安装）。

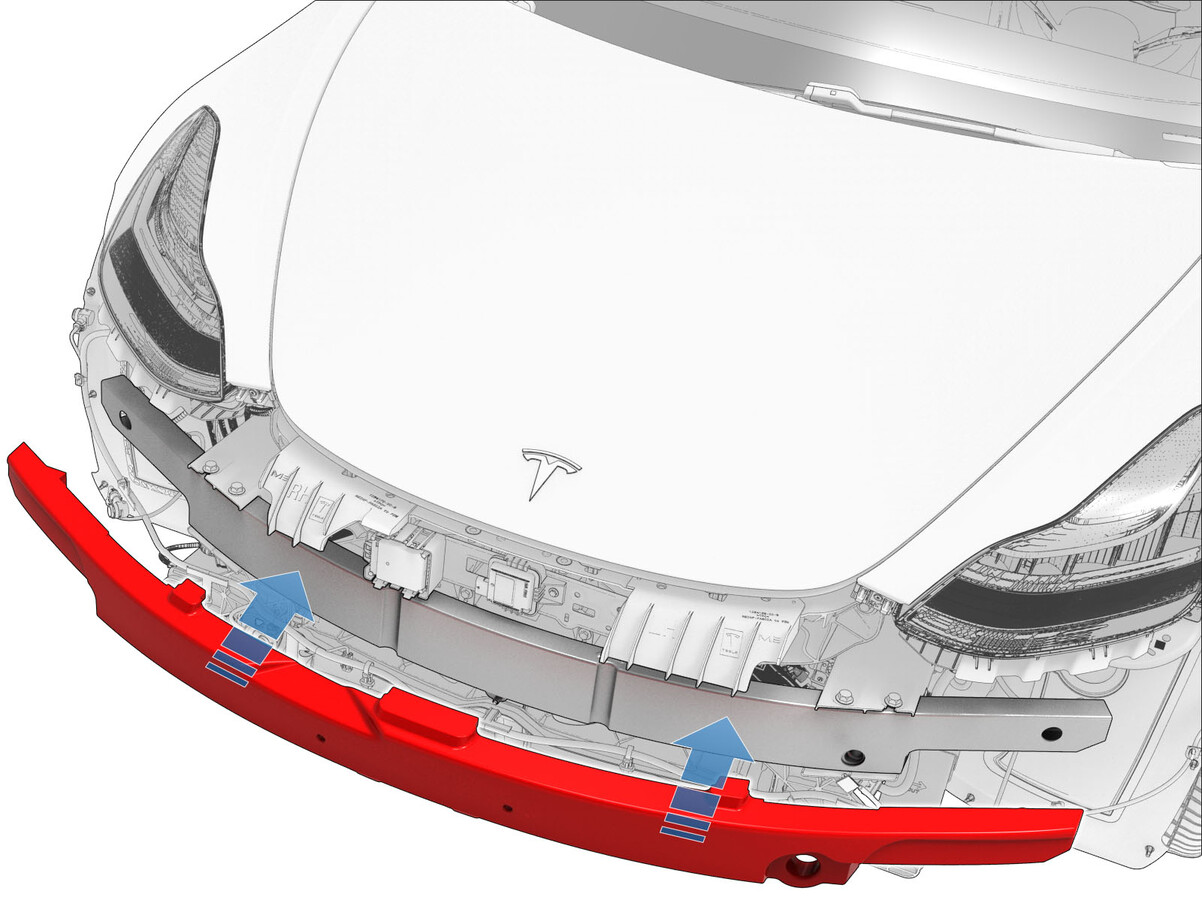

  2. 从前保险杠梁上拆下前保险杠梁泡沫。
    注
    如果车辆配备行人保护系统，从前保险杠梁泡沫上断开并拆下压力管传感器。

安装

  1. 如果车辆配备行人保护系统，将压力管传感器安装到新的前保险杠梁泡沫上。
  2. 将前保险杠梁泡沫安装到前保险杠梁上。
  3. 安装前饰板。请参阅饰板 - 前（拆卸和安装）。
