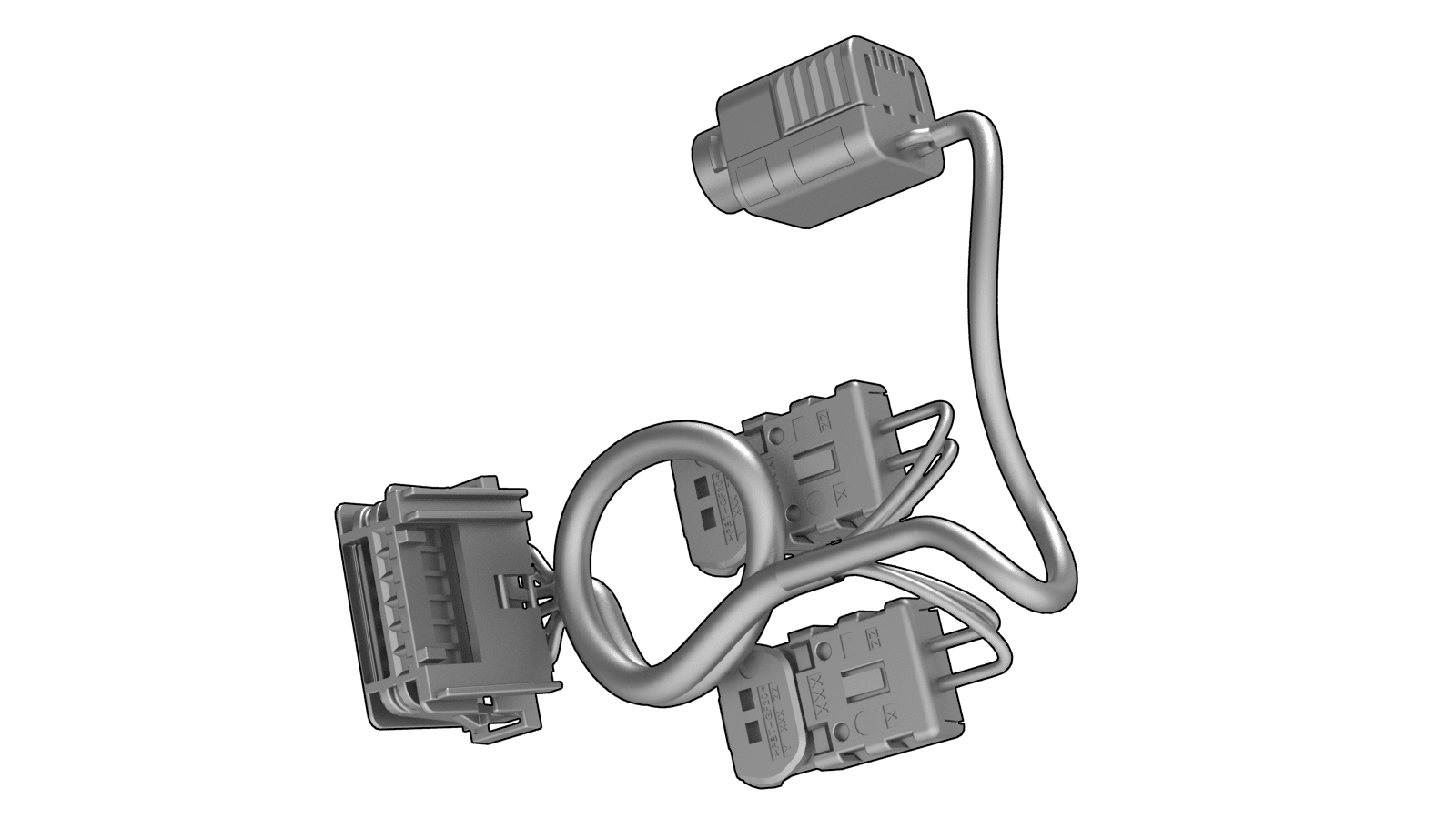

线束 - 气囊 - 驾驶位（拆卸和更换）

校正代码 20013102 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

警告
Make sure 12V/LV power has been disconnected for at least 1 minute before disconnecting the electrical harness from Supplementary Restraint System (SRS) components, such as Restraint Control Module, sensors, airbags, etc. Disconnect the 12V/LV battery and the First Responder Loop. Failure to do so can result in unintended safety system behaviors. For more information on SRS precautions, see 气囊和辅助约束系统 (SRS) 预防措施.
警告
如果处理不当，辅助约束系统 (SRS) 组件可能很危险。请参阅气囊和辅助约束系统 (SRS) 预防措施。

拆卸

  1. 拆下驾驶位气囊。请参阅气囊 - 驾驶位（拆卸和更换）。
  2. 用保护胶带完全盖住气囊朝向驾驶员的一侧。
  3. 将驾驶位气囊置于干净的作业表面上。

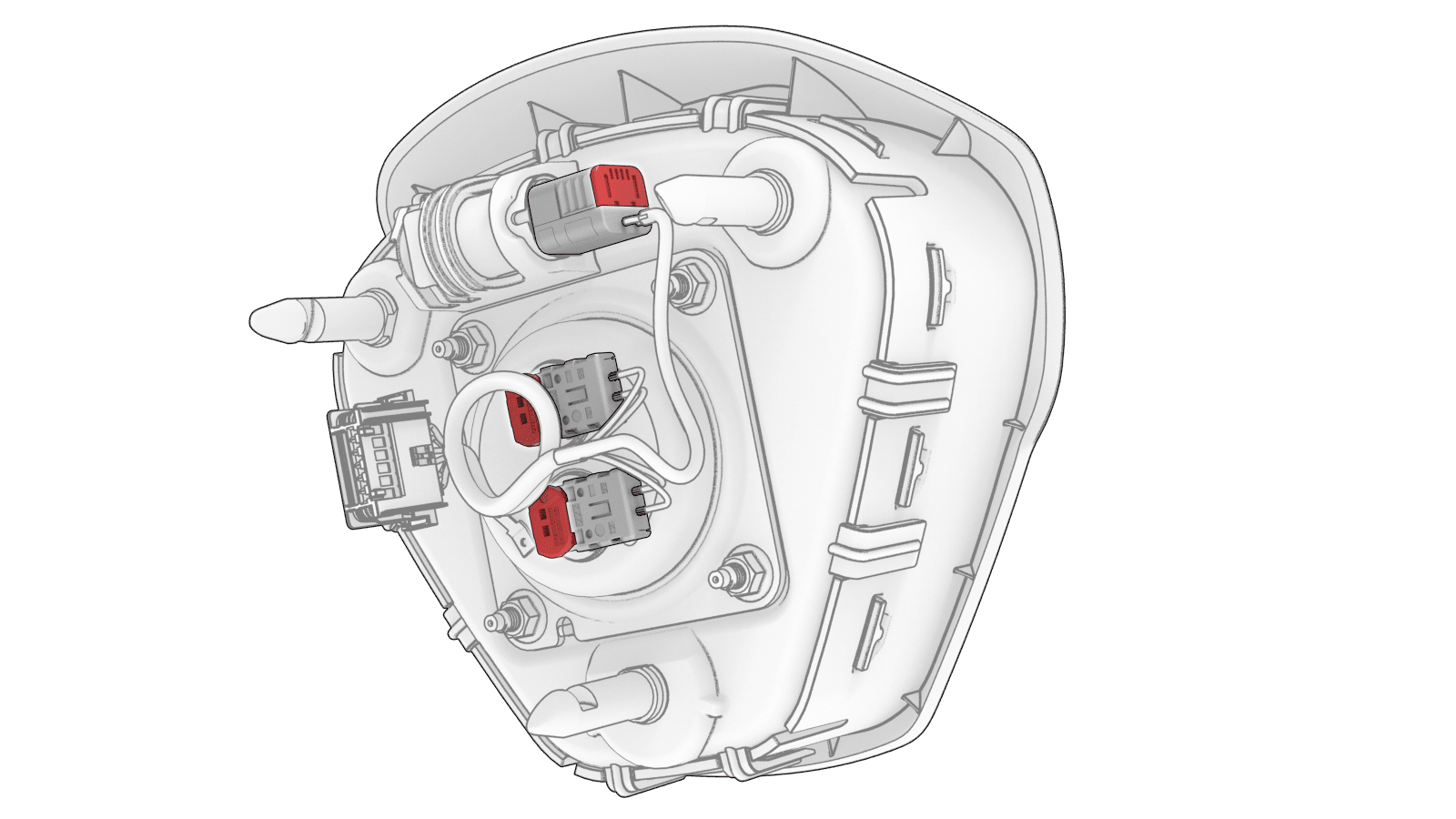

  4. 松开将驾驶位气囊线束固定到气囊的锁片 (x3)。
  5. 断开驾驶位气囊上的电气线束连接器 (x3)。

安装

  1. 将驾驶位气囊线束连接器连接到驾驶位气囊，然后安装锁片 (x3)。
    注
    3 个连接器标为红色。将线束连接器上的颜色与气囊上相同颜色的连接器相匹配。
  2. 撕下气囊上的保护胶带。
  3. 安装驾驶位气囊。请参阅气囊 - 驾驶位（拆卸和更换）。
