支架 - 固定件 - 母排 - 充电接口至高压电池(三相)(拆卸和更换)
校正代码
44018202 0.42
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
拆卸
- 拆下三相充电端口至高压电池母排安全盖。请参阅安全盖 - 母排 - 充电接口至高压电池(拆卸和更换)。
-

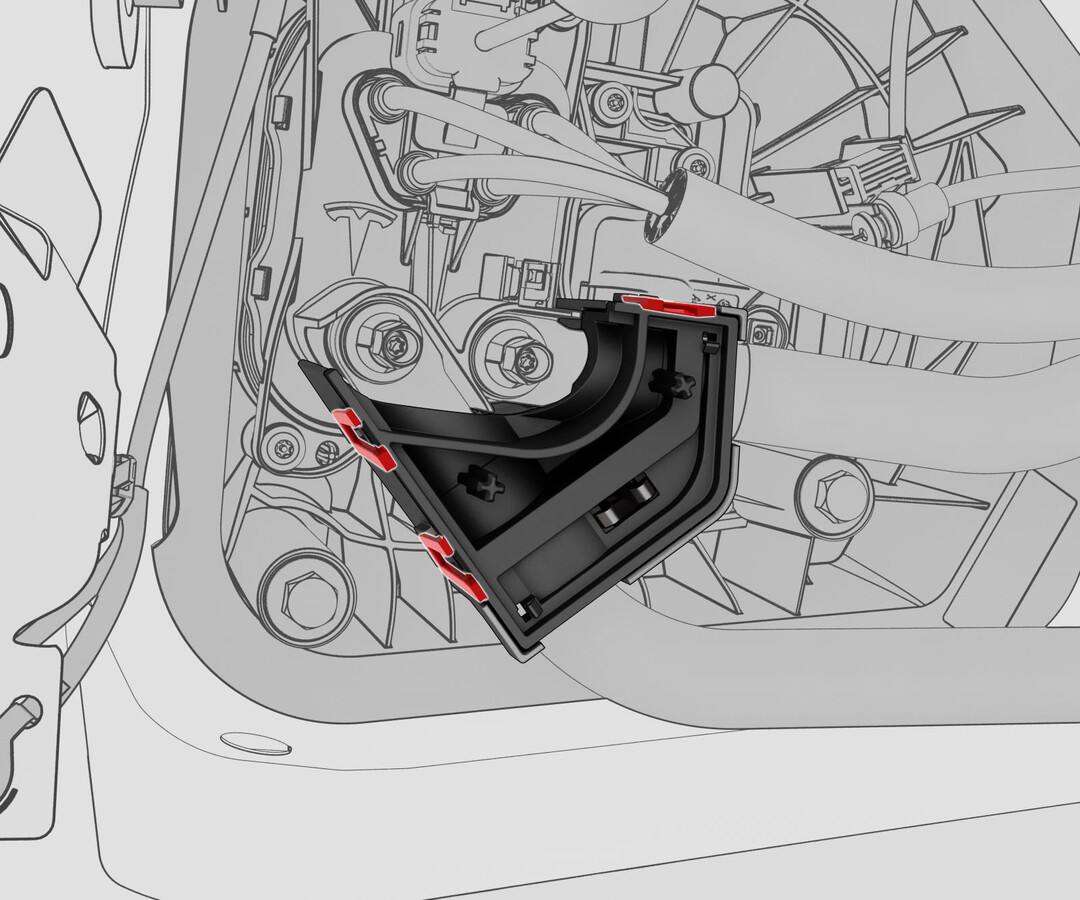

使用撬具轻轻地撬动将母排固定支架固定到母排支架的锁片 (x3),然后从车上拆下固定支架。
注撬动时不要用力过度,以免损坏支架。
安装
安装程序与拆卸程序相反。
