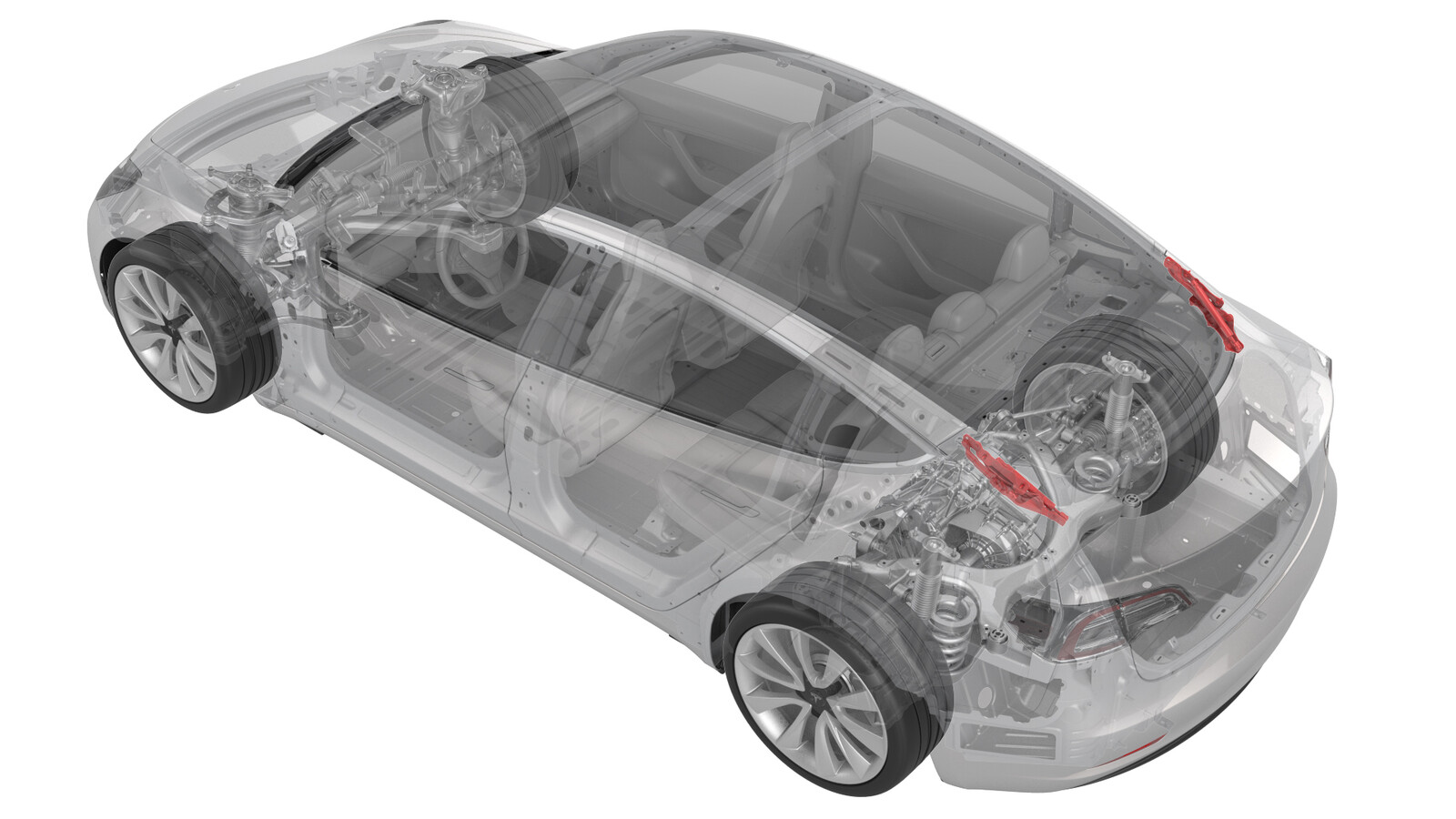

铰链 - 后备箱 - LH(拆卸和更换)
校正代码
11335802
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
拆卸
- 拆下行李箱总成。请参阅后备箱(拆卸和安装)。
- 拆下 LH 行李箱饰板。请参阅饰板 - 侧边 - 后备箱 - 左侧(拆卸和更换)。
- 使用遮蔽胶带标记行李箱铰链在车身上的位置。
- 拆下 LH 行李箱气压支撑杆。请参阅气动支撑杆 - 后备箱 - 左侧(拆卸和更换)。
-

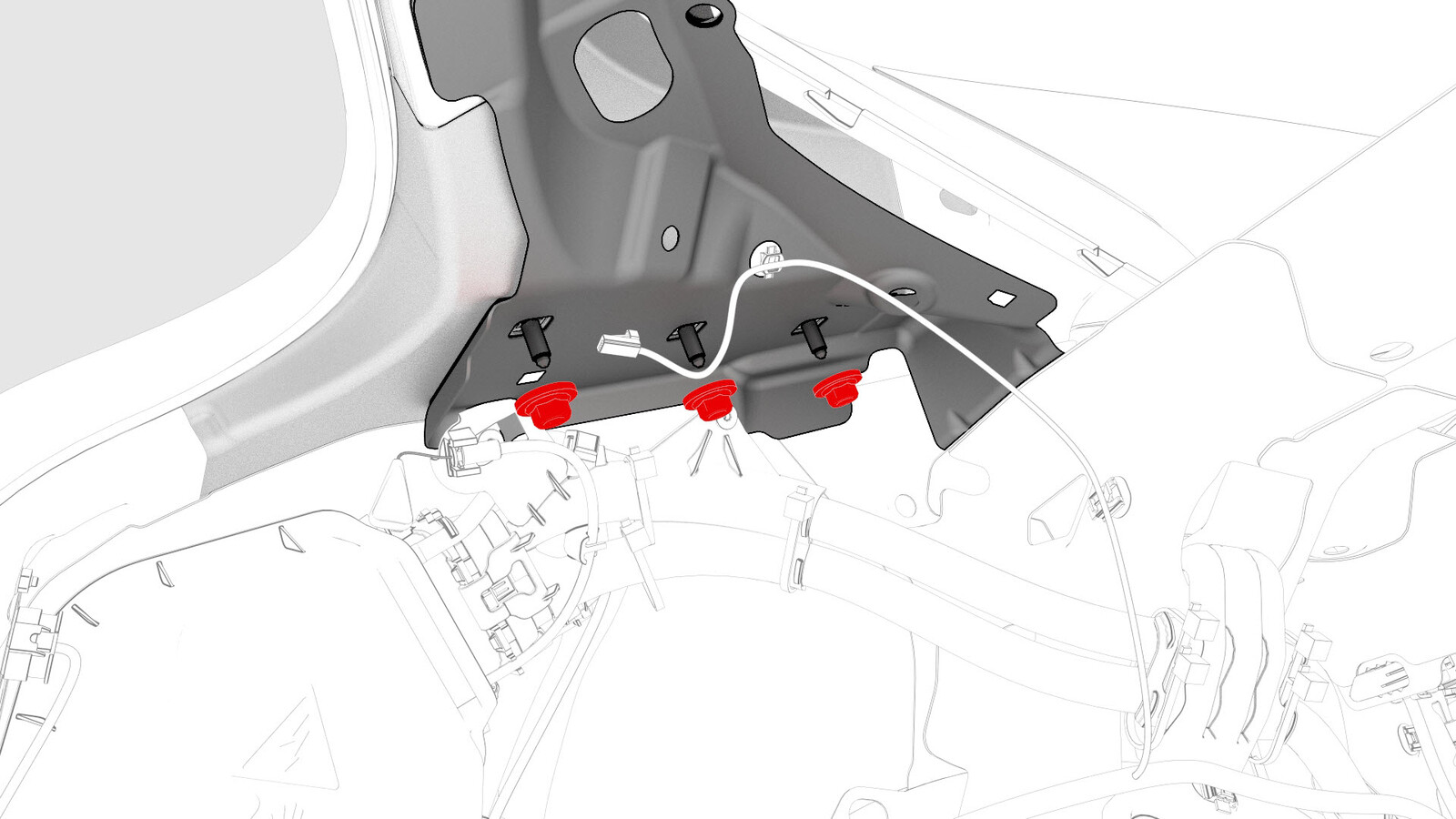

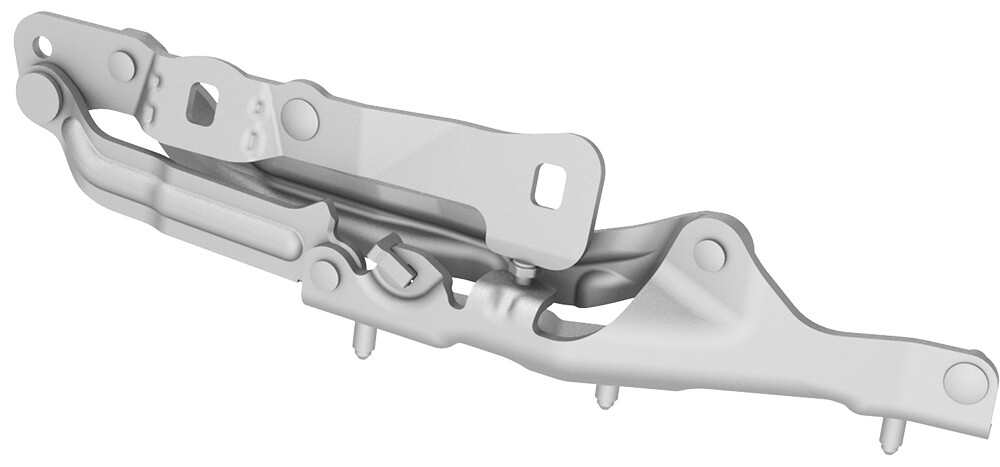

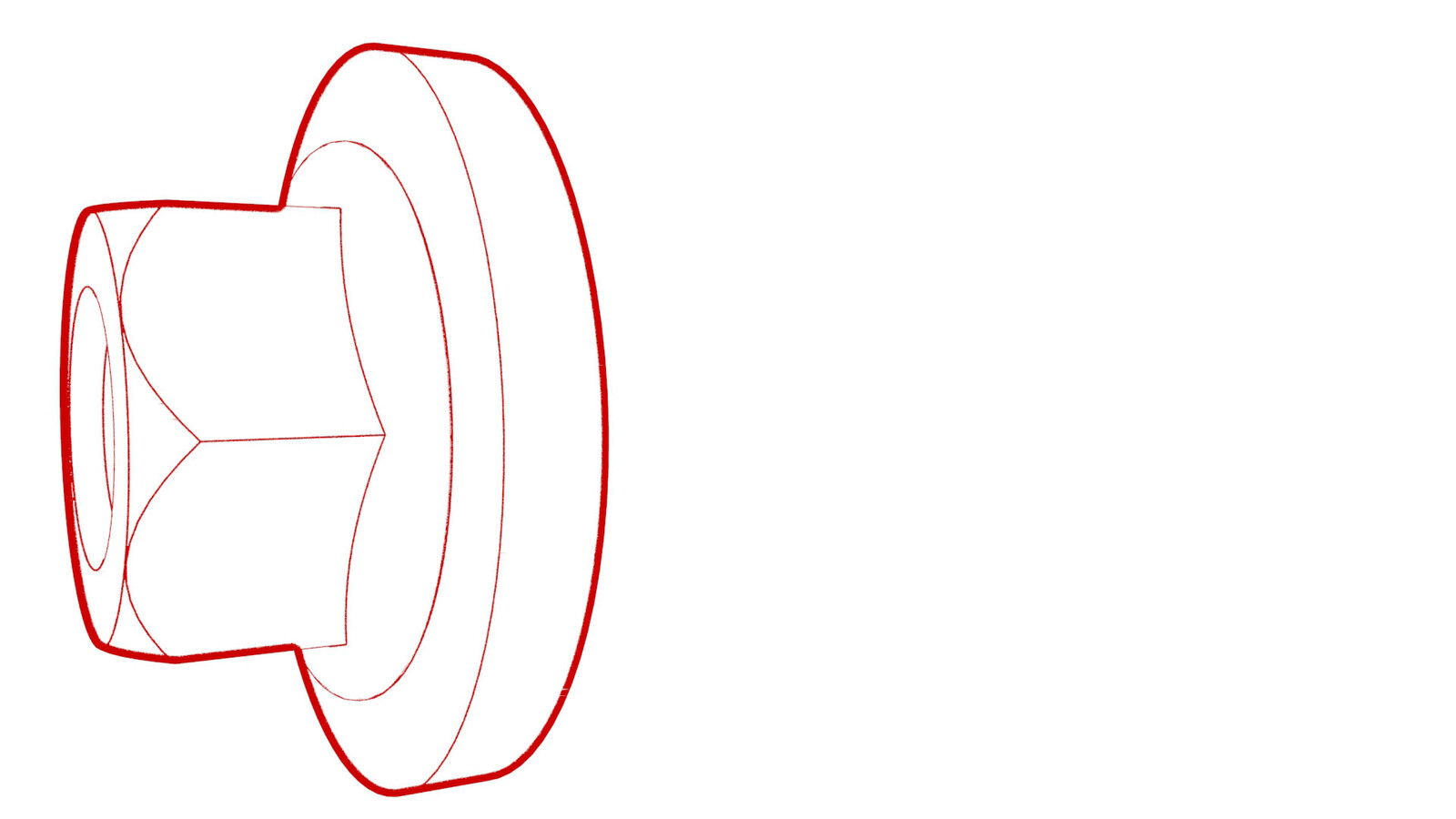

拆下将 LH 行李箱铰链固定到车身的螺母,并从车上拆下铰链。
24 Nm (17.7 lbs-ft)
安装
安装程序与拆卸程序相反。
