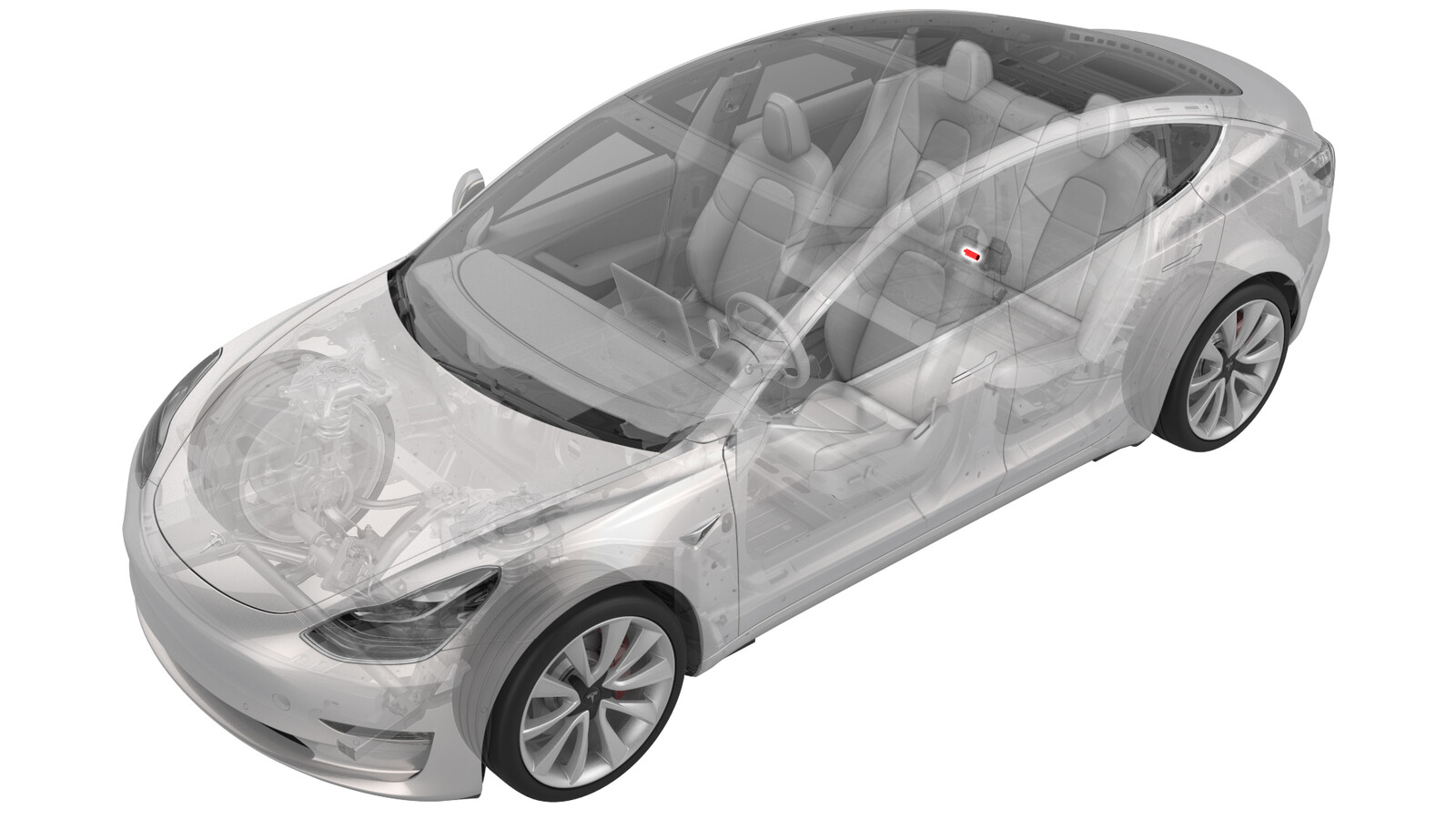

枢轴套筒 - 座椅靠背 - 第二排 - 左侧(拆卸和更换)
校正代码
13057102 0.24
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
拆卸
- 拆下 LH 第二排座椅靠背总成。请参阅座椅靠背 - 第二排 - 左侧(拆卸和更换)。
-

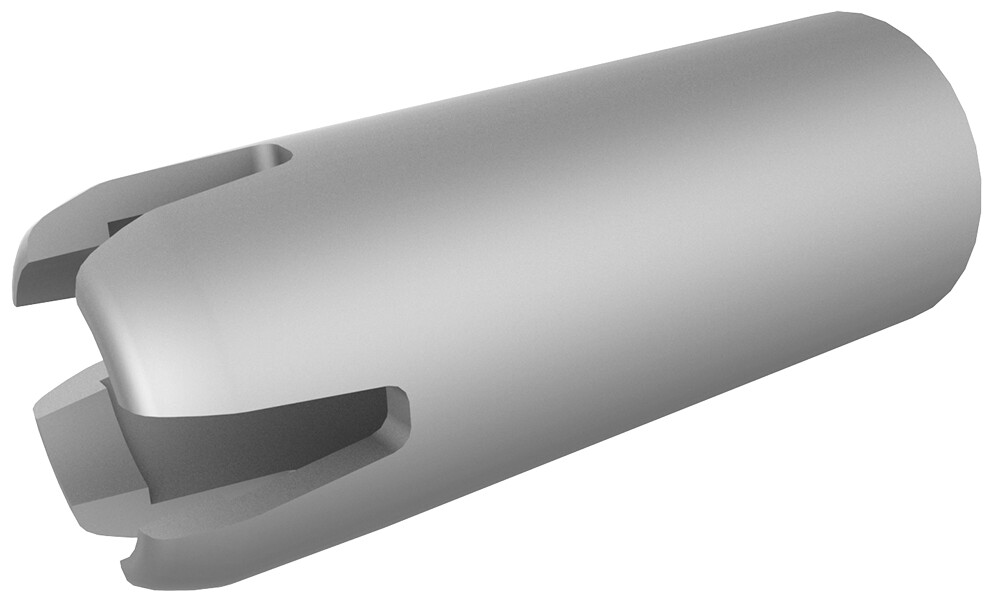

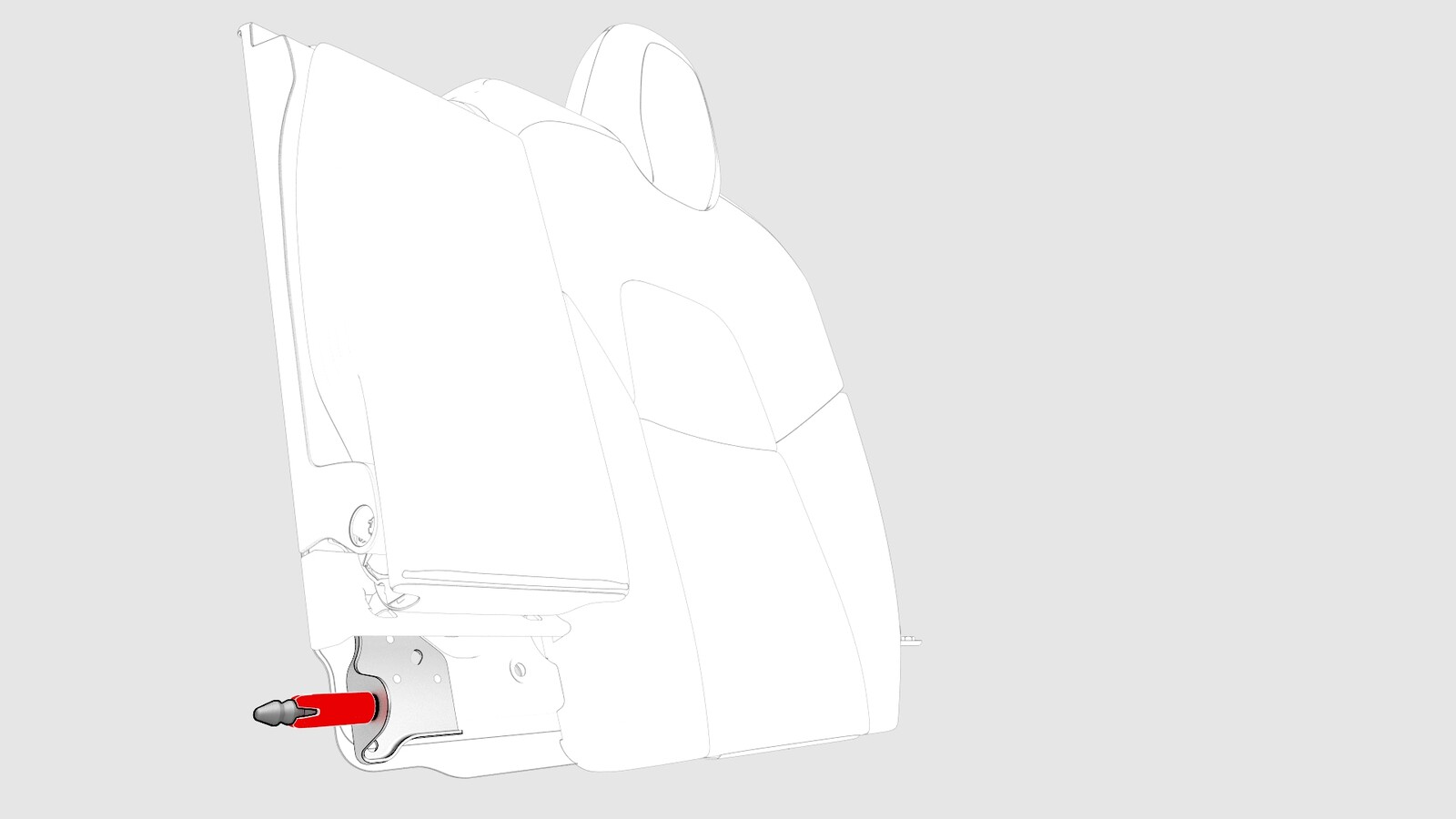

松开将枢轴套筒固定到座椅靠背总成枢轴销的锁片,然后从轴销上拆下套筒。
安装
安装程序与拆卸程序相反。
