饰板 - 盖 - 电动后备箱（拆卸和更换）

校正代码 15110202 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

警告
The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

拆卸

  1. 打开后备箱。

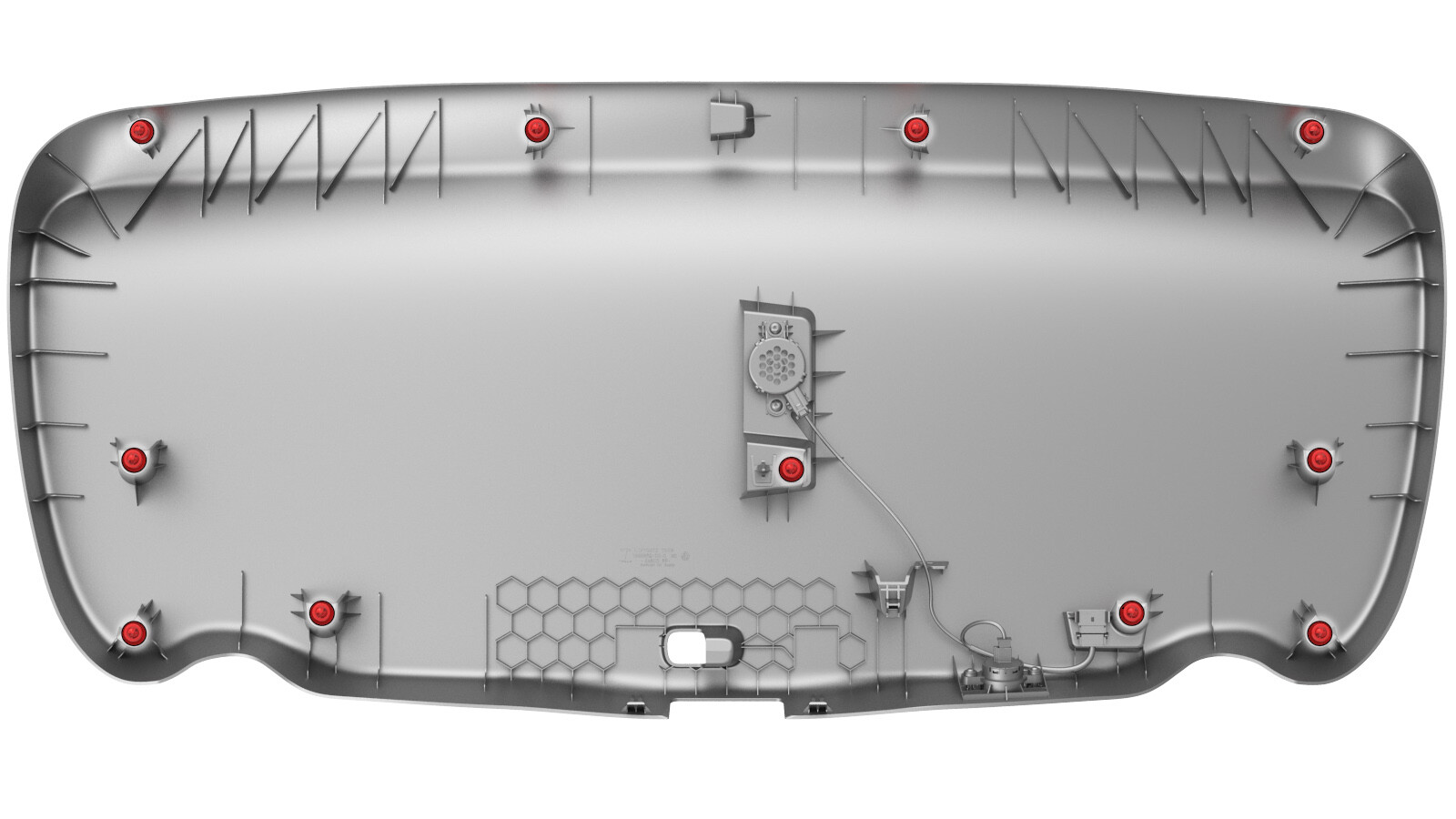

  2. 松开用于固定上角的夹子，然后沿着饰板松开将行李箱饰板固定到行李箱盖的夹子。
    警告
    松开夹子时支撑住饰板，因为此时电动行李箱开关线束仍与饰板相连。
    注
    距离后车窗最近的夹子 (x4) 的抗拉力较大，如果需要，请使用夹子撬具。从行李箱盖上拆下损坏的夹子。

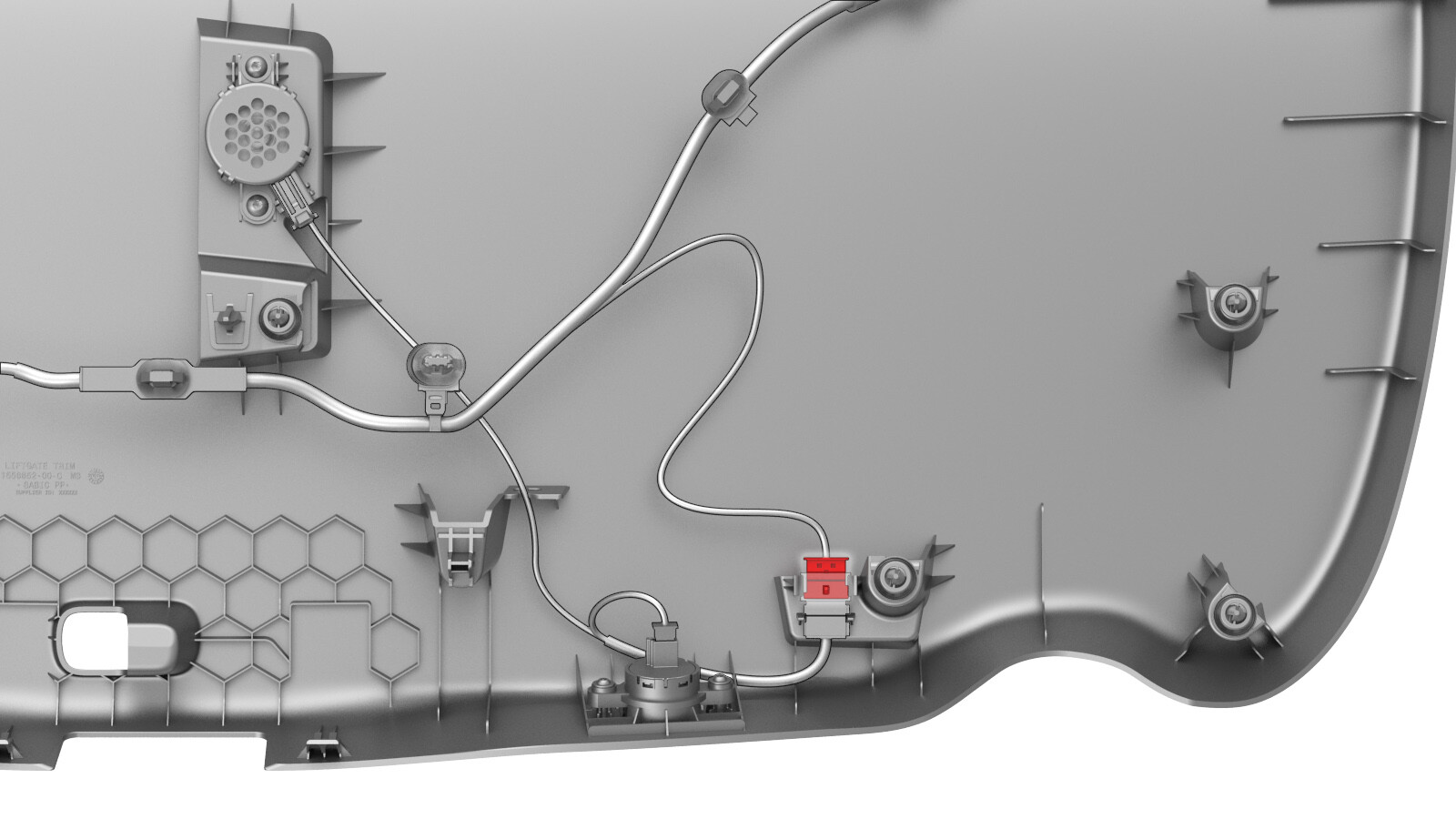

  3. 将电气线束从后备箱饰板上的电动后备箱开关上断开。
  4. 将行李箱盖饰板从行李箱盖上拆下，然后从行李箱盖和行李箱盖饰板上拆下剩余的夹子。

安装

  1. 将新夹子安装到饰板上。
    注
    行李箱盖饰板使用两种不同样式的夹子。
  2. 将电气线束连接到电动行李箱开关，将行李箱盖饰板锁片与行李箱盖上的槽对准，然后将夹子按入行李箱盖中。
    注
    确保所有夹子完全就位。
