支架 - 车牌 - 前（欧洲、中东和非洲）（使用夹具改装）

校正代码 12070126 0.12 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

  • 1496772-00-A 前车牌架夹具，Model 3，欧洲、中东和非洲

程序

  1. Clean the front center surface of the front fascia with isopropyl alcohol (IPA) wipe, and then allow surface to dry before continuing.

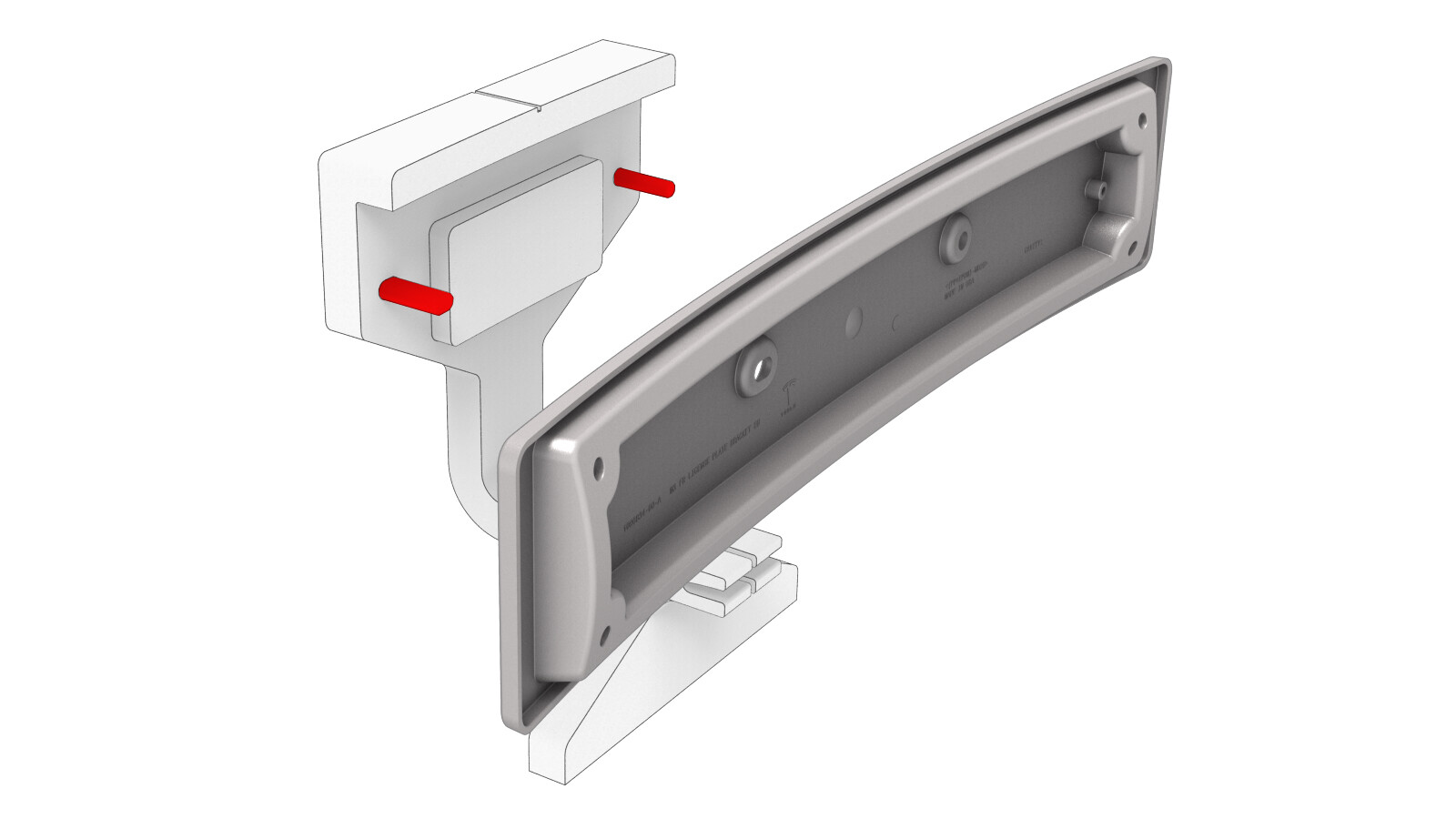

  2. Put the front license plate bracket on the jig: Line up the 2 holes on the front license plate bracket with the alignment pins on the jig.

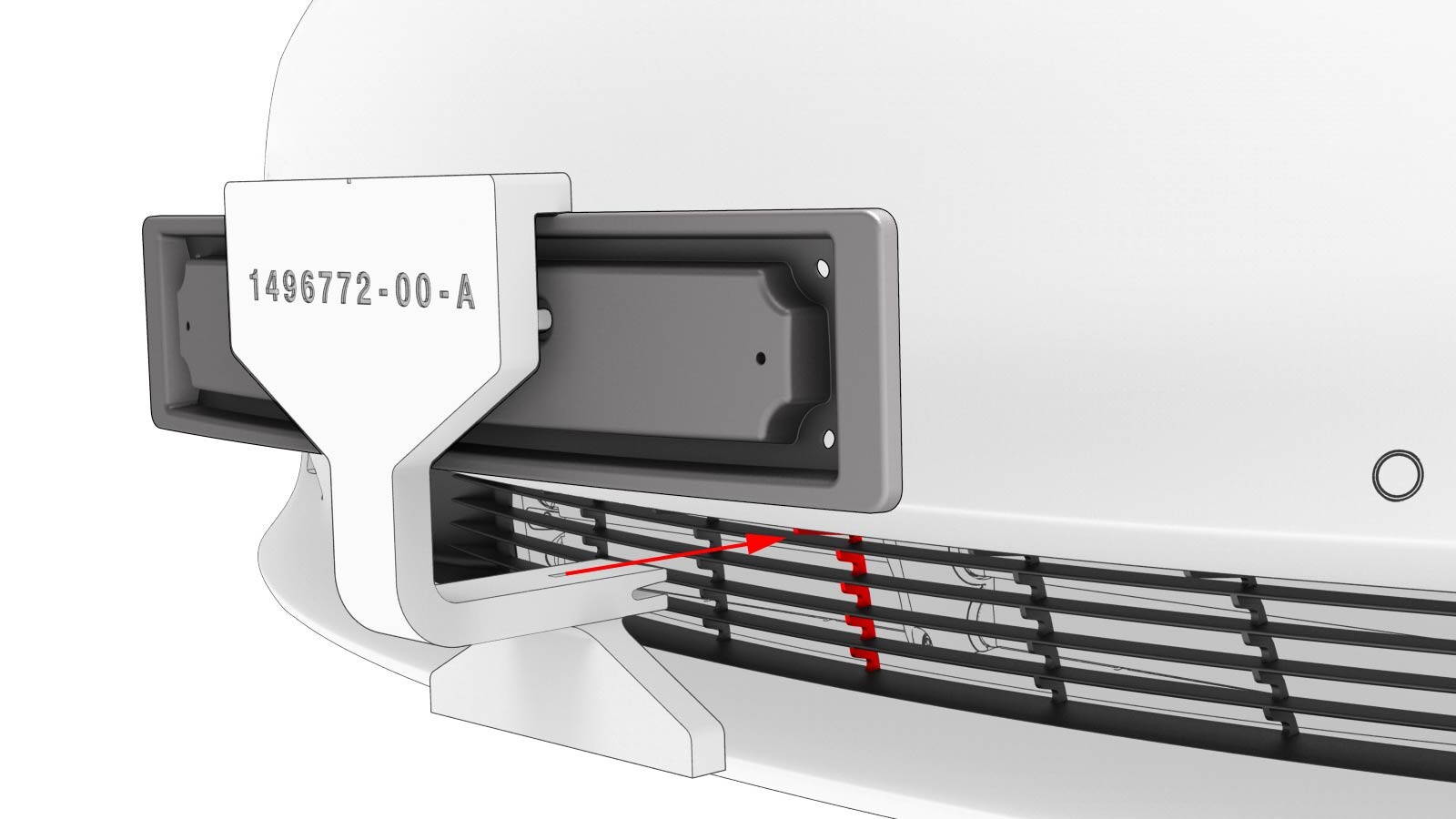

  3. Put the jig on the front fascia: Line up the center indicator (cut out slit) with the center of the front fascia grille.
    Informational PurposesAn informational icon, calling your attention
    Note
    Apply enough force on the head of the jig causing an even contact surface with the front fascia grille and the front license plate bracket.
    Informational PurposesAn informational icon, calling your attention
    Note

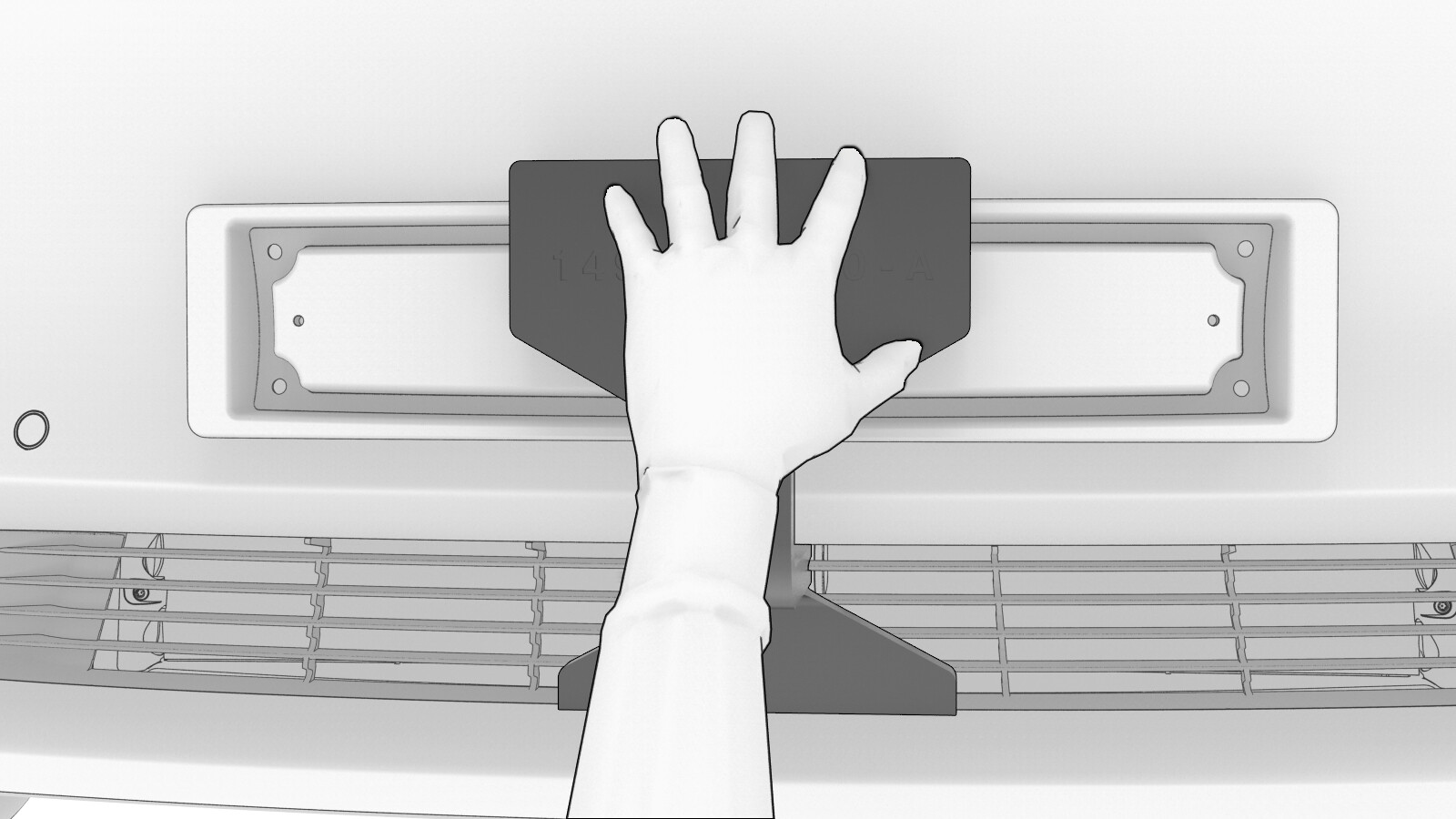

    Make sure to hold the jig by placing your hand on the head of the jig.
  4. Wear eye and ear protection before continuing.

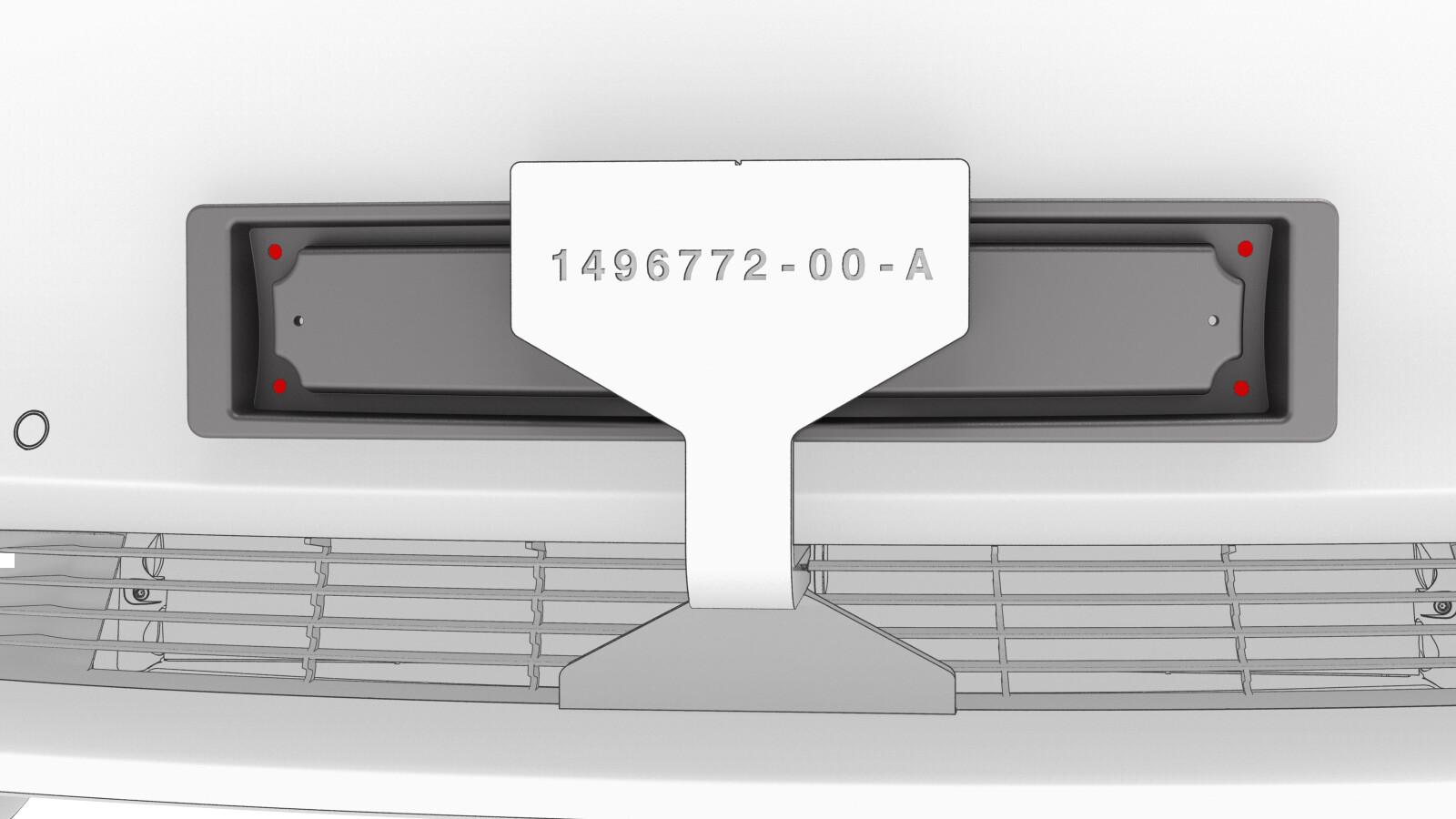

  5. Use a 7/64 in (3 mm) drill bit to drill 4 holes through the front fascia.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Only drill through the top surface of the front fascia. Drilling too far can result in damage to the vehicle.
  6. Install the self tapping screws (part number 1104972-00-A) (x4) that attach the front license plate bracket to the front fascia.
    1 Nm (.7 lbs-ft)
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not over torque the screws to prevent damage to the front fascia.

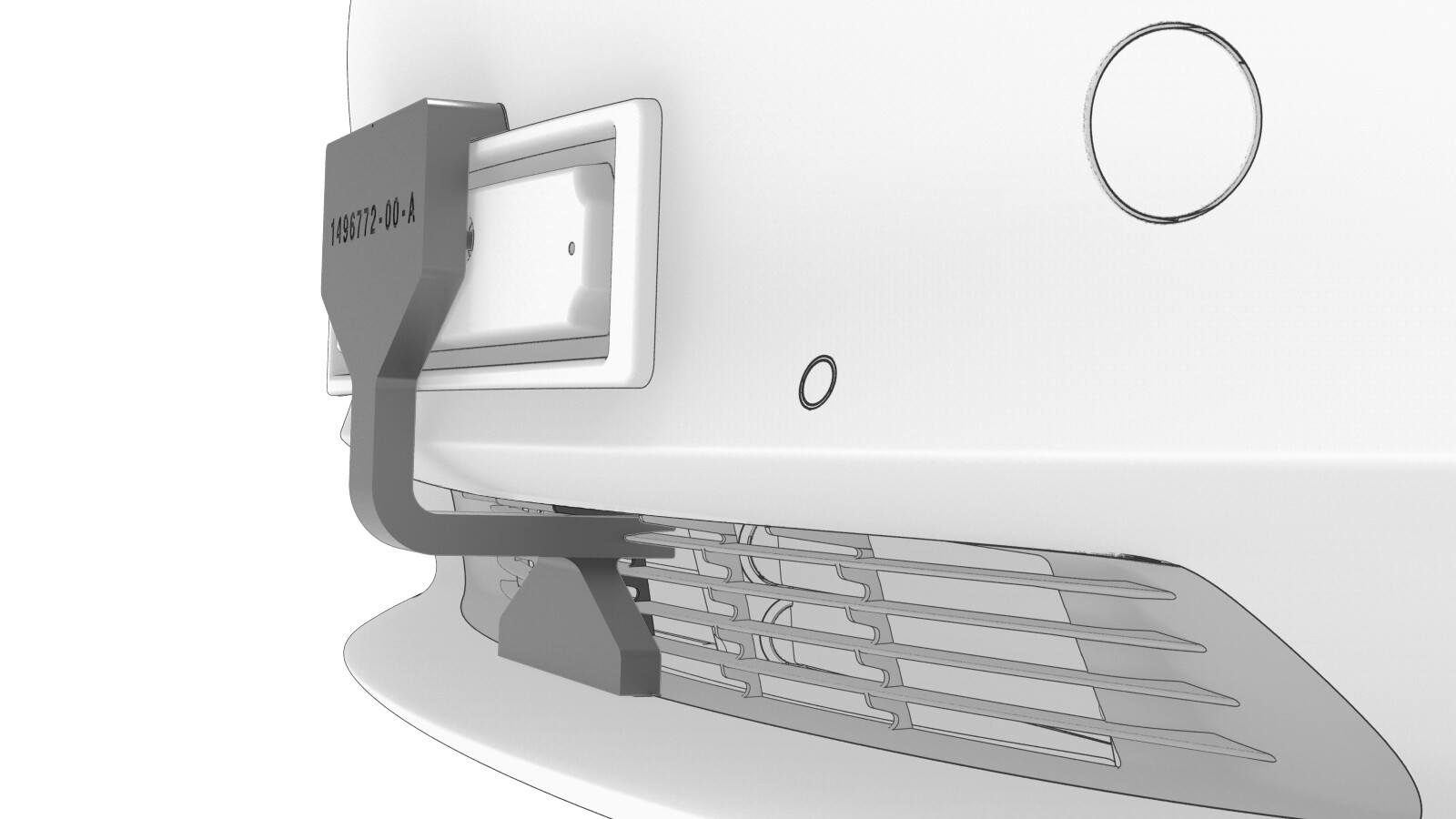

  7. Remove the jig by sliding it out from the front fascia grille
