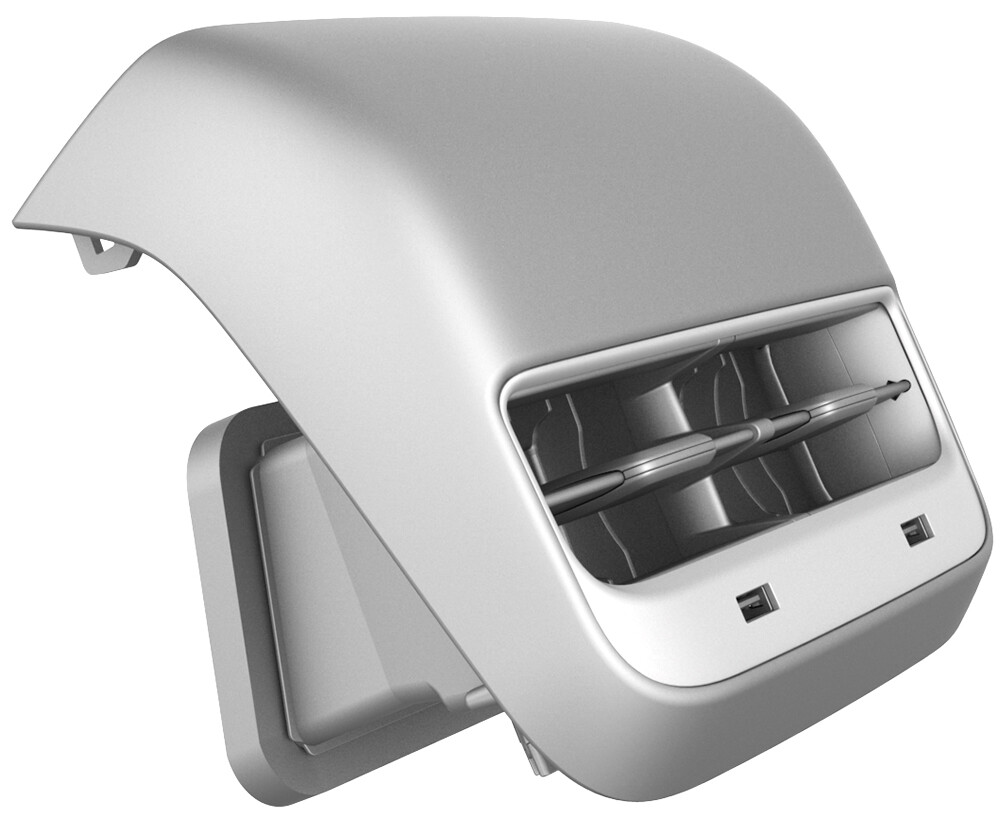

盖板总成 - 后通风口 - 中控台(拆卸和更换)

校正代码 15190702 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

拆卸

  1. 将驾驶位座椅和副驾位座椅向前移。

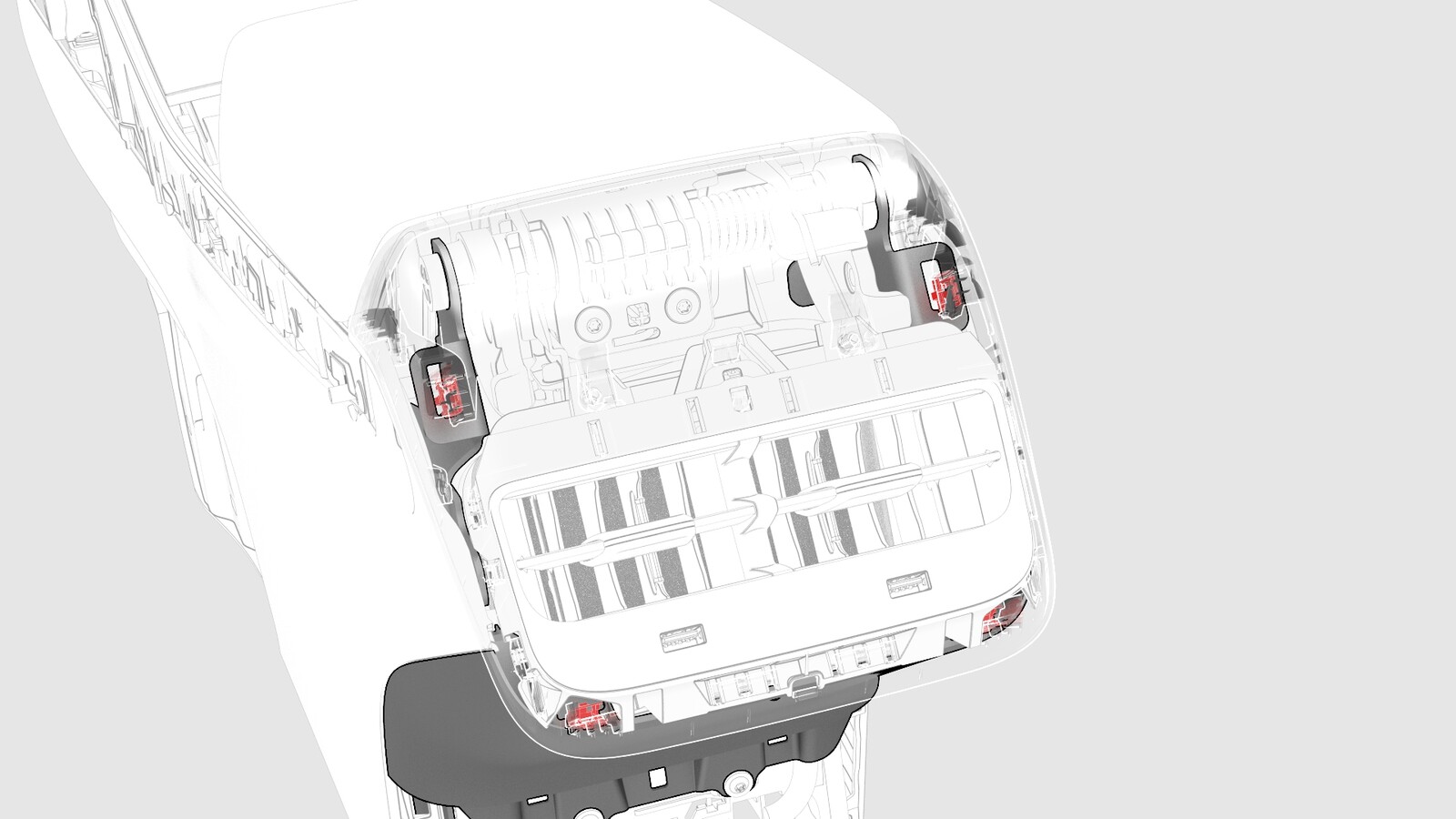

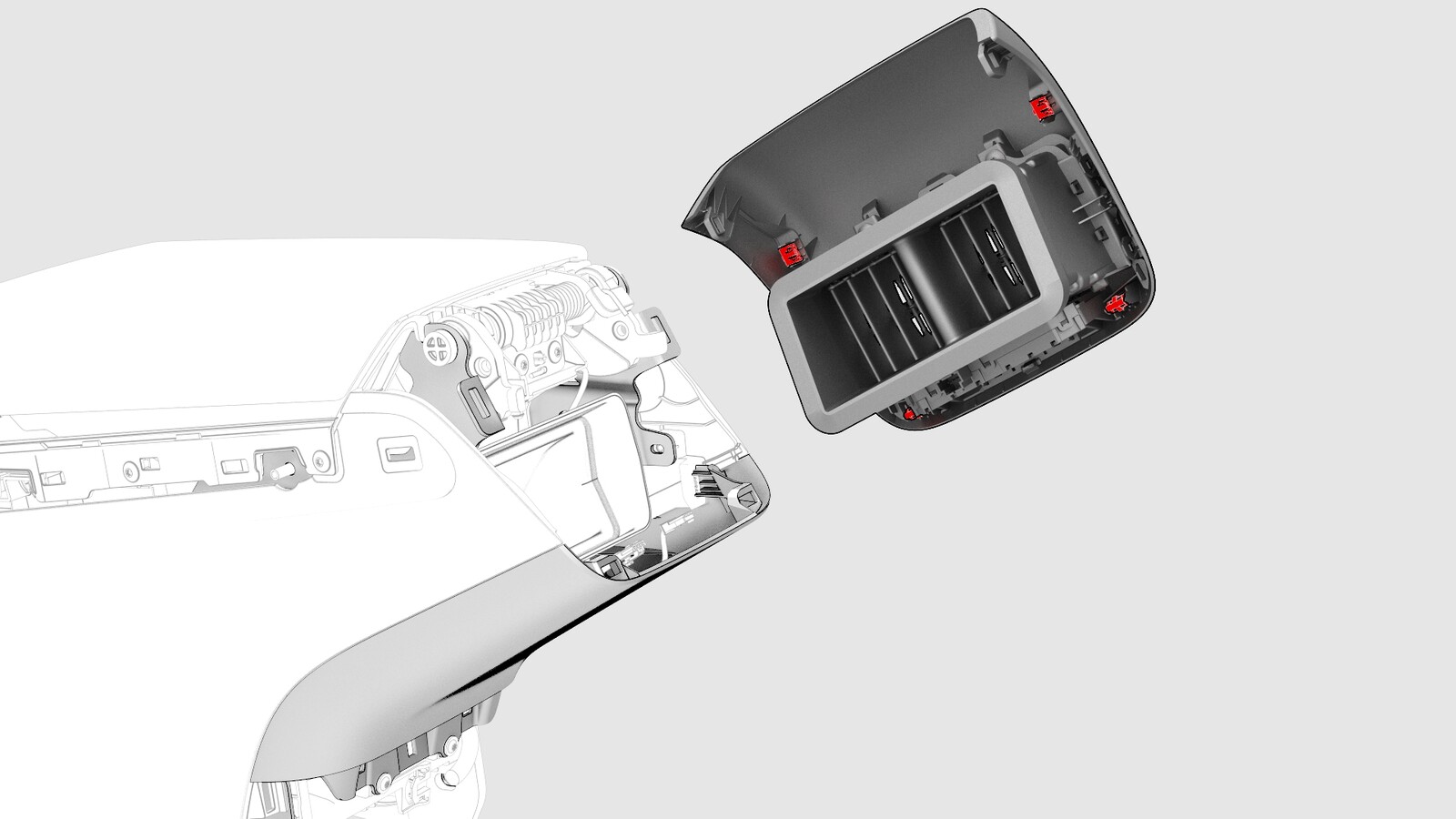

  2. 使用塑料饰板工具松开将中控台后通风总成固定到中控台的夹子 (x4),然后将后通风总成与中控台分离。
    警告
    后通风总成仍通过电气连接器保持连接。

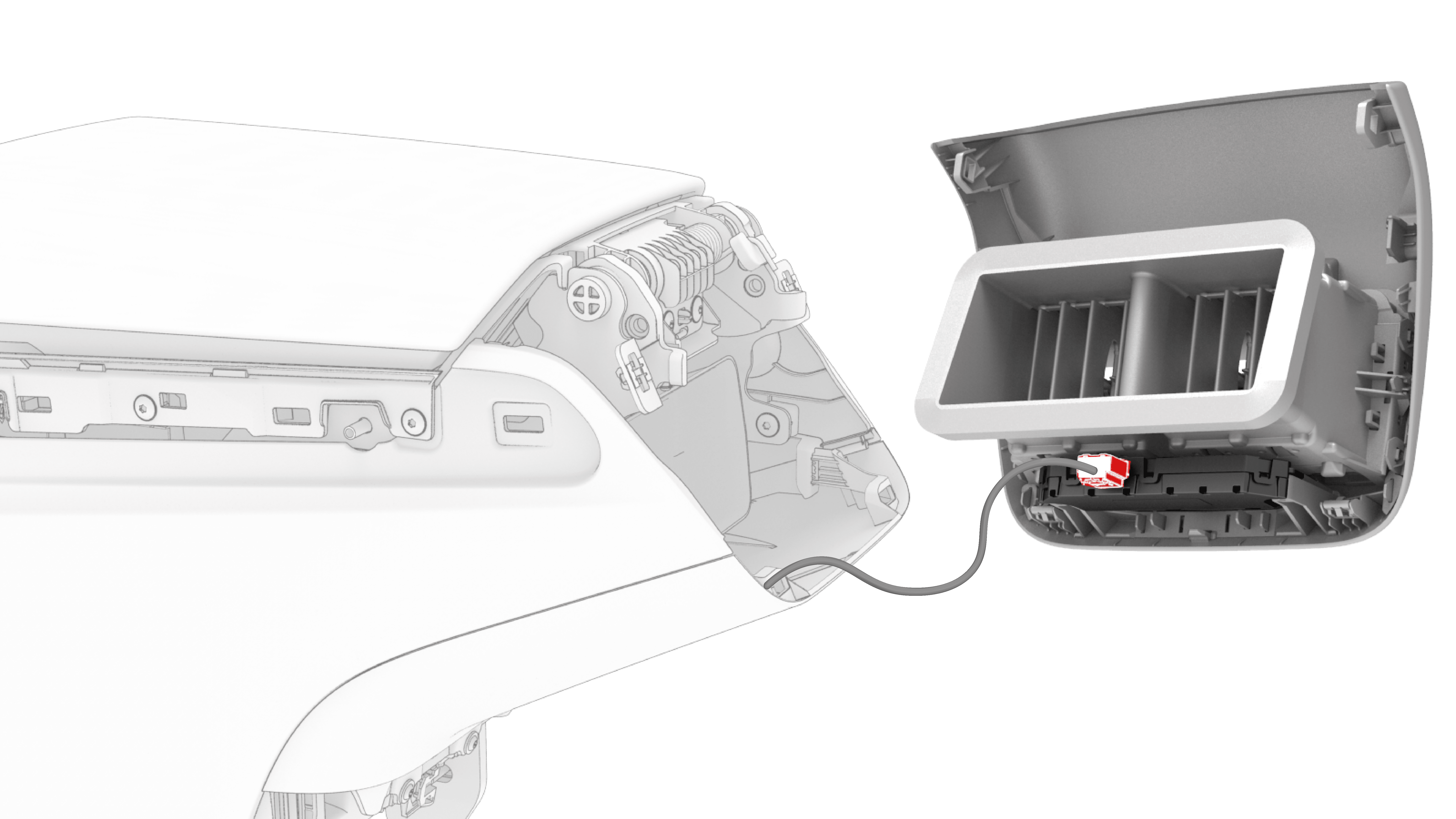

  3. 断开电气线束与中控台后部 USB 集线器连接器之间的连接,然后从车上拆下中控台后通风总成。

安装

安装程序与拆卸程序相反。
