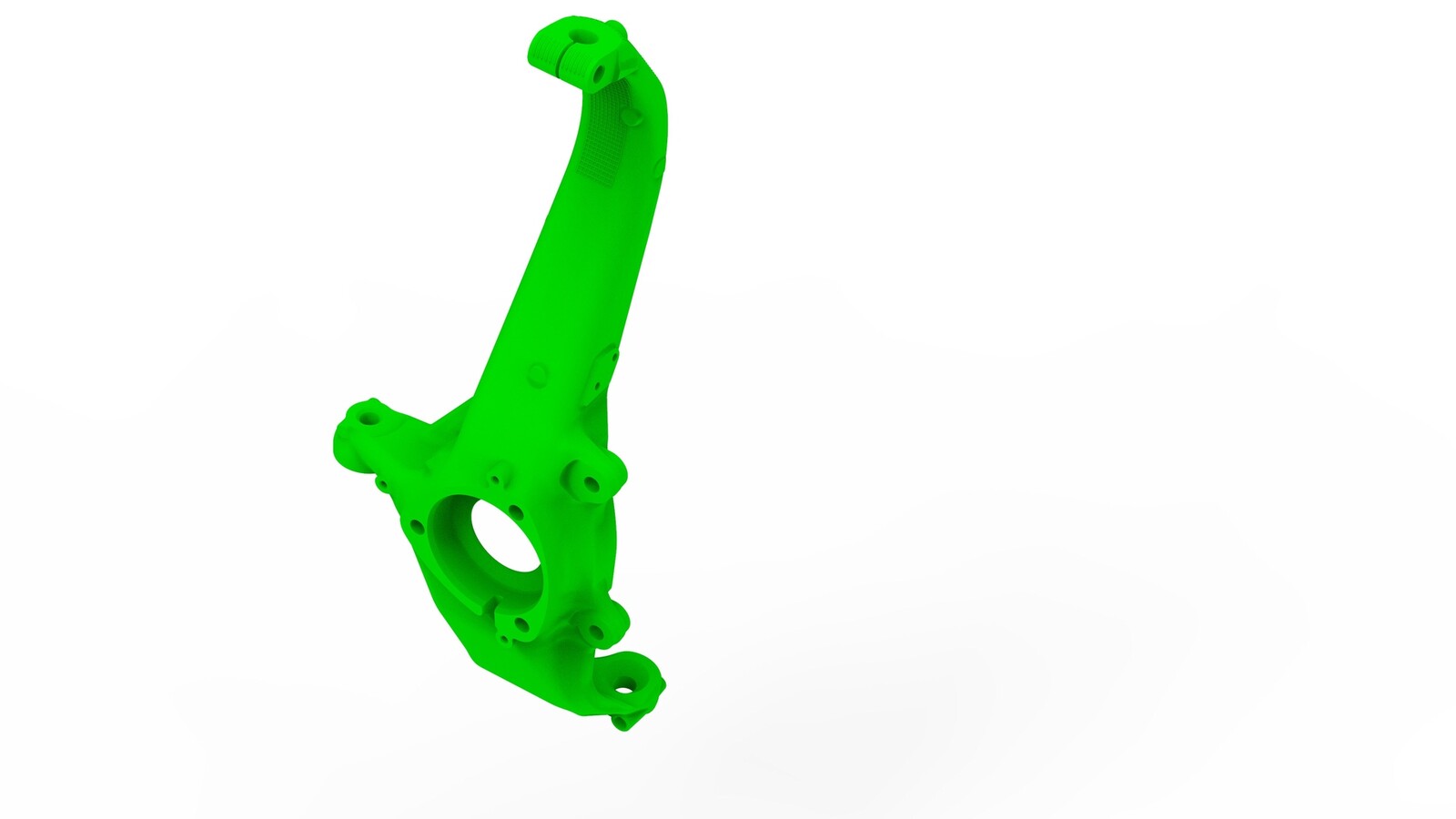

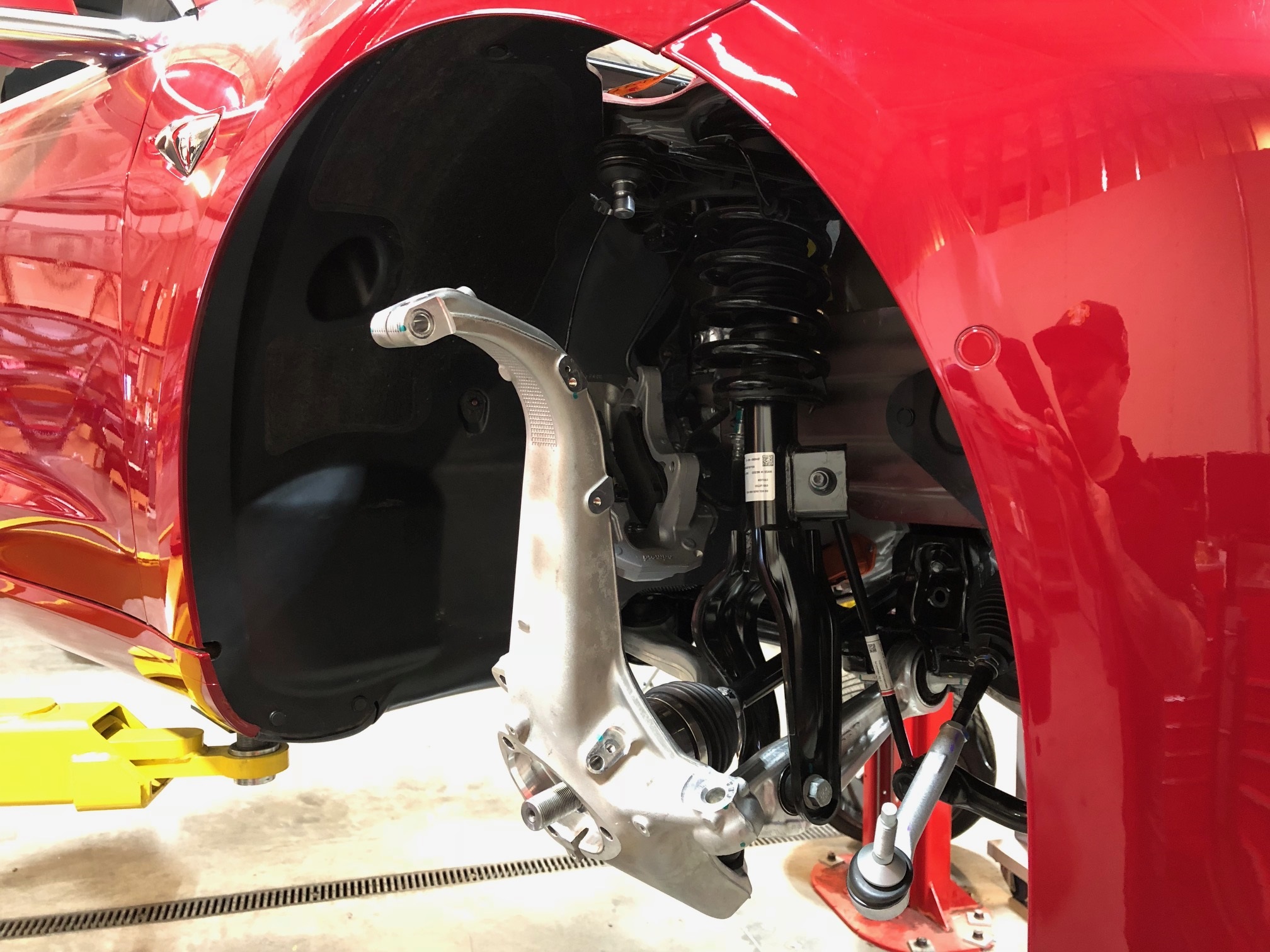

万向节 - 悬架 - 前 - 左侧（后轮驱动）（拆卸和更换）

校正代码 31010102 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

警告
If performing this procedure as a result of a collision, see the Collision Repair Manual to verify whether the steering gear must be replaced as well.

拆卸

  1. 拆下左侧前制动防尘罩。请参阅 罩 - 防尘 - 制动 - 前 - LH（拆卸和更换）。

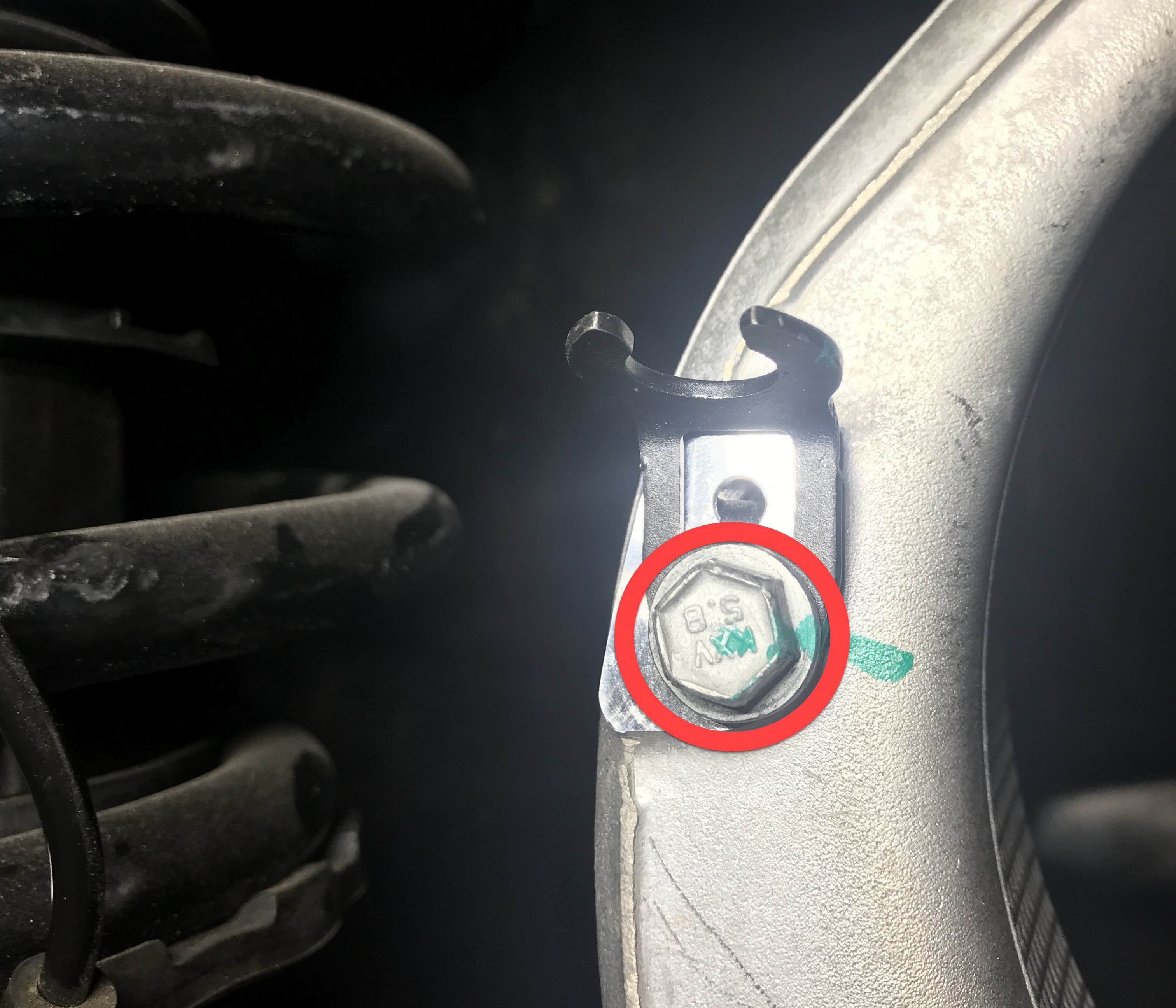

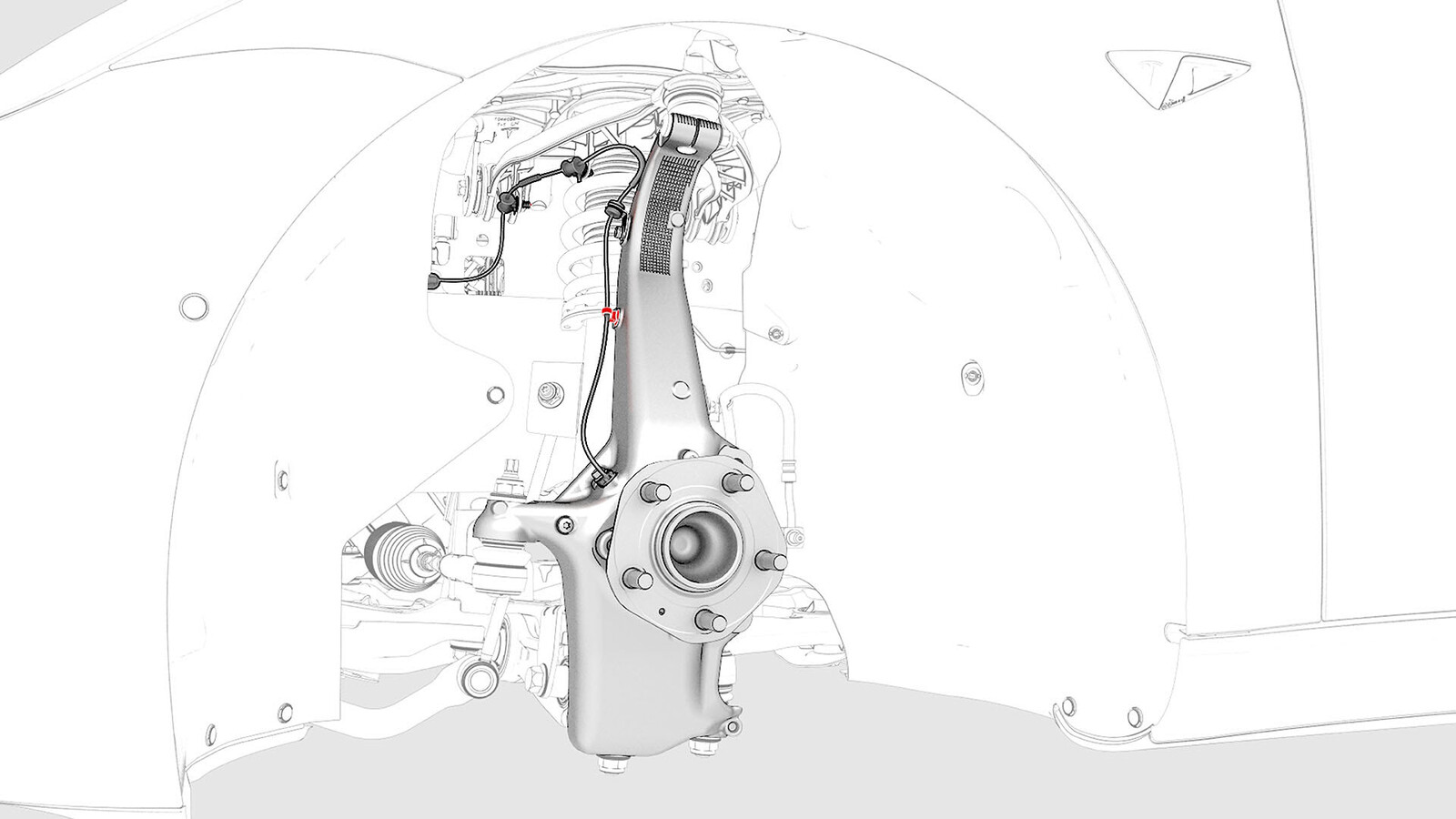

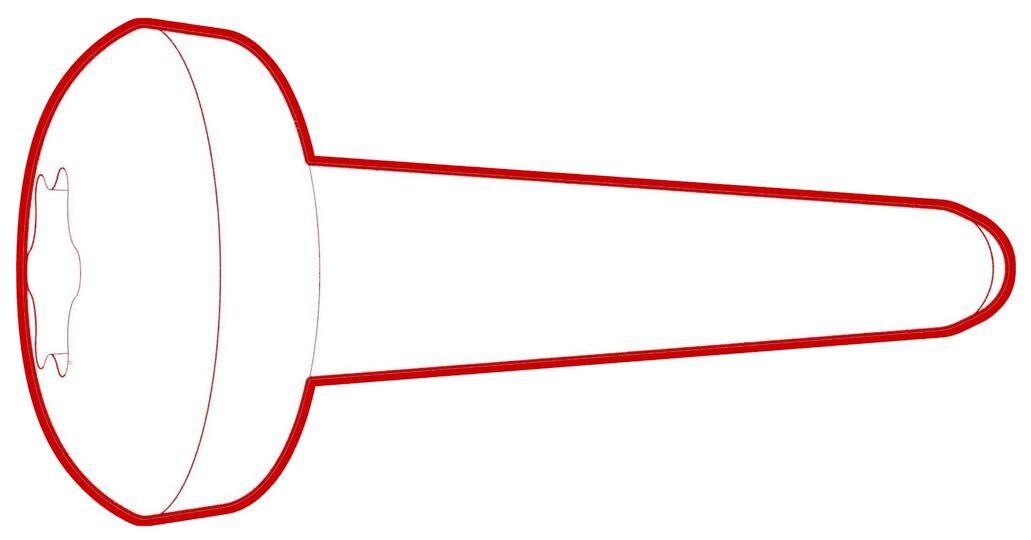

  2. 拆下将左侧前防抱死制动系统车轮转速传感器电气线束固定到左侧前悬架转向节的螺栓。
    5 Nm (3.7 lbs-ft)
  3. 松开将左侧前防抱死制动系统车轮转速传感器电气线束固定到左侧前悬架转向节的夹子。

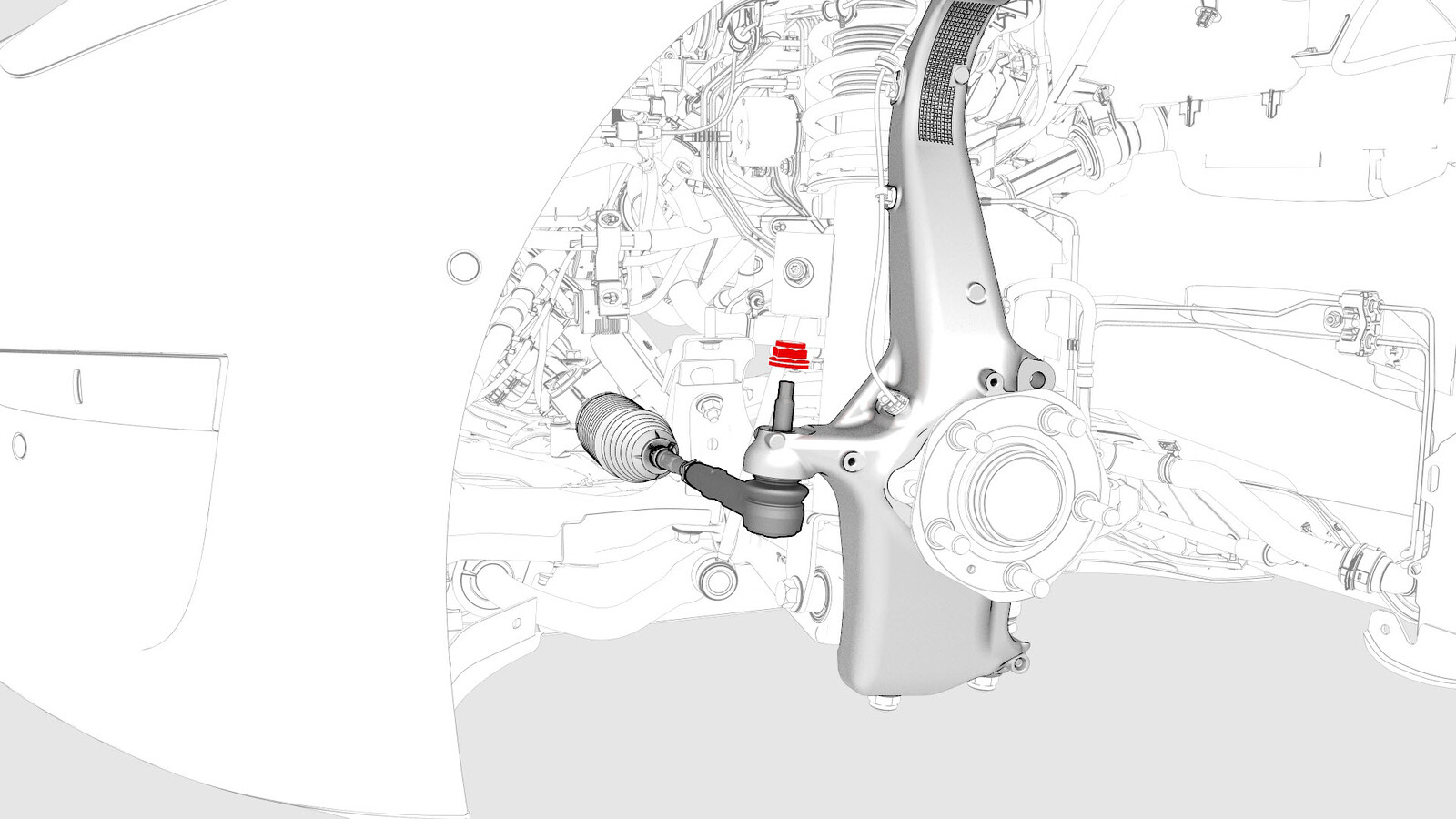

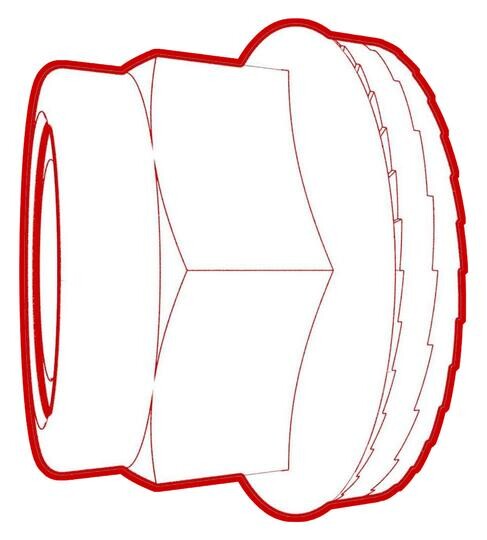

  4. 拆下并弃用将左侧横拉杆球头固定到左侧前悬架转向节的螺母。
    180 Nm (132.7 lbs-ft)
  5. 从车上拆下左侧横拉杆球头。

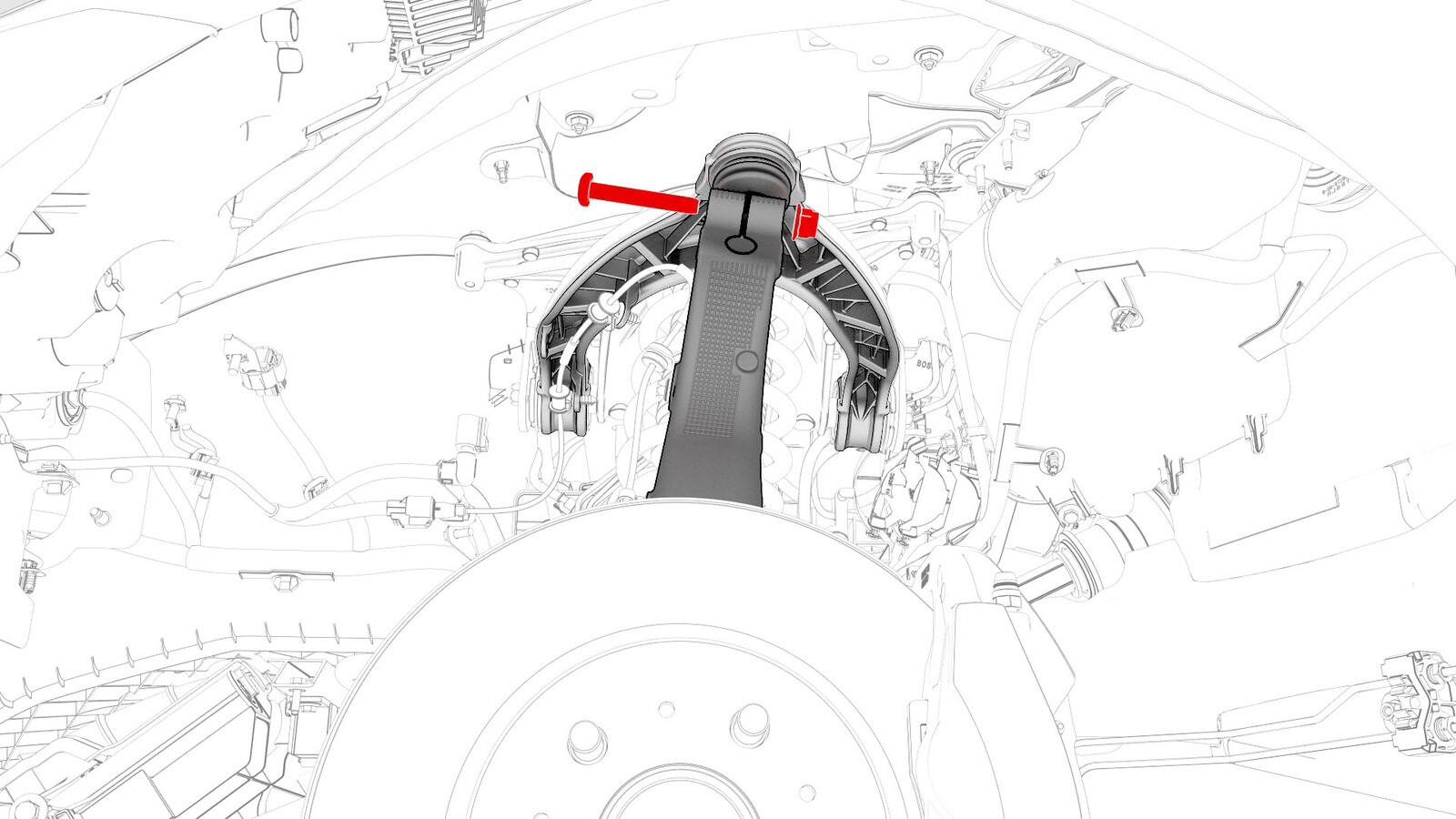

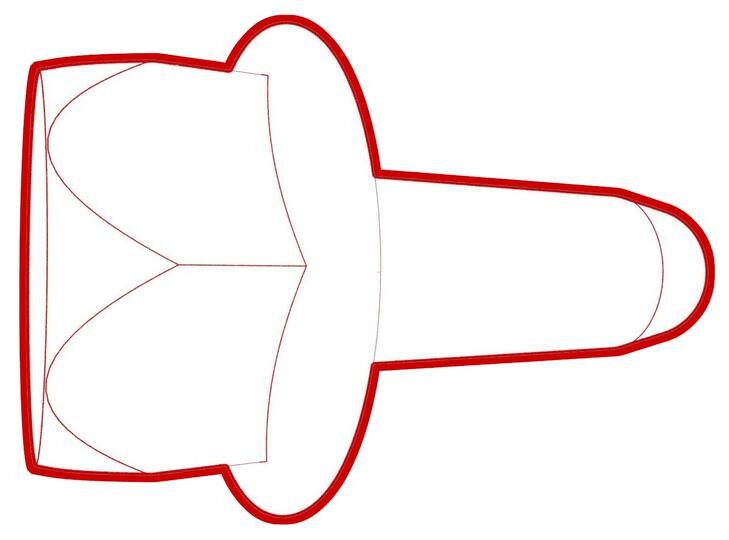

  6. 拆下将左侧上方控制臂固定到左侧前悬架转向节的螺栓和螺母。
    56 Nm (41.3 lbs-ft)
    56 Nm (41.3 lbs-ft)

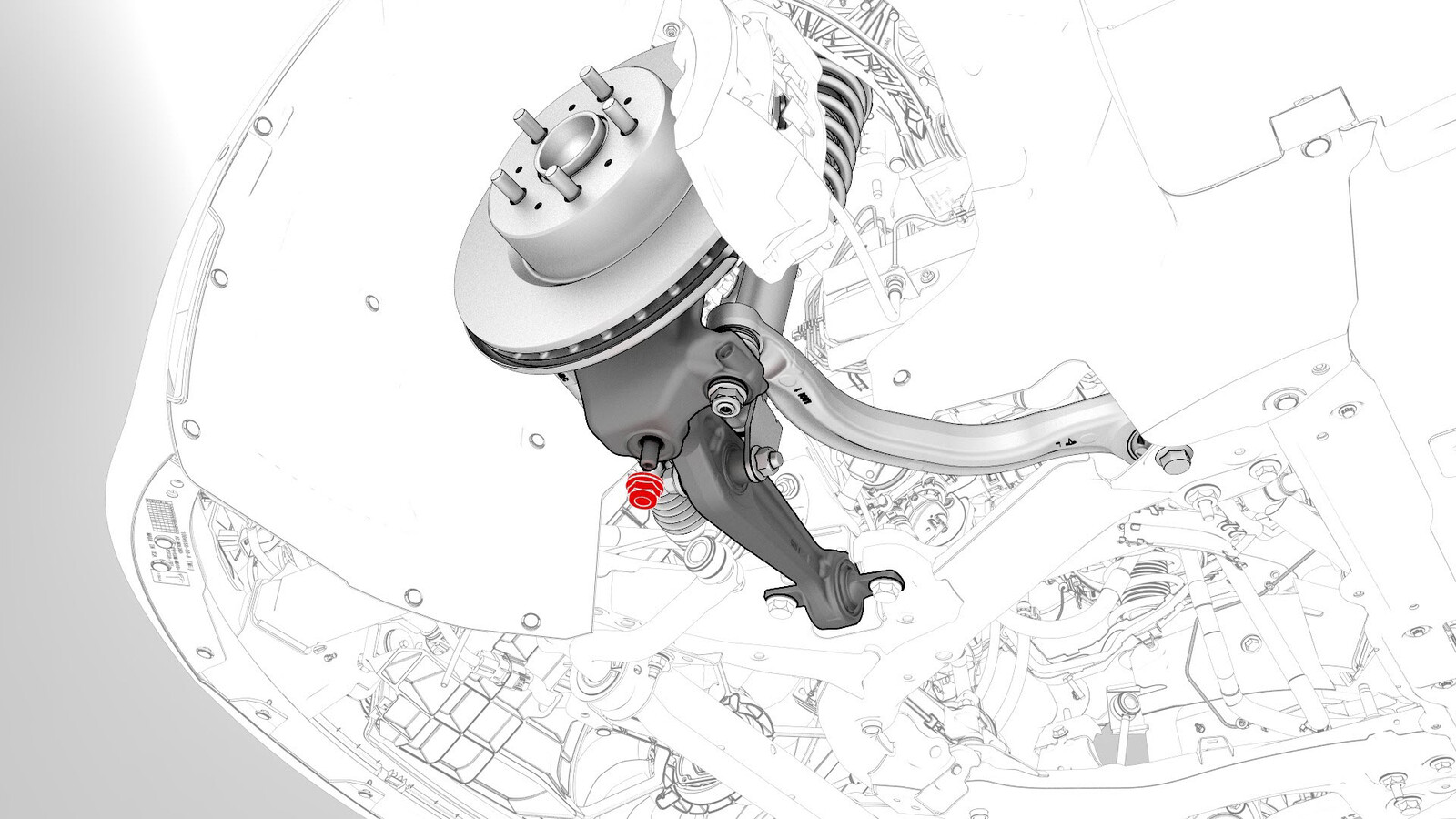

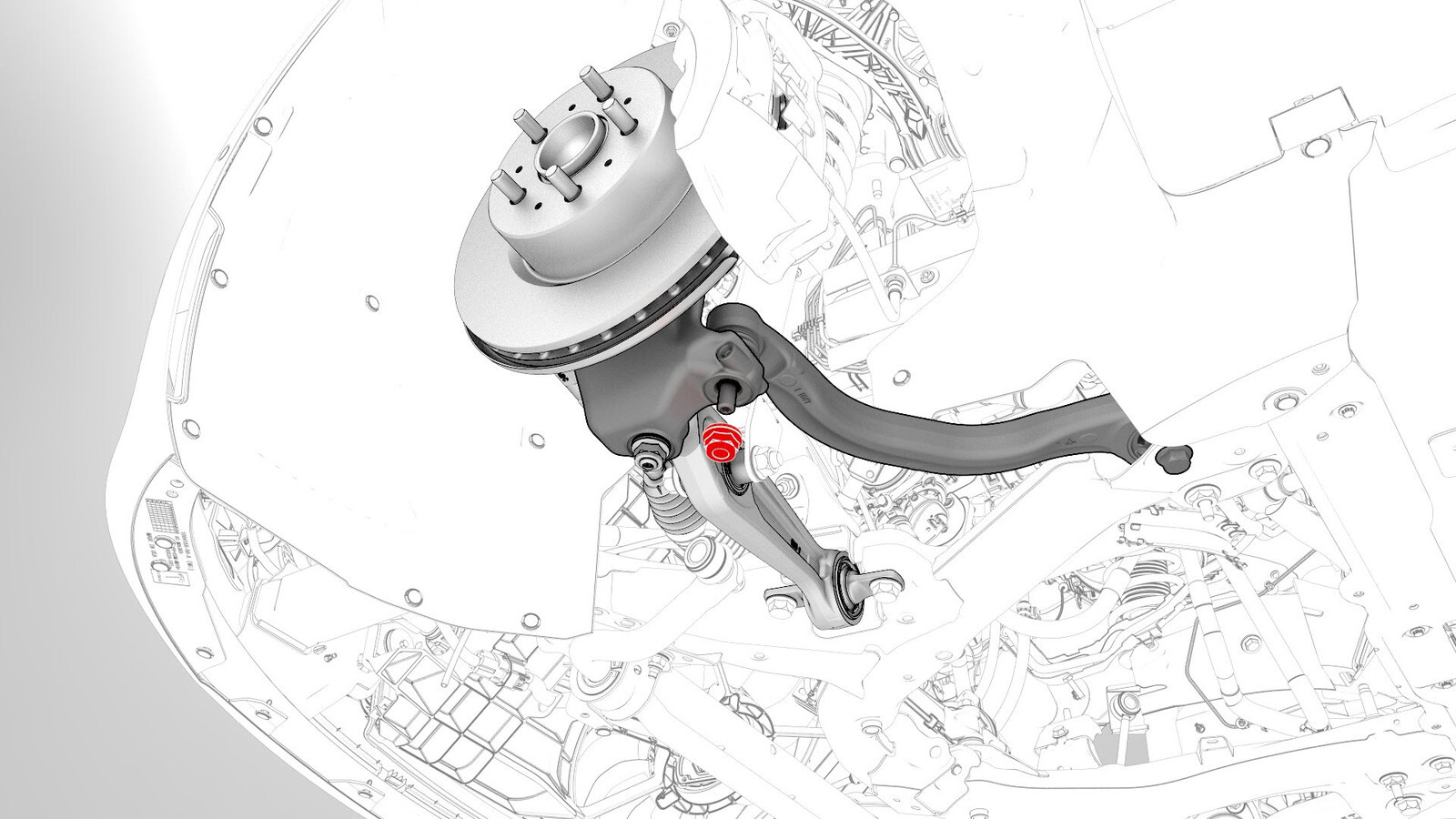

  7. 拆下并弃用将左侧前下方柔性连杆固定到前悬架转向节的螺母。
    180 Nm (132.7 lbs-ft)
  8. 拆下并弃用将左侧前下方横向连杆固定到左侧前悬架转向节的螺母。
    180 Nm (132.7 lbs-ft)

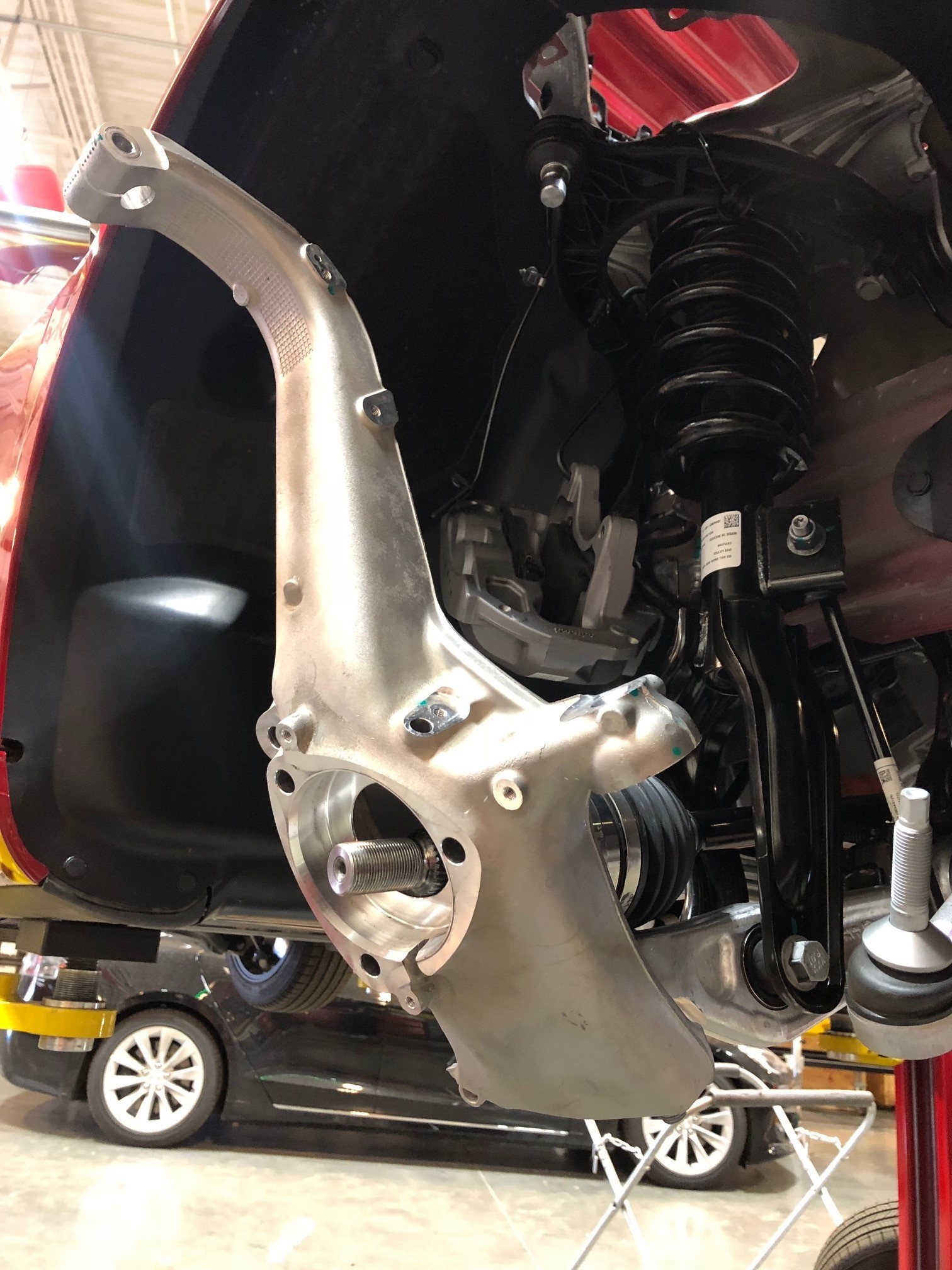

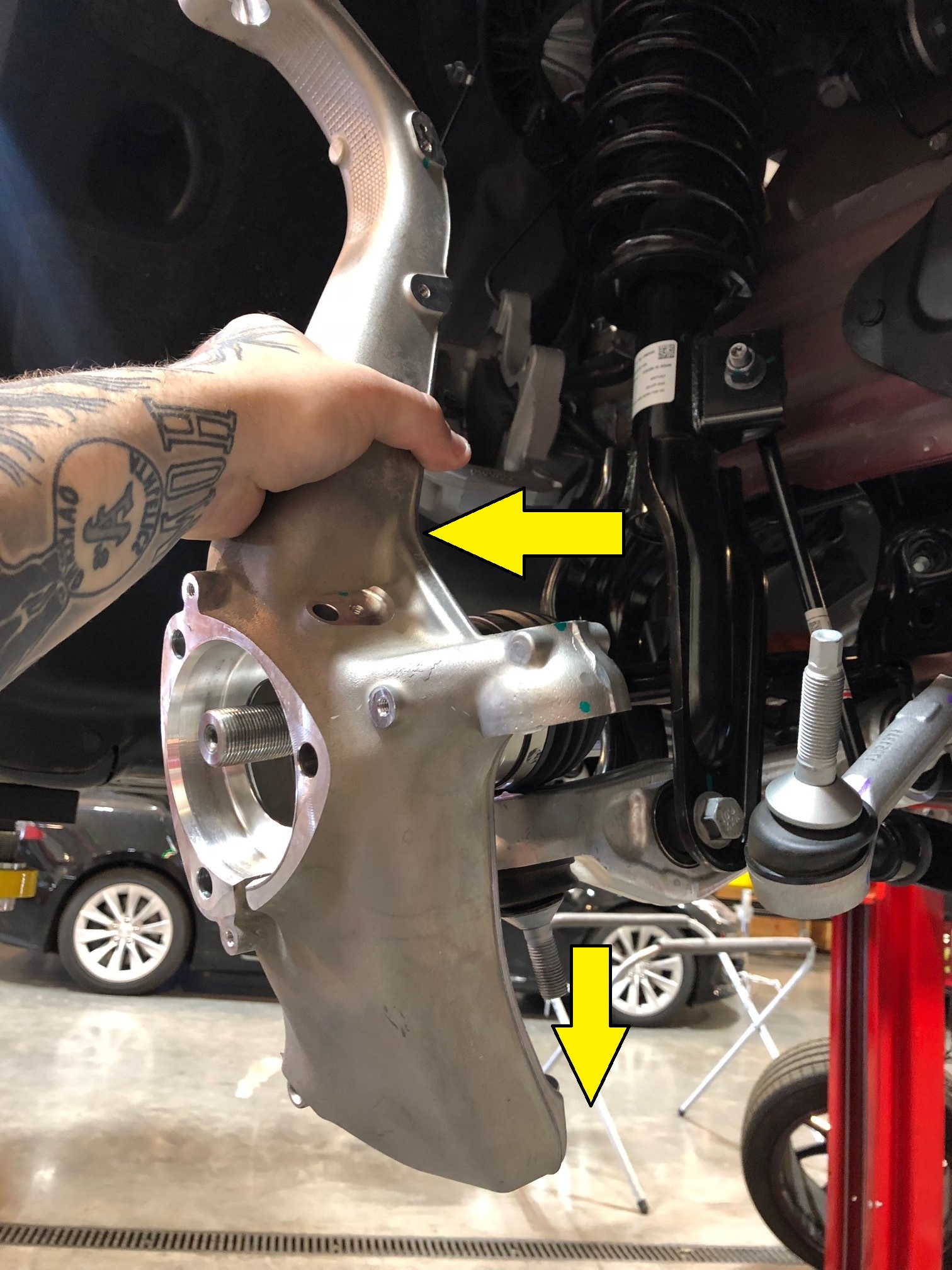

  9. 从车上拆下前悬架转向节和轮毂总成。
  10. 将左前轮毂转速传感器线束支架从转向节上拆下。
    5 Nm (3.7 lbs-ft)

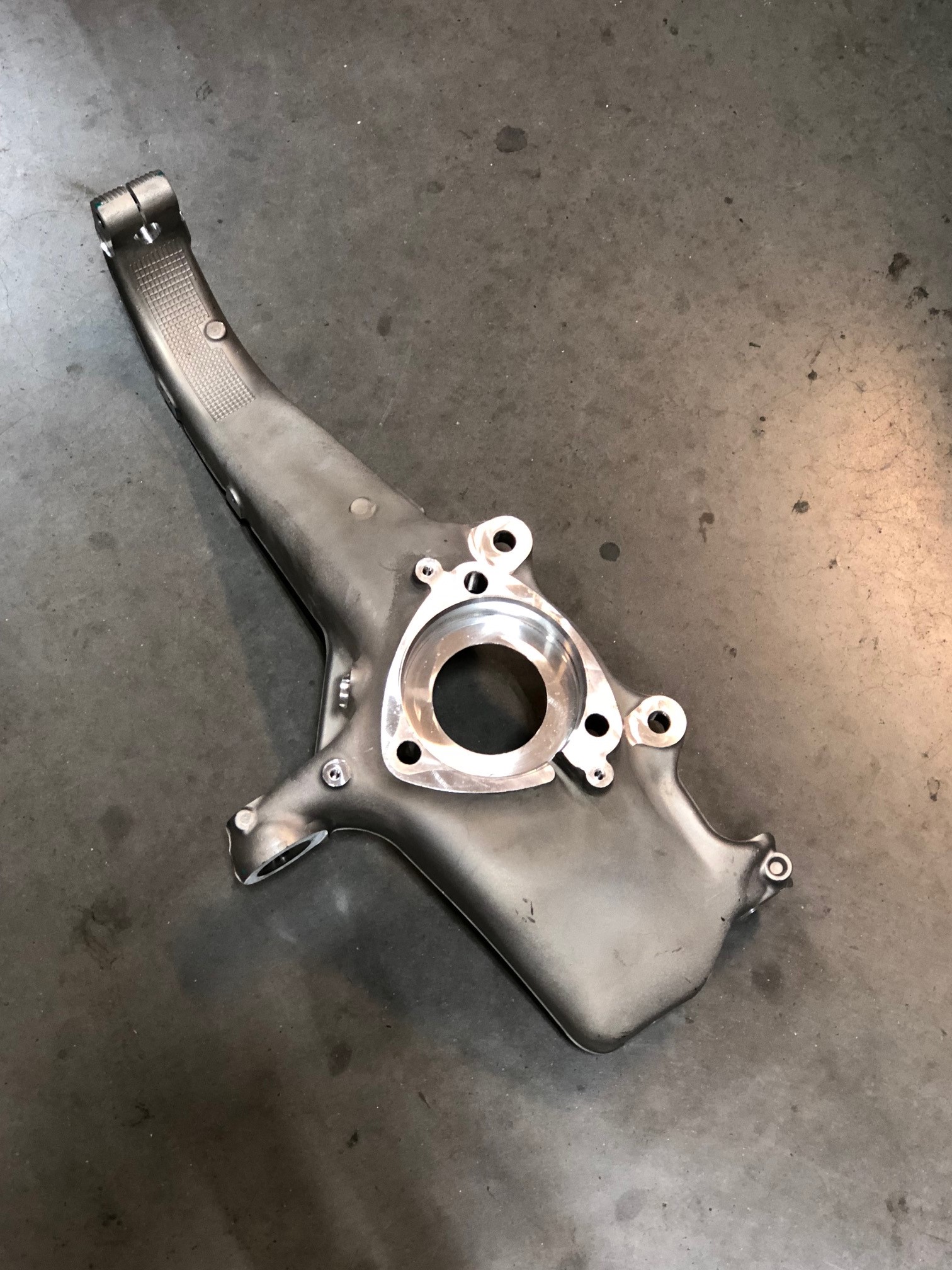

  11. 将前轮毂与前悬架转向节分离。

安装

安装程序与拆卸程序相反，以下各项除外：

  • Replace all nyloc nuts.
  • Refer to the Alignment Requirement tables to determine whether an EPAS alignment check (EC) or four wheel alignment check (AC) is necessary. If performed, add the alignment check/adjust correction code as a separate activity to the SV. See 定位要求 - 悬架.
