Isolator - Motor Mount - Front - LH (Remove and Replace)

校正代码 30011022 2.88 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

  • 2025-03-26: 添加了“根据悬架定位表确定是否需要进行定位检查，如果需要，确定需进行哪种类型的定位检查”的步骤。
  • 2024-11-25: 添加了有关安装 O 型环的说明。

拆卸

  1. 将前副车架总成从车辆上拆下。请参阅Subframe Assembly - Front (Dual Motor) (Remove and Install)。

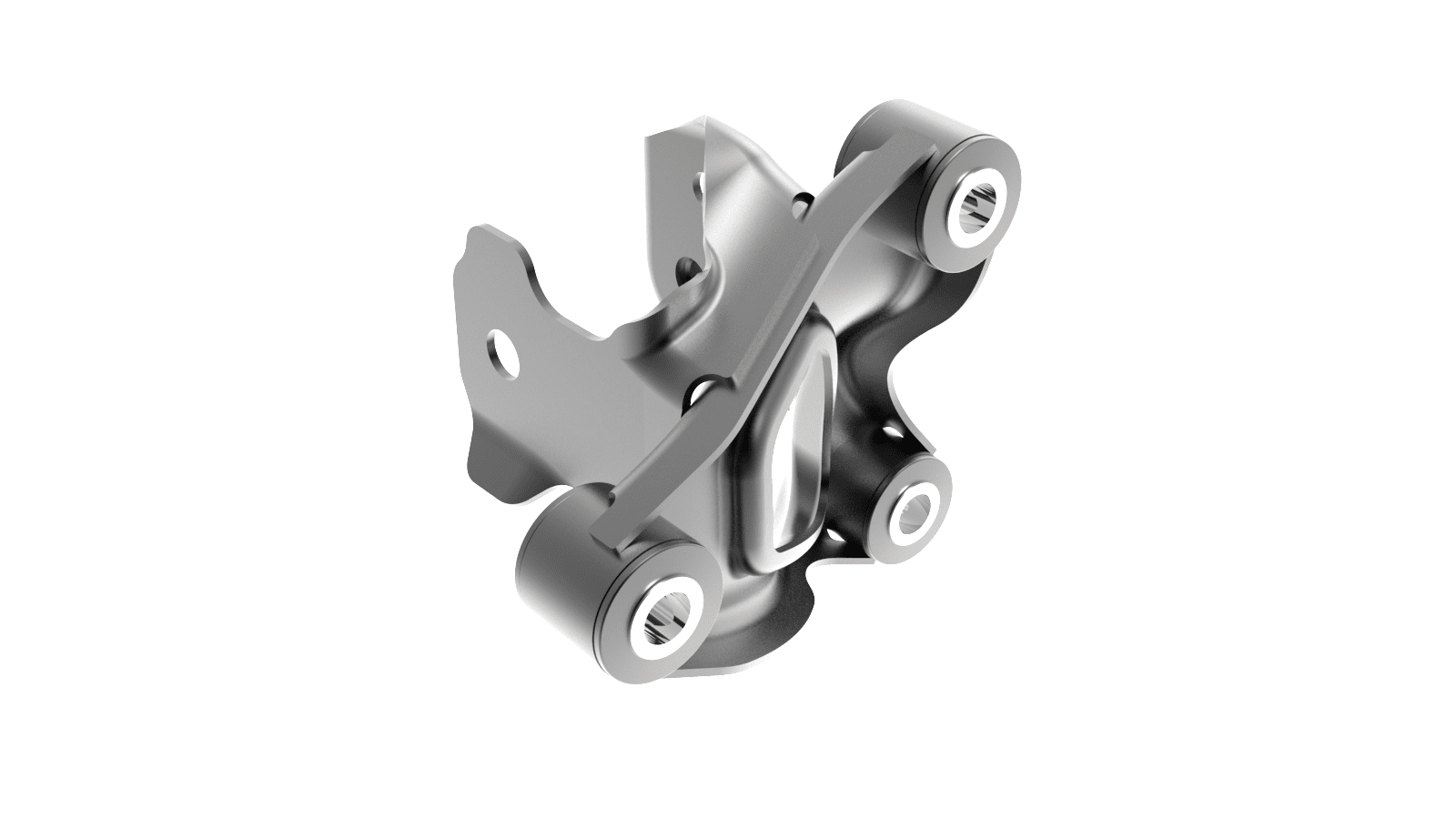

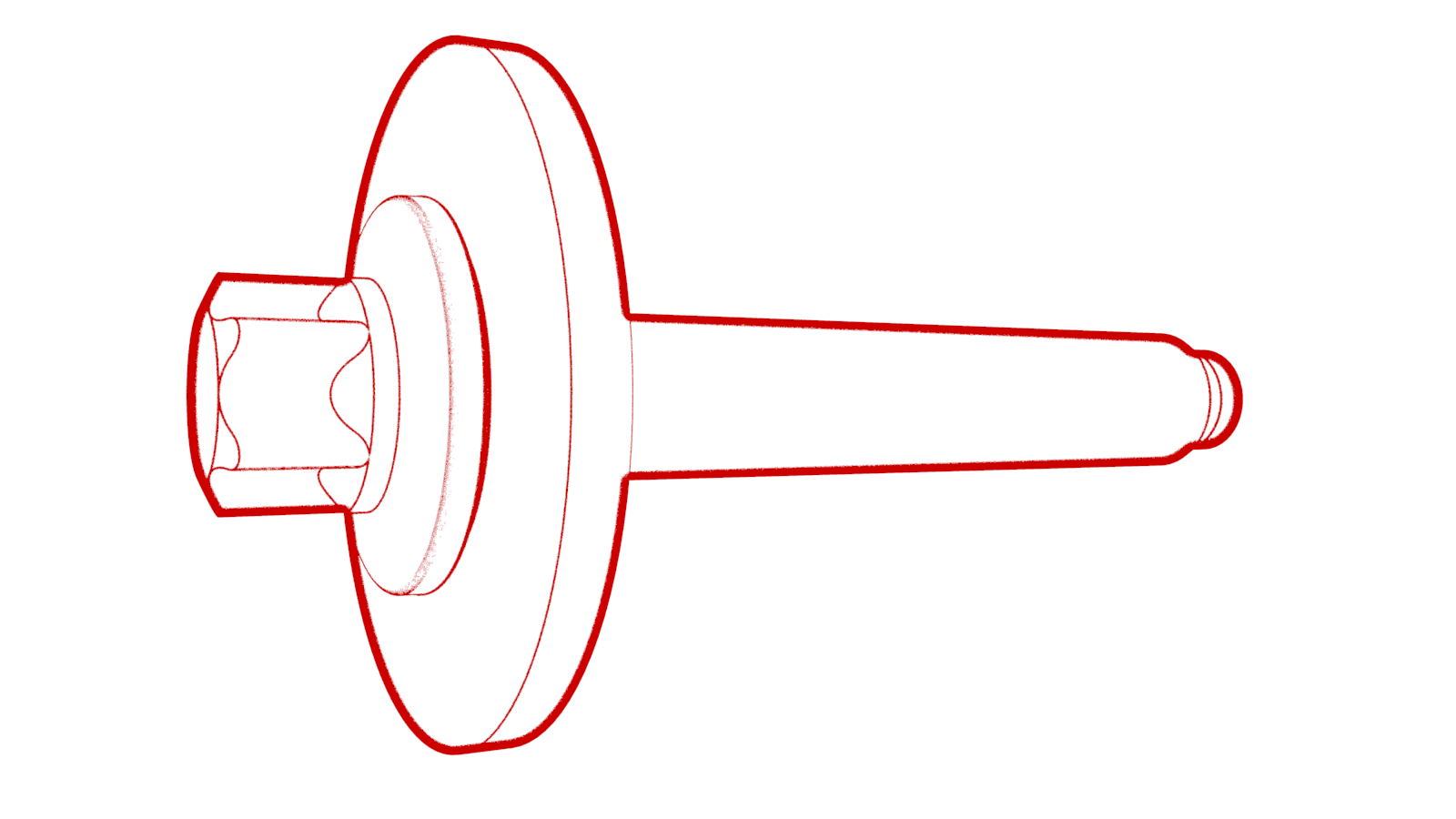

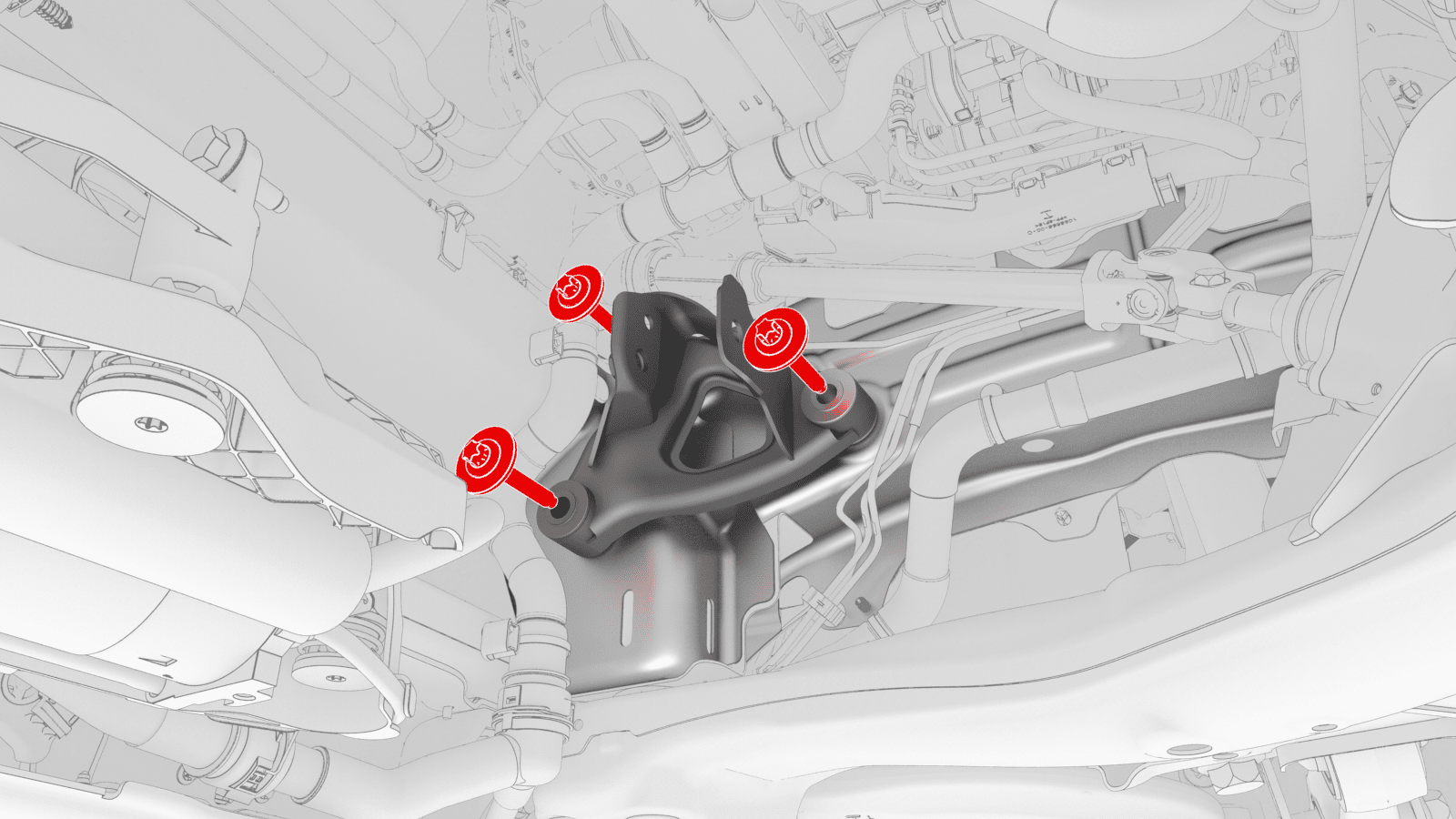

  2. 拆下并弃用将左前电机支座隔离器固定到车身的螺栓，然后将隔离器从车辆上拆下。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    拆下螺栓，同时固定住左前电机支座隔离器，因为螺栓拆下后隔离器将掉落。

安装

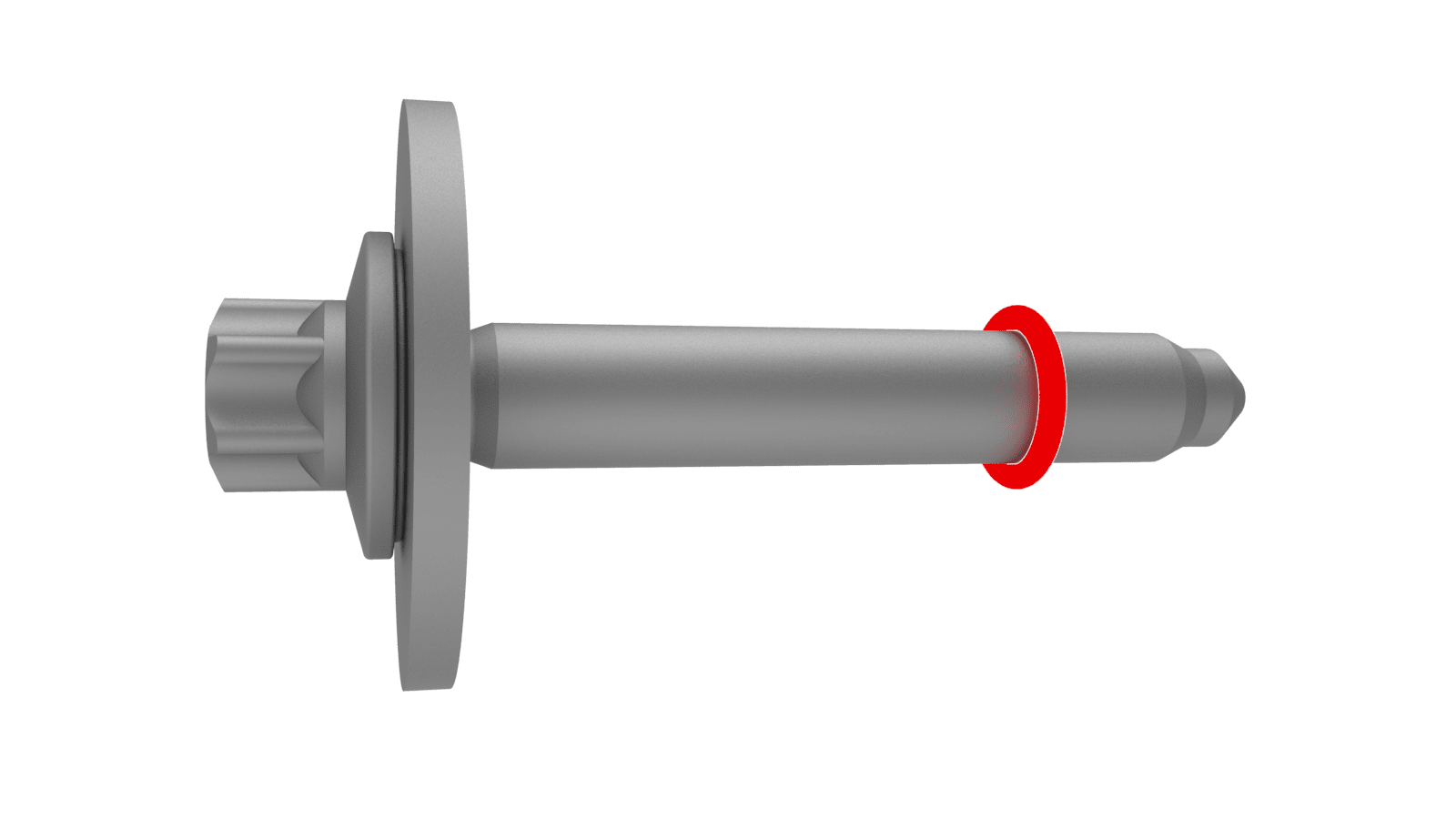

  1. 将 O 型环（零件号 1473485-00-A）从各新螺栓（3 个）的顶端拧入 5 个螺纹。
  2. 手动拧紧新的螺栓，将左前电机支座隔离器固定到车身。
    Informational PurposesAn informational icon, calling your attention
    TIp
    如果螺栓 O 型环卡在隔离器支座上，将 O 型环从 3 个安装螺栓上拆下，将螺栓穿过支座，然后再重新安装 O 型环。

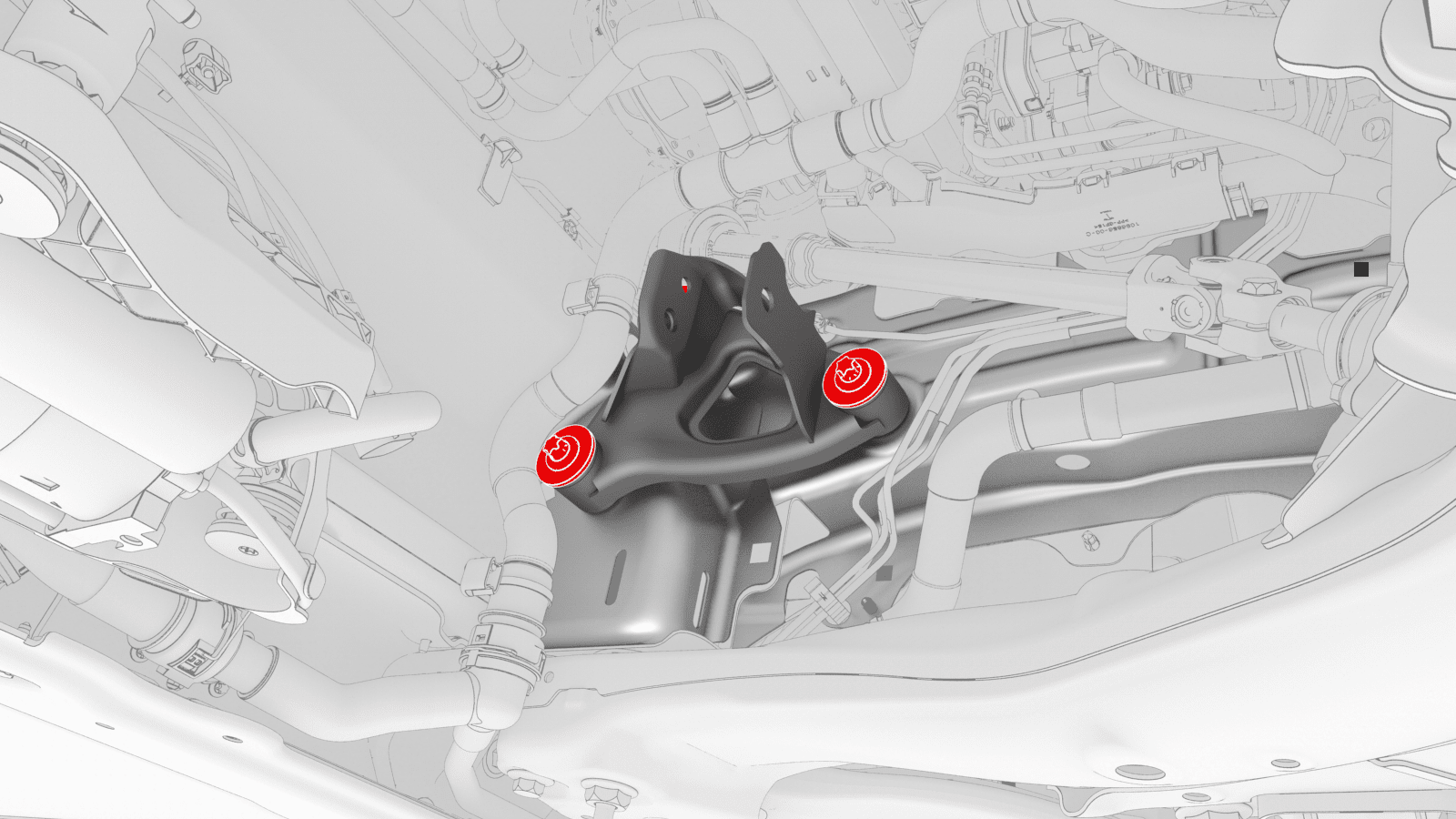

  3. 紧固新的螺栓（3 个），将左前电机支座隔离器固定到车身。
    62 Nm (45.7 lbs-ft)
  4. 将前副车架总成安装到车辆上。请参阅Subframe Assembly - Front (Dual Motor) (Remove and Install)。
  5. 鉴于需要拆卸并重新安装副车架： Refer to the Alignment Requirement tables to determine whether an EPAS alignment check (EC) or four wheel alignment check (AC) is necessary. If performed, add the alignment check/adjust correction code as a separate activity to the SV. See Alignment Requirement - Suspension.
