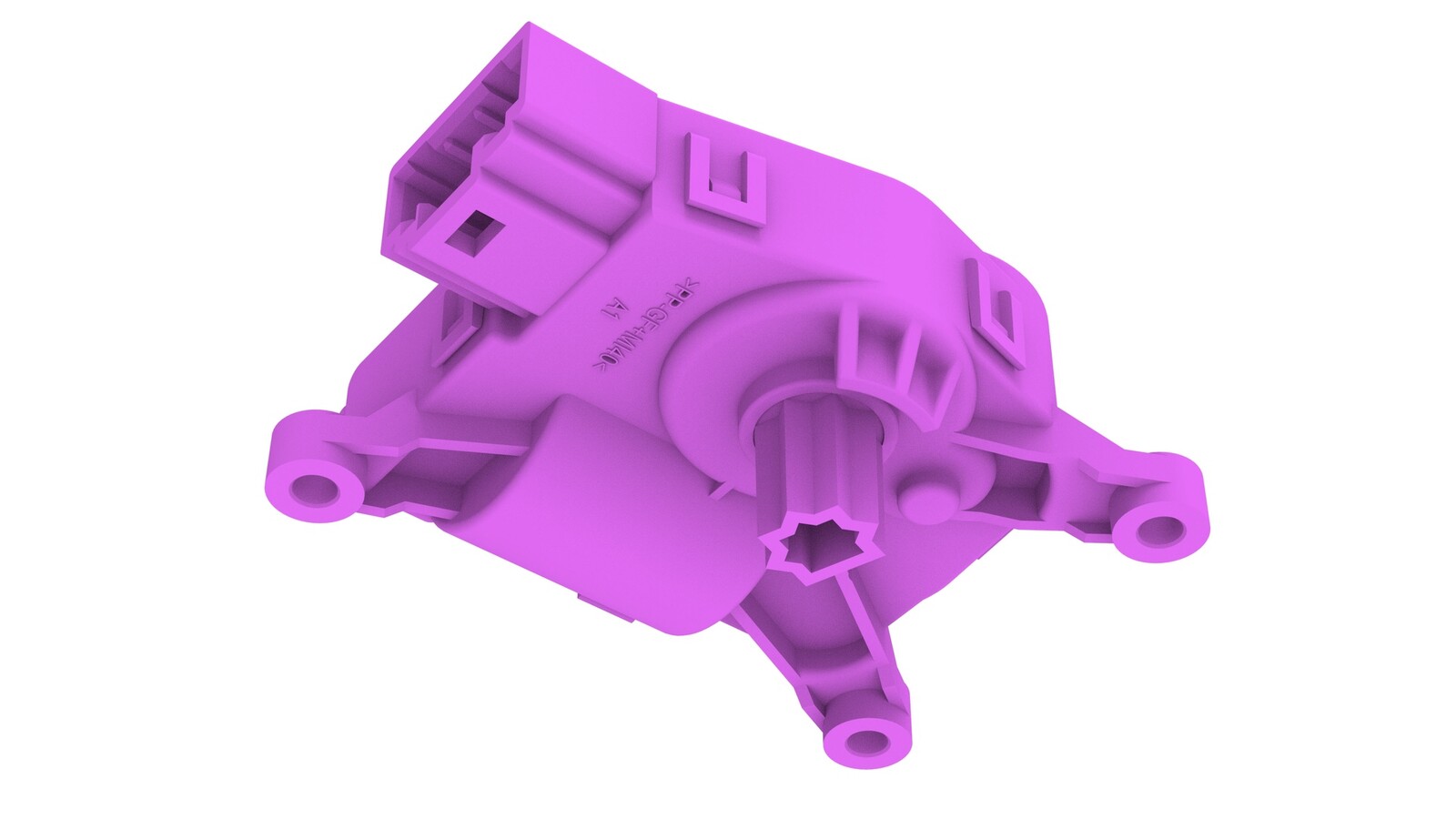

传动装置 - 进气(拆卸和更换)
校正代码
18102002 4.44
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
拆卸
- 拆下 HVAC 总成。请参阅暖通空调 (HVAC) 总成(不带加热泵款)(拆卸和更换)。
-

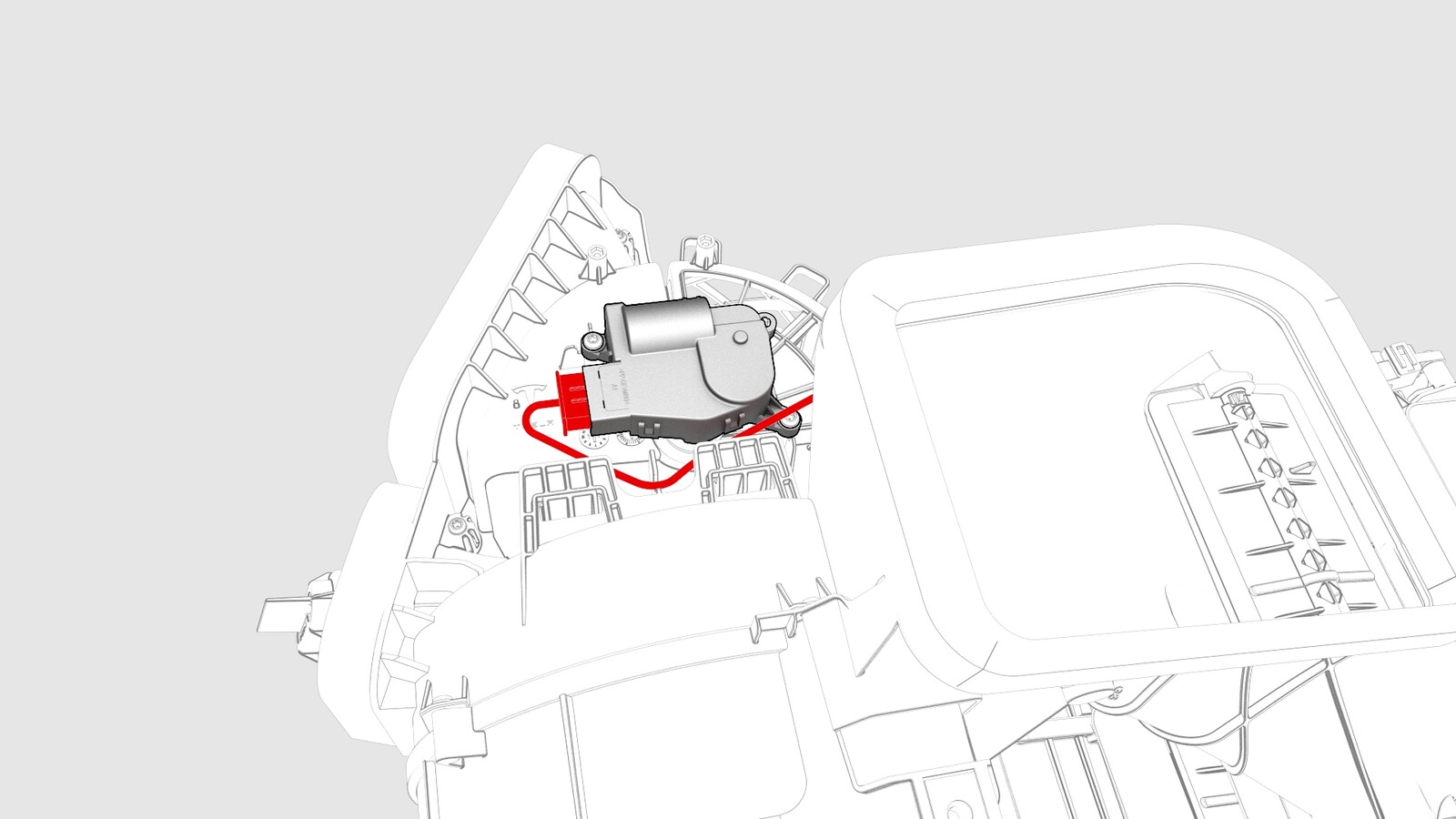

断开进气执行机构连接器上的电气线束。
-

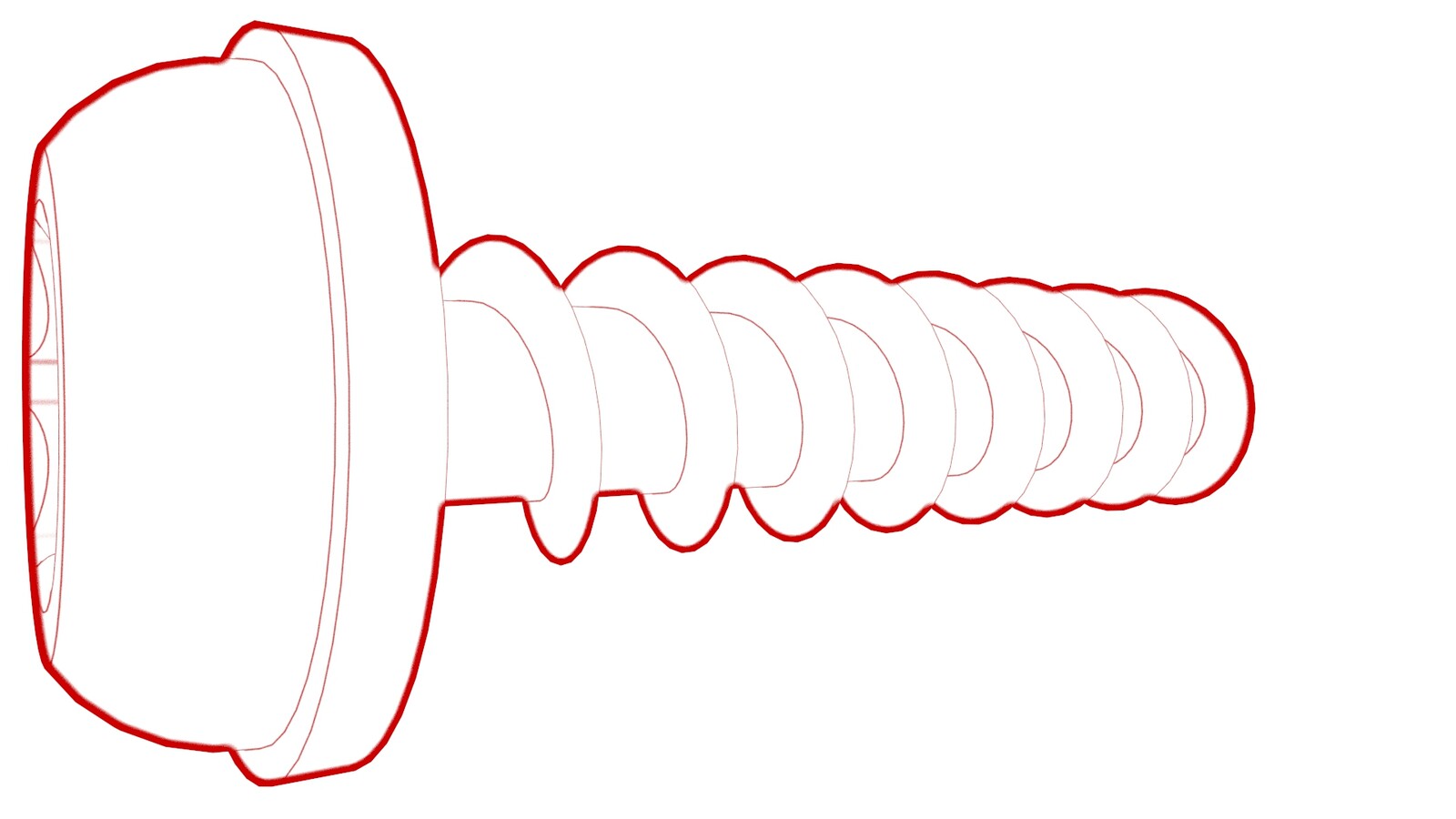

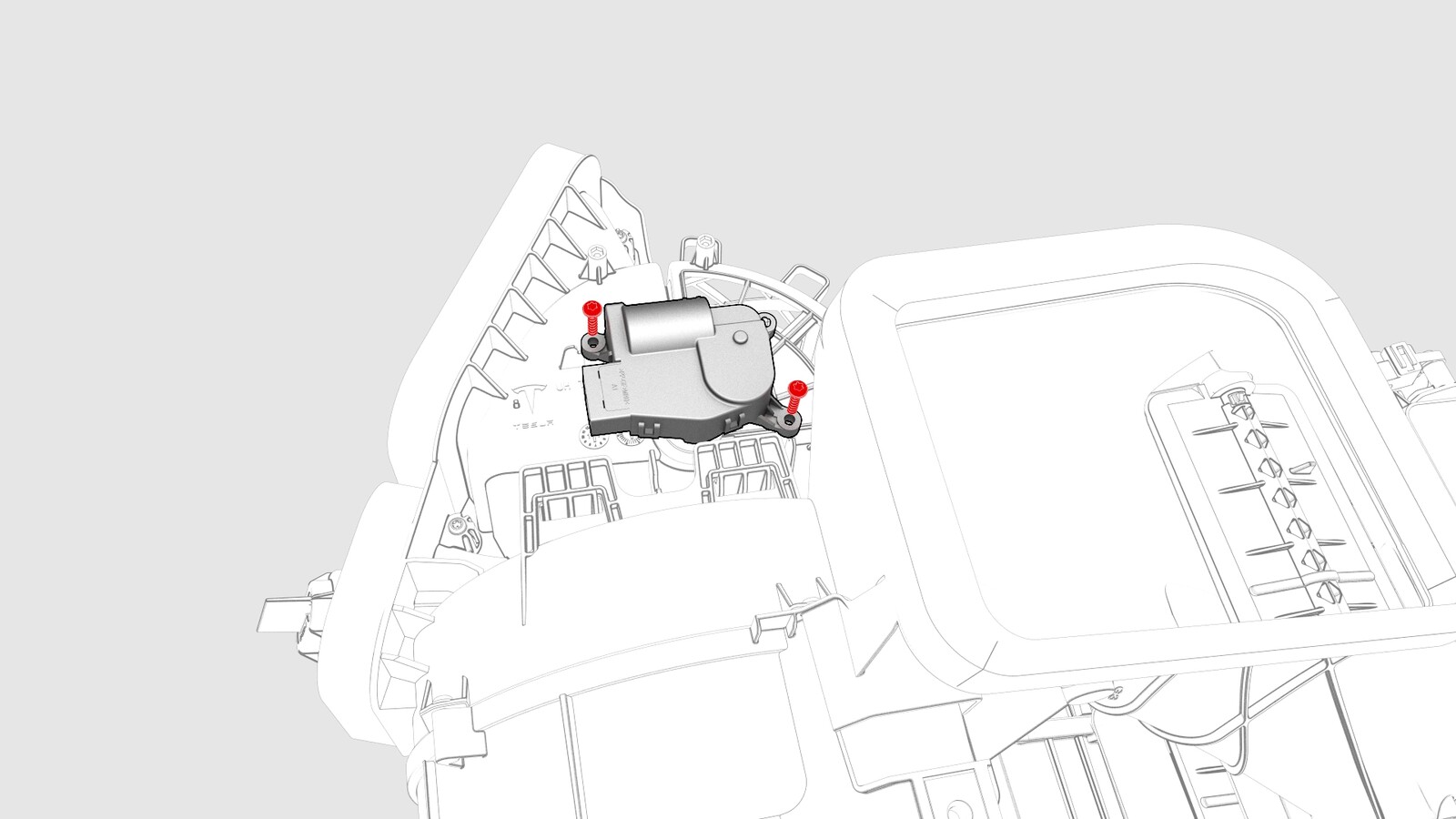

拆下将进气执行机构固定到供暖、通风和空调模块的螺钉 (x2),然后将执行机构从供暖、通风和空调模块上拆下。
1.2 Nm (.9 lbs-ft)
安装
安装程序与拆卸程序相反,以下各项除外:
- 将装有 Toolbox 的笔记本电脑与车辆相连请参阅 Toolbox(连接和断开)。
- 运行例行程序: TEST-SELF_VCRIGHT_X_HVAC-CASE-ACTUATORSvia Toolbox:(link)
- 断开笔记本电脑与车辆的连接
- 长按“退出维护模式”按钮以退出“维护模式增强版”。
