2026-08-09
密封件 - 探针盖 - 高压电池(拆卸和更换)
校正代码 16304102 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.
- 2024 年 2 月 5 日:更新了密封条安装图片。
- 2023 年 5 月 10 日:更新了图片和零件名称。
拆卸
- 拆卸高压电池探针盖板。请参阅盖 - 高压探针 - 高压电池(拆卸和更换)。
-

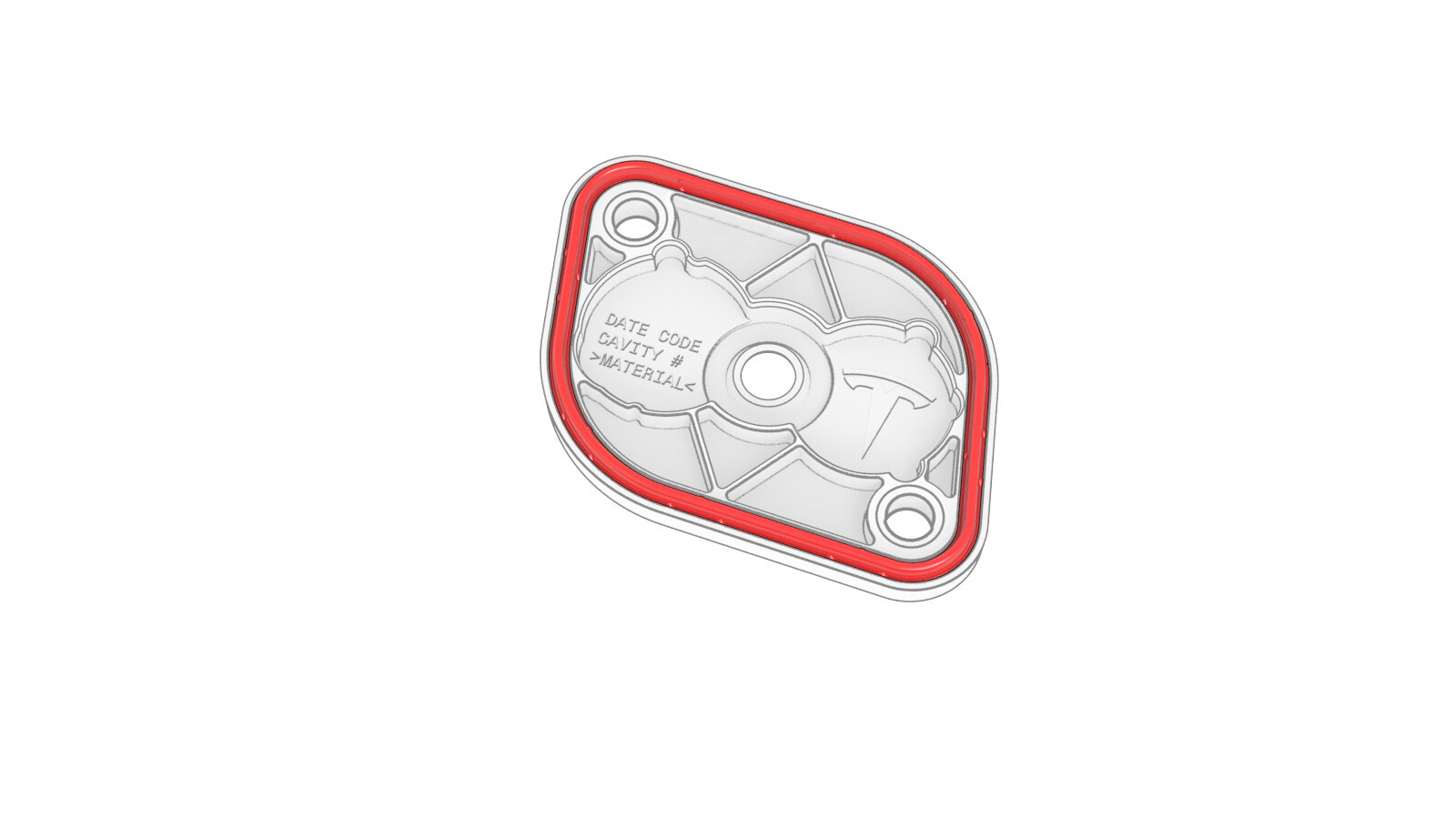

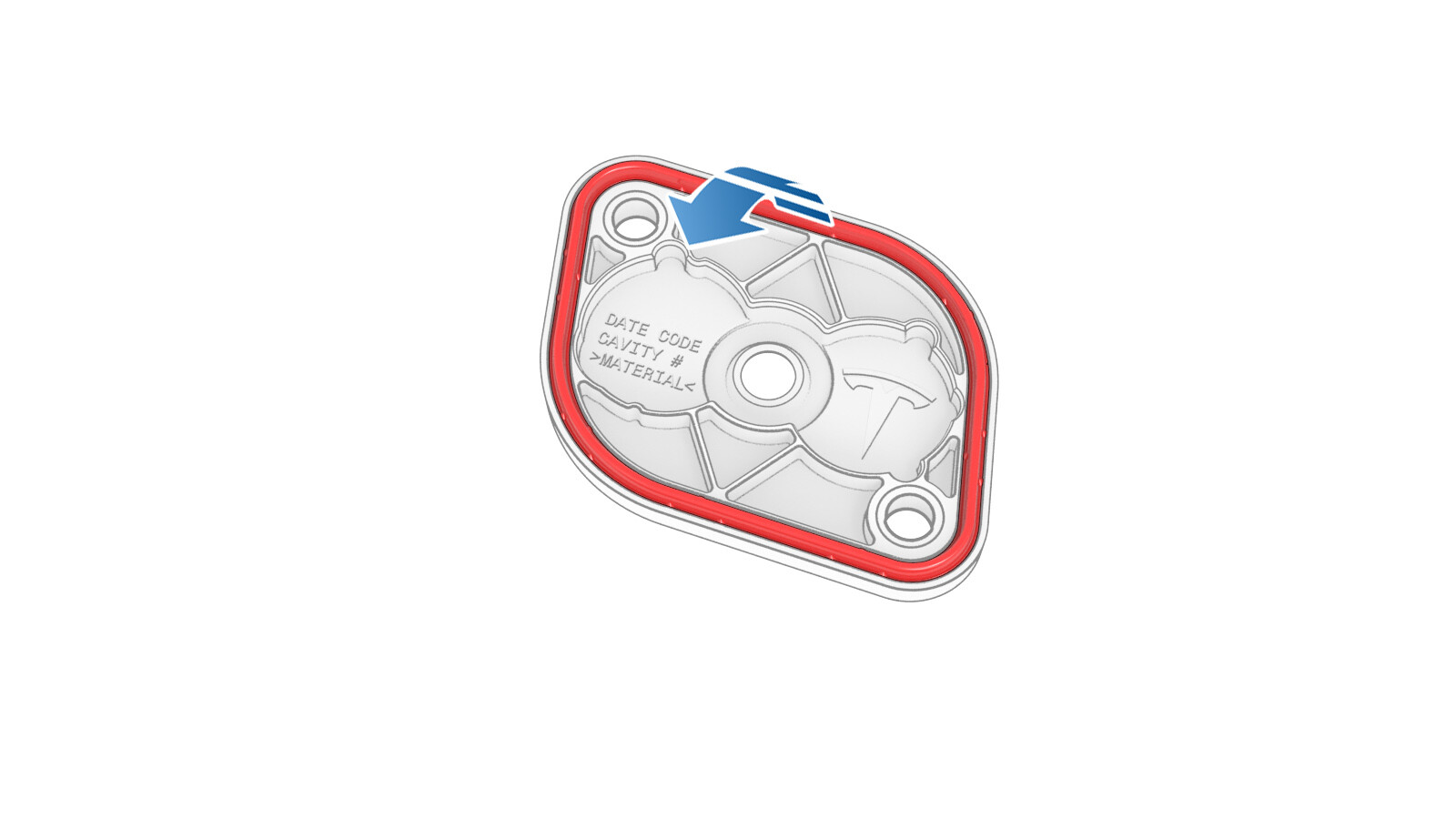

拆卸高压电池探针盖板密封件。
安装
-

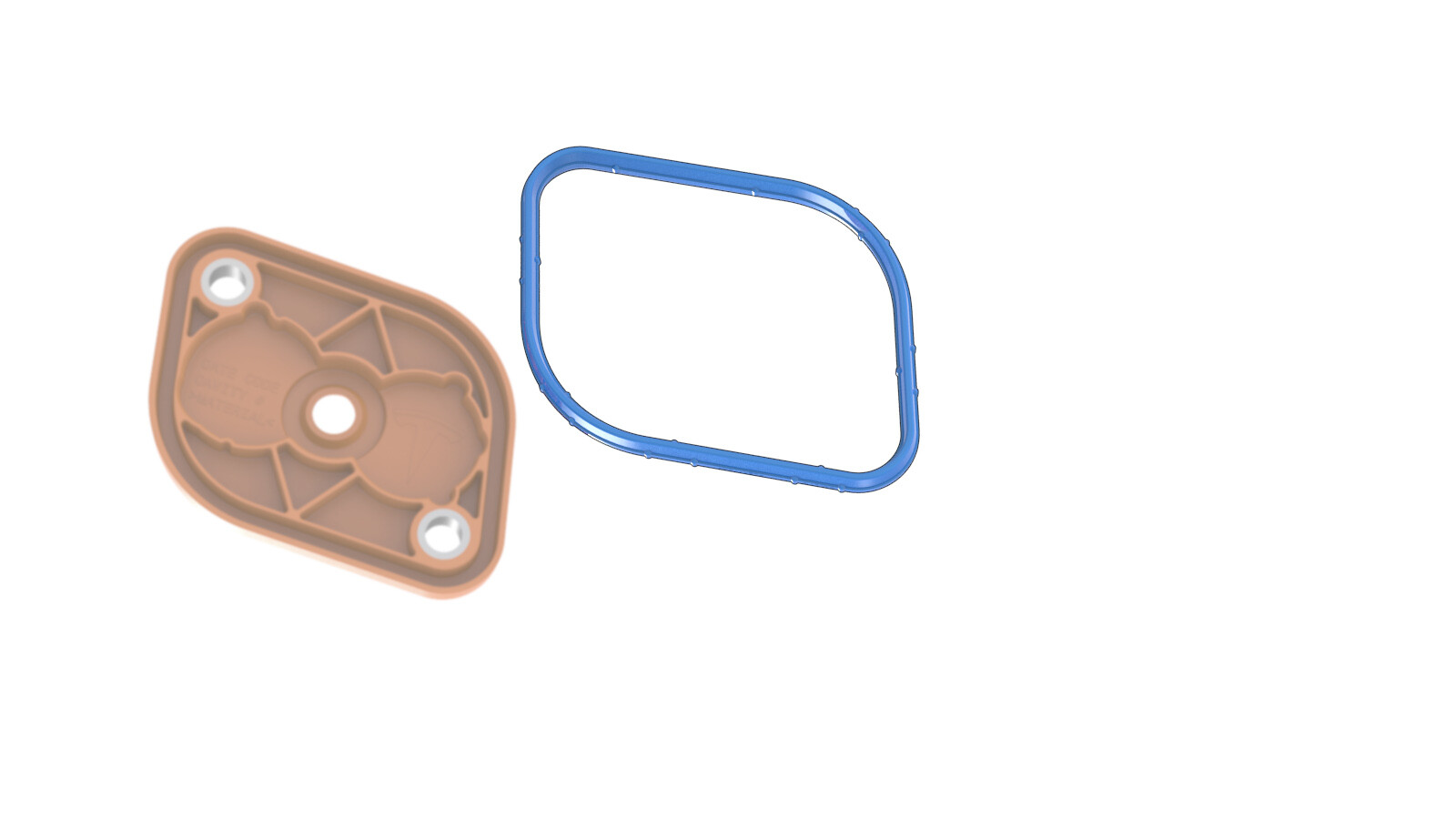

安装高压电池探针盖板密封件。
- 安装高压电池探针盖板。请参阅盖 - 高压探针 - 高压电池(拆卸和更换)。
