2024-09-09

Window Regulator (Recalibrate)

校正代码 11500010 0.05 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

  • 2024 年 6 月 5 日：更新了使用触摸屏进行校准的步骤。
图 1. 图示为 Model 3；Model Y 与之类似
Warning IconA warning icon, calling your attention to a possibly risky situation
警告
The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
  1. 坐在驾驶位座椅上，然后关闭车门。
  2. 通过触摸屏启用“维护模式”。请参阅Service Mode。
  3. 解锁车辆网关。请参阅 网关（解锁）

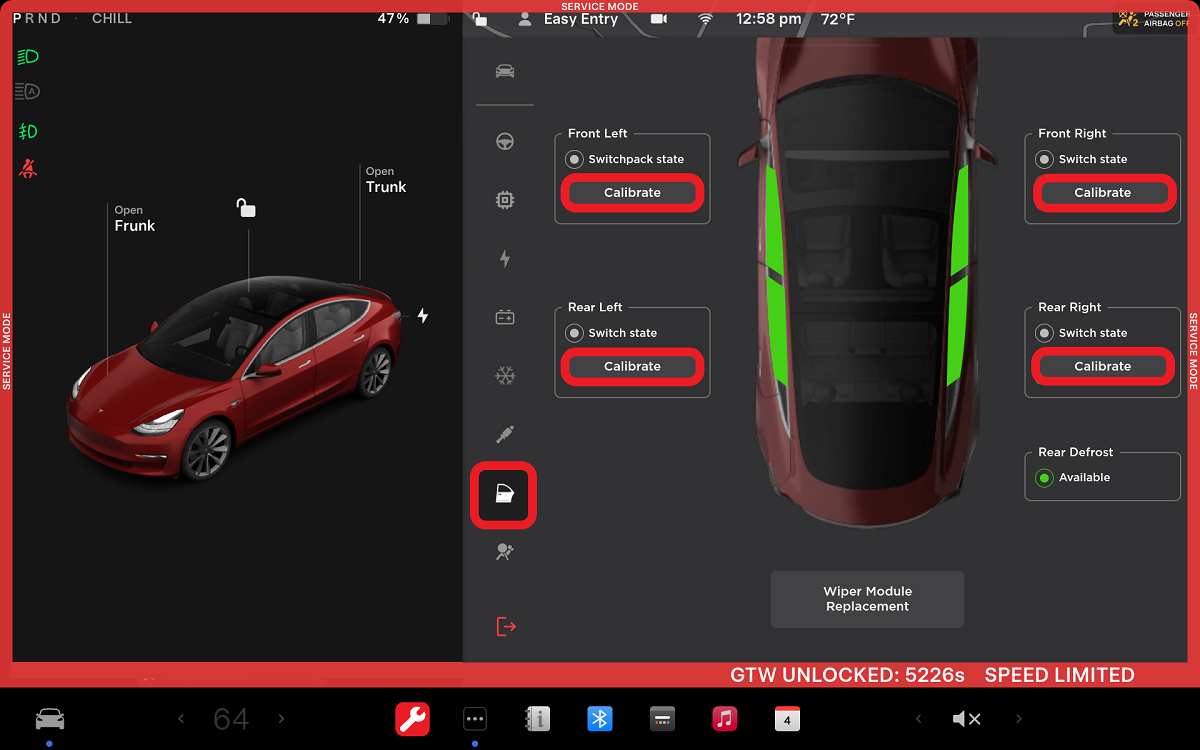

  4. 在触摸屏上，点击Controls > Service Mode > Closures > Windows，然后点击各车窗的Calibrate按钮，以校准各车窗。
    Informational PurposesAn informational icon, calling your attention
    注
    车窗校准期间，选定的车窗会升起和降下，直至校准完成。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    车窗校准期间，防夹检测将被禁用。
  5. 退出“维护模式”。请参阅Service Mode。
