校正代码 11336802 11336902 FRT 0.48 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至ServiceManualFeedback@tesla.com。 注意：请参阅 人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。 注意：请参阅人体工程学注意事项查看安全健康的作业规程。

1. Open all four doors
   注

   If vehicle is being powered down, Latch rear doors to prevent accidental closure



2. Lower all four windows

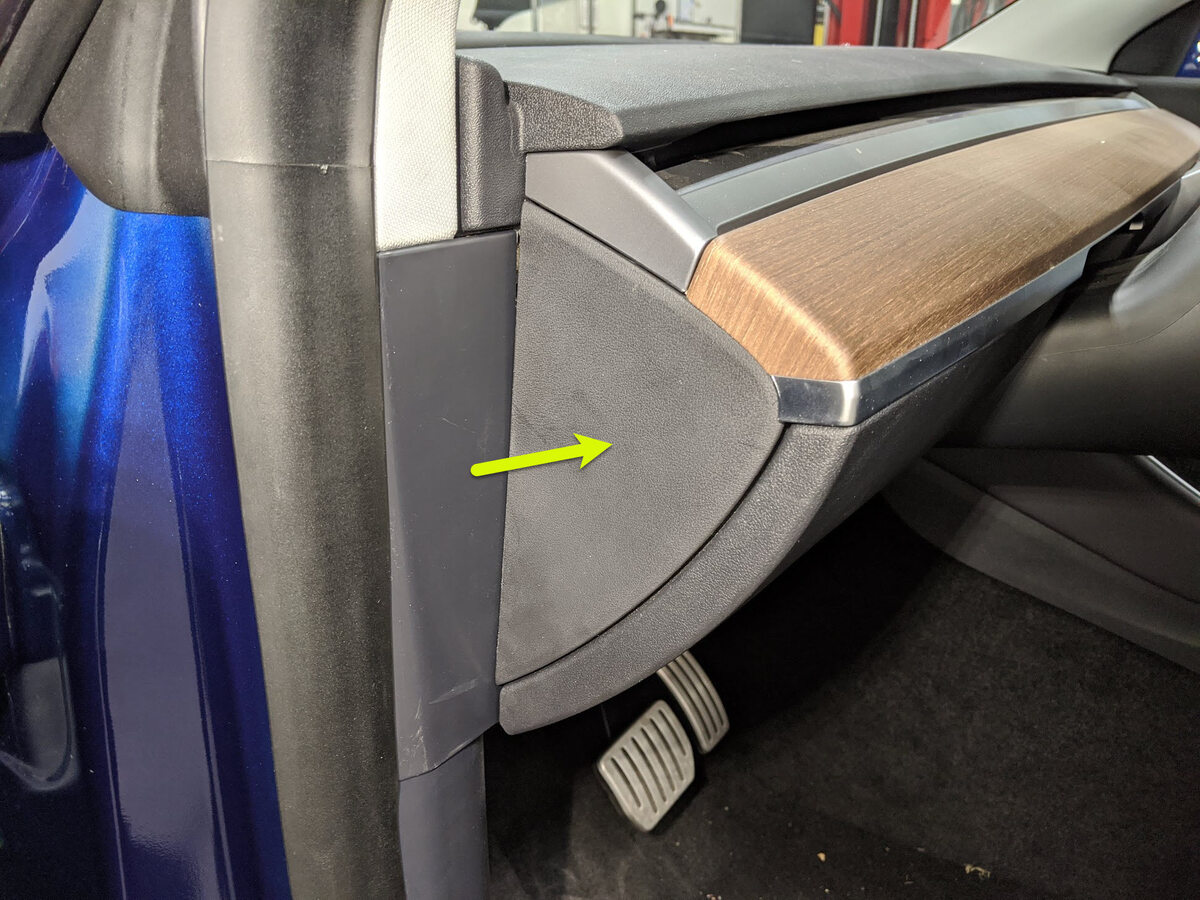

3. Remove LH IP end cap
   注

   3x clips

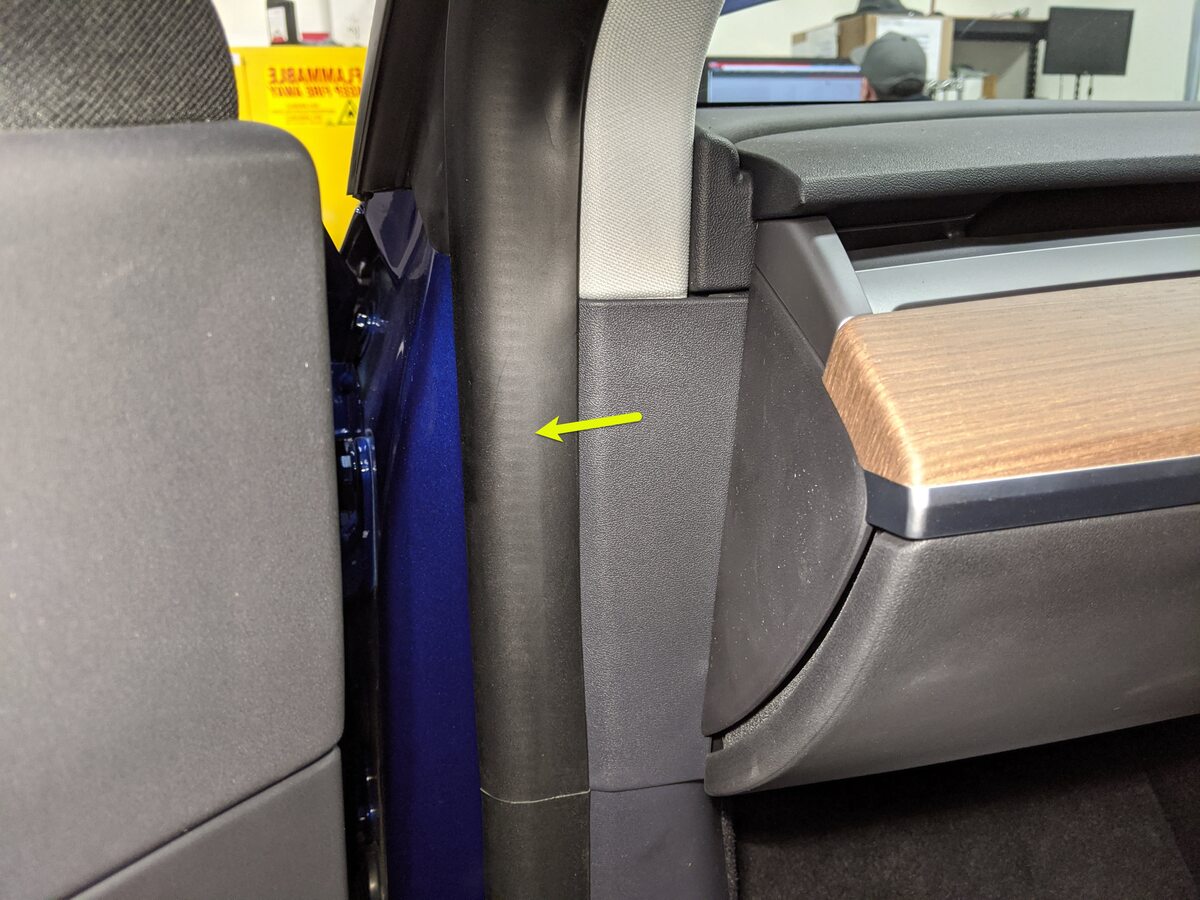

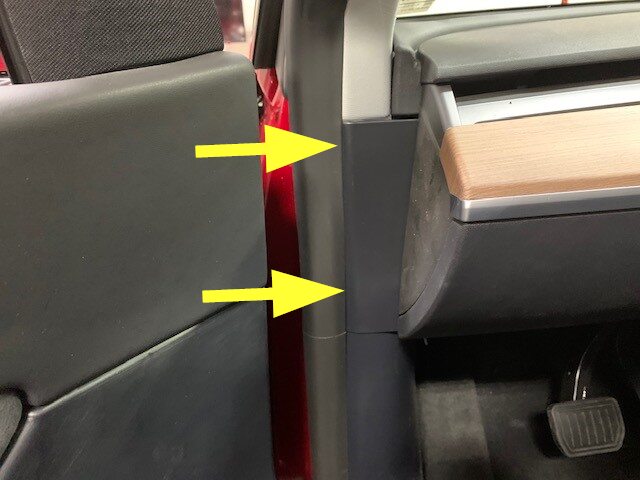

4. Remove LH mid A-pillar assembly
   注

   1x clip, 1x tab, Release the upper clip then pull mid A-pillar upward to remove

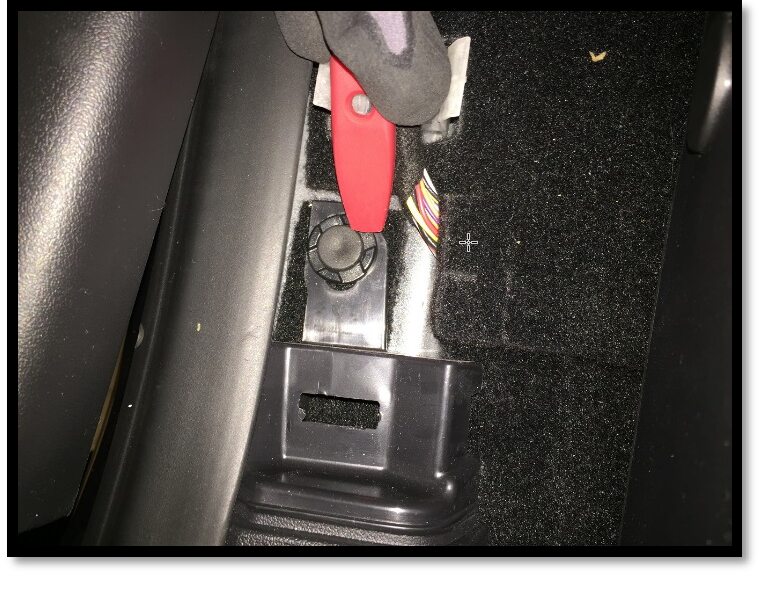

5. Remove clip for LH lower A-pillar trim
   注

   1x push clip

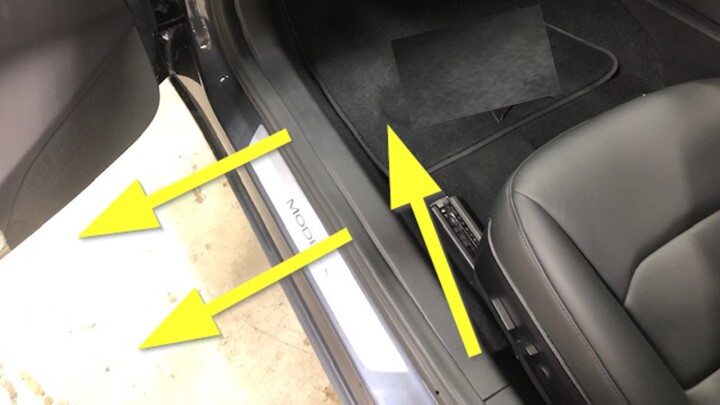

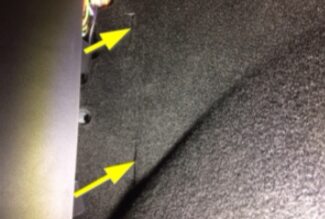

6. Remove LH lower A-pillar trim
   注

   2x clips, 3 guide tabs, Pull rear of lower A-pillar upward to release clip then pull outward to release front tabs from carpet



7. Move LH front seat forward



8. Move RH front seat forward

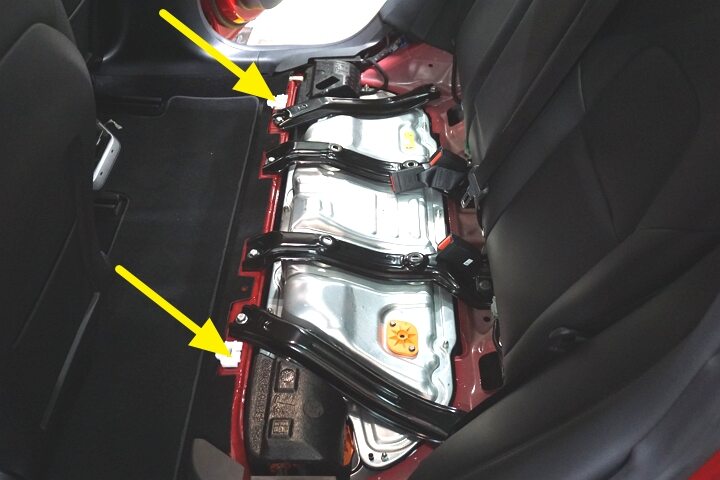

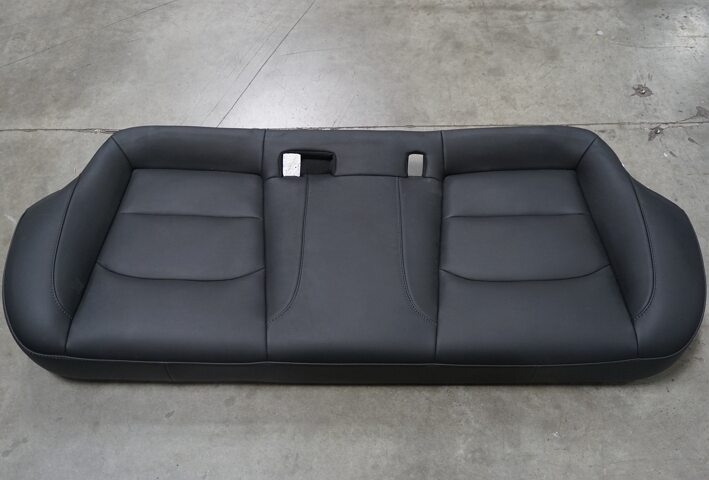

9. Remove 2nd row seat cushion
   注

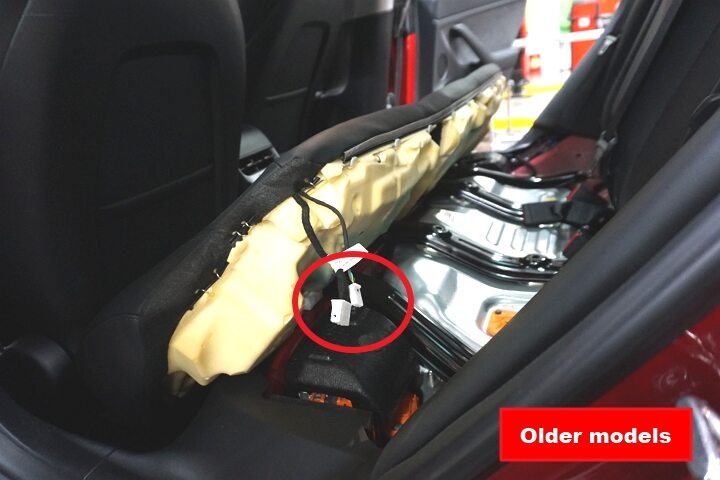

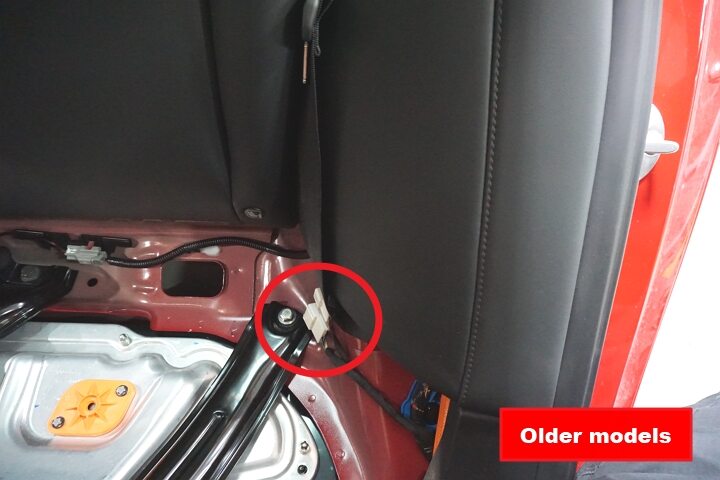

   2x tabs, 2x connectors, Slide locking tabs to left of vehicle while lifting up seat bench. Newer models have connectors on both sides of bench, Older models have 2x connectors on one side of bench

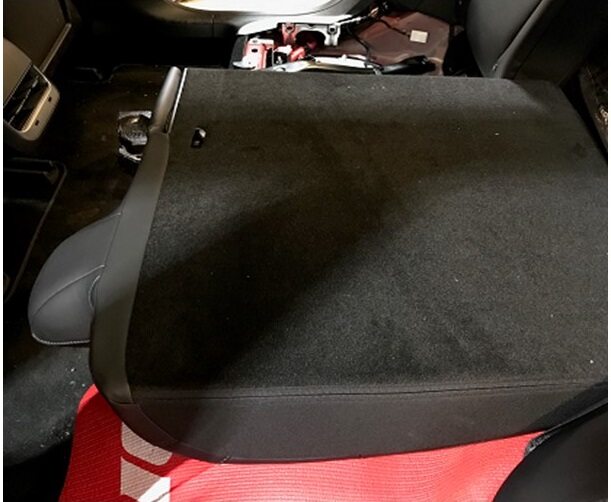

10. Fold 60 seat in down position
    注

    Protect the seat cushion

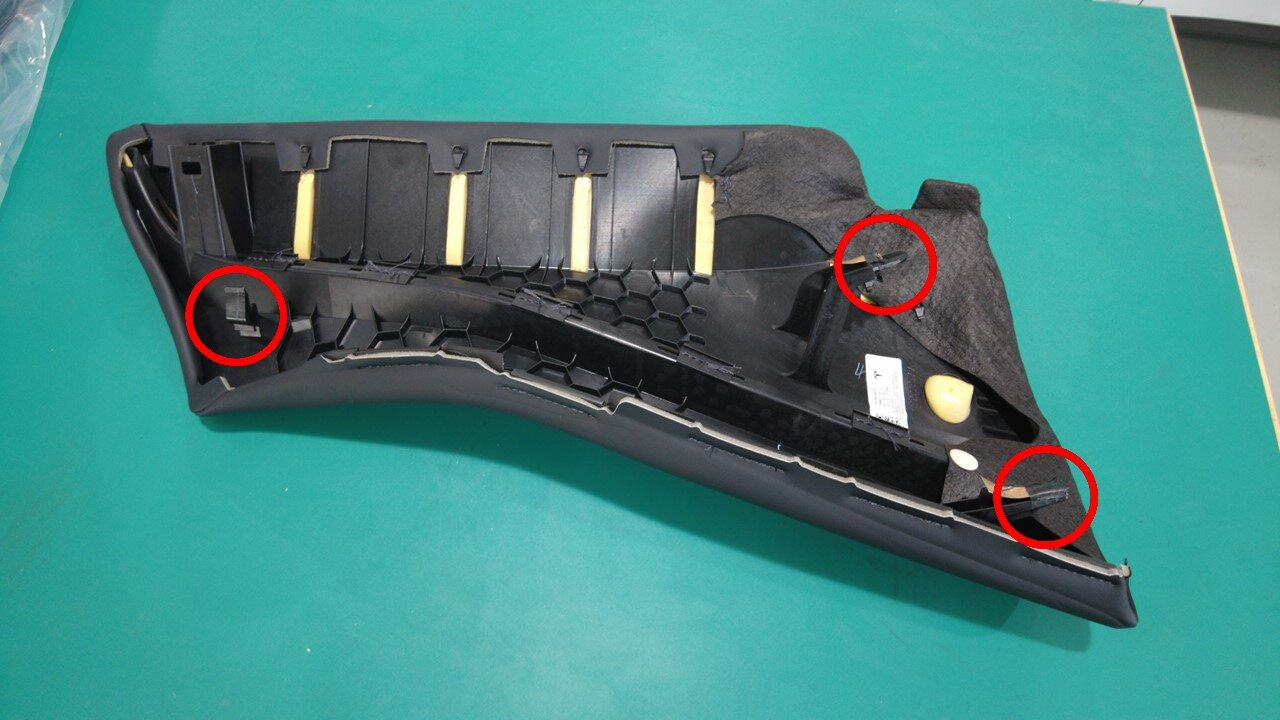

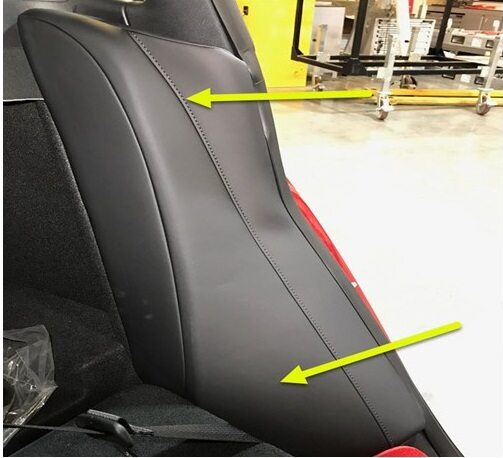

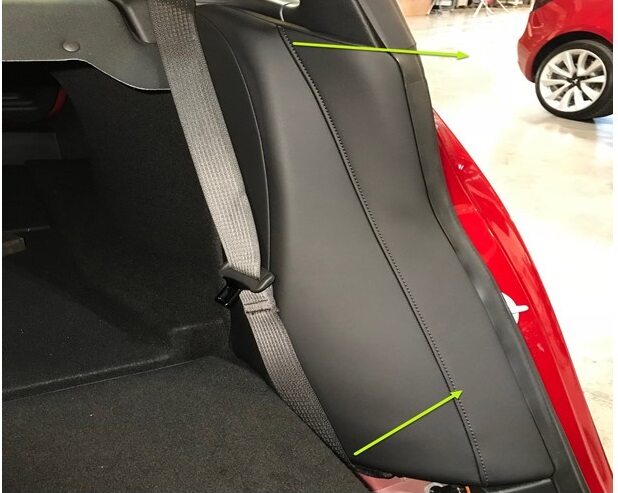

11. Remove LH side bolster
    注

    1x clip, 2x location pins, Pull outward then slightly upward to remove

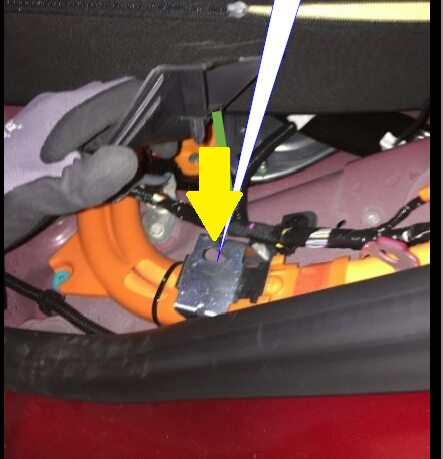

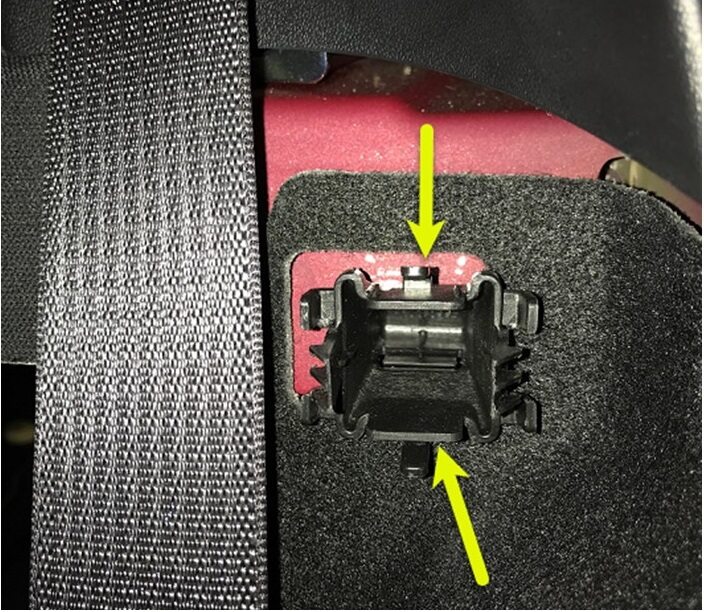

12. Remove and discard bolster plastic bracket from LH side
    注

    2x clips, If necessary, depress the clips from behind, This bracket may come out with bolster, Discard after removal

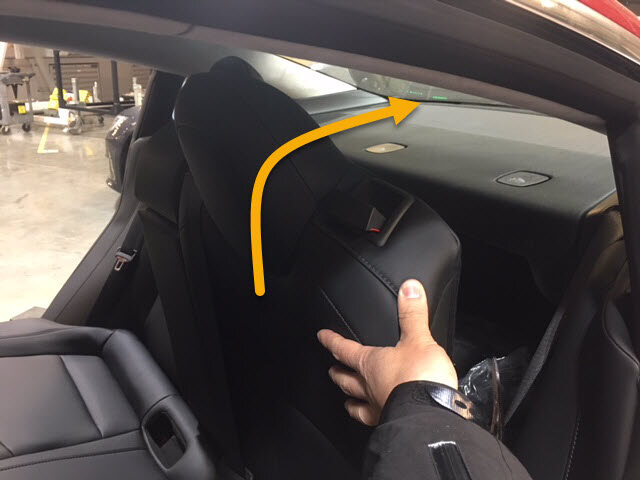

13. Fold 60 seat into vertical position
    注

    Remove seat protection

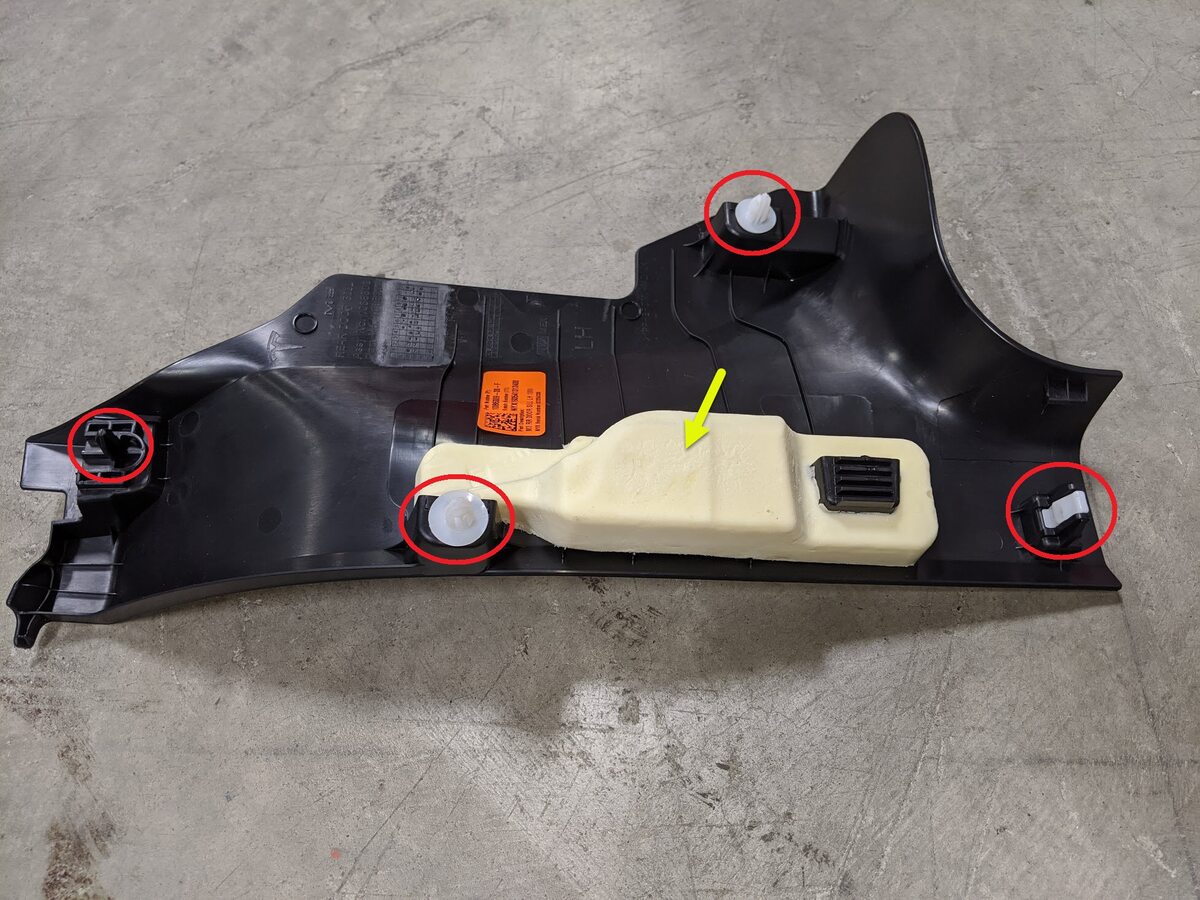

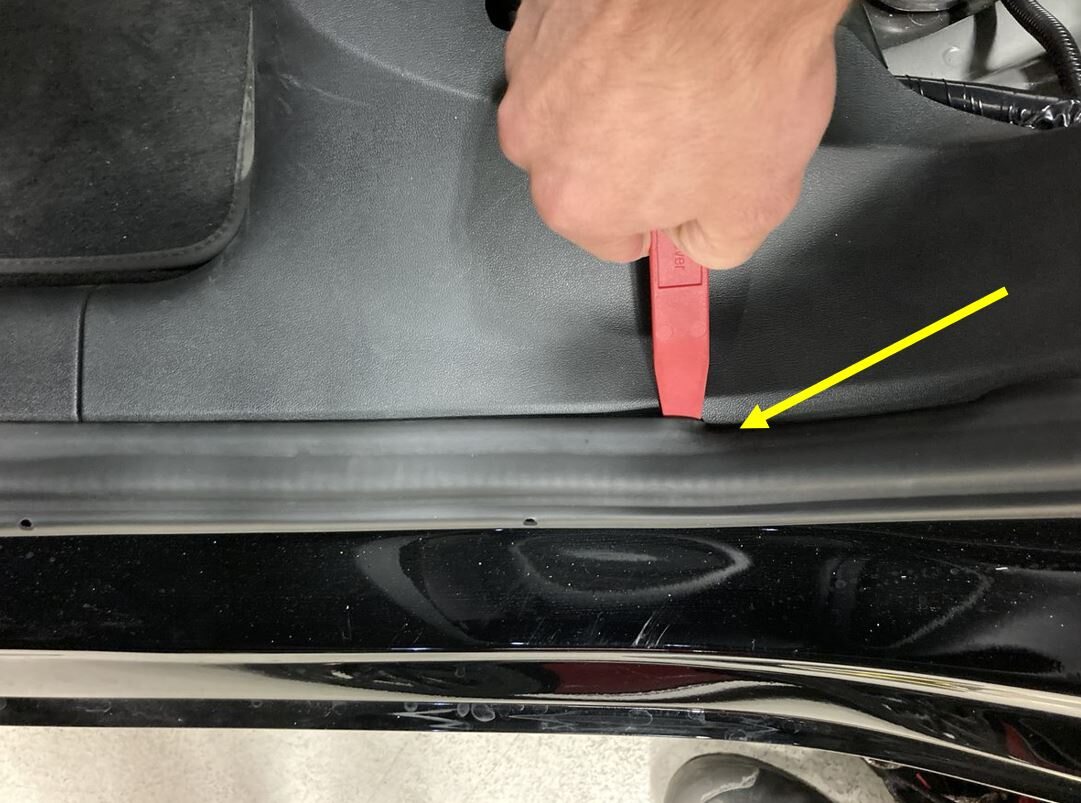

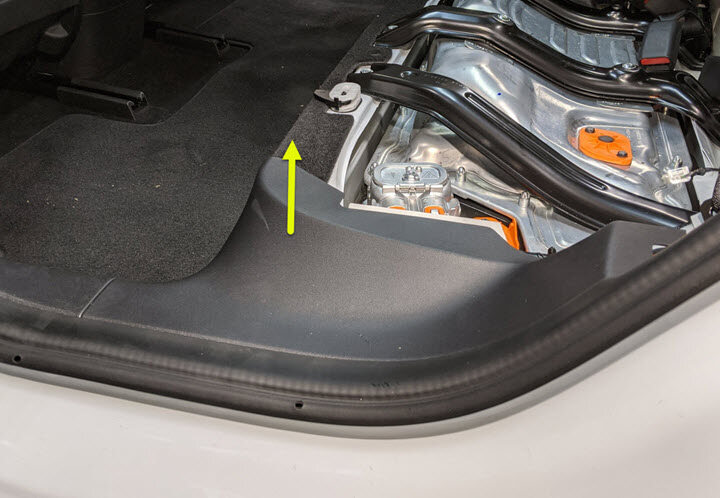

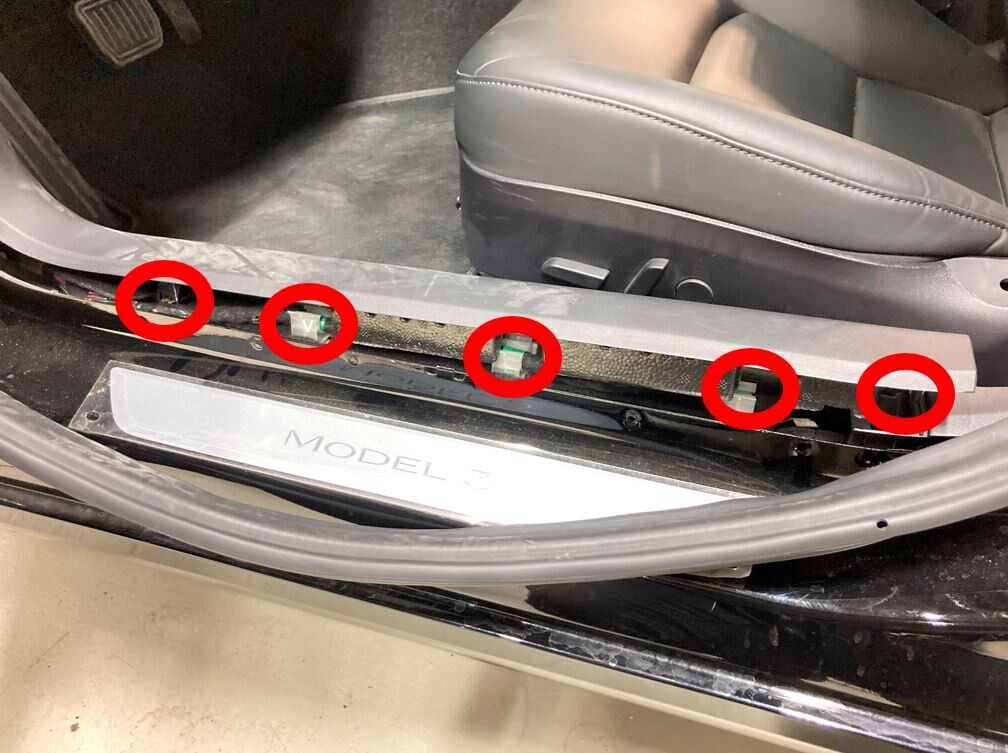

14. Remove LH rear door sill trim panel
    注

    3x clips, 1x guide tab, Pull upward at the lower corner of sill trim to release clip from lower B-pillar, Then remove the remaining clips by pulling away from the body

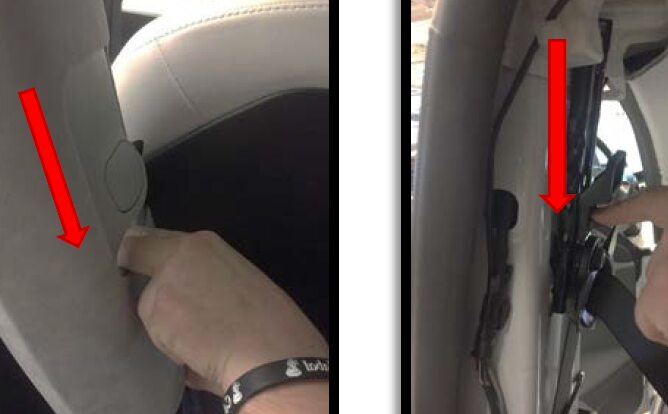

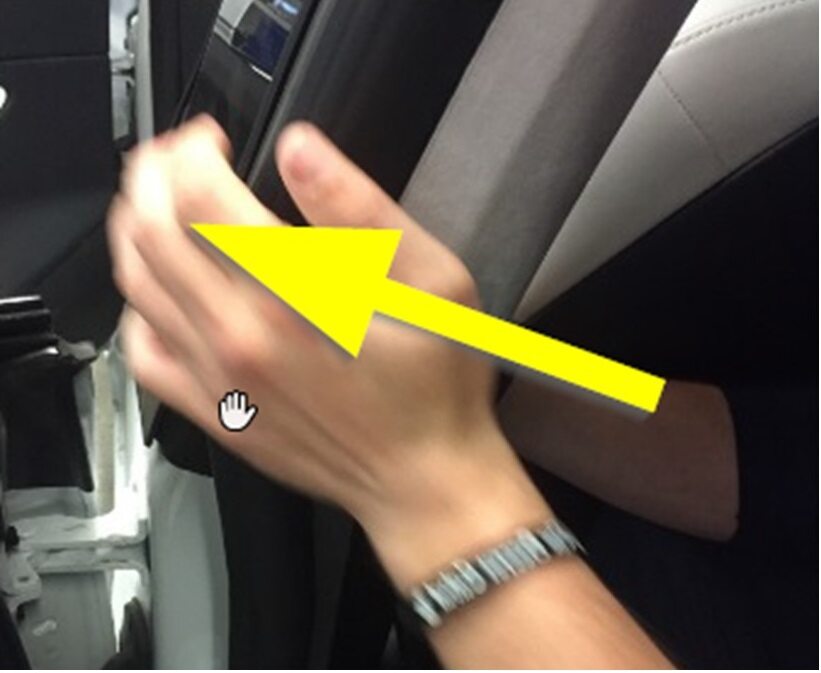

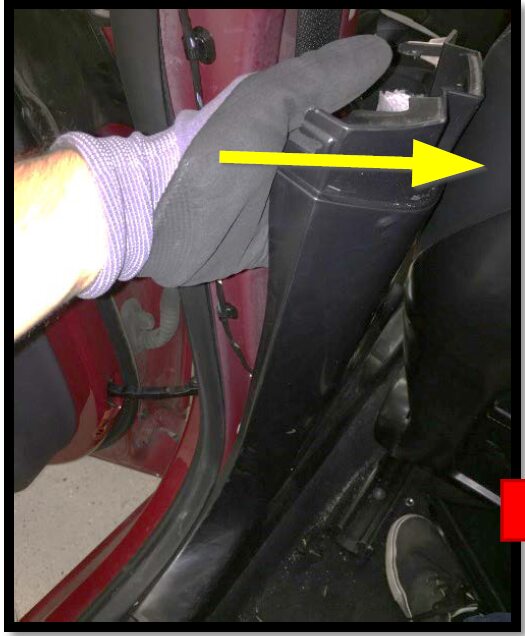

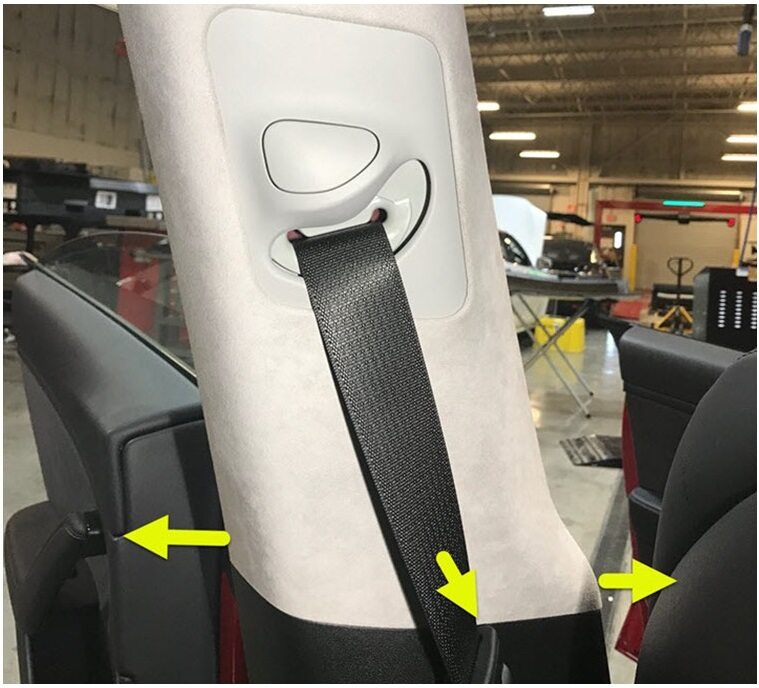

15. Release clips securing the LH upper B-pillar assembly and move aside
    注

    4x clips, Pull the bottom of the upper B-pillar toward inside of the car, then pull the top to release the remaining clips

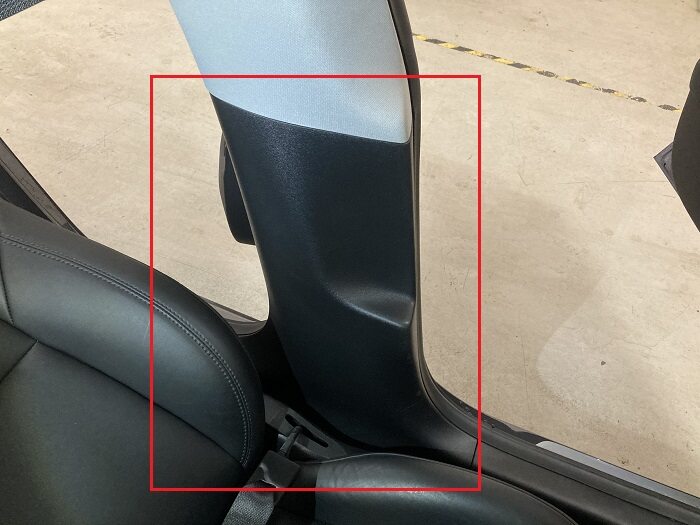

16. Remove the LH lower B-pillar assembly
    注

    1x push clip, 6x clips, Remove the front push clip from lower B-pillar, then pull the top of B-pillar to release top clips then work your way to bottom clips







17. Apply tape to LH door side upper hinge location
    注

    This will mark where the hinge should align on install

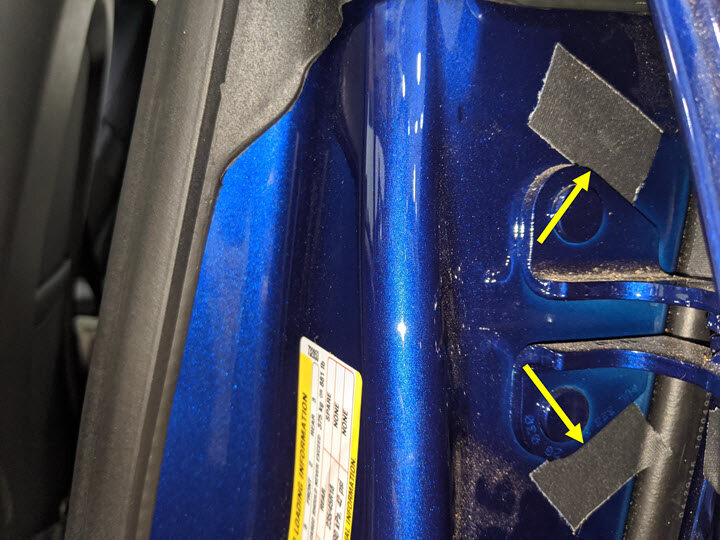

18. Apply tape to LH body side upper hinge location
    注

    This will mark where the hinge should align on install

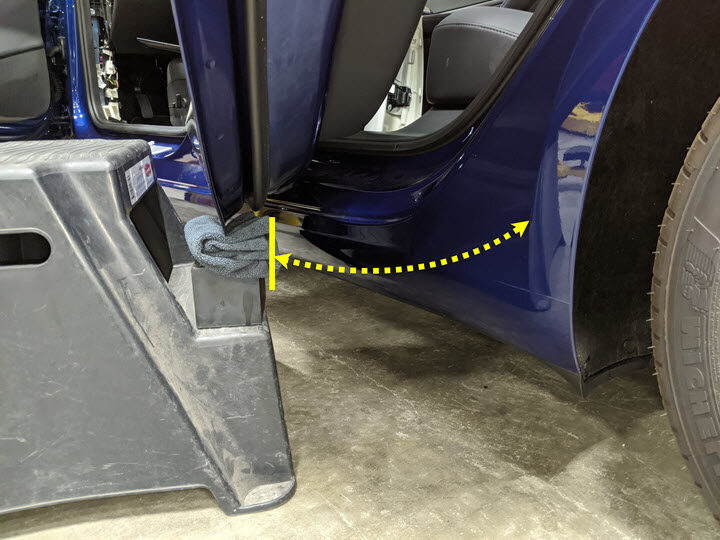

19. Support LH rear door
    注

    Rest door at first detent, Use soft material to protect painted surface

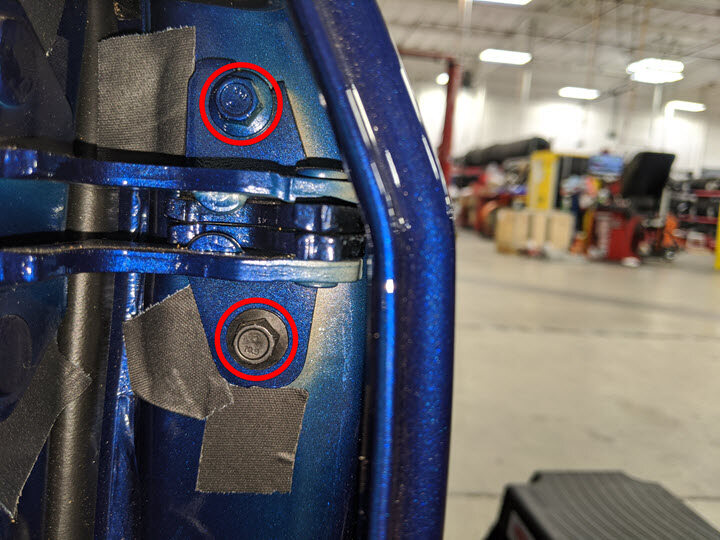

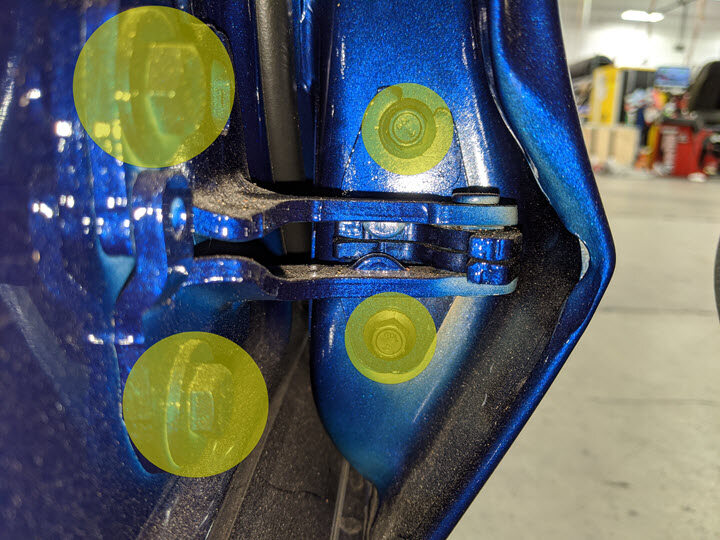

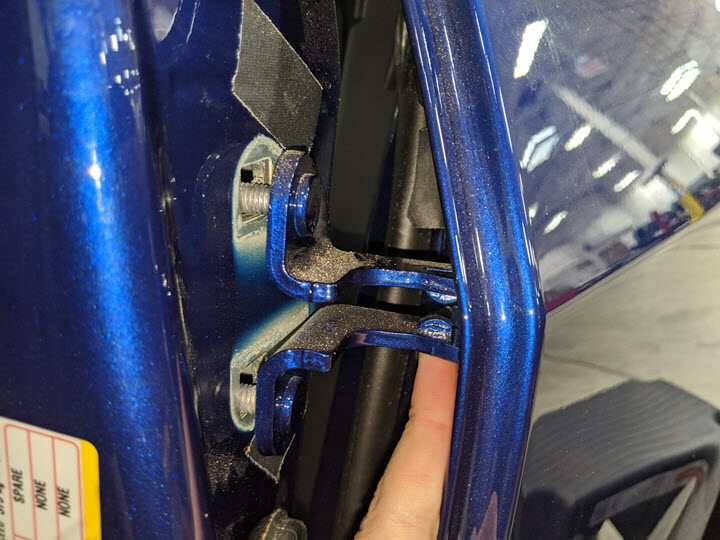

20. Remove fasteners securing LH rear upper door hinge to the LH rear door
    注

    2x bolts, 10mm, 27 Nm

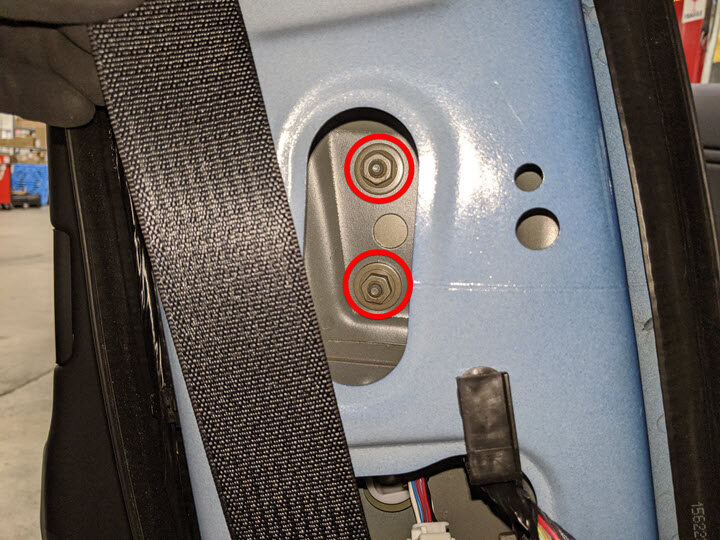

21. Remove fasteners securing LH rear upper door hinge to body
    注

    2x nuts, 13mm, 27 Nm, Support door hinge to ensure it does not fall in the door jam

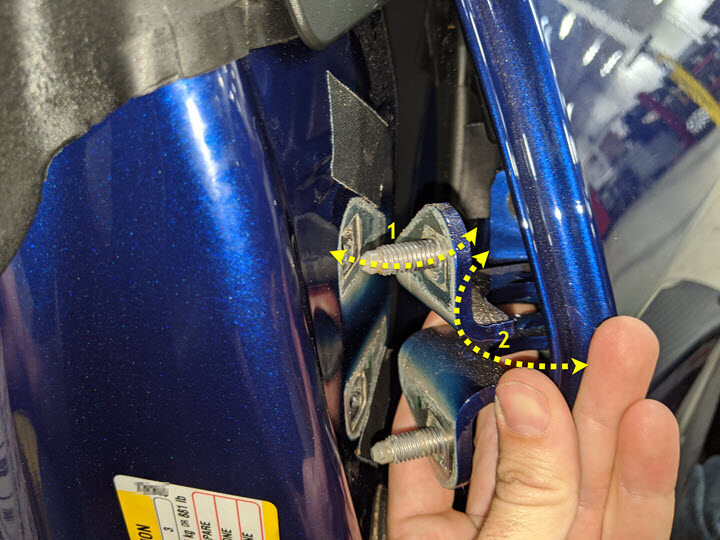

22. Remove LH rear upper door hinge from vehicle
    注

    Shift upper section of door outward slightly to create space to remove studs from body



23. Install LH rear upper door hinge to vehicle
    注

    Shift upper section of door outward slightly to create space to remove studs from body



24. Install fasteners securing LH rear upper door hinge to body hand tight
    注

    2x nuts, 13mm, 27 Nm, Support door hinge to ensure it does not fall in the door jam, Align hinge with previously applied tape on body



25. Install fasteners securing LH rear upper door hinge to the LH rear door hand tight
    注

    2x bolts, 10mm, 27 Nm, Align hinge with previously applied tape on door



26. Torque fasteners securing LH rear upper door hinge to body
    注

    2x nuts, 13mm, 27 Nm



27. Torque fasteners securing LH rear upper door hinge to the LH rear door
    注

    2x bolts, 10mm, 27 Nm



28. Remove support from LH rear door
    注

    Rest door at first detent, Use soft material to protect painted surface

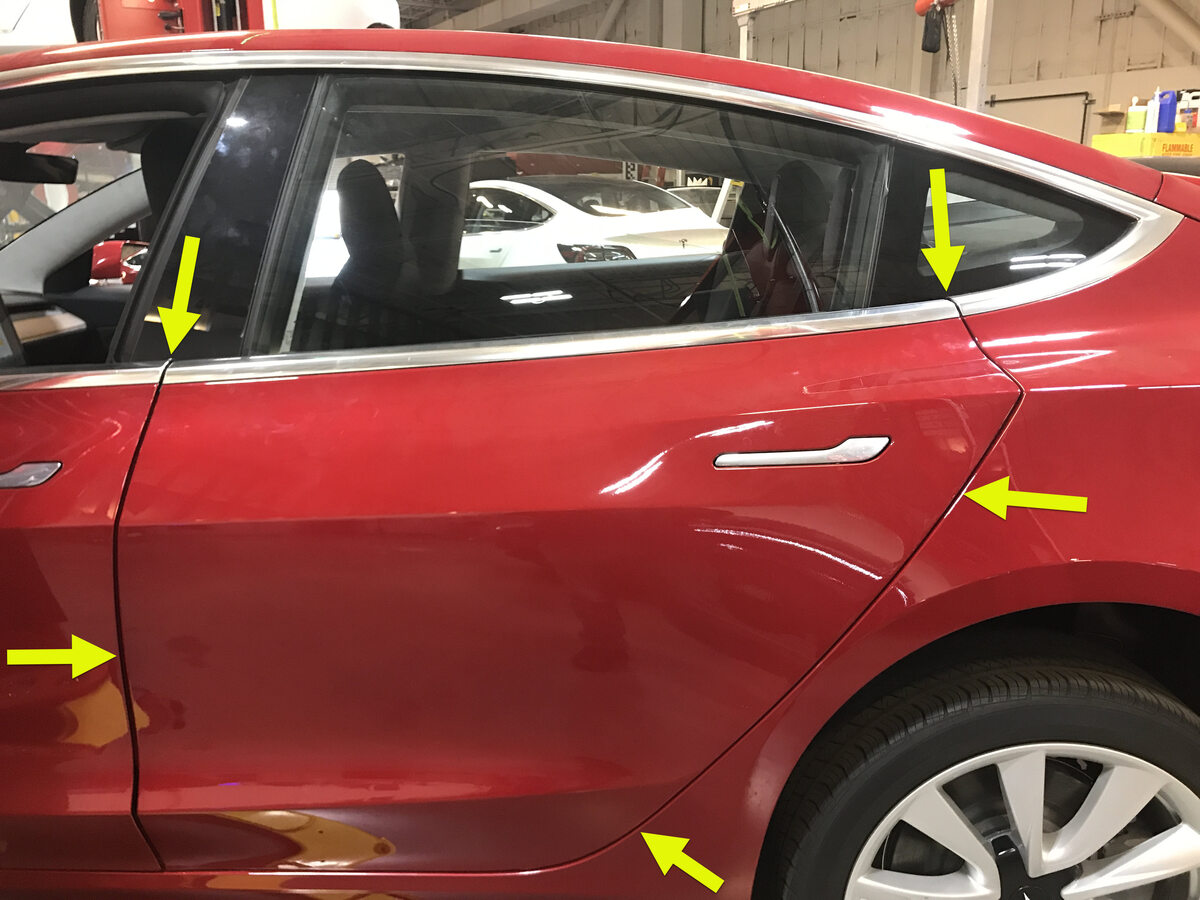

29. Close the LH rear door to check for gap/flushness
    注

    Adjust the LH rear door if necessary



30. Remove tape from LH body side upper hinge location



31. Remove tape from LH door side upper hinge location



32. Clean hinge bolts with IPA
    注

    Allow 1 minute dry time



33. Apply touch up paint to bolt heads as needed
    注

    Make sure to shake touch up paint before applying, Refer to label for dry time instructions



34. Install LH lower B-pillar assembly
    注

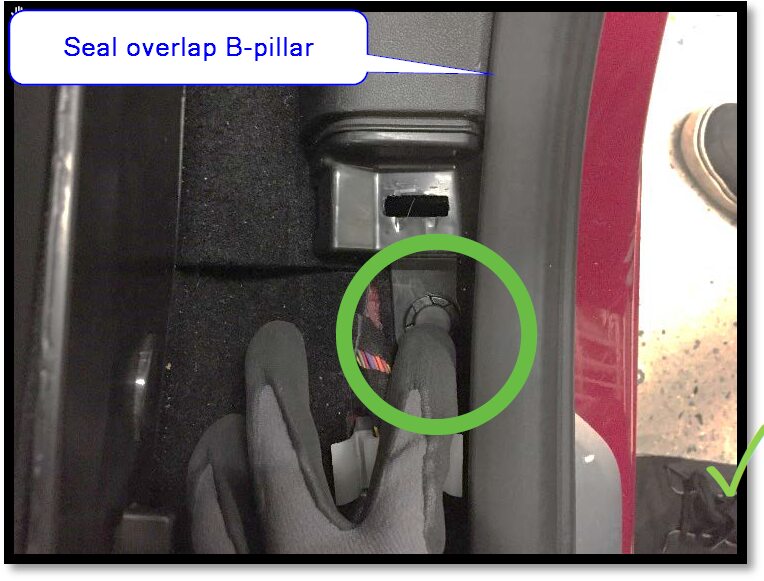

    1x push clip, 6x clips, Align the bottom guide tab to its slot then press the bottom clips, Work your way to top clips, Install the front push clip then make sure the seal correctly overlaps the trim

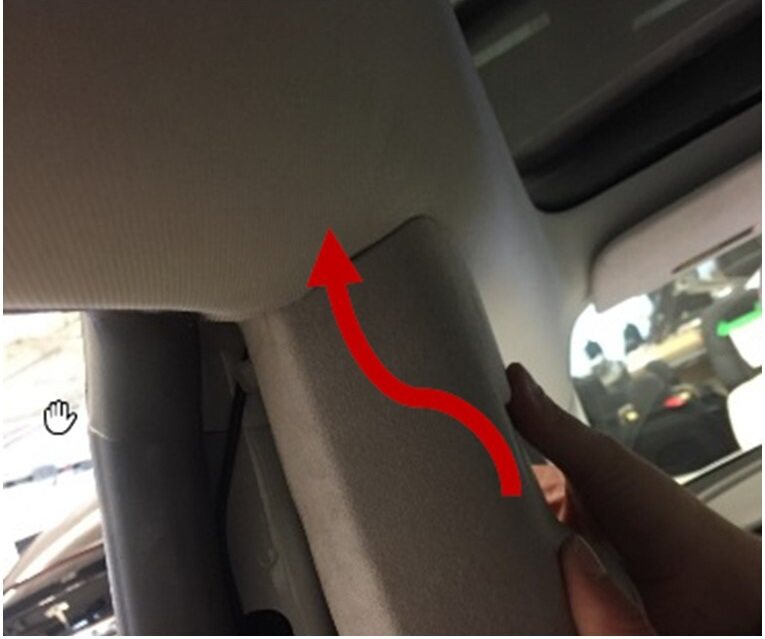

35. Install the LH upper B-pillar assembly
    注

    4x clips, Lower the seat belt slider to align it with the B-pillar panel, Insert top portion of upper B-pillar under the headliner to align the clips, Press the bottom to fully seat upper B-pillar to lower B-pillar, Make sure the seal correctly overlaps the trim







36. Install LH rear door sill trim panel
    注

    3x clips, 1x guide tab, Align the guiding tab to slot, Then push downward to install the clips after aligning them, Make sure the seal sits overlapping the trim. Newer vehicles may not be equipped with metal bracket and a foam insert will be present the bottom of trim piece







37. Fold 60 seat in down position
    注

    Protect the seat cushion if necessary

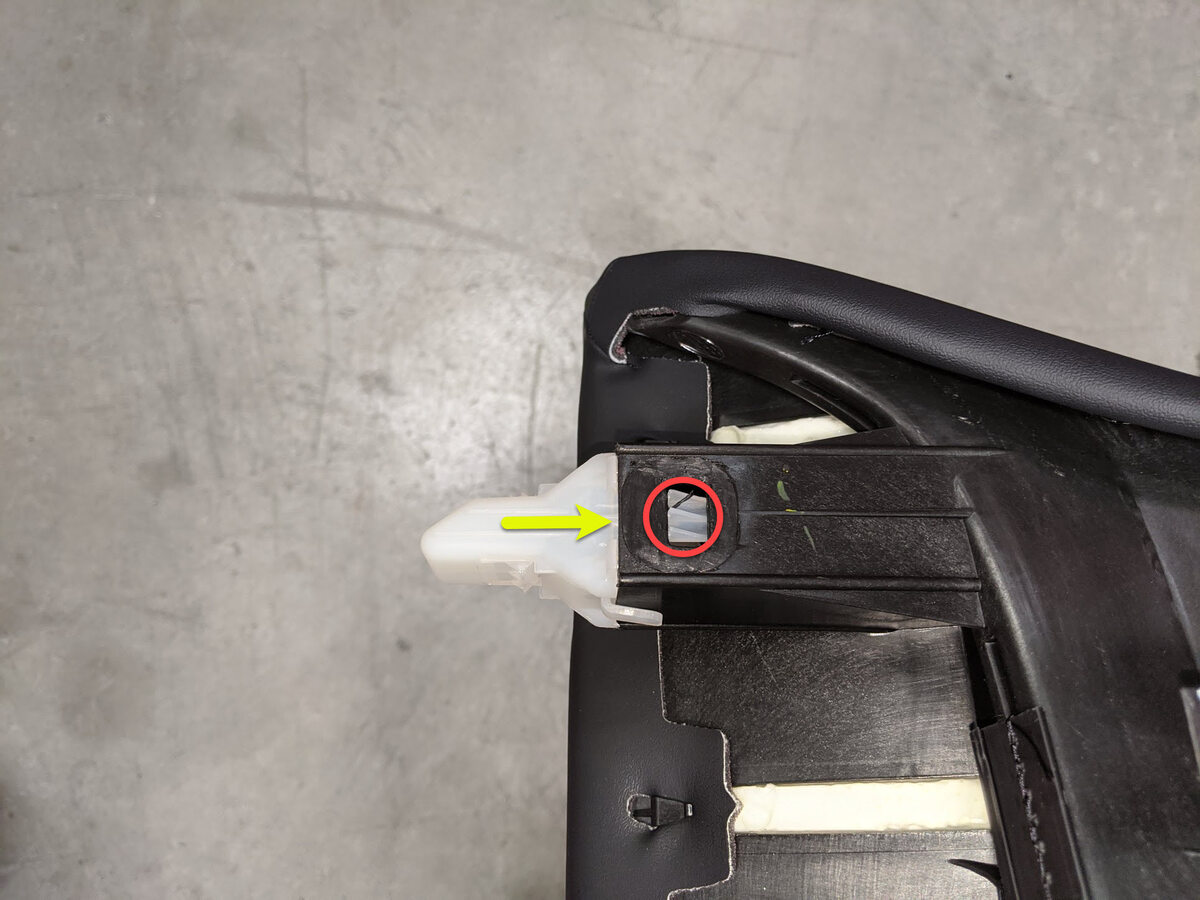

38. Install bolster plastic bracket to LH side bolster
    注

    2x tabs, Install new bolster bracket



39. Install LH side bolster
    注

    1x clip, 2x location pins, Align the bottom tab then push inward to install





40. Fold 60 seat into vertical position
    注

    Remove seat cushion protection, Be careful not to pinch the seat belt

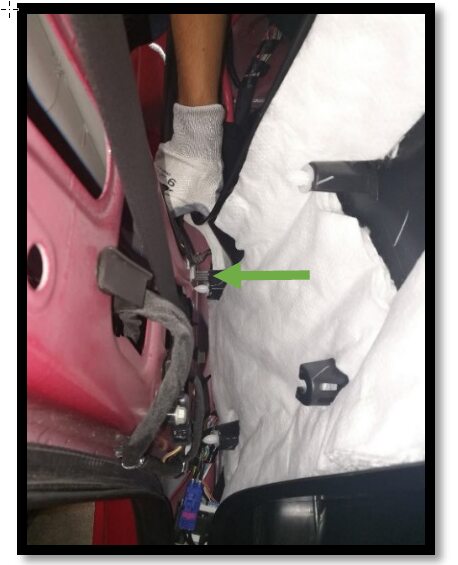

41. Connect 2nd row seat cushion harness and install 2nd row seat cushion
    注

    2x connectors, 2x clips, Insert the seat belt buckles through the holes, Slide rear cushion inward then align front guide tabs to locking tabs, Make sure cushion is fully seated with push pull test near clips

















42. Move RH front seat to original position



43. Move LH front seat to original position



44. Install LH lower A-pillar trim
    注

    2x clips, 3 guide tabs, Align the 2 front tabs then align the slot with harness bracket and then push rear clip to secure to lower B-pillar, fully seat seal along trim





45. Install clip for LH lower A-pillar trim
    注

    1x push clip



46. Install LH mid A pillar assembly
    注

    1x clip, 1x tab, Align the bottom tab then push the top clip to fully seat mid A pillar, Pull seal over trim



47. Install LH IP end cap
    注

    3x clips



48. Raise all four windows



49. Close all four doors
