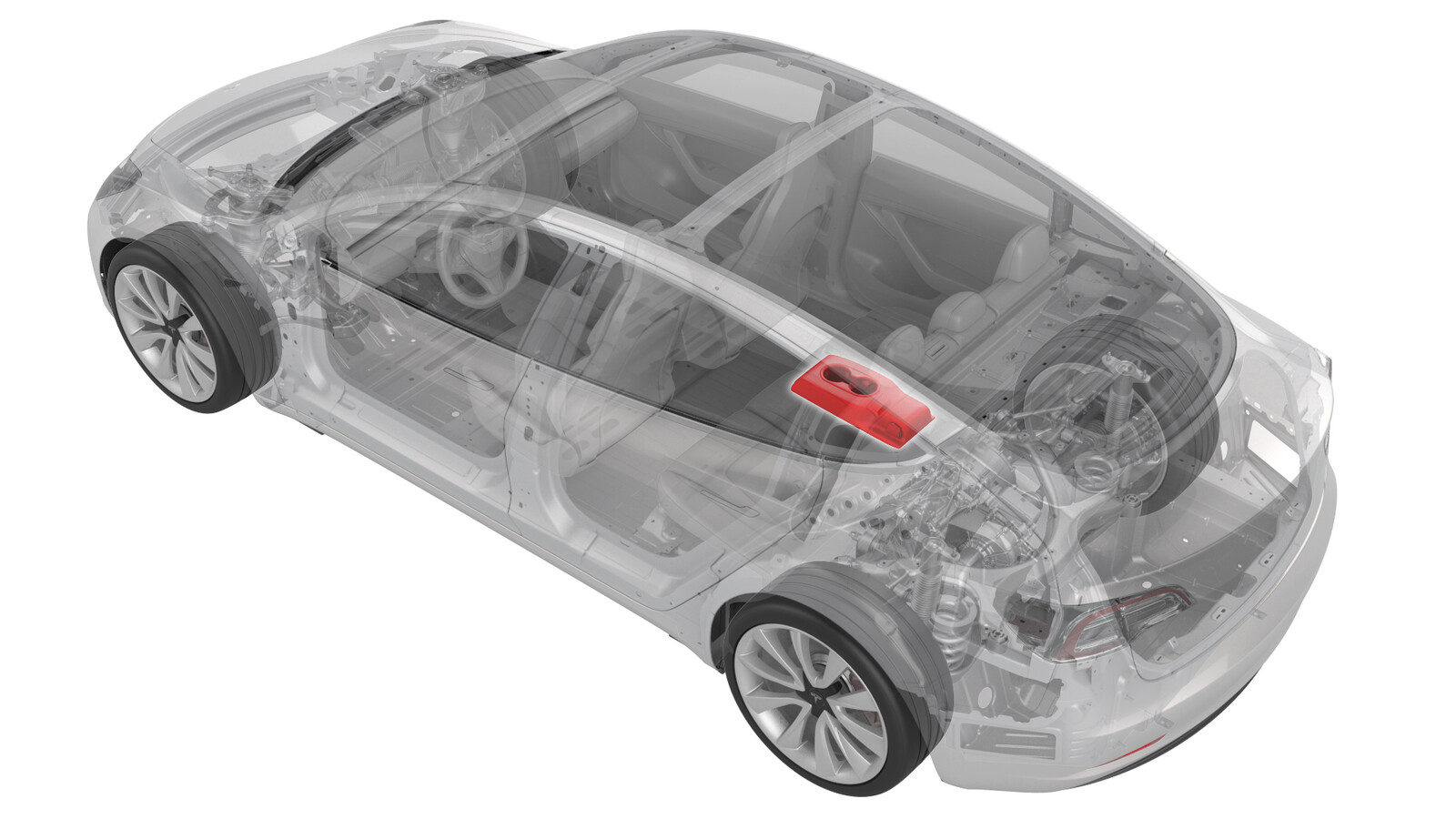

扶手 - 第二排(拆卸和更换)

校正代码 13058002 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

拆卸

  1. 打开全部 4 扇车门,将前排 LH 和 RH 座椅移至最前端。
  2. 折叠第二排 RH 座椅靠背总成。

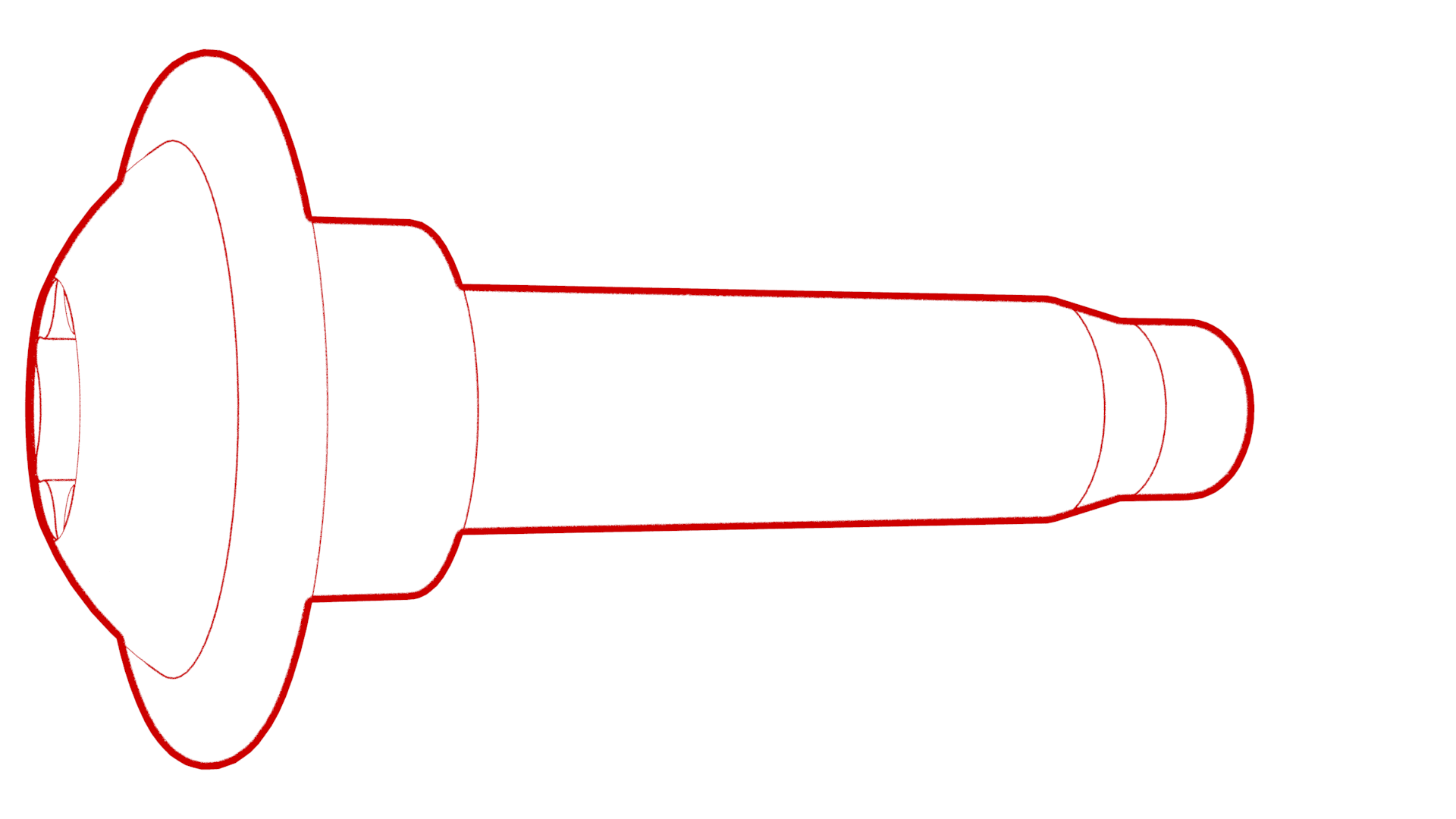

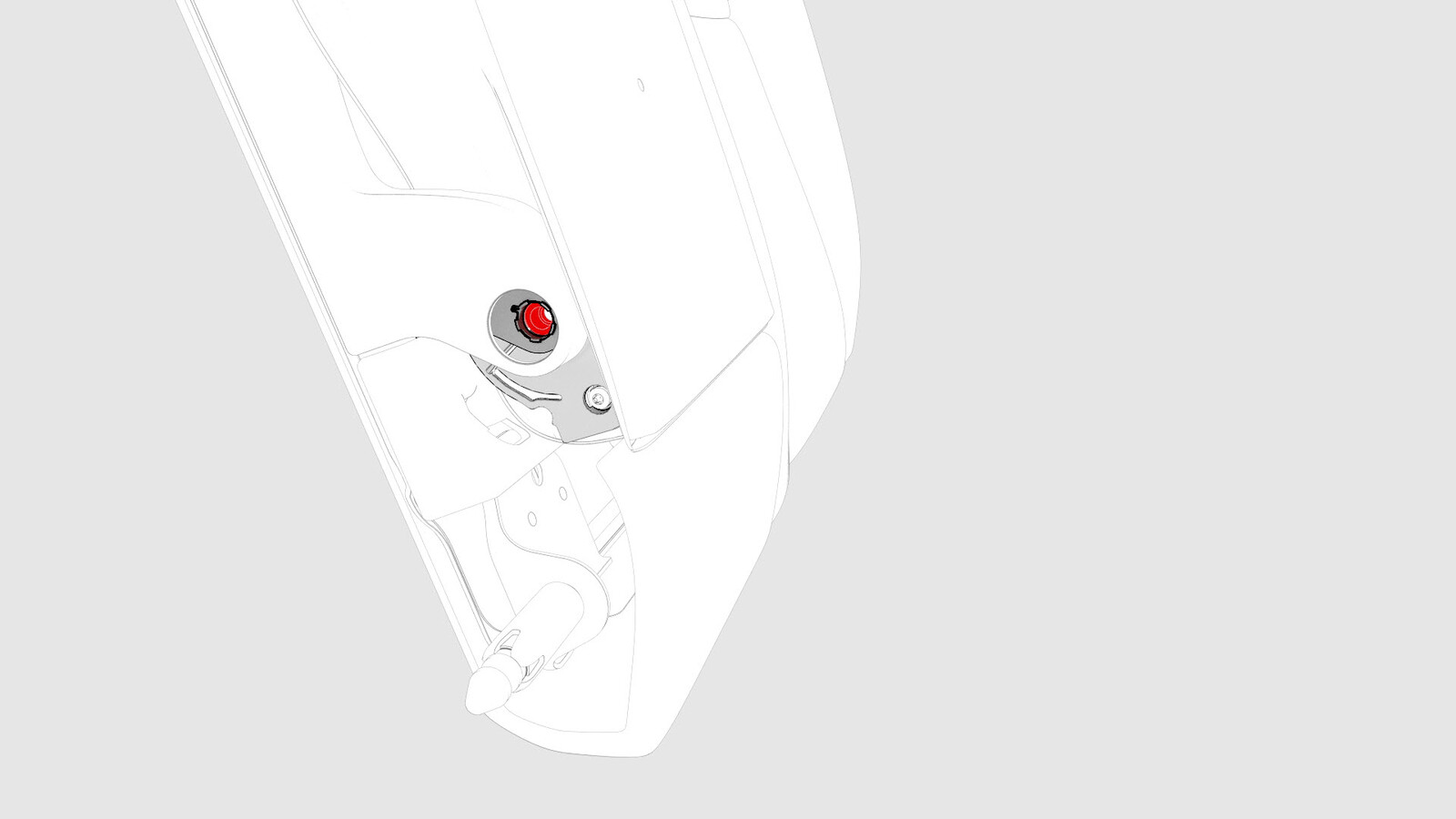

  3. 拆下将第二排扶手固定到第二排 LH 座椅靠背总成的螺栓。
    15 Nm (11.1 lbs-ft)
  4. 向车辆前方拉动第二排中间扶手 RH 侧,然后将第二排扶手滑出第二排 LH 座椅靠背总成。

安装

安装程序与拆卸程序相反。
