电子控制单元 (ECU) - 防抱死制动系统调制器(带加热泵款)(拆卸和更换)

校正代码 33010122 1.56 注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至LaborTimeFeedback@tesla.com注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
尽管此程序已经过验证,但仍是一个草案。可能没有警告和注意事项。请遵守安全要求,处理或靠近高压系统和部件时,请谨慎操作。请将校正修理内容及反馈发送至ServiceDevelopment@teslamotors.com

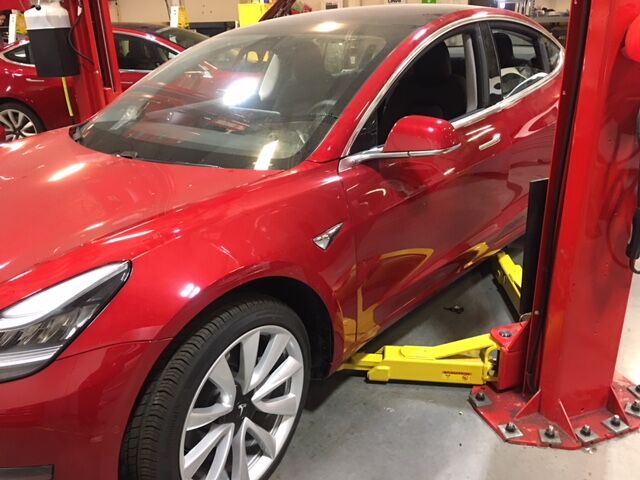

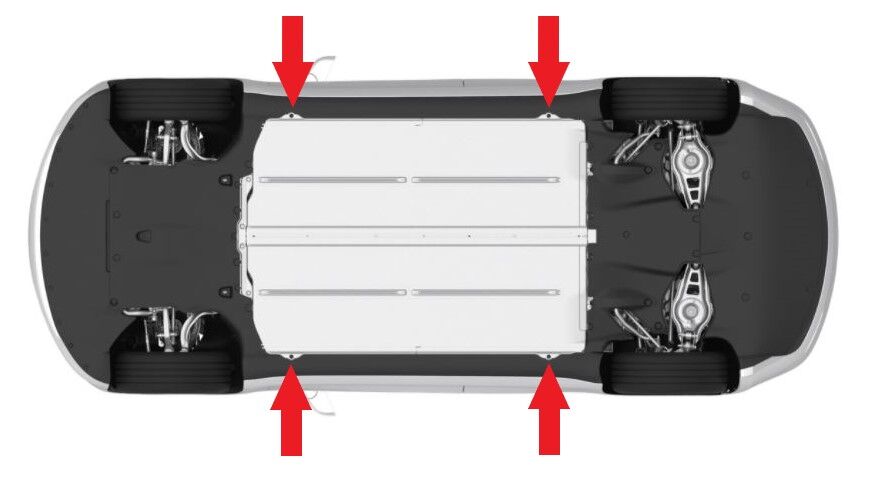

  1. Raise and support vehicle
  2. Open all four doors
    Informational PurposesAn informational icon, calling your attention
    If vehicle is being powered down, Latch rear doors to prevent accidental closure
  3. Lower all four windows
  4. Move LH front seat forward
  5. Move RH front seat forward

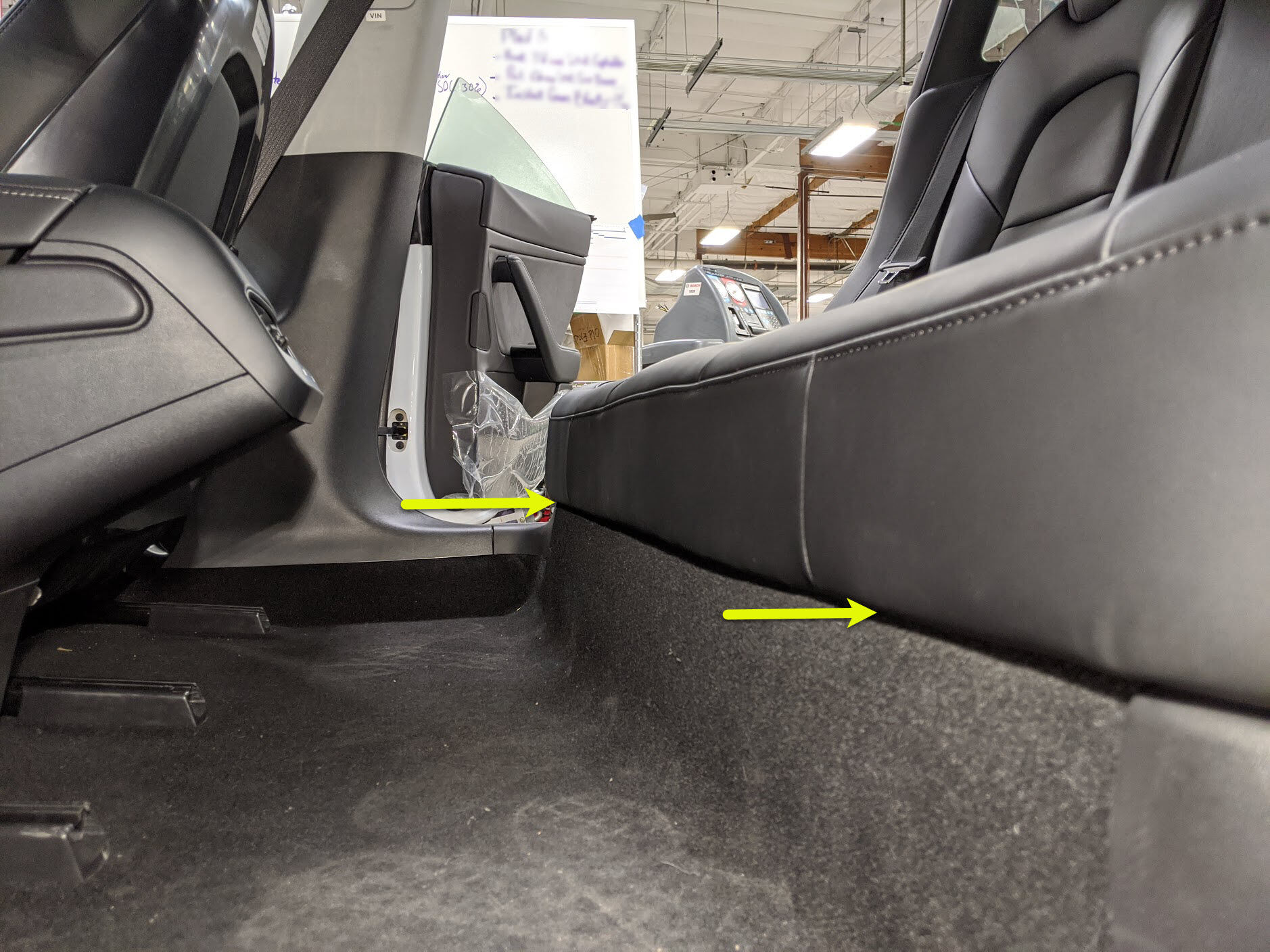

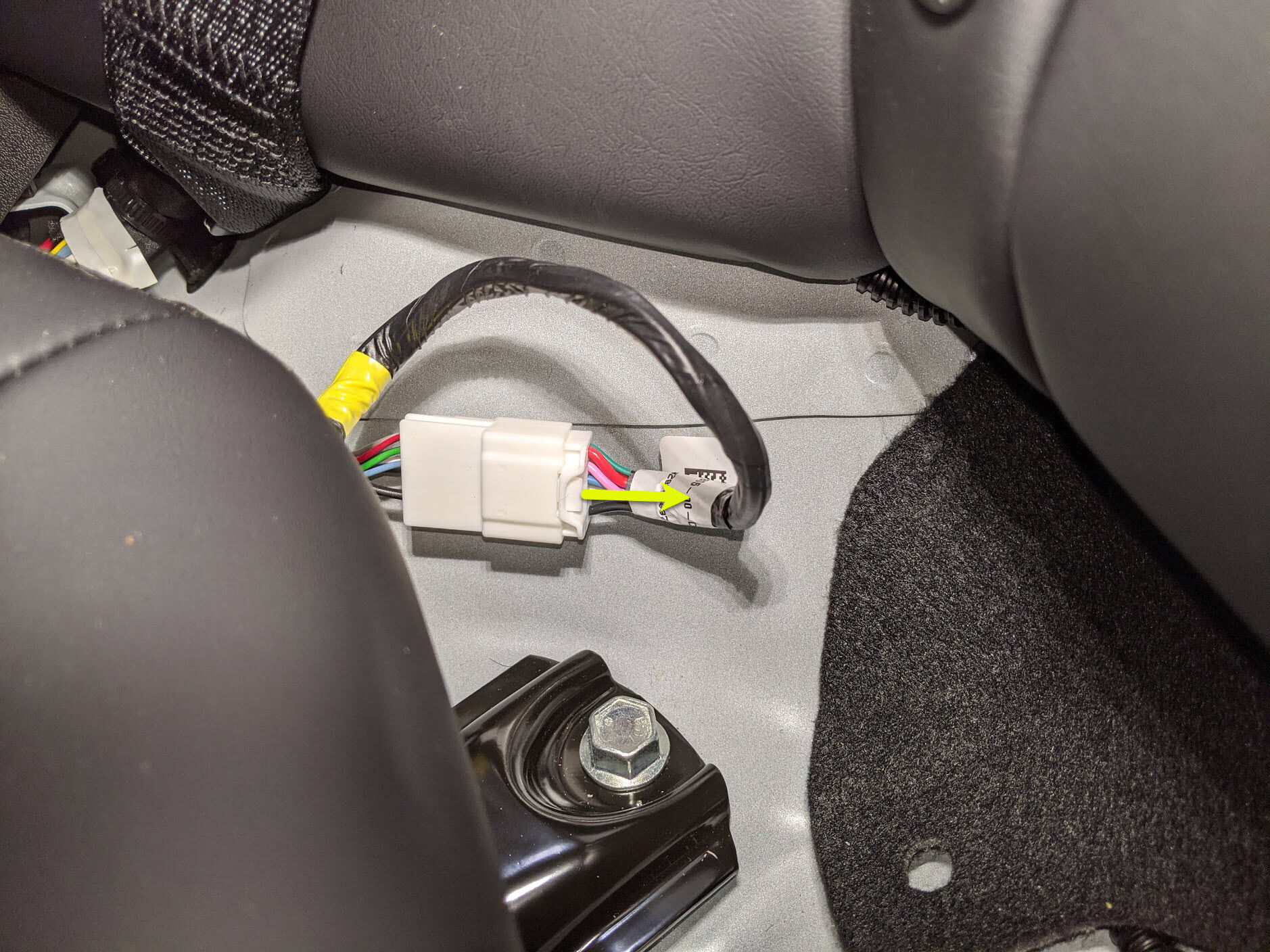

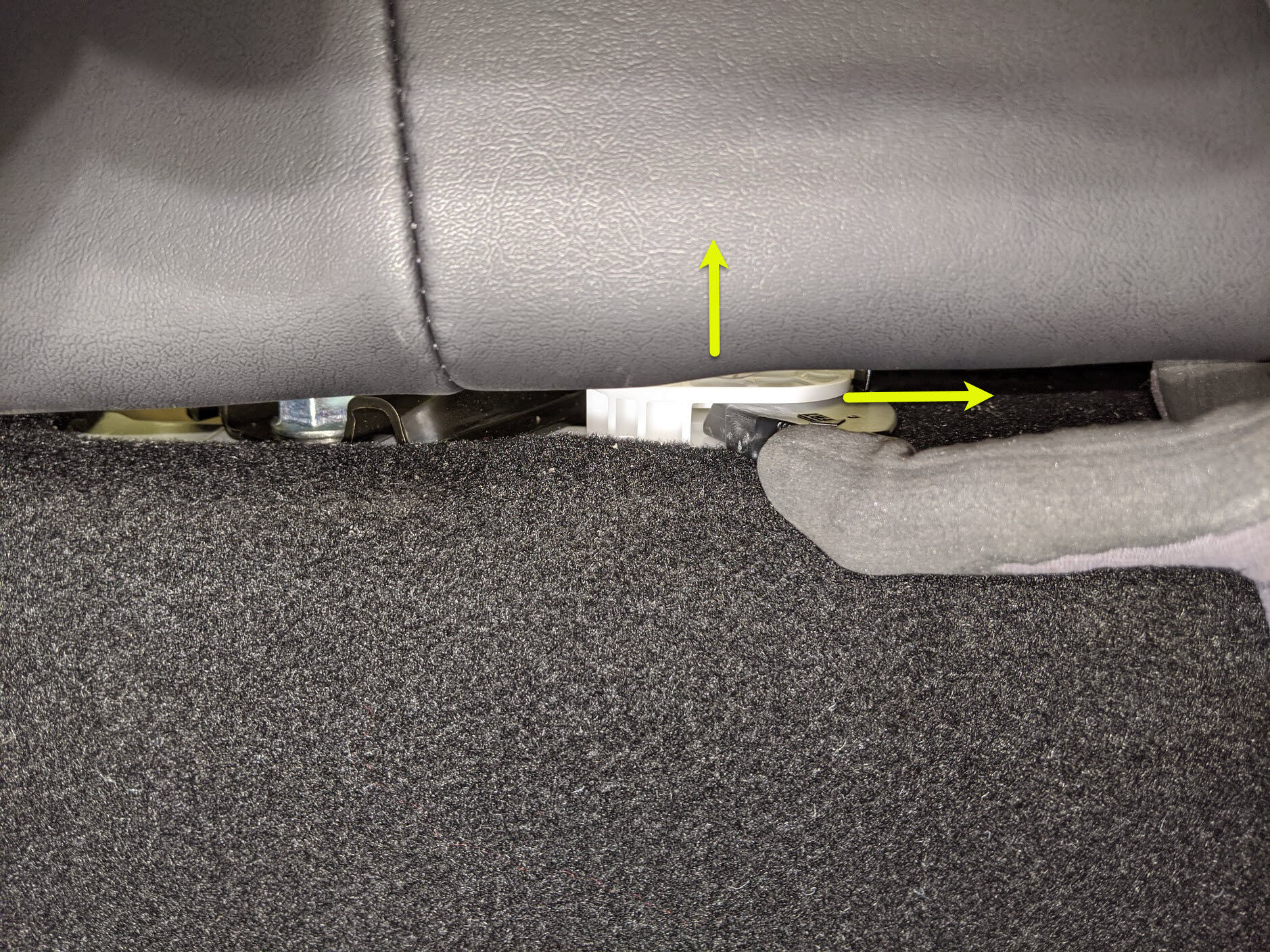

  6. Remove 2nd row seat cushion and disconnect harness
    Informational PurposesAn informational icon, calling your attention

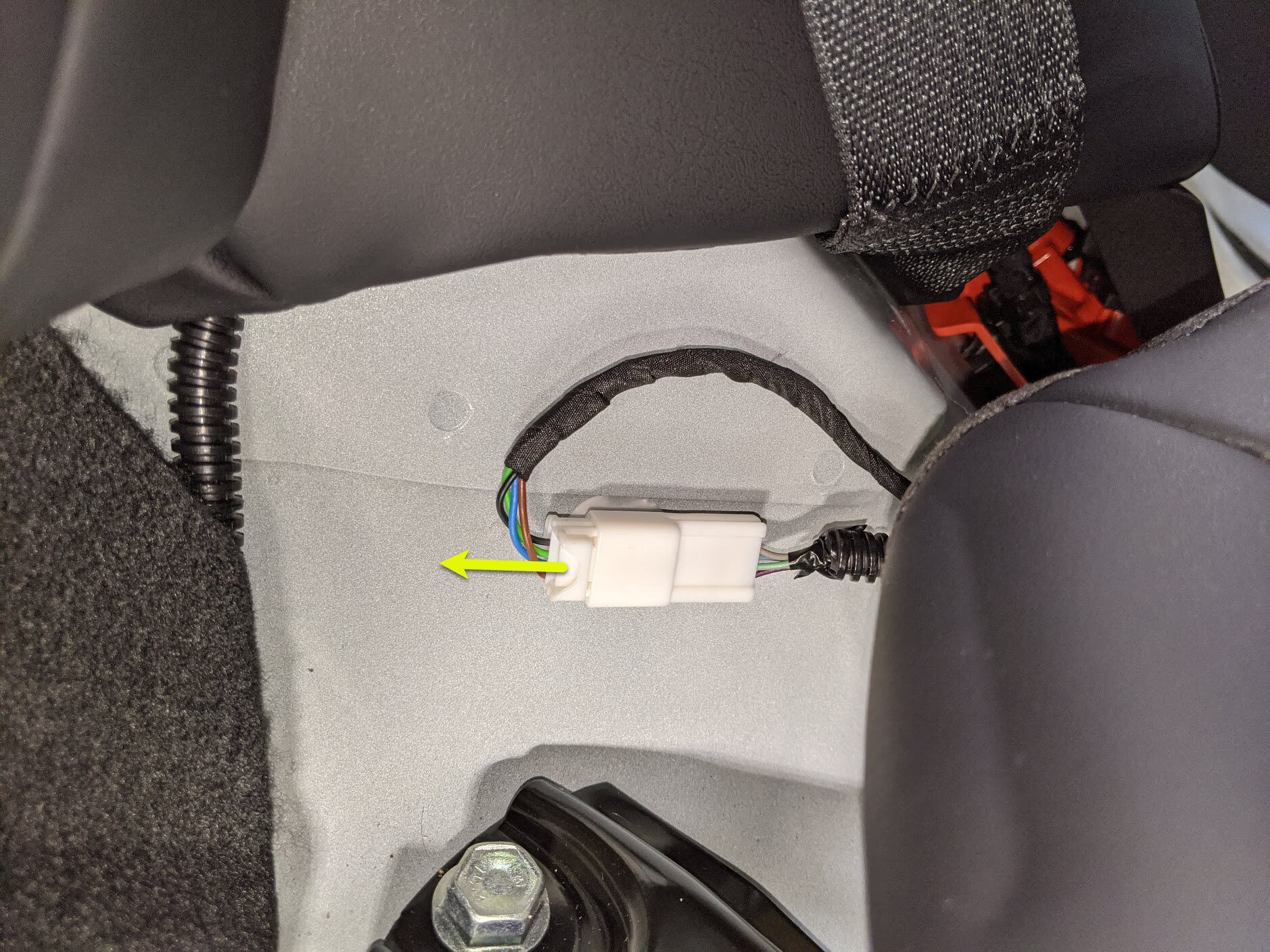

    2x tabs, 2x connectors, Press tab toward LH side of vehicle on each side to release front edge of seat cushion
  7. Move LH front seat backward
  8. Open hood
    Informational PurposesAn informational icon, calling your attention
    Press "Open" button on the touchscreen to release the latch, Lift the lid manually

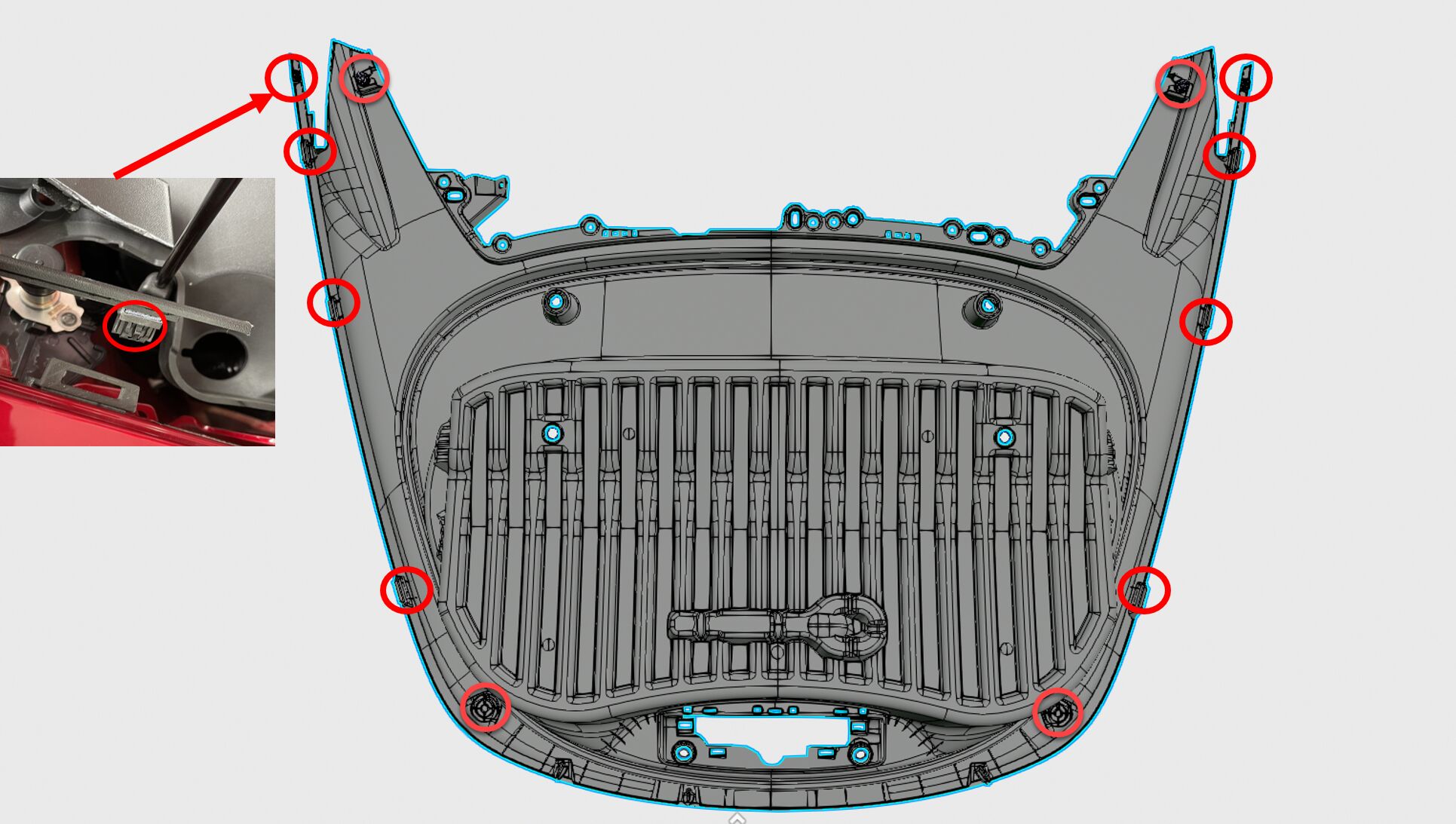

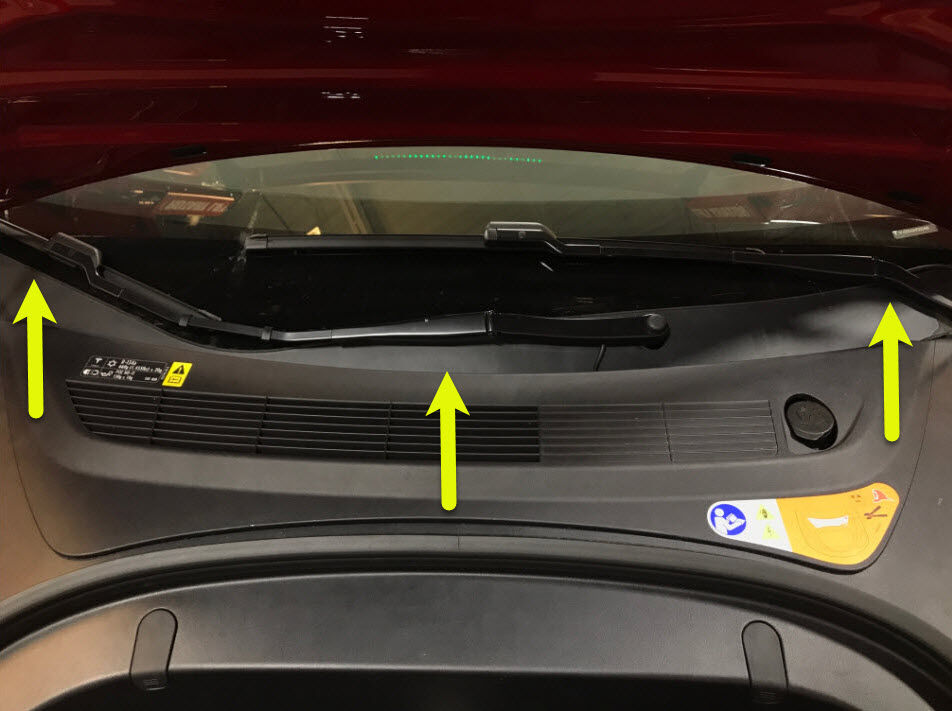

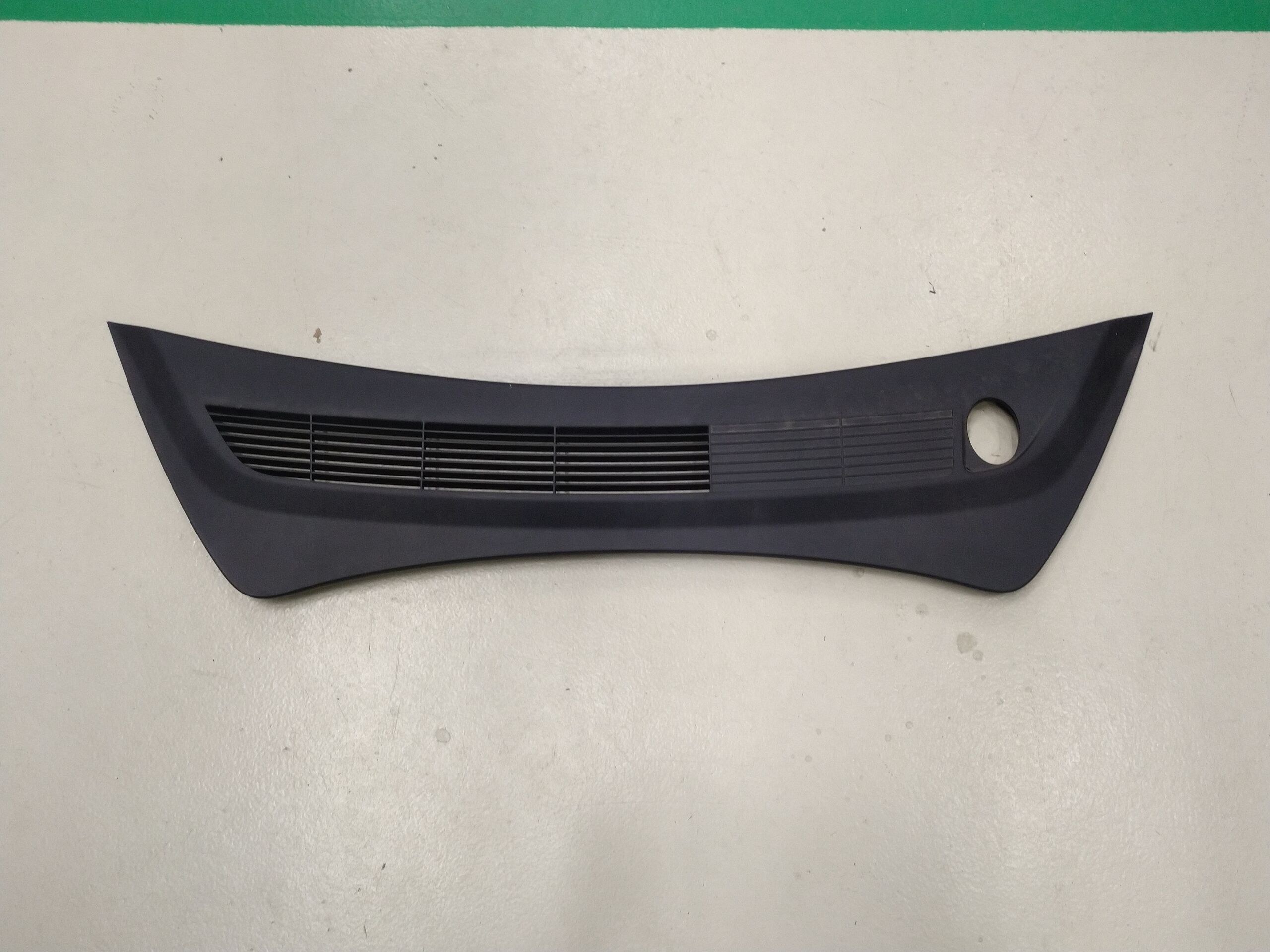

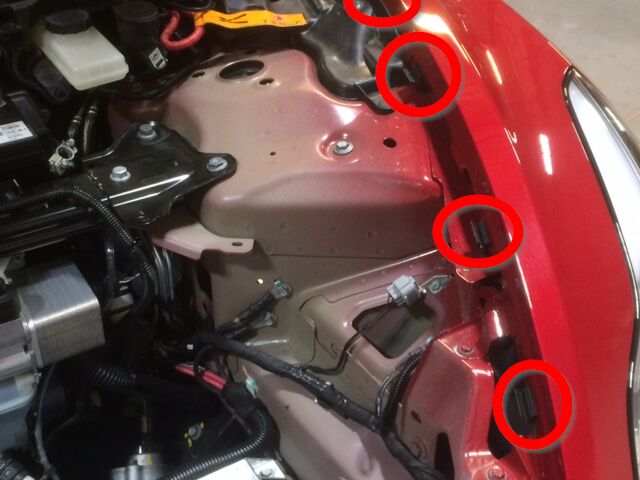

  9. Remove rear apron
    Informational PurposesAn informational icon, calling your attention

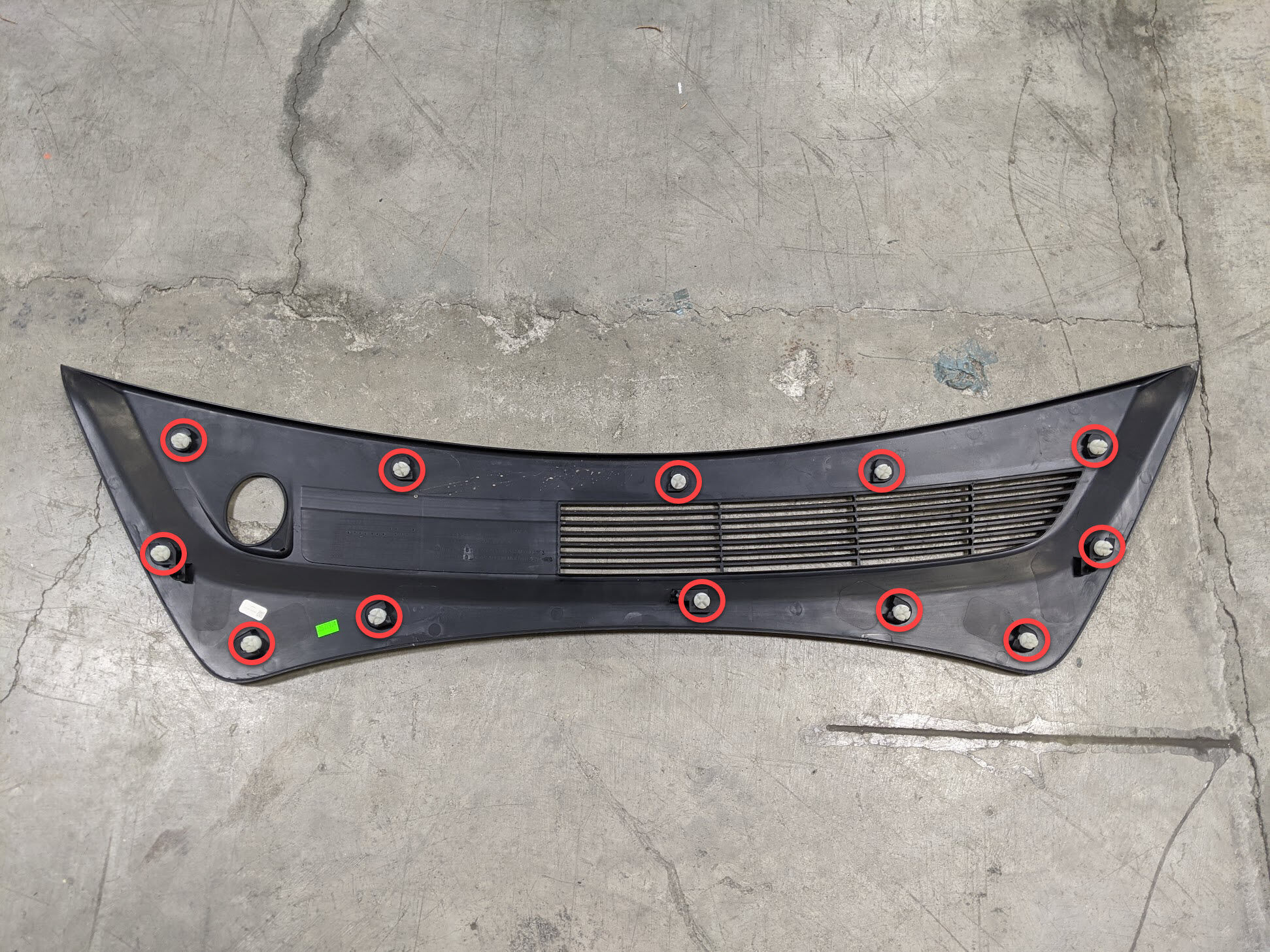

    12x clips, Only store rear apron visible face upwards

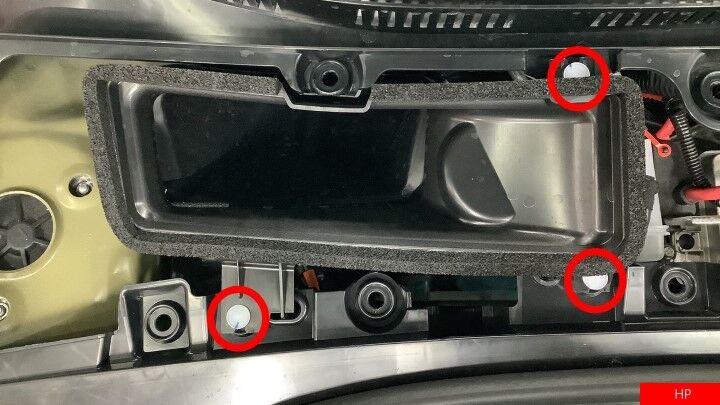

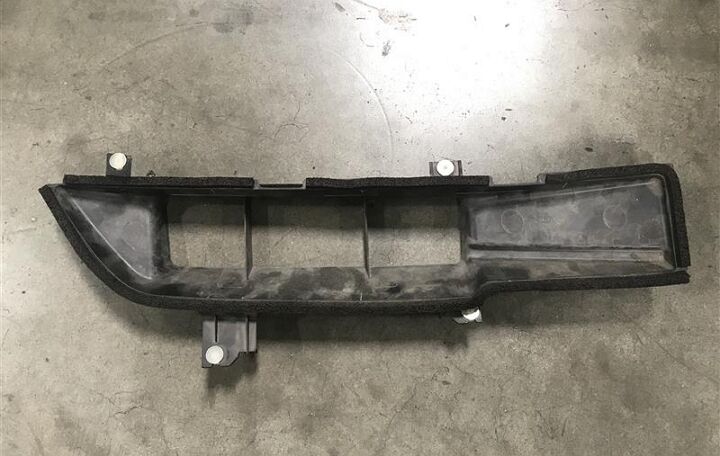

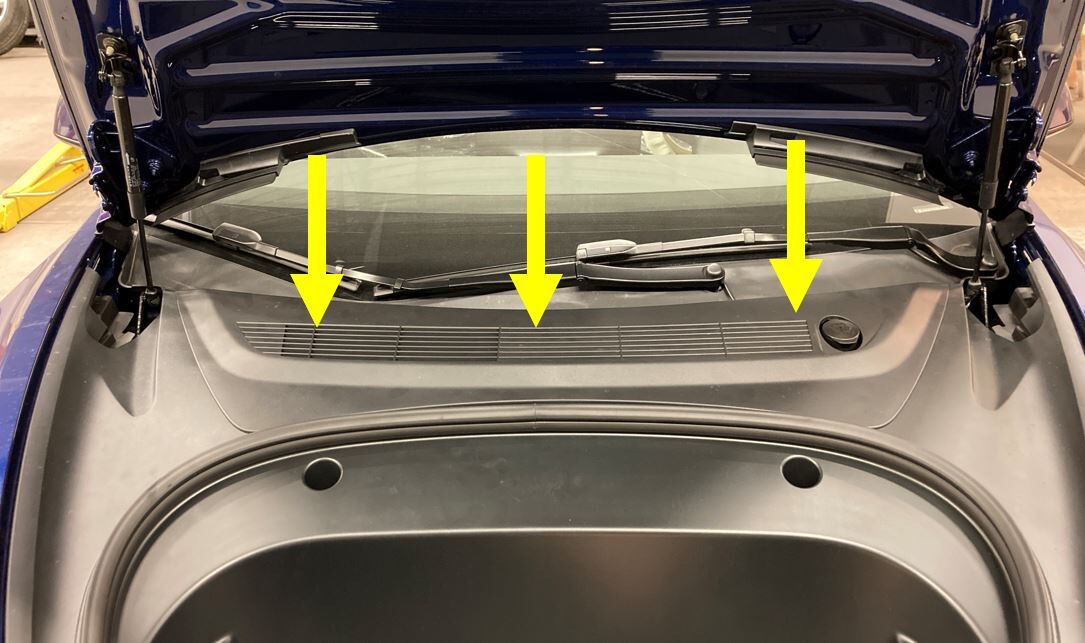

  10. Remove cabin intake upper duct assembly
    Informational PurposesAn informational icon, calling your attention
    4x clips, Heat pump vehicles have 3x clips
  11. Power off vehicle from center display
    Informational PurposesAn informational icon, calling your attention
    Via Controls > Safety & Security > Vehicle Power > Power Off, Confirm power off at warning dialogue box
  12. Disconnect 12V negative terminal
    Informational PurposesAn informational icon, calling your attention

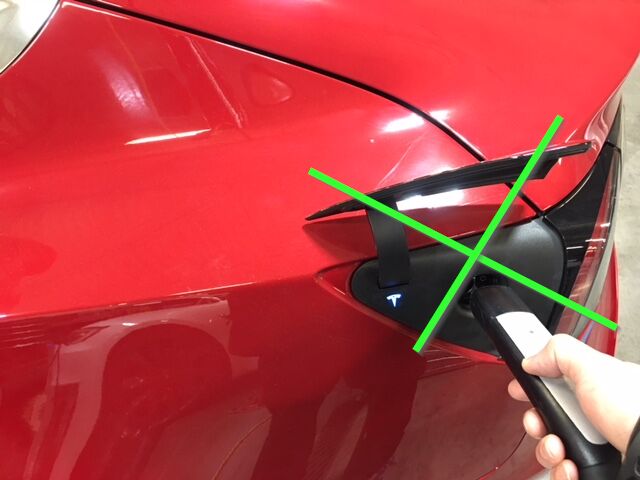

    1x nut, 10mm, 6 Nm, Ensure the vehicle is in park, climate control system is off, and vehicle is not charging before disconnecting 12V

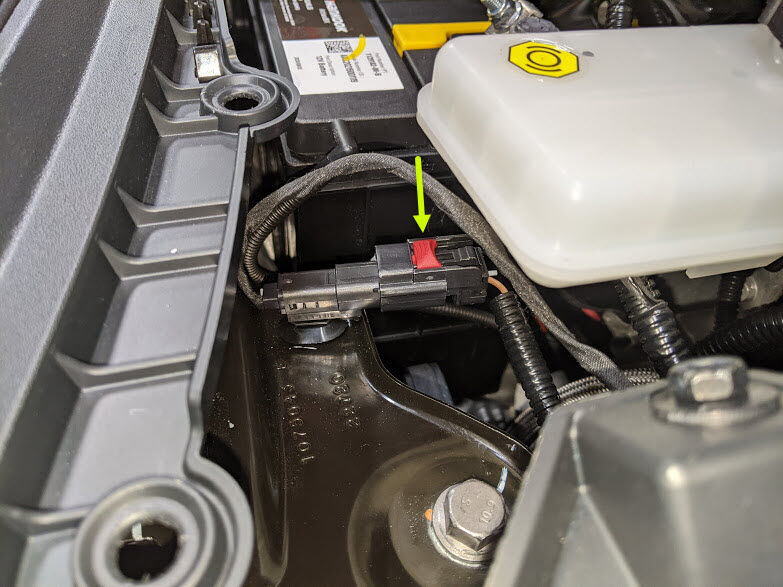

  13. Disconnect first responder loop
    Informational PurposesAn informational icon, calling your attention
    1x connector, Release locking tab

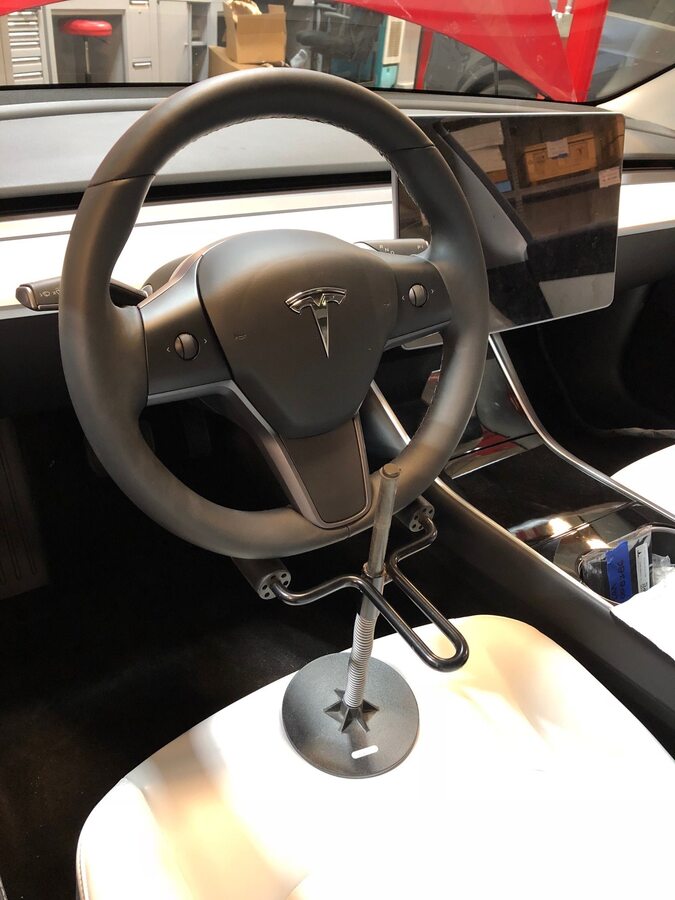

  14. Lock steering wheel into position
  15. Remove all items from pockets and ensure not wearing metal items

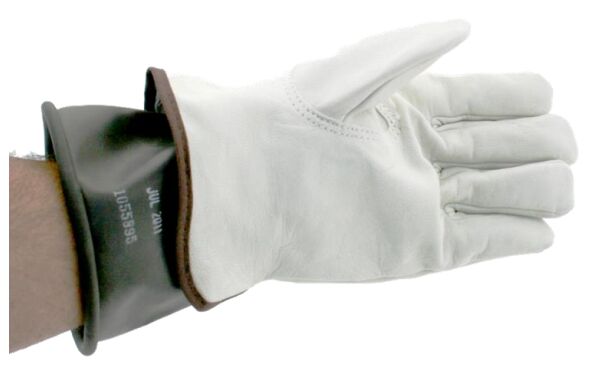

  16. Inspect HV insulating gloves
    Informational PurposesAn informational icon, calling your attention

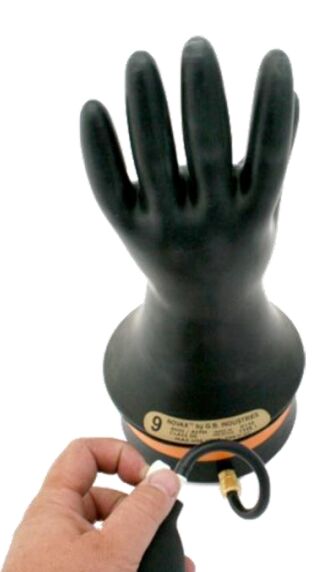

    Check gloves for damage prior to each use, Refer to service document TN-15-92-003 R5, for information on inspecting HV gloves, https://service.tesla.com/docs/ServiceBulletins/External/TN/TN-15-92-003_High_Voltage_Awareness_Care_Points_R5.pdf
  17. Put on HV insulating gloves and leather over gloves
    Informational PurposesAn informational icon, calling your attention
    Make sure to wear Electrical Protective Gloves any time Hioki tester is used

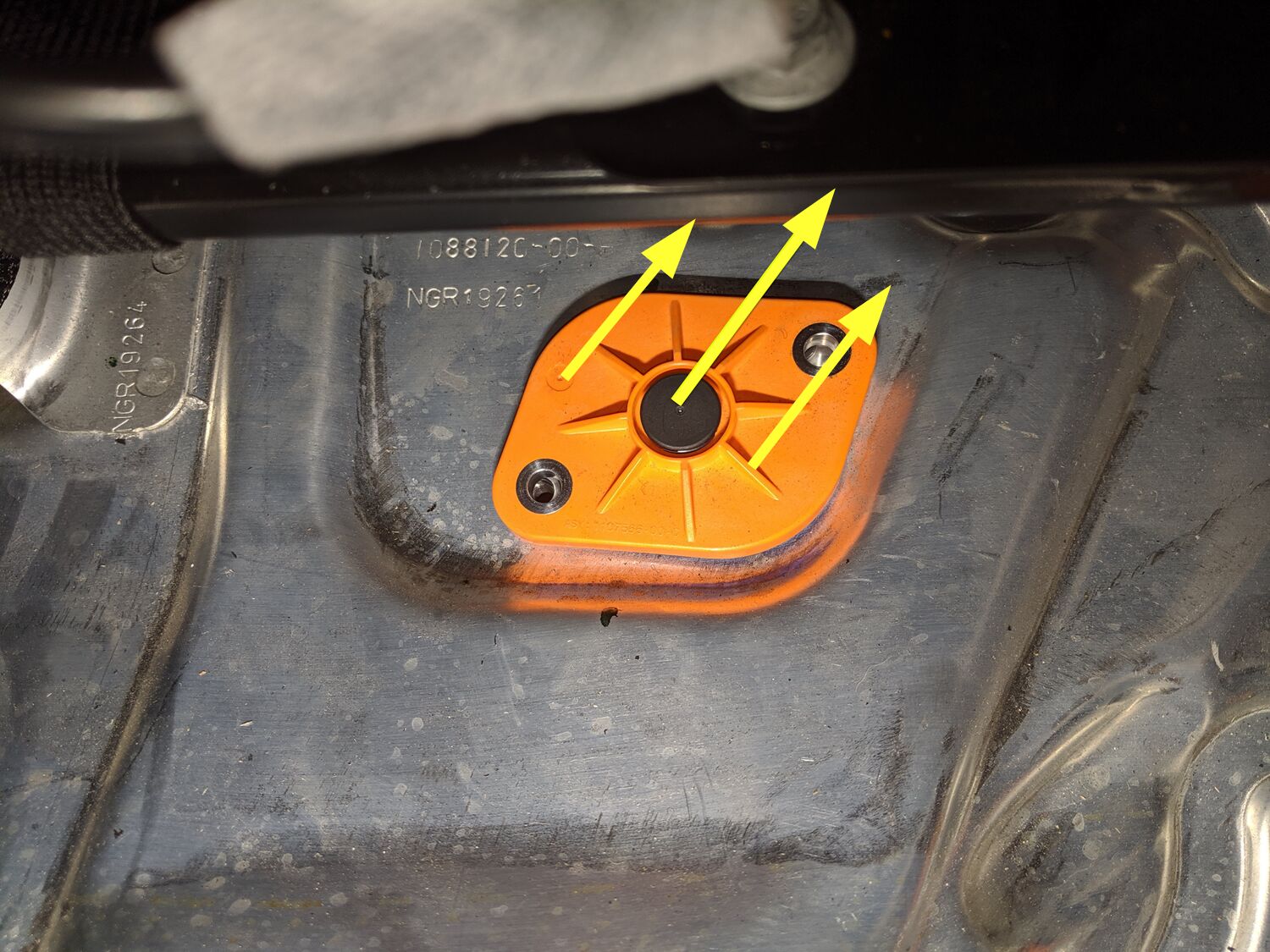

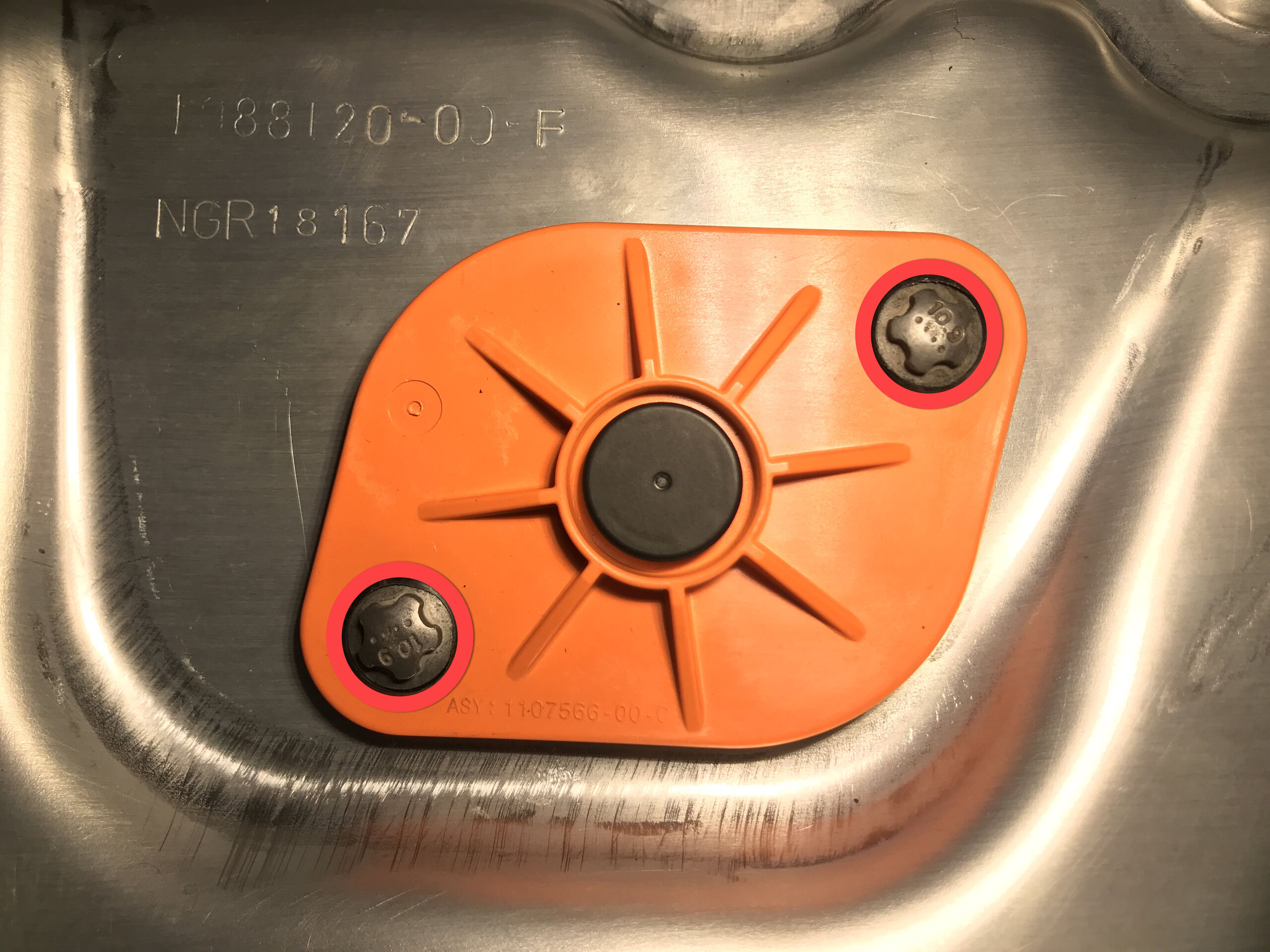

  18. Remove bolts securing ancillary bay probe lid cover to ancillary bay cover
    Informational PurposesAn informational icon, calling your attention
    2x bolts, EP10 5-Lobe, 6 Nm, Discard after removal
  19. Remove ancillary bay probe lid cover from ancillary bay cover

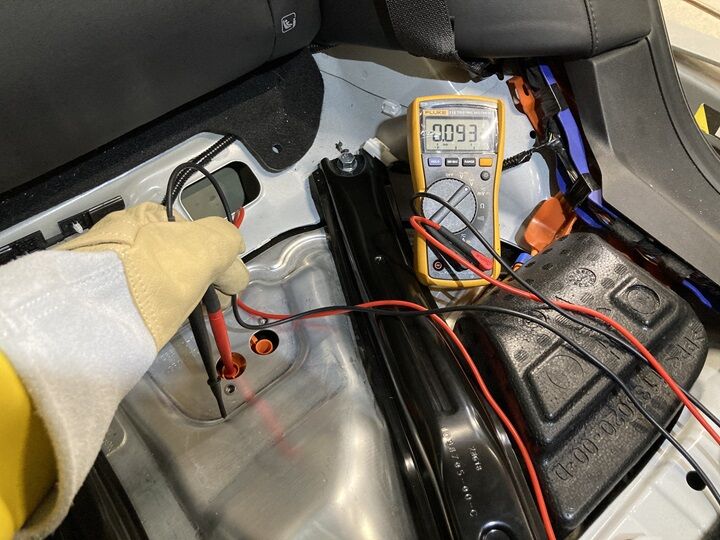

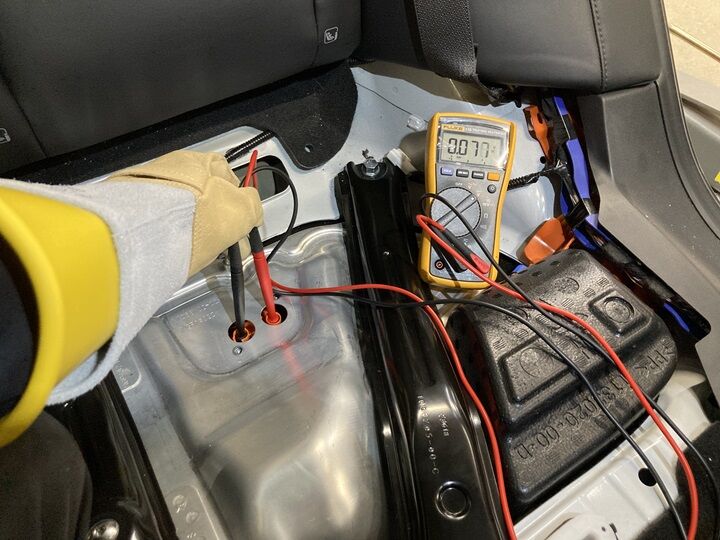

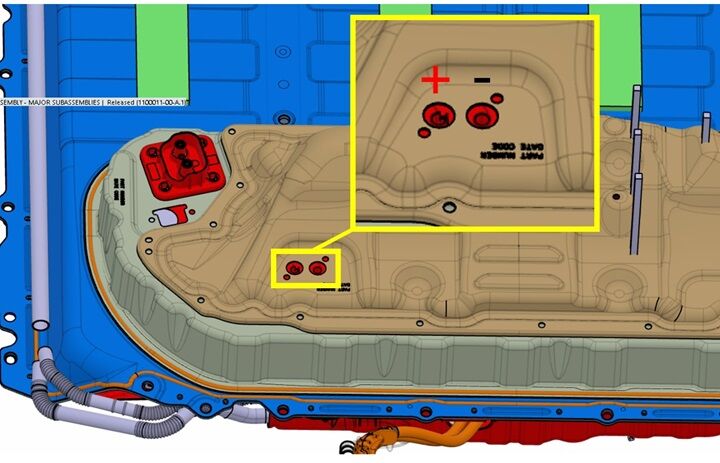

  20. Verify no high voltage
    Informational PurposesAn informational icon, calling your attention
    Make sure to wear PPE (HV gloves, safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering

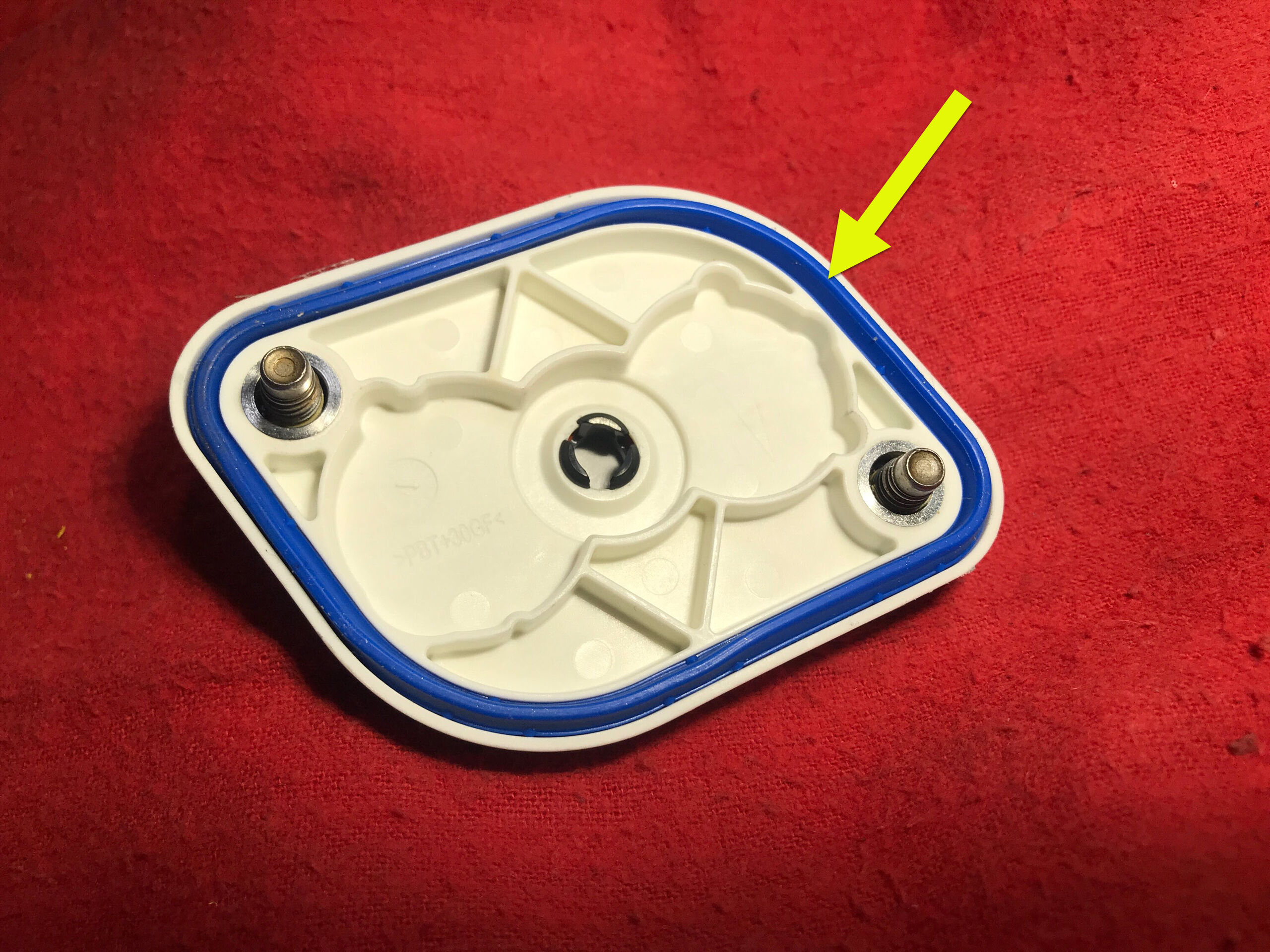

  21. Inspect ancillary bay probe lid cover gasket then position onto the ancillary bay cover
    Informational PurposesAn informational icon, calling your attention
    Confirm no damage is present, Seal can be re-used
  22. Install bolts securing ancillary bay probe lid cover to ancillary bay cover
    Informational PurposesAn informational icon, calling your attention
    2x bolts, E10 5-Lobe, 6 Nm, Install new fasteners
  23. Remove HV insulating gloves

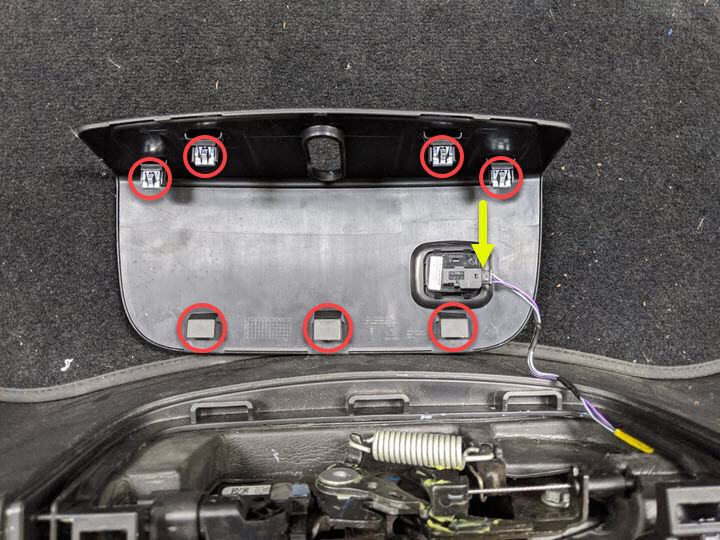

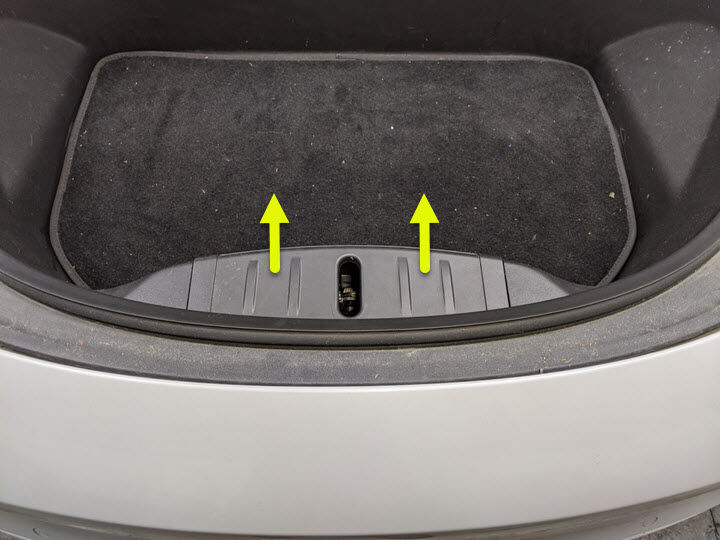

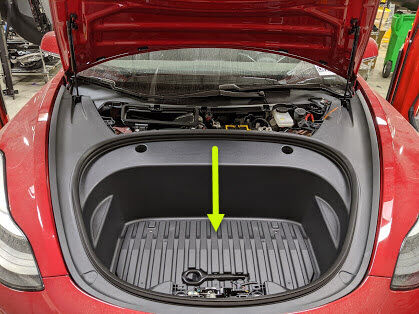

  24. Remove closeout panel from frunk assembly
    Informational PurposesAn informational icon, calling your attention
    4x clips, 1x connector, Frunk safety switch, 3x guide tabs, Grab closeout panel from bottom then pull it upward to release clips, Disconnect the switch

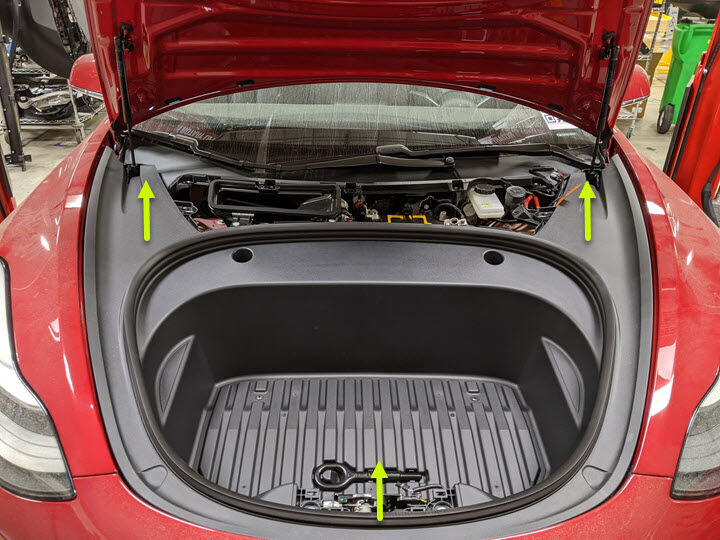

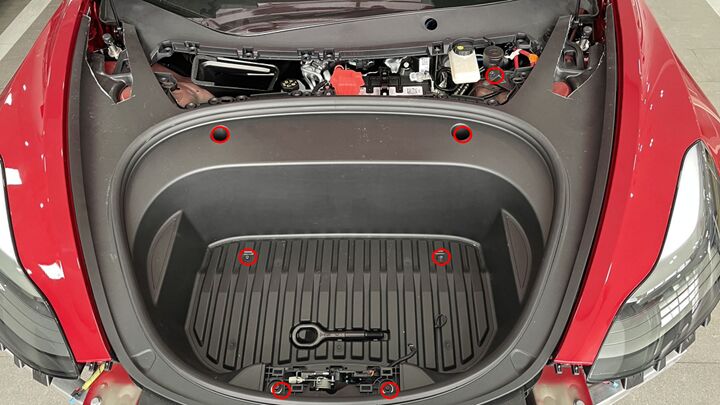

  25. Remove bolts securing frunk assembly
    Informational PurposesAn informational icon, calling your attention
    7x bolts, 10mm, 5 Nm, Lift up RBN covers to access upper fasteners, Newer vehicles may not be equipped with covers
  26. Remove frunk assembly from vehicle
    Informational PurposesAn informational icon, calling your attention
    12x clips, Replace any clips if broken or missing, Number of clips may vary on older vehicles

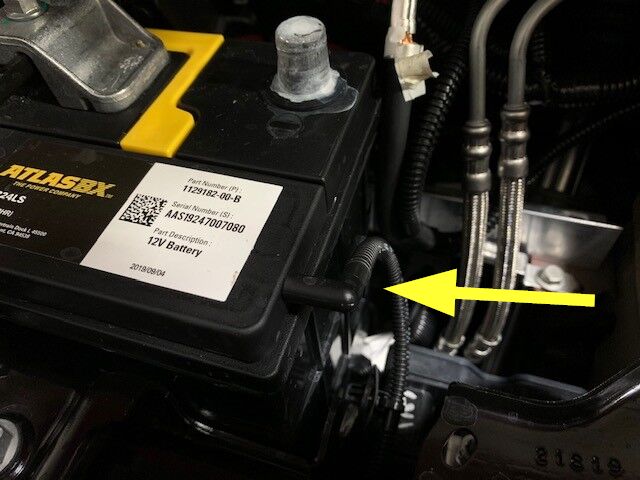

  27. Remove vent tube hose from LH side of 12V battery
    Informational PurposesAn informational icon, calling your attention
    1x tube adapter

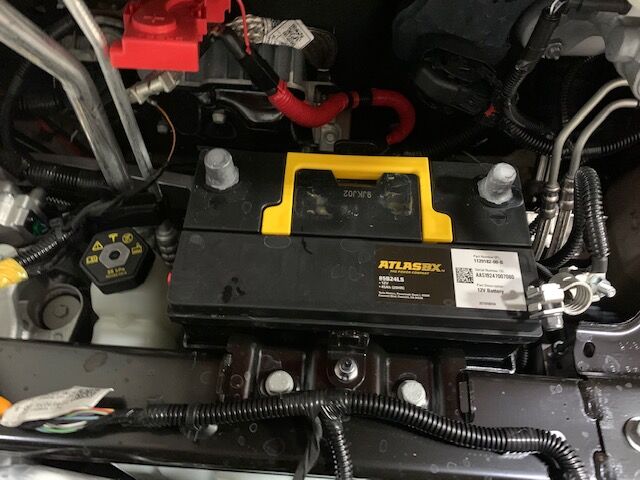

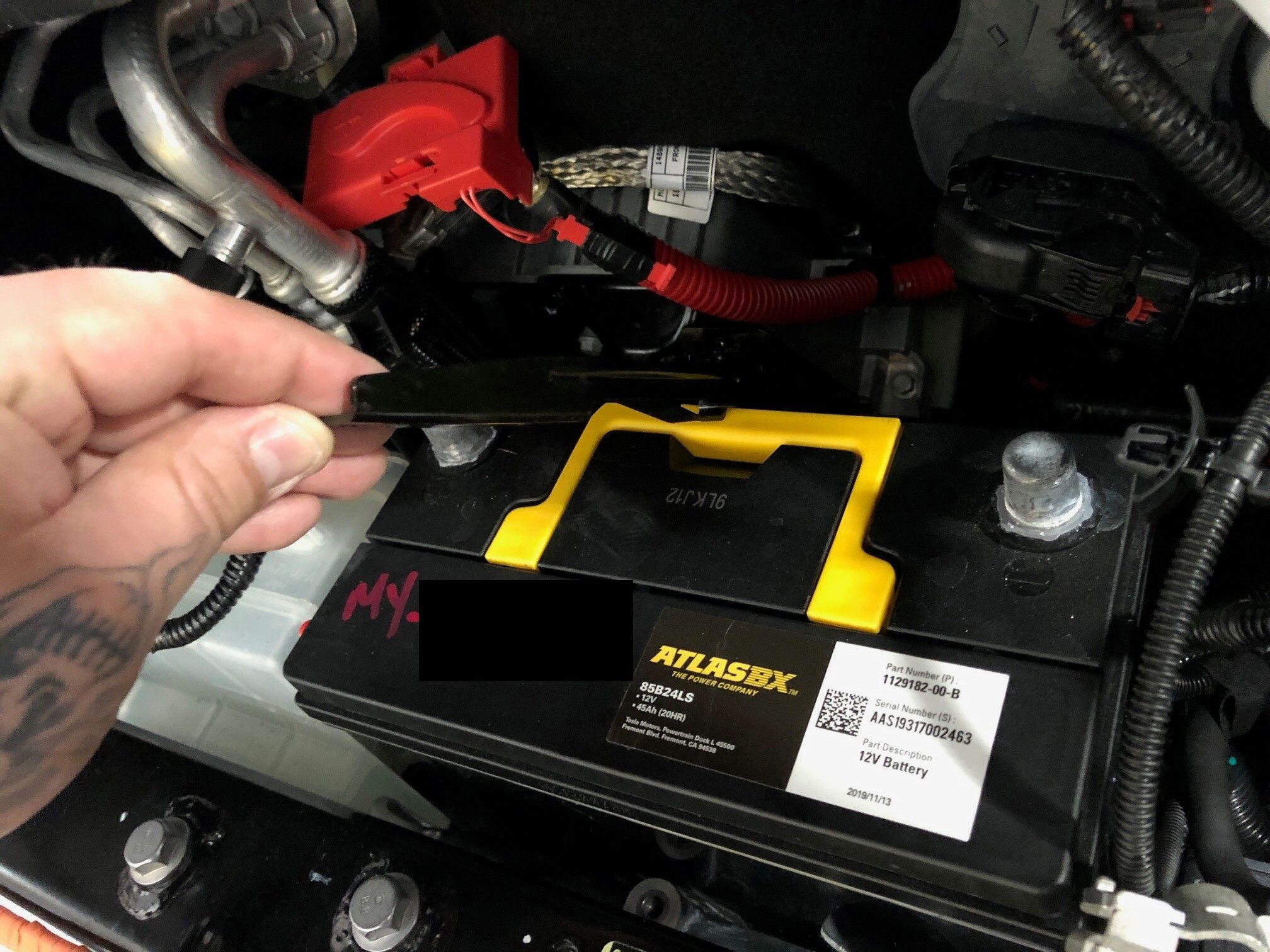

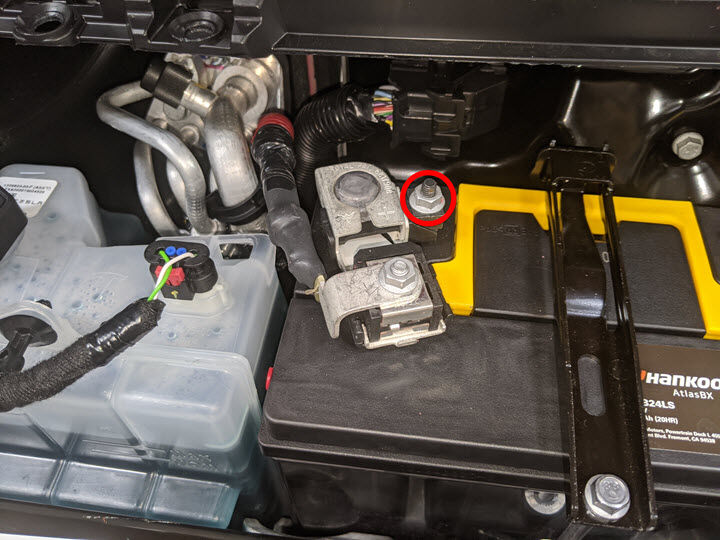

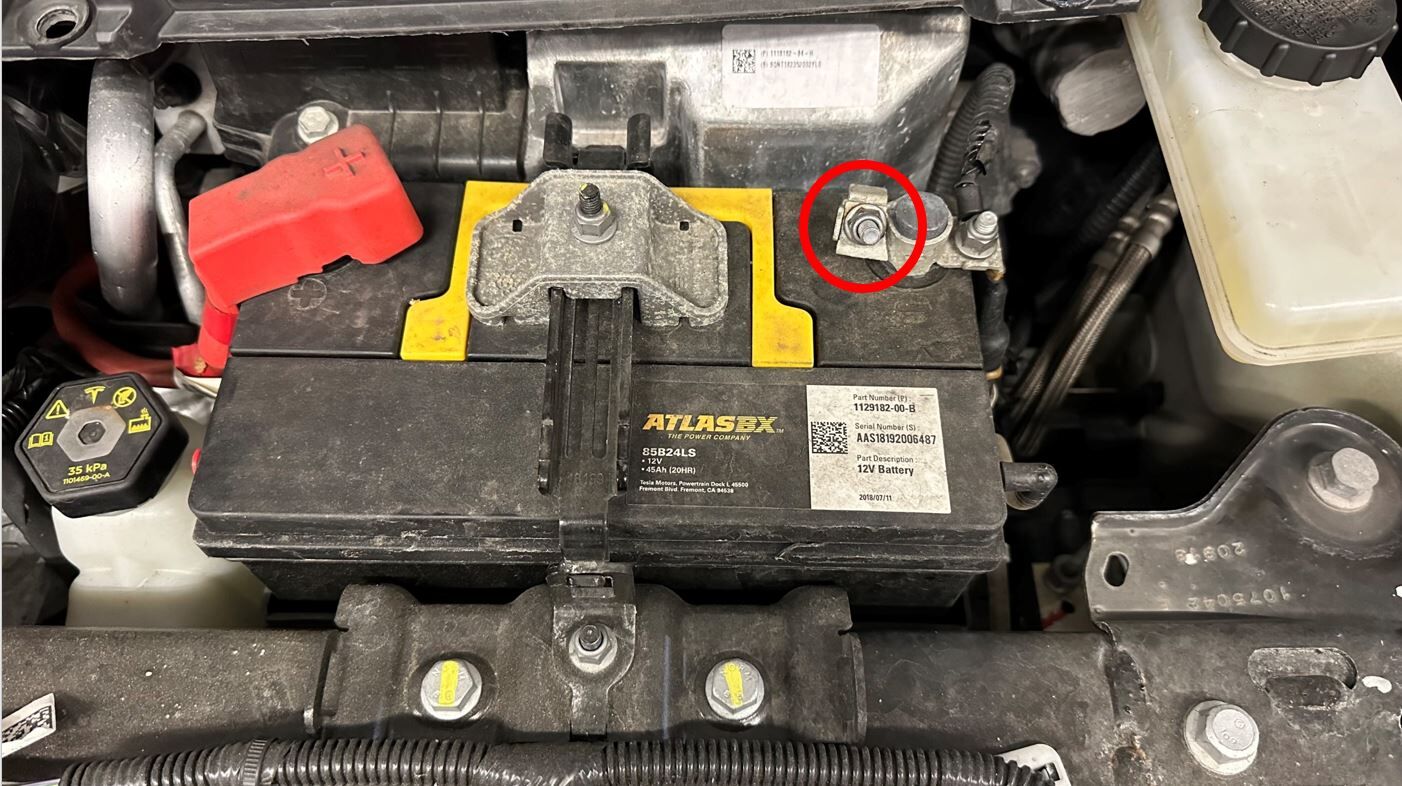

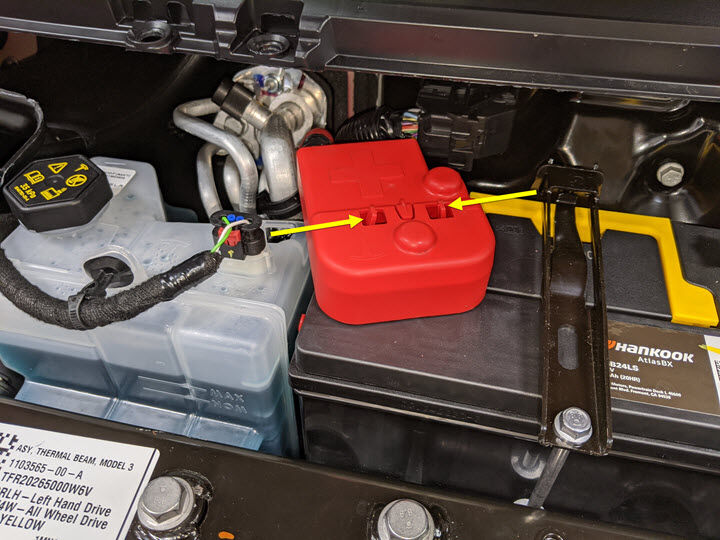

  28. Release terminal cover and remove positive terminal
    Informational PurposesAn informational icon, calling your attention
    2x clips, 1x nut, 10mm, 6 Nm, Do not fully remove positive terminal nut

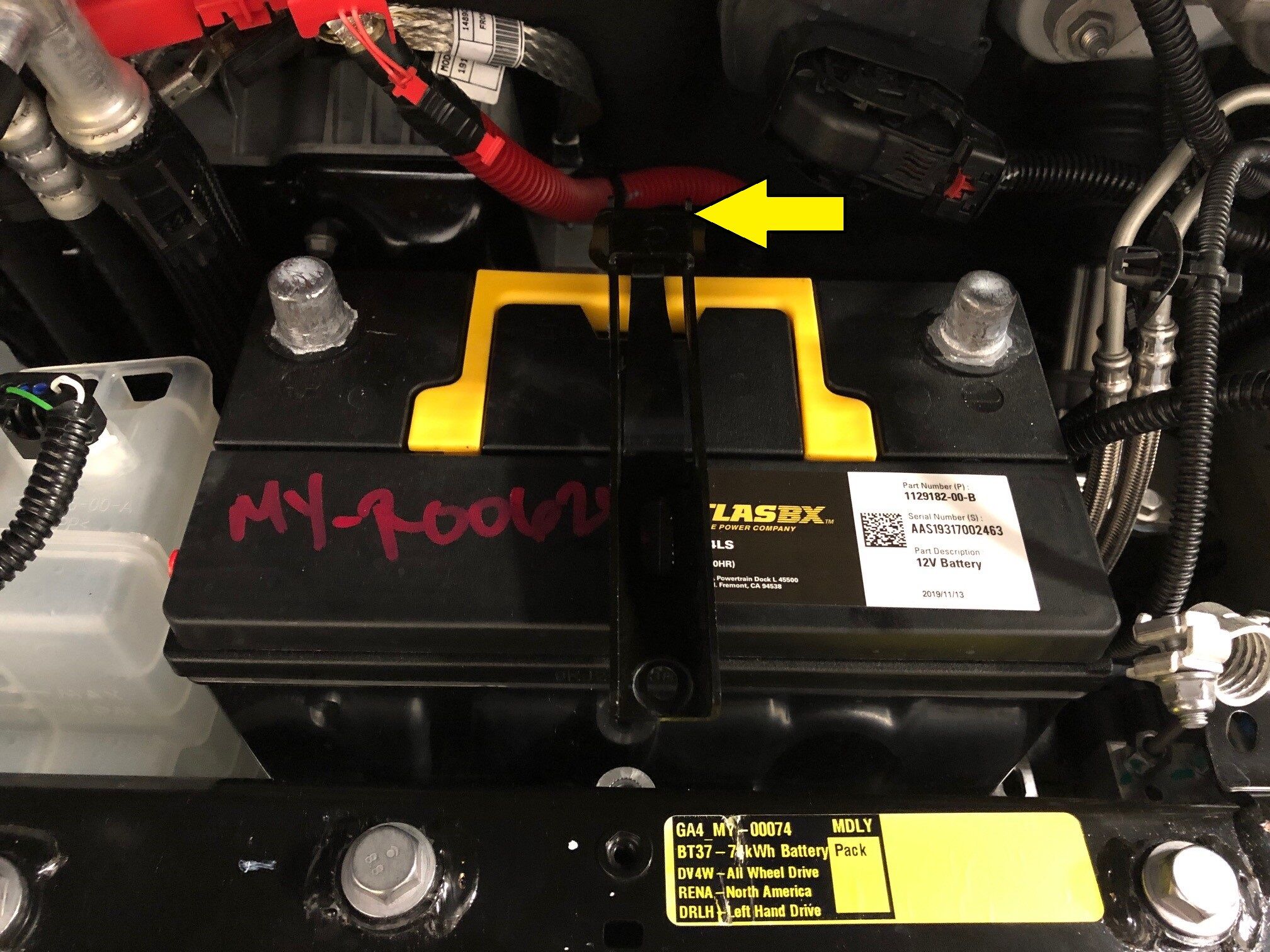

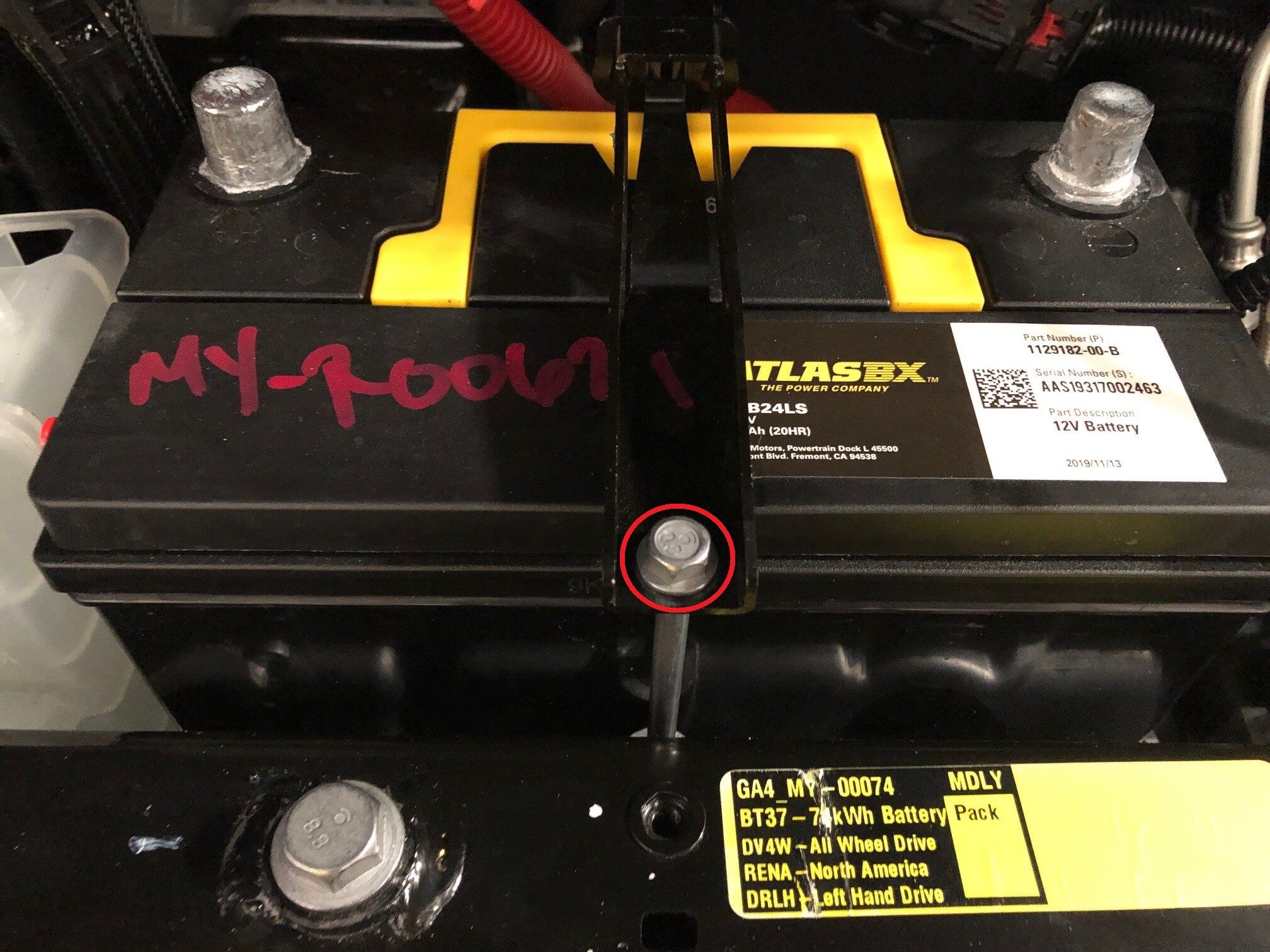

  29. Remove bolt securing 12V battery upper tie down strap to AC compressor bracket
    Informational PurposesAn informational icon, calling your attention
    1x bolt, 10mm, 5 Nm
  30. Remove battery upper tie down strap
    Informational PurposesAn informational icon, calling your attention
    Lift battery tie down strap up and remove it from the rear tie down hook strap

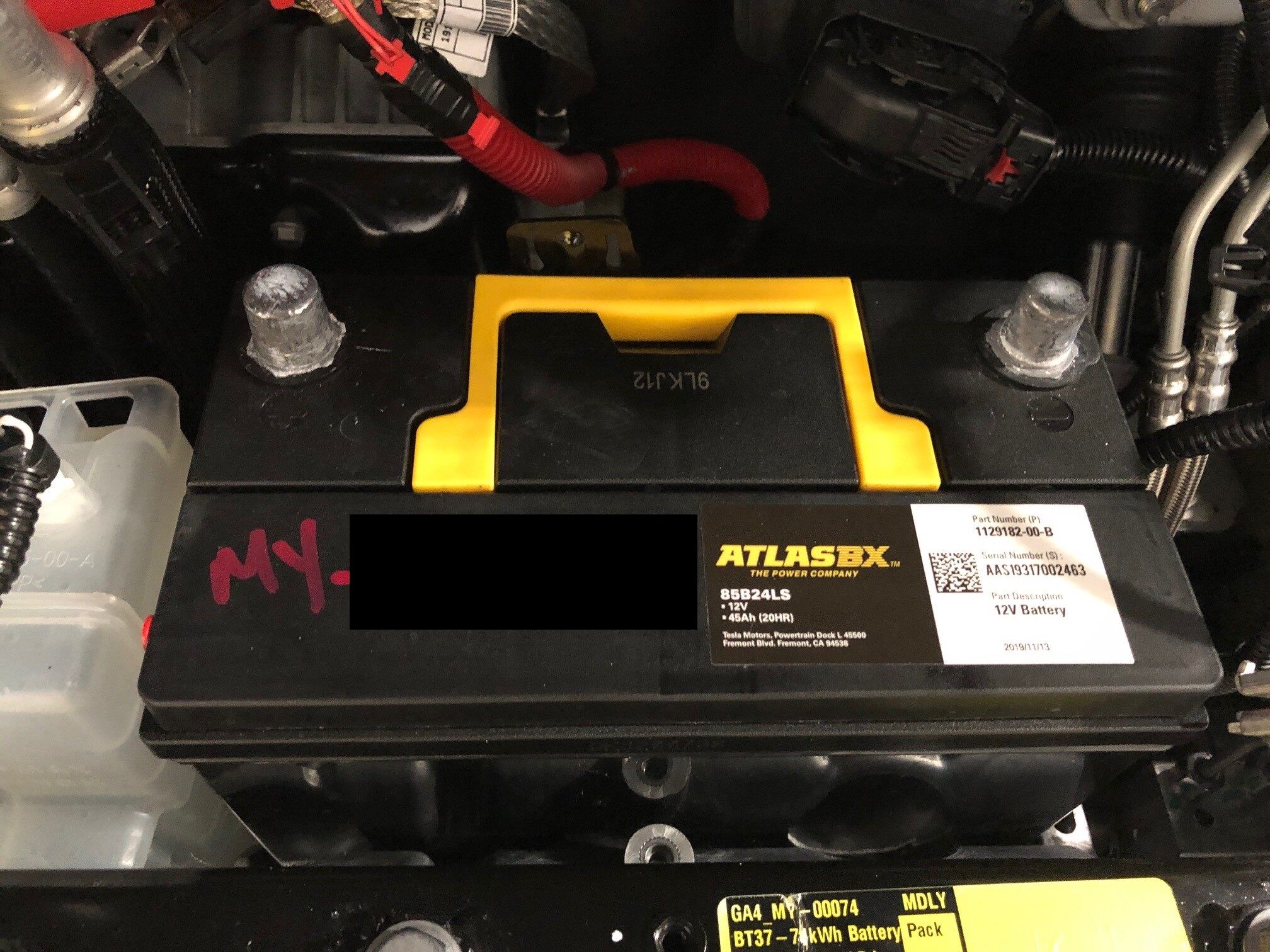

  31. Remove 12V battery from vehicle

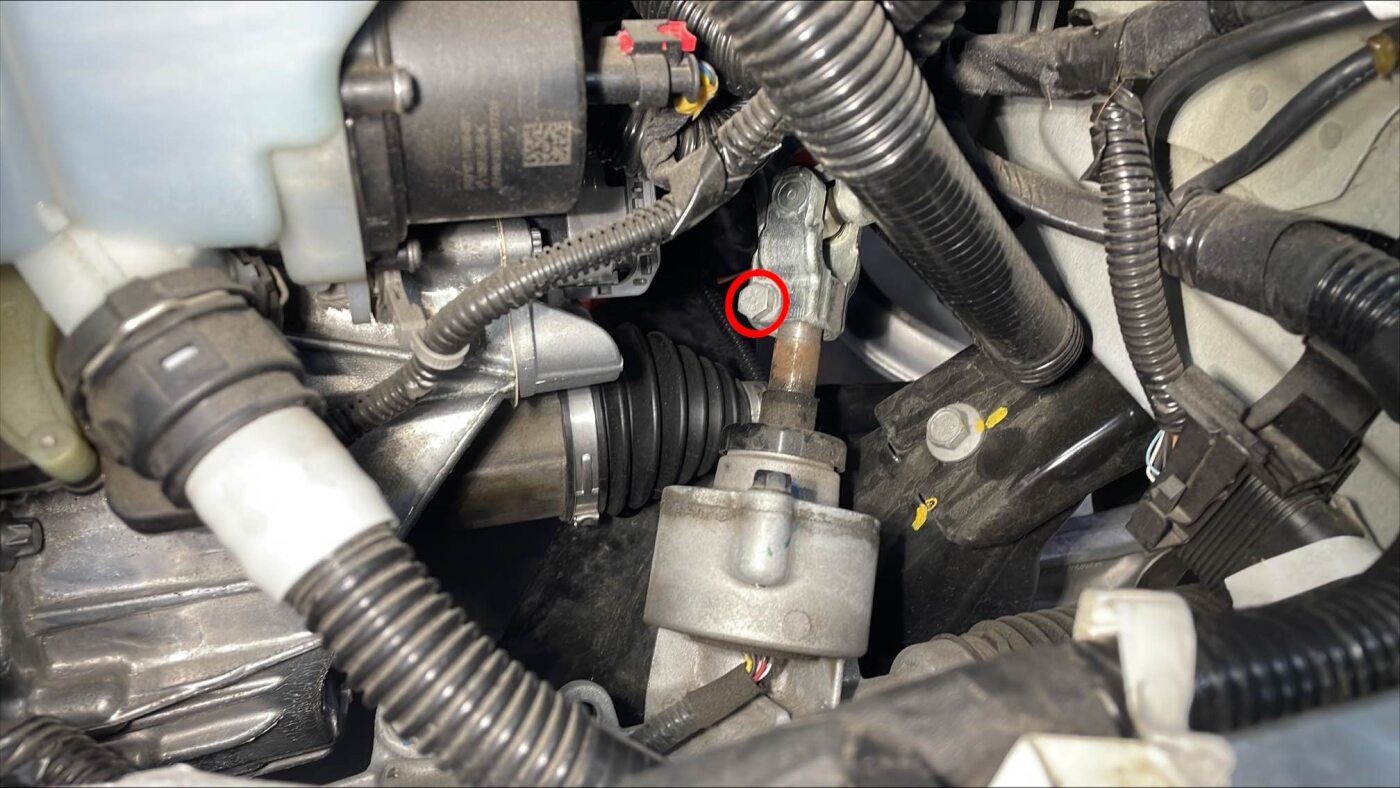

  32. Remove bolt securing the steering gear assembly to intermediate shaft assembly
    Informational PurposesAn informational icon, calling your attention
    1x bolt, 13mm, 18 Nm

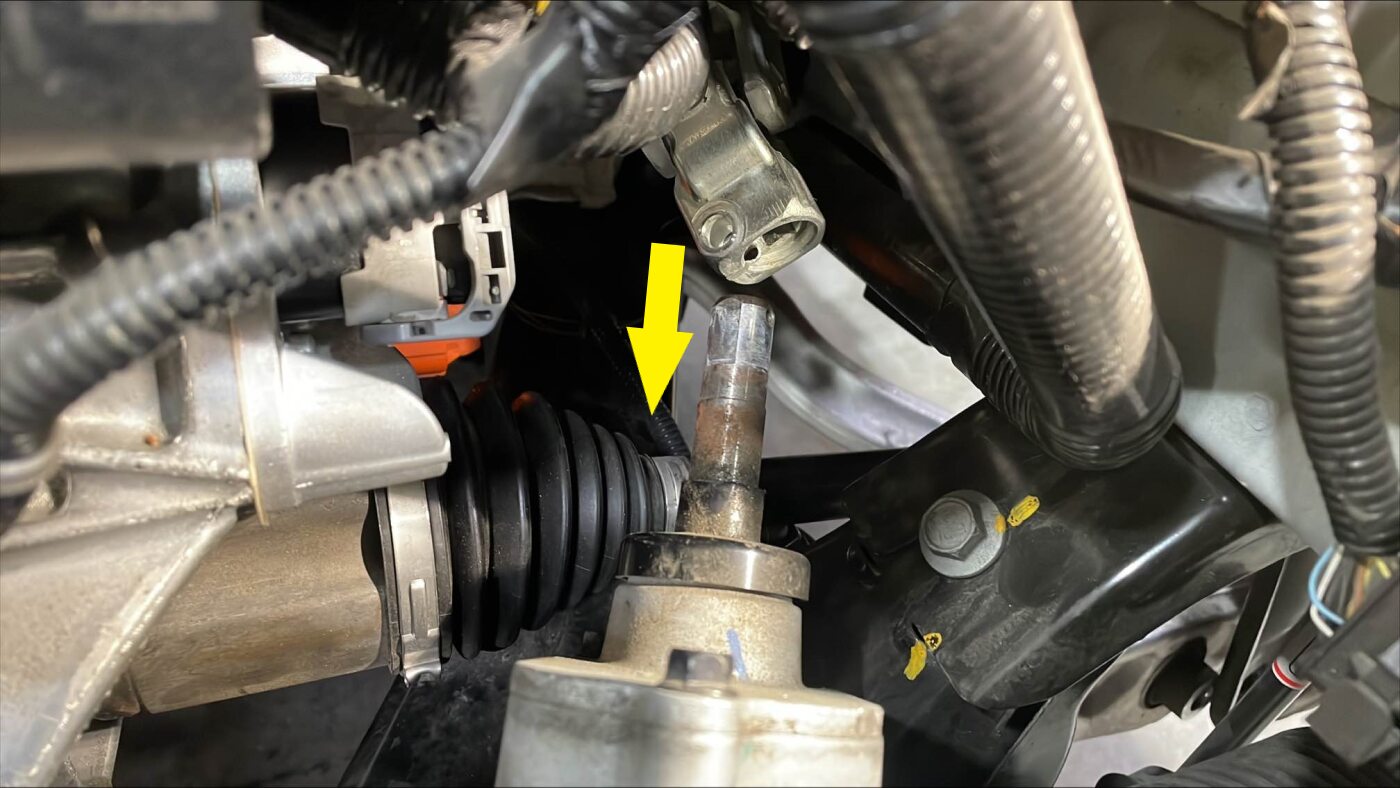

  33. Slide the electric steering column upward to remove it from the steering gear assembly
    Informational PurposesAn informational icon, calling your attention
    May need to wiggle or use dead blow to help separate

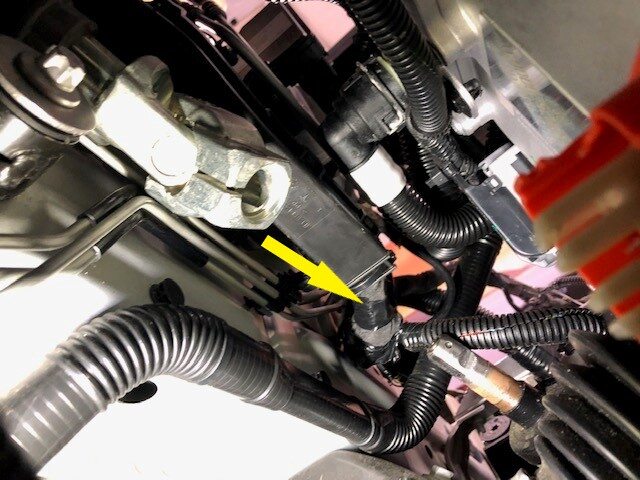

  34. Disconnect the hydraulic control unit connector
    Informational PurposesAn informational icon, calling your attention
    1x connector, Disengage locking tab and pull up on connector to release
  35. Remove fasteners securing hydraulic control unit to hydraulic control unit bracket
    Informational PurposesAn informational icon, calling your attention
    2x nuts, 10mm, 8 Nm, Discard nuts after removal

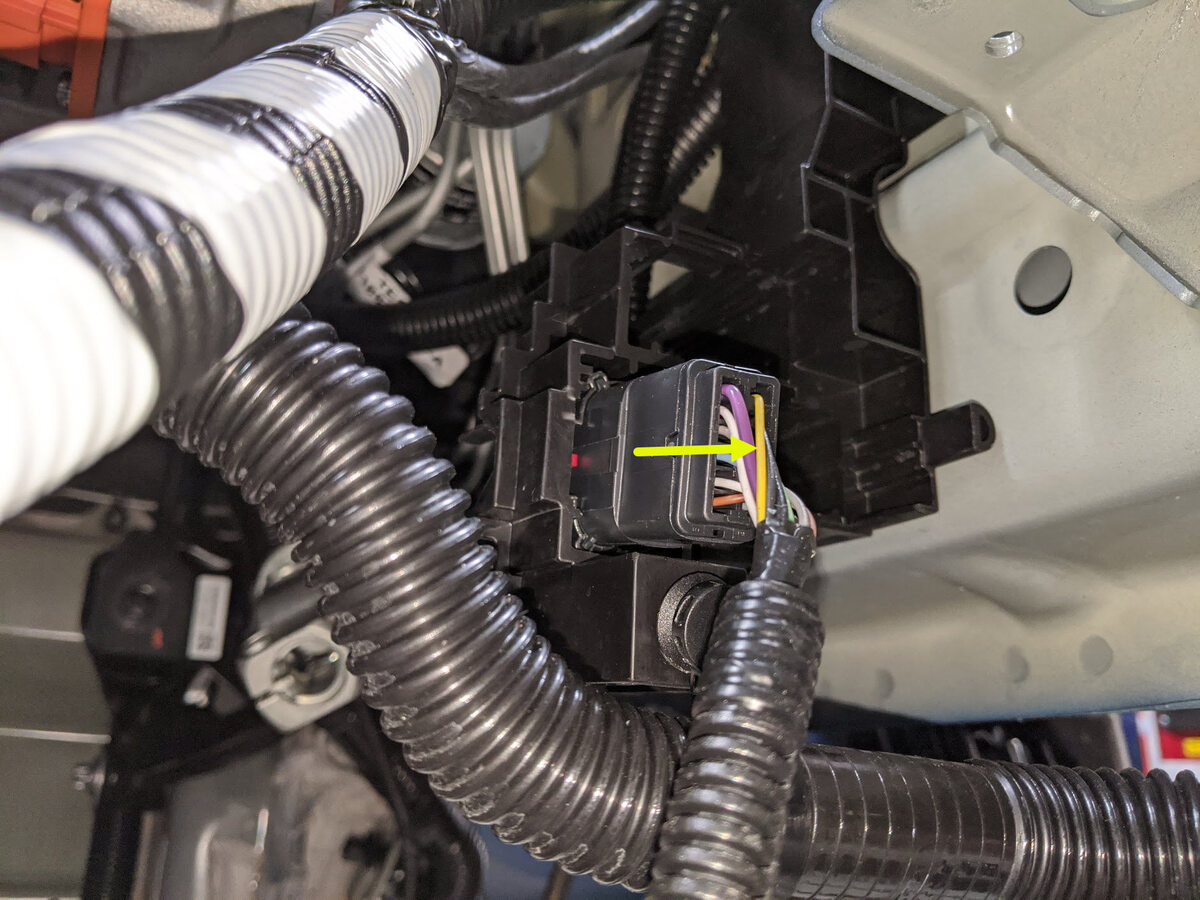

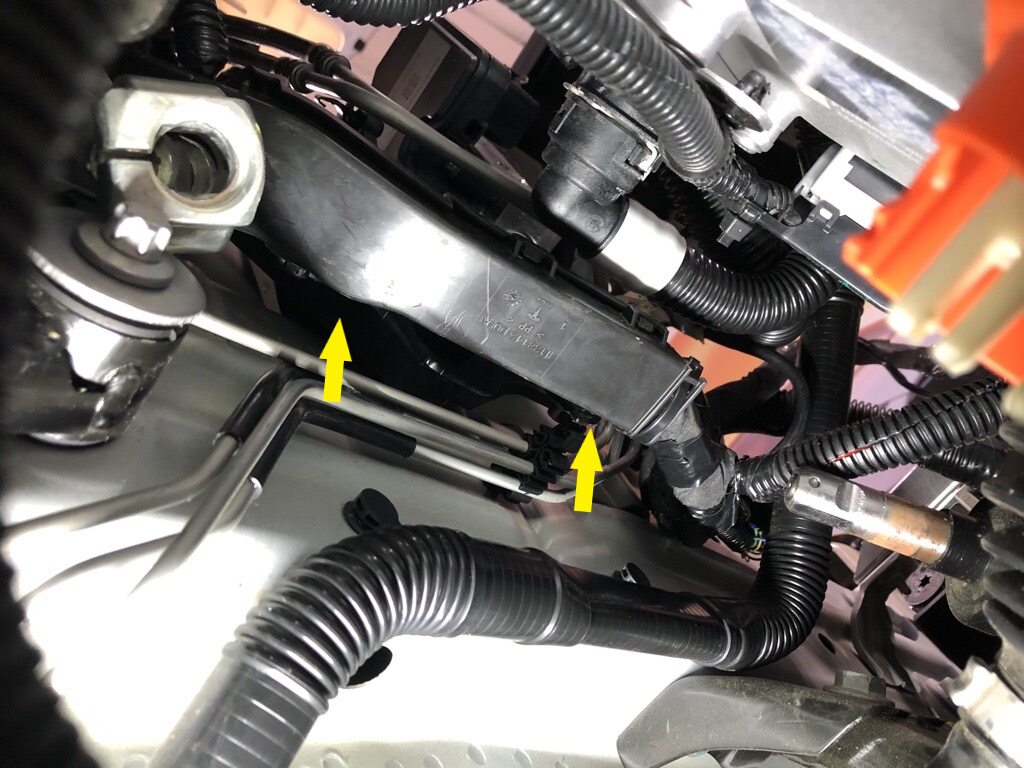

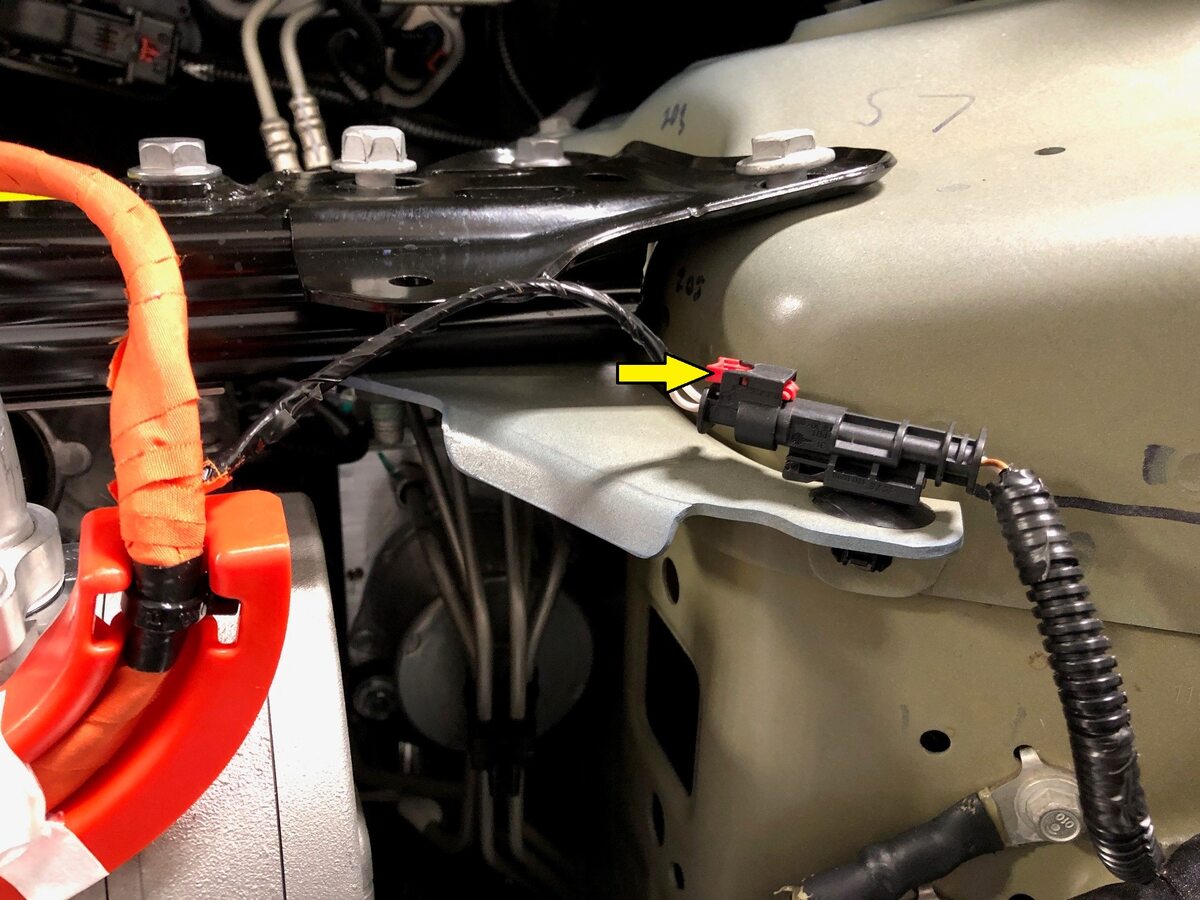

  36. Disconnect harness from LH front rail bracket
    Informational PurposesAn informational icon, calling your attention
    1x connector, Red locking tab, Release lock from opposite side of bracket then release connector towards front of vehicle, Image zoomed in for clarity
  37. Release clips securing front harness and coolant hose from brackets
    Informational PurposesAn informational icon, calling your attention
    2x clips
  38. Release front harness clip from LH frame rail
    Informational PurposesAn informational icon, calling your attention
    1x clip

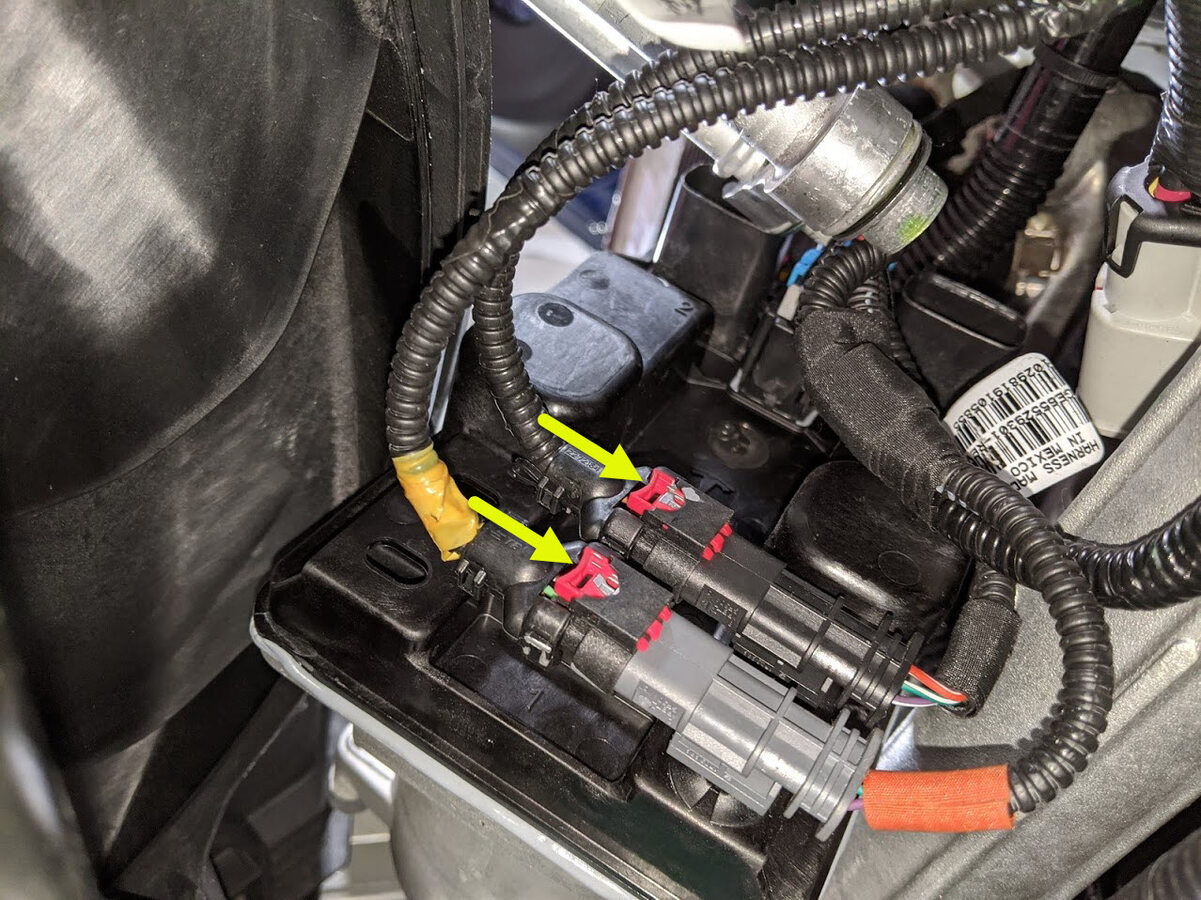

  39. Disconnect the steering gear assembly connectors
    Informational PurposesAn informational icon, calling your attention
    2x connectors, Two stage connectors, Move the red locking tab to the left then depress the connector release to disconnect the connector

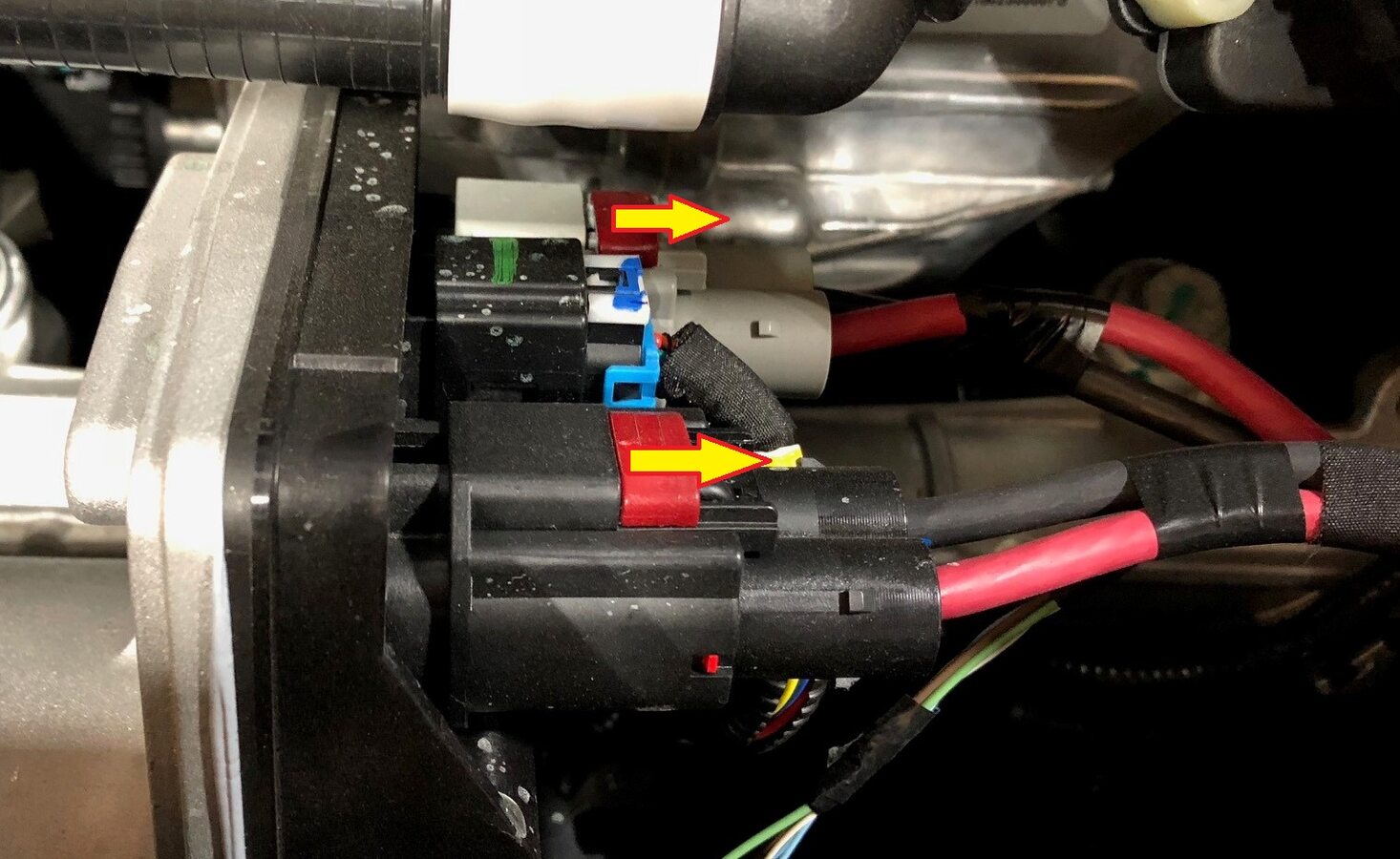

  40. Disconnect the logic connectors from steering gear
    Informational PurposesAn informational icon, calling your attention
    2x connectors, Do not push down on red tab, Pull red tab to disengage lock, Pull again to release connector, Image zoomed out for location reference
  41. Disconnect the HVIL connector
    Informational PurposesAn informational icon, calling your attention
    1x locking connector, Do not push down on red tab, Pull red tab to disengage lock, Pull tab again to release connector

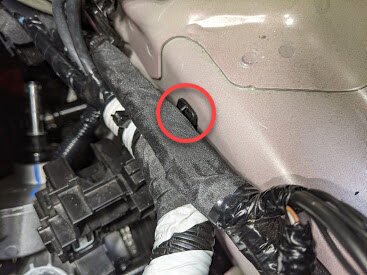

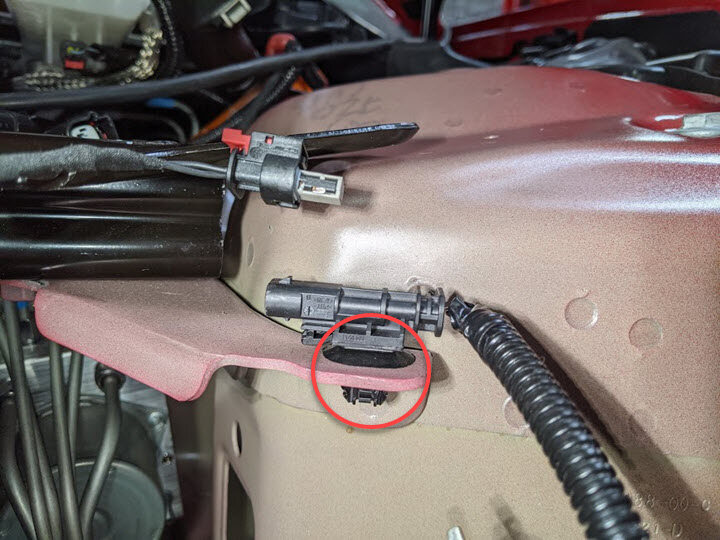

  42. Release clip securing HVIL connector harness onto body
    Informational PurposesAn informational icon, calling your attention
    1x clip

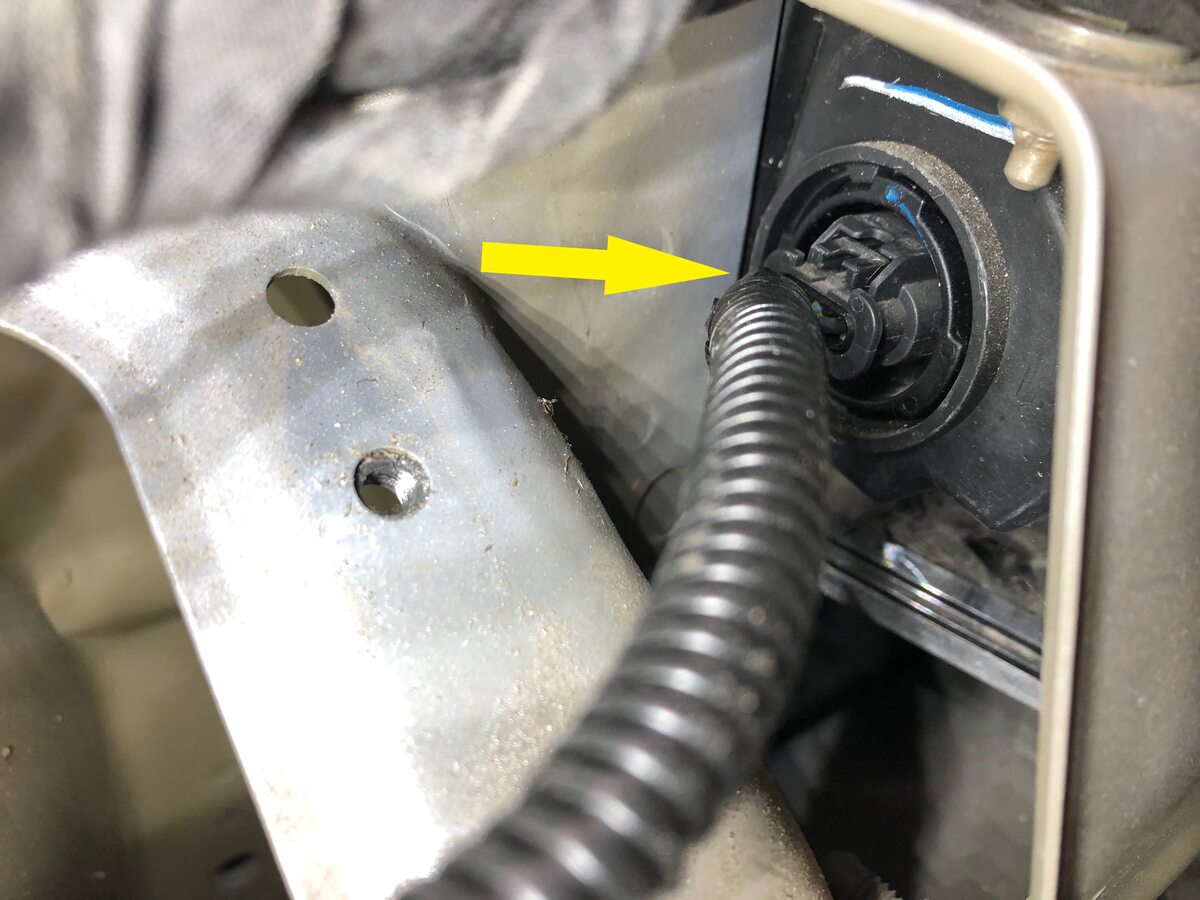

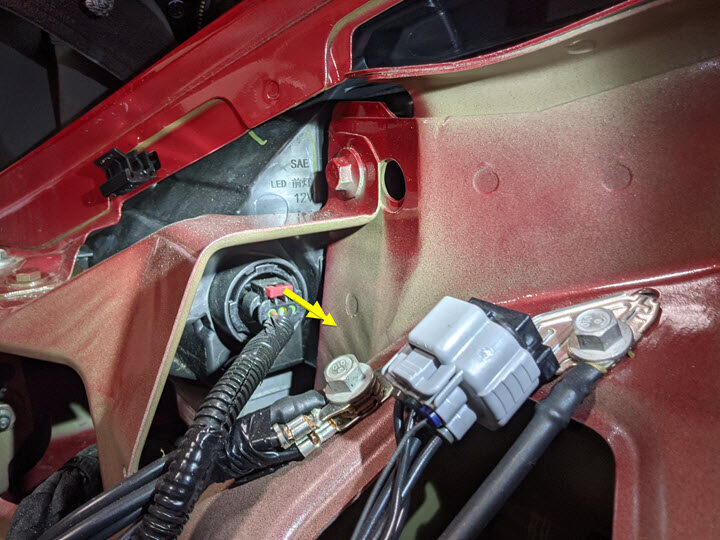

  43. Disconnect LH front headlamp
    Informational PurposesAn informational icon, calling your attention
    1x connector, Pull tab to disengage lock mechanism, Pull again to release connector, Do not press down on tab, Connector style may vary

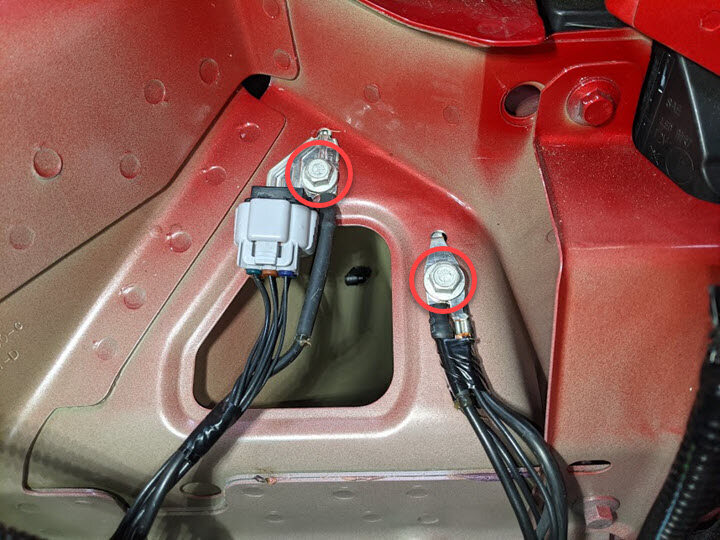

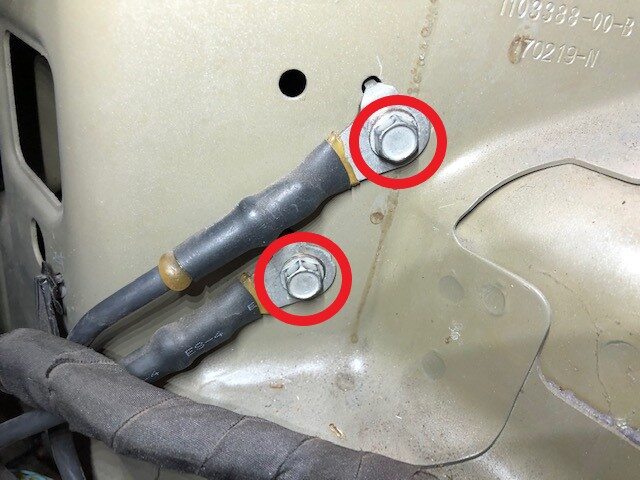

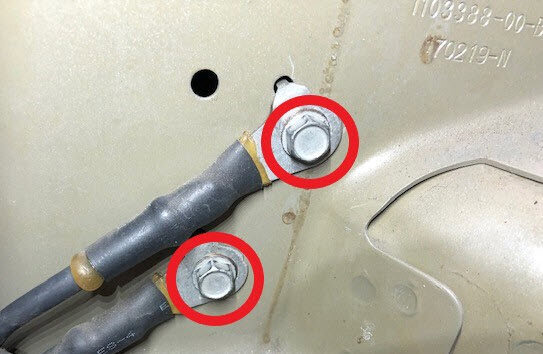

  44. Remove grounds G098 and G099 from LH side of body
    Informational PurposesAn informational icon, calling your attention
    2x bolts, 10mm, 10 Nm, Discard thread-cutting tri-lobular bolts after removal, If equipped with new bolts (1447438-00-A), fasterners can be reused
  45. Remove grounds G011 and G013 from LH frame rail
    Informational PurposesAn informational icon, calling your attention
    2x bolts, 10mm, 10 Nm, Discard thread-cutting tri-lobular bolts after removal, If equipped with new bolts (1447438-00-A), fasteners can be reused

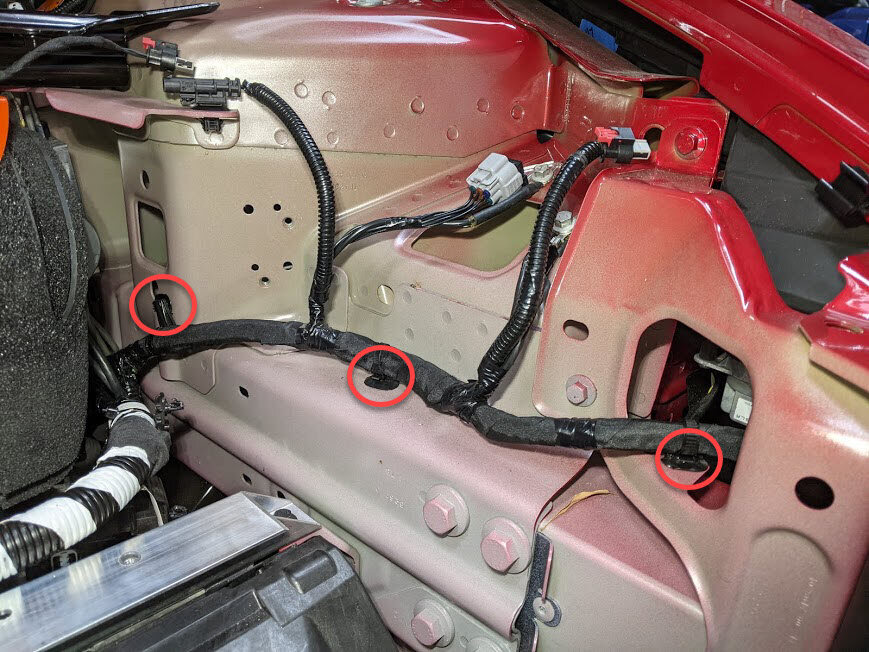

  46. Release front harness clips from LH frame rail
    Informational PurposesAn informational icon, calling your attention
    3x clips

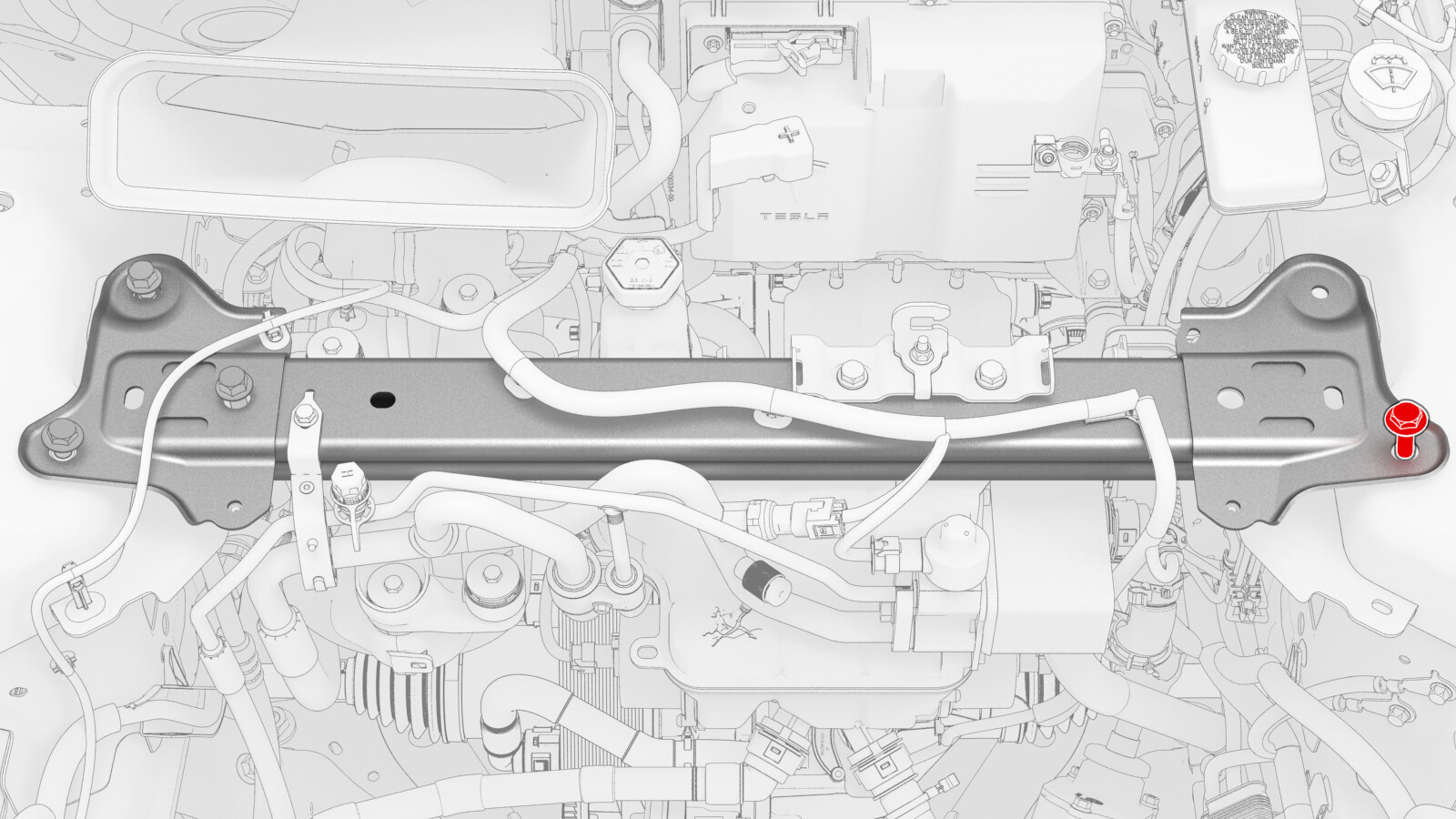

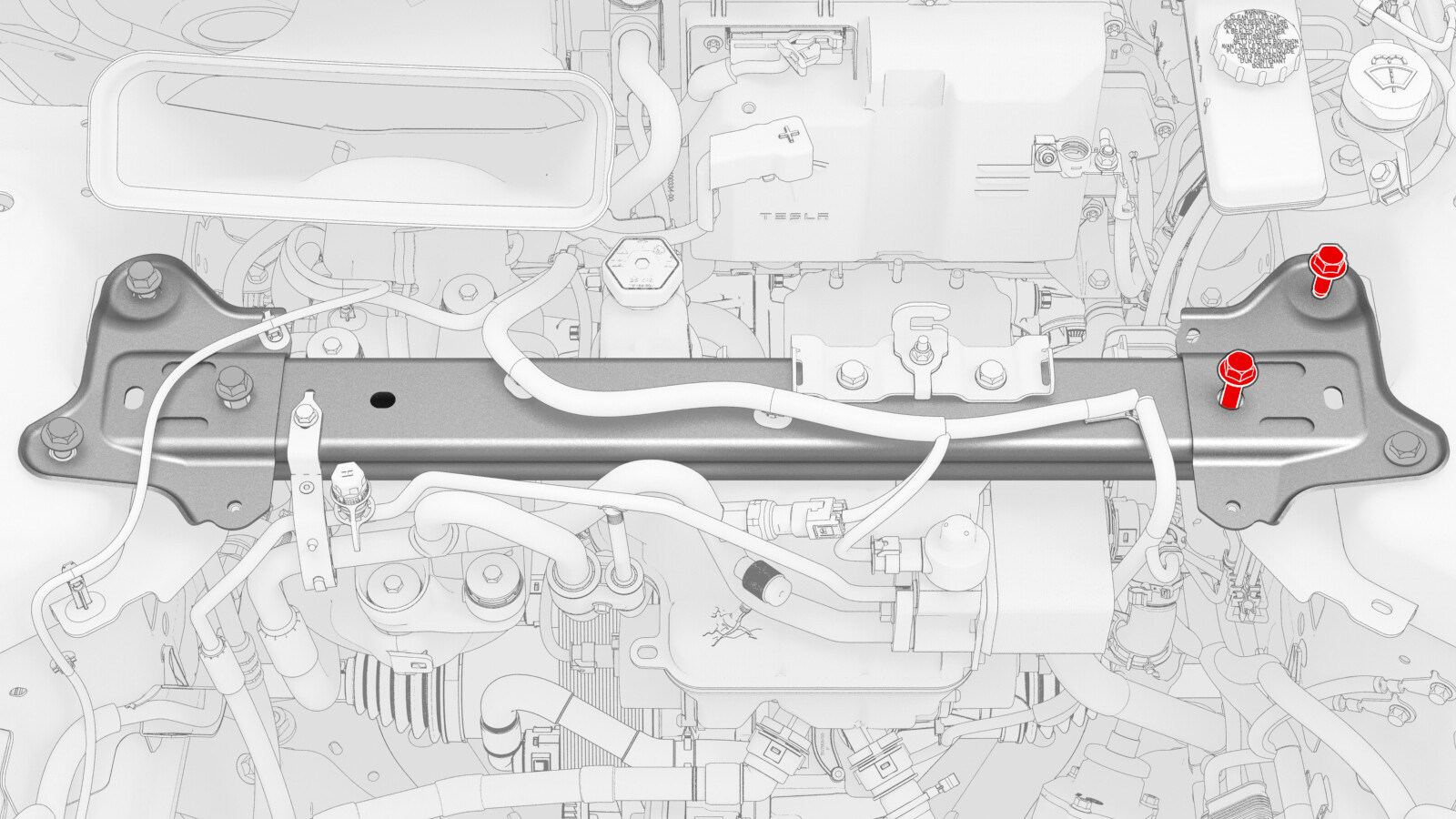

  47. Loosen upper bolt securing shock tower brace to RH shock tower
    Informational PurposesAn informational icon, calling your attention
    1x bolt, 15mm, 67 Nm
  48. Remove bolts securing shock tower brace to RH shock tower
    Informational PurposesAn informational icon, calling your attention
    1x bolt, 15mm, 67 Nm, 1x bolt, 15mm, 62 Nm, see image for torque location
  49. Remove bolts securing shock tower brace to LH shock tower
    Informational PurposesAn informational icon, calling your attention
    2x bolts, 15mm, 55 Nm, 1x bolt, 15mm, 62 Nm, See image for torque location

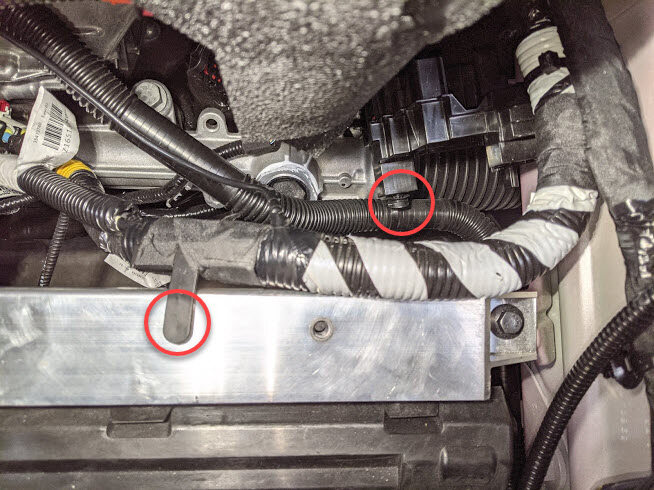

  50. Shift shock tower brace assembly to gain clearance
    Informational PurposesAn informational icon, calling your attention
    Shift shock tower brace forward, but do not fully remove

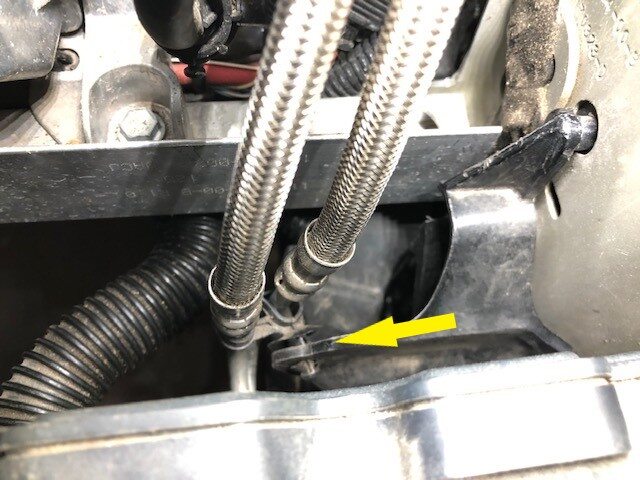

  51. Release the master cylinder brake lines from clip at rear of hydraulic control unit bracket
    Informational PurposesAn informational icon, calling your attention
    1x harness clip

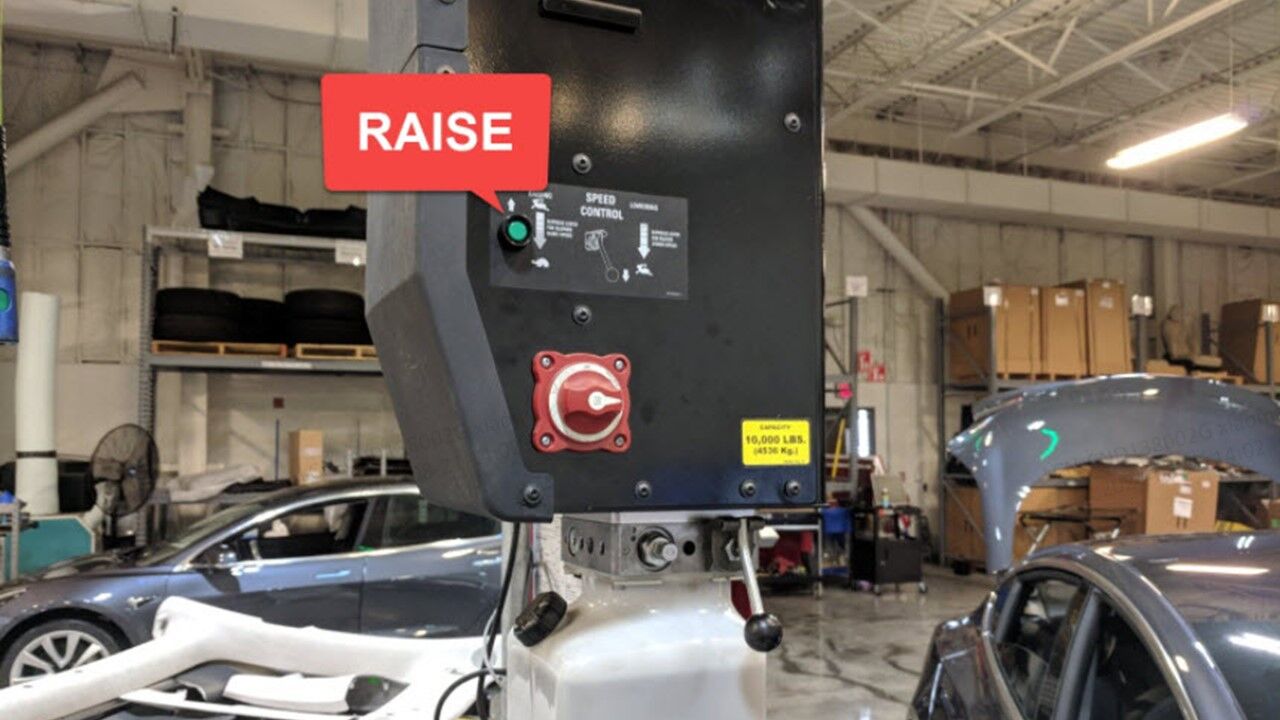

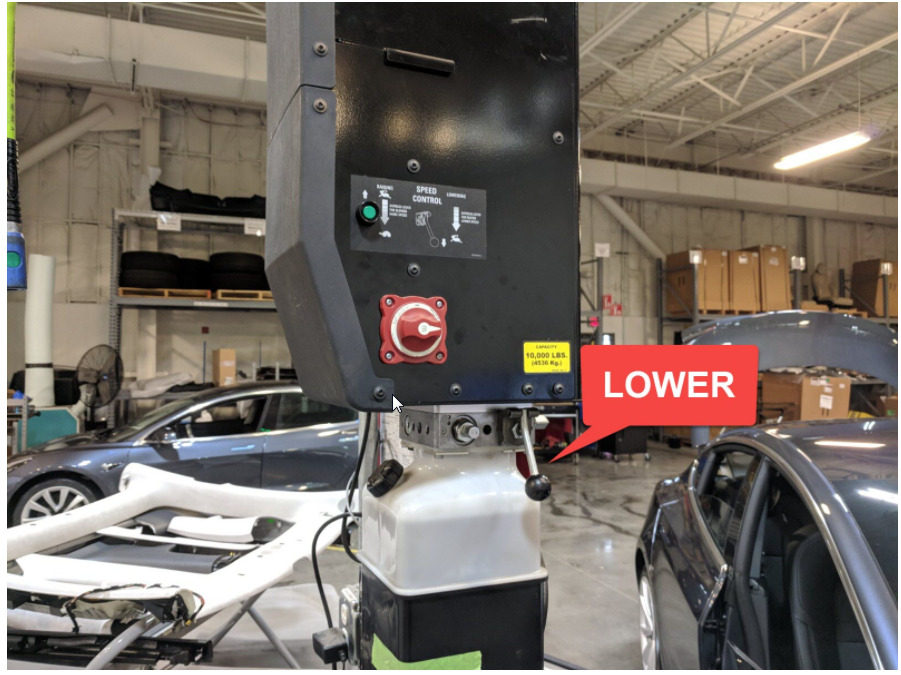

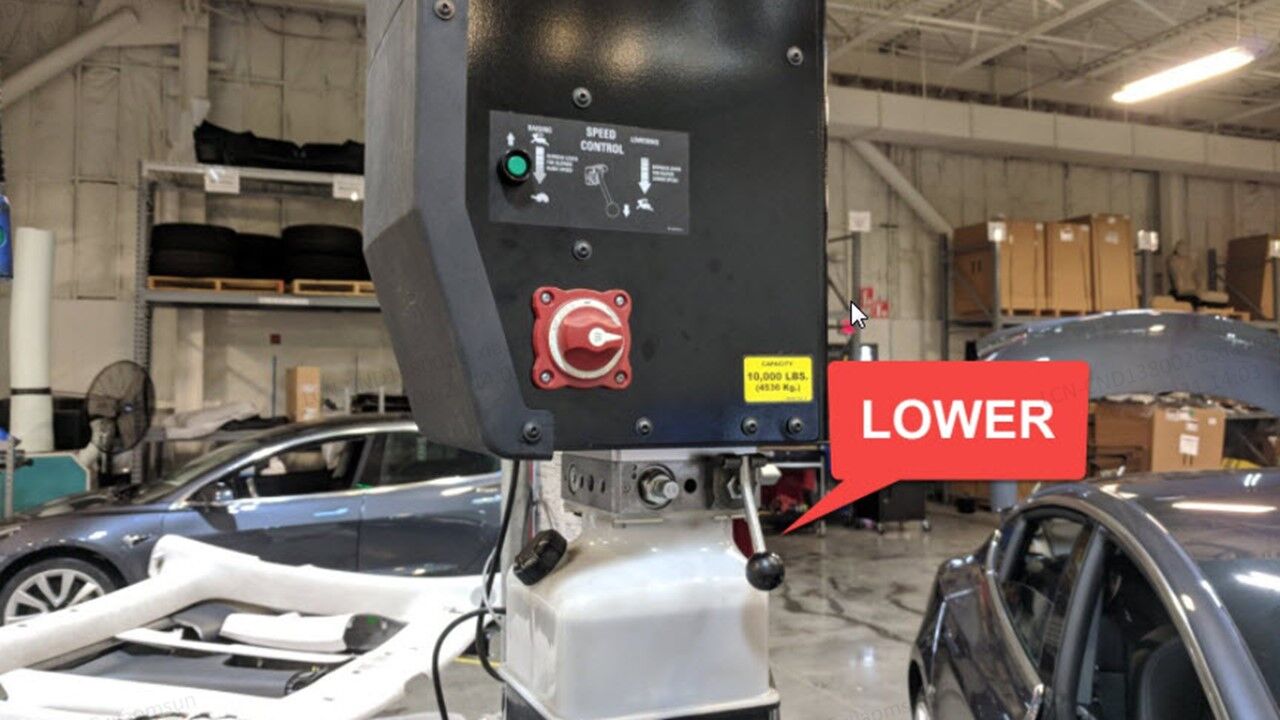

  52. Raise vehicle fully and lower lift onto locks
    Informational PurposesAn informational icon, calling your attention
    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side, Verify doors are clear of surrounding objects

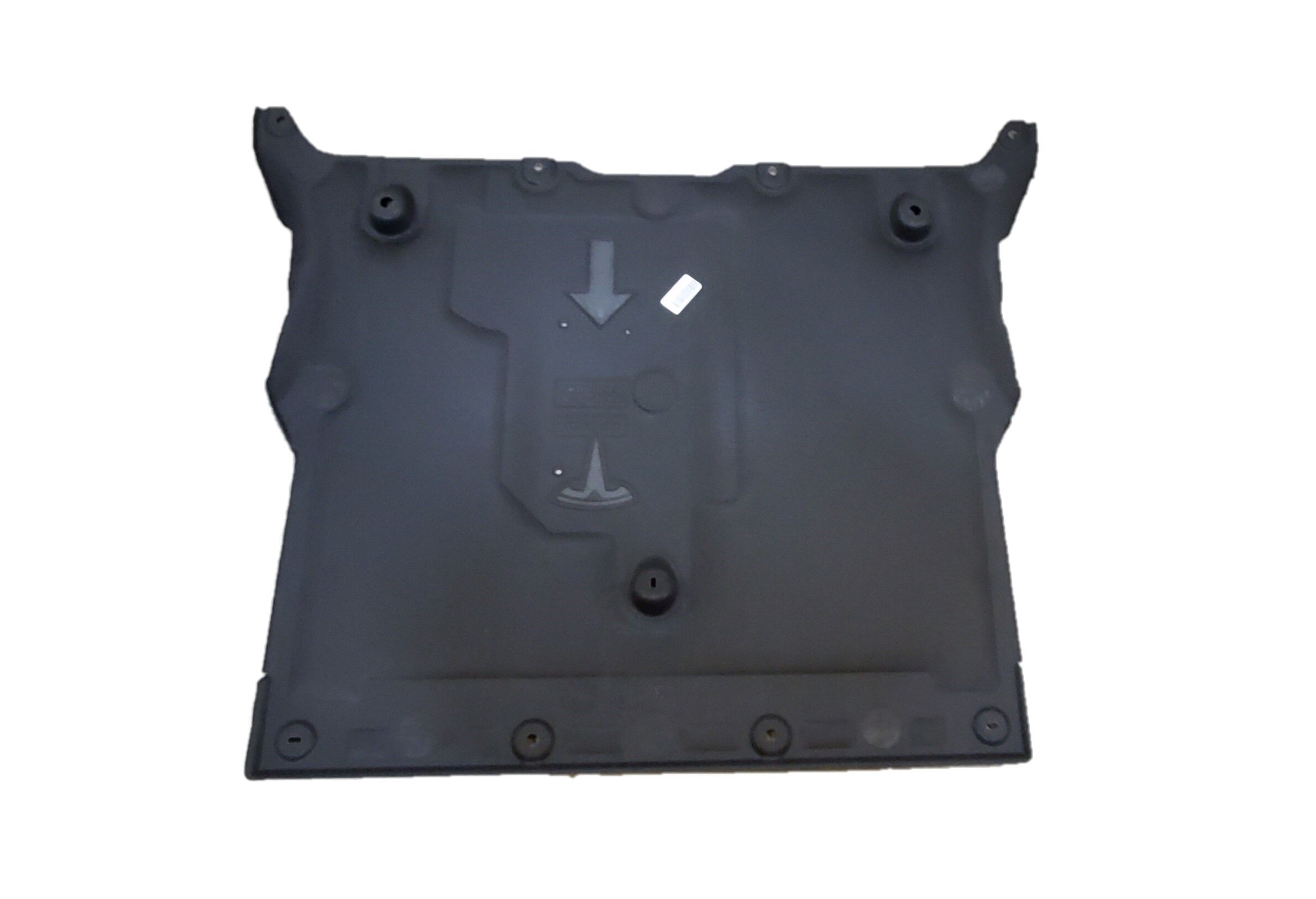

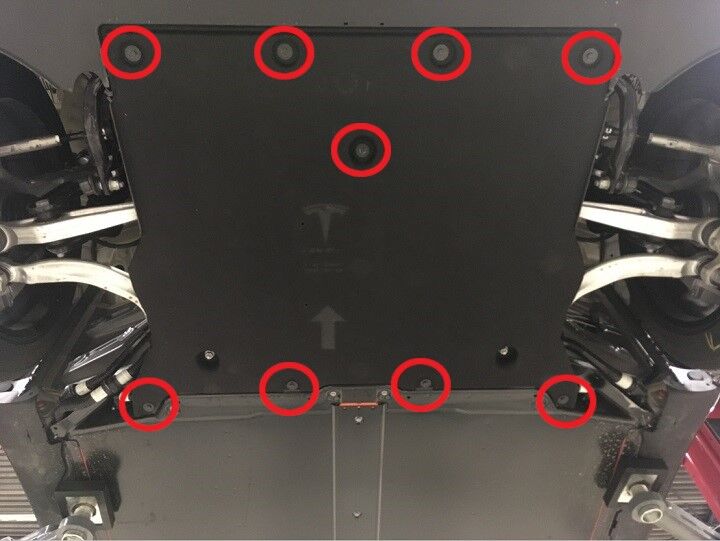

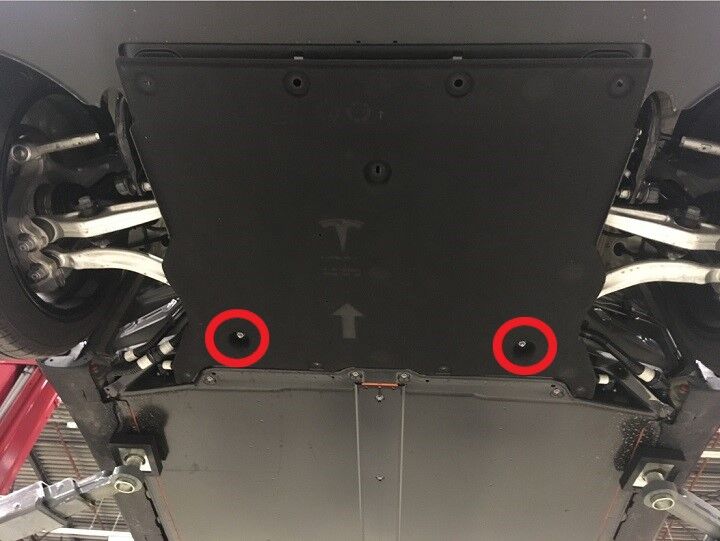

  53. Remove outer fasteners securing front aero shield
    Informational PurposesAn informational icon, calling your attention
    9x bolts, 10mm, 5 Nm
  54. Remove remaining nuts and remove front aero shield from vehicle
    Informational PurposesAn informational icon, calling your attention
    2x nuts, 15mm, 5 Nm
  55. Remove bolt securing FDU HV harness to the FDU
    Informational PurposesAn informational icon, calling your attention
    1x bolt, 10mm, 10 Nm

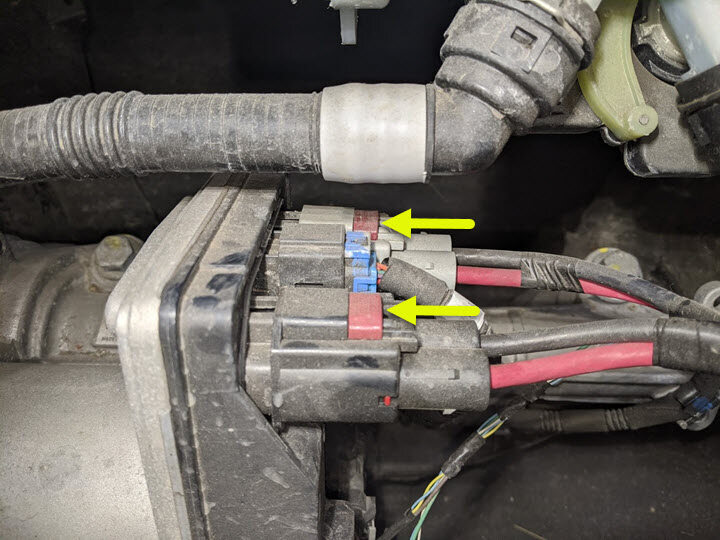

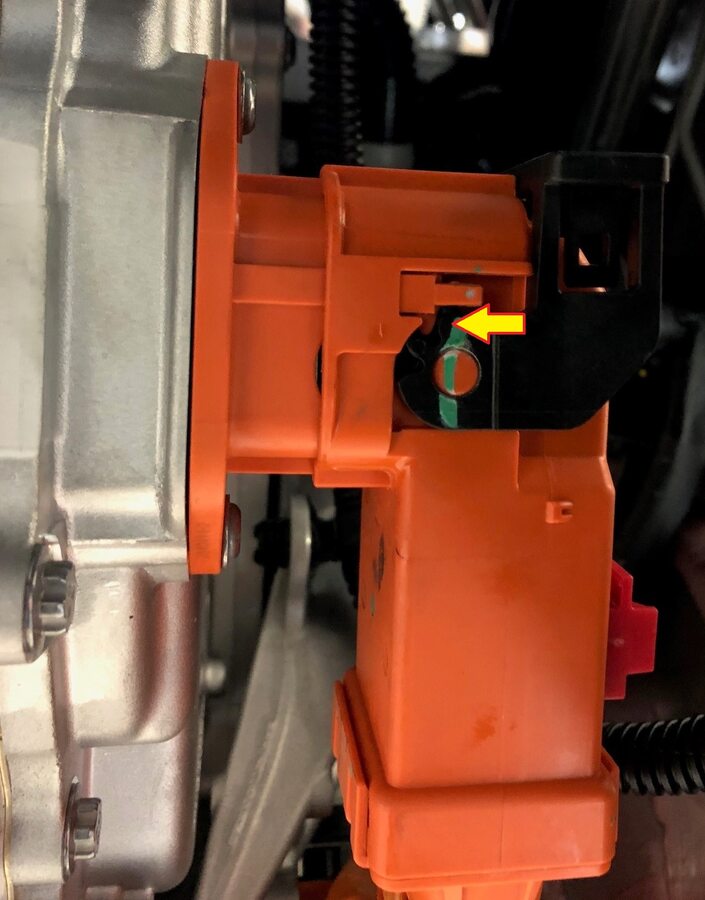

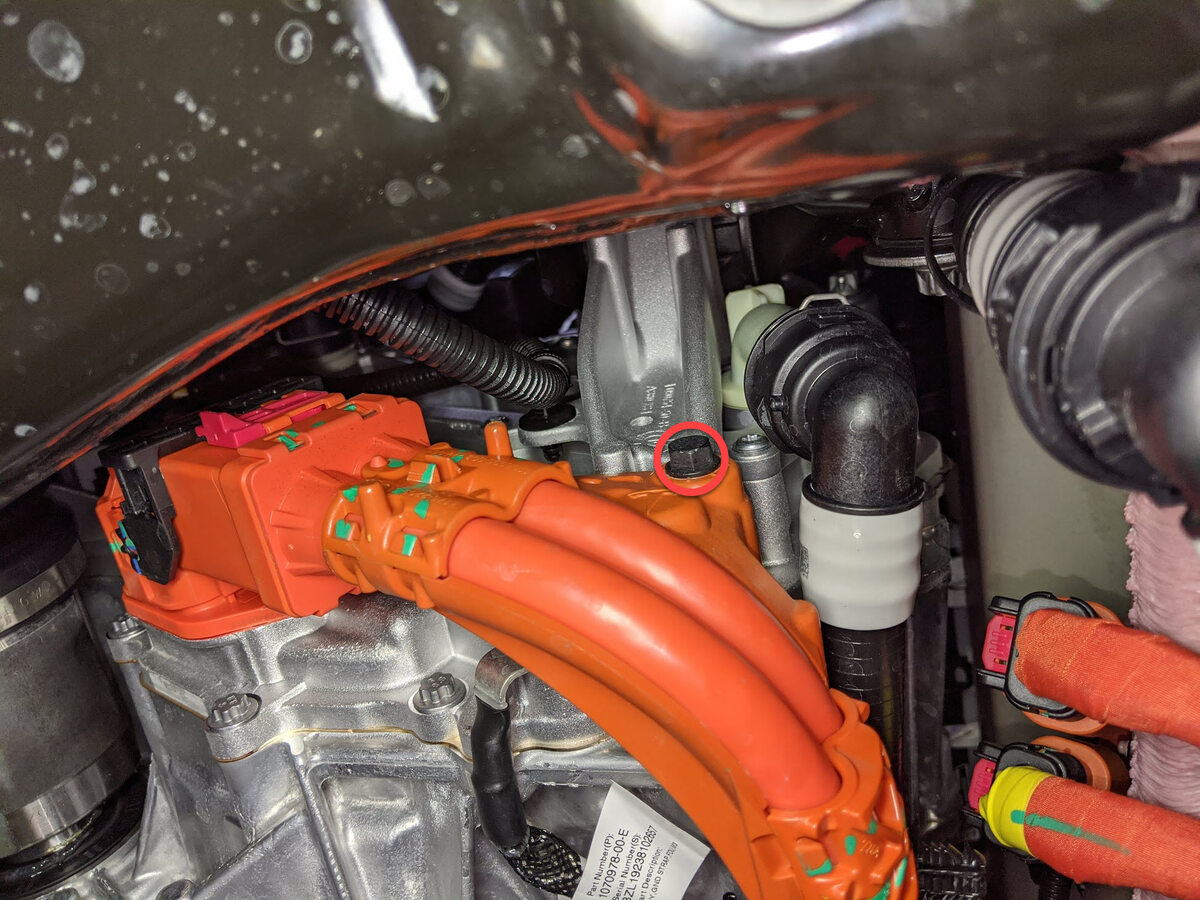

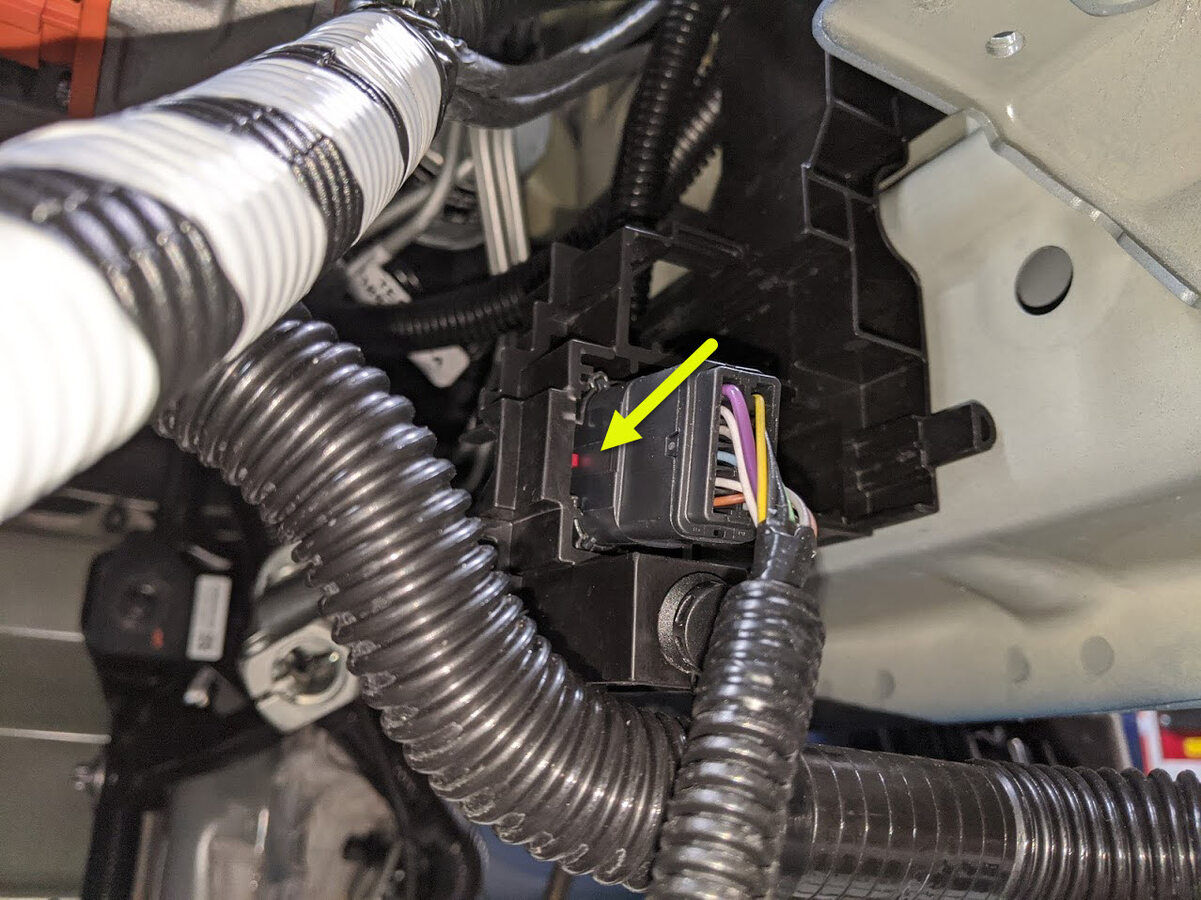

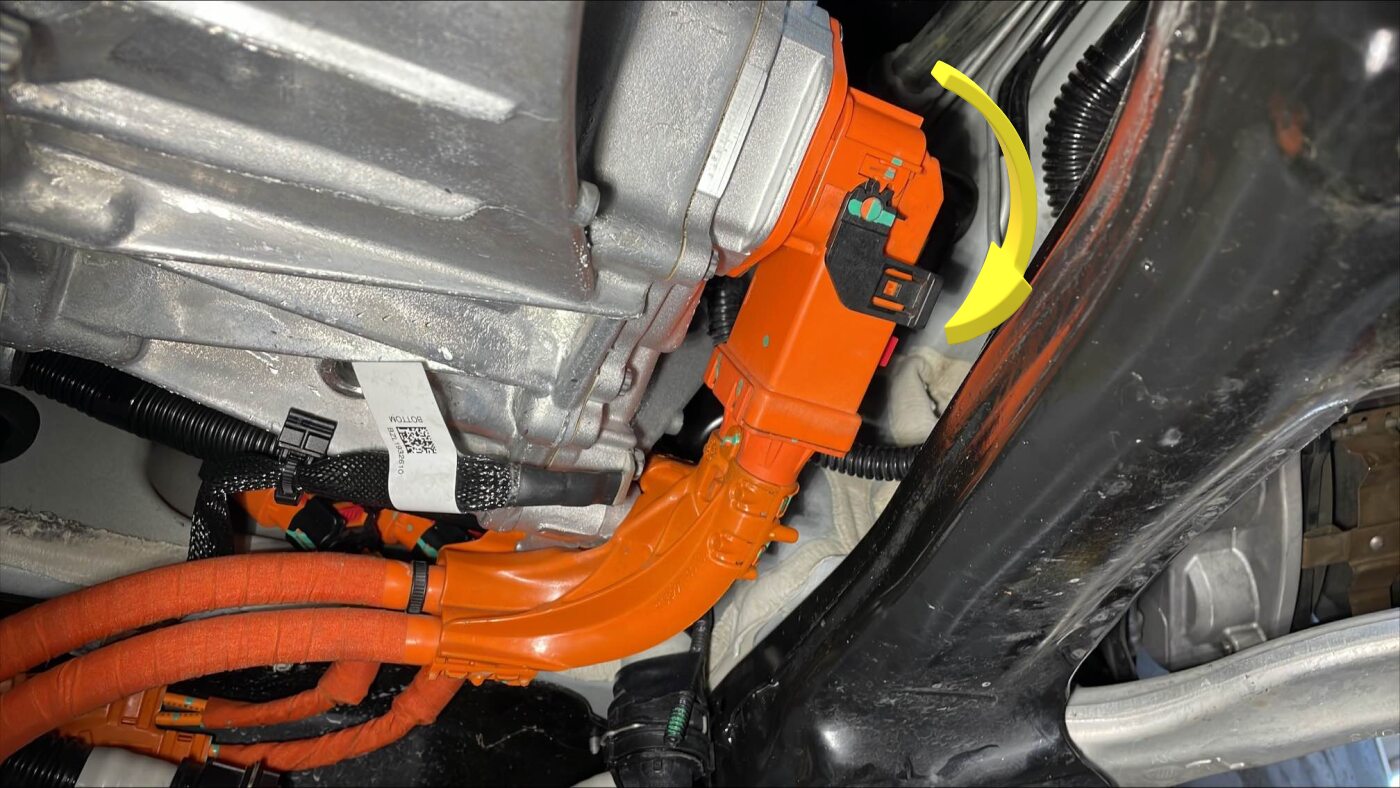

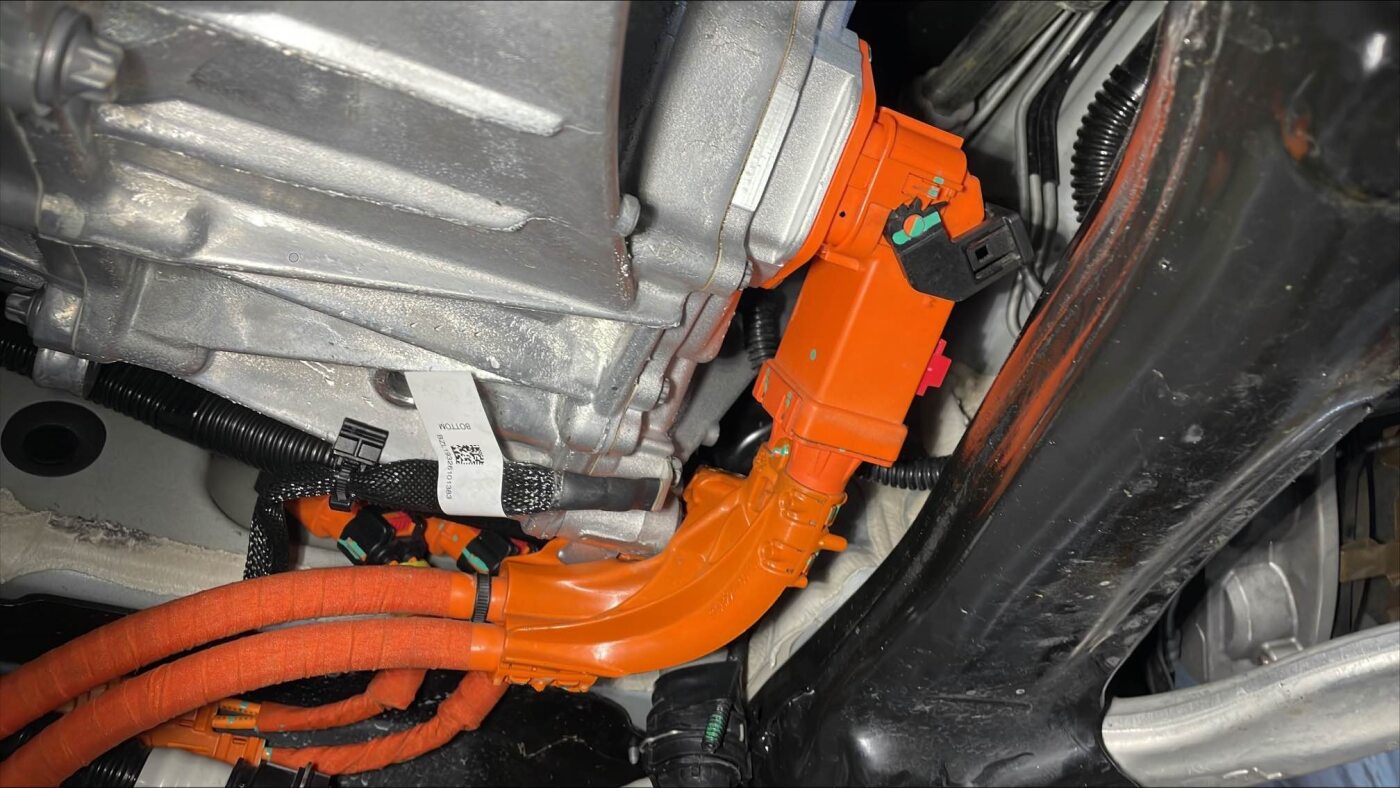

  56. Disconnect the FDU HV harness connector
    Informational PurposesAn informational icon, calling your attention

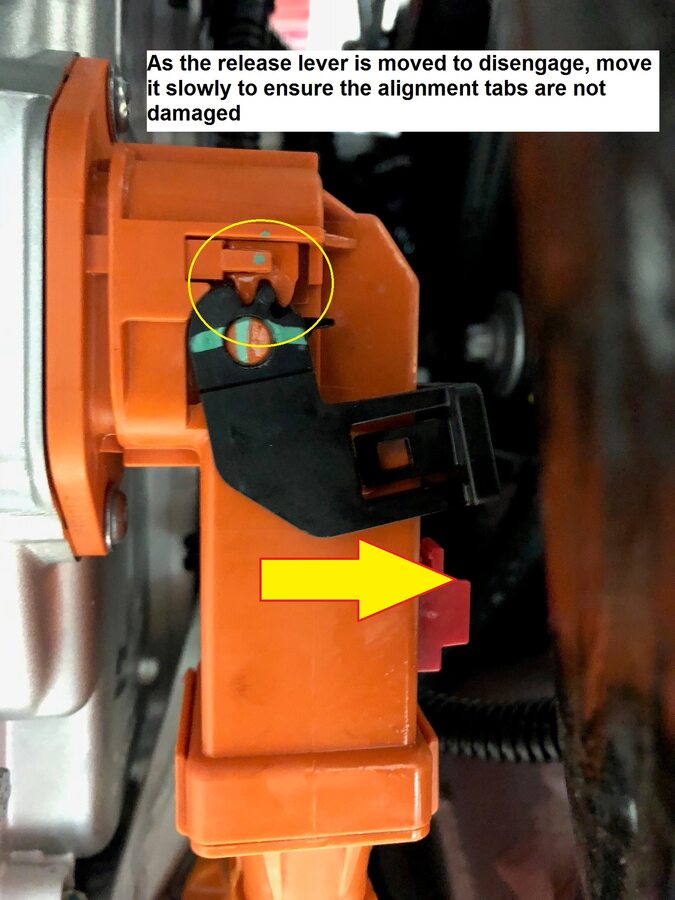

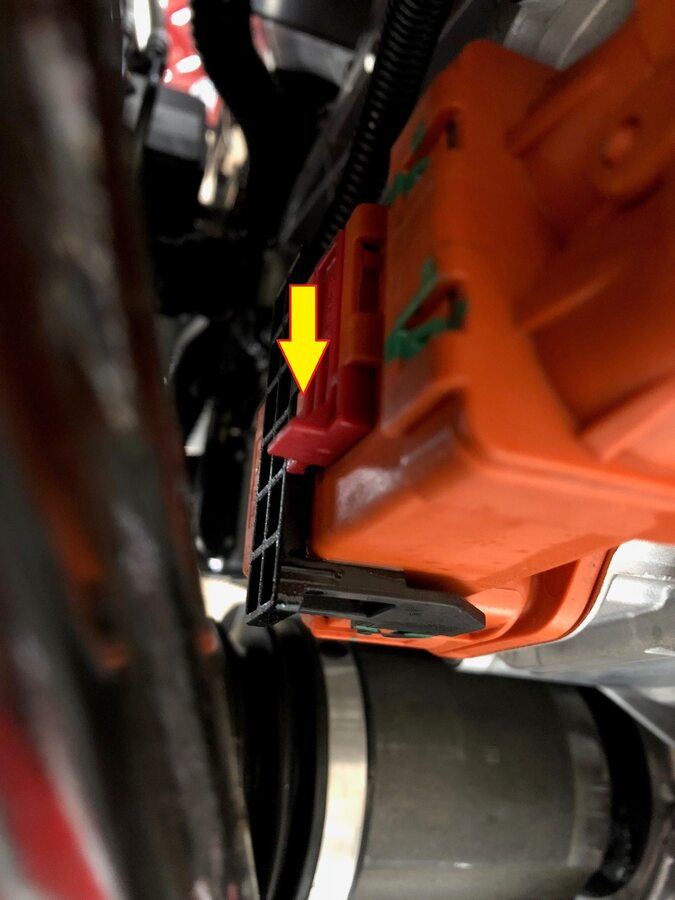

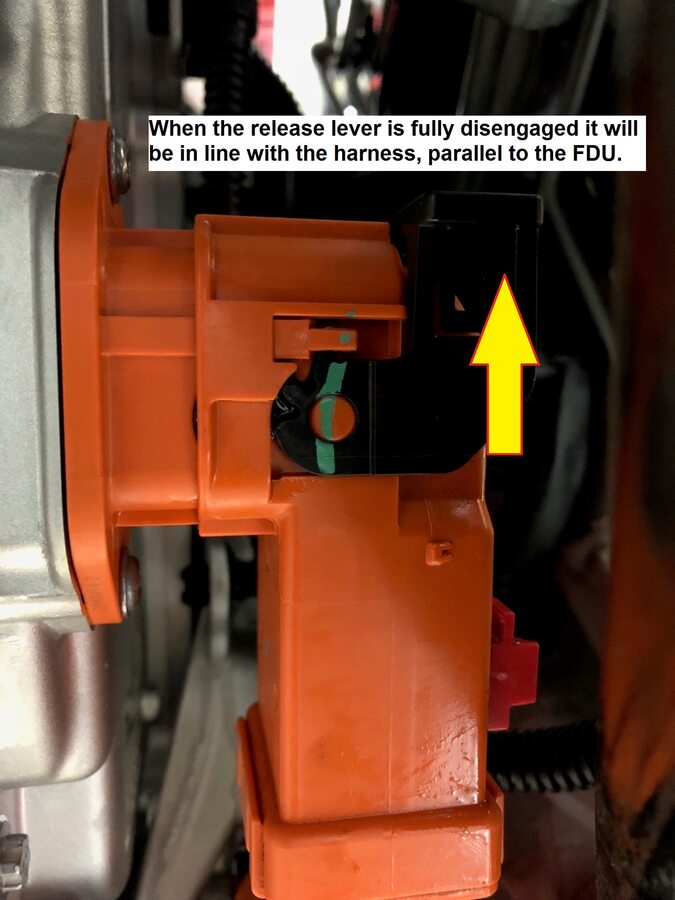

    1x clip, Release locking tab and rotate the release lever up to disengage the connector, Do not force the release lever up, Ensure the alignment tabs on the FDU header are not damaged

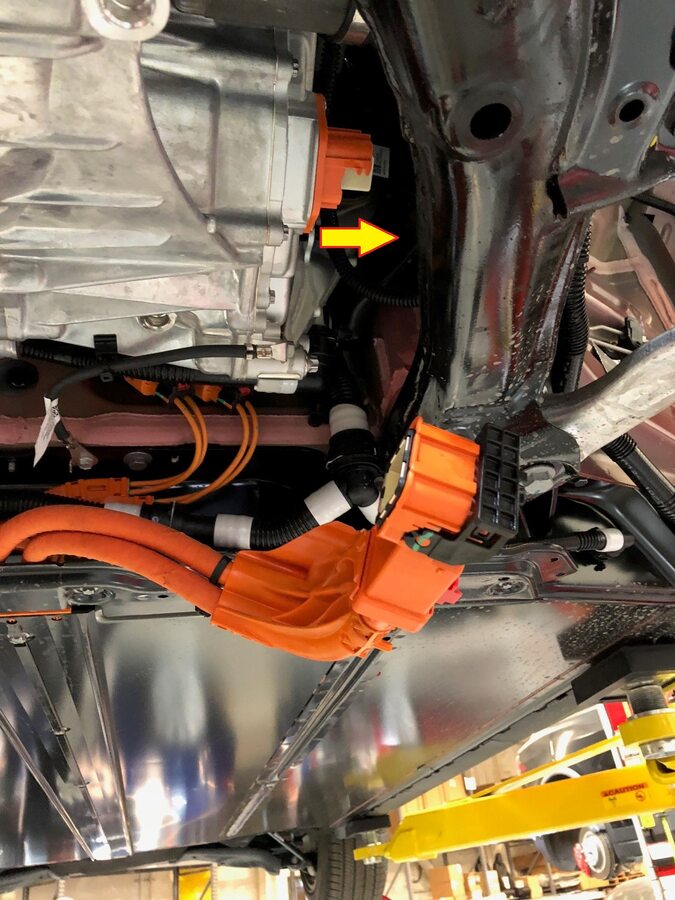

  57. Remove the FDU HV harness connector from the FDU and move aside
    Informational PurposesAn informational icon, calling your attention
    1x connector
  58. Slide intermediate shaft towards rear of vehicle
  59. Release front harness clips from hydraulic control unit bracket
    Informational PurposesAn informational icon, calling your attention
    2x clips

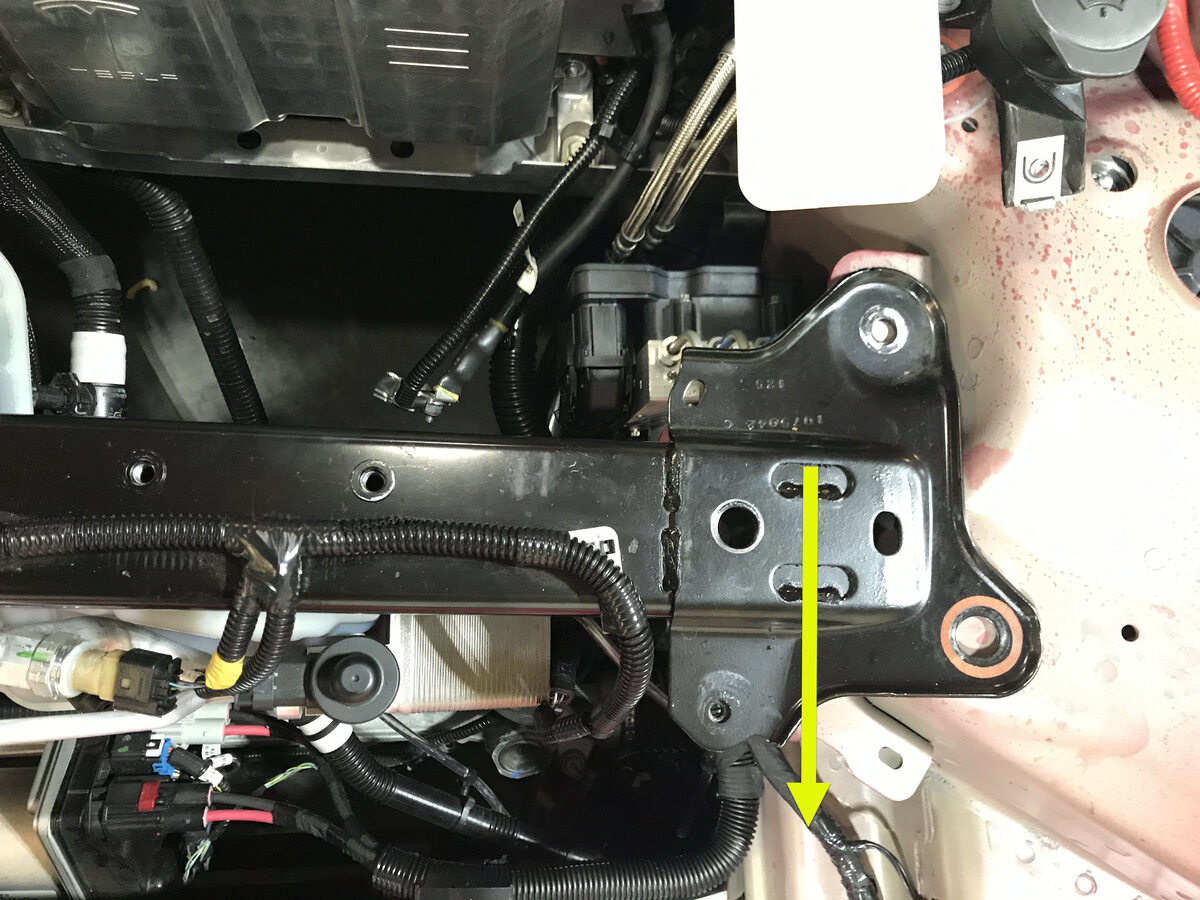

  60. Lower front harness away from hydraulic control unit
    Informational PurposesAn informational icon, calling your attention
    Lower front harness to gain enough clearance to hydraulic control unit

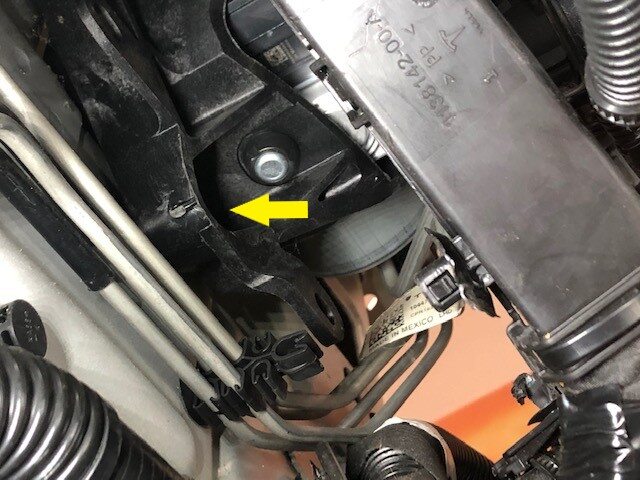

  61. Remove lower bolt securing the hydraulic control unit bracket to frame rail
    Informational PurposesAn informational icon, calling your attention
    1x bolt, 10mm, 10 Nm

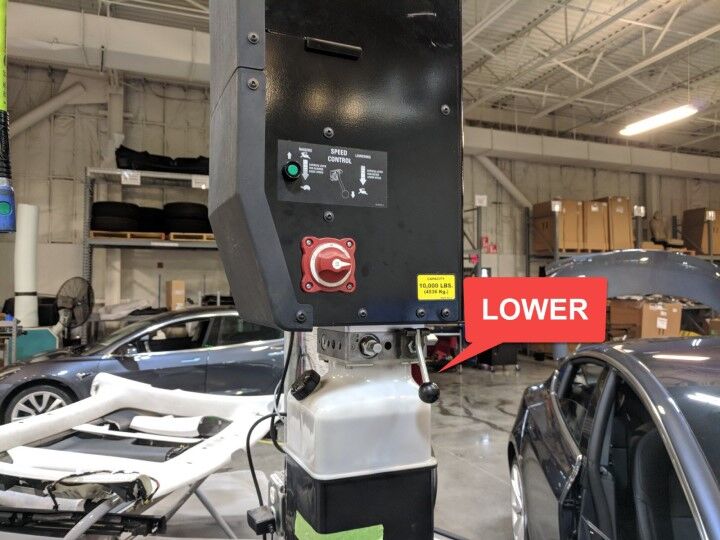

  62. Lower vehicle partially and set lift onto locks
    Informational PurposesAn informational icon, calling your attention
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered, Set vehicle to comfortable working height

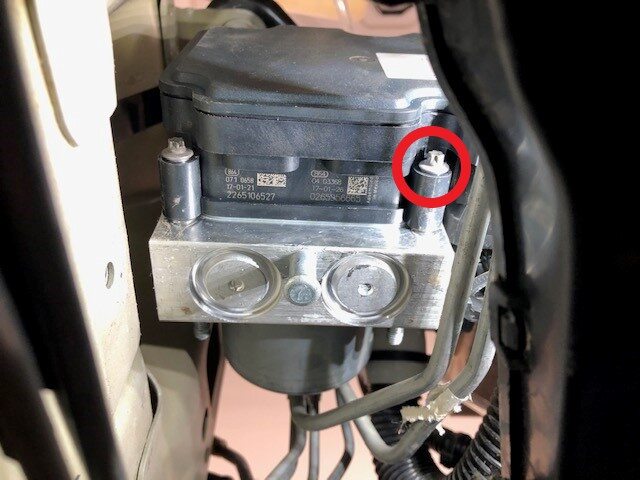

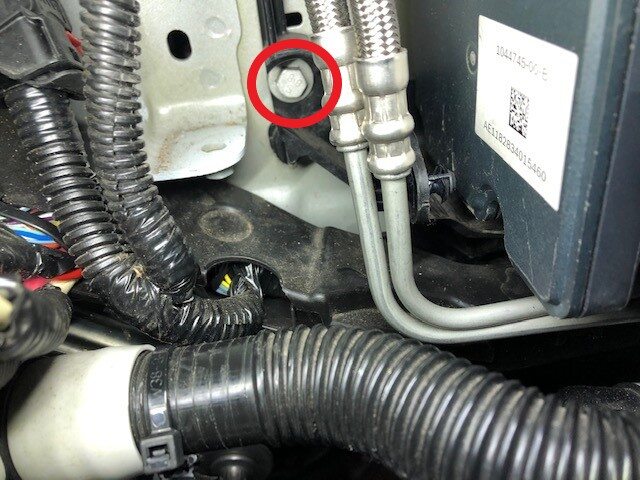

  63. Remove upper bolt securing the hydraulic control unit bracket to frame rail
    Informational PurposesAn informational icon, calling your attention
    1x bolt, 10mm, 10 Nm

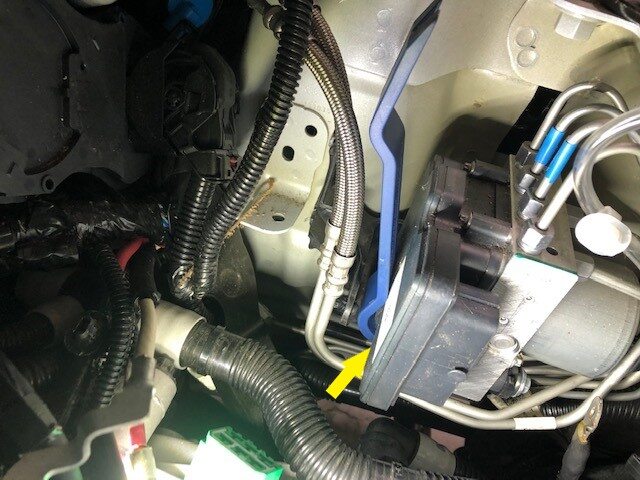

  64. Release hydraulic control unit bracket from hydraulic control unit
    Informational PurposesAn informational icon, calling your attention
    Slide trim tool between hydraulic control unit bracket and hydraulic control unit and use for leverage, Position 20 in clip panel tool between trim tool and hydraulic control unit and gently pry to release bracket, Release bracket far enough to access hydraulic control unit ECU bolts

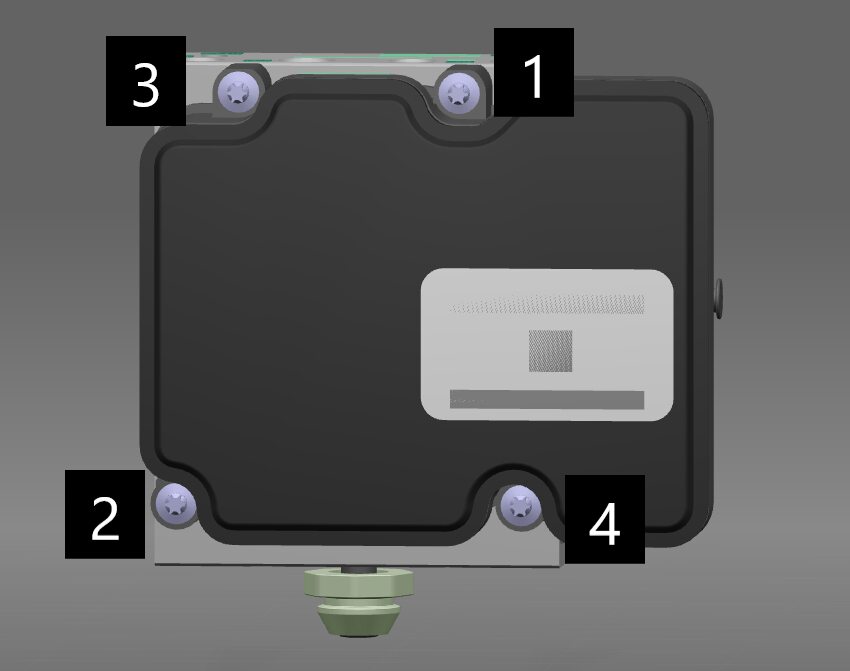

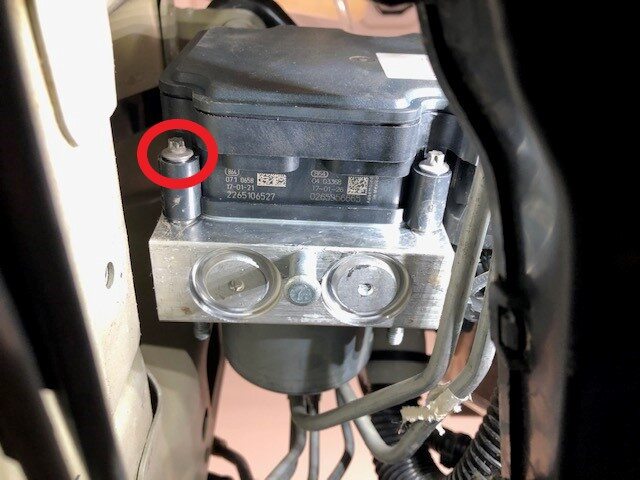

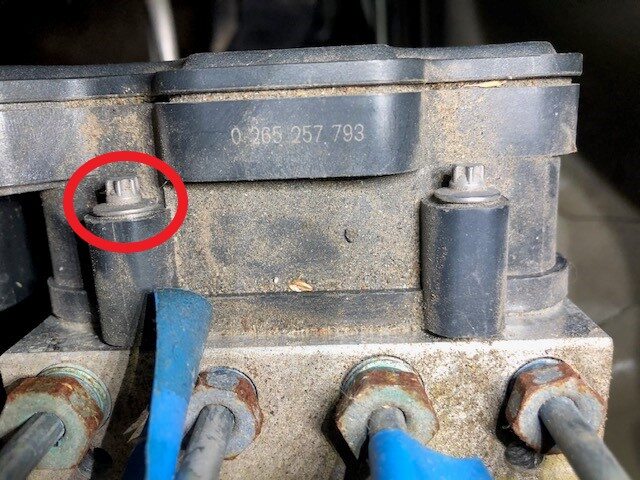

  65. Remove upper bolts securing hydraulic control unit ECU to hydraulic control unit
    Informational PurposesAn informational icon, calling your attention
    2x bolts, E5, 3 Nm, Discard bolts after removal

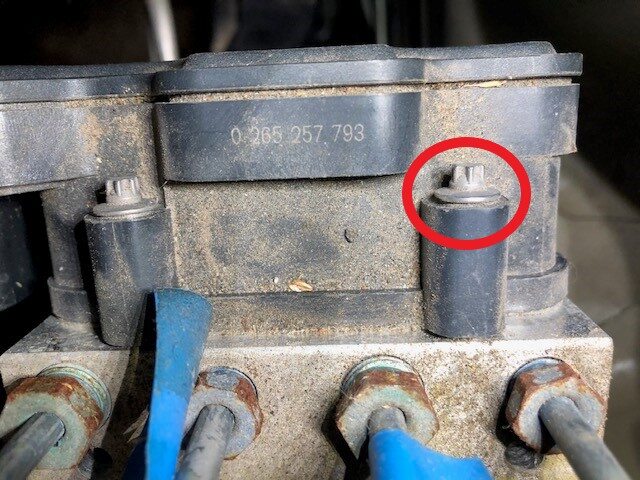

  66. Remove lower bolts securing hydraulic control unit ECU to hydraulic control unit
    Informational PurposesAn informational icon, calling your attention
    2x bolts, E5, 3 Nm, Discard nuts after removal

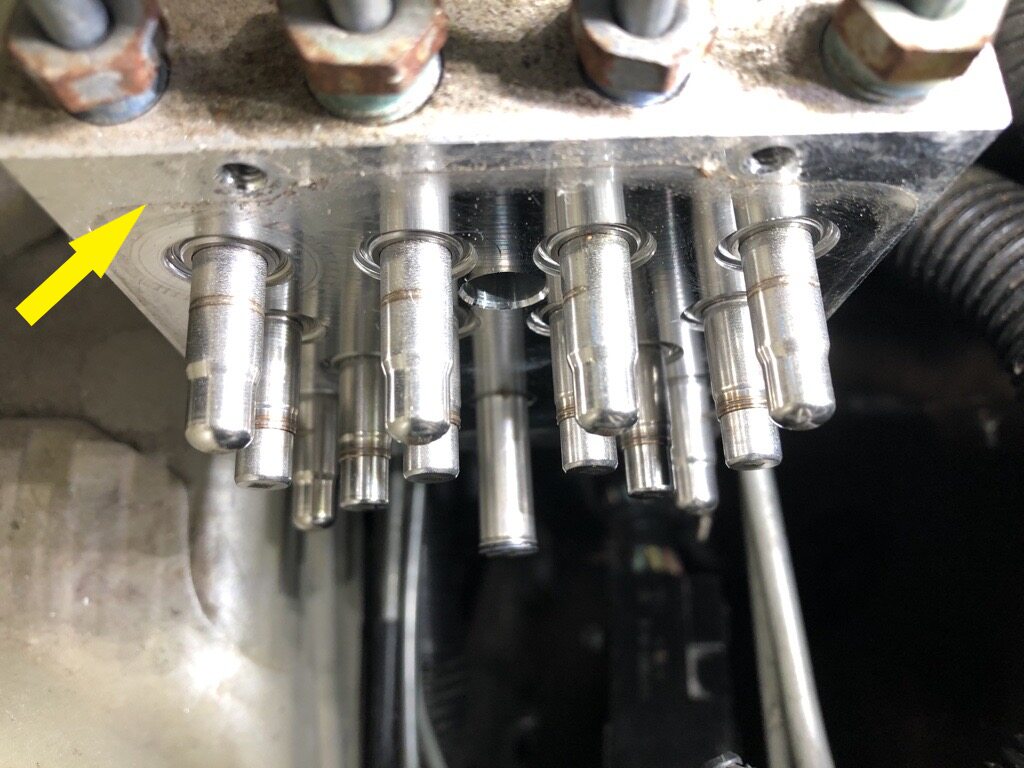

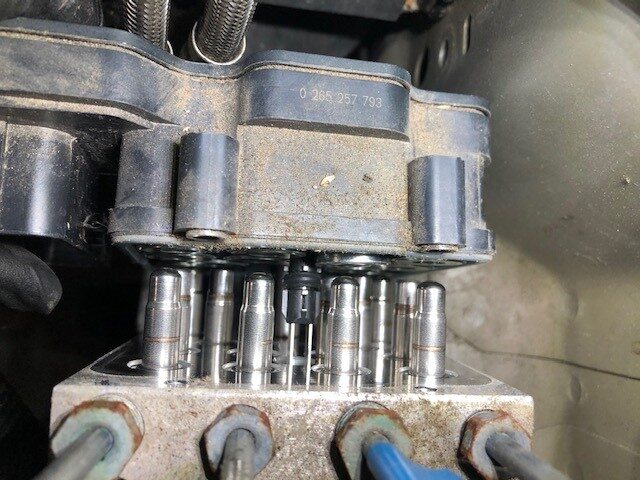

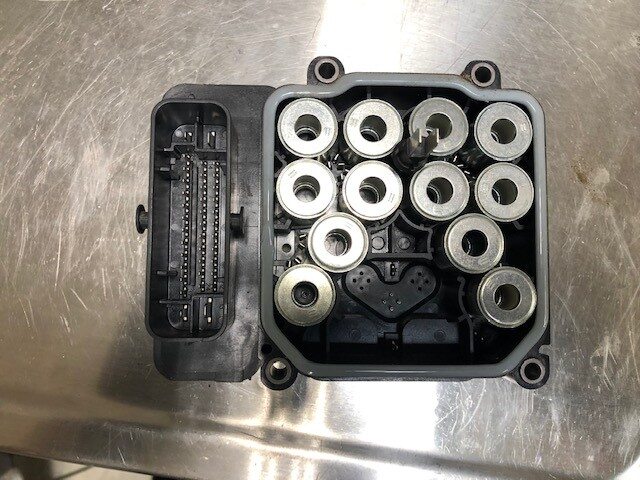

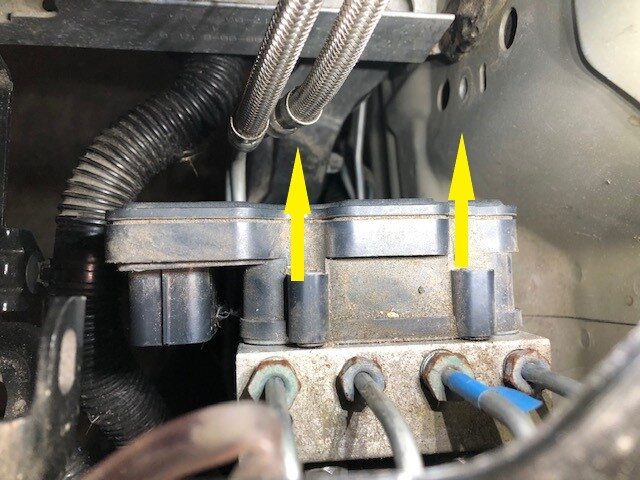

  67. Remove hydraulic control unit ECU from hydraulic control unit
    Informational PurposesAn informational icon, calling your attention
    Gently release ECU towards rear of vehicle, Do not use any tools to pry the ECU away from the hydraulic control unit
  68. Clean surface on hydraulic control unit
    Informational PurposesAn informational icon, calling your attention
    Use a lint free cloth to clean any debris from hydraulic control unit, Do not use any chemicals, Do not allow any debris to fall into connecting hole of pump motor, Do not touch pressure sensor with fingers

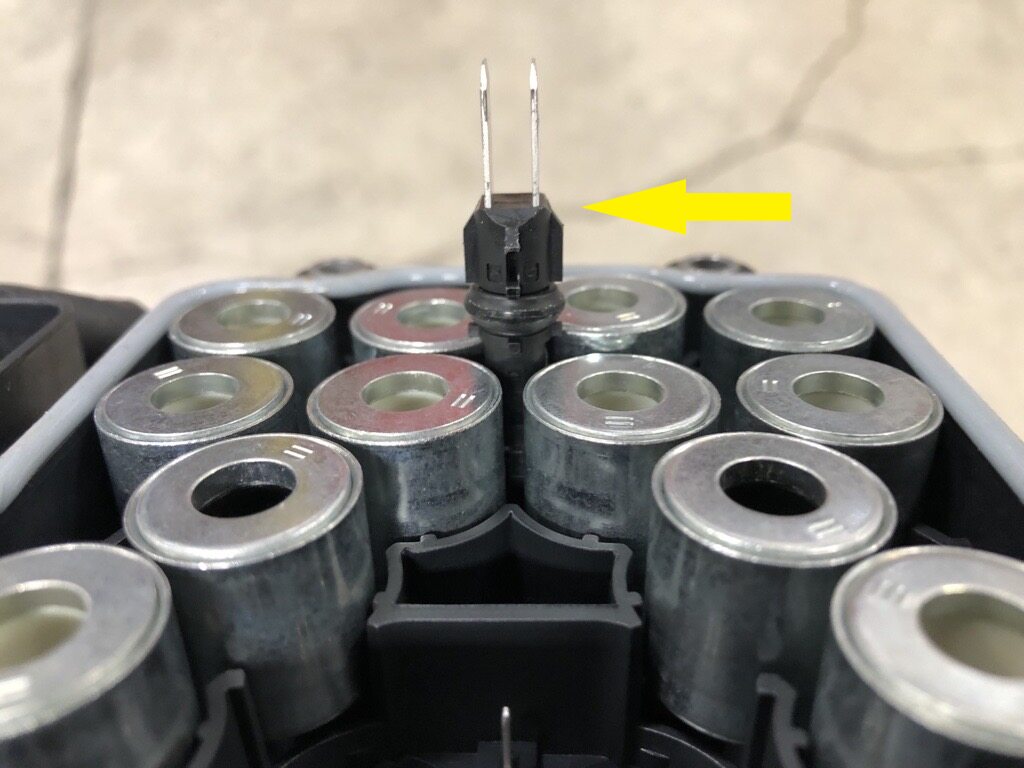

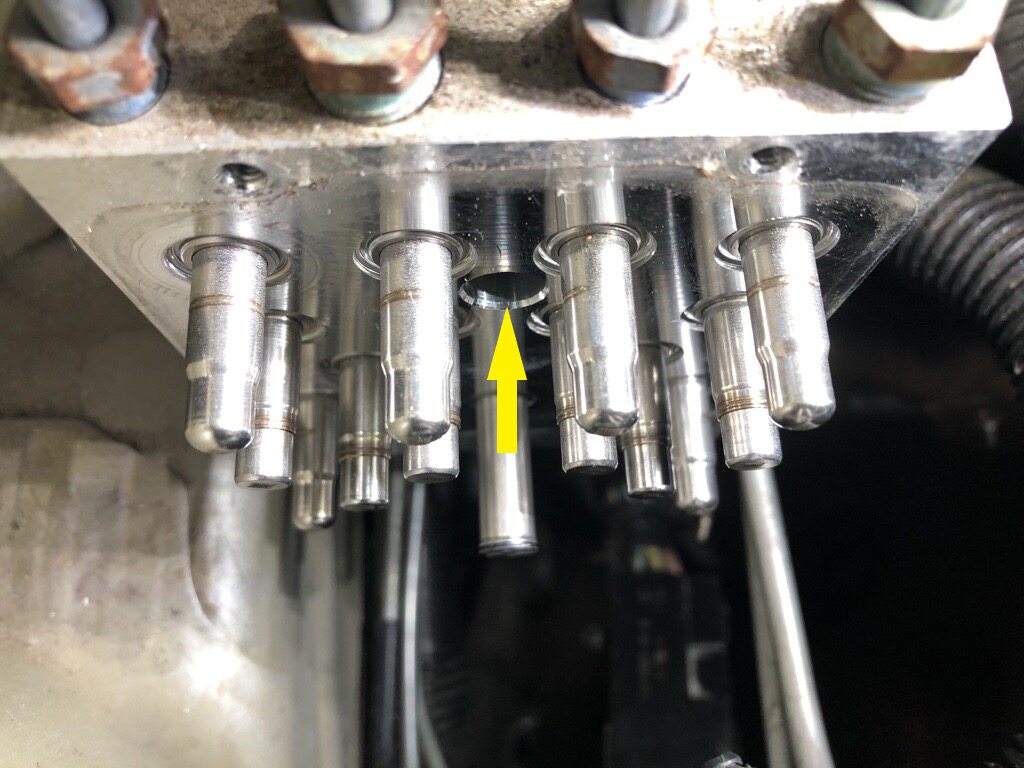

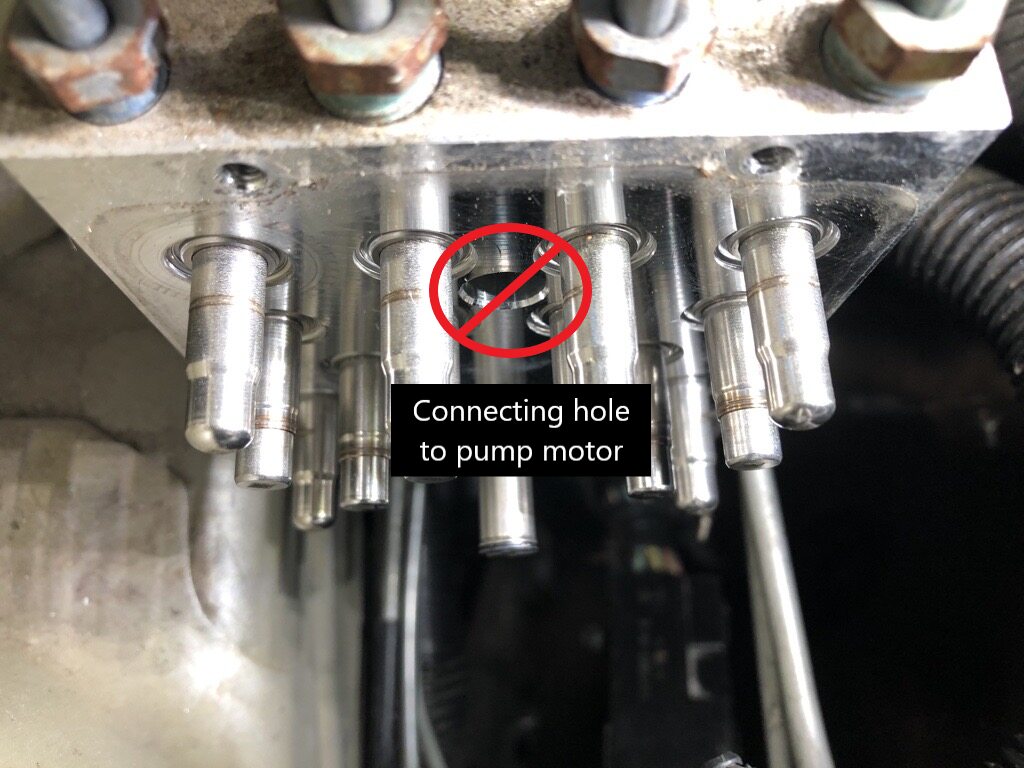

  69. Install hydraulic control unit ECU into hydraulic control unit
    Informational PurposesAn informational icon, calling your attention
    Align pump motor on ECU with connecting hole on hydraulic control unit
  70. Install upper right bolt securing hydraulic control unit ECU to hydraulic control unit hand tight
    Informational PurposesAn informational icon, calling your attention
    1x bolt, E5, 3 Nm, Install new bolt, Hydraulic control unit bolts must be installed in sequence, Torque at later step,
  71. Install lower left bolt securing hydraulic control unit ECU to hydraulic control unit hand tight
    Informational PurposesAn informational icon, calling your attention
    1x bolt, E5, 3 Nm, Install new bolt, Hydraulic control unit bolts must be installed in sequence, Torque at later step
  72. Install upper left bolt securing hydraulic control unit ECU to hydraulic control unit hand tight
    Informational PurposesAn informational icon, calling your attention
    1x bolt, E5, 3 Nm, Install new bolt, Hydraulic control unit bolts must be installed in sequence, Torque at later step

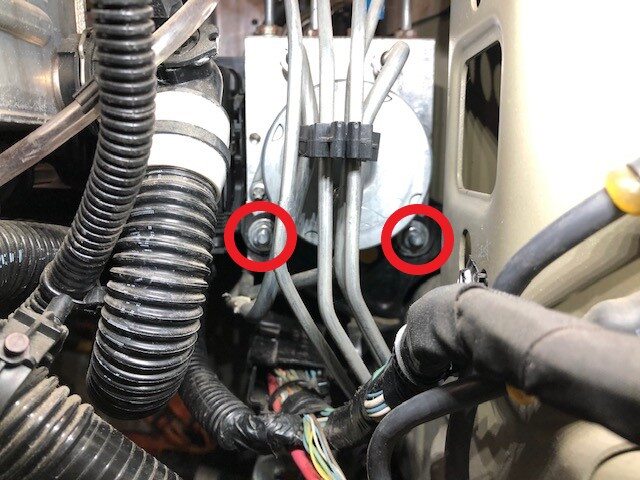

  73. Install lower right bolt securing hydraulic control unit ECU to hydraulic control unit hand tight
    Informational PurposesAn informational icon, calling your attention
    1x bolt, E5, 3 Nm, Install new bolt, Hydraulic control unit bolts must be installed in sequence, Torque at later step
  74. Torque upper right bolt securing hydraulic control unit ECU to hydraulic control unit
    Informational PurposesAn informational icon, calling your attention
    1x bolt, E5, 3 Nm, Hydraulic control unit bolts must be torqued in sequence
  75. Torque lower left bolt securing hydraulic control unit ECU to hydraulic control unit
    Informational PurposesAn informational icon, calling your attention
    1x bolt, E5, 3 Nm, Hydraulic control unit bolts must be torqued in sequence
  76. Torque upper left bolt securing hydraulic control unit ECU to hydraulic control unit
    Informational PurposesAn informational icon, calling your attention
    1x bolt, E5, 3 Nm, Hydraulic control unit bolts must be torqued in sequence
  77. Torque lower right bolt securing hydraulic control unit ECU to hydraulic control unit
    Informational PurposesAn informational icon, calling your attention
    1x bolt, E5, 3 Nm, Hydraulic control unit bolts must be torqued in sequence
  78. Install hydraulic control unit bracket to hydraulic control unit
    Informational PurposesAn informational icon, calling your attention
    Support HCU while installing bracket, Avoid bending or damaging brake lines

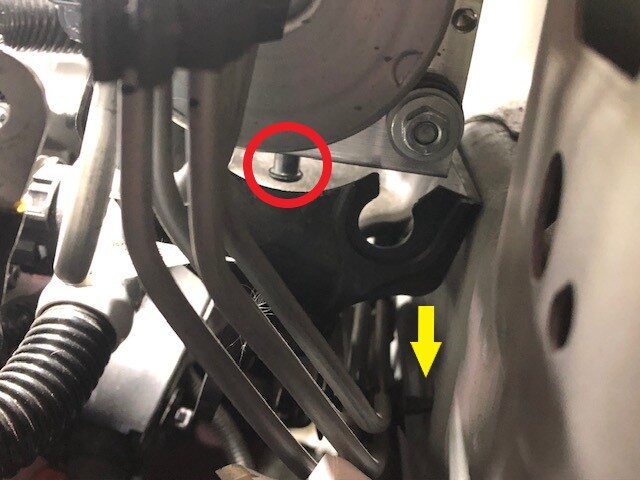

  79. Install upper bolt securing the hydraulic control unit bracket to frame rail
    Informational PurposesAn informational icon, calling your attention
    1x bolt, 10mm, 10 Nm
  80. Raise vehicle fully and lower lift onto locks
    Informational PurposesAn informational icon, calling your attention

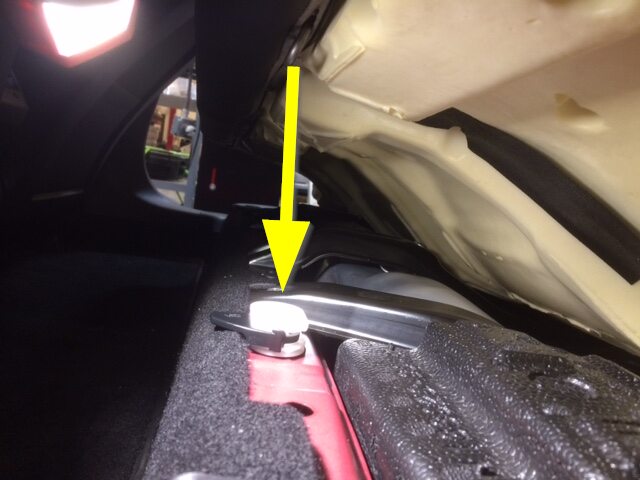

    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side
  81. Install lower bolt securing the hydraulic control unit bracket to frame rail
    Informational PurposesAn informational icon, calling your attention
    1x bolt, 10mm, 10 Nm
  82. Raise front harness into position for installation
  83. Install clips securing front harness to hydraulic control unit bracket
    Informational PurposesAn informational icon, calling your attention
    2x clips
  84. Slide intermediate shaft towards front of vehicle
  85. Install FDU HV harness connector to FDU
    Informational PurposesAn informational icon, calling your attention

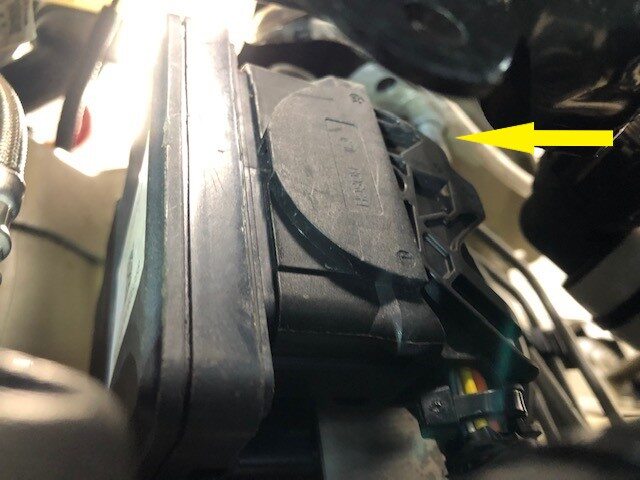

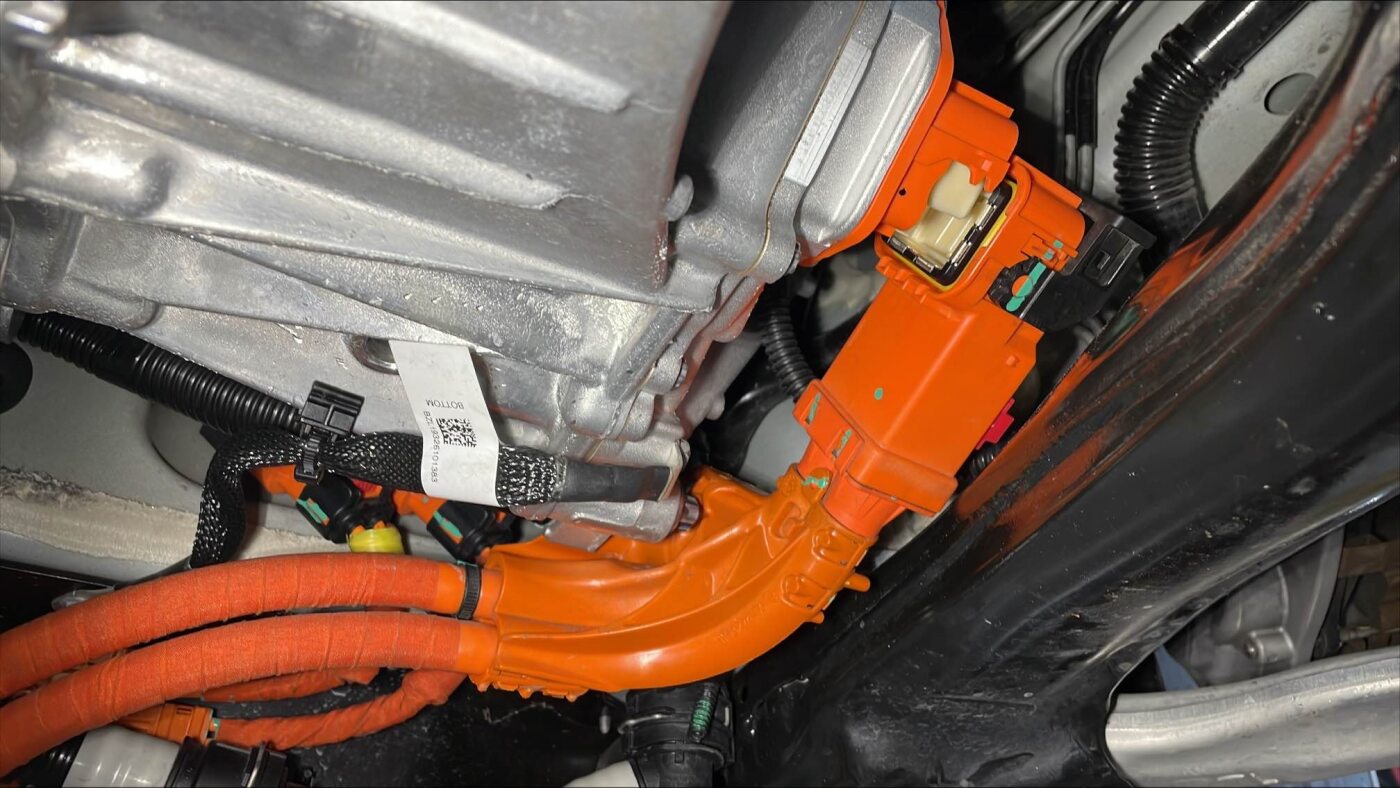

    1x connector, Ensure the connector is installed far enough on the FDU manifold so the manifold alignment tooth is making contact with the connector lever
  86. Secure FDU HV harness connection to FDU
    Informational PurposesAn informational icon, calling your attention
    1x locking connector, Verify lever is in the upright and open position, Carefully seat connector and allow lever to engage, Fully secure lever and engage red locking tab, Do not damage connector or header
  87. Install bolt securing FDU HV harness to FDU
    Informational PurposesAn informational icon, calling your attention
    1x bolt, 10mm, 10 Nm
  88. Position front aero shield to vehicle and install nuts
    Informational PurposesAn informational icon, calling your attention
    2x nuts, 15mm, 5 Nm
  89. Apply Loctite 222 onto front aero shield bolts and install outer fasteners to front aero shield
    Informational PurposesAn informational icon, calling your attention
    9x bolts, 10mm, 5 Nm
  90. Lower vehicle fully
    Informational PurposesAn informational icon, calling your attention
    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered
  91. Install the fasteners securing the hydraulic control unit to the hydraulic control unit bracket
    Informational PurposesAn informational icon, calling your attention
    2x nuts, 10mm, 8 Nm
  92. Position the master cylinder brake lines to clip at rear of hydraulic control unit bracket
    Informational PurposesAn informational icon, calling your attention
    1x harness clip

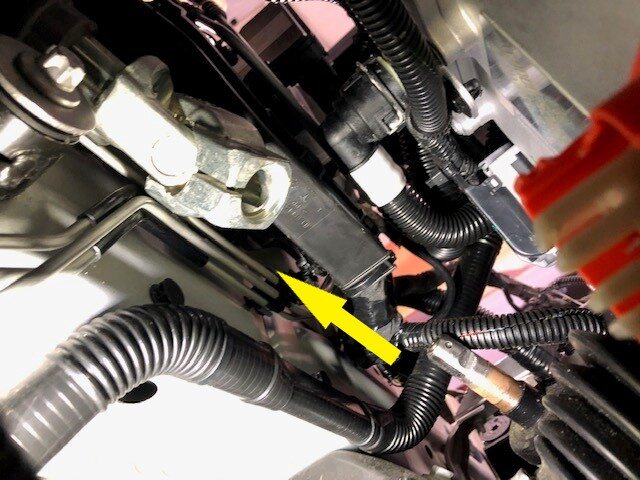

  93. Connect the hydraulic control unit connector
    Informational PurposesAn informational icon, calling your attention
    1x connector, Gently push connector downward, Engage locking tab
  94. Slide the intermediate shaft assembly downward to install it to the steering gear assembly
    Informational PurposesAn informational icon, calling your attention
    Ensure the intermediate shaft is aligned and fully seated, if necessary to align the shaft to steering gear
  95. Install bolt securing the intermediate shaft assembly to the steering gear assembly
    Informational PurposesAn informational icon, calling your attention
    1x bolt, 13mm, 18 Nm
  96. Secure front harness clips to LH frame rail
    Informational PurposesAn informational icon, calling your attention
    3x clips
  97. Connect LH front headlamp
    Informational PurposesAn informational icon, calling your attention
    1x connector, Engage locking tab, Connector style may vary
  98. Install clip securing HVIL connector harness onto body
    Informational PurposesAn informational icon, calling your attention
    1x clip
  99. Connect the HVIL connector
    Informational PurposesAn informational icon, calling your attention
    1x locking connector, Engage locking tab
  100. Install grounds G011 and G013 to LH frame rail
    Informational PurposesAn informational icon, calling your attention
    2x bolts, 10mm, 10 Nm, Discard thread-cutting tri-lobular bolts after removal, If equipped with new bolts (1447438-00-A), fasteners can be reused
  101. Resecure grounds G098 and G099 to the body
    Informational PurposesAn informational icon, calling your attention
    2x bolts, 10mm, 10 Nm, Install new bolts if thread-cutting tri-lobular bolts were installed previously, Hand-start bolts at least 6 rotations before applying torque to avoid damaging the weld nut
  102. Connect the logic connectors on steering gear
    Informational PurposesAn informational icon, calling your attention
    2x connectors, Engage locking tabs
  103. Connect the steering gear assembly connectors
    Informational PurposesAn informational icon, calling your attention
    2x connectors, Engage locking tabs
  104. Install clip securing front harness bracket to LH frame rail
    Informational PurposesAn informational icon, calling your attention
    1x clip
  105. Connect harness located at LH front rail bracket
    Informational PurposesAn informational icon, calling your attention

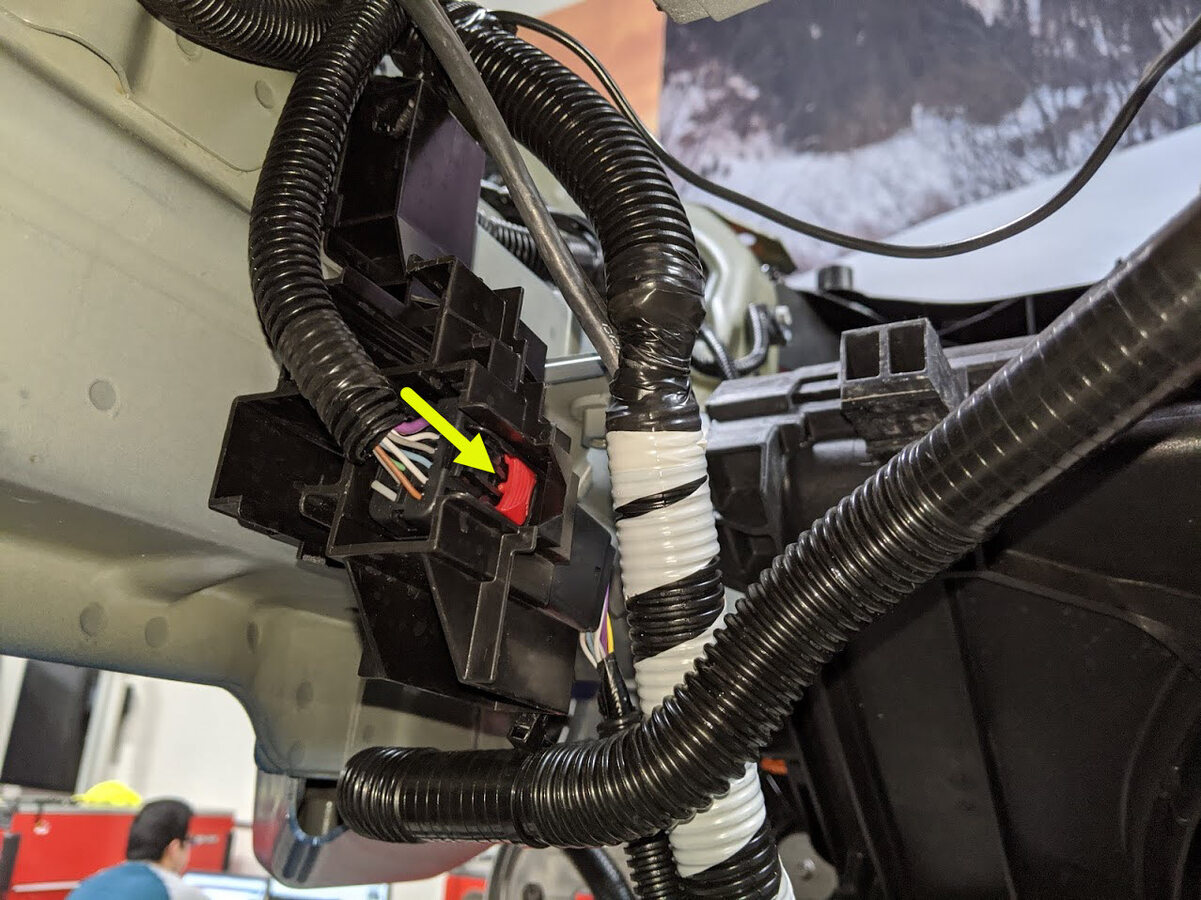

    1x connector, Red locking tab, Connect from front of bracket and lock from opposite side of bracket, Image zoomed in for clarity
  106. Install clips securing front harness and coolant hose onto brackets
    Informational PurposesAn informational icon, calling your attention
    2x clips
  107. Position shock tower brace assembly back for installation
  108. Install bolts securing shock tower brace to LH shock tower
    Informational PurposesAn informational icon, calling your attention
    2x bolts, 15mm, 55 Nm, 1x bolt, 15mm, 62 Nm, See image for torque location
  109. Install bolts securing shock tower brace to RH shock tower
    Informational PurposesAn informational icon, calling your attention
    1x bolt, 15mm, 67 Nm, 1x bolt, 15mm, 62 Nm, See image for torque location
  110. Torque upper bolt securing shock tower brace to RH shock tower
    Informational PurposesAn informational icon, calling your attention
    1x bolt, 15mm, 67 Nm
  111. Install 12V battery into vehicle
  112. Position battery tie down strap onto the battery
    Informational PurposesAn informational icon, calling your attention
    Hook the upper tie down strap into the rear tie down hook strap and position for installation
  113. Install bolt securing upper tie down strap to the AC compressor bracket
    Informational PurposesAn informational icon, calling your attention
    1x bolt, 10mm, 5 Nm
  114. Install vent tube hose in 12V battery
  115. Install positive terminal and terminal cover
    Informational PurposesAn informational icon, calling your attention
    1x nut, 10mm, 6 Nm, 2x clips
  116. Install frunk assembly to vehicle
    Informational PurposesAn informational icon, calling your attention
    12x clips, Make sure frunk assembly is fully seated onto clips, Number of clips may vary on older vehicles
  117. Install bolts securing frunk assembly
    Informational PurposesAn informational icon, calling your attention
    7x bolts, 10mm, 5 Nm, Lower RBN covers after installing upper fasteners, Newer vehicles may not be equipped with covers
  118. Install frunk close out panel
    Informational PurposesAn informational icon, calling your attention
    4x clips, 1x connector, Frunk safety switch, 3x guide tabs, Align 3x tabs then push downward to secure clips
  119. Install cabin intake upper duct assembly
    Informational PurposesAn informational icon, calling your attention
    4x clips, Heat pump vehicles have 3x clips
  120. Connect first responder loop
    Informational PurposesAn informational icon, calling your attention
    1x connector, Engage locking tab, Connect FRL before connecting 12V to avoid damage to car computer
  121. Connect 12V negative terminal
    Informational PurposesAn informational icon, calling your attention
    1x nut, 10mm, 6 Nm
  122. Install rear apron
    Informational PurposesAn informational icon, calling your attention
    12x clips
  123. Close hood
  124. Remove the steering wheel holder
  125. Move LH front seat forward
  126. Connect 2nd row seat cushion harness and install 2nd row seat cushion
    Informational PurposesAn informational icon, calling your attention

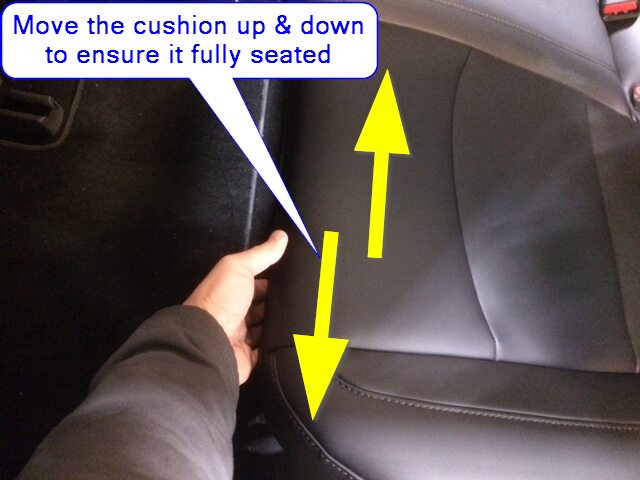

    2x connectors, Both connectors are located on LH side of vehicle, Insert the seat belt buckles through the holes, Slide rear cushion inward then align front guide tabs to locking tabs, Make sure cushion is fully seated with push & pull test near clips
  127. Move RH front seat to original position
  128. Move LH front seat to original position
  129. Reinstall the vehicle software. See 软件重新安装 - 触摸屏.
  130. Raise all windows
  131. Close all four doors
    Informational PurposesAn informational icon, calling your attention
    Unlatch rear doors before closing
