校正代码 15302702 15302701 FRT 0.12 注意：除非本程序中另有明确规定，否则上文所列校正代码及相关 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时深入了解 FRT 及其创建方式。 注意：请参阅人员保护确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。 注意：请参阅人体工程学注意事项查看安全健康的作业规程。

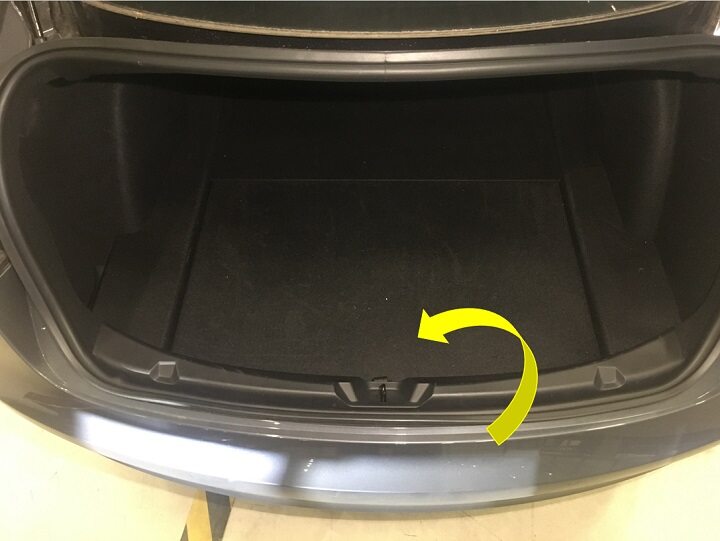

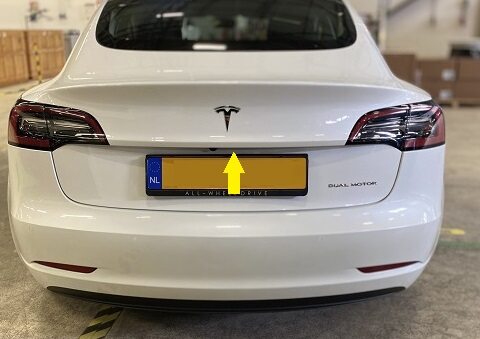

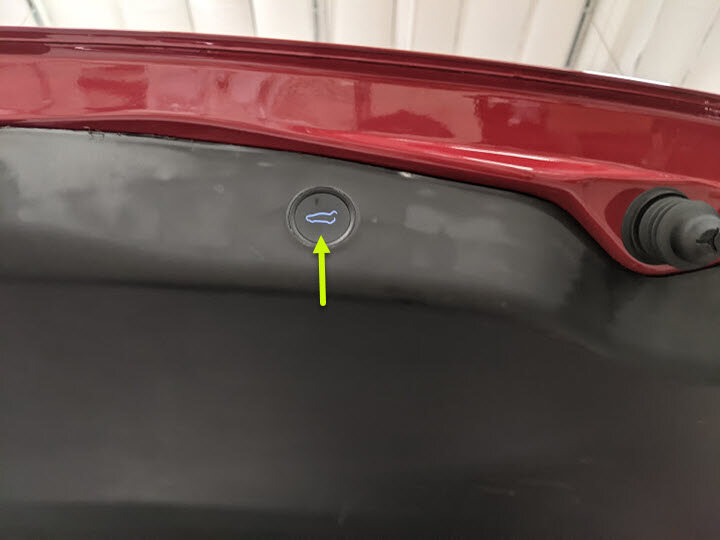

1. Open liftgate from exterior switch

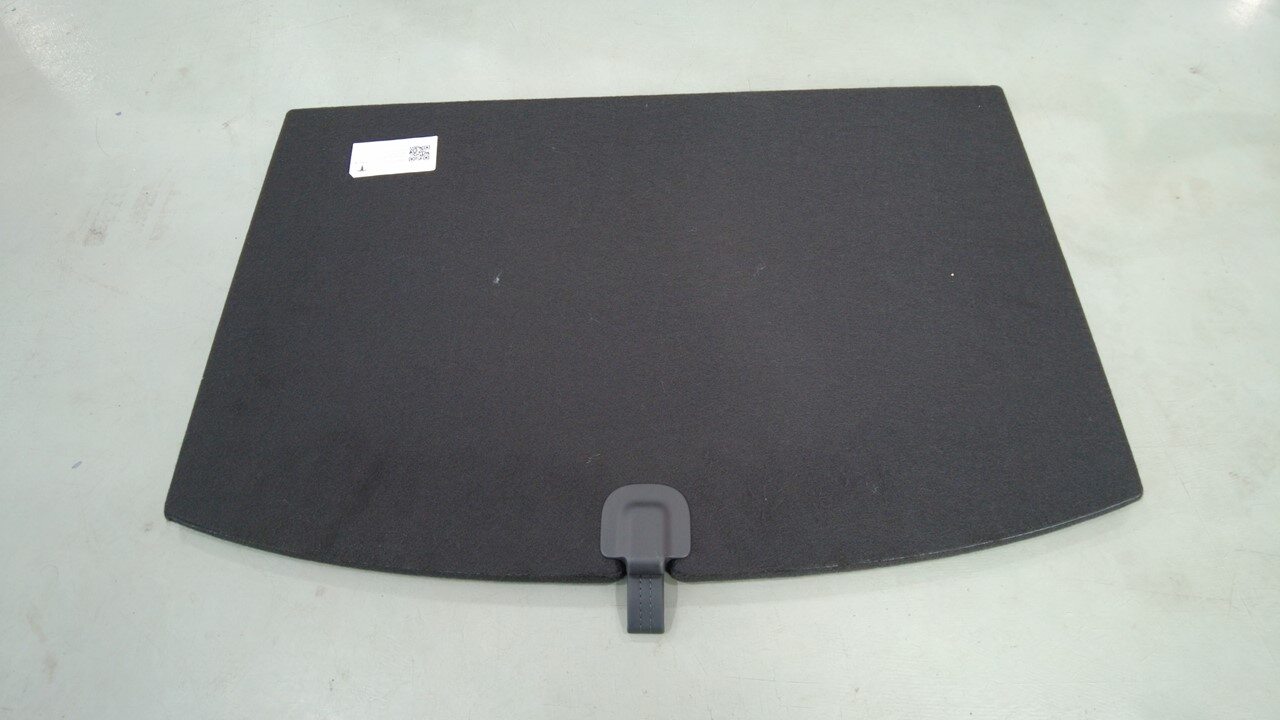

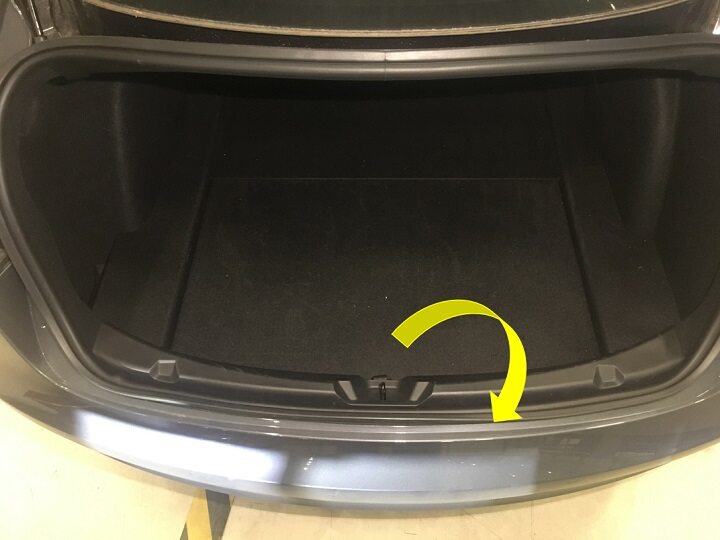

2. Remove load floor
   注

   Use pull tab located at rear edge of panel

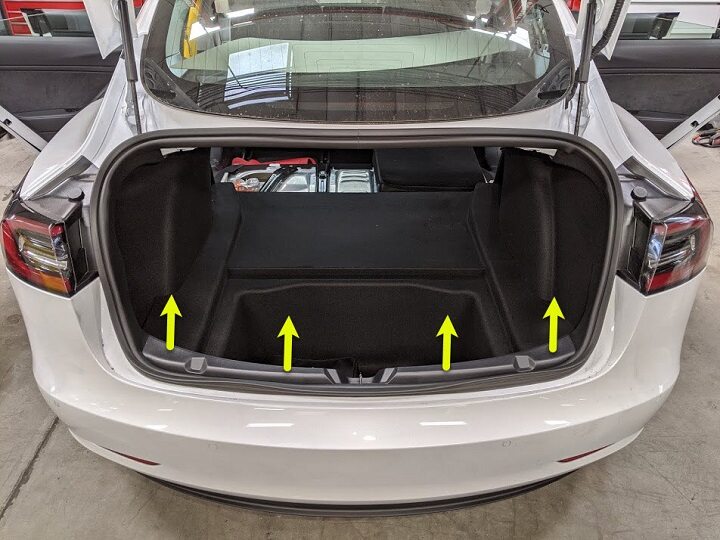

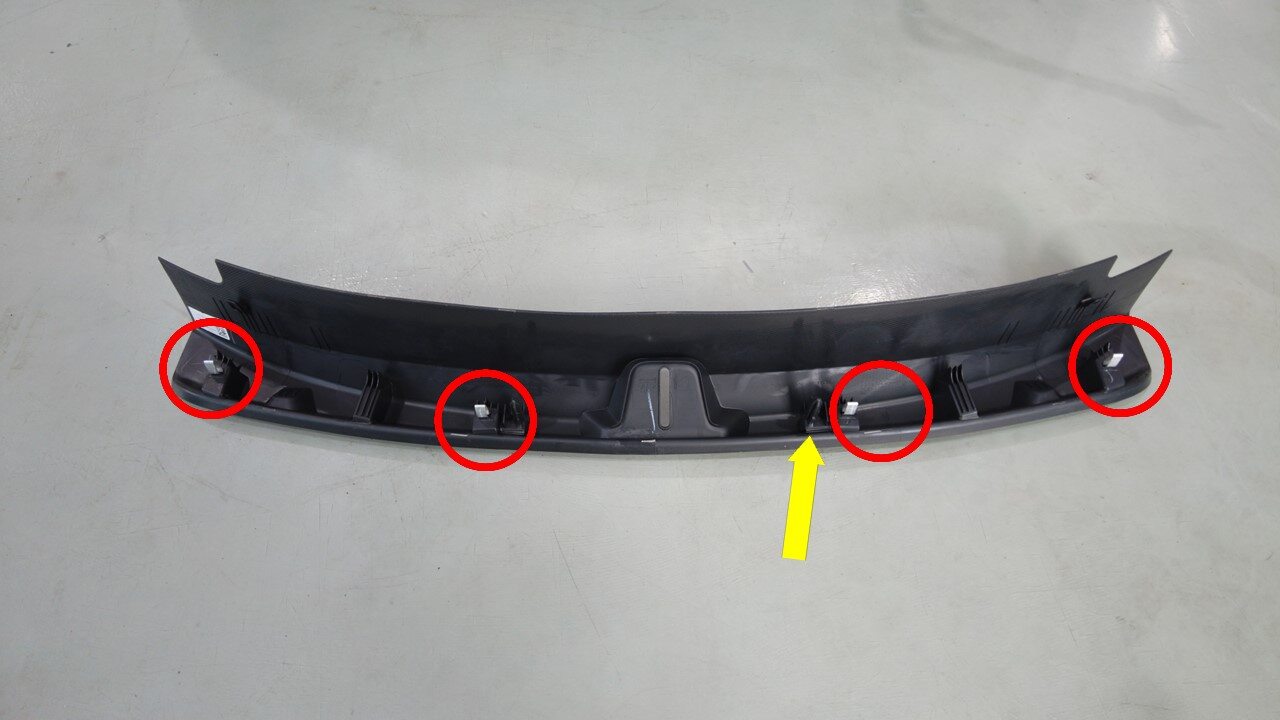

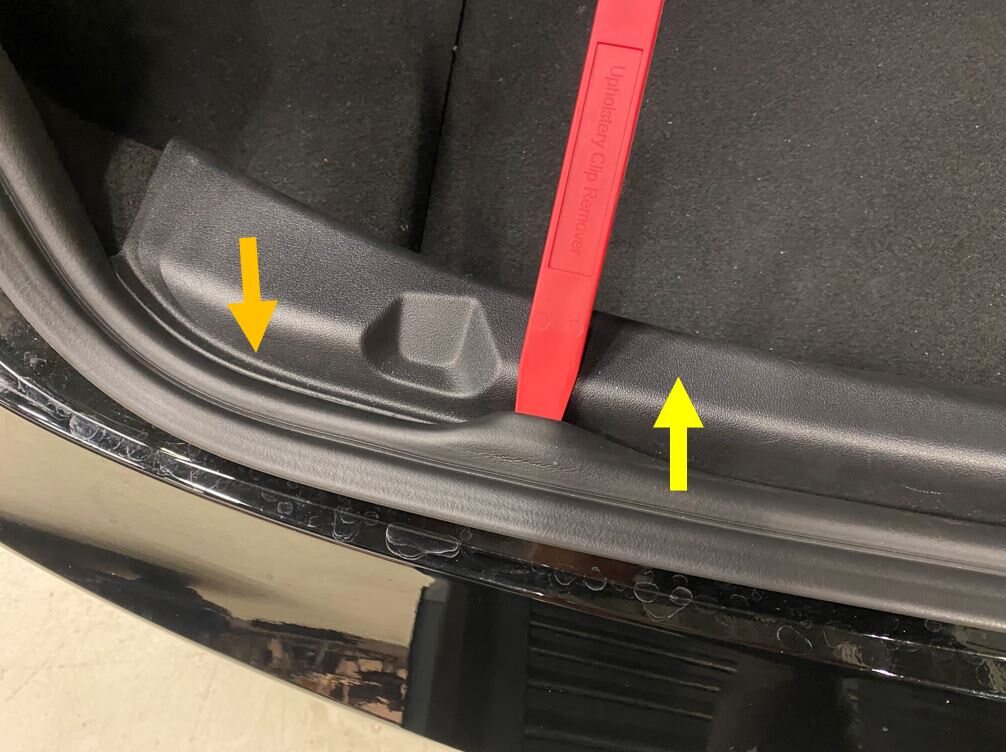

3. Remove trunk sill trim assembly
   注

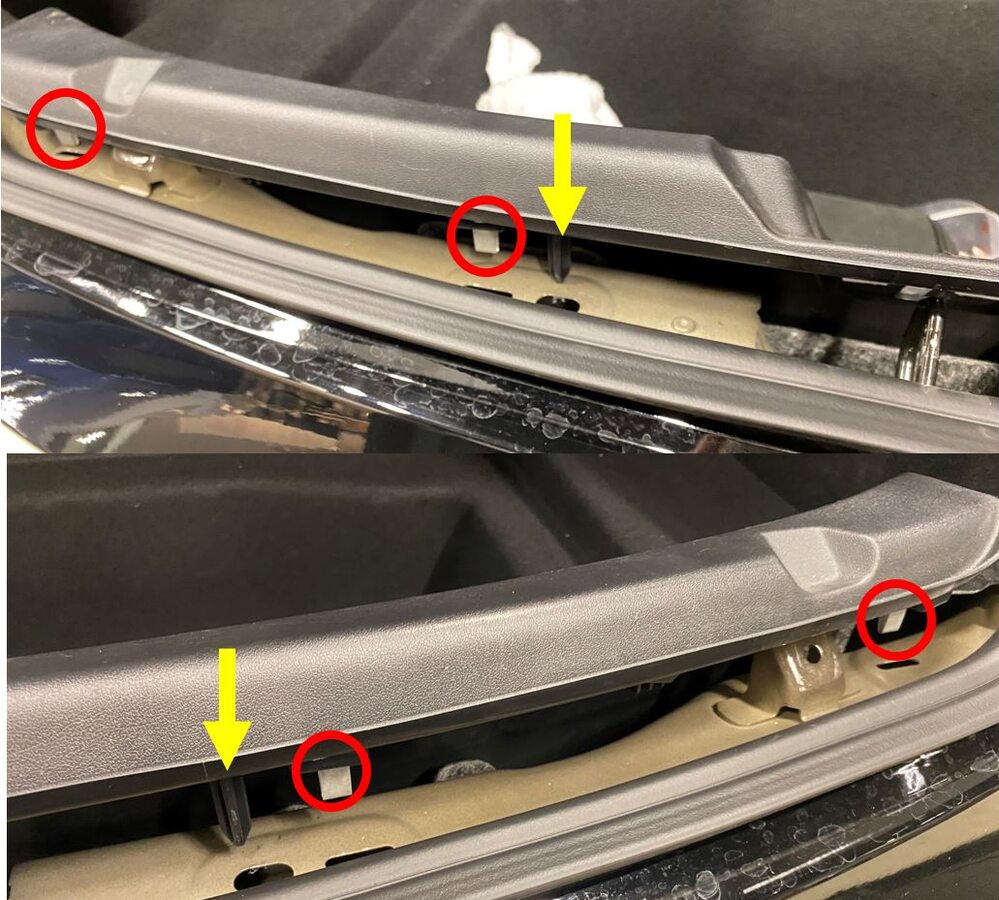

   4x clips, 1x location pin, Pull corner upward release clip on the end the away from body for remaining clips

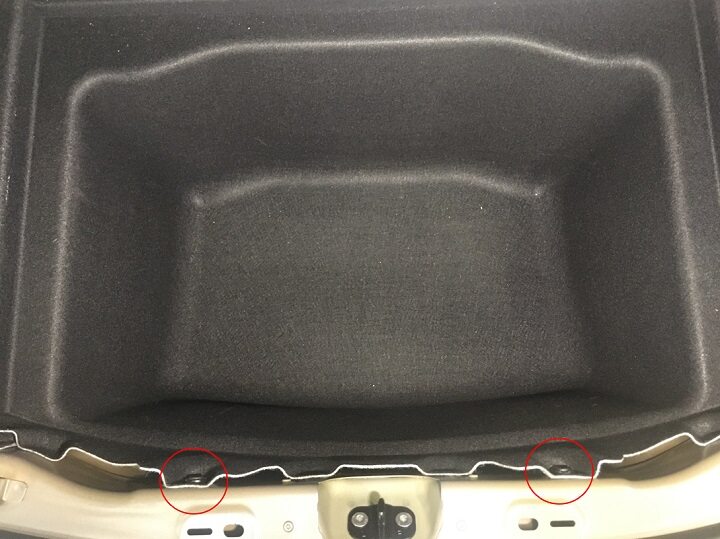

4. Remove clips securing rear trunk carpet
   注

   2x push clips

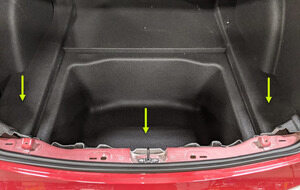

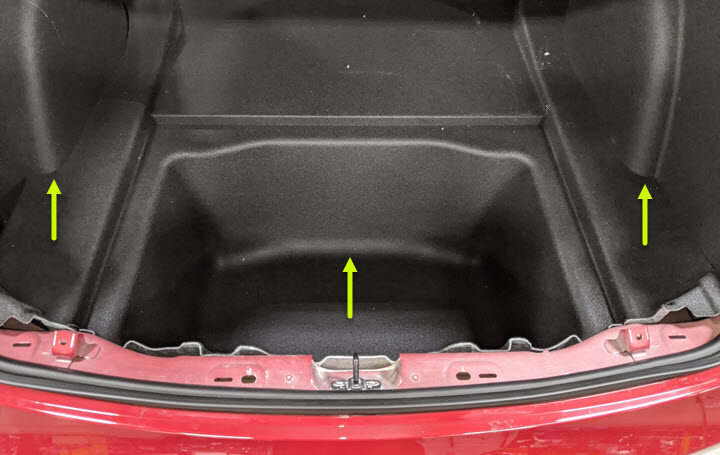

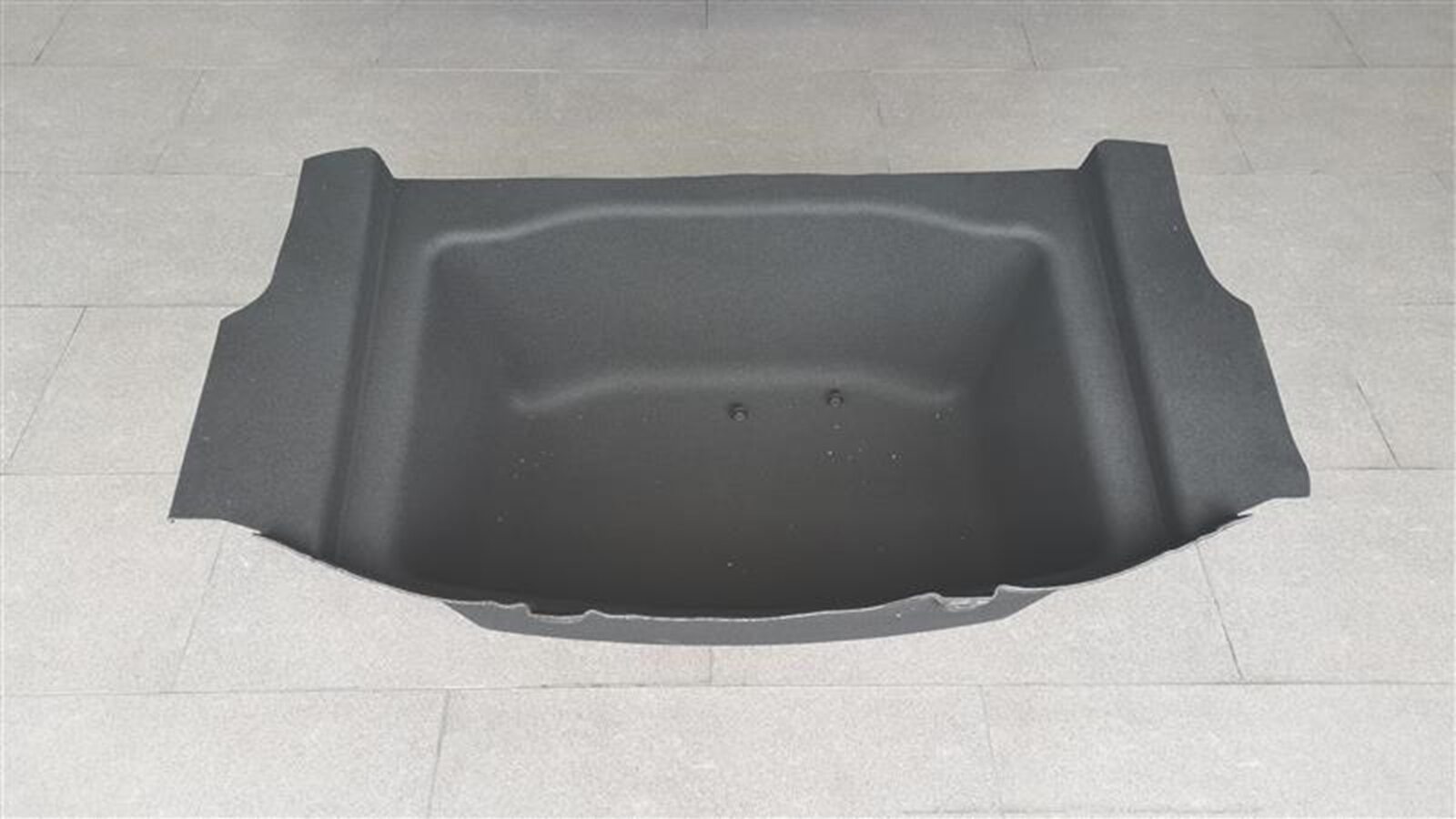

5. Remove rear trunk carpet from vehicle
   注

   4x velcro strips





6. Install rear trunk carpet into vehicle
   注

   4x velcro strips, Fully seat carpet at velcro strips





7. Install clips securing trunk carpet
   注

   2x push clips



8. Install trunk sill trim assembly
   注

   4x clips, 1x location pin, Align the latch with center slot then 2 locator to their slot and then press to secure the clips, Adjust the seal to overlap the trim

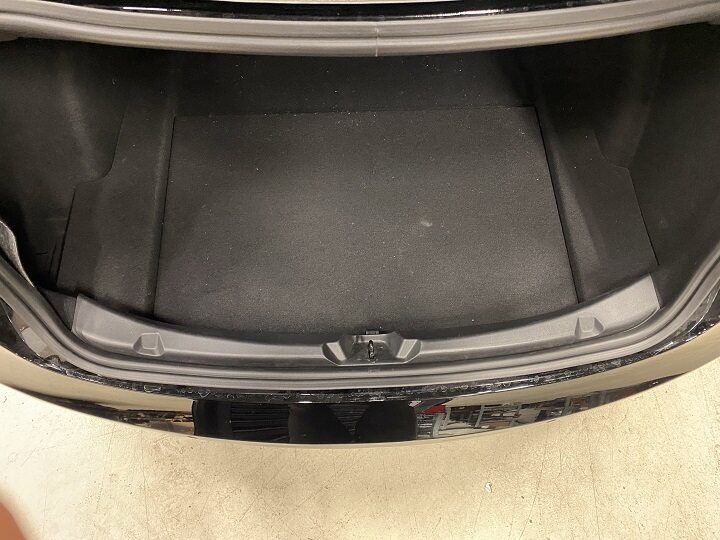

9. Install load floor

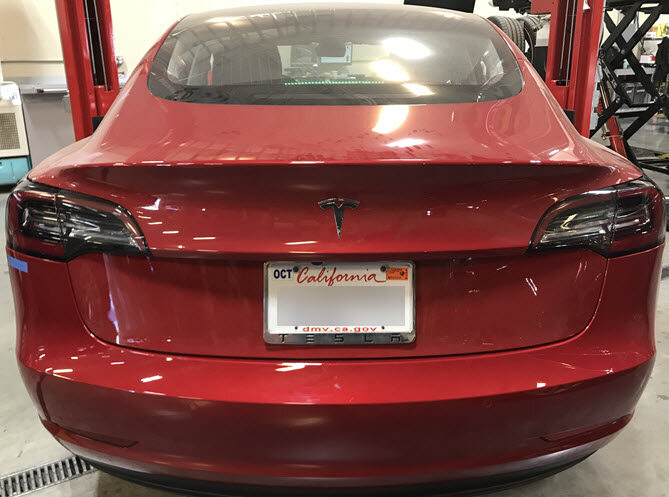

10. Close trunk
