面板 - 下后 - 中控台（拆卸和更换）

\校正代码15195202 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

拆卸

  1. 将驾驶位座椅和副驾位座椅移至最前侧。
    注
    记下驾驶位座椅和副驾位座椅的位置后，再将座椅前移，以便座椅靠背恢复原位。

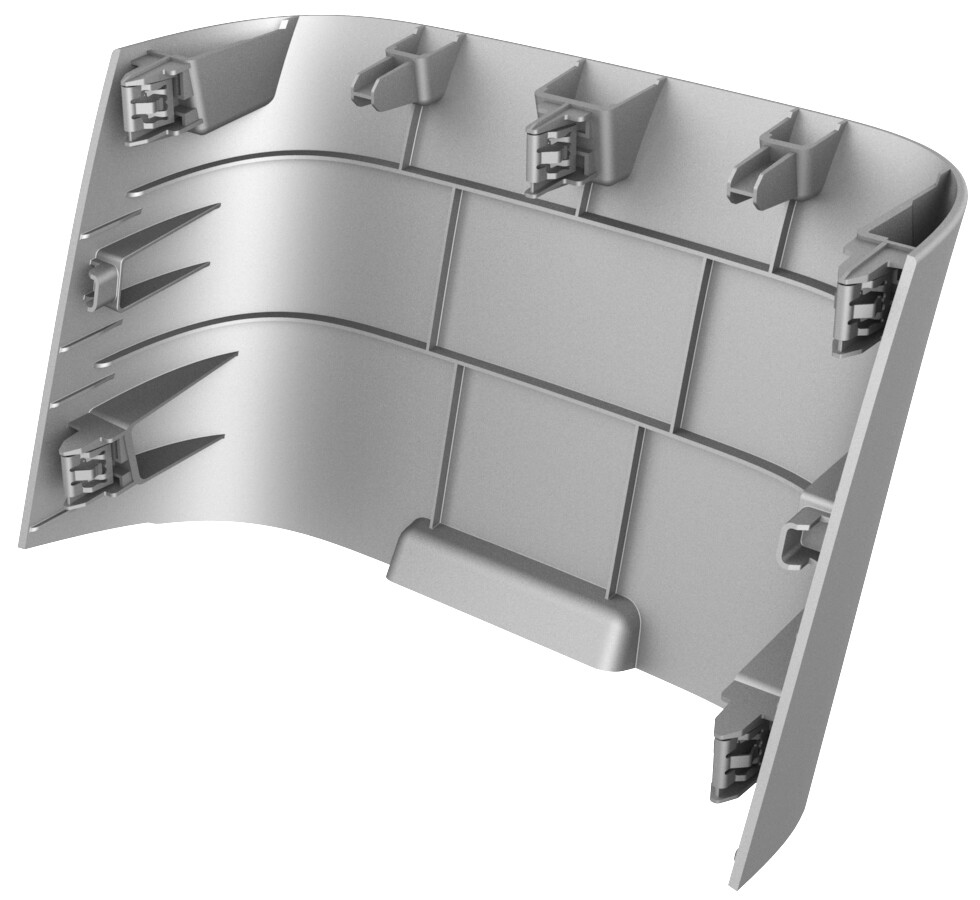

  2. 松开将中控台后下部面板固定到中控台的夹子，然后从车上拆下面板。
    注
    将塑料饰板工具插入中控台后下部面板的底部，然后将面板直接拉出，以便将其释放。

安装

安装程序与拆卸程序相反。
