喇叭 - 低音(拆卸和更换)
校正代码
17530302 0.66
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
拆卸
- 拆卸前饰板。请参阅拆卸。
-

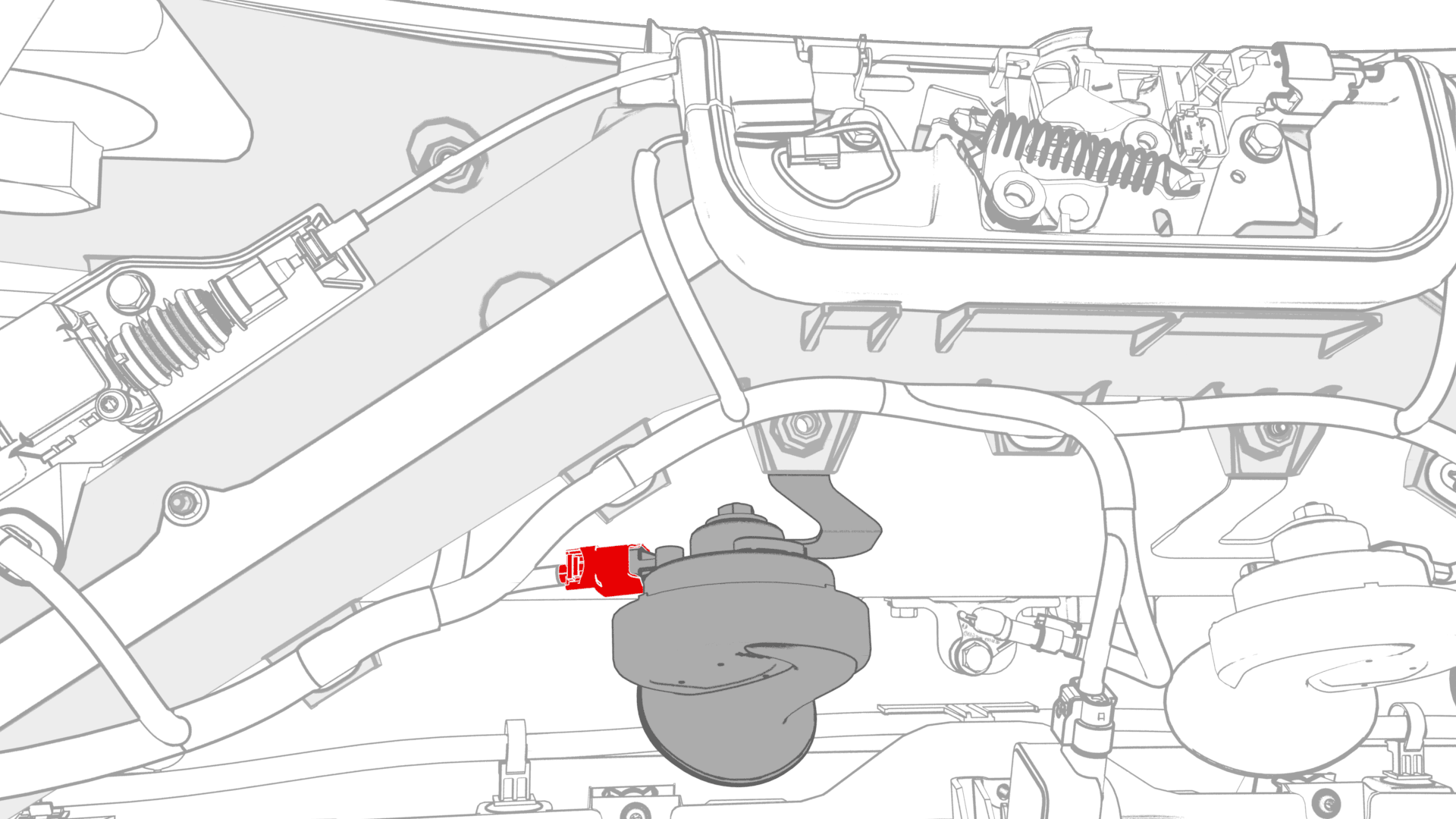

断开低音喇叭连接器上的线束。
-

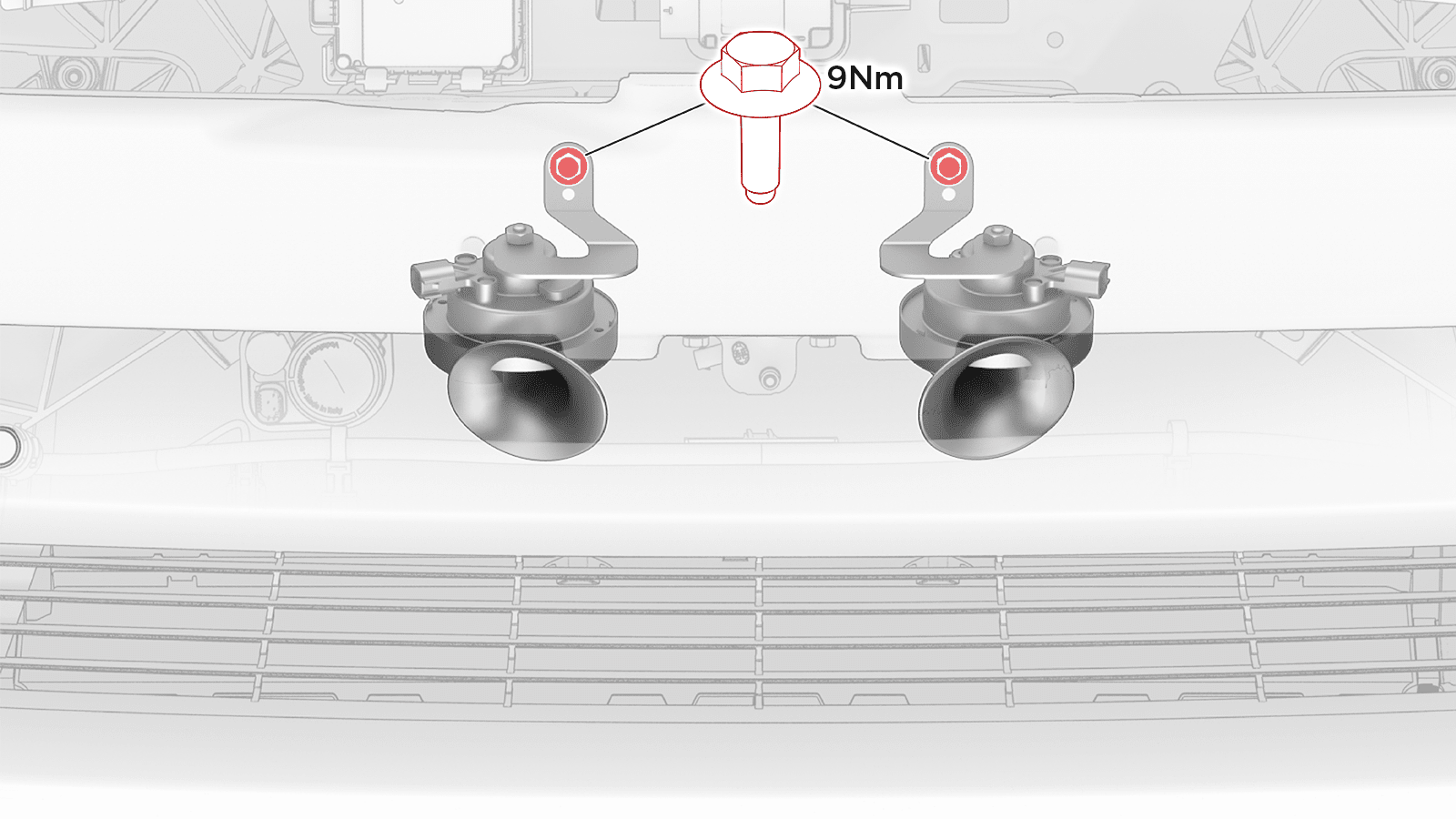

拆卸将喇叭固定到支架的螺栓,然后将喇叭从车上拆下。
9 Nm (6.6 lbs-ft)北美
欧洲、中东和非洲
安装
安装程序与拆卸程序相反,以下各项除外:
- 将装有 Toolbox 3 的笔记本电脑与车辆相连。
- 在 Toolbox 中,确保已选择 “Actions”,然后在搜索字段中输入 “Horn”。
- 点击TEST-SELF_VCFRONT_X_HORNvia Toolbox:(link)旁边的Play按钮,然后选择Run。
