扬声器 - 前车门 - 左侧(拆卸和更换)
校正代码
21212702 0.06
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
- 2023 年 7 月 20 日:在“拆卸”部分添加了一个视频。
拆卸
警告
The video(s)
included in this procedure are meant as an overview for supplemental purposes only.
Follow all of the steps listed in the procedure to avoid damage to components and/or
personal
injury.
-

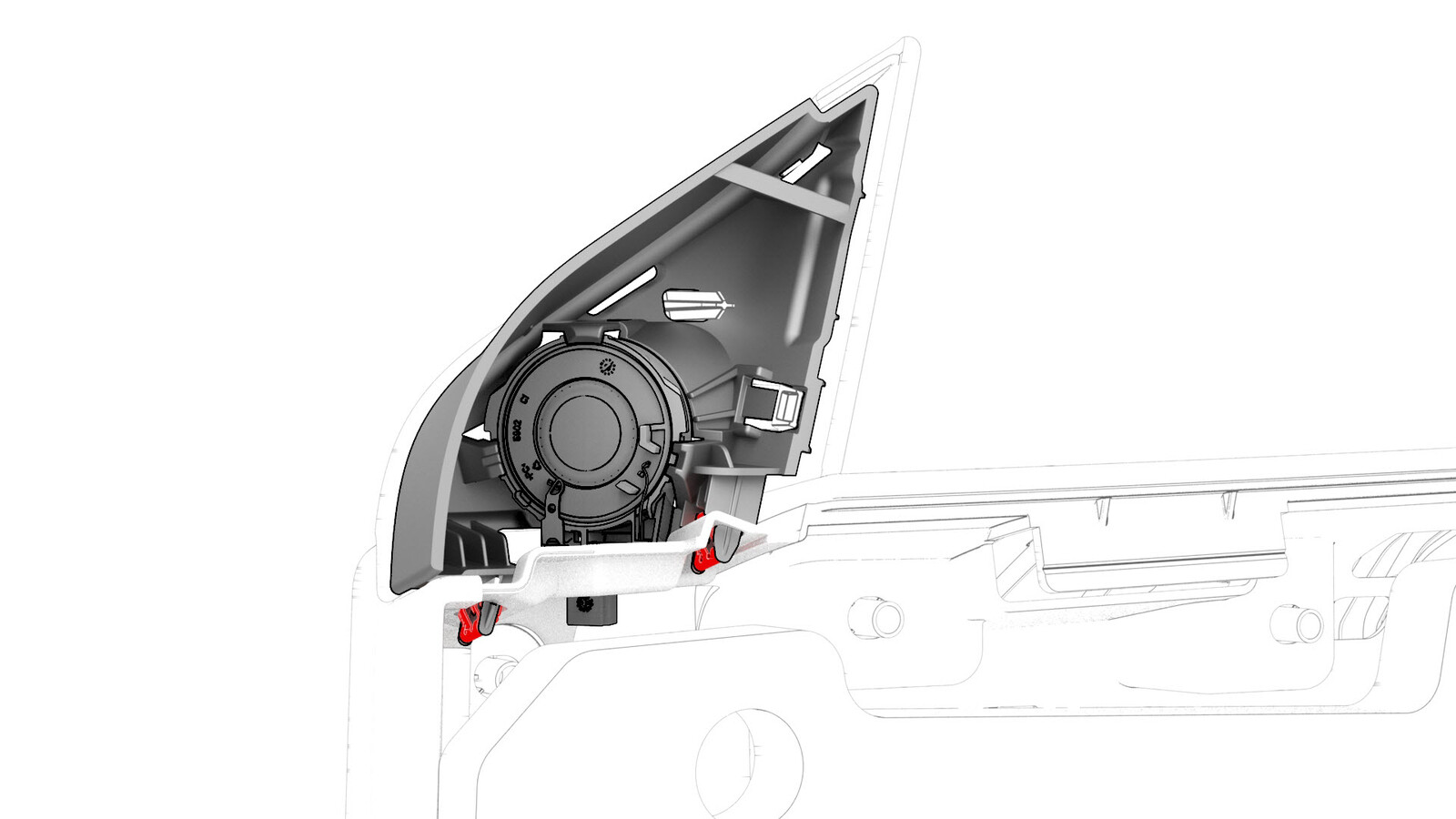

径直向上拉,以松开将 LH 前车门高频扬声器总成固定到车门的夹子。
警告请勿将扬声器总成拉至距离车门面板过远的位置,因为此时扬声器电气连接器仍处于连接状态。
-
断开高频扬声器上的电气连接器,然后从车门上拆下高频扬声器。
安装
安装程序与拆卸程序相反。
