Seal - Glass Run - Front Door - LH (Remove and Replace)
校正代码
11701112
0.30
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created. To provide feedback on
FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure.
拆卸
- 拆卸左前车门饰板。请参阅Panel - Door Trim - Front - LH (Remove and Install)。
- 从车门上拆下 LH 前门内侧密封条。请参阅Seal - Inner Belt - Front Door - LH (Remove and Replace)。
- 拆下左侧后视镜总成。请参阅Mirror - Door - LH (Remove and Replace)。

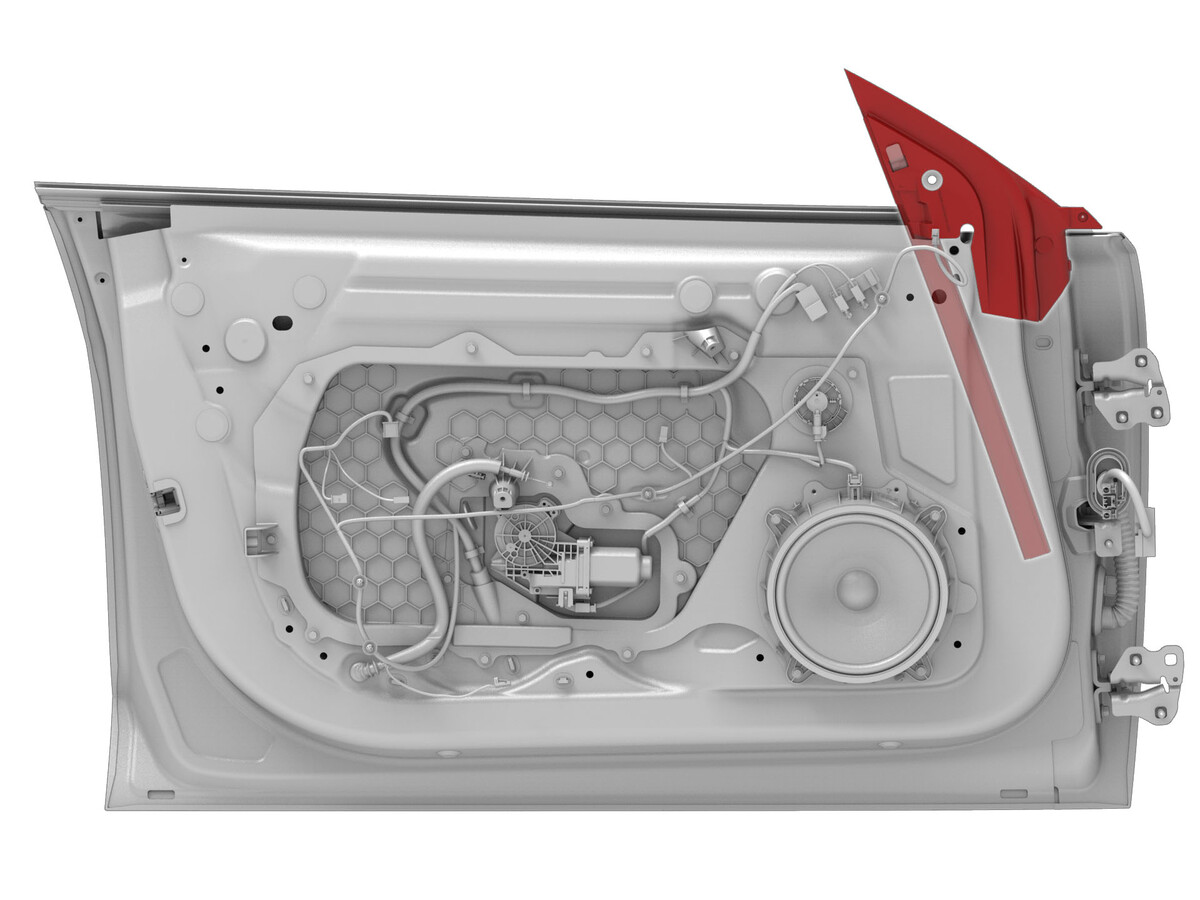

- 向上拉起左前车门玻璃滑槽密封条,将其从左前车门上拆下。
安装
-

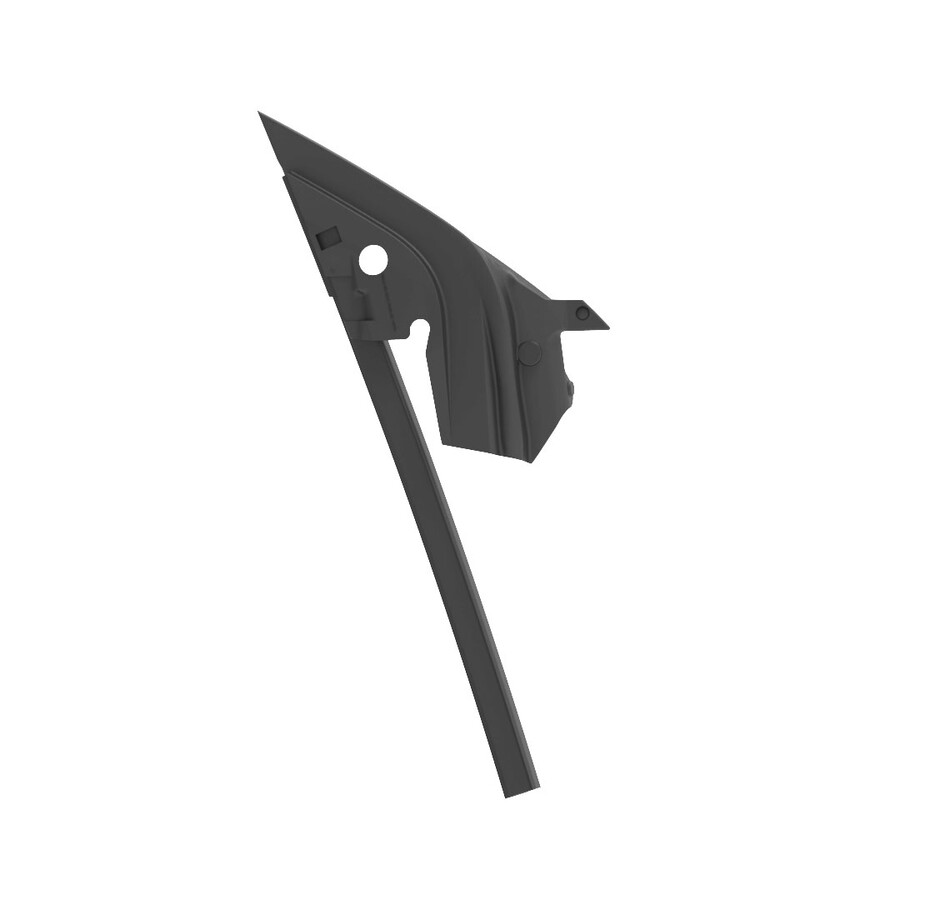

将新的左前车门玻璃滑槽密封条放置到左前车门上。
TIp必要时,在密封条上涂敷少量 P80 润滑剂以便安装。
- 安装左侧后视镜总成。请参阅Mirror - Door - LH (Remove and Replace)。
- 安装左前车门内侧密封条。请参阅Seal - Inner Belt - Front Door - LH (Remove and Replace)。
- 安装左前车门饰板。请参阅Panel - Door Trim - Front - LH (Remove and Install)
