天线 - eCall(左侧驾驶)(拆卸和更换)

校正代码 21341002 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

拆卸

注
本程序适用于 2020 年 10 月 5 日之前制造的车辆。对于 2020 年 10 月 5 日或之后制造的车辆,eCall 天线会使用 LH MIMO 天线单元中的蜂窝网络天线。有关“拆卸和更换”说明,请参阅天线 - 多输入多输出 (MIMO) - LH(拆卸和更换)。
  1. 拆下 RH 气波槽。请参阅槽 - 气波 - RH(左侧驾驶)(拆卸和更换)。

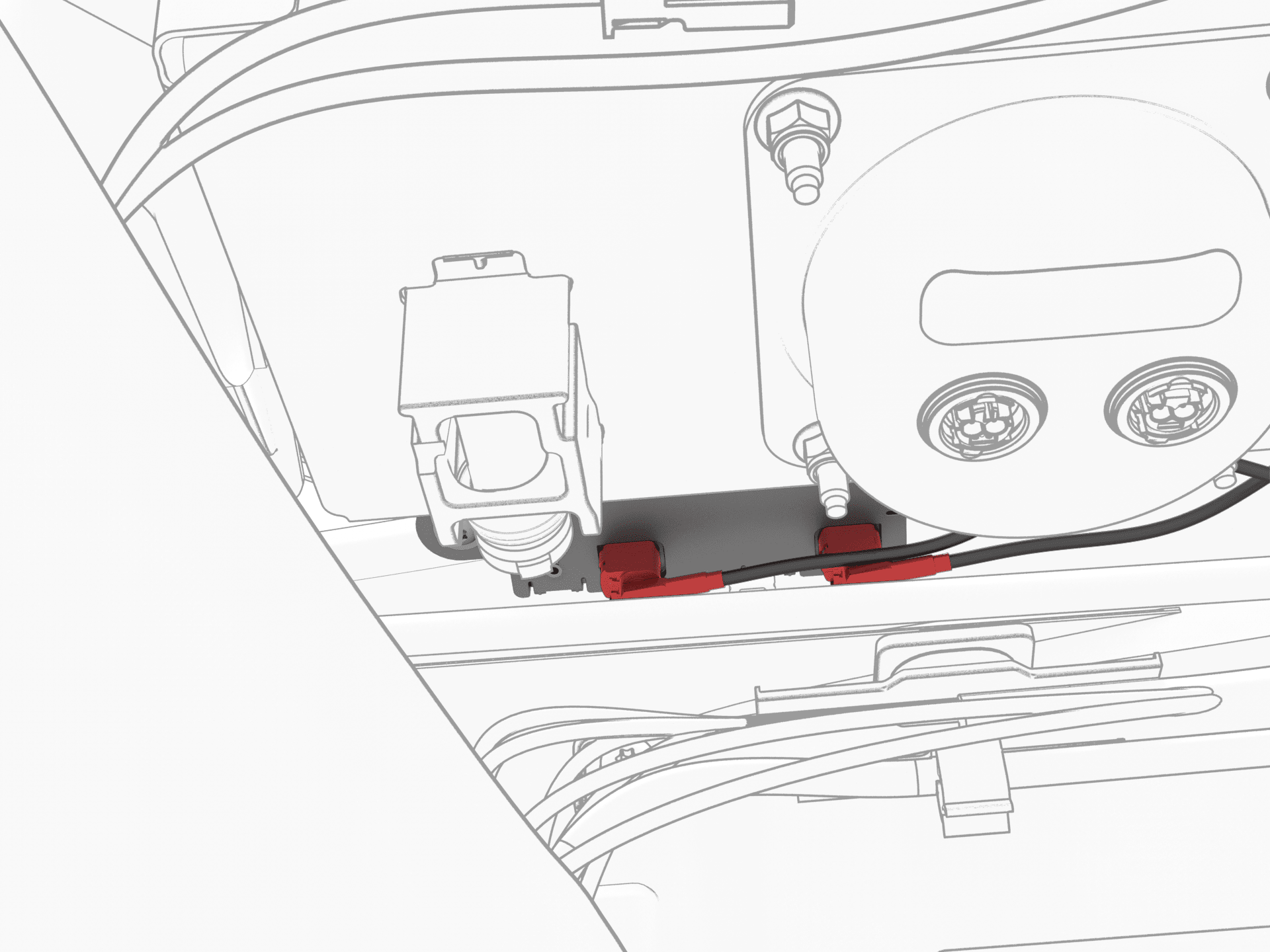

  2. 断开电气连接器与 eCall 天线的连接。

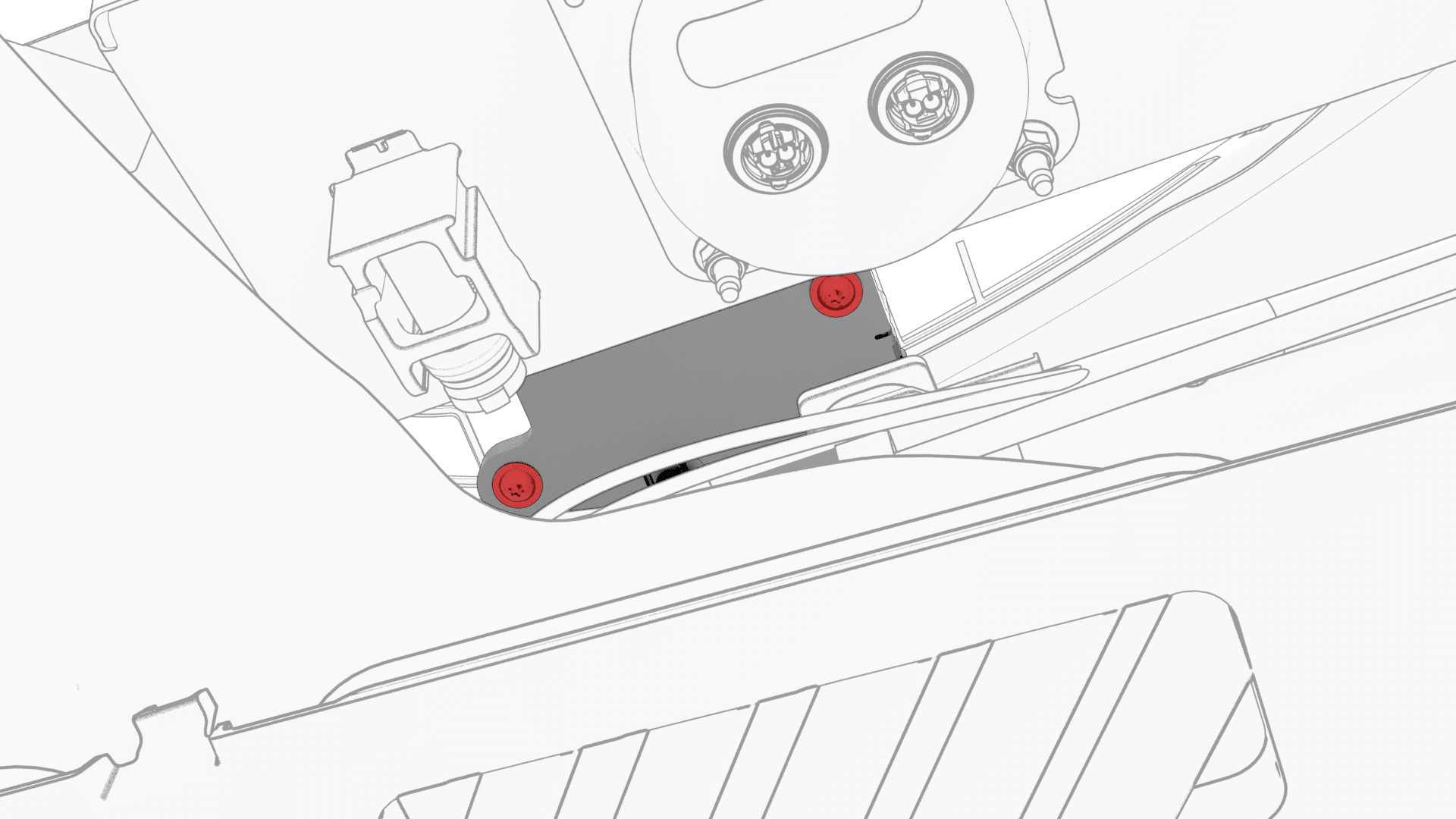

  3. 拆下将 eCall 天线连接到仪表板总成的螺钉 (x2)(扭矩为 2.7 Nm)。
  4. 从车上拆下 eCall 天线。

安装

安装程序与拆卸程序相反。
