1. Open all doors and lower all windows.
2. Place the vehicle on the 2-post lift.
   提示： Ensure the vehicle is not charging.
3. Place vehicle in service mode through UI
   注

   Select vehicle's badge icon in Controls > Software for four seconds and then type "service" into dialog box







4. Turn Off the AC and Blower motor
   注

   Check temperature icon at the bottom of the screen, If it greyed, AC is already off, If it bright, press and hold it for 2 seconds or press it once and press the switch icon in pop-up menu



5. Turn on the drive rail
   注

   Sit in the driver’s seat and step on the brake pedal while key card is placed next to cup holder to turn on the drive rail and power on the vehicle





6. Access Thermal System routines using the UI
   注

   Select Service mode > Thermal





7. Connect to vehicle using Toolbox 3.0
   注

   Vehicle connection is integrated into drivers footwell cover, Open Toolbox 3 website and establish connection to the vehicle, https://toolbox.teslamotors.com, Select connection status icon at top right corner, and select connect locally (icon will turn green when vehicle is connected)If RJ45 ethernet diagnostic connector present connect directly from laptop using an RJ45 Ethernet cable







8. Select ‘Actions/Autodiag’ and search for ‘Plus’



9. Select "PROC_ICE_X_ENTER-SERVICE-MODESearch for routine in ToolboxEnter Service Mode-PLUS ", click "Run", and allow routine to complete
   注

   Select "x" at the top right of the window to close once complete







10. Remove HSD or RJ45 cable from Ethernet port to disconnect Toolbox 3.0 from vehicle





11. Select "Start Thermal Fill Drain (Coolant only)" using the UI
    注

    Reference pictures for navigation, Wait for the coolant section to say "Ready for Fill/Drain" and turn green also for "Inactive" to turn green and say "Success"







12. Move LH front seat forward



13. Move RH front seat forward



14. Open hood
    注

    Press "Open" button on the touchscreen to release the latch, Lift the lid manually





15. Power off vehicle from center display
    注

    Via Controls > Safety & Security > Vehicle Power > Power Off, Confirm power off at warning dialogue box





16. Remove rear apron
    注

    12x clips, Only store rear apron visible face upwards







17. Remove cabin intake upper duct assembly
    注

    4x clips, Heat pump vehicles have 3x clips





18. Remove closeout panel from frunk assembly
    注

    4x clips, 1x connector, Frunk safety switch, 3x guide tabs, Grab closeout panel from bottom then pull it upward to release clips, Disconnect the switch





19. Remove bolts securing frunk assembly
    注

    7x bolts, 10mm, 5 Nm, Lift up RBN covers to access upper fasteners, Newer vehicles may not be equipped with covers



20. Remove frunk assembly from vehicle
    注

    12x clips, Replace any clips if broken or missing, Number of clips may vary on older vehicles







21. Release positive terminal cover
    注

    2x clips



22. Verify operation of multimeter
    注

    Set multimeter to DC voltage, Confirm multimeter is properly measuring voltage by testing the 12v battery



23. Install positive terminal cover
    注

    2x clips



24. Disconnect 12V negative terminal
    注

    1x nut, 10mm, 6 Nm, Ensure the vehicle is in park, climate control system is off, and vehicle is not charging before disconnecting 12V



25. Disconnect first responder loop
    注

    1x connector, Release locking tab



26. Remove 2nd row seat cushion and disconnect harness
    注

    2x tabs, 2x connectors, Press tab toward LH side of vehicle on each side to release front edge of seat cushion









27. Remove all items from pockets and ensure not wearing metal items





28. Inspect HV insulating gloves
    注

    Check gloves for damage prior to each use, Refer to service document TN-15-92-003 R5, for information on inspecting HV gloves, https://service.tesla.com/docs/ServiceBulletins/External/TN/TN-15-92-003_High_Voltage_Awareness_Care_Points_R5.pdf



29. Put on HV insulating gloves and leather over gloves
    注

    Make sure to wear Electrical Protective Gloves any time Hioki tester is used



30. Remove bolts securing ancillary bay probe lid cover to ancillary bay cover
    注

    2x bolts, EP10 5-Lobe, 6 Nm, Discard after removal



31. Remove ancillary bay probe lid cover from ancillary bay cover



32. Verify no high voltage
    注

    Make sure to wear PPE (HV gloves, safety glasses) when working on high voltage component, Measure B+ to Ground, B- to Ground, B+ to B-, If voltage is greater than 10V, Pack contactors are not open or welded, Stop work and reach out to Service Engineering









33. Inspect ancillary bay probe lid cover gasket then position onto the ancillary bay cover
    注

    Confirm no damage is present, Seal can be re-used



34. Install bolts securing ancillary bay probe lid cover to ancillary bay cover
    注

    2x bolts, EP10 5-Lobe, 6 Nm, Install new fasteners



35. Remove HV insulating gloves



36. Raise vehicle fully and lower lift onto locks
    注

    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side, Verify doors are clear of surrounding objects





37. Remove outer fasteners securing front aero shield
    注

    9x bolts, 10mm, 5 Nm



38. Remove remaining nuts and remove front aero shield from vehicle
    注

    2x nuts, 15mm, 5 Nm





39. Remove the clips securing the front LH and RH wheel liners to the front skid plate
    注

    2x push clips



40. Remove bolts securing front skid plate
    注

    4x bolts, EP10, 13 Nm



41. Remove skid plate from HV battery

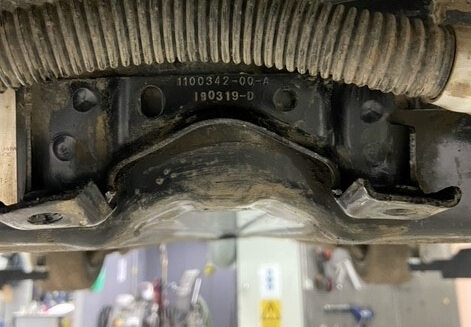

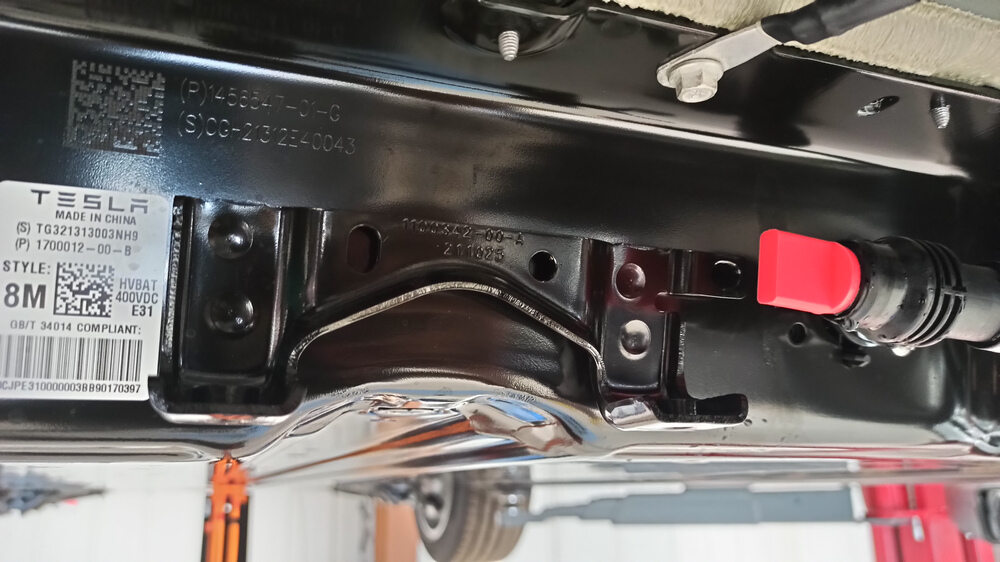

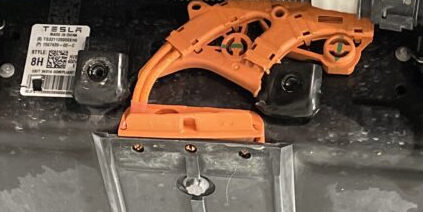

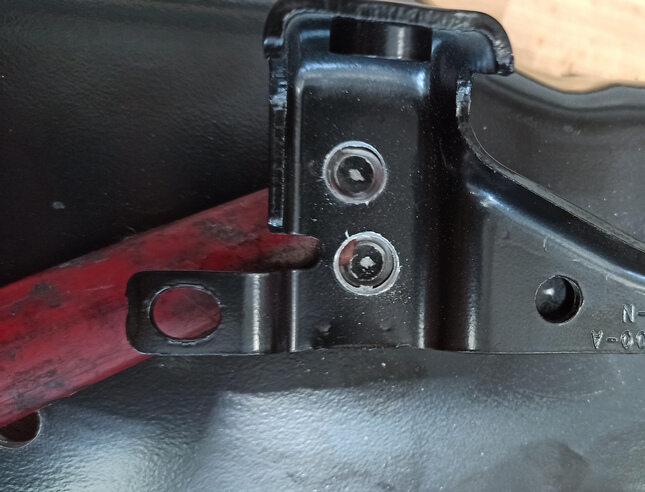

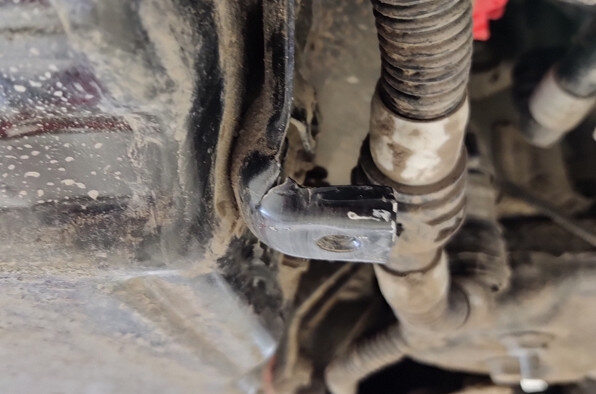

42. Inspect Front Skid Plate Bracket for the damage
    注

    If HV battery passed all the previous checks and there is no visible damage to the HV battery structure apart of Front Skid Plate Bracket, continue with further steps









43. Position coolant drain container below HV battery hose

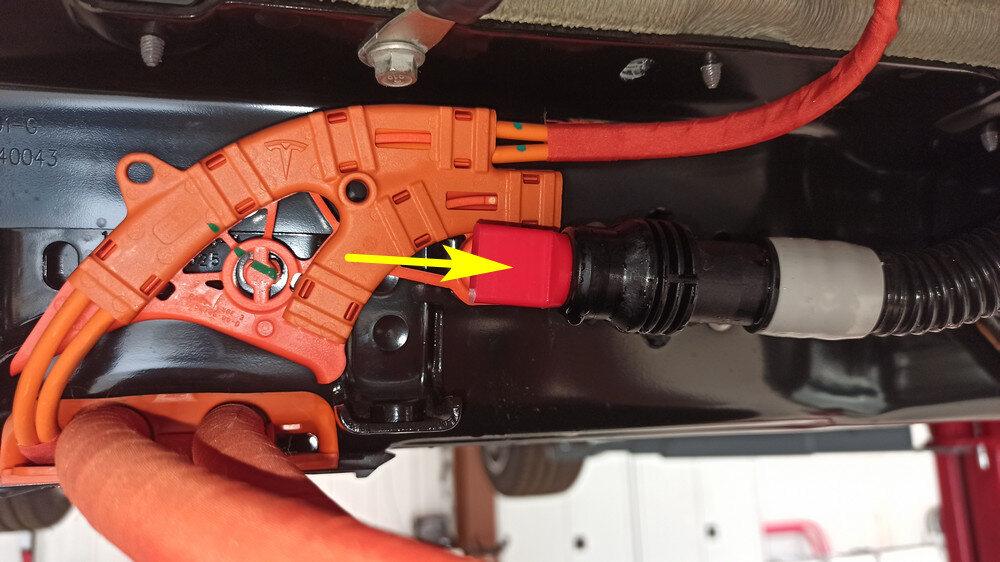

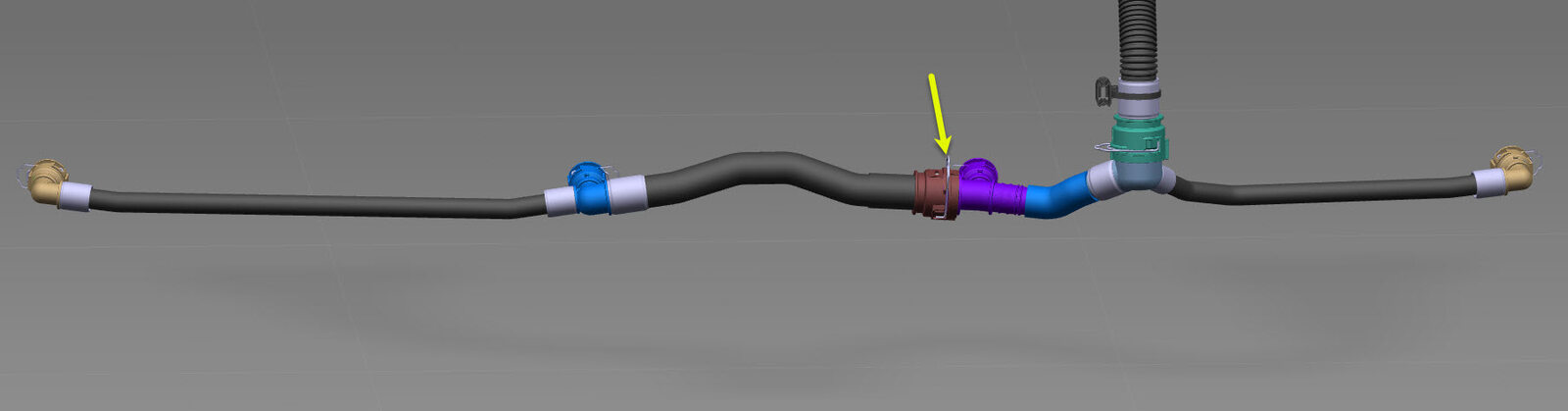

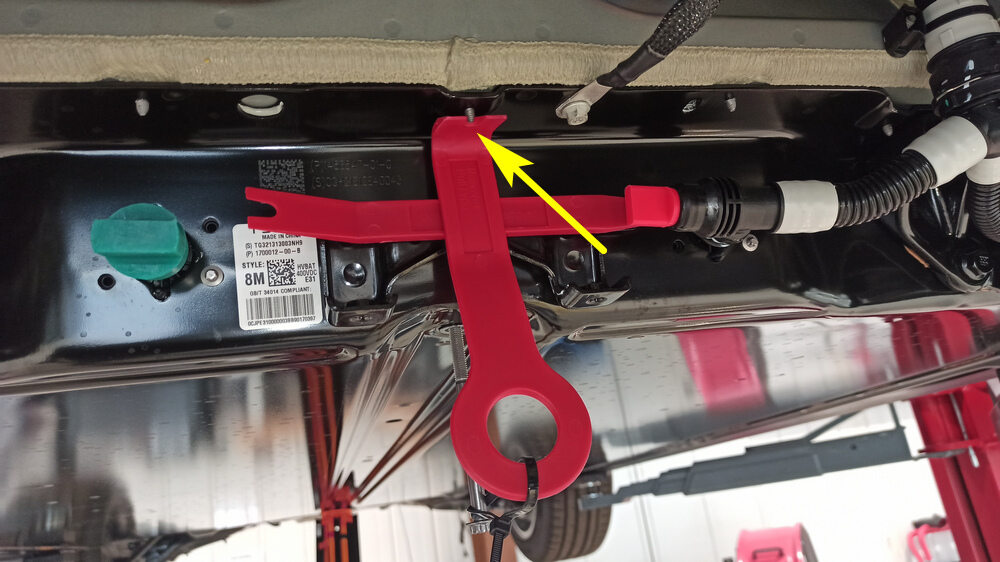

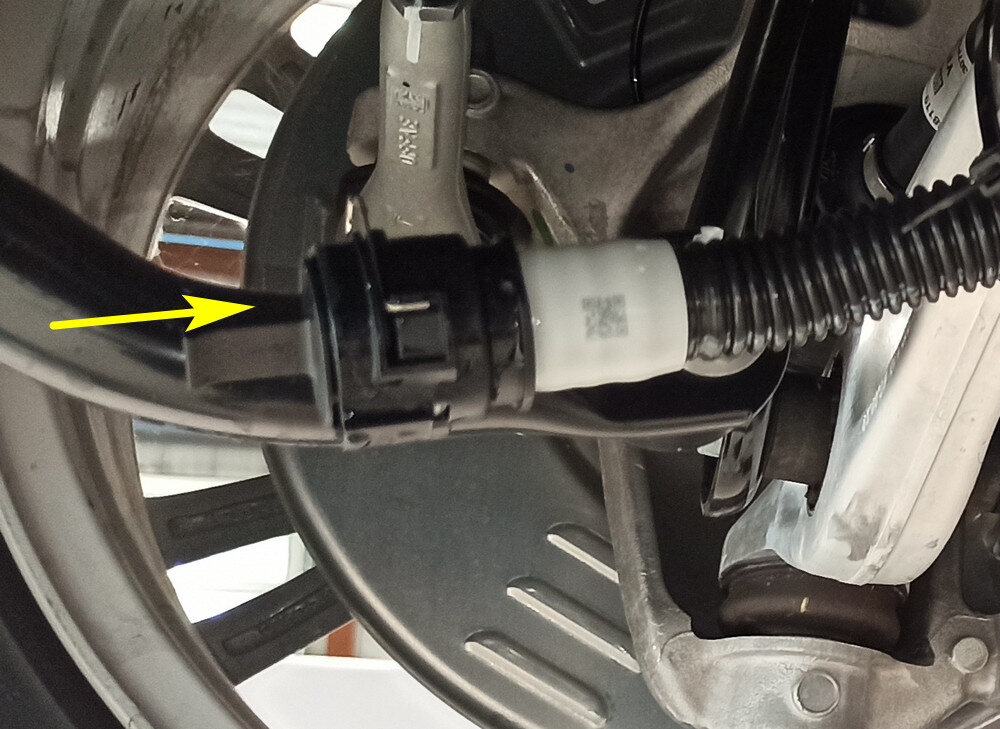

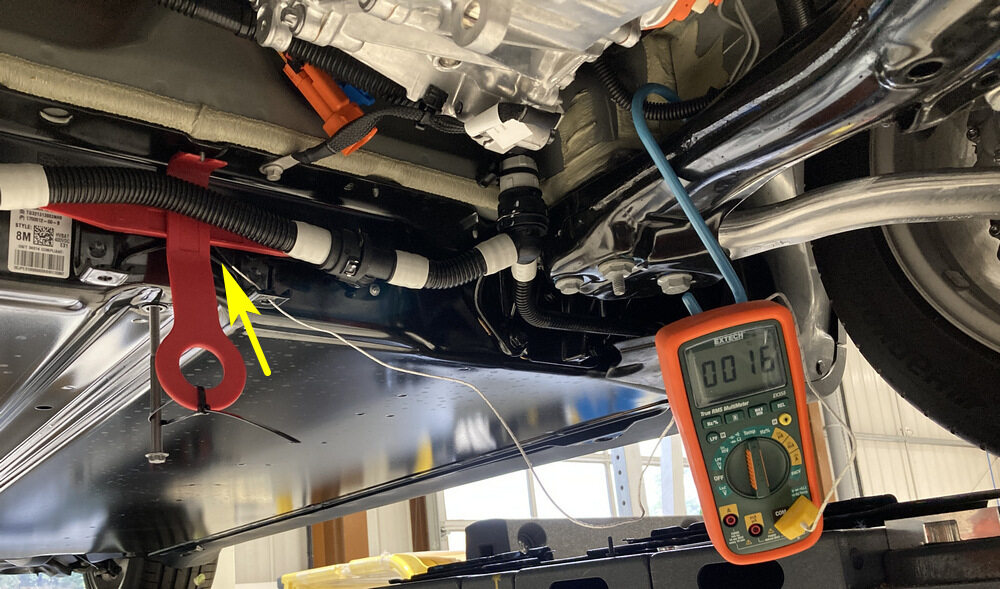

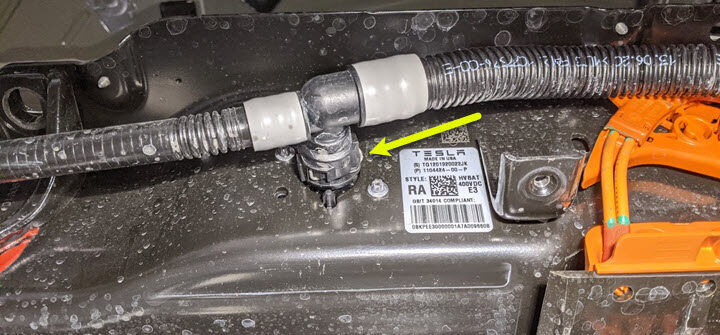

44. Remove RH manifold tube from LH manifold tube
    注

    1x spring clip, 2x plugs,Prepare plugs from Coolant Hose Plug Kit, red and 18mm black,Move the retaining spring clip up into the grooves in the quick release coolant hose connector, Separate connectors and plug both ends









45. Position coolant drain container underneath RH manifold tube inner connection to HV battery



46. Remove RH manifold tube
    注

    1x spring clip, 2x plugs. Prepare plugs from Coolant Hose Plug Kit, Dark Green and 12mm black,Move the retaining spring clip up into the grooves in the quick release coolant hose connector, Separate connectors and plug both ends







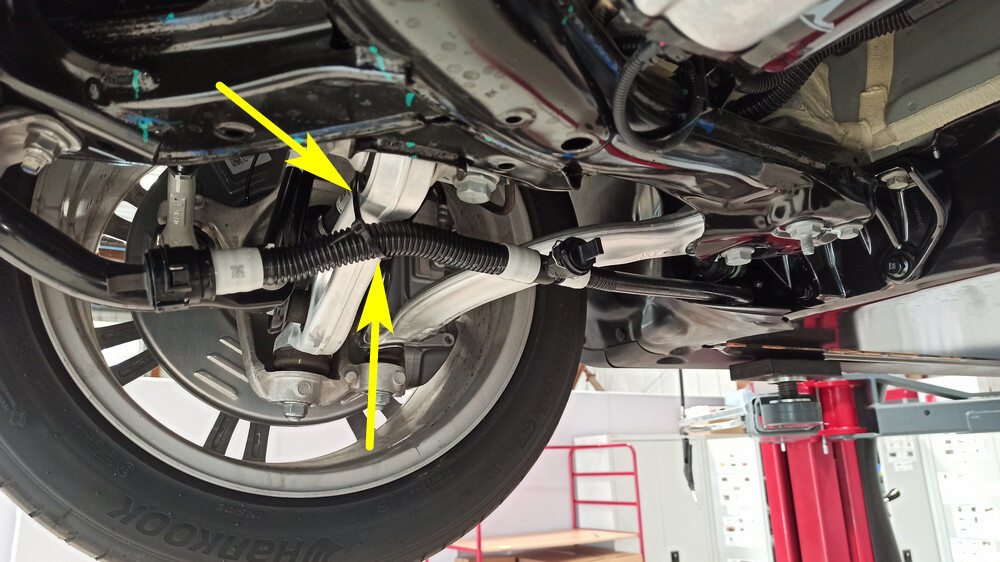

47. Remove RH manifold tube
    注

    Move RH manifold tube and secure it with cable tie



48. Remove coolant drain container from underneath vehicle

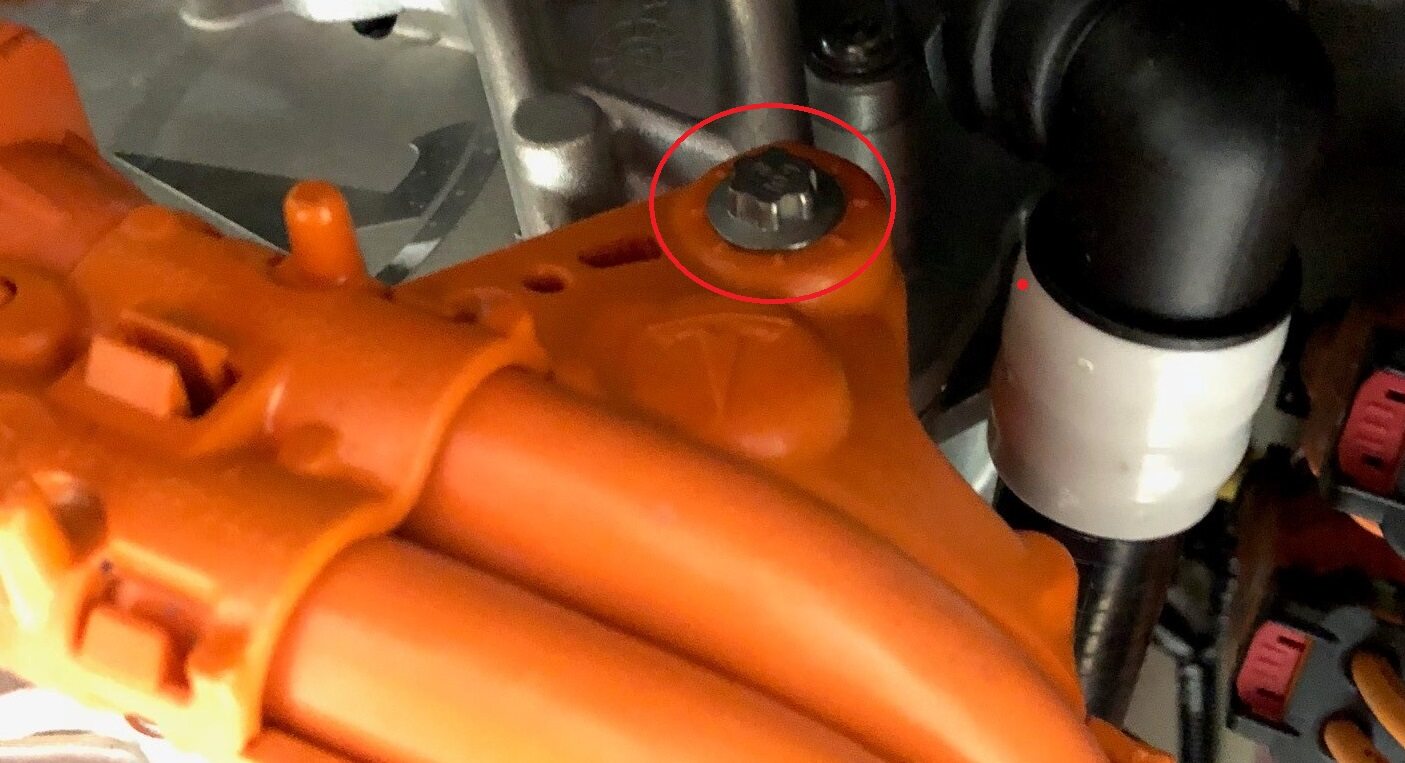

49. Remove bolt securing FDU HV harness to FDU
    注

    1x bolt, 10mm, 10 Nm



50. Remove all items from pockets and ensure not wearing metal items





51. Inspect HV insulating gloves
    注

    Check gloves for damage prior to each use, Refer to service document TN-15-92-003 R5, for information on inspecting HV gloves, https://service.tesla.com/docs/ServiceBulletins/External/TN/TN-15-92-003_High_Voltage_Awareness_Care_Points_R5.pdf



52. Put on HV insulating gloves and leather over gloves
    注

    Make sure to wear Electrical Protective Gloves any time Hioki tester is used

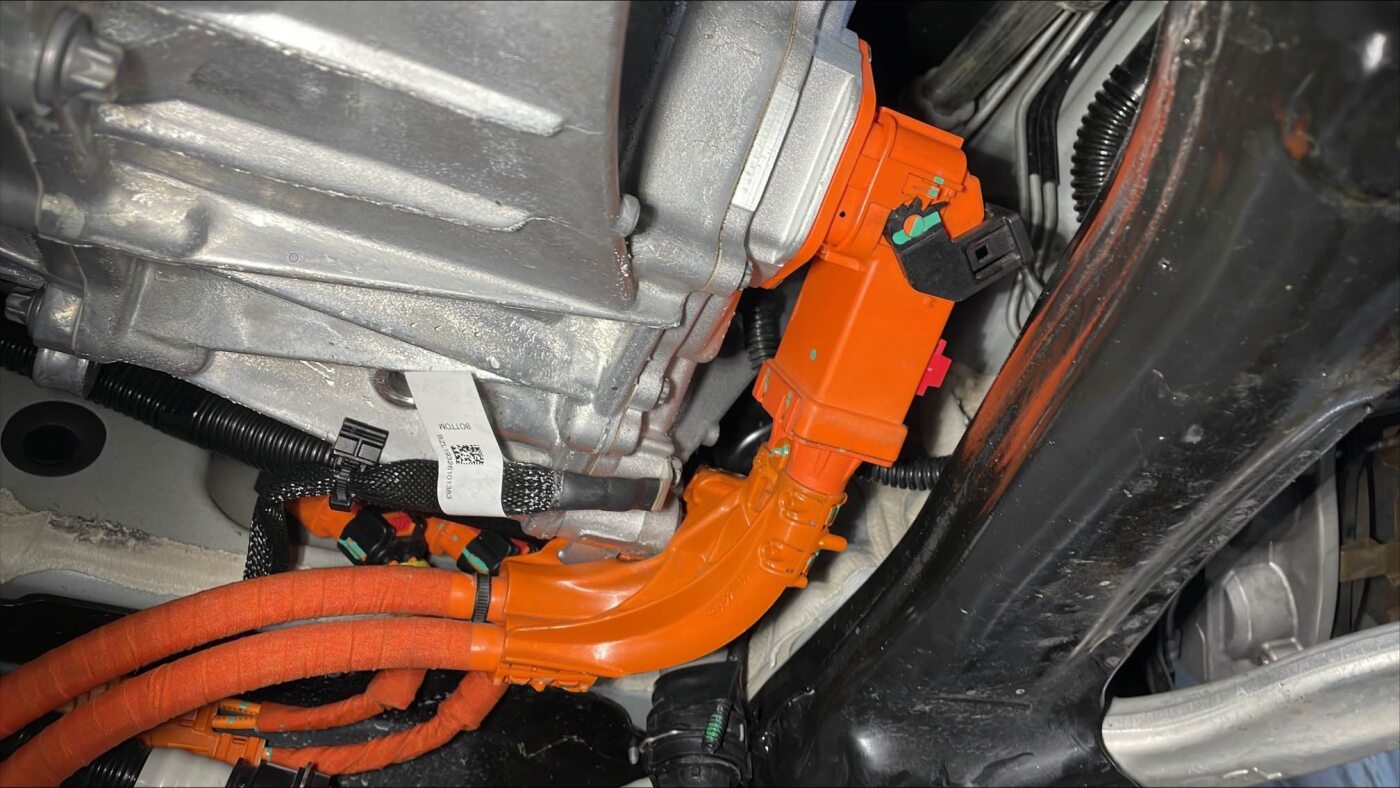

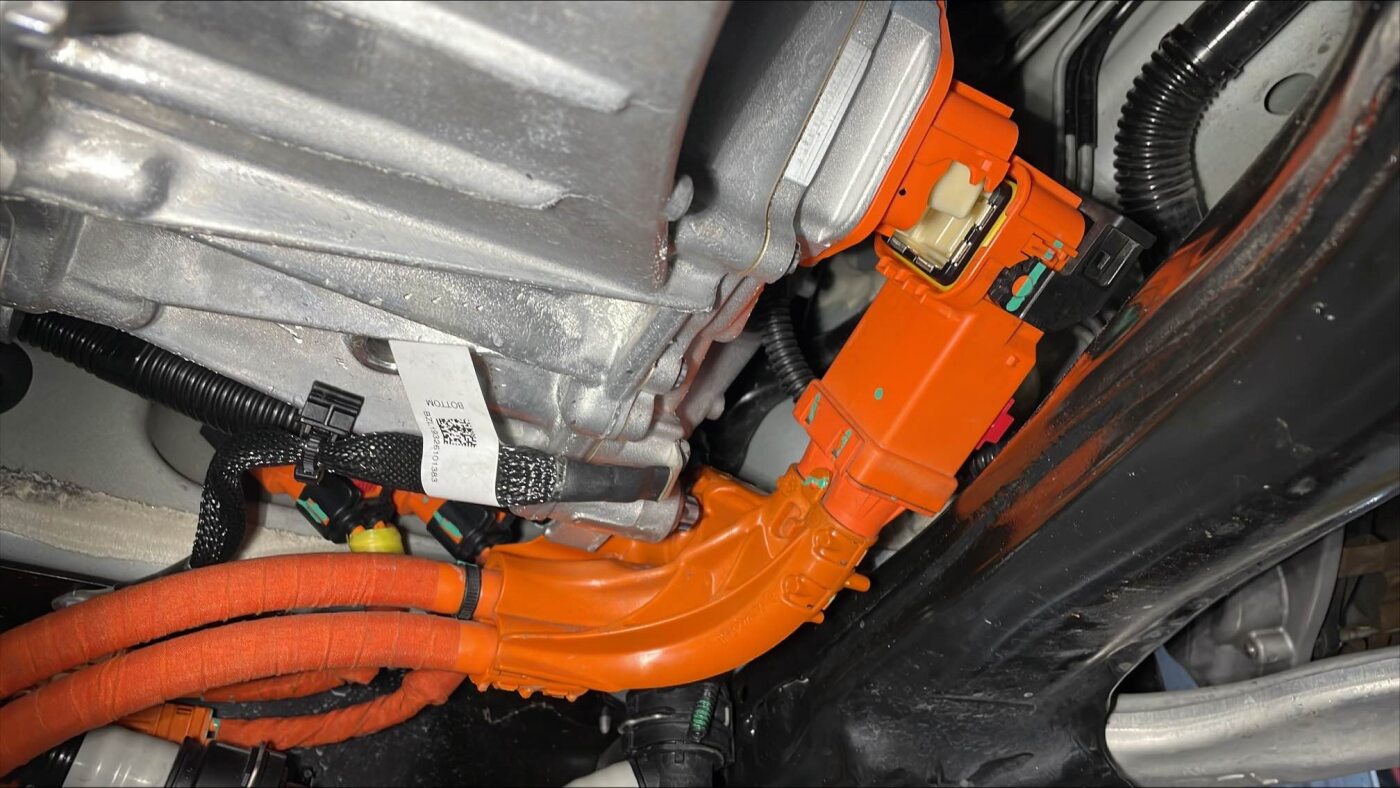

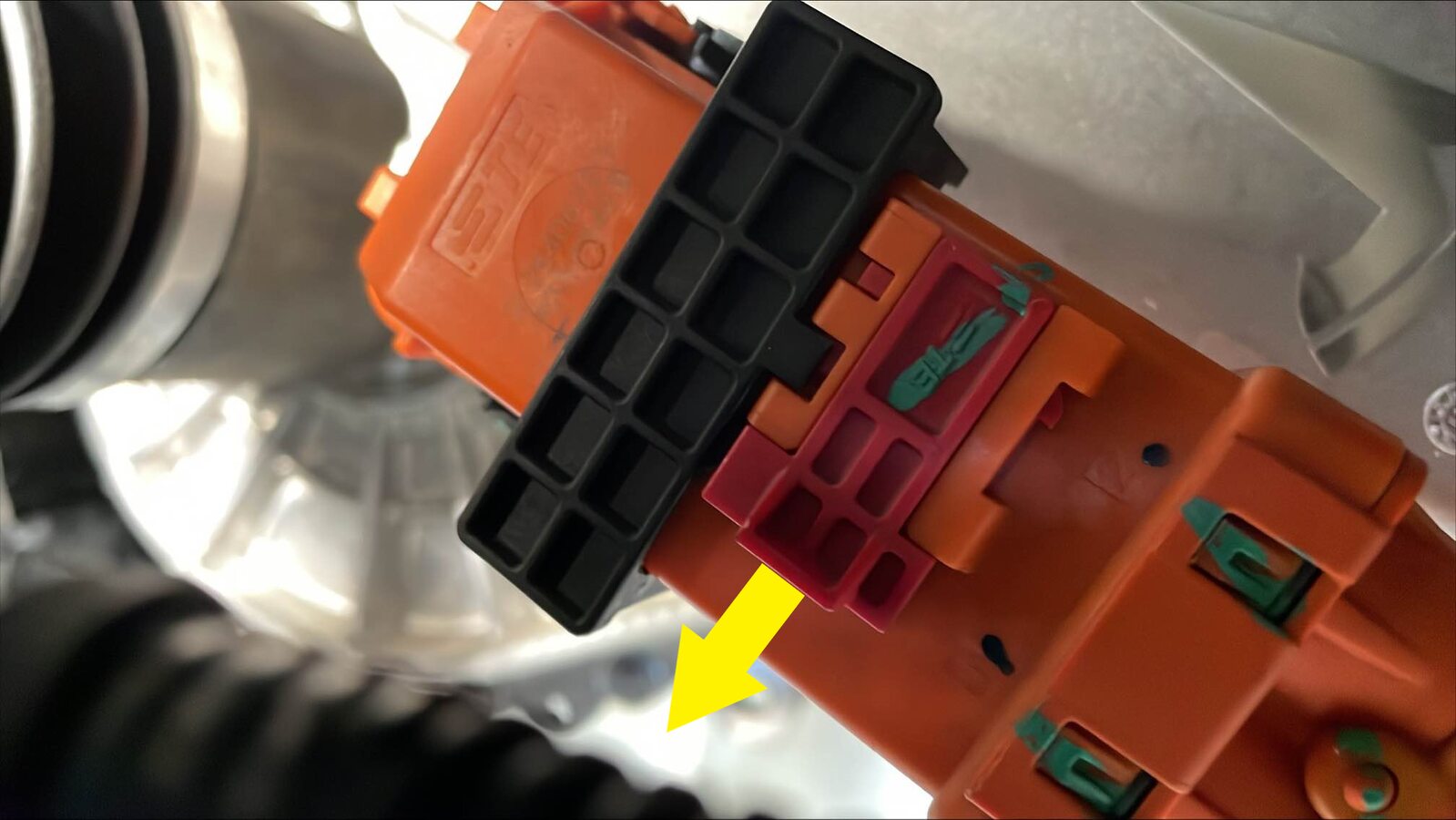

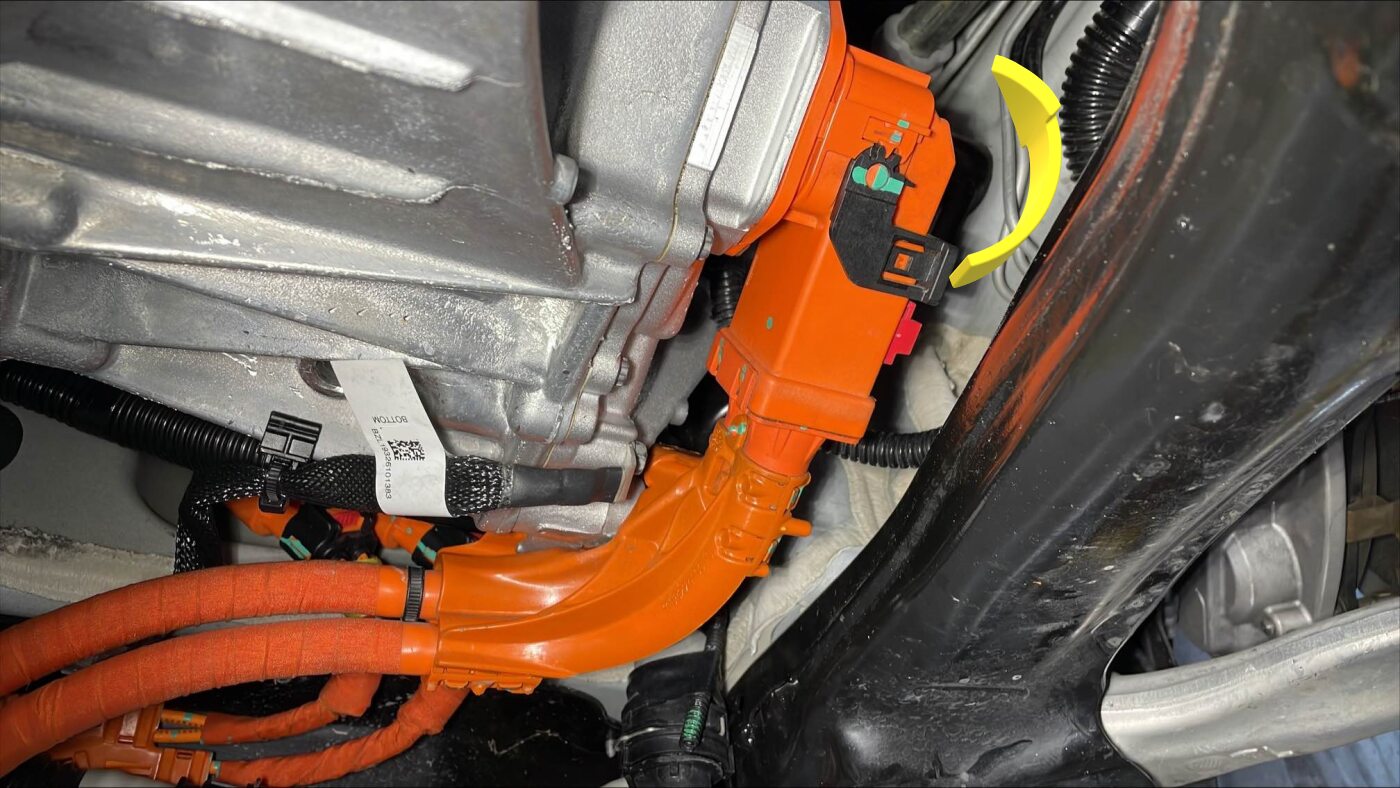

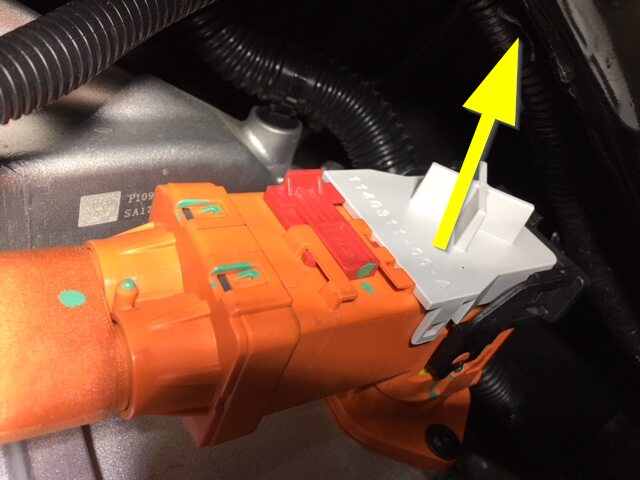

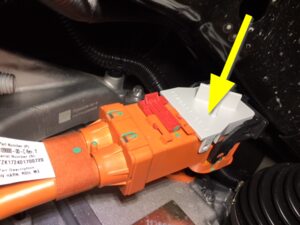

53. Disconnect the FDU HV harness connector
    注

    1x clip, Release locking tab and rotate the release lever up to disengage the connector, Do not force the release lever up, Ensure the alignment tabs on the FDU header are not damaged







54. Remove the FDU HV harness connector from the FDU and move aside
    注

    1x connector

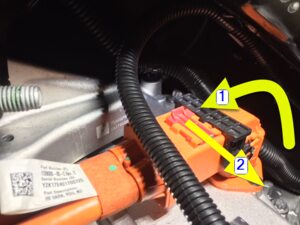

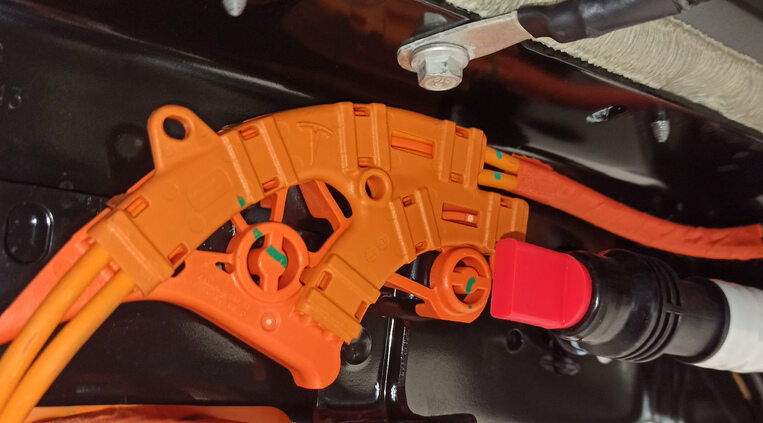

55. Disconnect both AC compressor and PTC heater HV harness connectors on HV battery
    注

    2x locking connectors, 2 stage locking connectors, Disengage the red locking tab by pulling it away from the connector, then depress the green tab to release









56. Remove ancillary harness bracket from front of HV battery
    注

    2x barrel clips

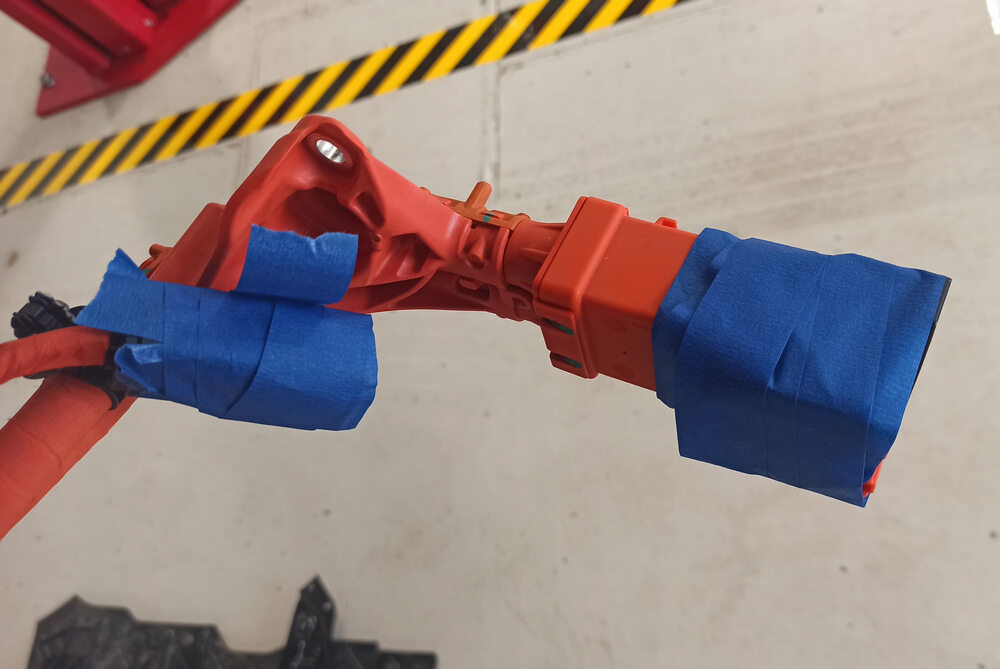

57. Wrap connectors
    注

    Wrap connectors to prevent from debris or metal chips



58. Remove HV insulating gloves



59. Remove center ski cover from HV battery
    注

    6x bolts, EP14, 34 Nm. Gently lower front of center ski cover to the floor





60. Use a spring loaded center punch to mark locations for drilling
    注

    Use a center punch to create a small dimple in the center of each spot weld

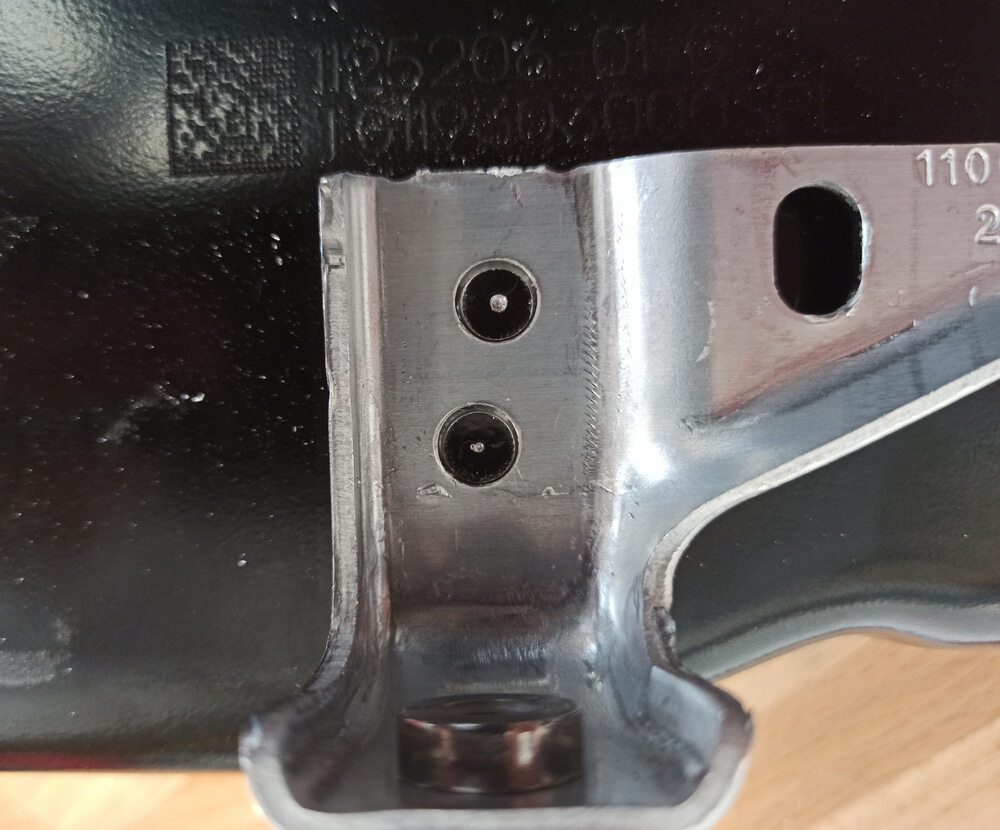

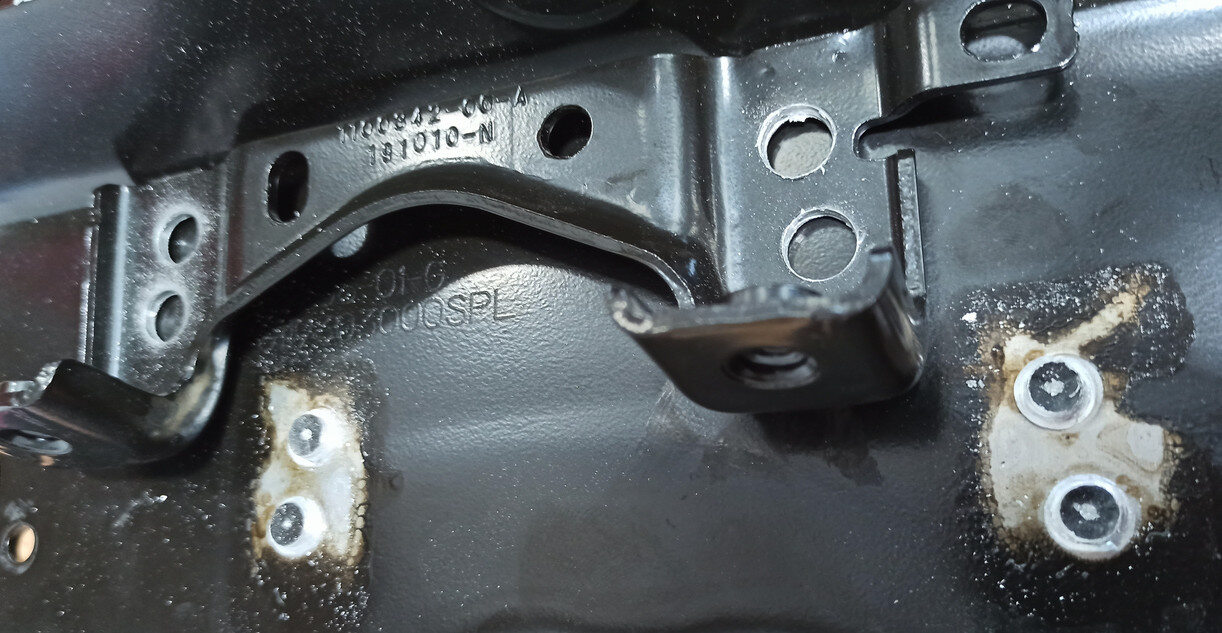

61. Use spot weld cutters to remove the Front Skid Plate Bracket
    注

    Use 3/8" size spot weld cutter,Use chiseling technique at high speed to allow the chips to fly out as the cut exits the aluminum, or clean the cutter manually after short drilling, Drill to a depth of no more than the thickness of the Skid Plate Bracket approximately 2.5mm,

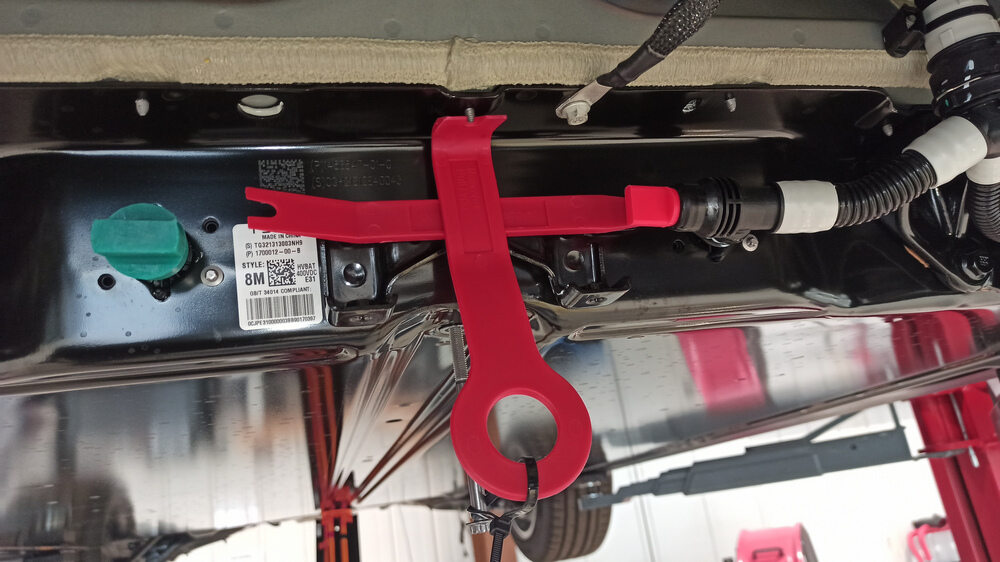

62. Separate Skid Plate Bracket from HV battery
    注

    When cutter is deep enough, use 38 mm Scraper or plastic wheel weight removal chisel and light hammer blows to try to separate the skid plate from the battery, If it didn't get off easy, try to drill a little deeper





63. Apply masking tape
    注

    Mark mating surface with masking tape

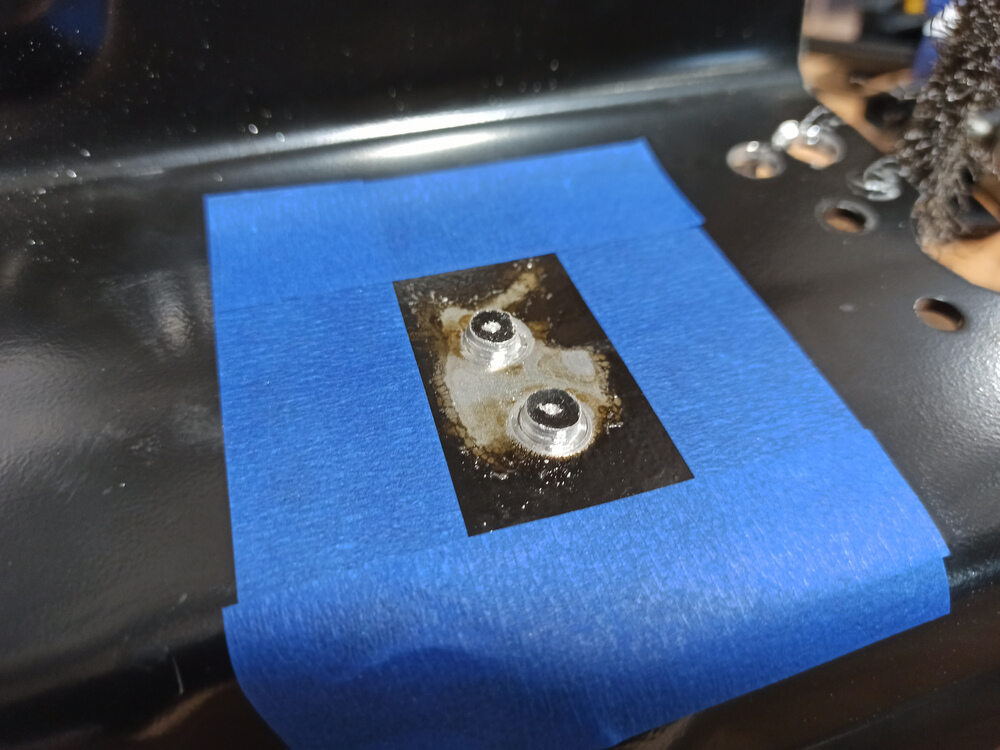

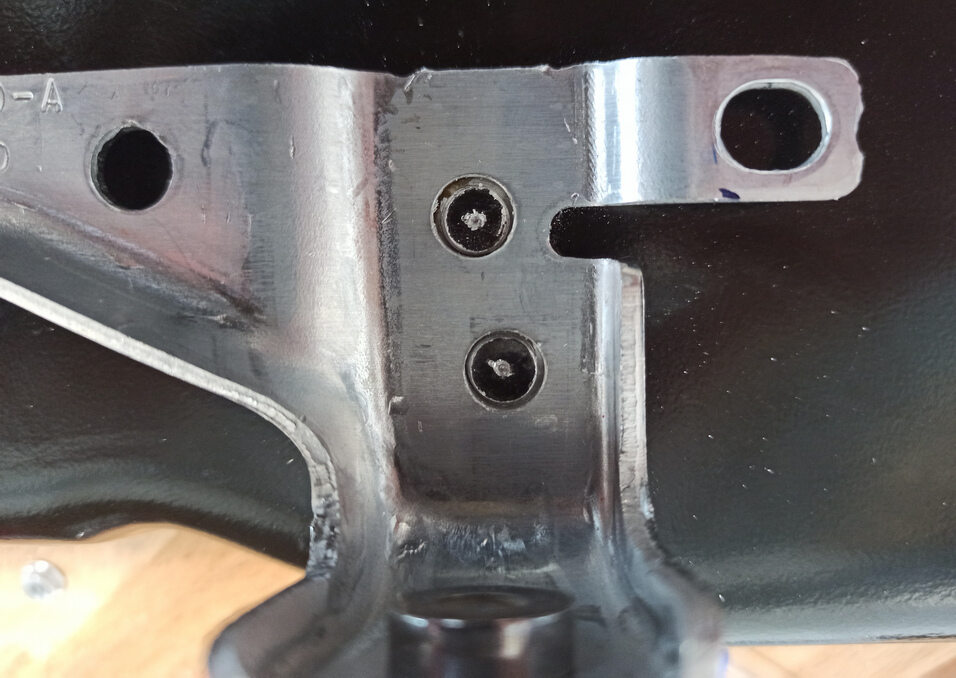

64. Clean mating area
    注

    Use 120 grit sand paper to remove paint on the mating surfaces

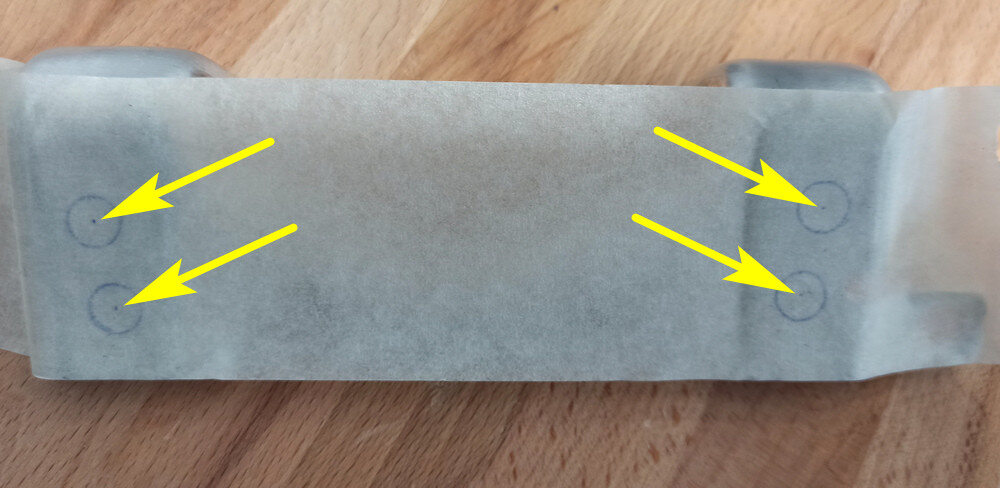

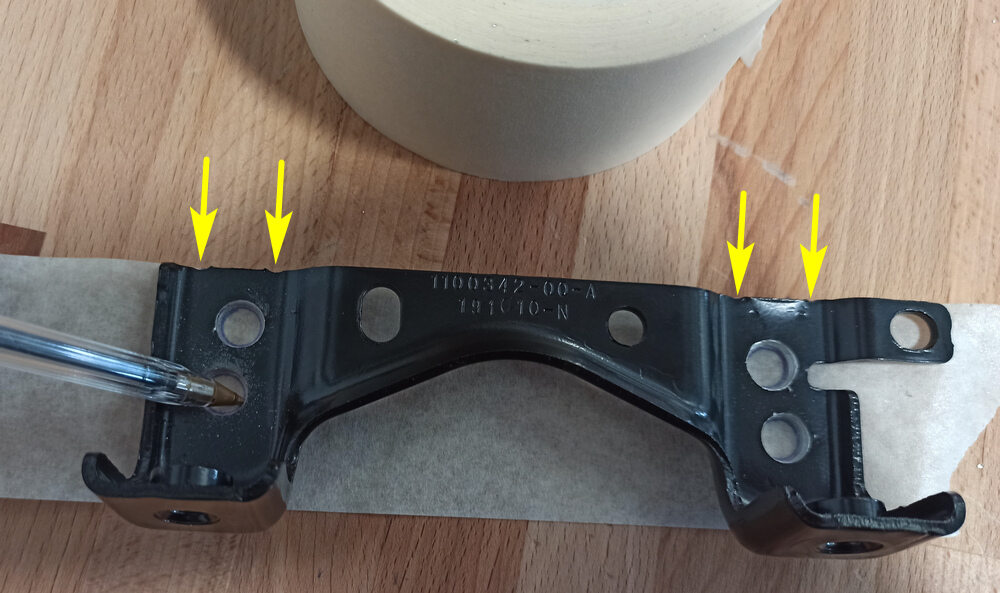

65. Create a stencil of holes for new skid plate bracket
    注

    Stick the masking tape on old Skid Plate Bracket along the top edge,Use thin ballpoint pen to mark the holes and Skid Plate Bracket location on a masking tape peace





66. Mark the location of the new holes
    注

    Remove a stencil from the old bracket and apply to the new one strictly in the same location,Use center punch to create a small dimple in the center of each circle

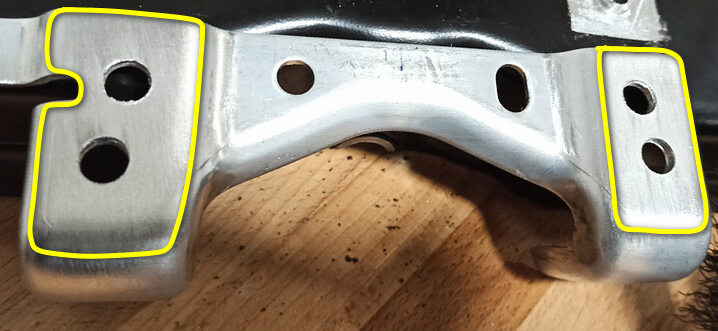

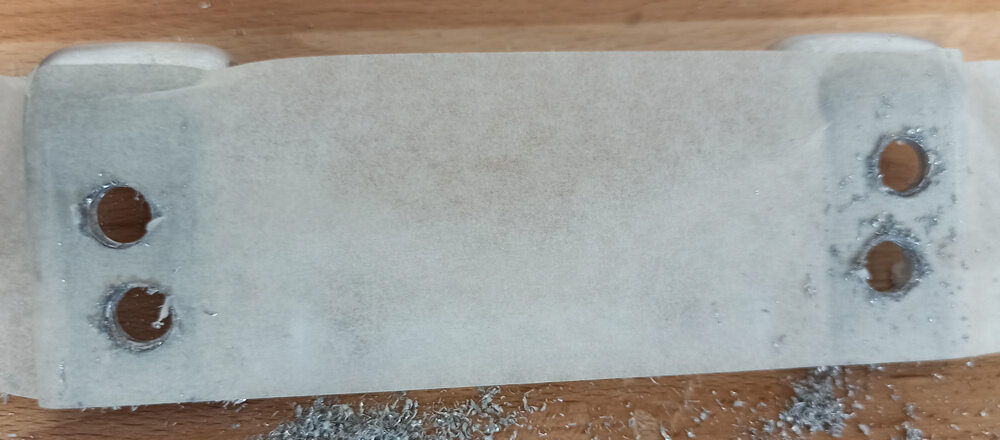

67. Drill holes in the new Skid Plate Bracket.
    注

    Secure the new Skid Plate Bracket in a vise with a 5/16" Spot Weld Cutter. Use chiseling technique at high speed to allow the chips to fly out as the cut exits the hole, or clean the cutter manually after short drilling.

    提示： 推荐使用以下工具：

    • Bench Vise
    • Size Spot Weld Cutter
    • Cordless Drill
    • Safety Glasses







68. Remove masking tape
    注

    Remove masking tape from the HV battery and Skid Plate Bracket



69. Clean mating area
    注

    Use 120 grit sand paper to clean future mating surfaces

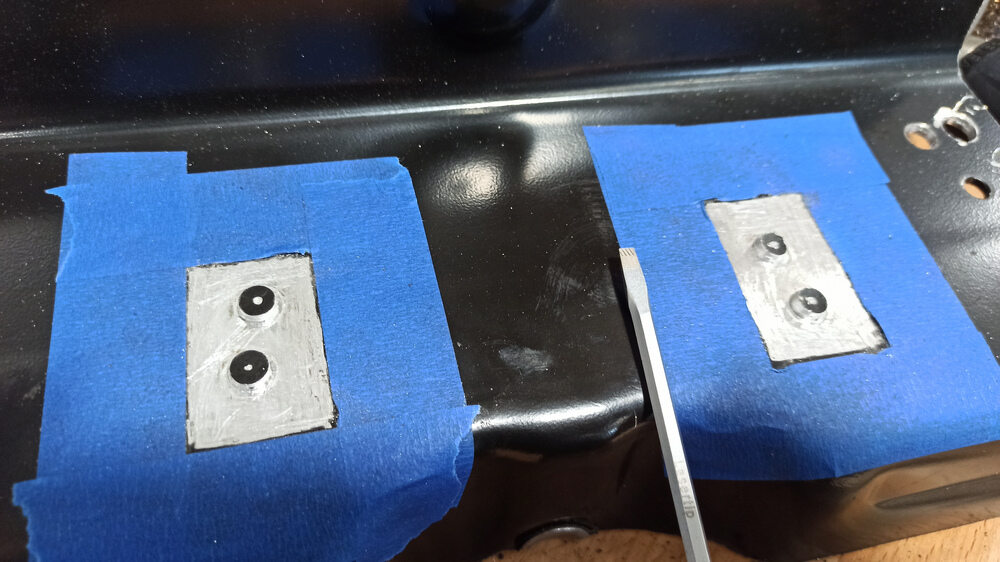

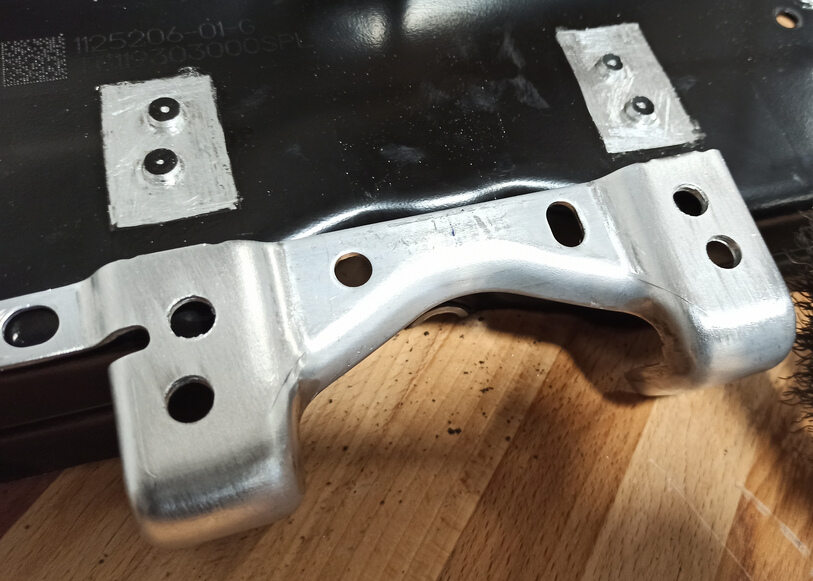

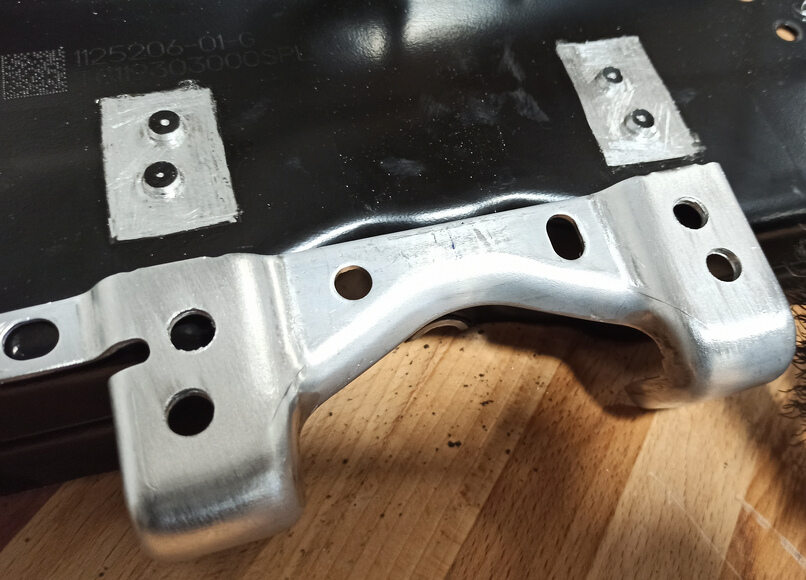

70. Fit the pieces together
    注

    Try the Skid Plate Bracket on a HV battery and check that the flat surfaces fit snugly together







71. Clean mating areas with Isopropyl alcohol



72. Allow 1 minute dry time

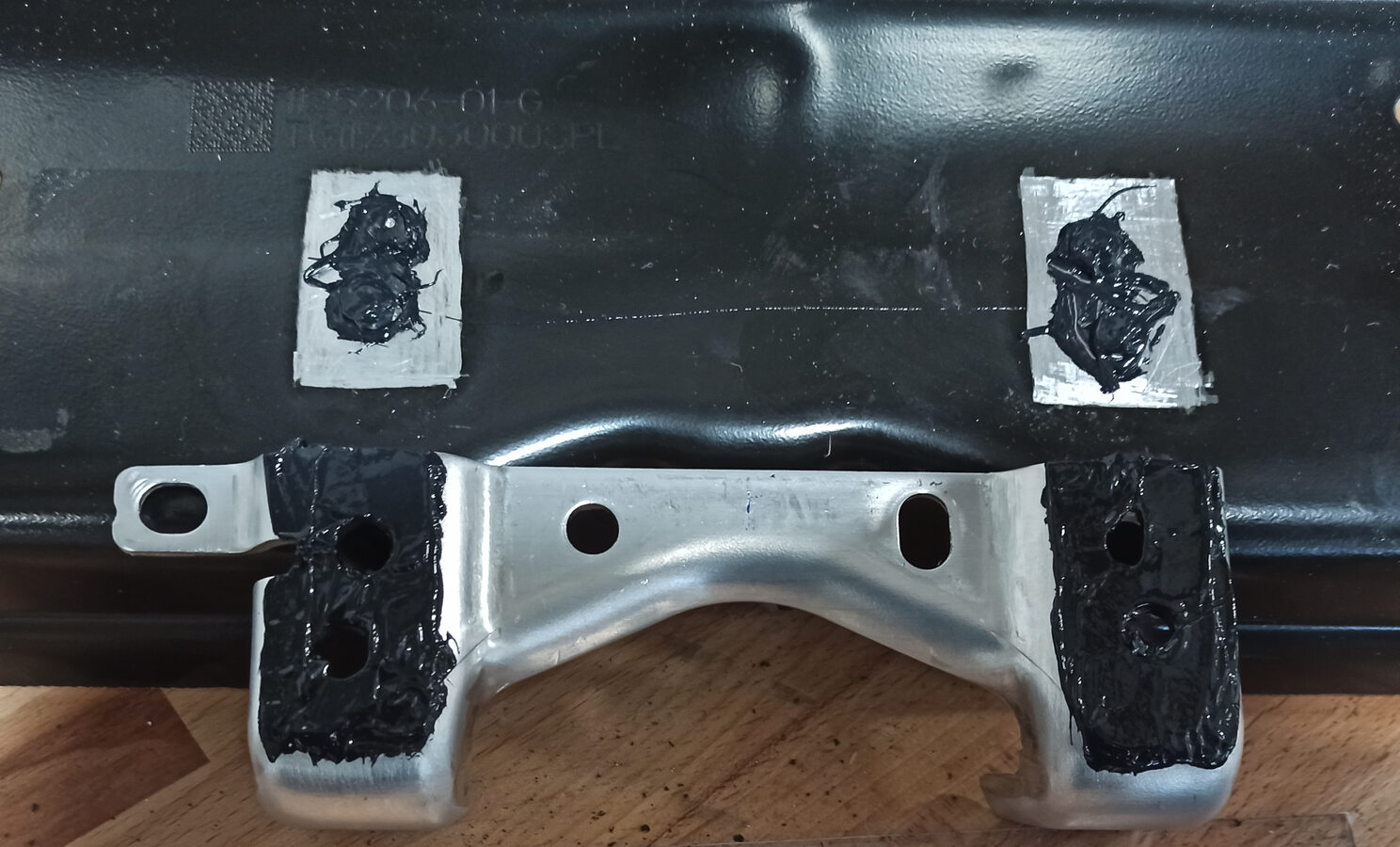

73. Apply adhesive
    注

    3M Static Mixing Nozzle for 200 ml cartridges; 3M Scotch-Weld EPX Manual applicator 200ml



74. Install the Skid Plate Bracket on a HV battery
    注

    Install Skid Plate Bracket on a HV battery. Use the long bolt from the ski plate, screw it in by hand in the first hole,Apply slight pressure to the bracket using 2 wedges, slightly zip tie the wedge as shown on pictures

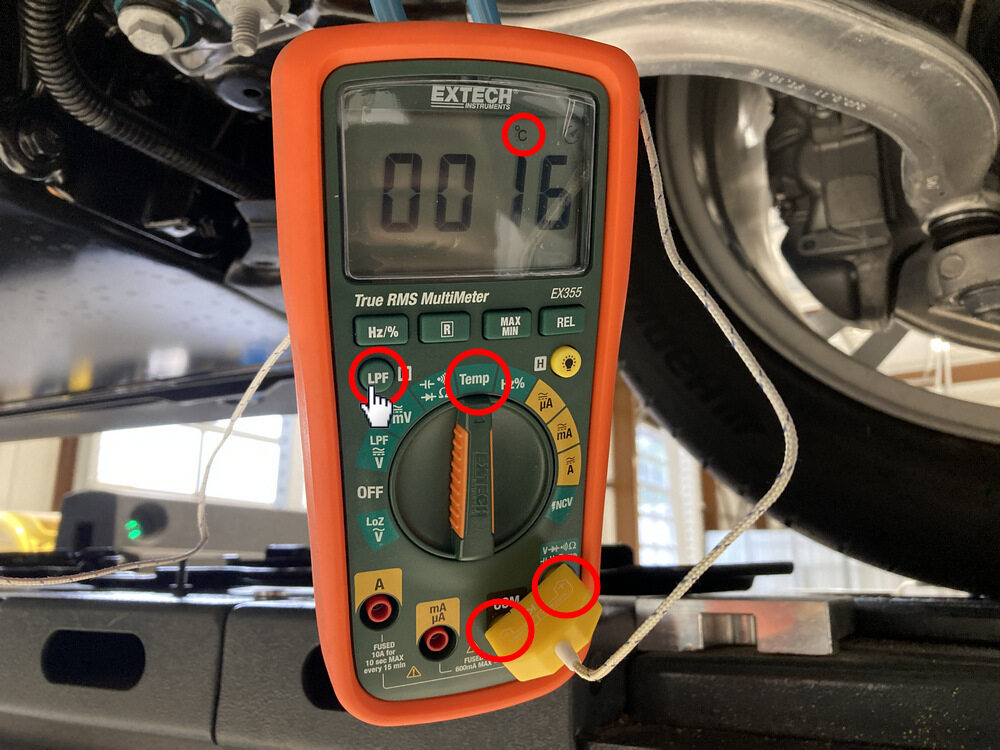

75. Set up temperature measurement tool
    注

    Set up the Digital multimeter with thermocouple attached to it, Be careful with the polarity of the plug, Press LPF button to change from °F to C°, Turn switch to Temp position,Check if the temperature readings are real,Attach thermocouple to the skid plate





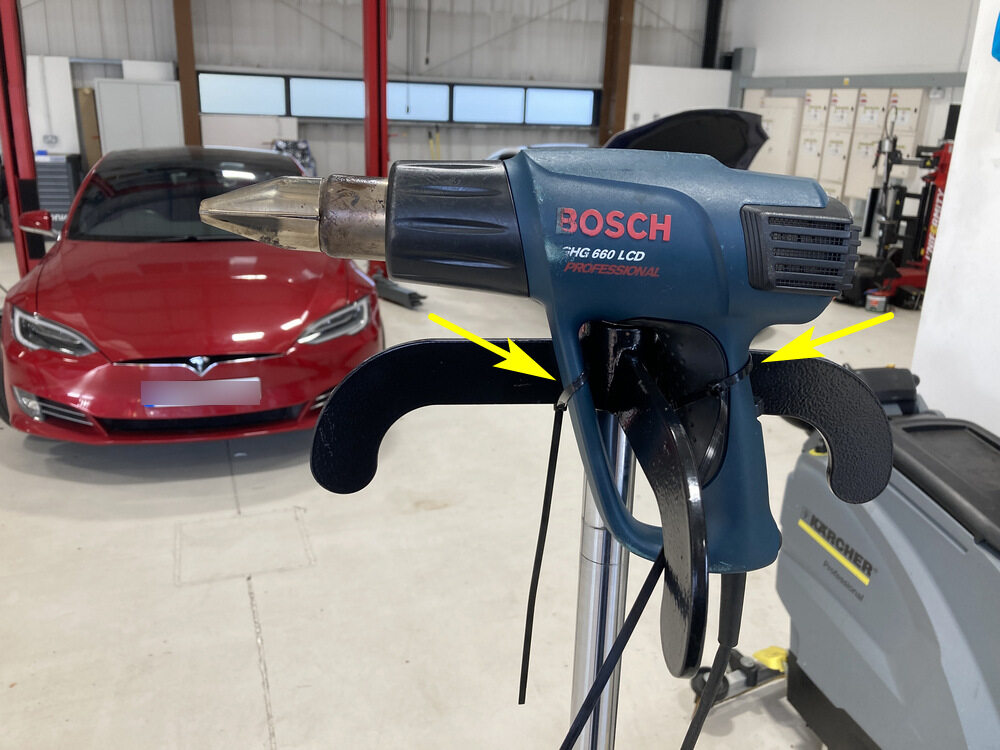

76. Use a heat gun to reduce curing time of adhesive
    警告

    When force curing adhesive in a repair area near the High Voltage Battery, do not allow the High Voltage Battery to reach a temperature above 74°C (165°F). Heating the High Voltage Battery above 74°C (165°F) for an extended period could result in injury to personnel and/or damage to the battery. Attach the Bosch digitally adjustable temperature heat gun to the Transmission Jack with the zip ties, Install it facing the skid plate bracket 10 cm from it curing▪ 7 days at 23 ± 2 °C▪ 2 hours at 65 ± 2 °C



77. Allow adhesive to cure
    警告

    When force curing adhesive in a repair area near the High Voltage Battery, do not allow the High Voltage Battery to reach a temperature above 74°C (165°F). Heating the High Voltage Battery above 74°C (165°F) for an extended period could result in injury to personnel and/or damage to the battery. Plug the heat gun to the power source, Turn it on and set up 100°C and air flow on average speed, Keep in mind, that temperature readings on a heat gun is not real but predicted,Monitor temperature on multimeter every 5 minutes for the first 30 minutes, every 10 minutes after establishment,If after 30 minutes temperature is less than 65°C or rising above adjust it on heat gun. Allow adhesive to cure for 2x hours



78. Allow adhesive to cure
    注

    Allow adhesive to cure 2 hours

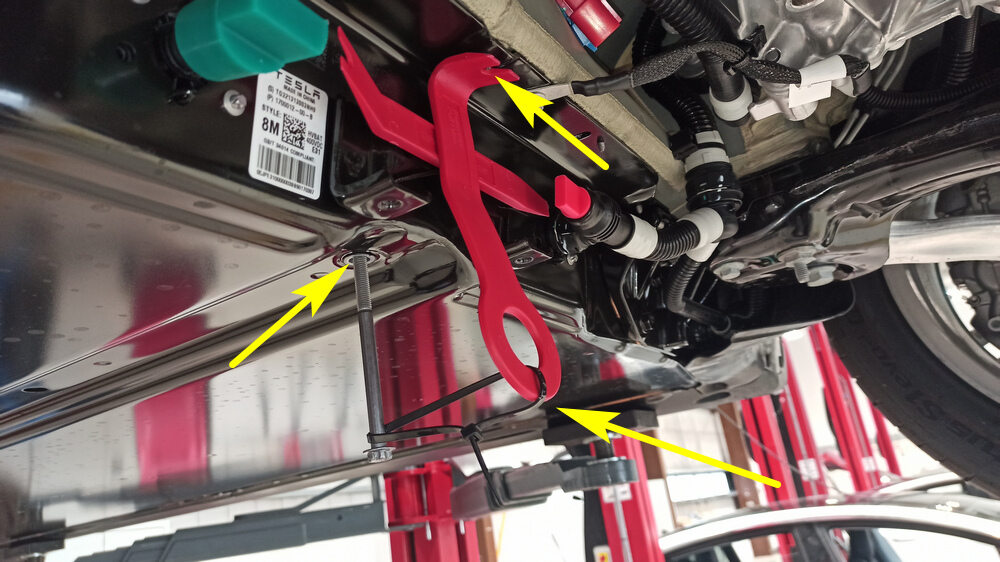

79. Remove wedges
    注

    Cut the zip tie and remove wedges, Remove bolt from the center ski cover first hole





80. Touch Up bare metal spots
    注

    Touch Up bare metal spots



81. Install center ski cover onto HV battery
    注

    6x bolts, EP14, 34 Nm



82. Remove all items from pockets and ensure not wearing metal items





83. Inspect HV insulating gloves
    注

    Check gloves for damage prior to each use, Refer to service document TN-15-92-003 R5, for information on inspecting HV gloves, https://service.tesla.com/docs/ServiceBulletins/External/TN/TN-15-92-003_High_Voltage_Awareness_Care_Points_R5.pdf



84. Put on HV insulating gloves and leather over gloves
    注

    Make sure to wear Electrical Protective Gloves any time Hioki tester is used



85. Remove masking tape from connectors





86. Install ancillary harness bracket to front of HV battery
    注

    2x barrel clips



87. Connect both AC compressor and PTC heater HV harness connectors on HV battery
    注

    2x locking connectors, 2 stage locking connector, After the connector is seated and there is an audible click, Engage the second lock by pressing towards the connector





88. Install FDU HV harness connector to FDU
    注

    1x connector, Install HV connector lever lock to FDU HV cable connector, Align connector to FDU then remove HV connector lever lock before fully latching connector, Use one hand to support the connector while other latching locking tab, Once installed, verify that the latch is not damaged and fully secured in the latched position







89. Remove HV insulating gloves



90. Install bolt securing FDU HV harness to FDU
    注

    1x bolt, 10mm, 10 Nm



91. Set free RH manifold tube
    注

    Cut cable tie and set free RH manifold tube



92. Position coolant drain container underneath RH manifold tube inner connection to HV battery



93. Install RH manifold tube to front of HV battery
    注

    1x spring clip, 2x plugs, Remove plugs from HV battery and manifold tube,Join quick release coolant hose connectors, Push the retaining spring clip to the place, Perform push-pull-push test to make sure hose is fully seated



94. Position coolant drain container below HV battery hose



95. Install RH manifold tube to LH manifold tube
    注

    1x spring clip, 2x plugs, Remove plugs from HV battery and manifold tube,Join quick release coolant hose connectors, Push the retaining spring clip to the place, Perform push-pull-push test to make sure hose is fully seated





96. Remove coolant drain container from underneath vehicle



97. Install front skid plate onto HV battery
    注

    2x tabs, Slide tabs onto front of HV battery





98. Install the bolts securing the front skid plate to the HV battery
    注

    4x bolts, E10, 13 Nm



99. Install the clips securing the front LH and RH wheel liners to the front skid plate
    注

    2x push clips



100. Position front aero shield to vehicle and install nuts
     注

     2x nuts, 15mm, 5 Nm





101. Apply Loctite 222 onto front aero shield bolts and install outer fasteners to front aero shield
     注

     9x bolts, 10mm, 5 Nm





102. Lower vehicle fully
     注

     Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered







103. Remove coolant bottle cap



104. Inspect coolant level and top off as necessary
     注

     Ensure that fluid level is at Max line



105. Connect first responder loop and 12V negative terminal
     注

     1x nut, 10mm, 6 Nm, 1x connector, Engage locking tab, Connect FRL first before connecting 12V to avoid damage to car computer





106. Connect 2nd row seat cushion harness and install 2nd row seat cushion
     注

     2x connectors, 2x clips, Insert the seat belt buckles through the holes, Slide rear cushion inward then align front guide tabs to locking tabs, Make sure cushion is fully seated with push & pull test near clips









107. Move RH front seat to original position



108. Move LH front seat to original position



109. Turn on the drive rail
     注

     Sit in the driver’s seat and step on the brake pedal while key card is placed next to cup holder to turn on the drive rail and power on the vehicle





110. Access Thermal System routines using the UI
     注

     Select Service mode > Thermal





111. Select "Stop Thermal Fill Drain" using the UI







112. Select "Start Coolant Air Purge" using the UI
     注

     Wait till coolant pumps stop to run (audible noise), The Success sign will appear shortly, but pumps will run for 10 minutes, If you start next procedure during this time, it will fail, Make sure vehicle is not in "Drive", Plan is still running despite the stop message, Speeds can be monitored in garage under PT Thermal tab, Idle speed = ~1500 RPM, Test will vary speeds from 3500-6500 RPM and actuate valve between SERIES and PARALLEL, Putting vehicle into "Drive" will stop this routine, If speeds hover at 7000 RPM, that means the pumps are air locked, perform vacuum fill again, Continue to add coolant and purge until the coolant level reaches between the NOM and MAX Lines on the bottle







113. Inspect coolant level and top off as necessary
     注

     Ensure that the fluid level is at the Max line



114. Install coolant bottle cap



115. Install frunk assembly to vehicle
     注

     12x clips, Make sure frunk assembly is fully seated onto clips, Number of clips may vary on older vehicles





116. Install bolts securing frunk assembly
     注

     7x bolts, 10mm, 5 Nm, Lower RBN covers after installing upper fasteners, Newer vehicles may not be equipped with covers



117. Install frunk close out panel
     注

     4x clips, 1x connector, Frunk safety switch, 3x guide tabs, Align 3x tabs then push downward to secure clips



118. Install cabin intake upper duct assembly
     注

     4x clips, Heat pump vehicles have 3x clips





119. Install rear apron
     注

     12x clips





120. Close hood



121. Raise all windows



122. Exit Service Mode +
     注

     Use UI screen to exit SM+





123. Close all four doors
     注

     Unlatch rear doors before closing



124. Remove lift arms from below vehicle
     注

     Lower rack arms fully and remove them from under vehicle
