铰链 - 车门 - 后 - 下 - LH（拆卸和更换）

校正代码 11337002 0.24 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。

拆卸

  1. Open the LH front and door and lower the LH front and rear windows.
  2. Apply tape to the rear door to mark the lower hinge location.
  3. Apply tape to the body to mark the rear lower hinge location.
  4. Use a jack to support the LH rear door from the bottom.
    Informational PurposesAn informational icon, calling your attention
    注
    Make sure to use soft material to protect the painted surface.

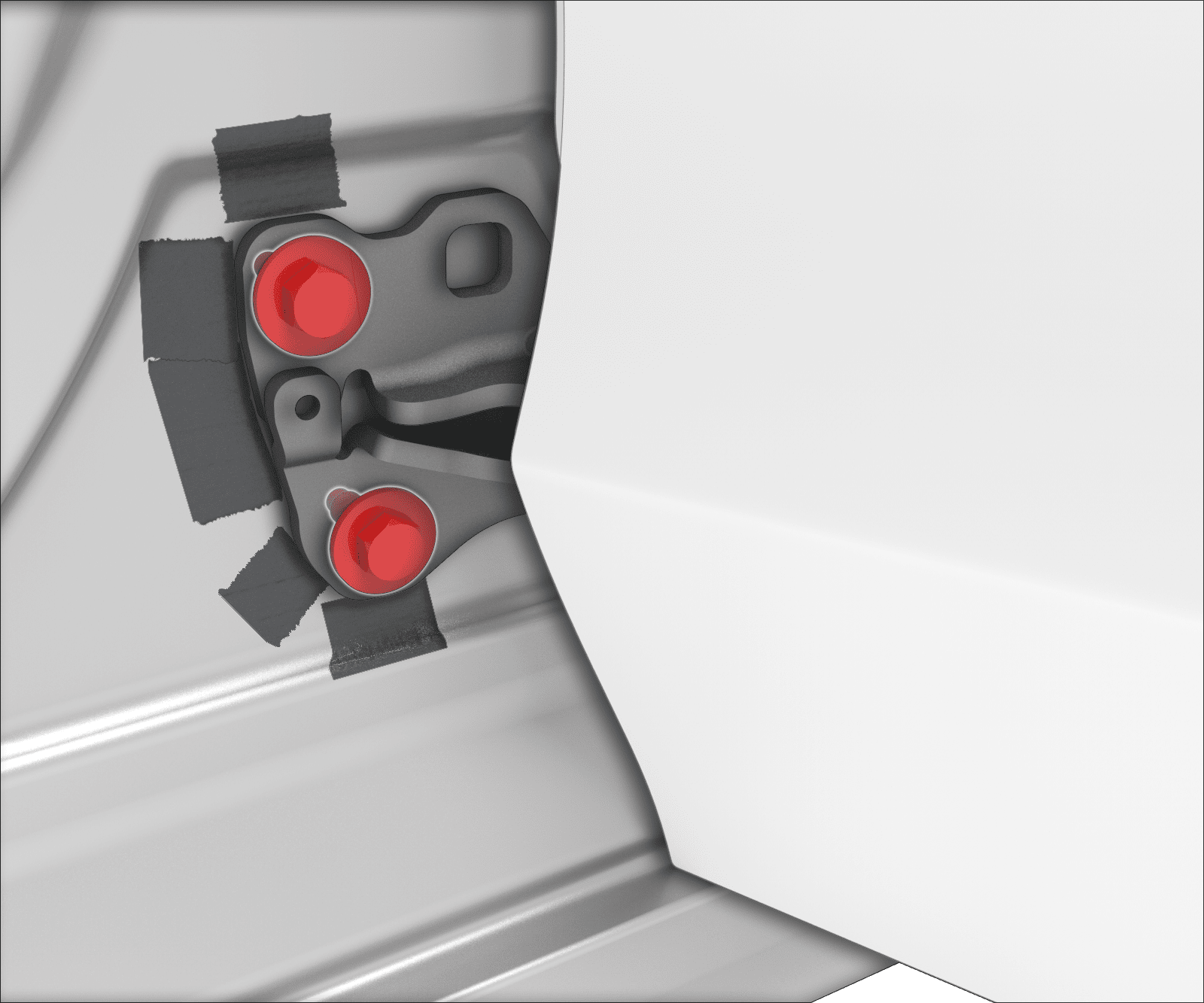

  5. Remove the bolts (x2) that attach the lower door hinge to the LH rear door.

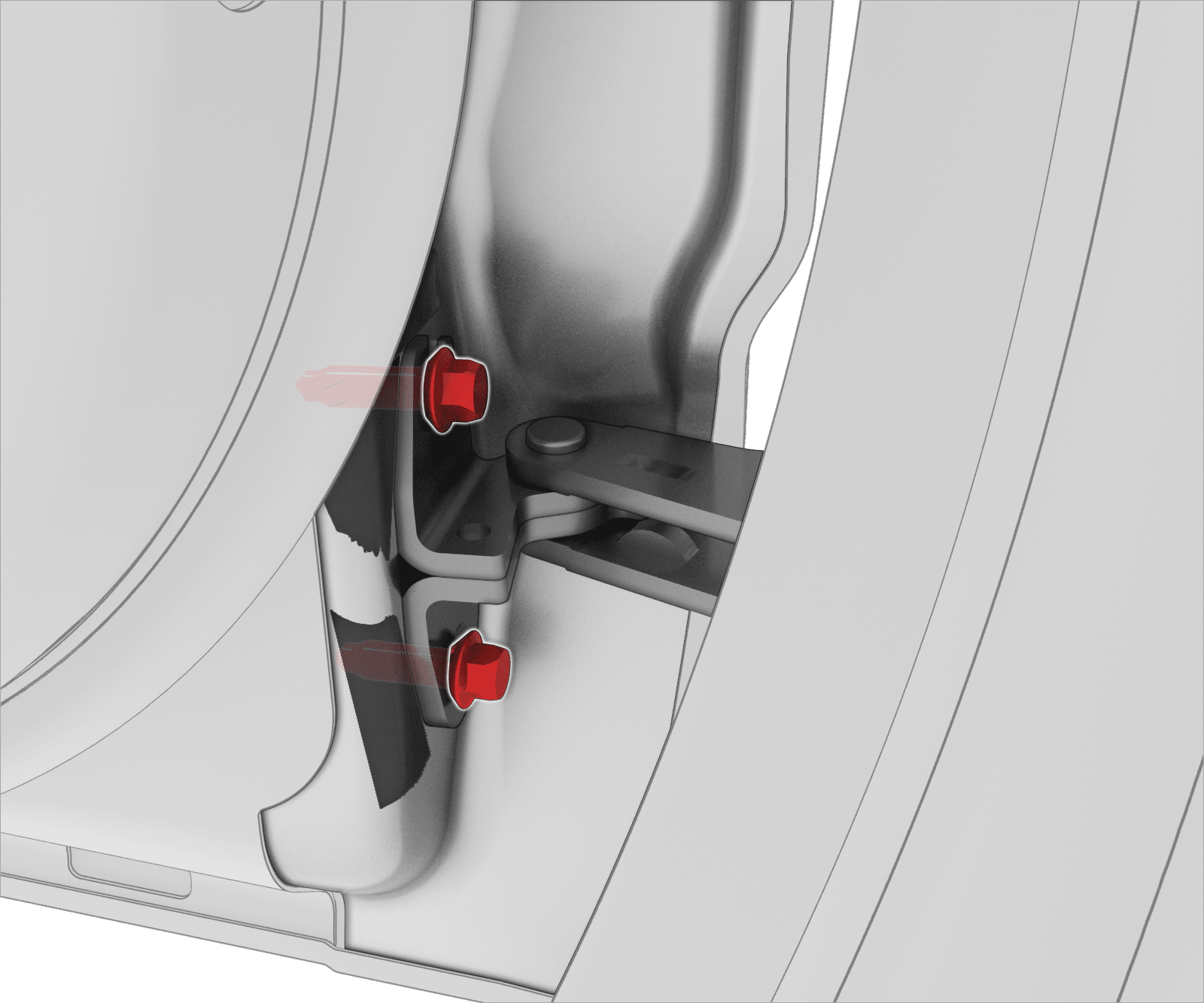

  6. Remove the nuts (x2) that attach the rear lower door hinge to the body, and then remove the LH rear lower door hinge from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    注
    Support the door hinge to make sure it does not fall in the door jam.

安装

  1. Align the new lower hinge with the applied tape on the body, and then install the nuts that attach the lower door hinge to body hand tight.
  2. Align the new lower hinge with the applied tape on the LH rear door, and then install the bolts that attach the lower hinge to the LH rear door hand tight.
  3. Close the LH front and rear doors, and then check for gap and flushness. Adjust if necessary.

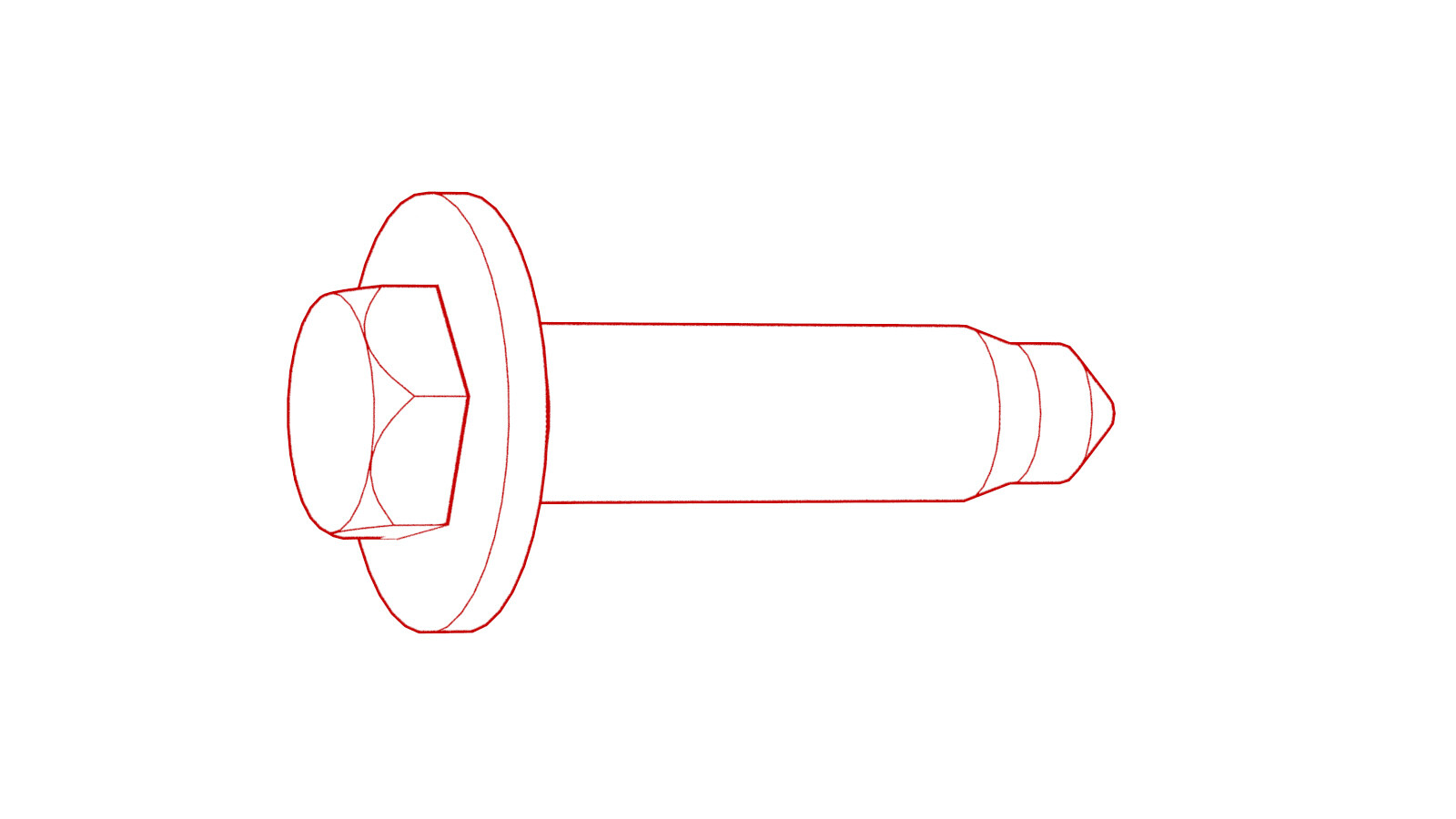

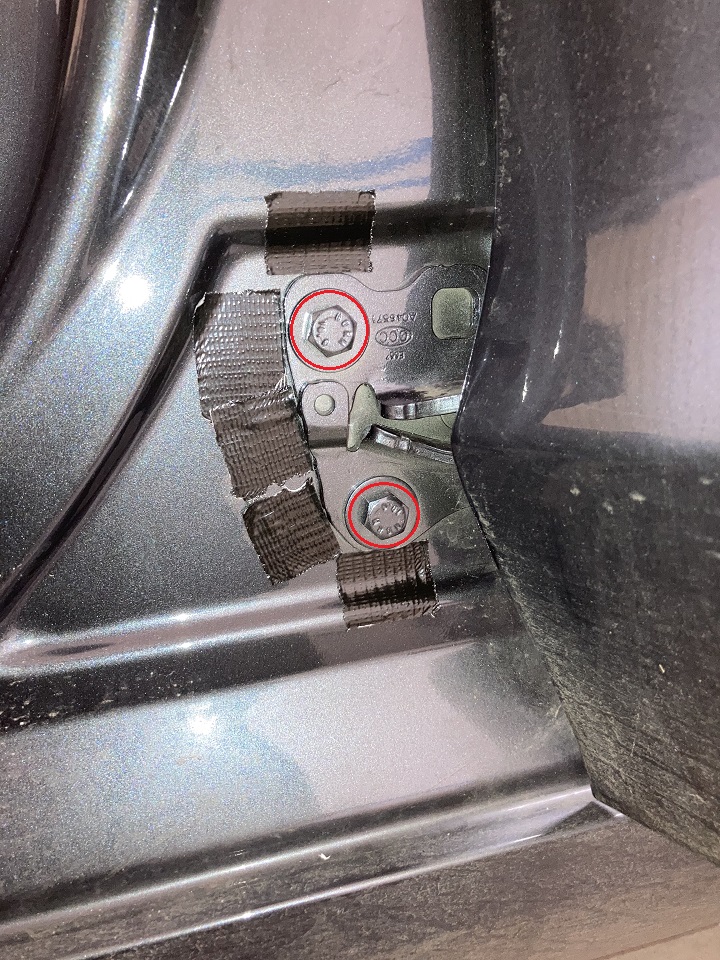

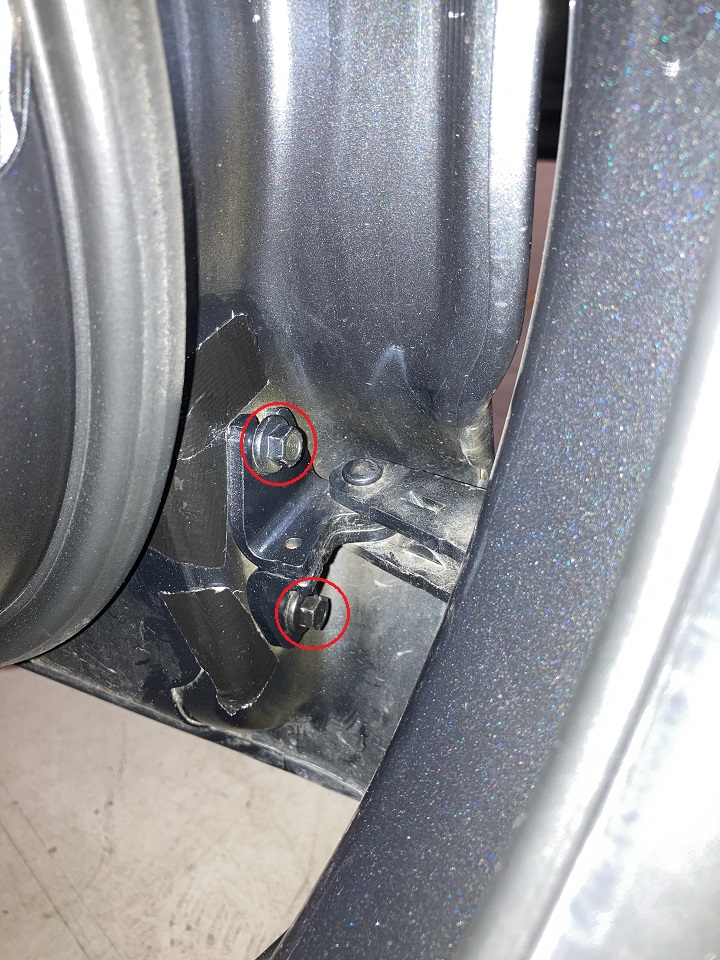

  4. Tighten the bolts (x2) and nuts (x2) that attach the LH rear door lower hinge to the door and the body.
    27 Nm (19.9 lbs-ft)
    27 Nm (19.9 lbs-ft)
  5. Remove the tape from the LH body side and the LH rear door.
  6. Clean the hinge bolts with IPA.
    Informational PurposesAn informational icon, calling your attention
    注
    Allow 1 minute dry time
  7. Apply touch up paint to bolt heads if necessary, and then allow paint to dry.
  8. Raise both LH windows and close both LH doors.
