制动片和制动盘 - 前 - 成套（拆卸和更换）

校正代码 33010905 1.02 注意： 除非本程序中另有明确规定，否则上文所列校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。 除非明确要求，否则请勿堆叠校正代码。 注意： 请参阅平均维修工时深入了解 FRT 及其创建方式。 要提供有关 FRT 值的反馈，请发送电子邮件至ServiceManualFeedback@tesla.com。 注意： 请参阅人员保护确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。 注意： 请参阅人体工程学注意事项查看安全健康的作业规程。

  • 2026-02-12: Updated steps to move caliper off of the knuckle. Full removal is not required.
  • 2025-07-01: Added correct step for brake burnishing.
  • 2023-10-12: Reorganized the procedure.

拆卸

  1. Raise and support the vehicle. See 举升车辆 - 双柱举升机.
  2. Remove the rear underhood apron. See 前备箱挡板 - 后部（拆卸和更换）.
  3. Place absorbent material under the brake booster and reservoir area.
  4. Remove the LH and RH wheel caps. See 盖 - 车轮（拆卸和更换）.
  5. Remove the LH and RH wheels. See 轮毂总成（拆卸和安装）.
  6. Remove the LH and RH front brake pad kits. See 制动片套件 - 前（基础版制动器）（拆卸和更换） or 制动片套件 - 前（运动版制动器）（拆卸和更换）.

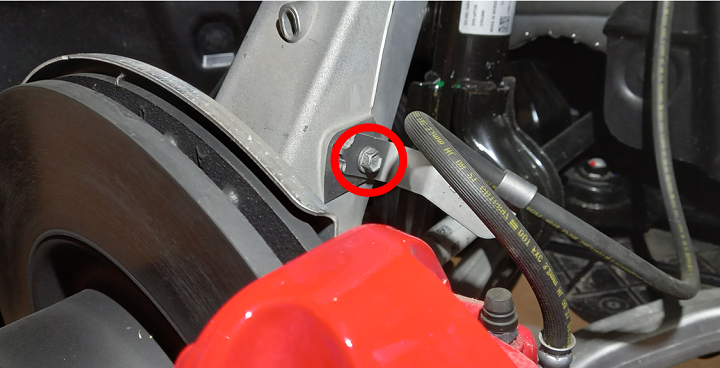

  7. Remove the bolt that secures the LH front brake hose to the knuckle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

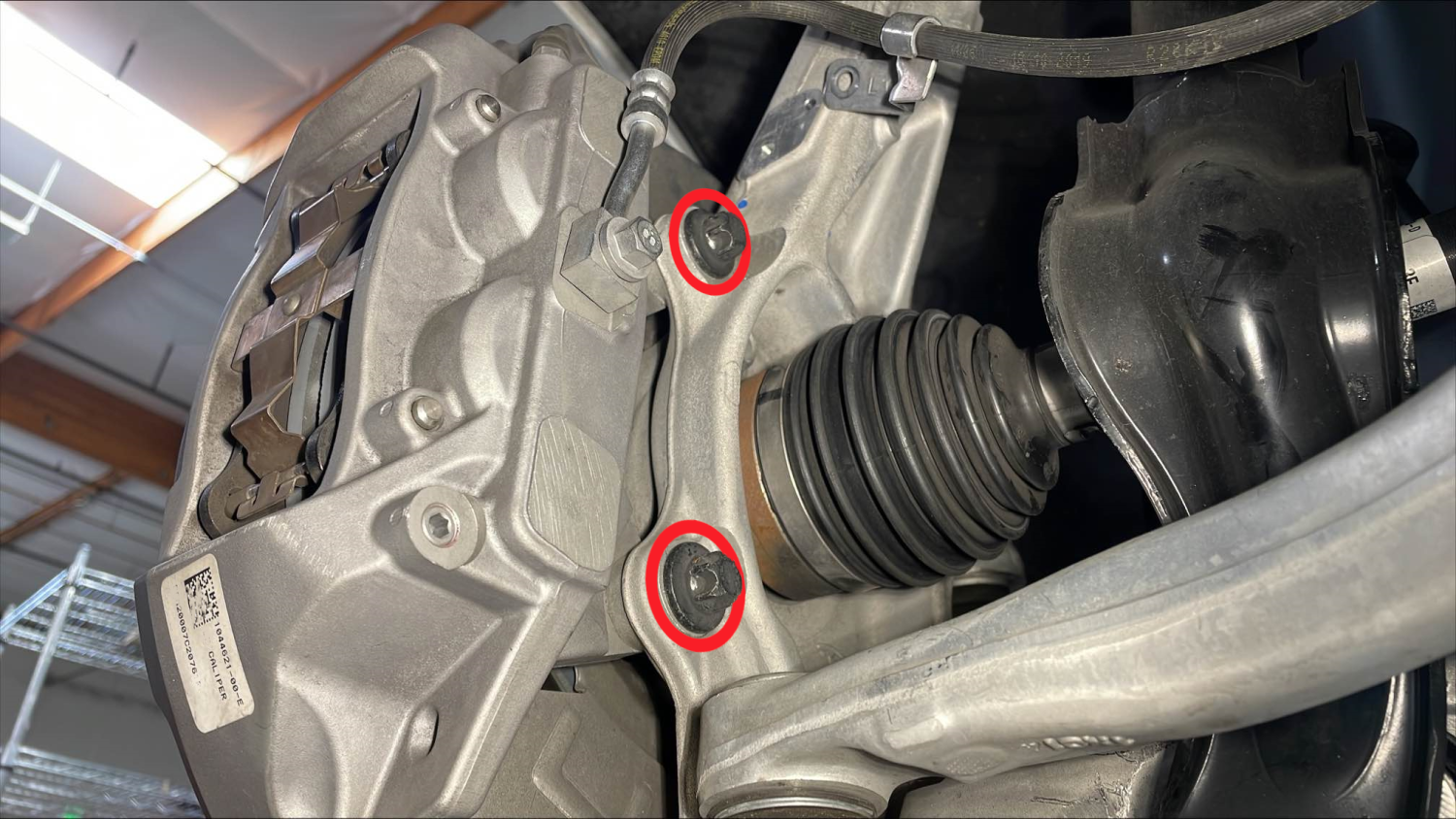

  8. Remove and discard the bolts (x2) that secure the LH front brake caliper to the front knuckle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • External Torx E18

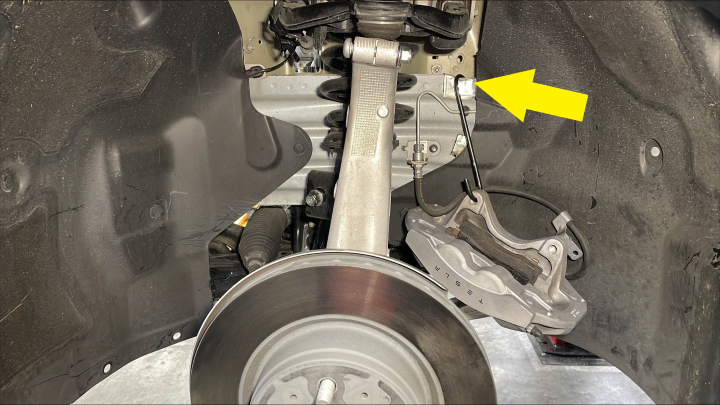

  9. Gently hang the caliper off to the side with an S-hook.
  10. Remove the LH and RH front rotors. See 制动盘 - 前 - LH（拆卸和更换）.

安装

  1. Install the LH and RH front rotors. See 制动盘 - 前 - LH（拆卸和更换）.
  2. Mount the LH front brake caliper onto the front knuckle. Install and torque new bolts (x2).
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • External Torx E18
    94 Nm (69.3 lbs-ft)
  3. Install and torque the bolt that secures the LH front brake hose to the knuckle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
    5 Nm (3.7 lbs-ft)
  4. Install the LH and RH front brake pad kits. See 制动片套件 - 前（基础版制动器）（拆卸和更换） or 制动片套件 - 前（运动版制动器）（拆卸和更换）.
  5. Install the LH and RH wheel caps. See 盖 - 车轮（拆卸和更换）.
  6. Repeatedly press the brake pedal until firm.
  7. Inspect the brake fluid level and top off as necessary.
  8. Remove the absorbent material from under the brake booster and reservoir area.
  9. Install the rear underhood apron. See 前备箱挡板 - 后部（拆卸和更换）.
  10. Remove the vehicle from the 2 post lift. See 举升车辆 - 双柱举升机.
  11. 磨合制动器。请参阅制动片 - 磨合。
    Informational PurposesAn informational icon, calling your attention
    注
    驾车时，请确保制动踏板触感和性能正常。
    Informational PurposesAn informational icon, calling your attention
    注
    将制动片磨合校正代码 33013000 作为一项单独的工项添加至“服务工单”中。
