Duct - Footwell - RH (LHD) (Remove and Replace)
校正代码
18108702
0.36
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created. To provide feedback on
FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure.
拆卸
- 拆下副驾位膝部气囊。请参阅Airbag - Knee - Front Passenger (Remove and Replace)。

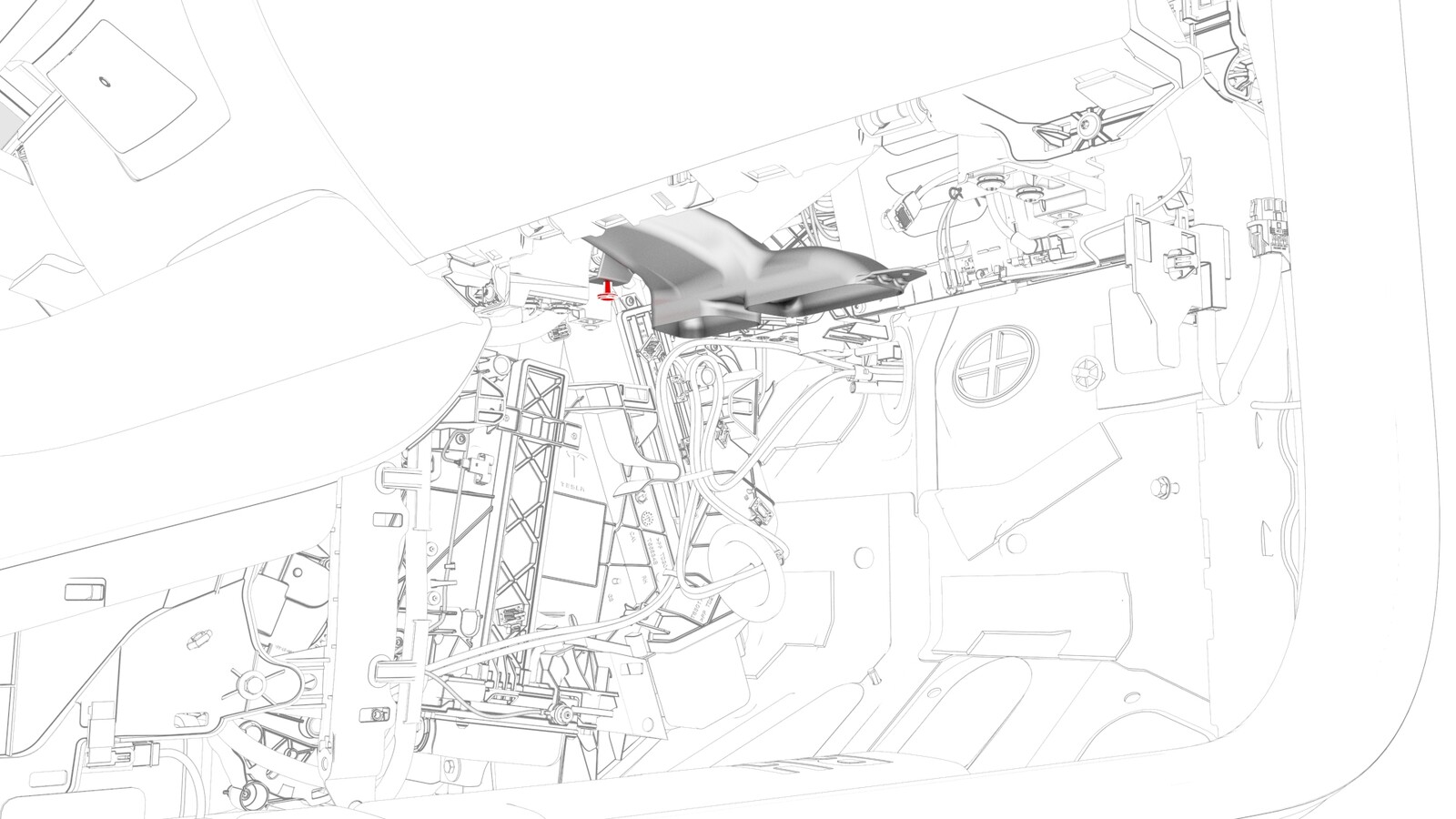

- 使用饰板工具松开将 RH 脚部空间进气槽连接到暖通空调模块的推拉式夹,然后从车上拆下 RH 脚部空间进气槽。
安装
安装程序与拆卸程序相反。
