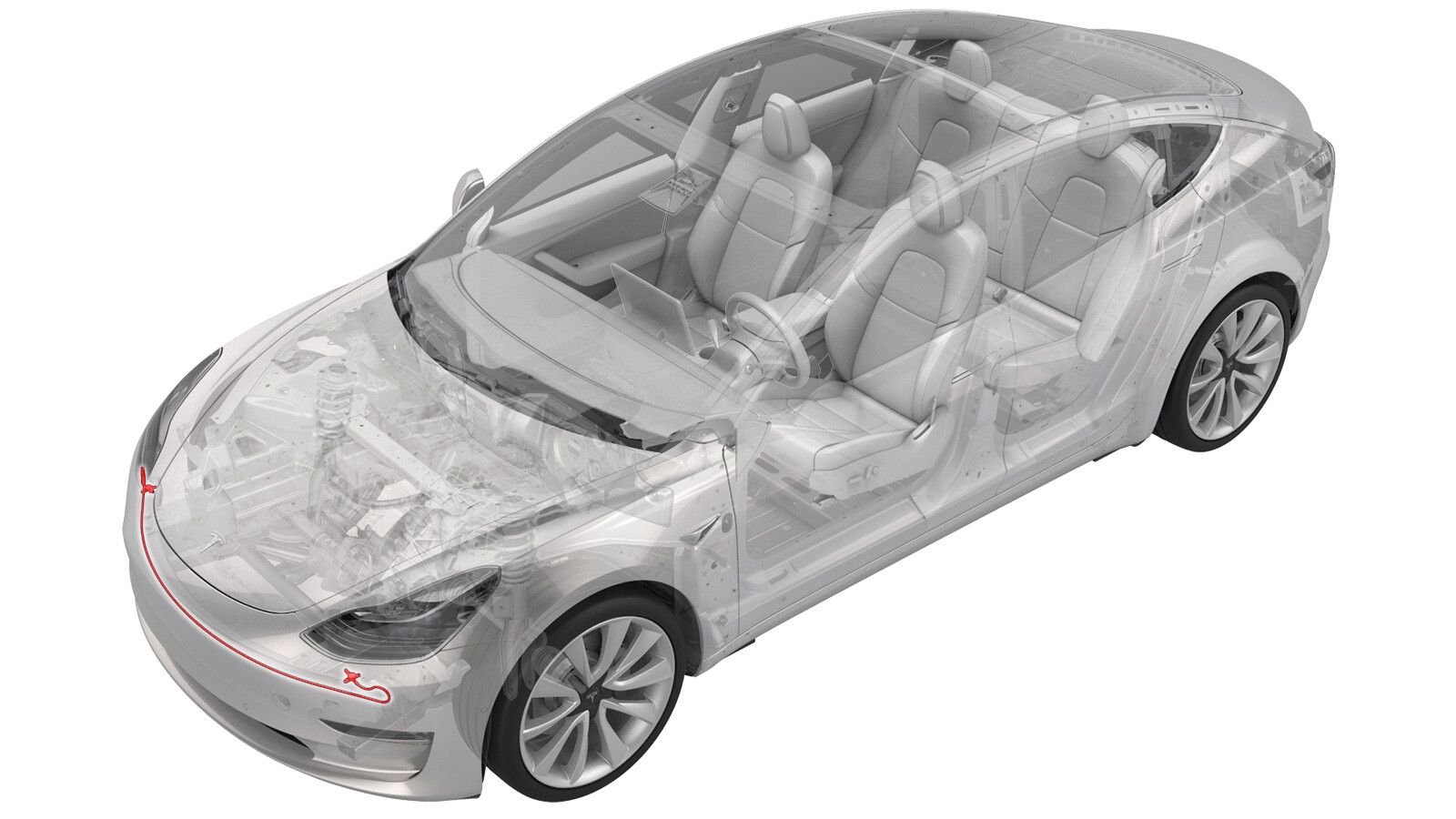

传感器 - 压力管（行人保护）（拆卸和更换）

校正代码 20202012 0.66 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

  • 2025-12-19: 添加了更换后例行程序。
警告
The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.
警告
Make sure 12V/LV power has been disconnected for at least 1 minute before disconnecting the electrical harness from Supplementary Restraint System (SRS) components, such as Restraint Control Module, sensors, airbags, etc. Disconnect the 12V/LV battery and the First Responder Loop. Failure to do so can result in unintended safety system behaviors. For more information on SRS precautions, see 气囊和辅助约束系统 (SRS) 预防措施.
警告
Supplemental Restraint System (SRS) components can be hazardous if not serviced and handled correctly. See
警告
In the event of an airbag or seatbelt pretensioner deployment, certain components must be replaced, and other components must be inspected for damage. Refer to the Collision Repair Manual for a specific list of items that must be inspected and replaced.

安装

  1. 将行人保护压力管安装到前保险杠横梁泡沫中，然后紧固将左侧和右侧行人保护压力管传感器固定到泡沫的夹子 (x2)。
  2. 安装前保险杠横梁泡沫。请参阅 泡沫 - 保险杠梁 - 前（拆卸和更换）。
  3. 安装前部流线型护板。请参阅 面板 - 流线型护板 - 前（拆卸和更换）。
  4. 安装前备箱储物单元请参阅 前备箱储物单元（拆卸和更换）。
  5. 连接低压电池电源。请参阅 12V/低压电源（断开和连接）。
  6. 解锁车辆网关，请参阅网关（解锁）。
  7. 通过“维护模式”或 Toolbox 执行以下例行程序（请参阅0005 - 维护模式）： PROC_RCM_X_SERVICE-TASKSvia Service Mode Plus:Safety & Restraints ➜ Safety Testing ➜ RCM Service Tasksvia Toolbox:(link)
  8. 退出“维护模式增强版”。
  9. 升起左侧前车窗并关闭左侧前车门。
