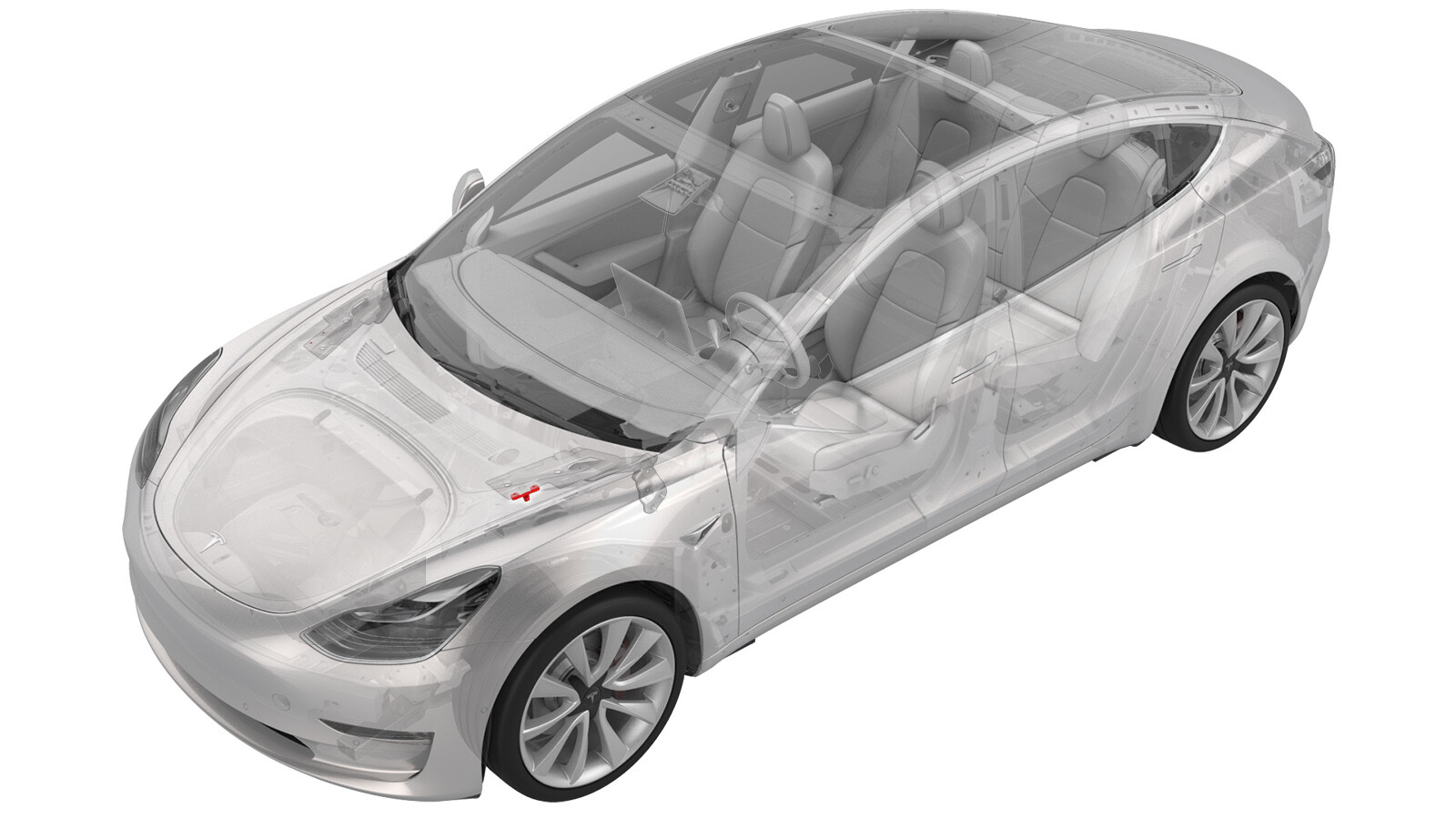

支柱加固件 - 前备箱盖 - 左侧(拆卸和更换)
校正代码
11332802 0.06
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
- 2024 年 3 月 28 日:添加了支撑杆加强件螺母的扭矩值。
设备:

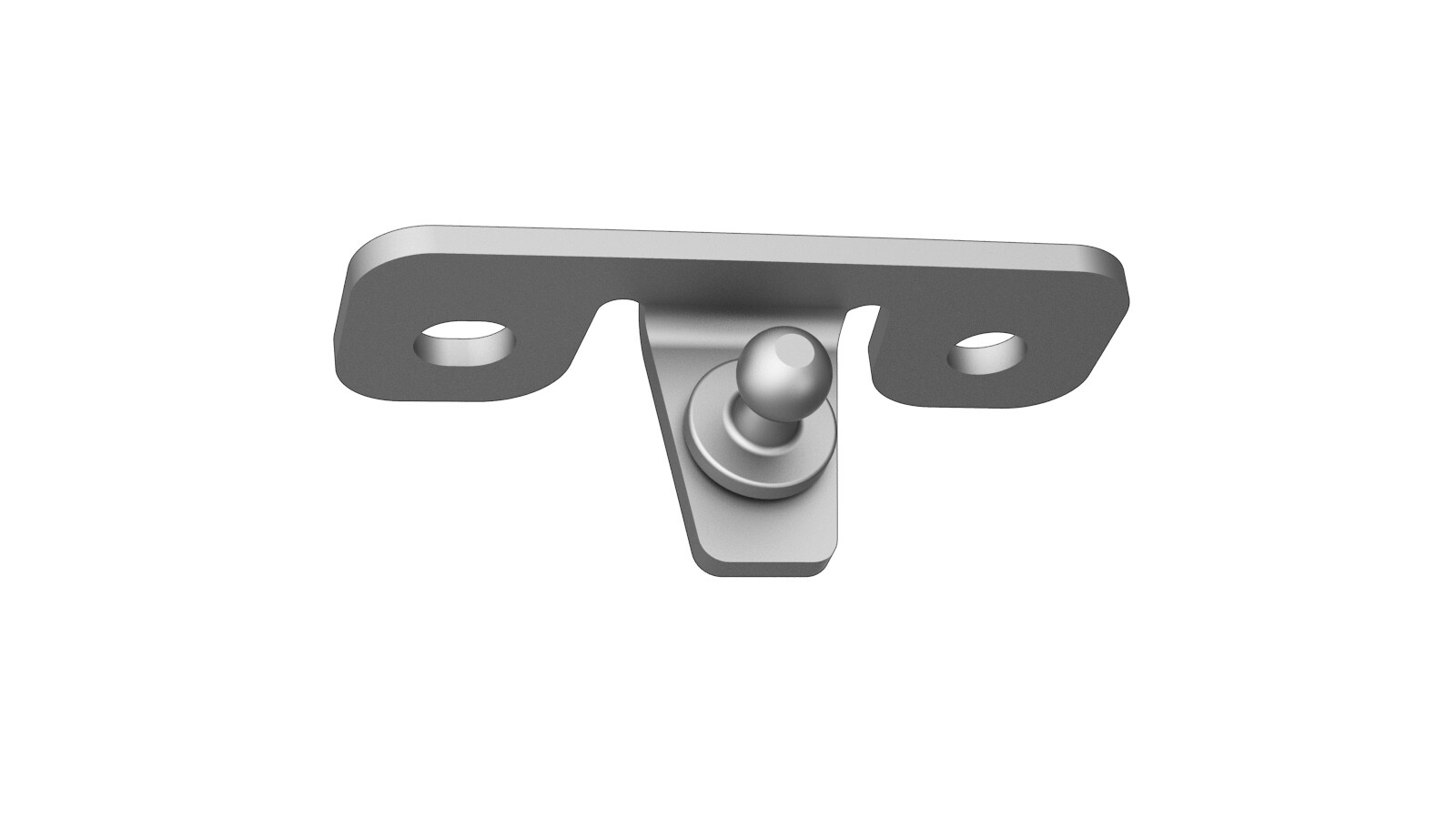

- 1080562-00-A 前备箱盖撑杆
拆卸
- 拆下 LH 前备箱盖气压支撑杆。请参阅气动支撑杆 - 前备箱盖 - 左侧(拆卸和更换)。
-

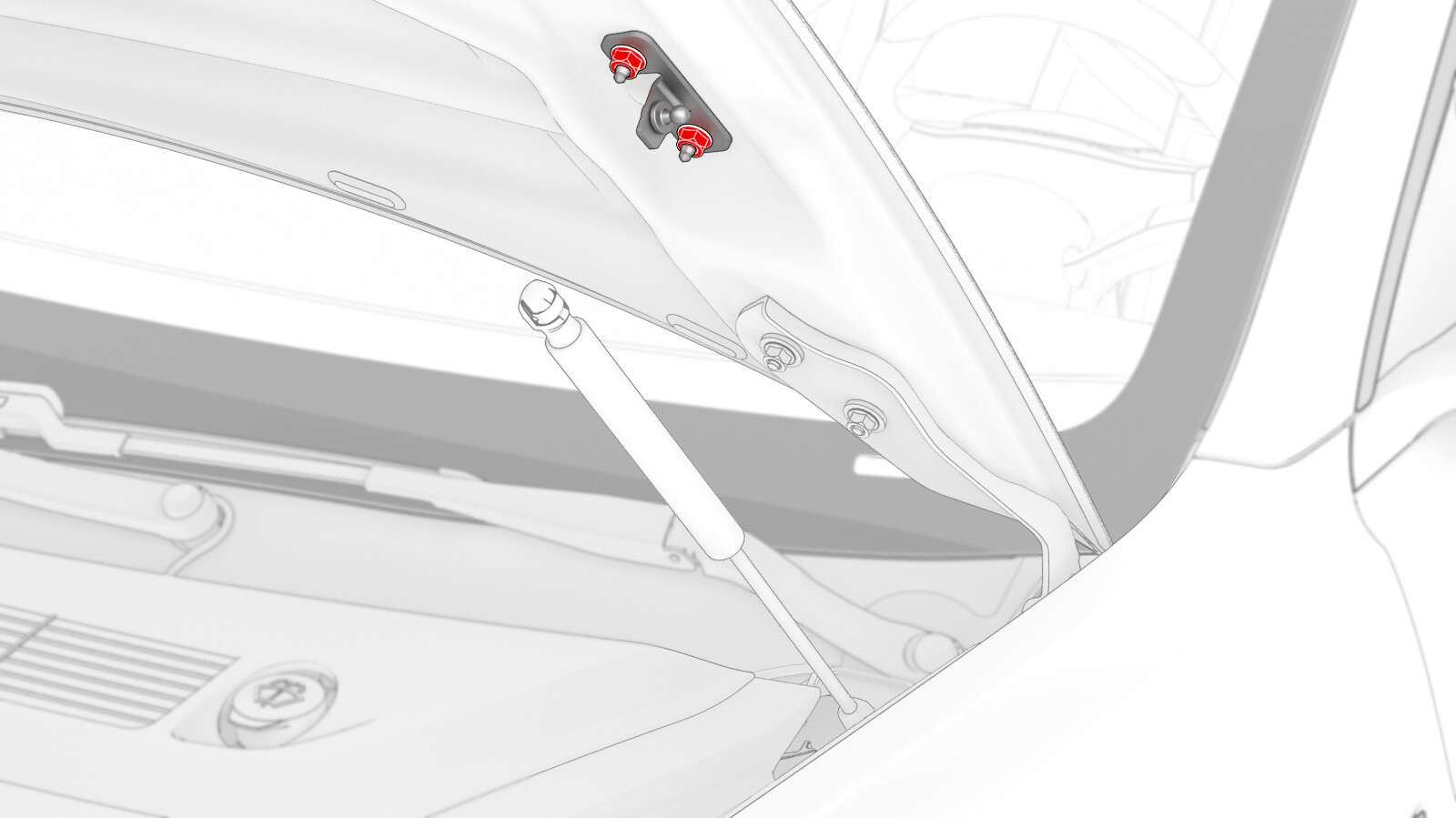

拆卸将前备箱盖左支撑杆支架固定到前备箱盖的螺母,然后将支撑杆支架拆下。
安装
-
安装将前备箱盖左支撑杆支架固定到前备箱盖的螺母(2 个)(扭矩为 15 Nm)。
- 安装 LH 前备箱盖气压支撑杆。请参阅气动支撑杆 - 前备箱盖 - 左侧(拆卸和更换)。
