线束 - 滤波器 - 天线 - LH(拆卸和更换)
校正代码 17108302 0.30 注意:除非本程序中另有明确规定,否则上述校正代码和 FRT 反映的是执行本程序(包括关联程序)所需的所有工作。除非明确要求,否则请勿堆叠校正代码。注意:请参阅平均维修工时,深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈,请发送电子邮件至LaborTimeFeedback@tesla.com。注意:请参阅人员保护,确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。
拆卸
-
Open all the doors and fully lower all the windows.
注If the vehicle is being powered down, latch the rear doors to prevent accidental closure.
- Move the LH and RH front seats fully forward.
- Remove the LH 2nd row seat side bolster. See 承梁 - 侧 - 座椅 - 第二排 - LH(拆卸和更换).
- Remove the LH side rail trim. See 饰板 - 纵梁 - LH(拆卸和更换).
- Remove the LH upper C-pillar trim. See 饰板 - C 柱 - 上 - LH(拆卸和更换).
-

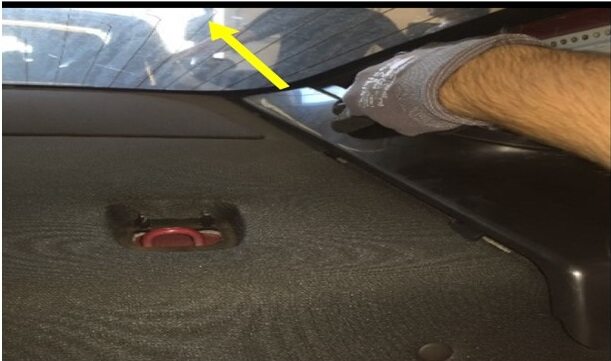

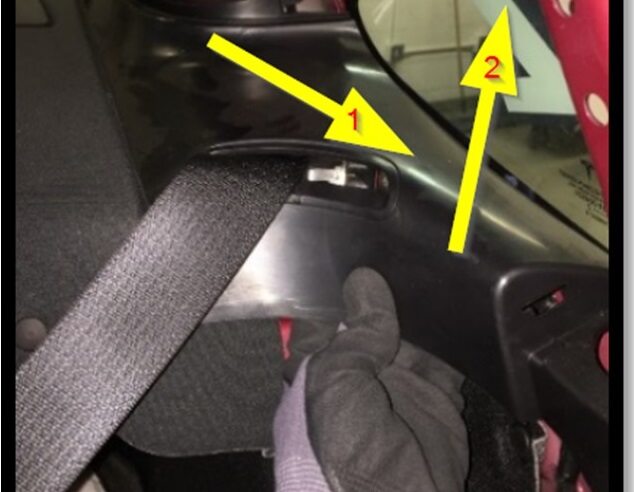

Release the clip and tabs (x4) that attach the LH rear C-pillar trim to the body, and then set the trim aside.
注Pull the rear of the trim forward, and then upward to remove it.提示: 推荐使用以下工具:
- Plastic trim tool
- Remove the RH 2nd row seat side bolster. See 承梁 - 侧 - 座椅 - 第二排 - LH(拆卸和更换).
- Remove the RH side rail trim. See 饰板 - 纵梁 - LH(拆卸和更换).
- Remove the RH upper C-pillar trim. See 饰板 - C 柱 - 上 - LH(拆卸和更换).
-

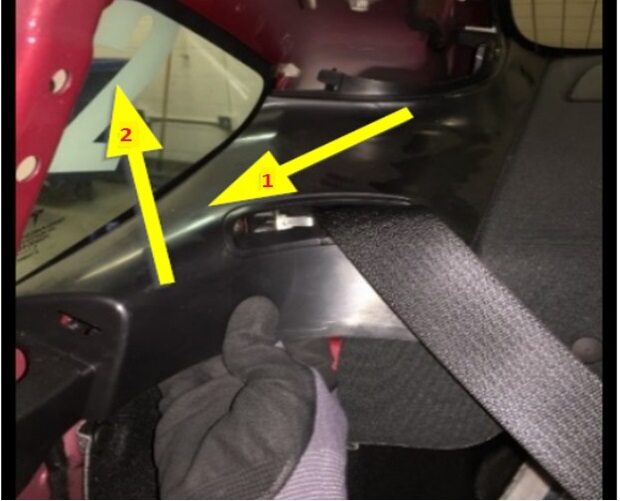

Release the clip and tabs (x4) that attach the RH rear C-pillar trim to the body, and then set the trim aside.
注Pull the rear of the trim forward, and then upward to remove it.提示: 推荐使用以下工具:
- Plastic trim tool
- Remove the package tray trim. See 饰板 - 杂物盘(拆卸和更换).
-

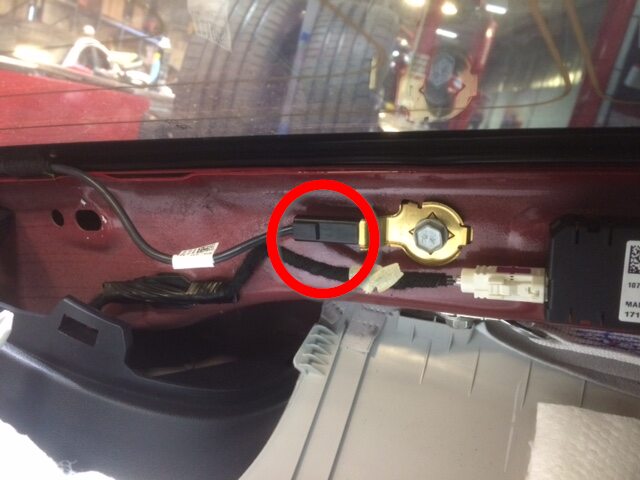

Disconnect the LH antenna filter harness connector from the LH C-pillar ground.
提示: 推荐使用以下工具:
- 小号软柄拨子,90 度尖嘴,6 英寸
-

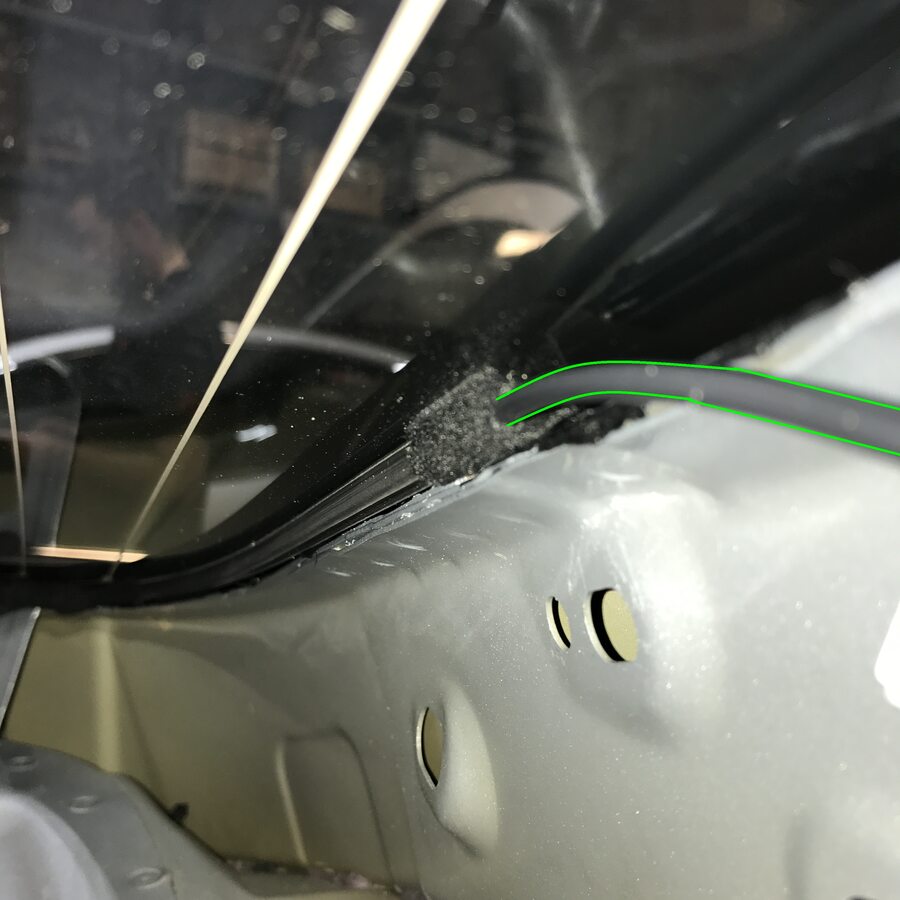

Remove the LH antenna filter harness from the backlight glass.
注Peel the tape back found at each end of harness housing seal.提示: 推荐使用以下工具:
- Plastic trim tool
-

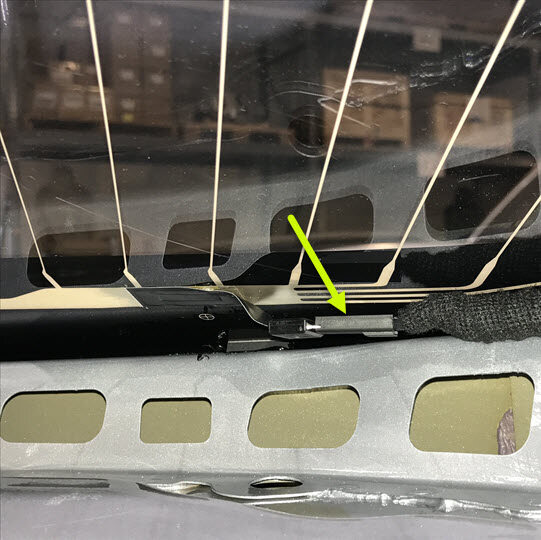

Disconnect the LH antenna filter harness connector from the heater grid, and then remove the harness from the vehicle.
警告Gently disconnect the harness. Do not damage the heater grid.提示: 推荐使用以下工具:
- 小号软柄拨子,90 度尖嘴,6 英寸
安装
-
Position the LH antenna filter harness on the vehicle, and then connect the harness connector to the heater grid.
-
Connect the LH antenna filter harness connector to the LH C-pillar ground.
-

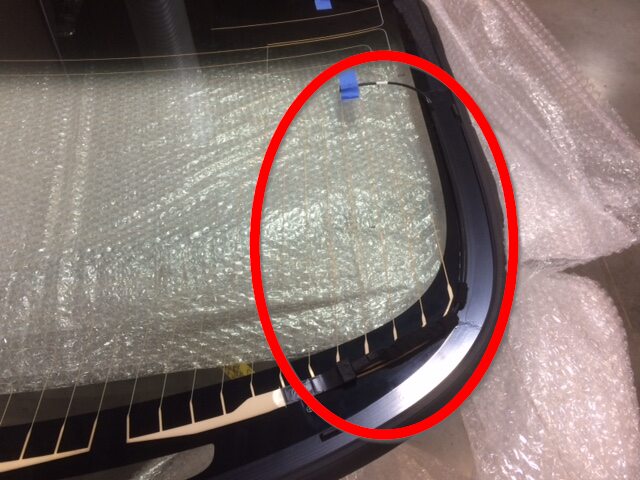

Install the LH antenna filter harness on the backlight glass.
注Apply a small piece of tape at each end of the seal clip.提示: 推荐使用以下工具:
- Felt tape
- Scissors
- Install the package tray trim. See 饰板 - 杂物盘(拆卸和更换).
-
Install the clip and tabs (x4) that attach the LH rear C-pillar trim to the body.
注Slide the back tabs into package tray, and then push the front tabs toward the rear.
- Install the LH upper C-pillar trim. See 饰板 - C 柱 - 上 - LH(拆卸和更换).
- Install the LH side rail trim. See 饰板 - 纵梁 - LH(拆卸和更换).
- Install the LH 2nd row seat side bolster. See 承梁 - 侧 - 座椅 - 第二排 - LH(拆卸和更换).
- Raise the LH 2nd row seat.
- Repeat step 5 through step 9 for the RH side of the vehicle.
- Move the LH and RH front seats to the original positions.
- Raise all the windows and close all the doors.
