2022-06-20

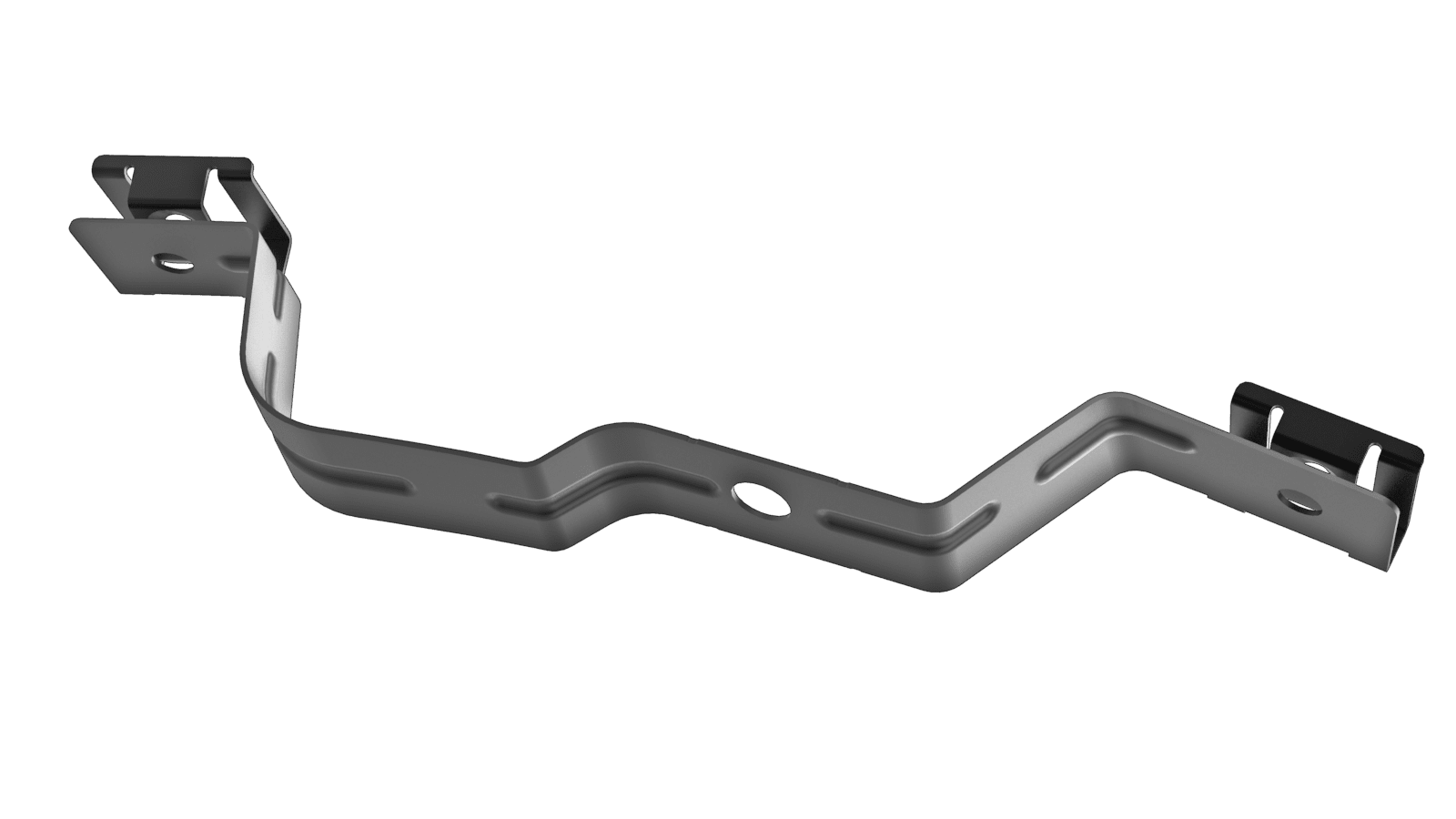

Liner Stiffener- Front Wheel House - LH (Remove and Replace)

校正代码 10018802 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

拆卸

  1. 将方向盘转至最右侧。
  2. 拆下将 LH 前轮拱内衬固定到车辆的推拉式夹 (x3)。
  3. 将 LH 轮罩内衬前部拉离前饰板。
  4. 从前饰板上拆下 LH 前轮罩内衬加固件。

安装

  1. 在前饰板上安装 LH 前轮罩内衬加固件。
  2. 将 LH 轮罩内衬移回安装位置。
  3. 安装将 LH 前轮拱内衬固定到车辆的推拉式夹 (x3)。
  4. 将方向盘转至正中间。
