支架 - 铰链 - 座椅靠背 - 第二排 - 左侧(拆卸和更换)

校正代码 13057402 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

拆卸

  1. 拆下第二排下部座垫。请参阅座椅座垫 - 下部 - 第二排(拆卸和更换)。
  2. 拆下第二排座椅 LH 侧承梁。请参阅承梁 - 侧 - 座椅 - 第二排 - 左侧(拆卸和更换)。
  3. 拆下第二排座椅 LH 靠背。请参阅座椅靠背 - 第二排 - 左侧(拆卸和更换)。

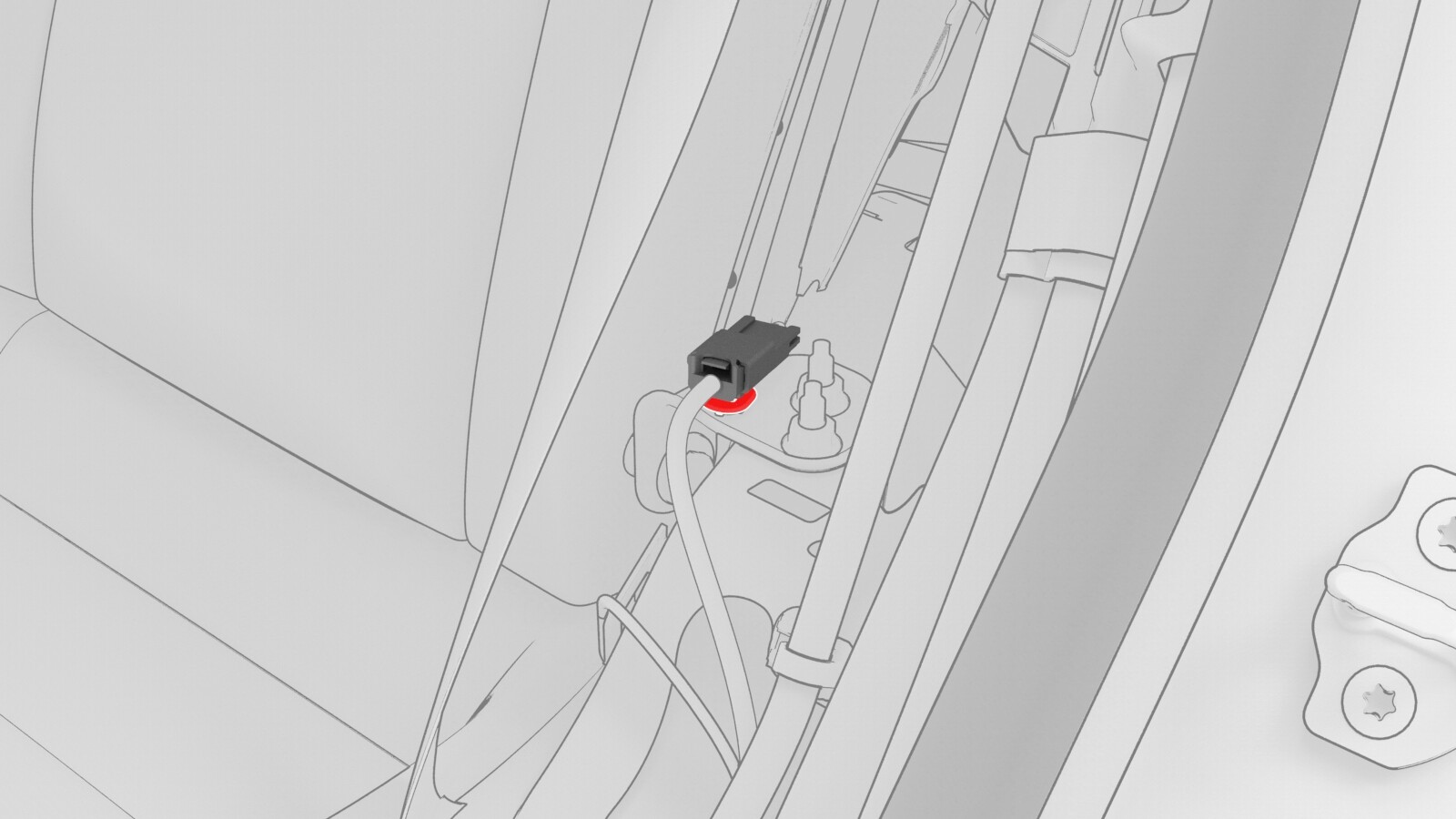

  4. 松开将电气连接器固定到铰链支架的夹子。

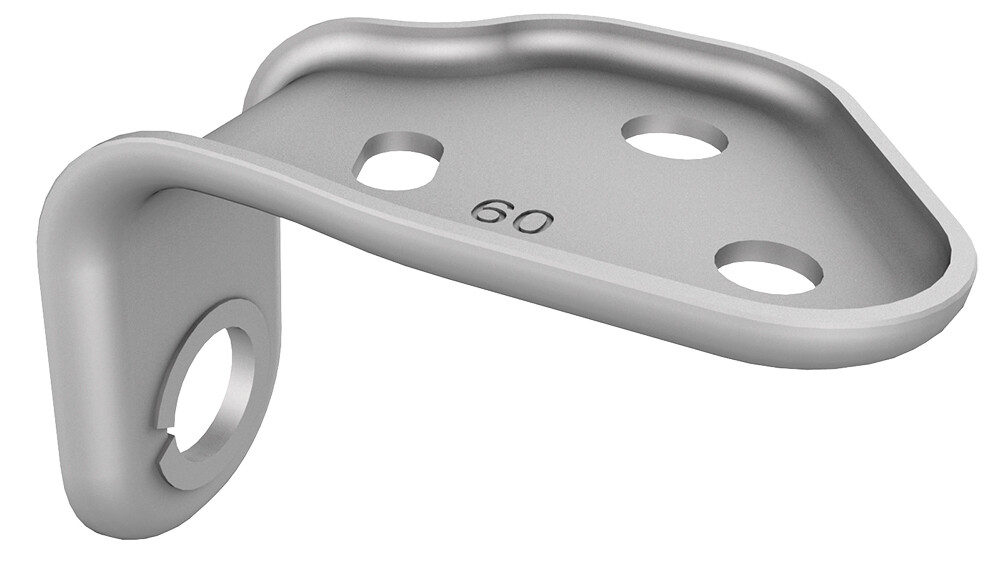

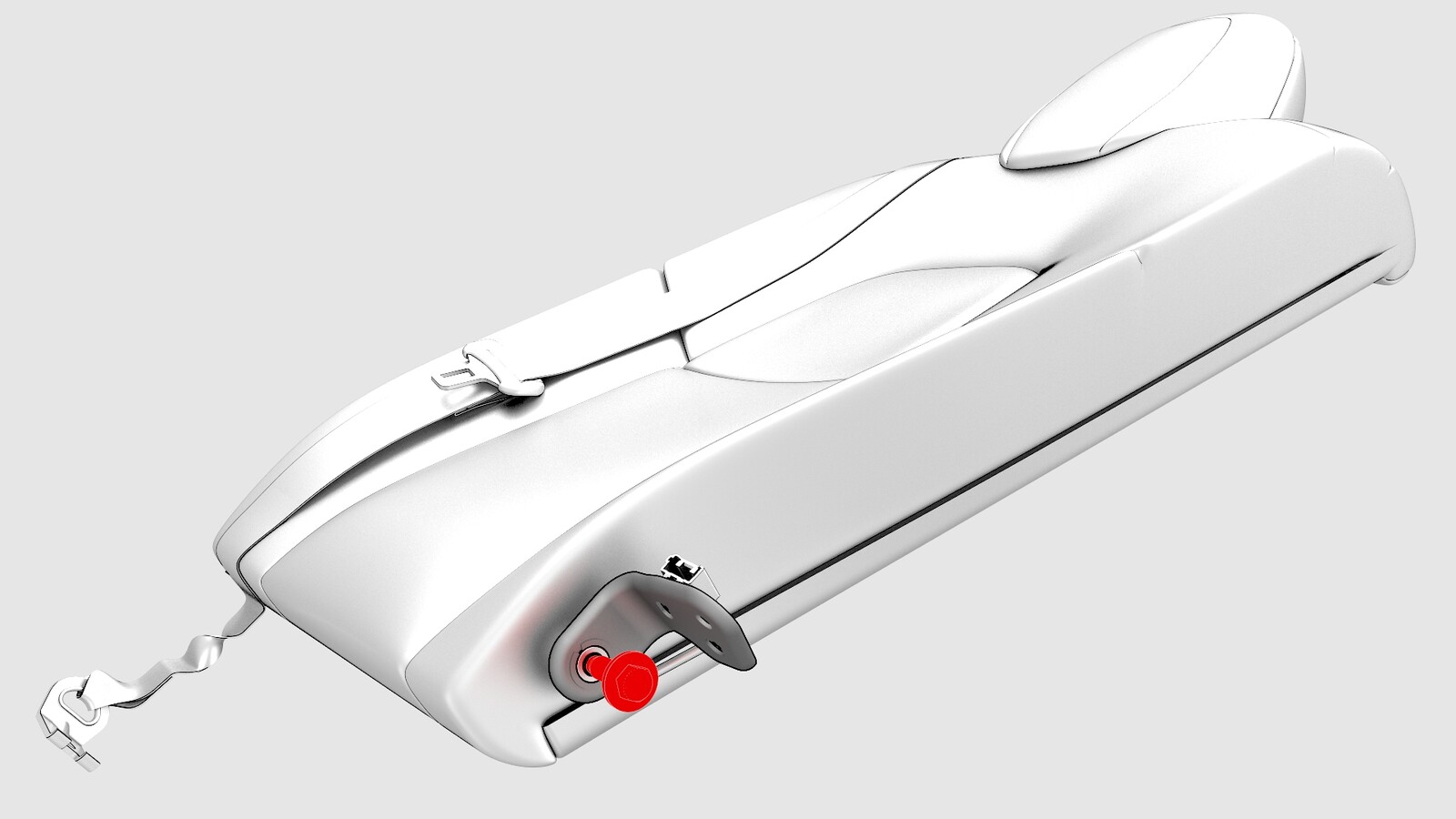

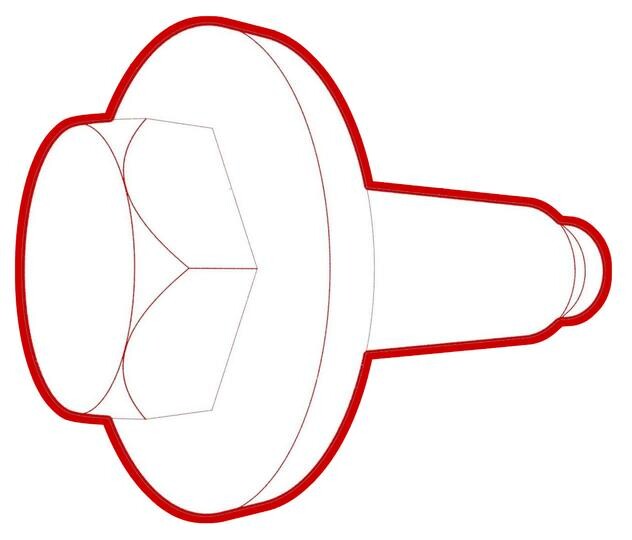

  5. 拆下将第二排座椅 LH 靠背铰链支架固定到座椅靠背的螺栓,然后从座椅靠背上拆下支架。
    45 Nm (33.2 lbs-ft)

安装

安装程序与拆卸程序相反。
