低压维护设备（连接和断开）
校正代码 17010500 0.05 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至LaborTimeFeedback@tesla.com。注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。
- 2023-10-31: Updated the location to attach the maintainer's negative clamp with new images attached.
连接
- On the touchscreen, select the badge icon in Controls > Software for four seconds, and then type "service" into the dialog box to place the vehicle in service mode.
-

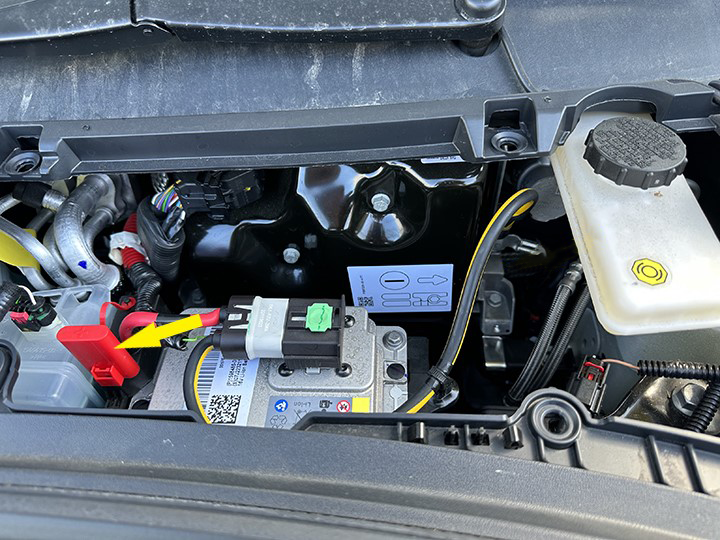

Release the positive terminal cover.
-

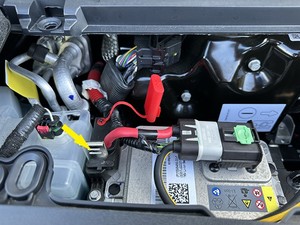

Secure the LV maintainer positive terminal to the jump post.
警告To avoid damaging the vehicle, DO NOT allow the positive cable to make contact with other metal components.
-

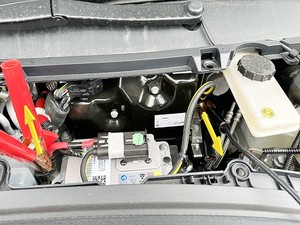

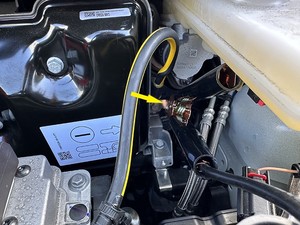

Secure the LV maintainer negative
terminal to the VCFront bracket bolt (as indicated on
the VCFront label).
-
Connect the LV maintainer to a power supply, and then power on.
警告Never have a LV maintainer and the LV battery simultaneously connected for any extended period of time.
-
Lift the green locking tab upward, slide the black connector lock outwards, and then
pull up to release the LV battery connector.
注Keep the FRL connected.
Disconnect
-
Position the LV battery connector onto
the LV battery, push the black connector lock inwards to secure, and then press the
green locking tab downward to engage when the connector is fully seated.
- Power off the LV maintainer.
-
Release the negative terminal
connection from the vehicle first, and then release the positive terminal.
-
Secure the positive terminal cover.
-

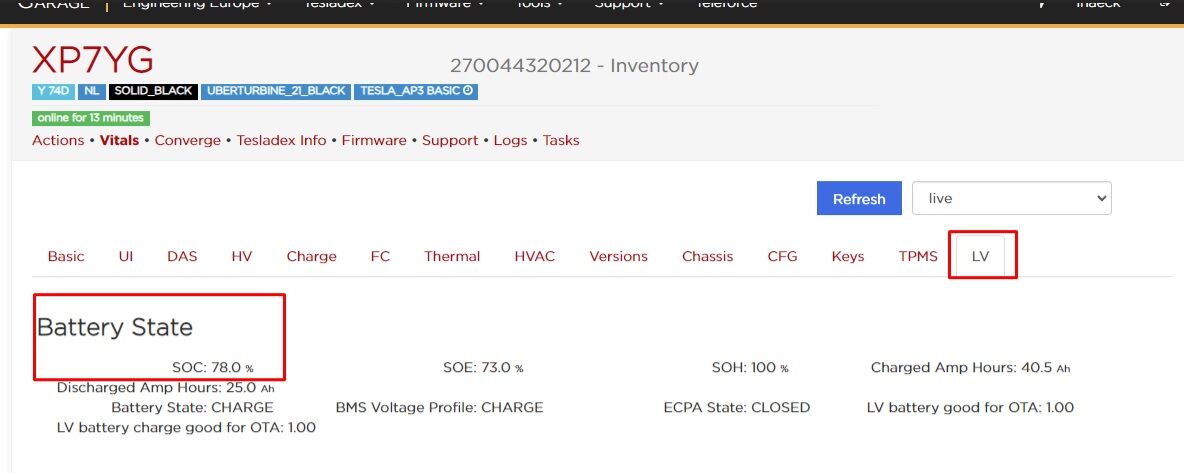

Confirm that the LV battery State Of
Charge (SOC) is above 73% and Battery State is Charge or Standby.
注If the LV battery SOC is below 73% confirm that Battery State is Charge and Pack Current is positive, Via Tesla Garage > LV.
