散热器(不带加热泵款)(拆卸和更换)
校正代码
18301002 1.56
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
拆卸
- 拆卸主动进气格栅。请参阅 主动进气格栅(拆卸和更换)。
-
松开将主动进气格栅固定到冷却风扇模块的夹子,然后从模块上拆下主动进气格栅。
-
拆下将散热器固定到冷凝器风扇模块的螺钉。
10 Nm (7.4 lbs-ft) -

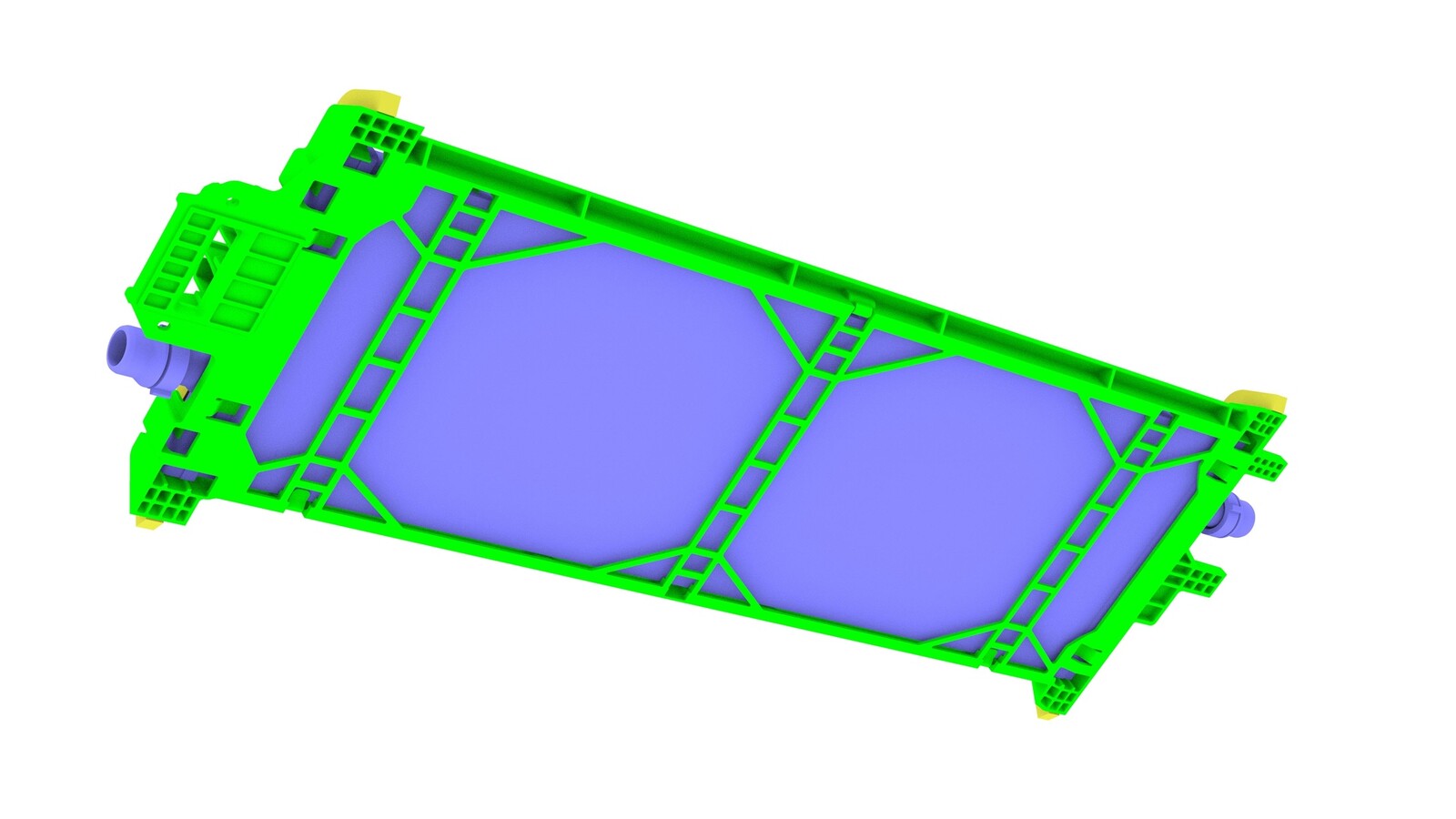

松开将散热器固定到冷凝器风扇模块的夹子,然后从冷凝器风扇模块上拆下散热器。
安装
安装程序与拆卸程序相反,以下各项除外:
- 执行冷却系统真空重新加注程序。请参阅 冷却系统(真空再加注)。
