Brake Pedal (Remove and Replace)
校正代码
33251002
0.54
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created. To provide feedback on
FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure.
- 2023 年 12 月 8 日:删除了制动器刚度例行程序。
拆卸
- 拆下第二排座椅下部座垫。请参阅 Seat Cushion - Lower - 2nd Row (Remove and Replace)。
- 安装前备箱后部挡板。请参阅 Underhood Apron - Rear (Remove and Replace)。
- 断开 12V 电源。请参阅 12V/LV Power (Disconnect and Connect)。
- 拆卸驾驶位脚部空间盖板。请参阅 Cover - Footwell - Driver (Remove and Replace)。
- 拆卸驾驶位膝部气囊盖板和驾驶位膝部气囊(如有配备)。请参阅 Airbag - Knee - Driver (Remove and Install)。
- 仅限左侧驾驶车型:拆卸驾驶位脚部空间风管。请参阅 Duct - Footwell - LH (LHD) (Remove and Replace)

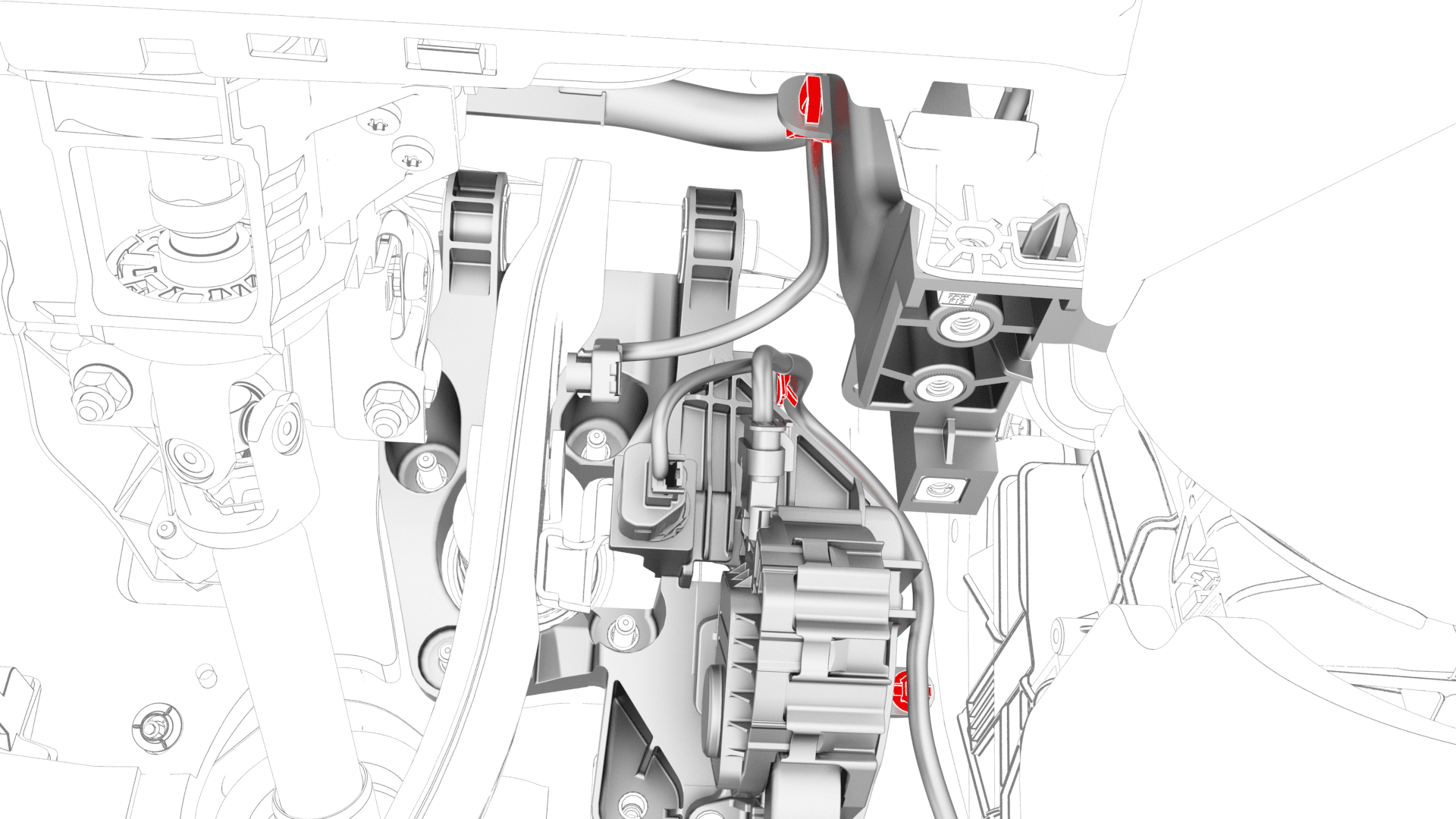

- 断开制动踏板和加速踏板电气连接器。
- 拆下制动灯开关。请参阅 Switch - Brake Light (Remove and Replace)。

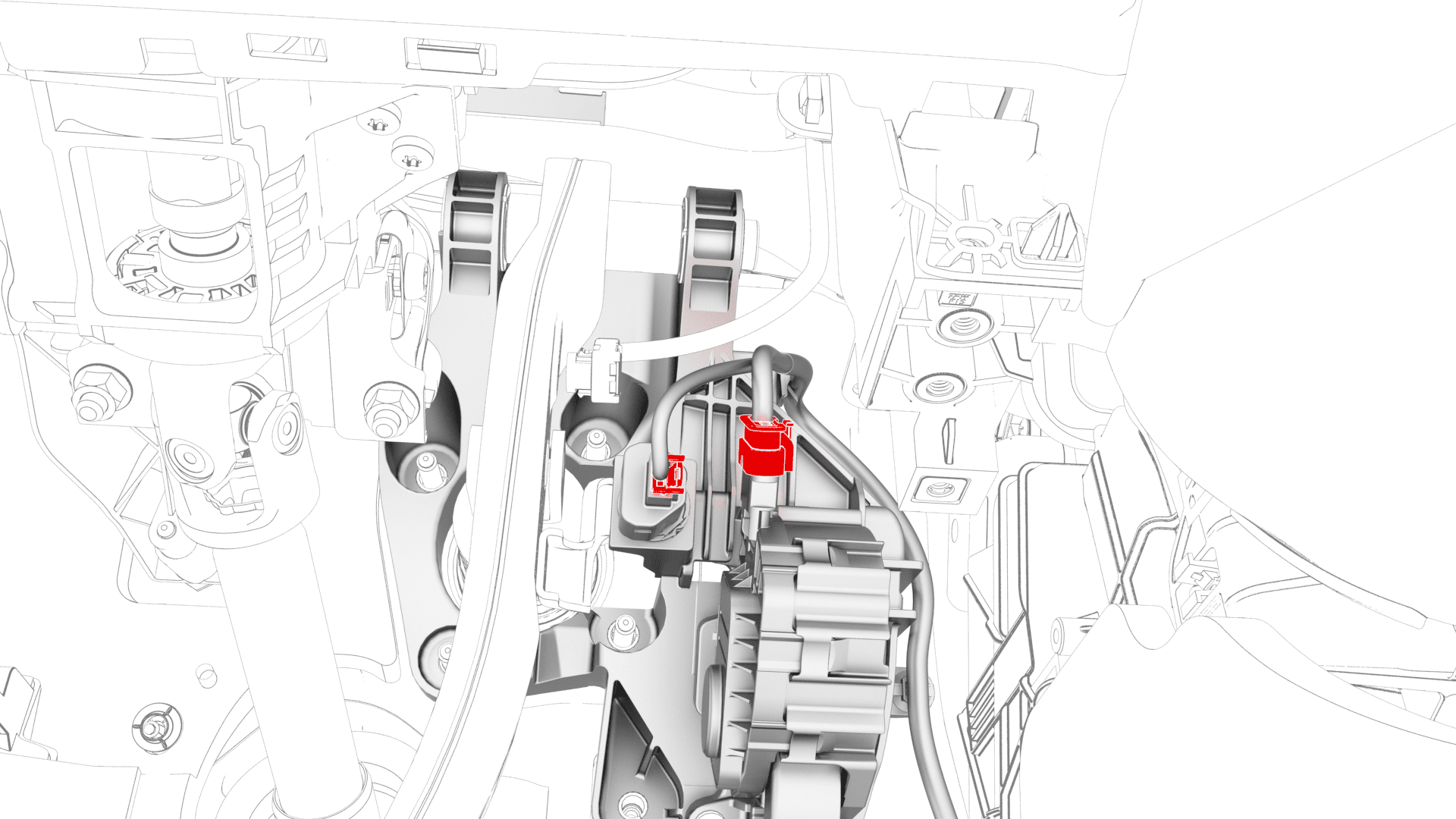

- 拆下制动器叉杆销的开口销。

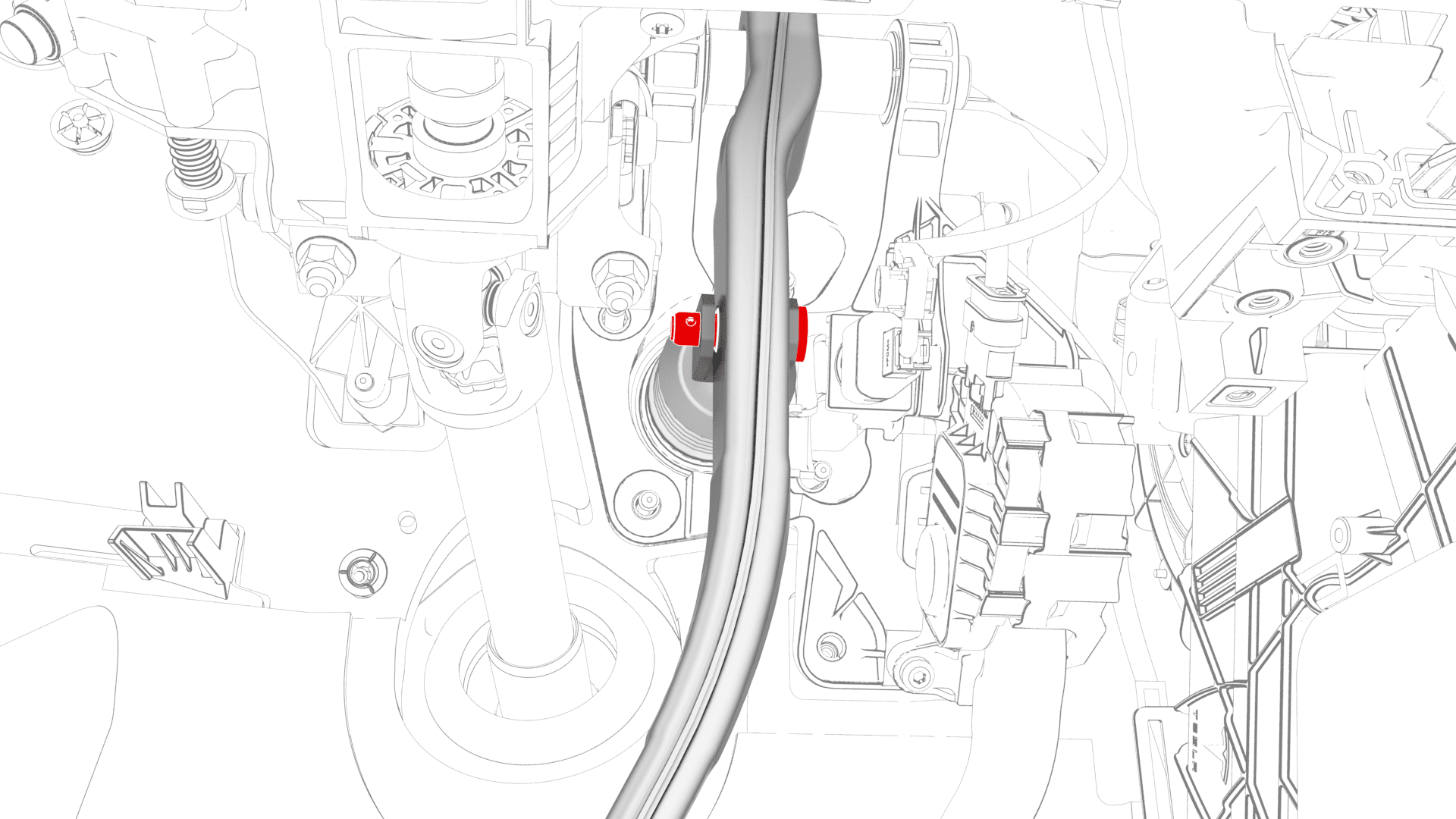

- 拆卸将制动踏板固定到机电制动助力器的制动器 U 型夹销。
- 松开将电气线束固定到制动踏板总成的夹子。

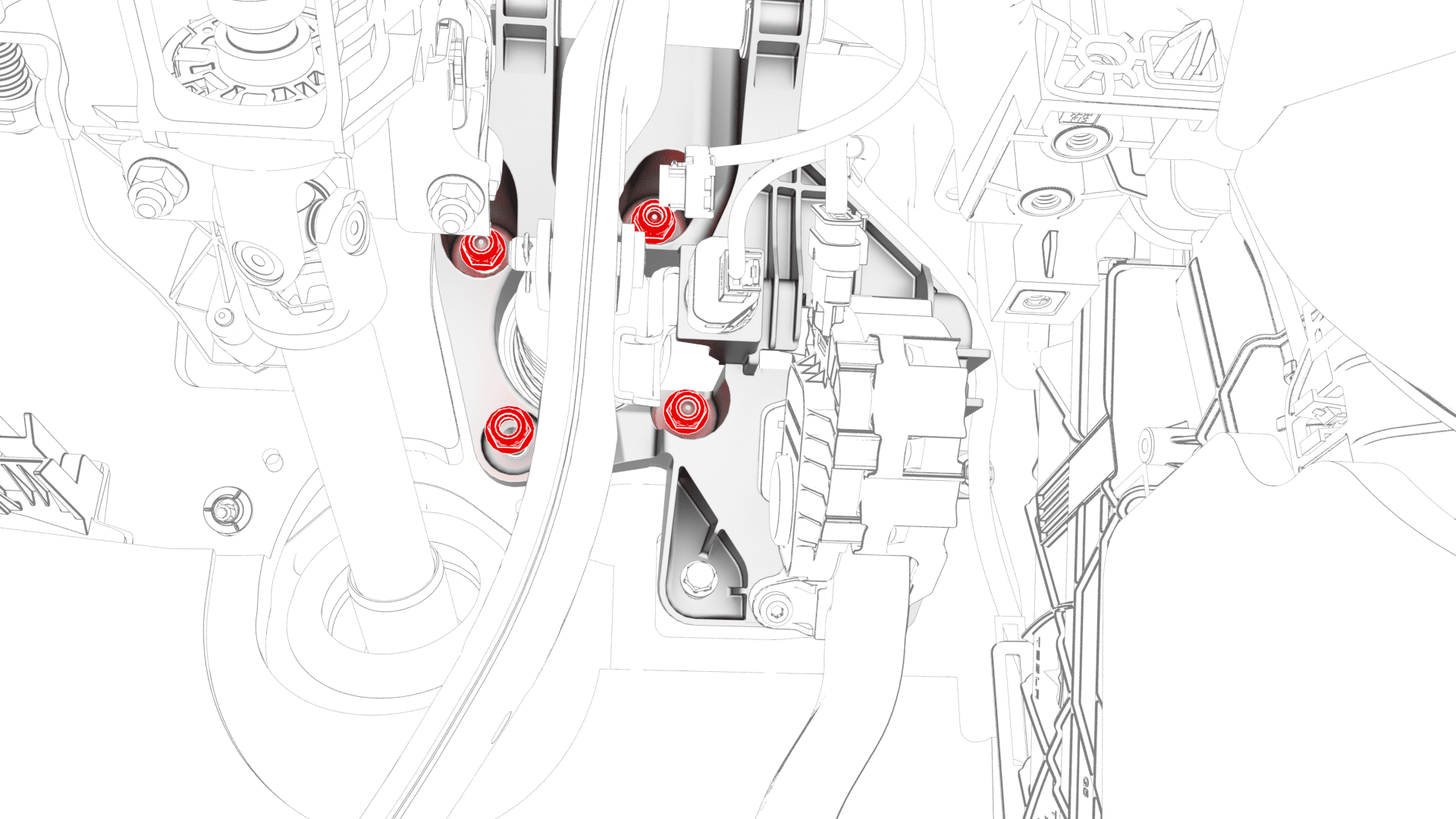

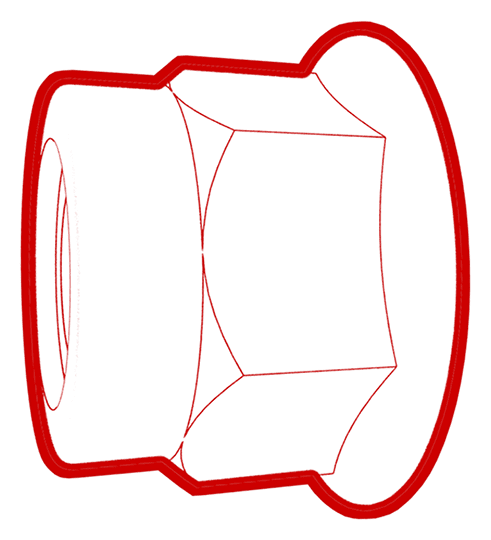

- 拆下并弃用将制动踏板总成固定到车辆的螺母 (x4)。
- 将制动踏板和加速踏板作为整体从车辆上拆下。
安装
- 如果要安装新的制动踏板总成,请在新总成上安装新的制动开关夹。
- 将制动踏板总成安装到车身的螺柱 (x4) 上。
-
安装将制动踏板总成固定到车辆的新螺母 (x4)。16.5 Nm (12.2 lbs-ft)13 Nm (9.6 lbs-ft)
- 紧固将电气线束固定到制动踏板总成的夹子。
- 安装将制动踏板固定到机电制动助力器的制动器 U 型夹销。

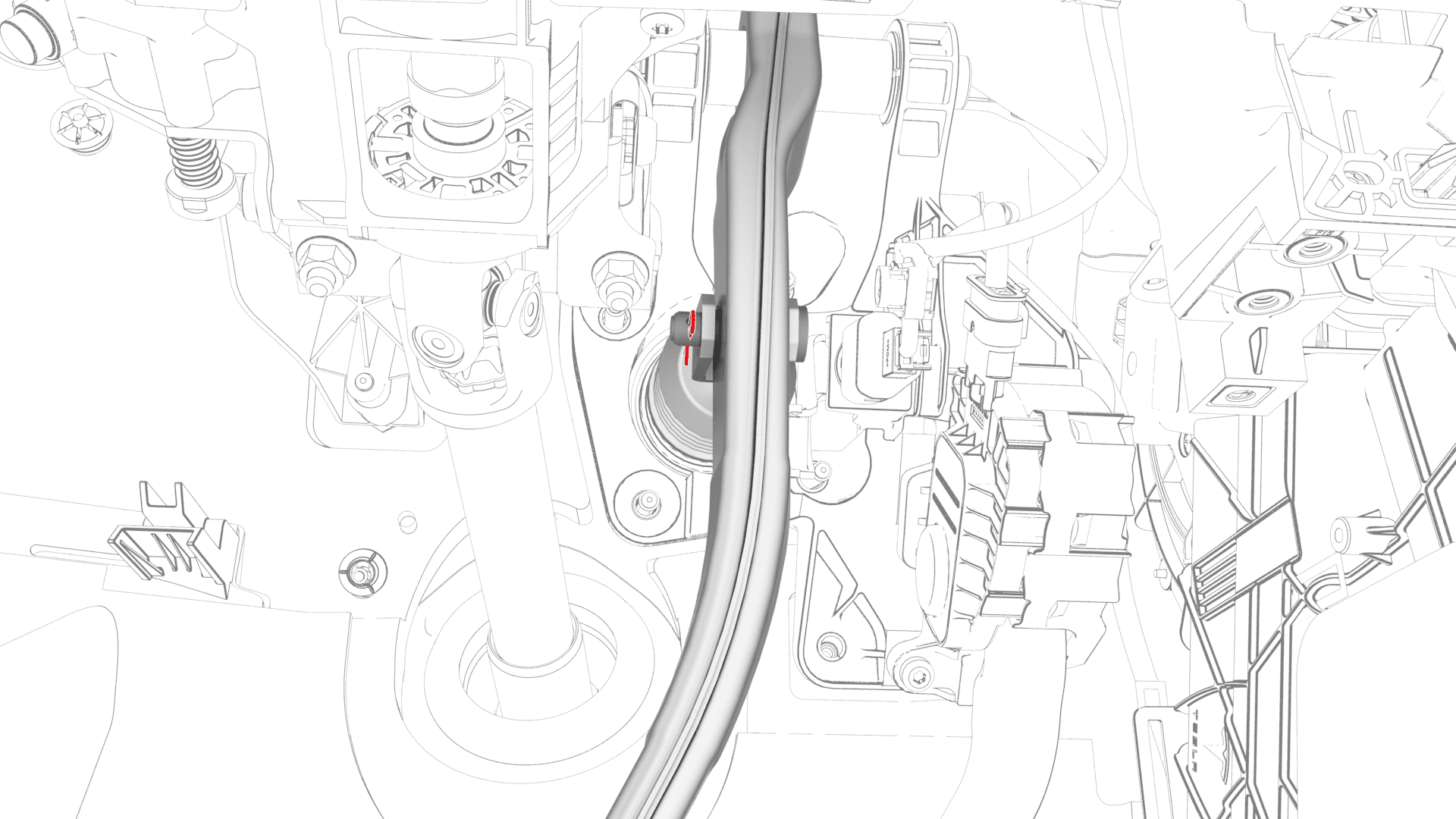

- 安装制动器 U 型夹销的开口销。
-
安装制动灯开关。请参阅 Switch - Brake Light (Remove and Replace)。
注如果拆卸期间现有制动开关损坏,请安装新制动开关。注确认制动踏板处于原位:将制动踏板开关推入夹子,直至其停止,然后将制动开关顺时针旋转 45 度,将其固定到位。推动制动踏板开关时请勿用力过猛,避免制动踏板移动。
- 连接制动踏板和加速踏板电气连接器。
- 仅限左侧驾驶车型:安装驾驶位脚部空间风管。请参阅 Duct - Footwell - LH (LHD) (Remove and Replace)
- 安装驾驶位膝部气囊盖板和驾驶位膝部气囊(如有配备)。请参阅 Airbag - Knee - Driver (Remove and Install)。
- 安装驾驶位脚部空间盖板。请参阅 Cover - Footwell - Driver (Remove and Replace)。
- 连接 12V 电源。请参阅 12V/LV Power (Disconnect and Connect)。
- 安装前备箱后挡板。请参阅 Underhood Apron - Rear (Remove and Replace)。
- 安装第二排座椅下部座垫。请参阅 Seat Cushion - Lower - 2nd Row (Remove and Replace)。
