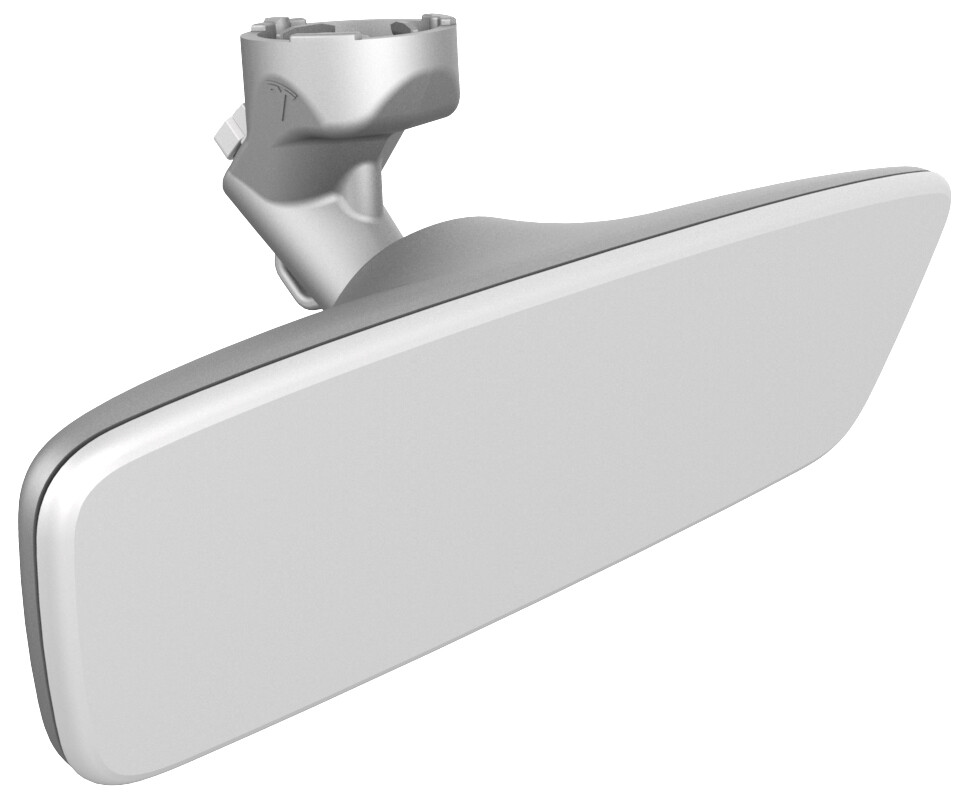

镜 - 后视（拆卸和更换）

校正代码 15050202 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

  • 2023 年 7 月 20 日：在“拆卸”部分的第 2 步中添加了一个视频。

拆卸

  1. 拆下四摄像头下盖。请参阅 四摄像头盖 - 下（拆卸和更换）。

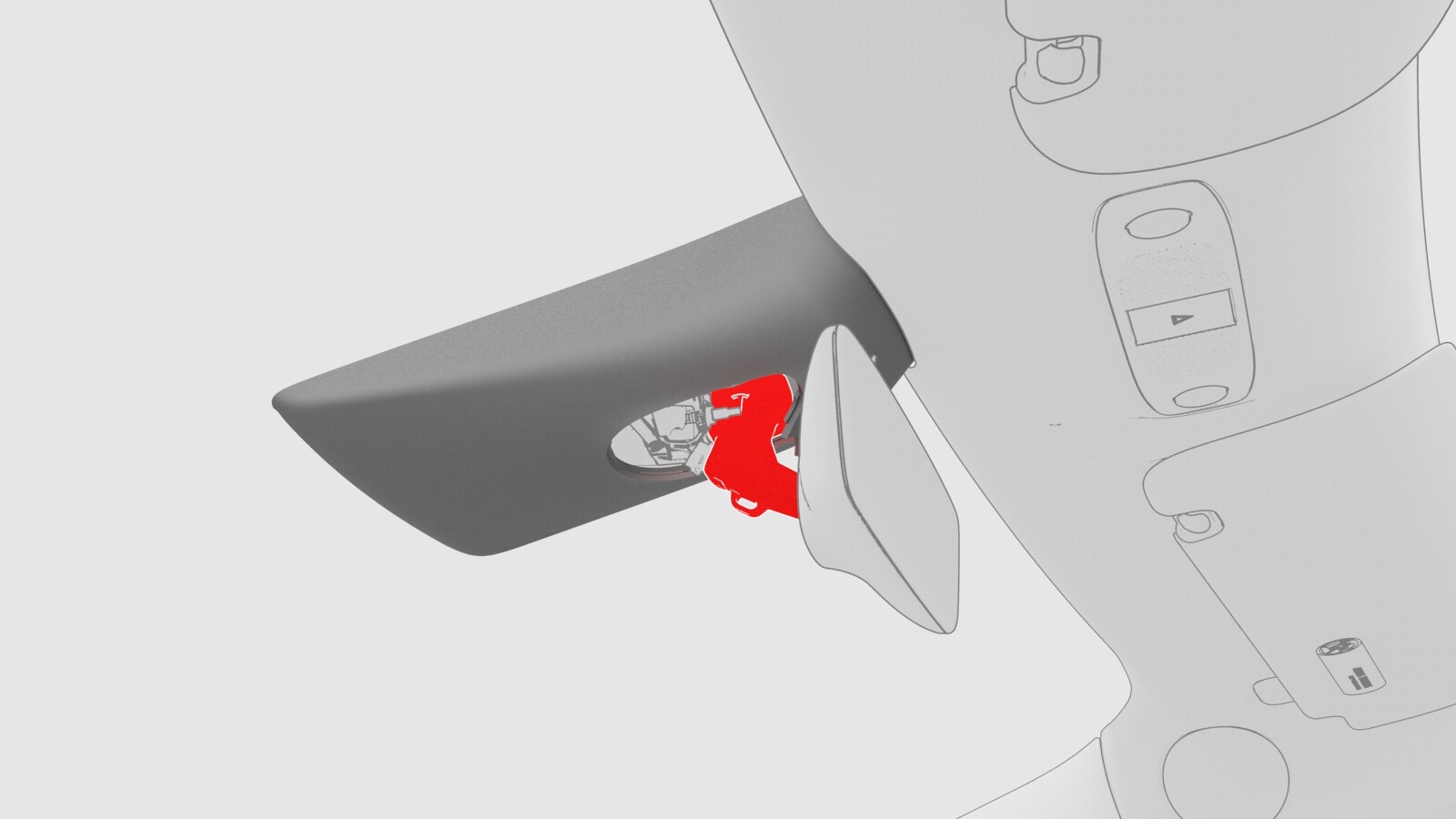

  2. 握住后视镜控制杆，然后逆时针转动以松开后视镜。
    警告
    切勿转动后视镜本身。
    警告
    请勿完全拆下后视镜，因为仍连有电气线束。
    警告
    The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

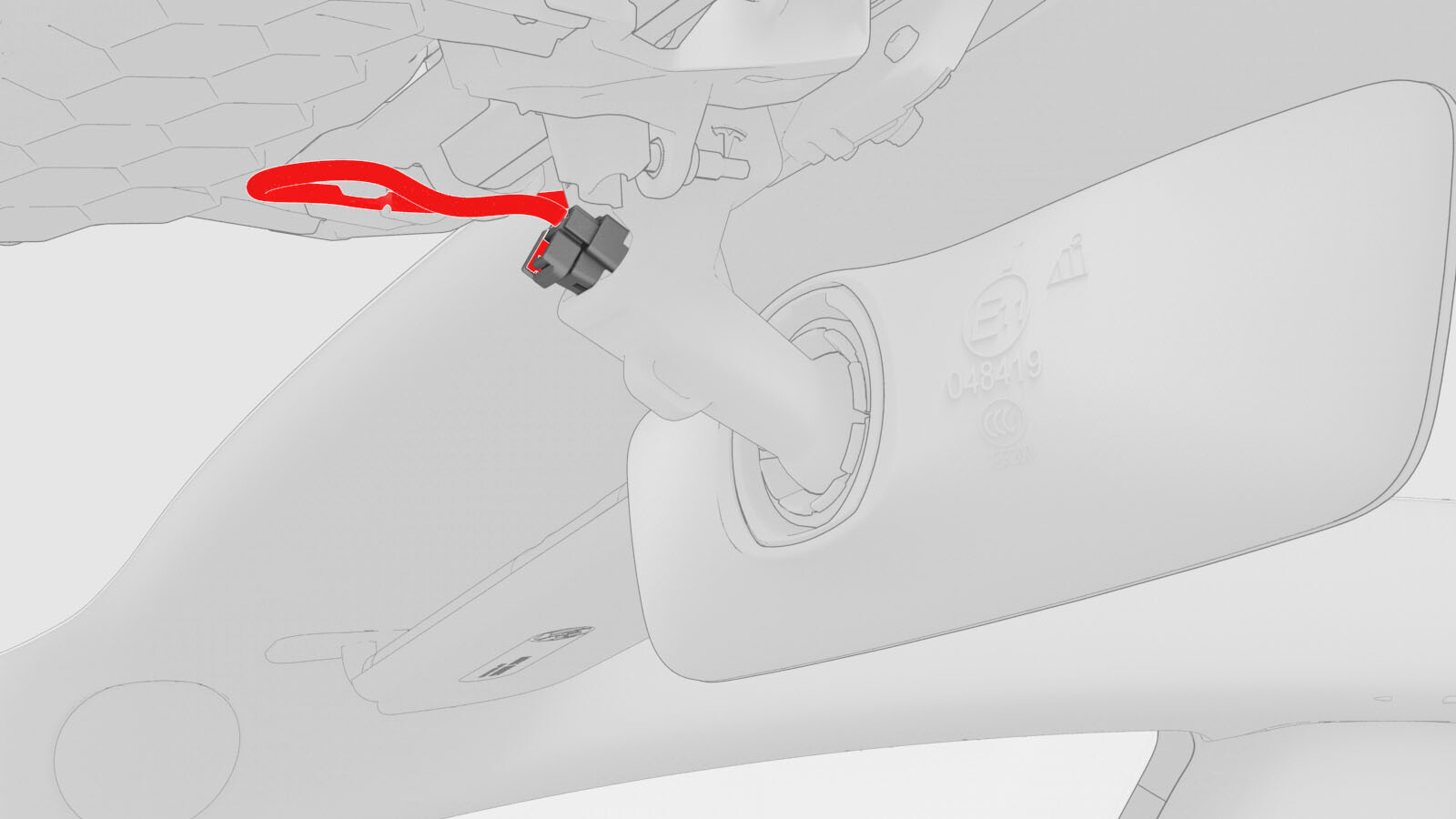

  3. 将电气连接器从后视镜上断开，然后将后视镜从车辆上拆下。

安装

  1. 将电气连接器连接到后视镜。
  2. 握住后视镜控制杆，然后顺时针转动以安装后视镜。
    警告
    切勿转动后视镜本身。
  3. 安装四摄像头下盖。请参阅 四摄像头盖 - 下（拆卸和更换）。
