Antenna - MIMO - LH (Remove and Replace)

校正代码 21331102 0.36 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

Informational PurposesAn informational icon, calling your attention
在 2020 年 10 月 5 日或之后制造的车辆上,eCall 天线会使用 LH MIMO 天线单元中的蜂窝网络天线。有关 2020 年 10 月 5 日之前所制造车辆的 eCall 天线更换说明,请参阅Antenna - eCall (LHD) (Remove and Replace)Antenna - eCall (RHD) (Remove and Replace)

拆卸

  1. 打开所有车门并降下所有车窗。
    Informational PurposesAn informational icon, calling your attention
    如果车辆正在断电,请锁闭后车门以防意外关闭。
  2. 将前排座椅向前移动。
  3. 拆下 LH 边梁总成。请参阅Trim - Side Rail - LH (Remove and Install)
  4. 推动以打开 LH 后衣帽钩。
  5. 使用小号一字螺丝刀撬开 LH 后衣帽钩螺钉盖板。
  6. 拆下将 LH 后衣帽钩固定到车身的螺钉。
  7. 松开将 LH B 柱上部饰板固定到车辆的夹子,然后将 B 柱上部饰板放置一旁。请参阅Trim - B-Pillar - Upper - LH (Remove and Replace)
    Informational PurposesAn informational icon, calling your attention
    不要从座椅安全带上拆下饰板。
  8. 对车辆 RH 侧重复执行第 3 步至第 7 步。

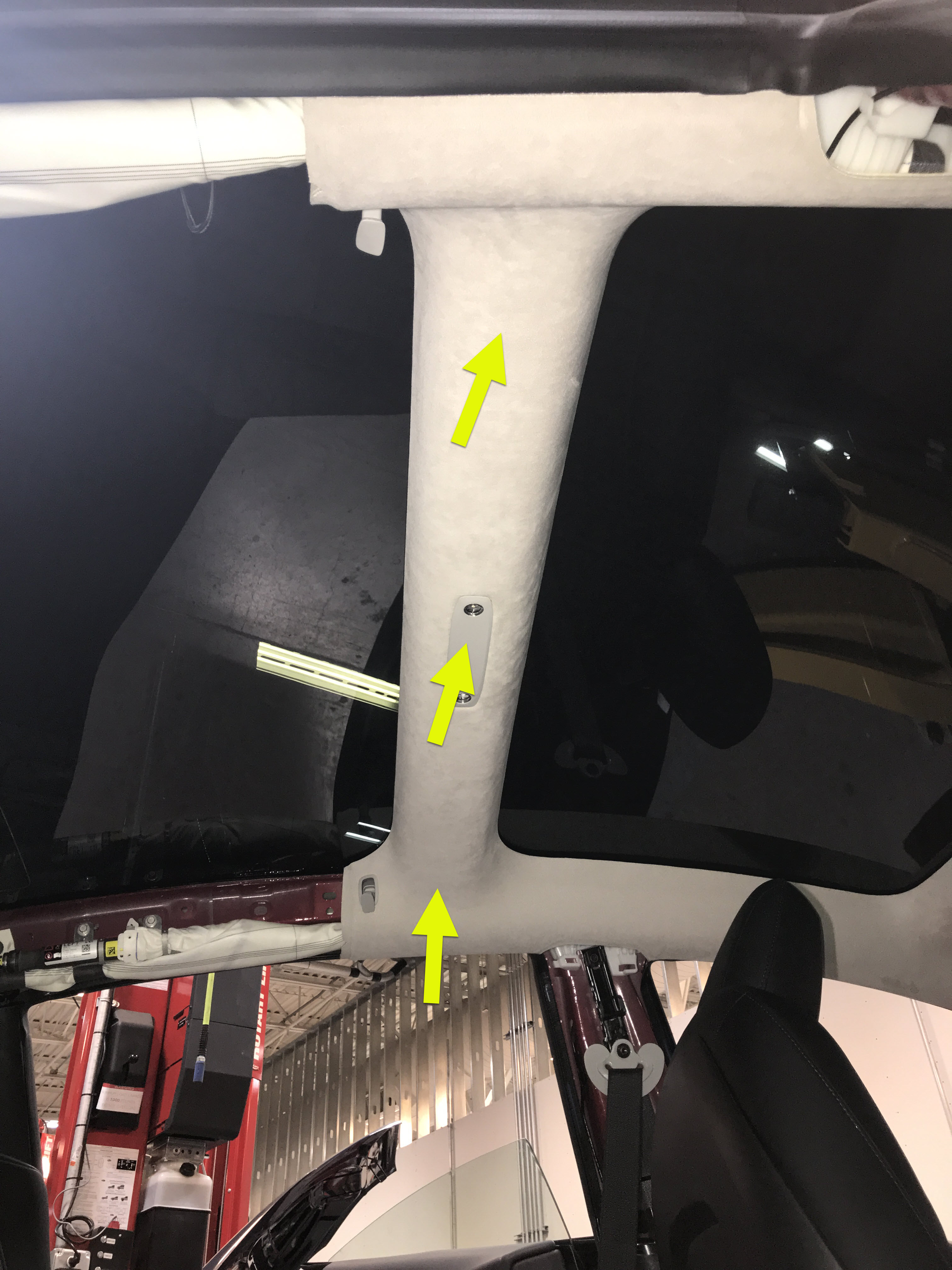

  9. 松开将顶蓬后部固定到车辆的夹子 (x4),然后使用气囊将顶蓬后部与车辆分开。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    切勿损坏顶蓬。

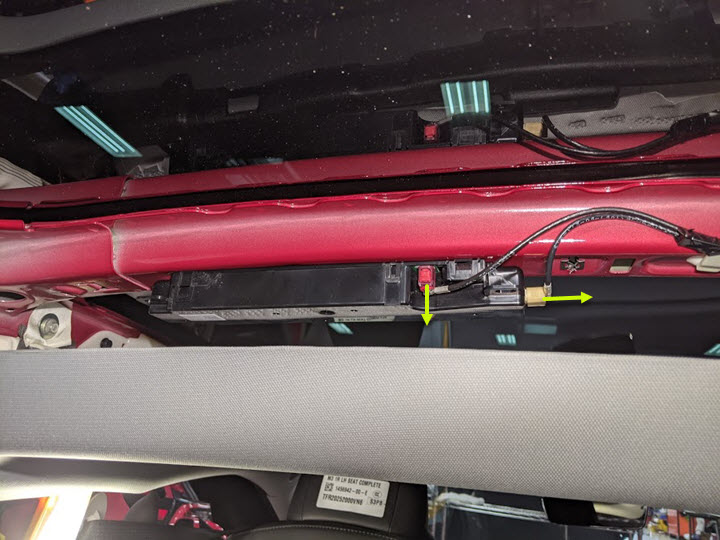

  10. 松开锁片,然后断开 LH MIMO 天线连接器 (x2)。

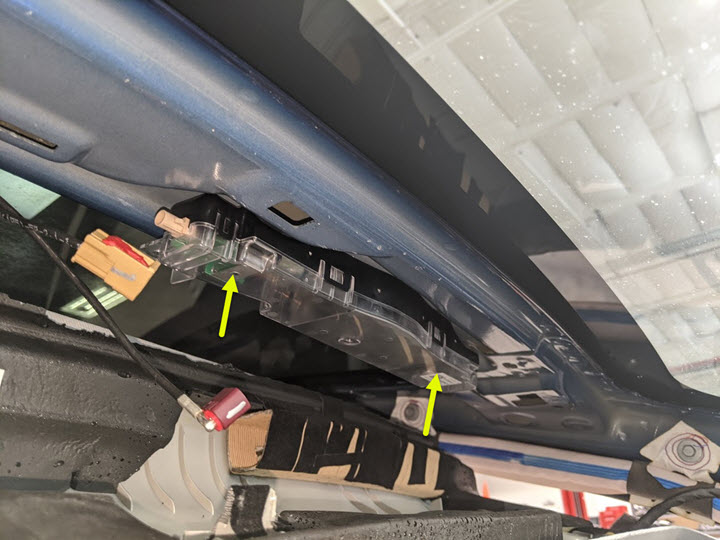

  11. 拆下将左侧 MIMO 天线固定到车辆的螺栓。
    10 Nm (7.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    螺栓固定在天线外壳中,无法从天线上拆下。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • T25 梅花套筒

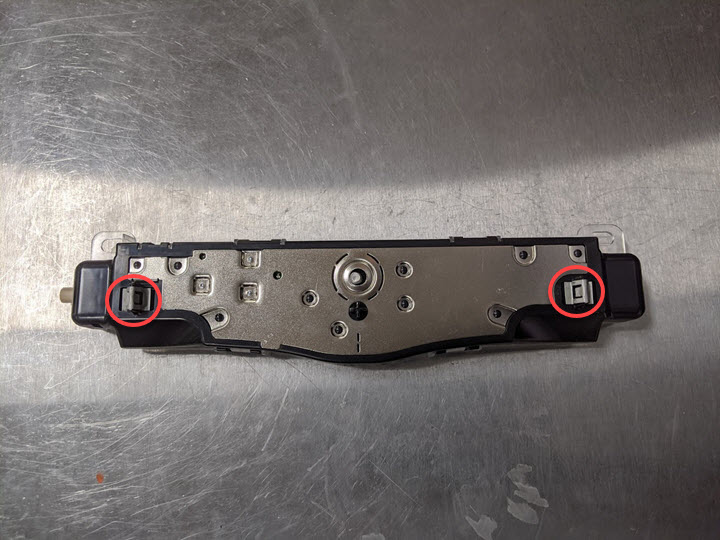

  12. 松开将左侧 MIMO 天线固定到车身的夹子(2 个),然后从车上拆下天线。

安装

  1. 将 LH MIMO 天线安装到车辆中。
  2. 安装将左侧 MIMO 天线固定到车辆的螺栓。
    10 Nm (7.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    螺栓固定在天线外壳中,无法从天线上拆下。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • T25 梅花套筒
  3. 连接 LH MIMO 天线连接器 (x2),然后接合锁片。

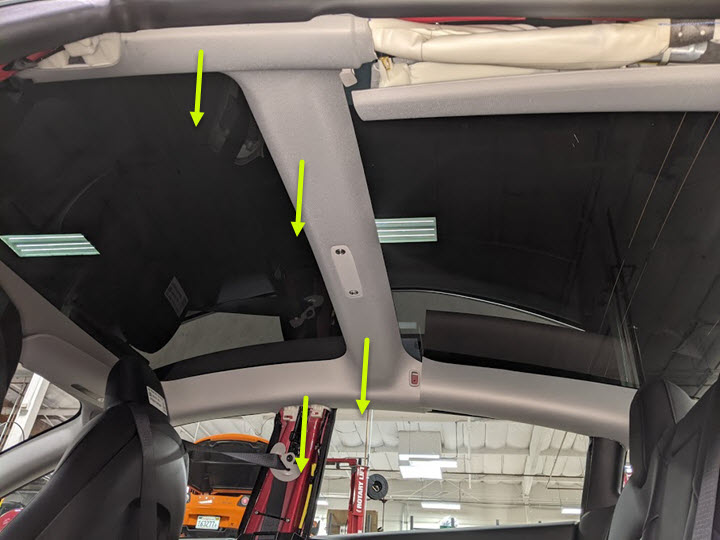

  4. 将顶篷后部放到车辆上,然后紧固将顶篷固定到车辆上的夹子 (x4)。
    Informational PurposesAn informational icon, calling your attention
    确保所有夹子完全接合。
  5. 安装 LH B 柱上部饰板,然后紧固将饰板固定到车辆的夹子。请参阅Trim - B-Pillar - Upper - LH (Remove and Replace)
  6. 安装将 LH 后衣帽钩固定到车身的螺钉。
    2.5 Nm (1.8 lbs-ft)
  7. 合上左侧后衣帽钩螺钉盖板。
  8. 合上 LH 后衣帽钩。
  9. 安装 LH 边梁饰板。请参阅Trim - Side Rail - LH (Remove and Replace)
  10. 对车辆 RH 侧重复执行第 5 步至第 9 步。
  11. 将前排座椅移回原位。
  12. 确认 BT、WiFi 和 LTE 正常运行。
  13. 升起所有车窗,关闭所有车门。
