Mirror - Door - LH (Remove and Replace)

校正代码 12091102 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

  • 2025 年 2 月 10 日:添加了为新后视镜类型更新固件的信息。
  • 2023 年 7 月 20 日:添加了有关因调节电机内部短路而更换后视镜后重置车身控制器的信息。
Warning IconA warning icon, calling your attention to a possibly risky situation
警告
The video(s) included in this procedure are meant as an overview for supplemental purposes only. Follow all of the steps listed in the procedure to avoid damage to components and/or personal injury.

扭矩规格

表 1. 扭矩规格: Mirror - Door - LH (Remove and Replace)
描述 扭矩值 推荐工具 重复使用/更换 备注
Bolts that attach the LH door mirror to the door
15 Nm (11.1 lbs-ft)
  • 10 毫米套筒
  • 4 英寸加长件
重复使用
Informational PurposesAn informational icon, calling your attention
为避免后视镜传动装置出现加速磨损,新版后视镜所需固件版本必须是 2025.2.3 或更高版本。

拆卸

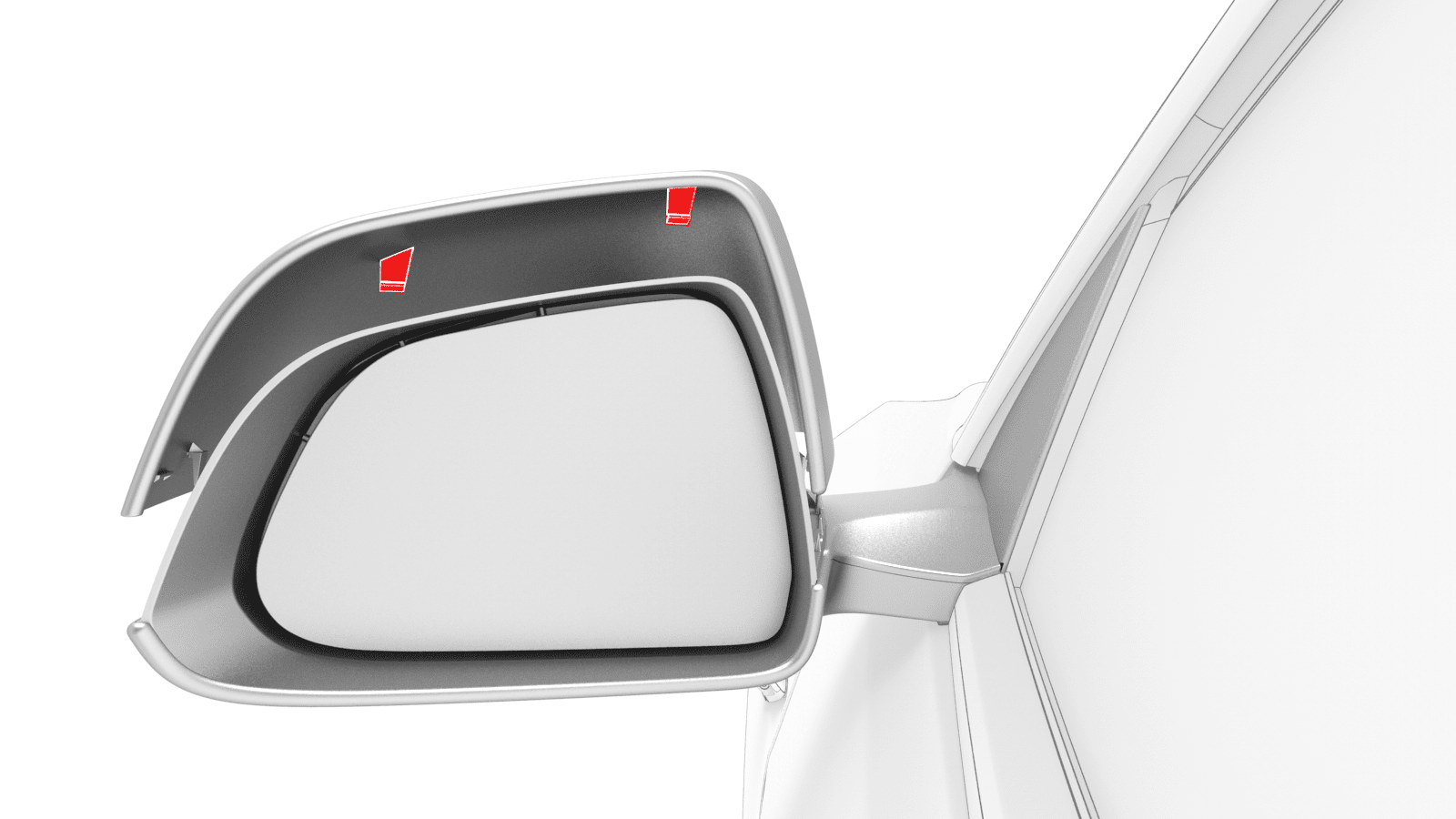

  1. 使用塑料饰板工具沿着内边缘撬起左侧后视镜盖。
  2. 向上提起将左侧后视镜盖固定到左侧后视镜的锁片以将其松开,然后拆下后视镜盖。
  3. 拆下左前车门高频扬声器。请参阅Tweeter - Front Door - LH (Remove and Replace)
  4. 松开将反光灯固定到左前车门饰板后侧边缘的卡子,以及将螺钉盖固定到扶手前侧的卡子,然后将反光灯和螺钉盖从饰板上拆下。
  5. 拆下将饰板固定到车门的螺钉。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • T30 梅花套筒
    • 4 英寸加长件
    • 1/4 英寸标准棘轮
    • 1/4 英寸扭矩扳手(仅适用于安装程序)
    图 1.
    图 2. 中间
    图 3.
  6. 向外拉离左前车门饰板,以松开将饰板固定到车门的卡子,然后小心地将车门饰板顺时针旋转 90 度并将其放到柔软表面上以防损坏。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    此时切勿将饰板从车门上拆下。
    Informational PurposesAn informational icon, calling your attention
    若为 2018 年 12 月 17 日之前生产的车辆,请检查线束夹和布线情况。
    图 4. 饰板卡子位置
    图 5. 车门卡子位置
  7. 将电气线束从左侧后视镜连接器上断开。
  8. 松开将左前后视镜线束固定到车门总成的夹子。
  9. 松开将左前玻璃滑槽密封条固定到车门的卡子(3 个)。

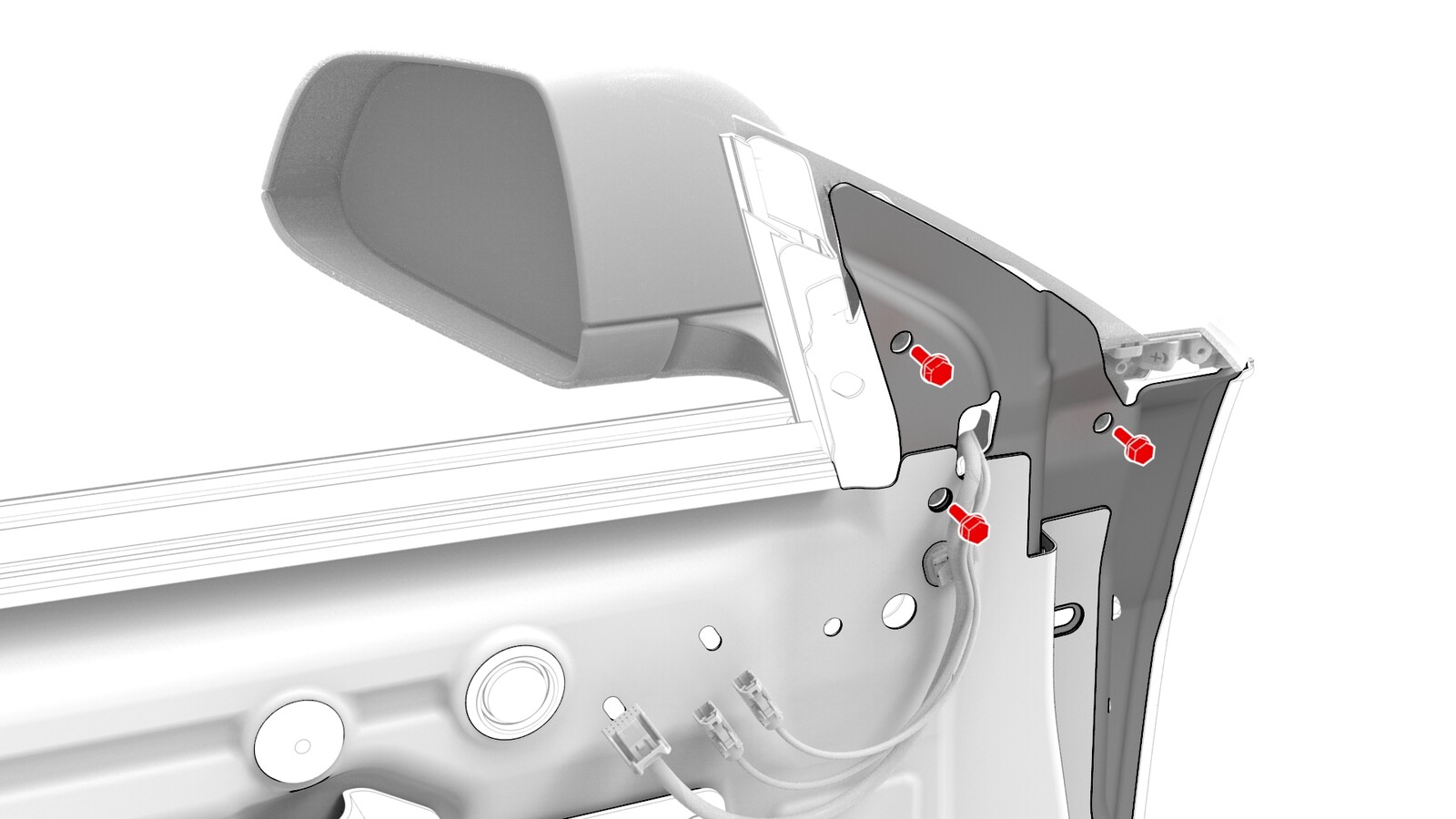

  10. 拆下将左侧后视镜固定到左前车门的螺栓。
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Use only hand tools to remove or install the fasteners. Do not use impact or power tools.
    Informational PurposesAn informational icon, calling your attention
    最前端的螺栓位于玻璃滑槽密封条下方。
    Informational PurposesAn informational icon, calling your attention
    TIp
    推荐使用以下工具:
    • 10 毫米套筒
    • 4 英寸加长件

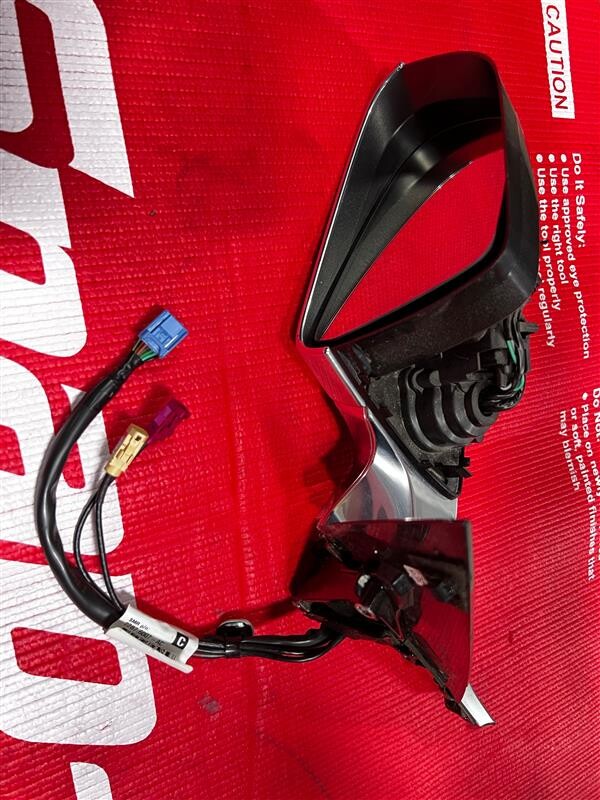

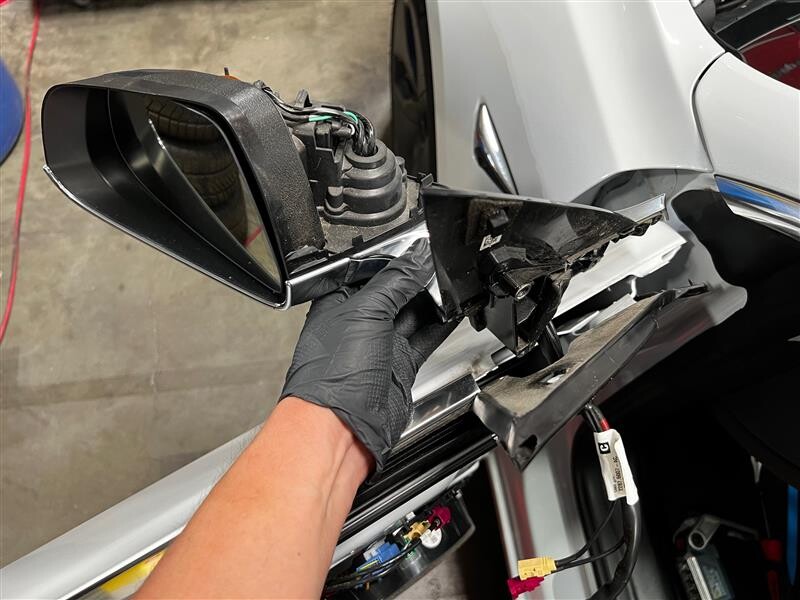

  11. 松开将左前后视镜固定到车门总成的卡子,将索环推过车门开口,然后将后视镜线束穿过车门,同时提起后视镜以将其从车门总成上拆下。

安装

  1. 将左侧后视镜放置到车门总成上,使线束穿过车门开口,然后紧固将后视镜固定到车门的卡子。
  2. 安装将左侧后视镜固定到左前车门的螺栓。
    15 Nm (11.1 lbs-ft)
    Informational PurposesAn informational icon, calling your attention

    Use only hand tools to remove or install the fasteners. Do not use impact or power tools.

  3. 紧固将左前玻璃滑槽密封条固定到车门的卡子(3 个)。
  4. 将电气线束连接到左侧后视镜连接器。
    Informational PurposesAn informational icon, calling your attention
    如果因调节电机内部短路而更换了后视镜总成,请重置受影响的车身控制器(操作如下:Service Mode > Low Voltage > Power Distribution > Reset VCLeft or Reset VCRight),以清除电路保护,并使新的后视镜能够完全正常工作。
  5. 紧固将左前后视镜线束固定到车门总成的夹子。
  6. 安装左前车门饰板。请参阅Panel - Door Trim - Front - LH (Remove and Install)
  7. 安装左侧后视镜盖,然后向下按压以紧固将盖子固定到后视镜的锁片。
