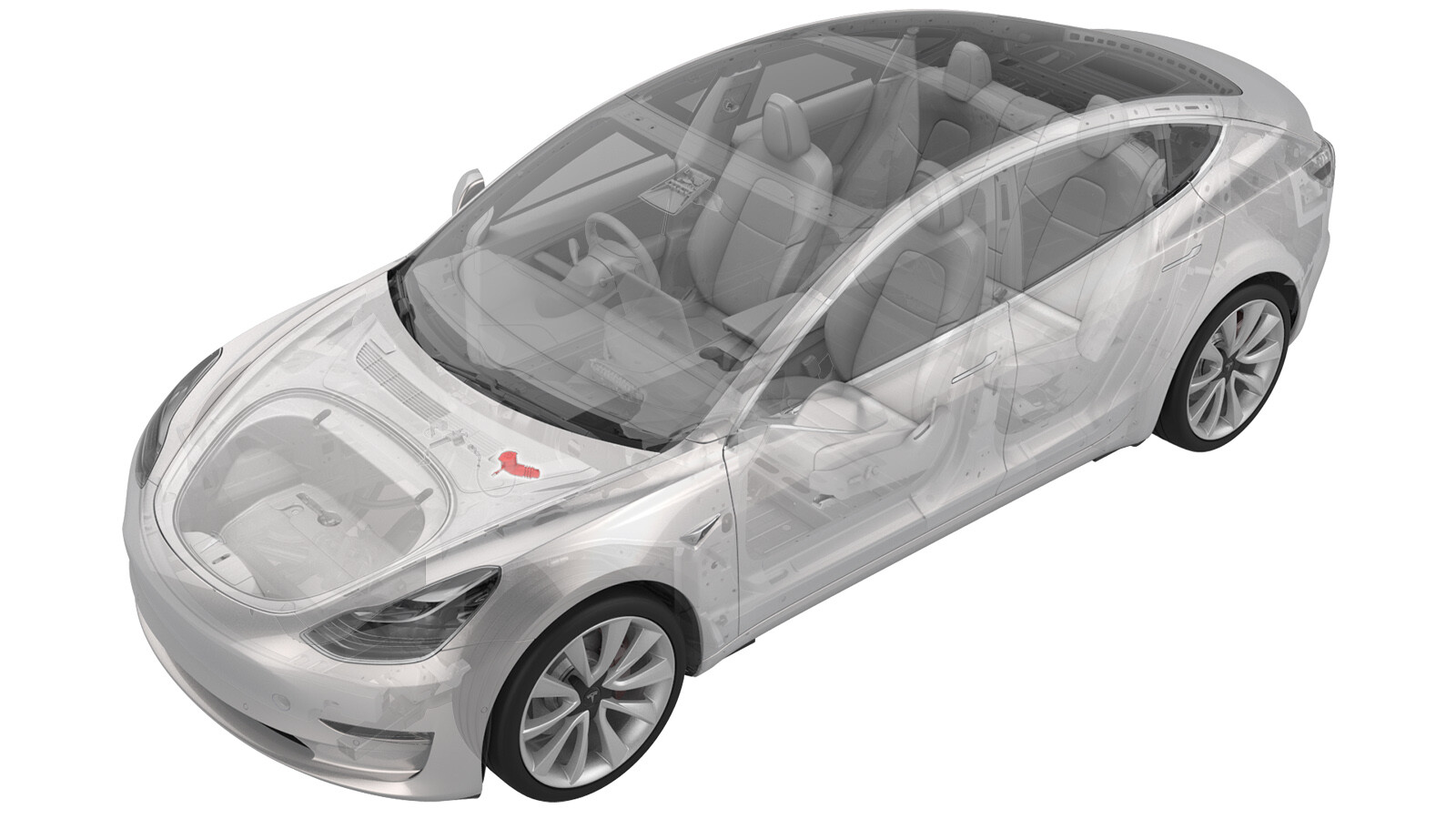

充注口 - 储液罐 - 挡风玻璃清洗器 (RHD)（拆卸和更换）

校正代码 17503102 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

拆卸

  1. 拆下前备箱后部挡板。请参阅前备箱挡板 - 后部（拆卸和更换）。

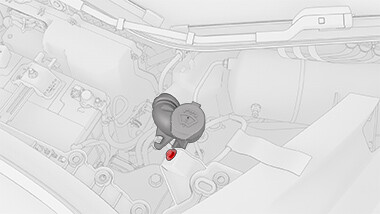

  2. 拆下将加注口固定到前备箱储物单元的螺栓。
    5 Nm (3.7 lbs-ft)

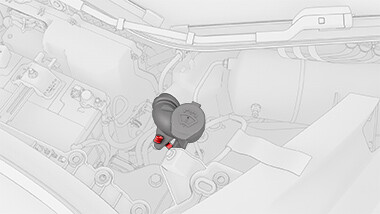

  3. 松开将电气线束固定到加注口的夹子。
  4. 将加注口直接拉离挡风玻璃清洗器储液罐，以便将其拆下。

安装

安装程序与拆卸程序相反，以下各项除外：

  • 确保新加注口配备 O 型环。如果未安装 O 型环，请安装一个。
