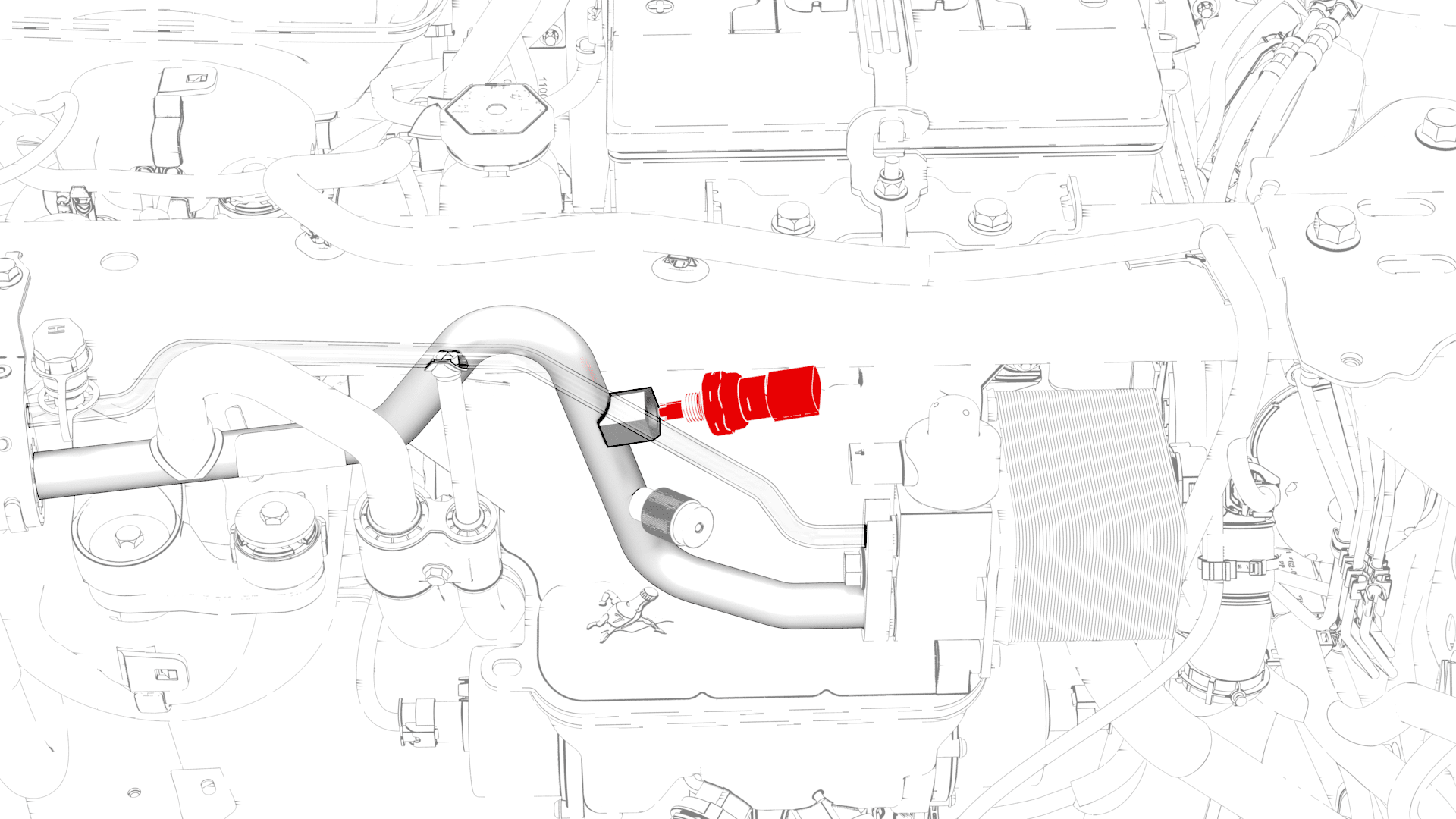

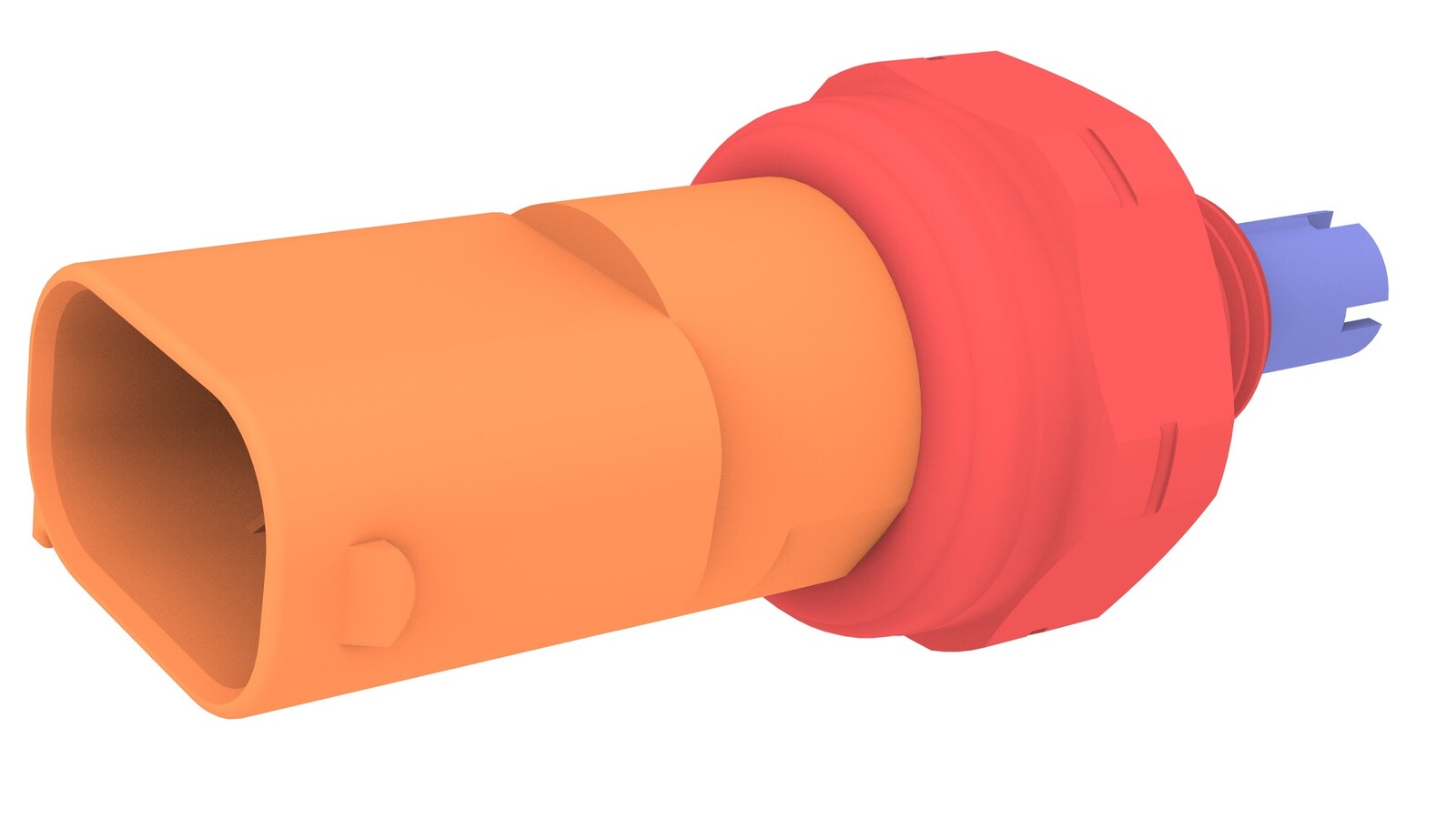

传感器 - 压力和温度 (PT) - 低压（不带加热泵款）（拆卸和更换）

校正代码 18205602 1.08 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

安装

安装程序与拆卸程序相反，以下各项除外：

  • 执行空调制冷剂再充注。请参阅空调制冷剂（回收和重新加注）。
  • 将装有 Toolbox 3 的笔记本电脑与车辆相连，然后：
    1. 在Actions/Autodiag选项卡中搜索 "reset vcfront”，选择TEST-RESET_VCFRONTvia Toolbox:(link)，点击Run，然后等待例行程序完成。
    2. 在Actions/Autodiag选项卡中搜索 “thermal”，选择TEST-SELF_VCFRONT_X_THERMAL-PERFORMANCEvia Service Mode:Thermal ➜ Actions ➜ Test Thermal Performancevia Service Mode Plus:
      • Drive Inverter ➜ Front Drive Inverter Replacement ➜ Thermal System Test
      • Drive Inverter ➜ Rear Drive Inverter Replacement ➜ Thermal System Test
      • Drive Inverter ➜ Rear Left Drive Inverter Replacement ➜ Thermal System Test
      • Drive Inverter ➜ Rear Right Drive Inverter Replacement ➜ Thermal System Test
      • Drive Unit ➜ Front Drive Unit Replacement ➜ Thermal System Test
      • Drive Unit ➜ Rear Drive Unit Replacement ➜ Thermal System Test
      via Toolbox:(link)      ，点击Run，然后等待例行程序完成。
