支架 - 牌照 - 前(拆卸和更换)
校正代码
12070102 0.24
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
- 2026-05-08: 更新了胶黏剂清除过程。
设备:
- 1049517-00-A 人体工程学硅胶叠缝滚压机
拆卸
-
拆下将前车牌固定到车牌架的螺钉,然后拆下车牌。
-

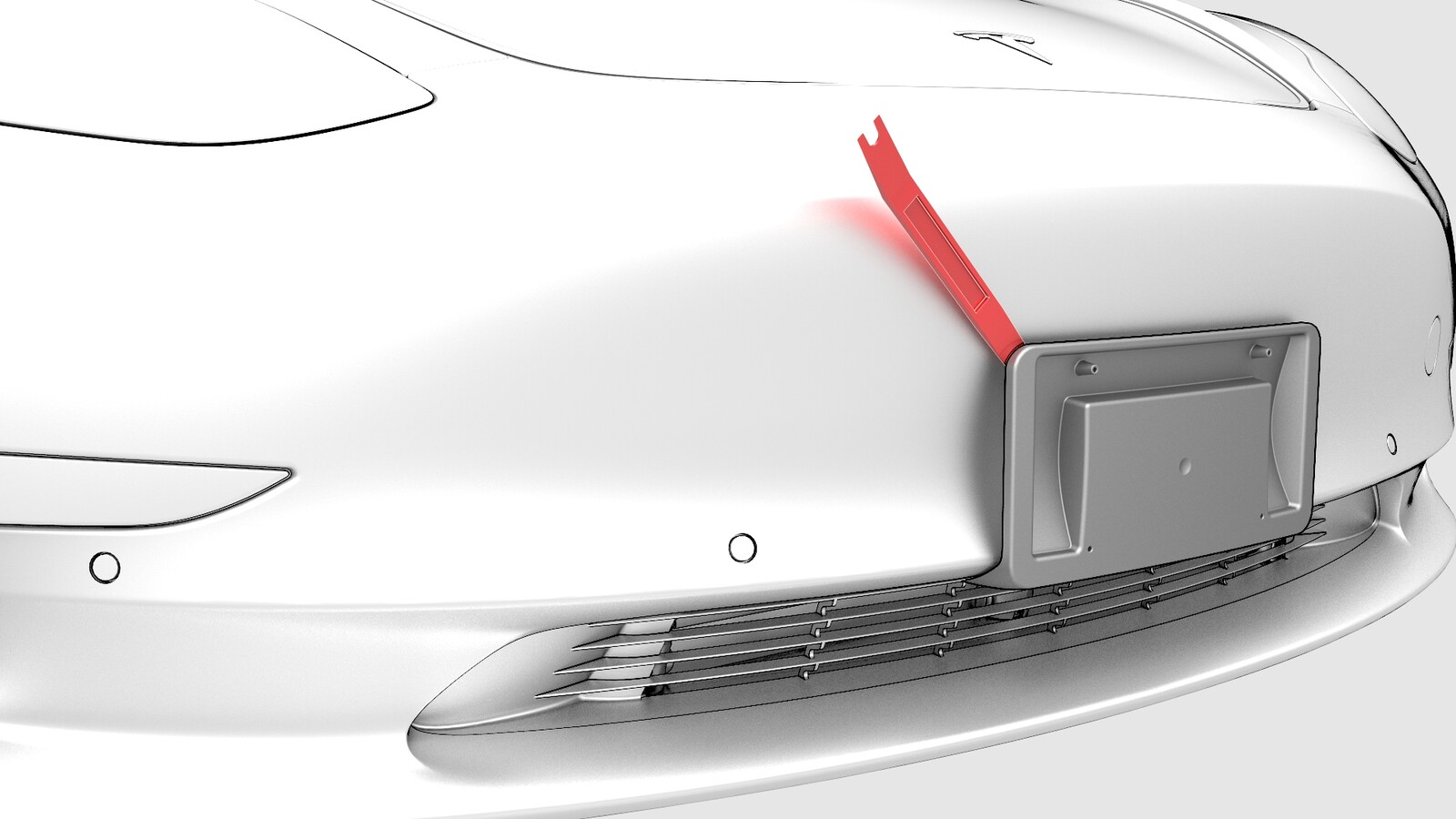

使用饰板工具沿前车牌架四周松开将支架固定到前保险杠饰板的胶带。
- 从前保险杠饰板上拆下前车牌架。
-
清除前饰板上的任何支架胶带、残胶或碎屑。
注用异丙醇 (IPA) 浸湿毛巾,然后将毛巾盖在胶带上,利用异丙醇分解胶水和材料。1.5 分钟后,将同一块已浸湿的毛巾向内推动,以揭下边缘处的胶带。
安装
-
在新前车牌架上,揭下水平长条胶带的底衬。
-
将垂直胶条的底衬向外折叠 90 度角。
-
水平放置车牌架,然后将支架底部边缘的定位锁片与饰板格栅的中央肋对齐。
- 垂直转动车牌架,然后将顶部边缘压向前保险杠饰板。
-
从车牌架的两个侧面拉出胶条。
-
将支架压向前保险杠饰板以打湿胶带。
提示使用叠缝滚压机打湿胶带。
-
将车牌安装到车牌架上,然后安装将车牌固定到支架的螺钉。
3 Nm (2.2 lbs-ft)
