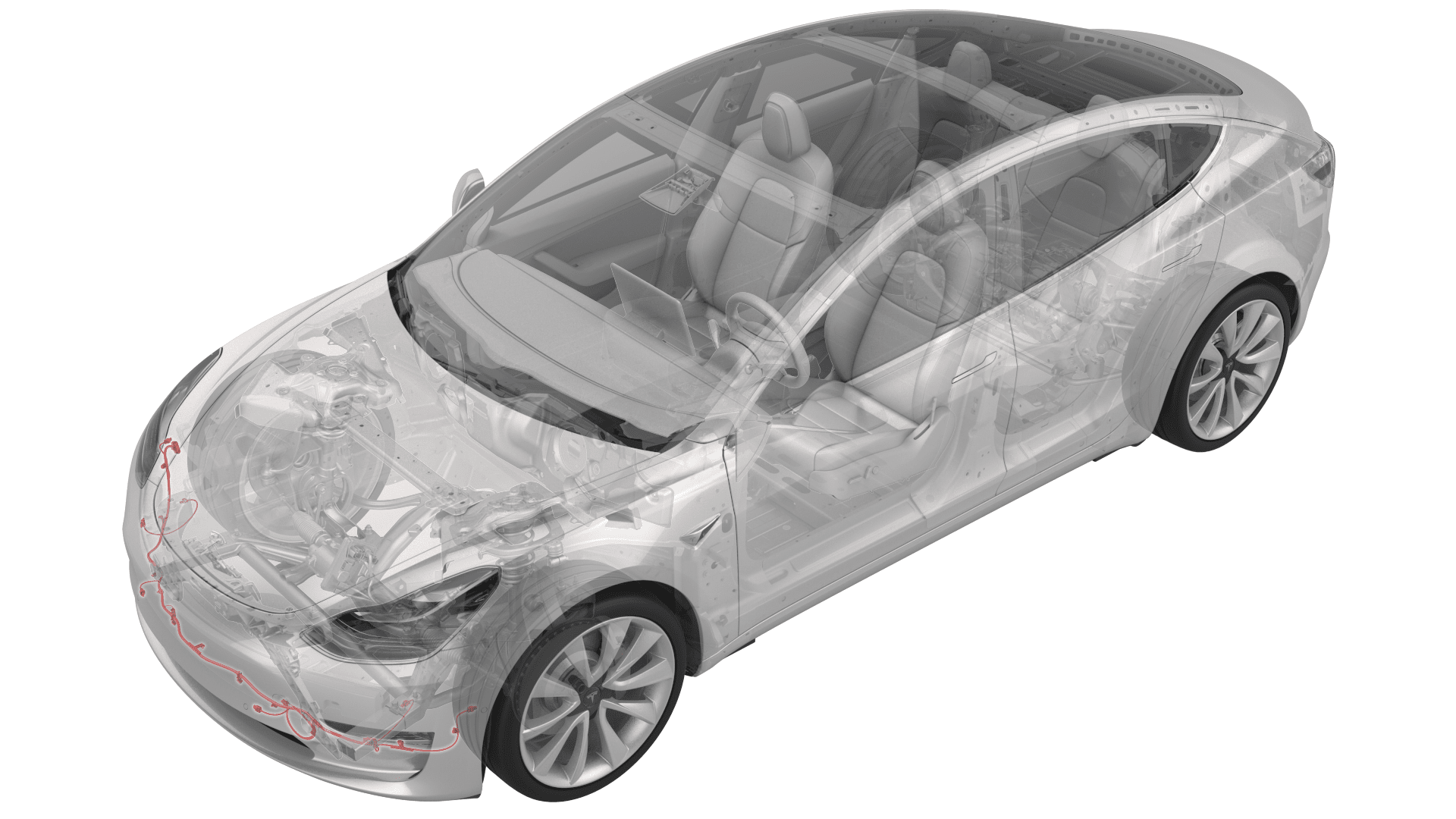

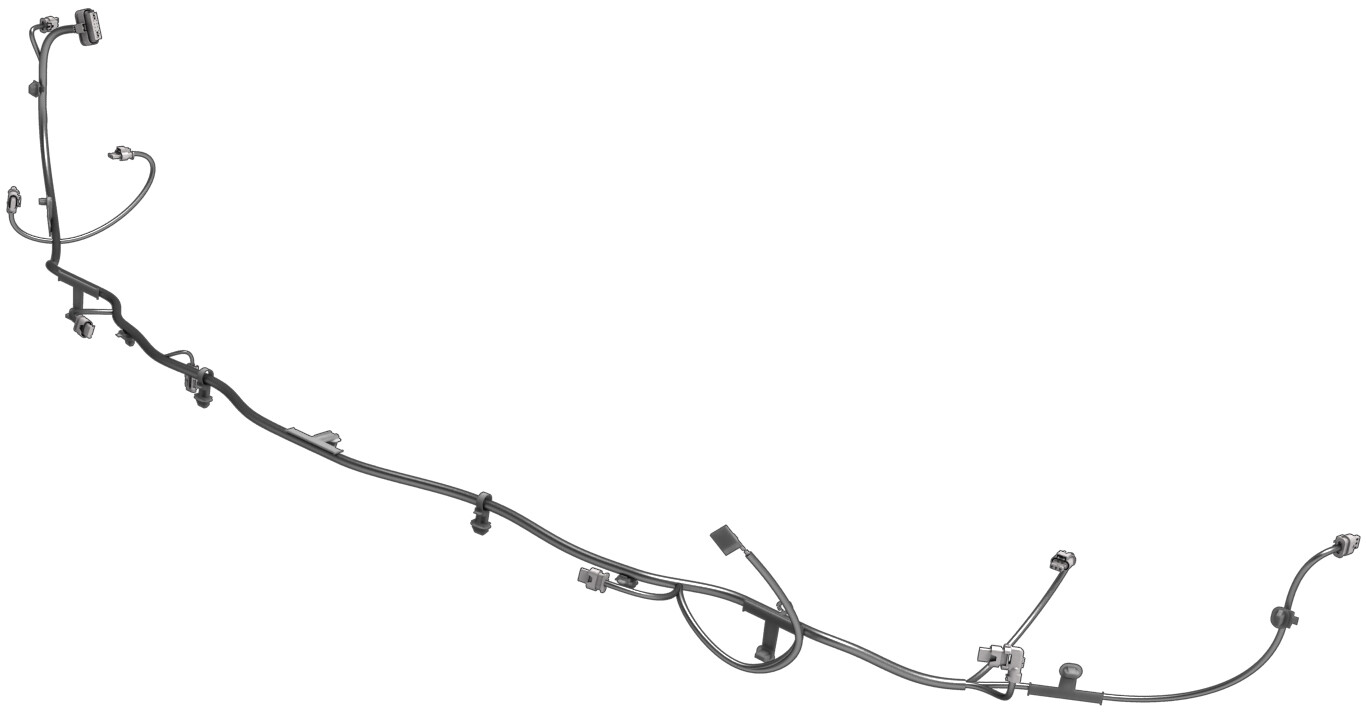

Harness - Fascia - Front (Remove and Replace)

校正代码 17101002 0.72 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure.

拆卸

  1. 拆下前饰板。请参阅Fascia - Front (Remove and Install)

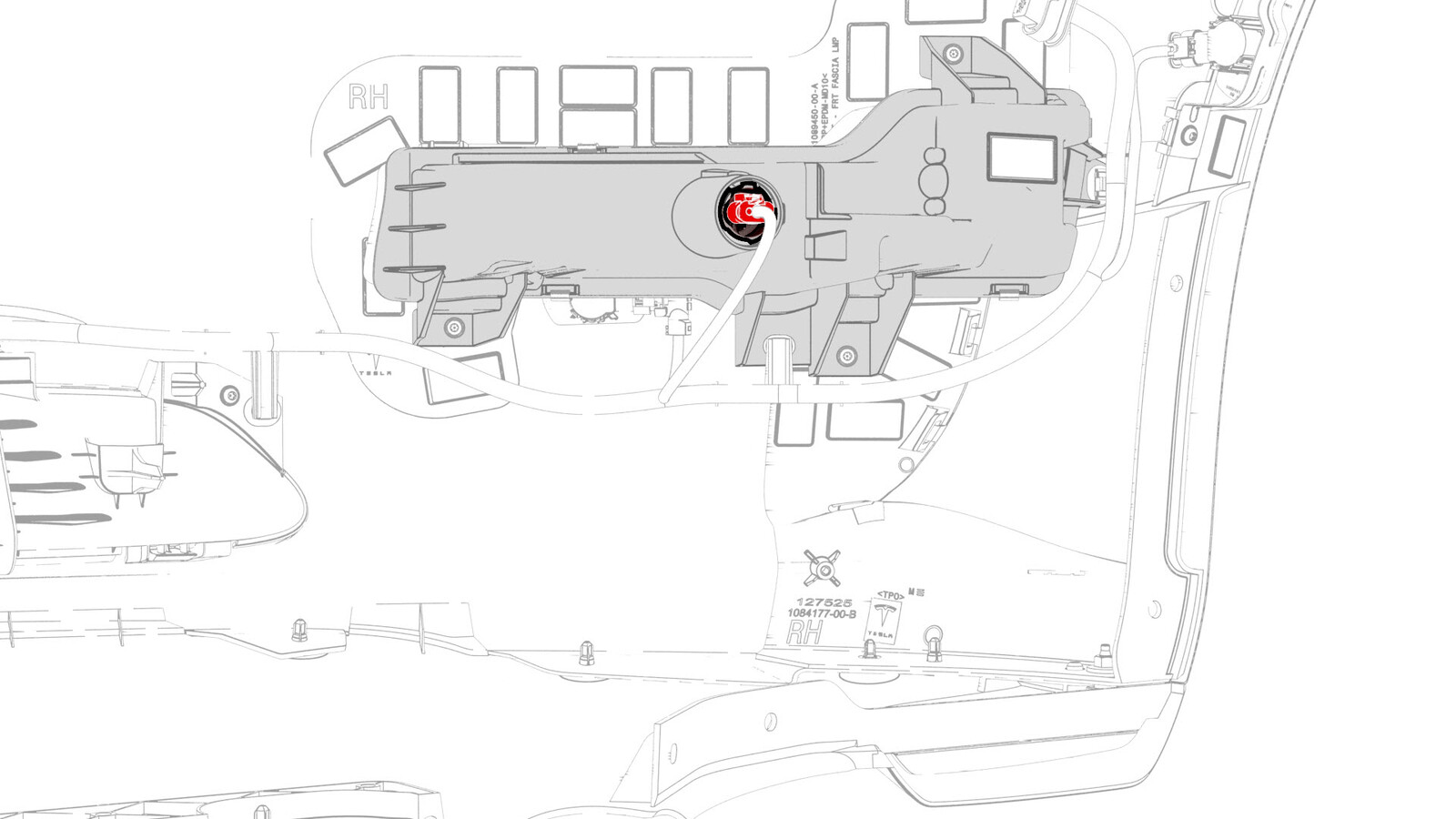

  2. 若有,则断开电气线束与 RH 和 LH 前转向灯/雾灯连接器的连接。
    图 1. 图示为右侧件,左侧类似

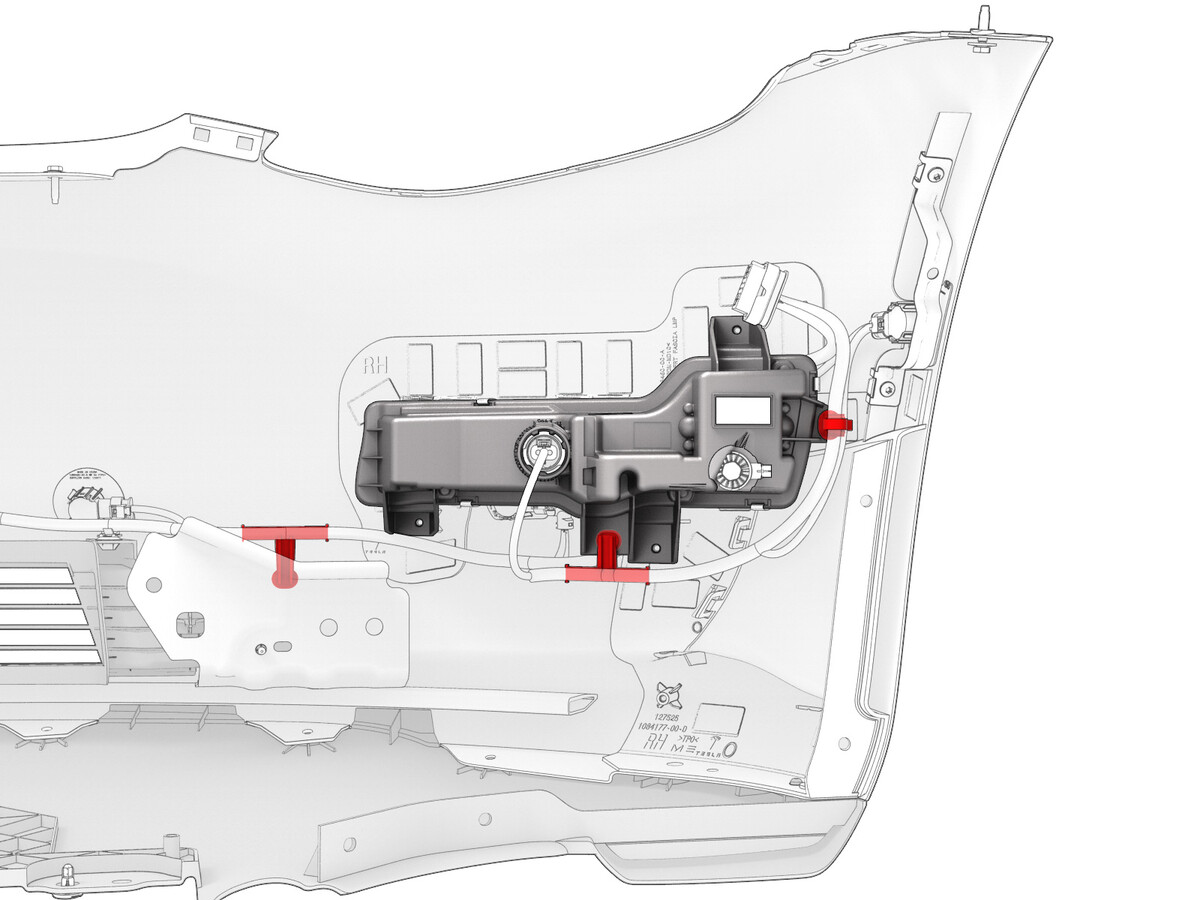

  3. 松开将电气线束固定到前饰板以及 RH 和 LH 前转向灯/雾灯的夹子。
    图 2. 图示为右侧件,左侧类似

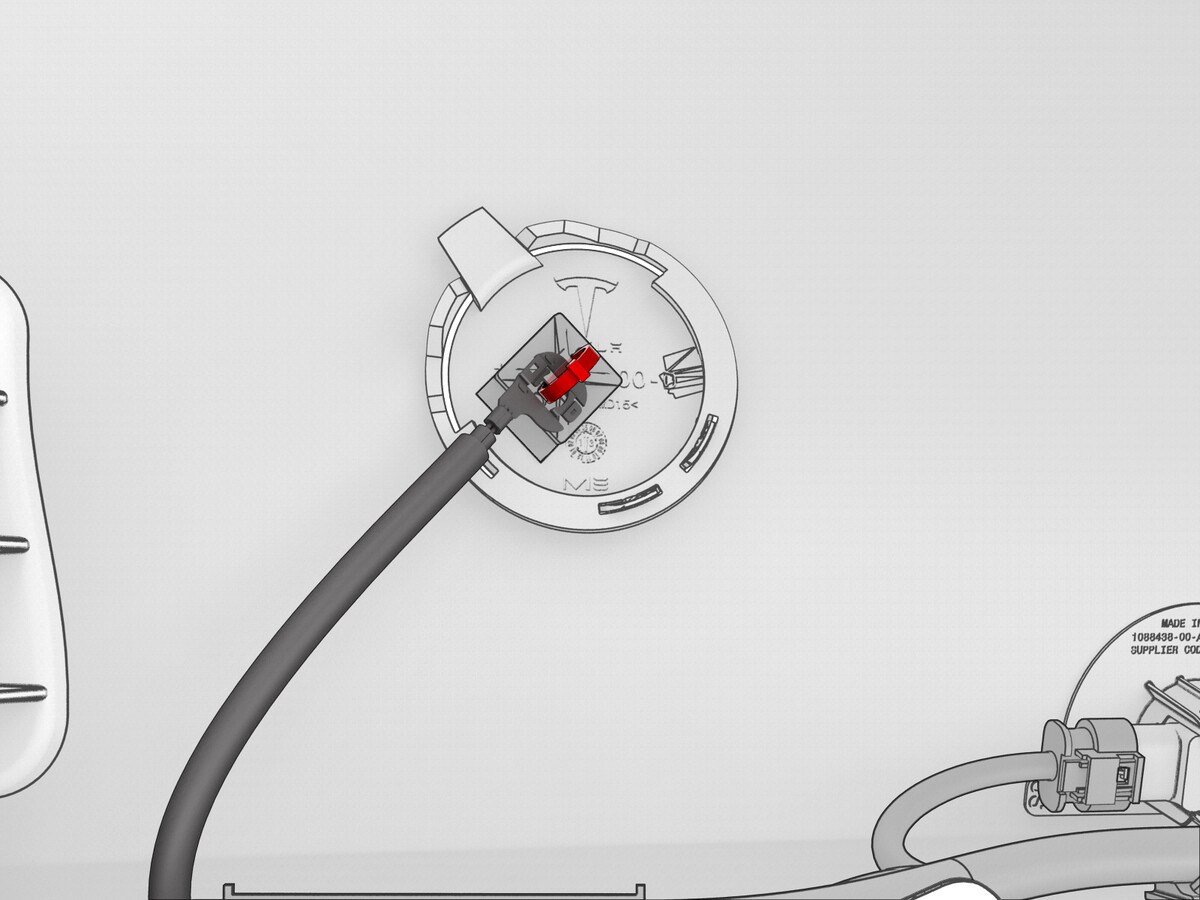

  4. 断开电气线束与前驻车距离传感器 (x6) 的连接。
  5. 断开电气线束与环境空气温度传感器连接器的连接。
  6. 小心地切断将前饰板线束固定到拖钩盖板的电缆扎带。

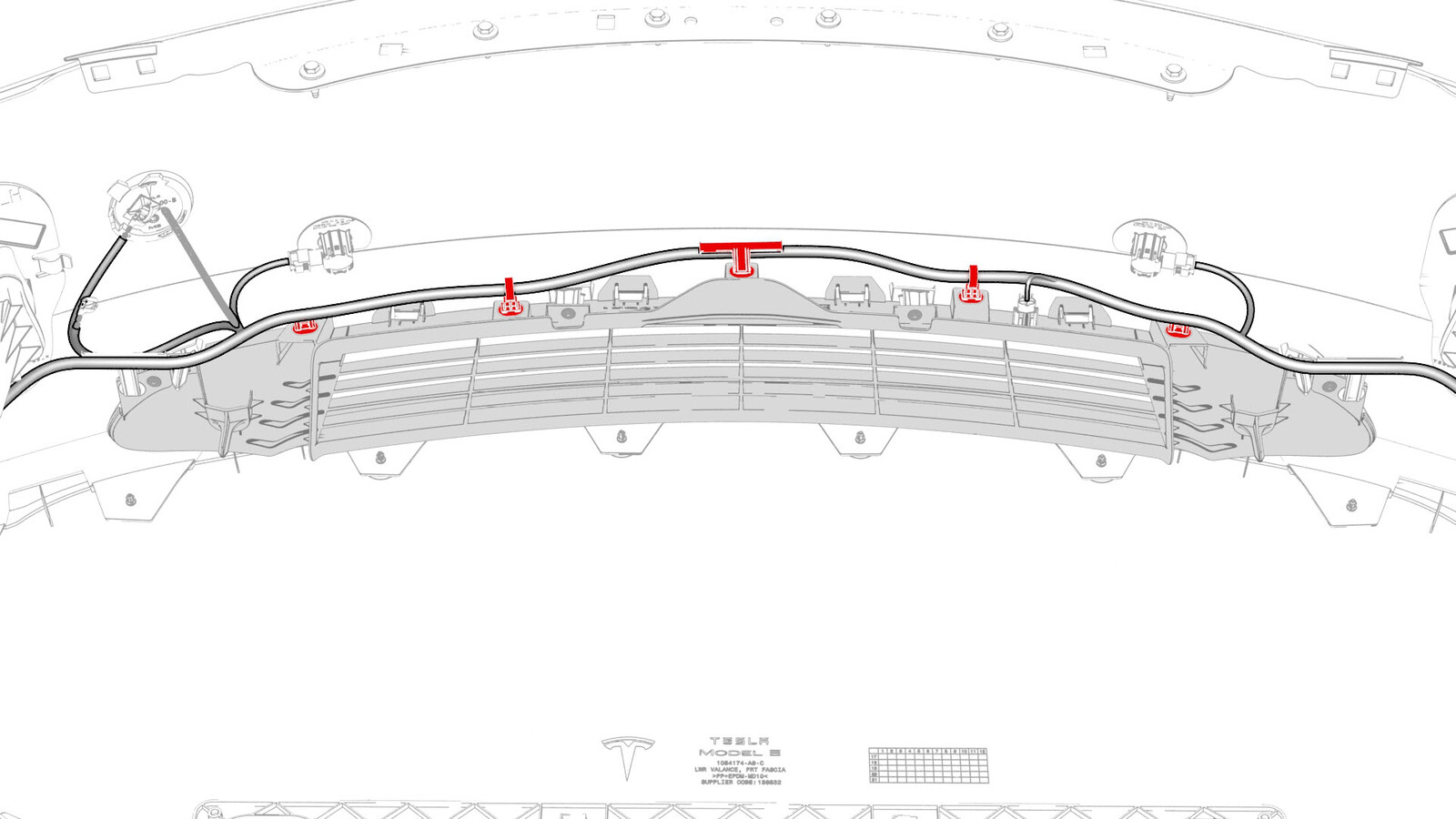

  7. 松开将电气线束固定到前饰板中央的夹子,然后从饰板上拆下电气线束。

安装

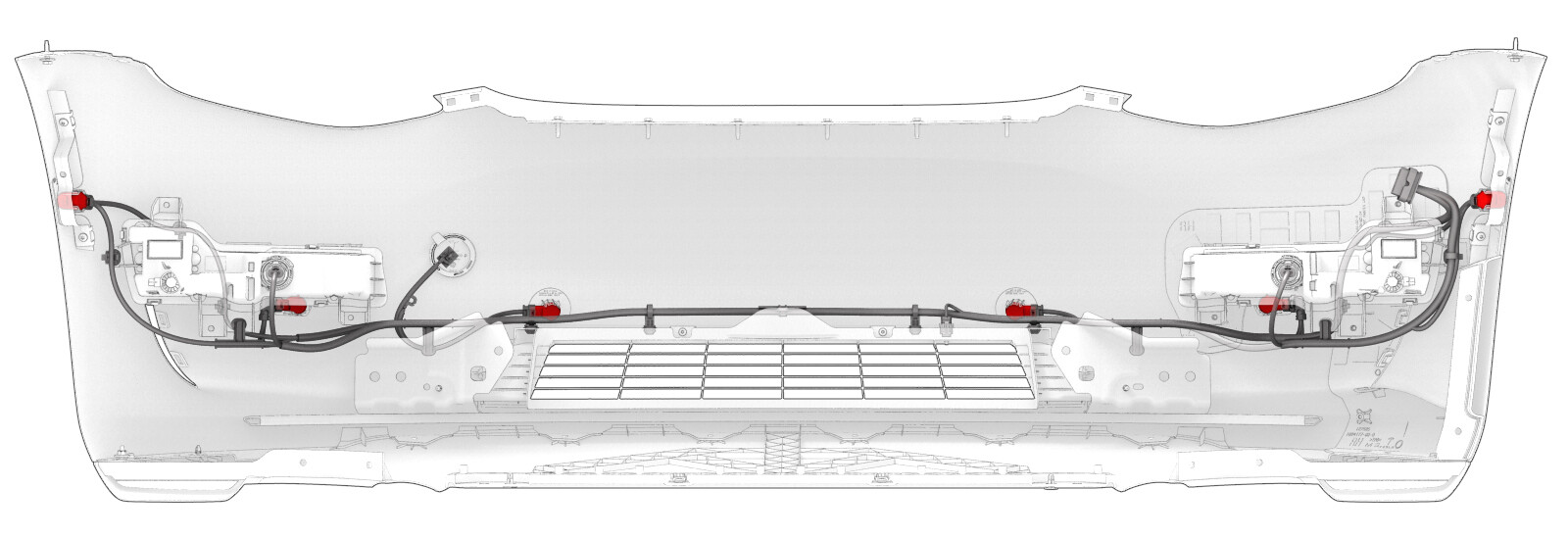

  1. 将新的前饰板线束放置在前饰板上。
  2. 安装将前饰板线束固定到 RH 和 LH 前转向灯/雾灯的夹子。
    图 3. 图示为右侧件,左侧类似
  3. 安装将电气线束固定到前饰板中央的夹子。
  4. 若有,则将电气线束连接到 RH 和 LH 前转向灯/雾灯连接器。
    图 4. 图示为右侧件,左侧类似
  5. 将电气线束连接到前驻车距离传感器 (x6)。
  6. 将电气线束连接到环境空气温度传感器连接器。
  7. 在拖车钩罩的背面插入一个电缆扎带,然后将前面板线束的电气触点固定到电缆扎带。
    Informational PurposesAn informational icon, calling your attention
    锁定电缆扎带后,剪掉多余的电缆。
  8. 安装前饰板。请参阅Fascia - Front (Remove and Install)
