制动钳 - 后 - 成对（拆卸和更换）

33010522 0.78 注意：除非本程序中另有明确规定，否则上述校正代码和 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时，深入了解 FRT 及其创建方式。要提供有关 FRT 值的反馈，请发送电子邮件至 ServiceManualFeedback@tesla.com。。 注意：请参阅人员保护，确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。请参阅人体工程学注意事项查看安全健康的作业规程。

Warning IconA warning icon, calling your attention to a possibly risky situation
警告
制动液会溶解车漆。站在车旁，使用干净毛巾和大量清水将洒在漆面上的制动液清洗干净。
Informational PurposesAn informational icon, calling your attention
注
根据当地的环境法规处理使用过的制动液。
Informational PurposesAn informational icon, calling your attention
注
This procedure is applicable to both base and sport type brake calipers.
  1. Prepare the vehicle for lifting, but do not lift it at this time. See 举升车辆 - 双柱举升机.
  2. Open the LH front door and lower the window.
  3. Enable Service Model via the touchscreen. See 维护模式.
  4. Unlock the vehicle gateway. See 网关（解锁）.
  5. Put the EPB in Service Mode: on the touchscreen, touch Chassis > Brakes > EPB Service Mode, from the drop down menus, select Both and Start, and then touch Run.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    The vehicle may roll freely.
  6. Remove LH and RH rear wheels. See 轮毂总成（拆卸和安装）.

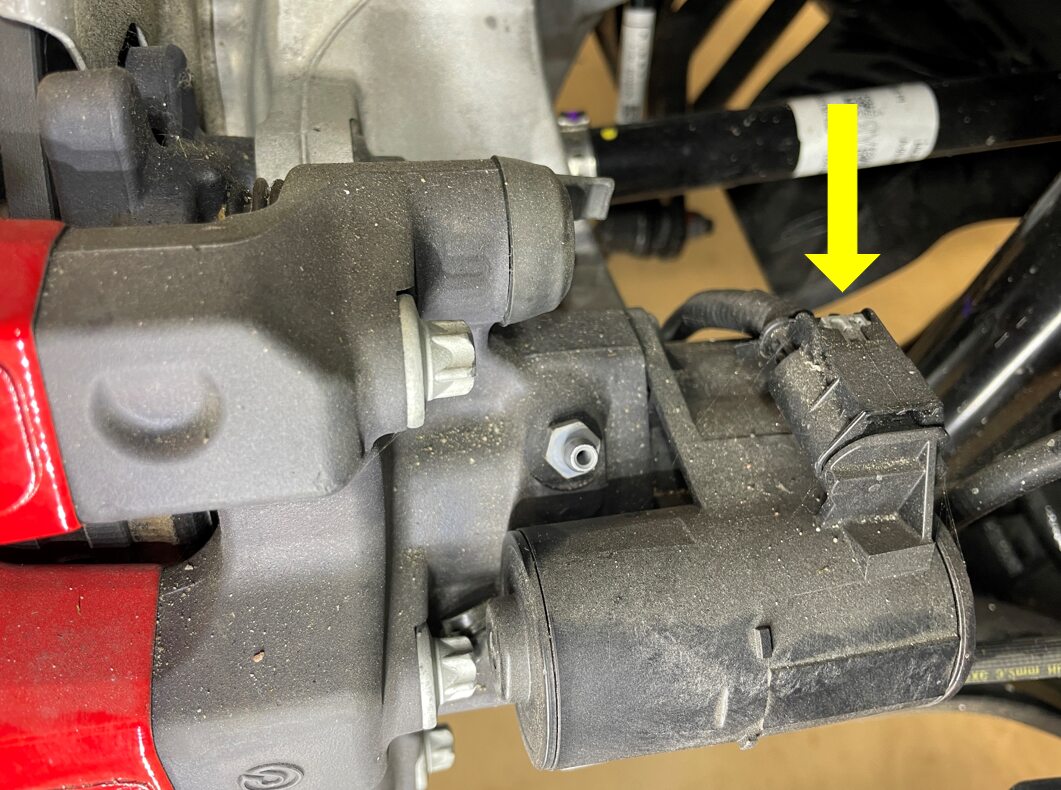

  7. Disconnect the LH rear brake caliper connector.

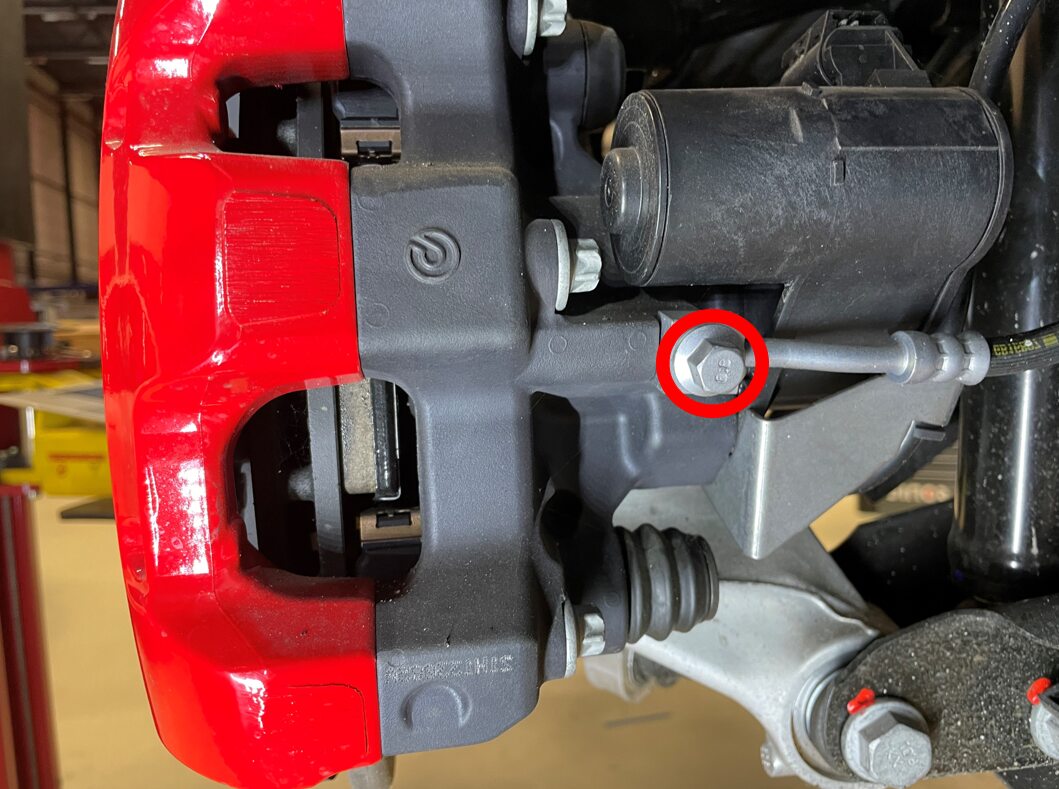

  8. Remove the bolt that attaches the LH rear brake caliper harness bracket.
  9. Position an oil drain container under LH rear brake hose area.

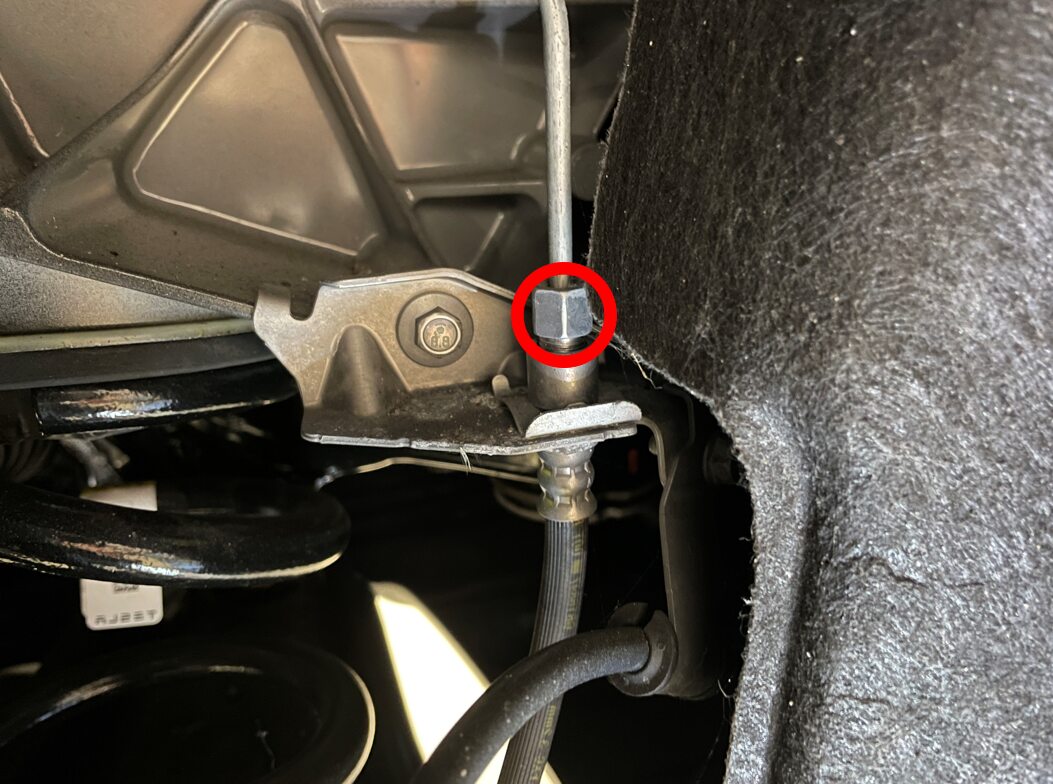

  10. Remove the tube nut that attaches the LH rear brake line to the LH rear brake hose.

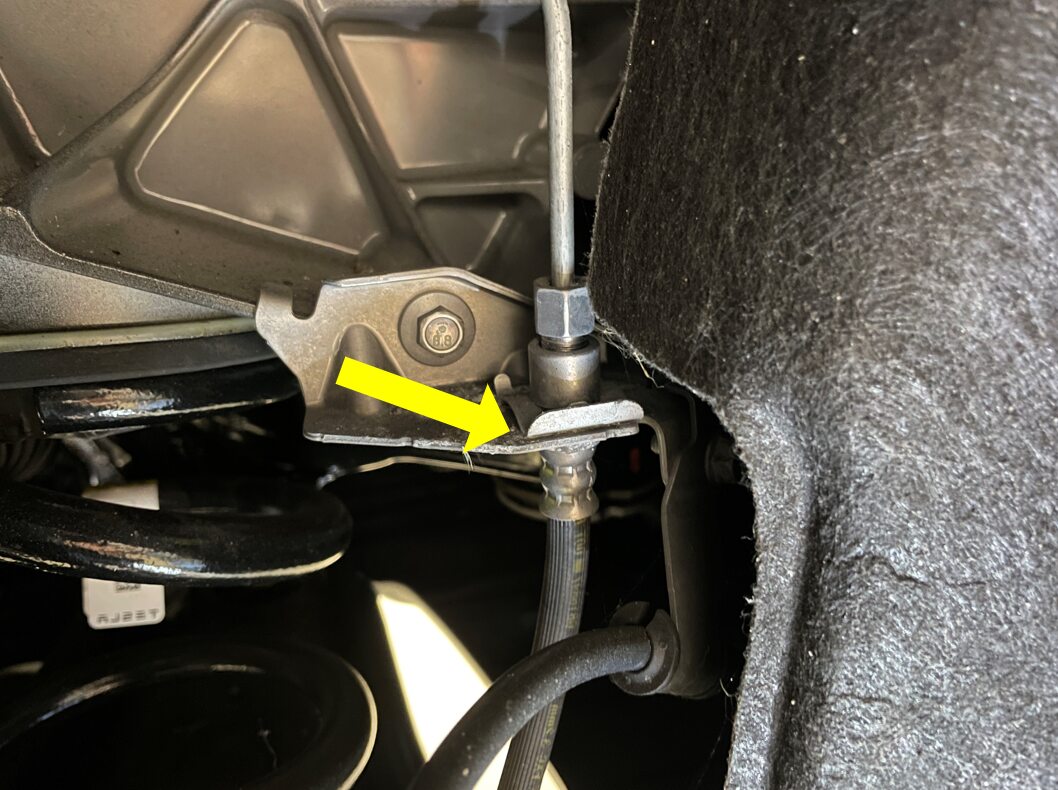

  11. Remove and discard the LH rear jounce hose clip.
  12. Position the oil drain container under the LH rear brake caliper area.

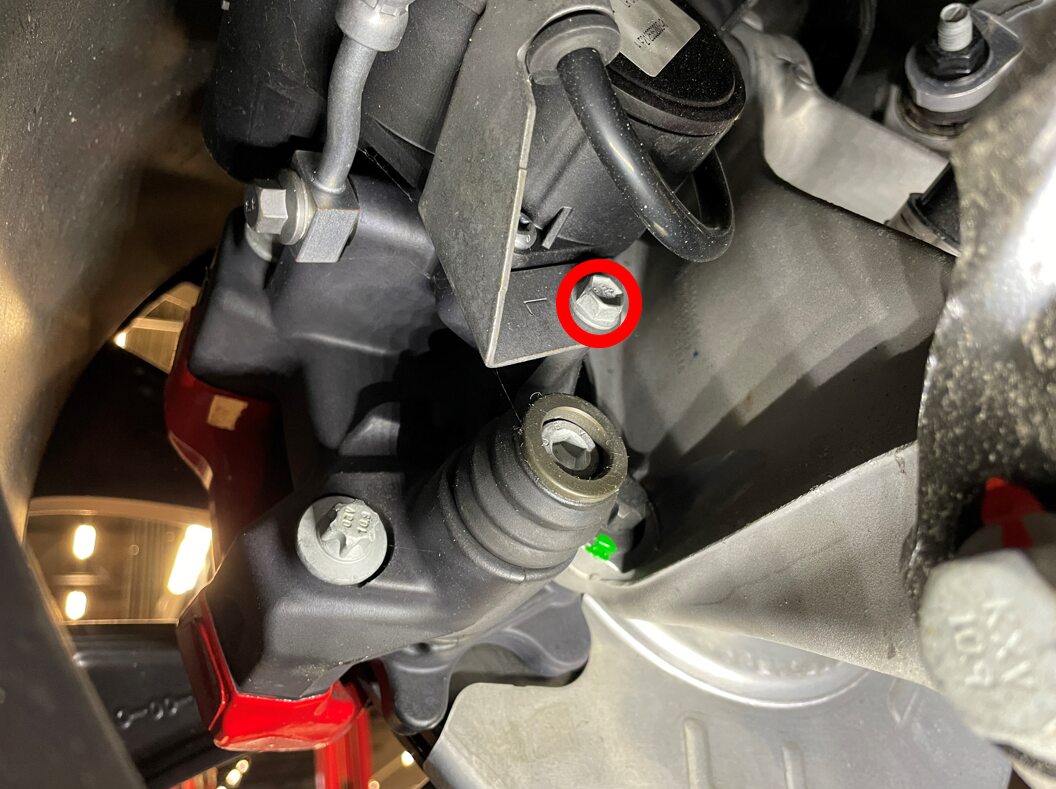

  13. Remove the bolt that attaches the LH rear brake hose to the LH rear brake caliper.
  14. Remove and discard the bolts (x2) that attach the LH rear brake caliper bracket to the knuckle, and then remove the brake caliper from the vehicle.

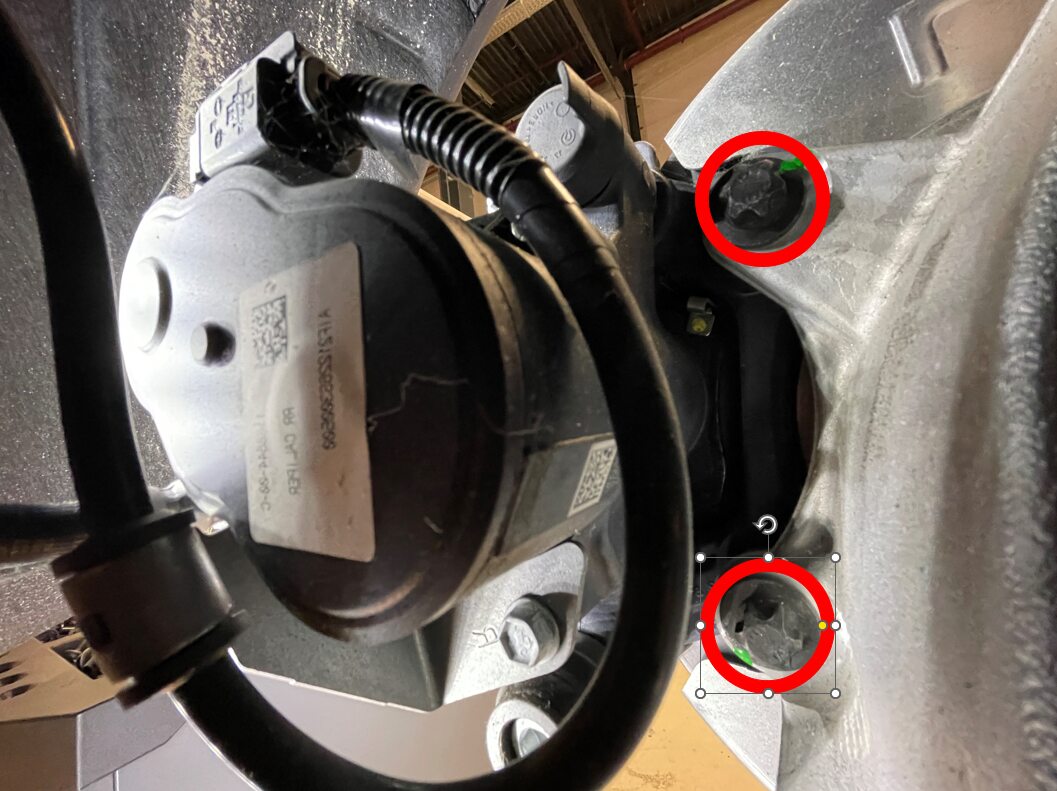

  15. Install new bolts (x2) that attach the LH rear brake caliper bracket onto the knuckle (torque 83 Nm).
    Informational PurposesAn informational icon, calling your attention
    注
    Mark the bolts with a paint pen after torquing.

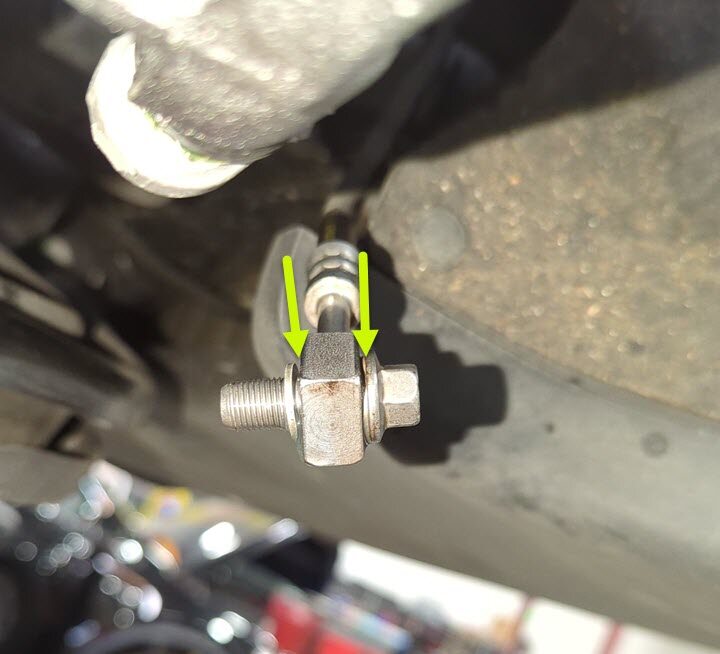

  16. Install a new bolt and new copper washers (x2) that attach the LH rear brake hose to the LH rear brake caliper (torque 42 Nm).
    Informational PurposesAn informational icon, calling your attention
    注
    Mark the bolt with a paint pen after torquing.
  17. Install a new LH rear jounce hose clip to attach the hose to the body.
  18. Position the oil drain container under the LH rear brake hose area.
  19. Install the LH rear brake line tube nut to the LH rear brake hose (torque 16 Nm).
  20. Install the nut that attaches the LH rear brake caliper harness bracket (torque 5 Nm).
  21. Connect the LH rear brake caliper connector.
  22. Repeat steps 7 through 21 on the RH side of the vehicle.
  23. Bleed the LH and RH brake calipers. See 制动液排放 - 单个制动钳.
  24. Put the vehicle into park.
    Informational PurposesAn informational icon, calling your attention
    注
    Make sure that parking brakes are engaged. Putting the vehicle into Park also disables EPB Service Mode.
  25. Perform a road test and burnish the brakes. See 制动片 - 磨合.
    Informational PurposesAn informational icon, calling your attention
    注
    Ensure proper brake pedal feel and performance. Add correction code 33013000 as a separate activity to the SV.
