支架 - 手动释放缆索 - 充电接口（拆卸和更换）
校正代码
44012142 0.12
NOTE: Unless otherwise explicitly
stated in the procedure, the correction code and its associated FRT reflect all of the
work required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate
Times to learn more about FRTs and how they are created.
NOTE: See 人员保护 to make sure wearing proper PPE when
performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working
practices.
拆卸
- Remove the trunk garnish. See 饰板 - 后备箱（拆卸和更换）.
- Disconnect the LH trunk light. See 灯 - 后备箱（拆卸和更换）.
-

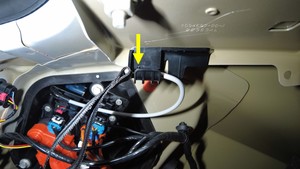

With a small flat head screwdriver, pull the manual release cable off from the hold
down clip.
-

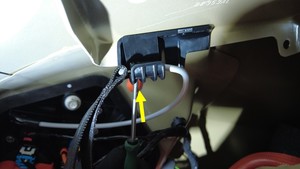

Use a small flat head screwdriver to release the tab.
-

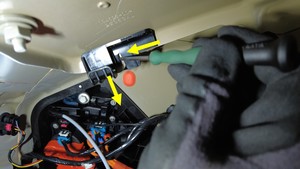

Remove the charge port manual release bracket from the vehicle.
安装
-

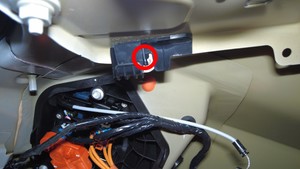

Install the tab that attaches the charge port manual release bracket to the
vehicle.
-

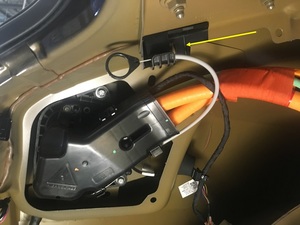

Push down the manual release cable into the locking tab.
- Connect the LH trunk light. See 灯 - 后备箱（拆卸和更换）.
- Install the trunk garnish. See 饰板 - 后备箱（拆卸和更换）.
