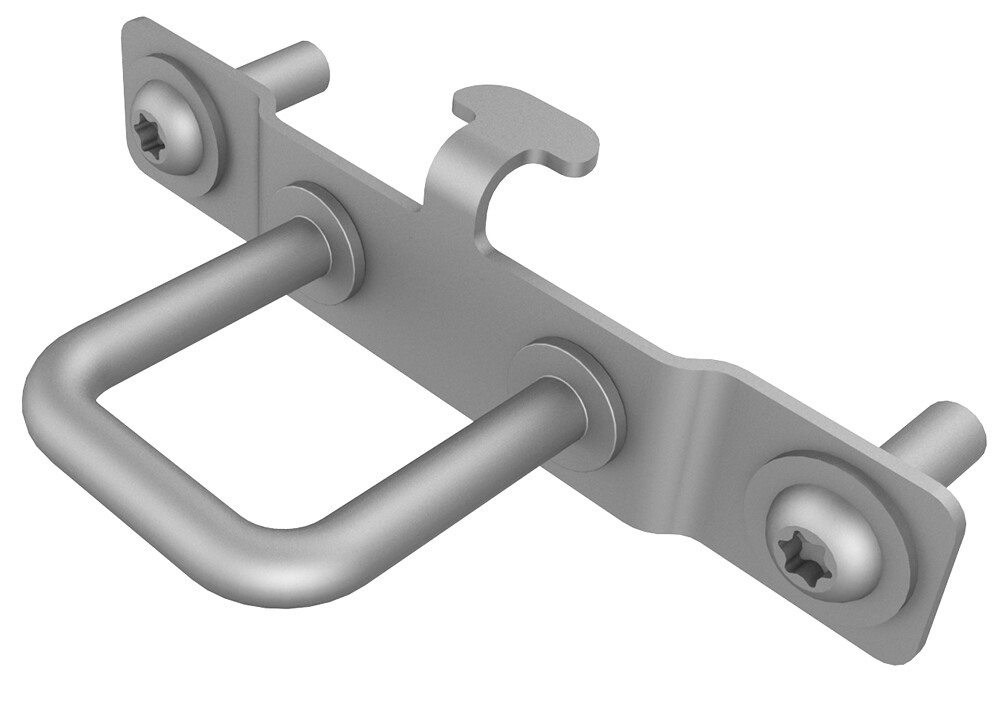

撞销 - 座椅靠背 - 第二排 - RH(拆卸和更换)

校正代码 13056402 0.36 NOTE: Unless otherwise explicitly stated in the procedure, the correction code and its associated FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See 人员保护 to make sure wearing proper PPE when performing the below procedure. NOTE: See 人体工程学注意事项 for safe and healthy working practices.

拆卸

  1. 拆下第二排下部座垫。请参阅座椅座垫 - 下部 - 第二排(拆卸和更换)。
  2. 拆下第二排座椅 LH 和 RH 侧承梁。请参阅承梁 - 侧 - 座椅 - 第二排 - 左侧(拆卸和更换)。
  3. 拆下 LH 边梁饰板。请参阅饰板 - 纵梁 - 左侧(拆卸和更换)。
  4. 拆下 C 柱 LH 上部饰板。请参阅饰板 - C 柱 - 上 - 左侧(拆卸和更换)。
  5. 拆下 RH 边梁饰板。请参阅饰板 - 纵梁 - 左侧(拆卸和更换)。
  6. 拆下 C 柱 RH 上部饰板。请参阅饰板 - C 柱 - 上 - 左侧(拆卸和更换)。

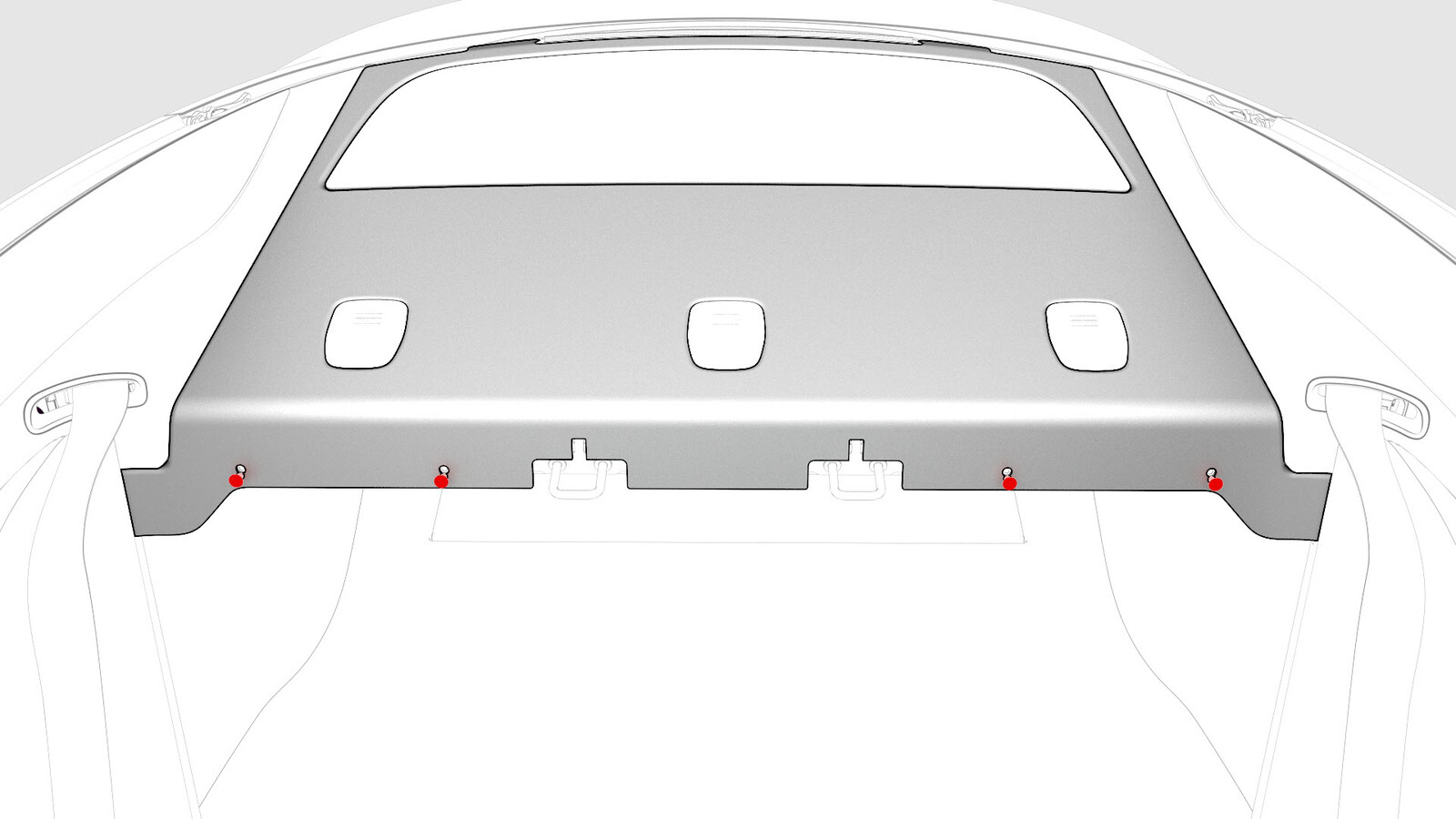

  7. 松开将杂物盘前部固定到车身的夹子 (x4)。
  8. 向前拉动杂物盘,然后抬起杂物盘,以便为座椅靠背撞销留出空间。
    注
    将杂物盘支撑在抬高的位置。

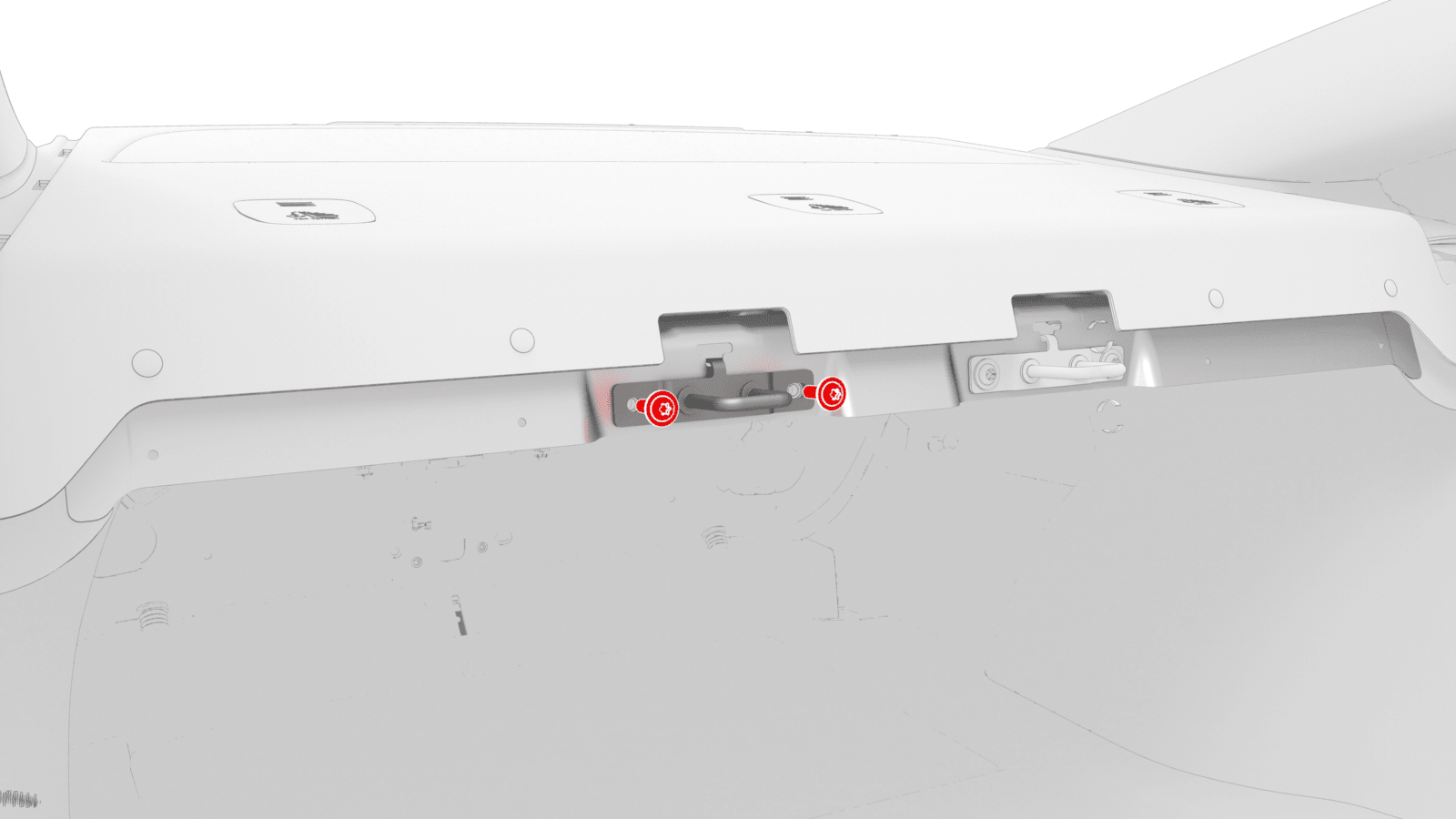

  9. 拆下将第二排座椅 RH 靠背撞销固定到车身的螺栓,然后从车上拆下撞销。
    16 Nm (11.8 lbs-ft)

安装

安装程序与拆卸程序相反。
